TIP31A/31C

TIP32A/32B/32C

COMPLEMENTARY SILICON POWER

TRANSISTORS

APPLICATION

LINEAR AND SWITCHING INDUSTRIAL

EQUIPMENT

DESCRIPTION
The

TIP31A

and

TIP31C

are

silicon

Epitaxial-Base

NPN

transistors

mounted

in

Jedec TO-220 plastic package. They are intented
for use in medium power linear and switching
applications.
The complementary PNP types are TIP32A and
TIP32C respectively.
Also TIP32B is a PNP type.

October 1999

INTERNAL SCHEMATIC DIAGRAM

1

2

3

TO-220

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Val ue

Un it

NPN

TIP31A

TIP31C

PNP

TIP32A

T IP32B

TIP32C

V

CBO

Collector-Base Voltage (I

E

= 0)

60

80

100

V

V

CEO

Collector-Emitter Voltage (I

B

= 0)

60

80

100

V

V

EBO

Emitter-Base Voltage (I

C

= 0)

5

V

I

C

Collector Current

3

A

I

CM

Collector Peak Current

5

A

I

B

Base Current

1

A

P

tot

T otal Dissipat ion at T

c ase

25

o

C

T

amb

25

o

C

40

2

W
W

T

s tg

Storage Temperature

-65 t o 150

o

C

T

j

Max. Operating Junction Temperature

150

o

C

For PNP types voltage and current values are negative



1/5

/var/www/html/datasheet/sites/default/files/pdfhtml_images/4137-html.html
background image

THERMAL DATA

R

thj -case

R

thj -amb

Thermal Resistance Junction-case

Max

Thermal Resistance Junction-ambient

Max

3.12
62. 5

o

C/W

o

C/W

ELECTRICAL CHARACTERISTICS (T

case

= 25

o

C unless otherwise specified)

Symbo l

Parameter

Test Con ditions

Min.

Typ.

Max.

Unit

I

CEO

Collector Cut-of f
Current (I

B

= 0)

for T IP31A/ 32A

V

CE

= 30 V

for T IP31C/ 32B/32C

V

CE

= 60 V

0. 3
0. 3

mA
mA

I

CES

Collector Cut-of f
Current (V

BE

= 0)

for T IP31A/ 32A

V

CE

= 60 V

for T IP/ 32B

V

CE

= 80 V

for T IP31C/ 32C

V

CE

= 100 V

0. 2
0. 2
0. 2

mA
mA
mA

I

EBO

Emitter Cut-of f Current
(I

C

= 0)

V

EB

= 5 V

1

mA

V

CEO (s us)

Collector-Emitt er
Sustaining Volt age
(I

B

= 0)

I

C

= 30 mA

for TIP31A/32A
for TIP32B
for TIP31C/32C

60
80

100

V
V
V

V

CE(sat)

Collector-Emitt er
Sat uration Voltage

I

C

= 3 A

I

B

= 375 mA

1. 2

V

V

BE(on)

Base-Emitter Volt age

I

C

= 3 A

V

CE

= 4 V

1. 8

V

h

FE

DC Current G ain

I

C

= 1 A

V

CE

= 4 V

I

C

= 3 A

V

CE

= 4 V

25
10

50

h

fe

Small Signall Current
Gain

I

C

= 0.5 A

V

CE

= 10 V f = 1 KHz

I

C

= 0.5 A

V

CE

= 10 V f = 1 MHz

20

3

∗

Pulsed : pulse duration = 300

µ

s, duty cycle

2%

For PNP types voltage and current values are negative.

Safe Operating Area

Derating Curves

TIP31A/TIP31C/TIP32A/TIP32B/TIP32C

2/5

/var/www/html/datasheet/sites/default/files/pdfhtml_images/4137-html.html
background image

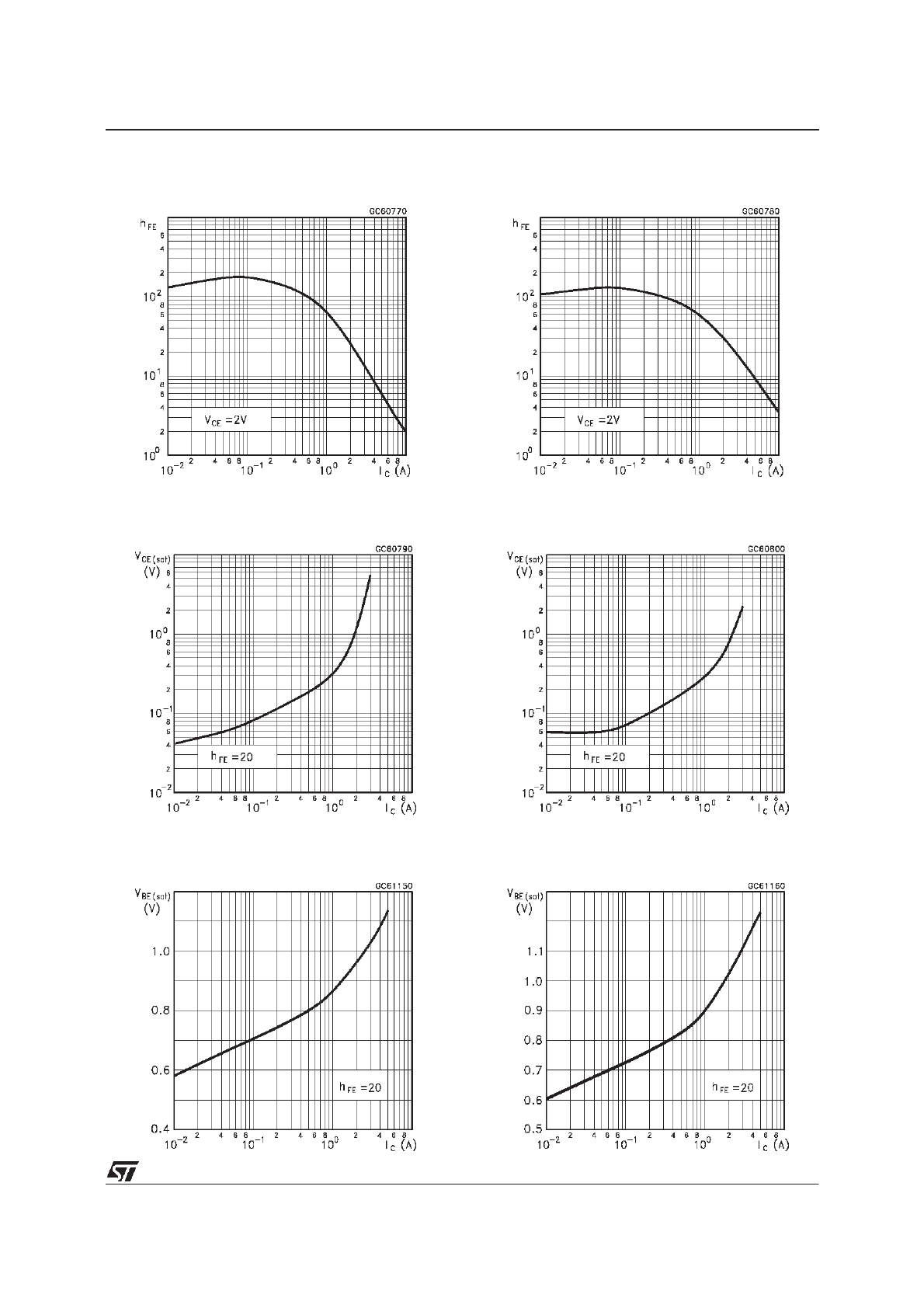

DC Current Gain (NPN type)

Collector-Emitter Saturation Voltage (NPN type)

Base-Emitter Saturation Voltage (NPN type)

DC Current Gain (PNP type)

Collector-Emitter Saturation Voltage (PNP type)

Collector-Base Capacitance (PNP type)

TIP31A/TIP31C/TIP32A/TIP32B/TIP32C

3/5

/var/www/html/datasheet/sites/default/files/pdfhtml_images/4137-html.html
background image

DIM.

mm

inch

MIN.

TYP.

MAX.

MIN.

TYP.

MAX.

A

4.40

4.60

0.173

0.181

C

1.23

1.32

0.048

0.051

D

2.40

2.72

0.094

0.107

D1

1.27

0.050

E

0.49

0.70

0.019

0.027

F

0.61

0.88

0.024

0.034

F1

1.14

1.70

0.044

0.067

F2

1.14

1.70

0.044

0.067

G

4.95

5.15

0.194

0.203

G1

2.4

2.7

0.094

0.106

H2

10.0

10.40

0.393

0.409

L2

16.4

0.645

L4

13.0

14.0

0.511

0.551

L5

2.65

2.95

0.104

0.116

L6

15.25

15.75

0.600

0.620

L7

6.2

6.6

0.244

0.260

L9

3.5

3.93

0.137

0.154

DIA.

3.75

3.85

0.147

0.151

P011C

TO-220 MECHANICAL DATA

TIP31A/TIP31C/TIP32A/TIP32B/TIP32C

4/5

/var/www/html/datasheet/sites/default/files/pdfhtml_images/4137-html.html
background image

Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are
subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products
are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.

The ST logo is a trademark of STMicroelectronics

1999 STMicroelectronics – Printed in Italy – All Rights Reserved

STMicroelectronics GROUP OF COMPANIES

Australia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia - Malta - Morocco -

Singapore - Spain - Sweden - Switzerland - United Kingdom - U.S.A.

http://www.st.com

.

TIP31A/TIP31C/TIP32A/TIP32B/TIP32C

5/5
