Highlights
• Integrated USB 2.0 Compatible 3-Port Hub
- 3 Transaction Translators for highest perfor-
mance
- High-Speed (480Mbits/s), Full-Speed
(12Mbits/s) and Low-Speed (1.5Mbits/s)
compatible
- Full power management with per port or
ganged, selectable power control
- Detects Bus-Power/Self-Power source and
changes mode automatically
• Complete USB Specification 2.0 Compatibility
- Includes USB 2.0 Transceivers
• VID/PID/DID, and Port Configuration for Hub via:
- Single Serial I
2
C EEPROM
- SMBus Slave Port
• Default VID/PID/DID, allows functionality when
configuration EEPROM is absent
• Hardware Strapping options allow for configura-
tion without an external EEPROM or SMBus Host
• On-Board 24MHz Crystal Driver Circuit or 24 MHz
external clock driver
• Internal PLL for 480MHz USB 2.0 Sampling
• Internal 1.8V Linear Voltage Regulator
• Integrated USB termination and Pull-up/Pull-down
resistors
• Internal Short Circuit protection of USB differential
signal pins
• 1.8 Volt Low Power Core Operation
• 3.3 Volt I/O with 5V Input Tolerance
• 48-Pin QFN RoHS compliant package
USB2503/USB2503A
Integrated USB 2.0 Compatible 3-Port Hub
USB2503/USB2503A
DS000002249A-page 2
2007 - 2016 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2007 - 2016 Microchip Technology Inc.
DS000002249A-page 3
USB2503/USB2503A
Table of Contents
1.0 Introduction ..................................................................................................................................................................................... 4
2.0 Pin Table 3-Port .............................................................................................................................................................................. 5
3.0 Pin Configuration 3-Port Hub .......................................................................................................................................................... 6
4.0 3-Port Hub Block Diagram .............................................................................................................................................................. 7
5.0 Functional Block Description ......................................................................................................................................................... 12
6.0 XNOR Test .................................................................................................................................................................................... 30
7.0 DC Parameters ............................................................................................................................................................................. 31
8.0 AC Specifications .......................................................................................................................................................................... 34
9.0 Package Outline ............................................................................................................................................................................ 35
Appendix A: Data Sheet Revision History ........................................................................................................................................... 37
The Microchip Web Site ...................................................................................................................................................................... 38
Customer Change Notification Service ............................................................................................................................................... 38
Customer Support ............................................................................................................................................................................... 38
Product Identification System ............................................................................................................................................................. 40
USB2503/USB2503A
DS000002249A-page 4
2007 - 2016 Microchip Technology Inc.
1.0
INTRODUCTION
The Microchip 3-Port Hub is fully compliant with the USB 2.0 Specification and will attach to a USB host as a Full-Speed
Hub or as a Full-/High-Speed Hub. The 3-Port Hub supports Low-Speed, Full-Speed, and High-Speed (if operating as
a High-Speed Hub) downstream devices on all of the enabled downstream ports.
A dedicated Transaction Translator (TT) is available for each downstream facing port. This architecture ensures maxi-
mum USB throughput for each connected device when operating with mixed-speed peripherals.
The Hub works with an external USB power distribution switch device to control V
BUS
switching to downstream ports,
and to limit current and sense over-current conditions.
All required resistors on the USB ports are integrated into the Hub. This includes all series termination resistors on D+
and D– pins and all required pull-down and pull-up resistors on D+ and D– pins. The over-current sense inputs for the
downstream facing ports have internal pull-up resistors.
Throughout this document the upstream facing port of the hub will be referred to as the upstream port, and the down-
stream facing ports will be called the downstream ports.
1.1
OEM Selectable Features
A default configuration is available in the USB2503/USB2503A following a reset. This configuration may be sufficient
for some applications. Strapping option pins make it possible to modify a limited sub-set of the configuration options.
The USB2503/USB2503A may also be configured by an external EEPROM or a microcontroller. When using the micro-
controller interface, the Hub appears as an SMBus slave device. If the Hub is pin-strapped for external EEPROM con-
figuration but no external EEPROM is present, then a value of ‘0’ will be written to all configuration data bit fields (the
hub will attach to the host with all ‘0’ values).
The 3-Port Hub supports several OEM selectable features:
• Operation as a Self-Powered USB Hub or as a Bus-Powered USB Hub.
• Operation as a Dynamic-Powered Hub (Hub operates as a Bus-Powered device if a local power source is not
available and switches to Self-Powered operation when a local power source is available).
• Multiple Transaction Translator (Multi-TT) or Single-TT support.
• Optional OEM configuration via I
2
C EEPROM or via the industry standard SMBus interface from an external
SMBus Host.
• Port power switching on an individual or ganged basis.
• Port over-current monitoring on an individual or ganged basis.
• Compound device support (port is permanently hardwired to a downstream USB peripheral device).
• Hardware strapping options enable configuration of the following features.
- Non-Removable Ports
- Port Power Polarity (active high or active low logic)
- Port Disable
- Ganged Vs Port power switching and over-current sensing
2007 - 2016 Microchip Technology Inc.
DS000002249A-page 5
USB2503/USB2503A
2.0
PIN TABLE 3-PORT
TABLE 2-1:
3-PORT PIN TABLE
UPSTREAM USB 2.0 INTERFACE (3-PINS)
USBDP0
USBDN0
VBUS_DET
3-PORT USB INTERFACE (18-PINS)
USBDP1
USBDN1
USBDP2
USBDN2
USBDP3
USBDN3
GR1/
NON_REM0
GR2/
NON_REM1
GR3/
PRT_DIS0
PRTPWR1
PRTPWR2
PRTPWR3
PRTPWR_POL
OCS1_N
OCS2_N
OCS3_N
GANG_EN
RBIAS
SERIAL PORT (3-PINS)
SDA/SMBDATA
SCL/SMBCLK/CFG_-
SEL0
CFG_SEL1
MISC (8-PINS)
XTAL1/CLKIN
XTAL2
RESET_N
SELF_PWR
TEST1
TEST0
ATEST/
REG_EN
CLKIN_EN
POWER & GROUNDS (16-PINS)
USB2503/USB2503A
DS000002249A-page 6
2007 - 2016 Microchip Technology Inc.
3.0
PIN CONFIGURATION 3-PORT HUB

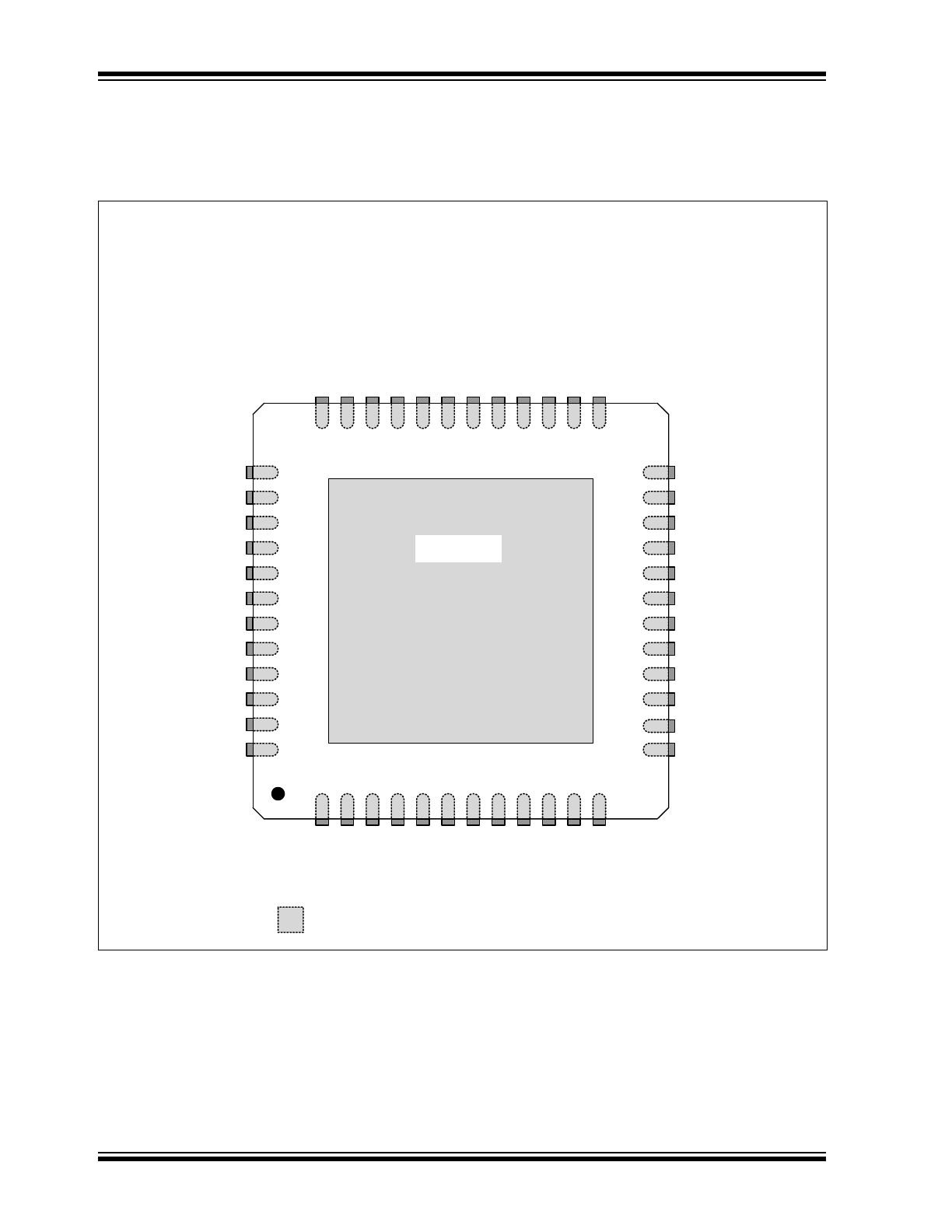

FIGURE 3-1:
3-PORT 48-PIN QFN
Thermal Slug
(must be connected to VSS)
SMSC
USB2503
&
USB2503A
(Top View QFN-48)
Indicates pins on the bottom of the device.
VD
D
A
33
1
U
SBDP0
2
USB
DN0
3
VS
S
4
USB
DN1
5
U
SBDP1
6
VD
D
A
33
7
U
SBDP2
8
USB
DN2
9
VS
S
1
0
USB
DN3
11
U
SBDP3
12
24
TEST0
23
VDD18
22
VSS
21
GR1/NON_REM0
20
GANG_EN
19
GR2/NON_REM1
18
PRTPWR_POL
17
GR3/PRT_DIS0
16
PRTPWR2
15
OCS3_N
14
PRTPWER3
13
VDDA33
RESET_N
37
VSS
38
VDD33CR
39
VDD18
40
VSS
41
XTAL1/CLKIN
43
VDDA18PLL
44
VDDA33PLL
45
VSS
48
RBIAS
47
ATEST/REG_EN
46
XTAL2
42
35
CL
KIN_
EN
34
O
C
S1
_N
33
PRT
P
W
R
1
32
O
C
S2
_N
31
VDD
1
8
30
VSS
29
VBU
S_DET
28
SELF_PWR
26
SCL/SM
BC
LK/C
FG_SEL0
25
SDA
/SM
BDA
T
A
27
CFG_SEL1
36
TEST1
