Highlights

The Microchip USB224x is a USB 2.0 compliant, Hi-
Speed bulk only

1

 mass storage class peripheral con-

troller intended for reading and writing to popular flash
media from the xD-Picture Card

TM

 (xD)

2

, Memory

Stick

®

 (MS), Secure Digital (SD), and MultiMedia-

Card

TM

 (MMC) families.

The USB224x is a fully integrated, single chip solution
capable of ultra high performance operation. Average
sustained transfer rates exceeding 35 MB/s are possi-
ble if the media and host can support those rates. The
USB2244/44i includes provisions to read/write secure
media formats.

General Features

• Low pin count 36-pin QFN (6x6 mm) RoHS com-

pliant package

• USB2240/40I/41/41I

- Targeted for applications in which single or

"combo" media sockets are used

• Hardware-controlled data flow architecture for all

self-mapped media

• Pipelined hardware support for access to non-

self-mapped media

• Order number with “I” denote the products that

support the industrial temperature range of -40ºC
to 85ºC

• Support included for secure media format on a

licensed, customized basis
- USB2244/44I: SD Secure

Hardware Features

• Single chip flash media controller with

- USB2240/40I/41/4I: multiplexed interface for

use with “combo” card sockets

- USB2244/44I: SD/MMC flash media reader/

writer

• MMC Streaming Mode support
• Extended configuration options

- xD player mode operation
- Socket switch polarities, etc.

• Media Activity LED
• On board 24 MHz crystal driver circuit
• Optional external 24 MHz clock input

3

• Internal card power FET

- 200 mA
- "Fold-back" short circuit protection

• 8051 8-bit microprocessor

- 60 MHz - single cycle execution
- 64 KB ROM | 14 KB RAM

• Supports a single external 3.3 V supply source;

internal regulators provide 1.8 V internal core volt-
age for additional bill of materials and power sav-
ings

• Optimized pinout improves signal routing which

eases implementation for improved signal integ-
rity

Flash Media Specification Compliance

• Secure Digital 2.0

- HS-SD, SDHC
- TransFlash

TM

and reduced form factor media

• MultiMediaCard 4.2

- 1/4/8-bit MMC

• Memory Stick Formats

- MS 1.43, Pro 1.02, Duo 1.10
- Pro-HG Duo 1.01

–MS, MS Duo, HS-MS, MS Pro-HG, MS Pro

• xD-Picture Card 1.2

Software Features

• Customizable vendor specific data
• Optimized for low latency interrupt handling
• Reduced memory footprint

Applications

• Flash media card reader/writers
• Desktop and mobile PCs
• Printers
• Consumer A/V and media players/viewers
• Compatible with

–Microsoft

®

 Vista

TM

and Vista ReadyBoost

TM

–Windows

®

 XP, ME, 2K SP4

–Apple Mac OSx

®

–Linux Mass Storage Class Drivers

1.Bulk only is not applicable to USB2240/40i/41/41i.
2.xD-Picture Card is not applicable to USB2241/41i.

3.Only applicable to USB2240/40i/41/41i.

USB224X

Ultra Fast USB 2.0 Multi-Format, SD/MMC, and MS Flash

Media Controllers

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

USB224X

DS00001979A-page 2

 2010 - 2015 Microchip Technology Inc.

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at

docerrors@microchip.com

. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;

http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.

Customer Notification System

Register on our web site at

www.microchip.com

 to receive the most current information on all of our products.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

 2010 - 2015 Microchip Technology Inc.

DS00001979A-page 3

USB224X

1.0

INTRODUCTION

The Microchip USB224x is a flash media card reader solution fully compliant with the USB 2.0 specification. All required
resistors on the USB ports are integrated into the device. This includes all series termination resistors on D+ and D–
pins and all required pull-down and pull-up resistors. The over-current sense inputs for the downstream facing ports
have internal pull-up resistors.

1.1

Hardware Features

• Single chip flash media controller in low pin count 36-pin QFN, RoHS compliant package

• Commercial temperature products support 0°C to +70°C: USB2240/41 and USB2244

• Industrial temperature products support -40°C to +85°C: USB2240I/41I and USB2244I

• 8051 8-bit microprocessor

- 60 MHz - single cycle execution

- 64 KB ROM |14 KB RAM

• Supports a single external 3.3 V supply source; internal regulators provide 1.8 V internal core voltage for addi-

tional bill of materials and power savings

Compliance with the following flash media card specifications:

• Secure Digital 2.0

- HS-SD and SDHC

- TransFlash™ and reduced form factor media

• MultiMediaCard 4.2

- 1/4/8 bit MMC

• Memory Stick 1.43

• Memory Stick Pro Format 1.02

• Memory Stick Pro-HG Duo Format 1.01

- Memory Stick, MS Duo, HS-MS, MS Pro-HG, MS Pro

• Memory Stick Duo 1.10

• xD-Picture Card 1.2

1.2

Software Features

• If the OEM is using an external EEPROM, the following features are available:

- Customizable vendor, product, language, and device ID’s

- 12-hex digits maximum for the serial number string

- 28-character manufacturer ID and product strings for the flash media reader/writer

- LED blink interval or duration

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

USB224X

DS00001979A-page 4

 2010 - 2015 Microchip Technology Inc.

2.0

ACRONYMS

ATA:

Advanced Technology Attachment

FET:

Field Effect Transistor

LUN:

Logical Unit Number

MMC: MultiMediaCard

MSC:

Memory Stick Controller

1

PLL: Phase-Locked

Loop

QFN:

Quad Flat No leads

RoHS:

Restriction of Hazardous Substances Directive

RXD:

Received eXchange Data

SDC:

Secure Digital Controller

SIE:

Serial Interface Engine

TXD:

Transmit eXchange Data

UART:

Universal Asynchronous Receiver-Transmitter

UCHAR:

Unsigned Character

UINT:

Unsigned Integer

1.Not applicable to USB2244/44i.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

 2010 - 2015 Microchip Technology Inc.

DS00001979A-page 5

USB224X

3.0

BLOCK DIAGRAMS

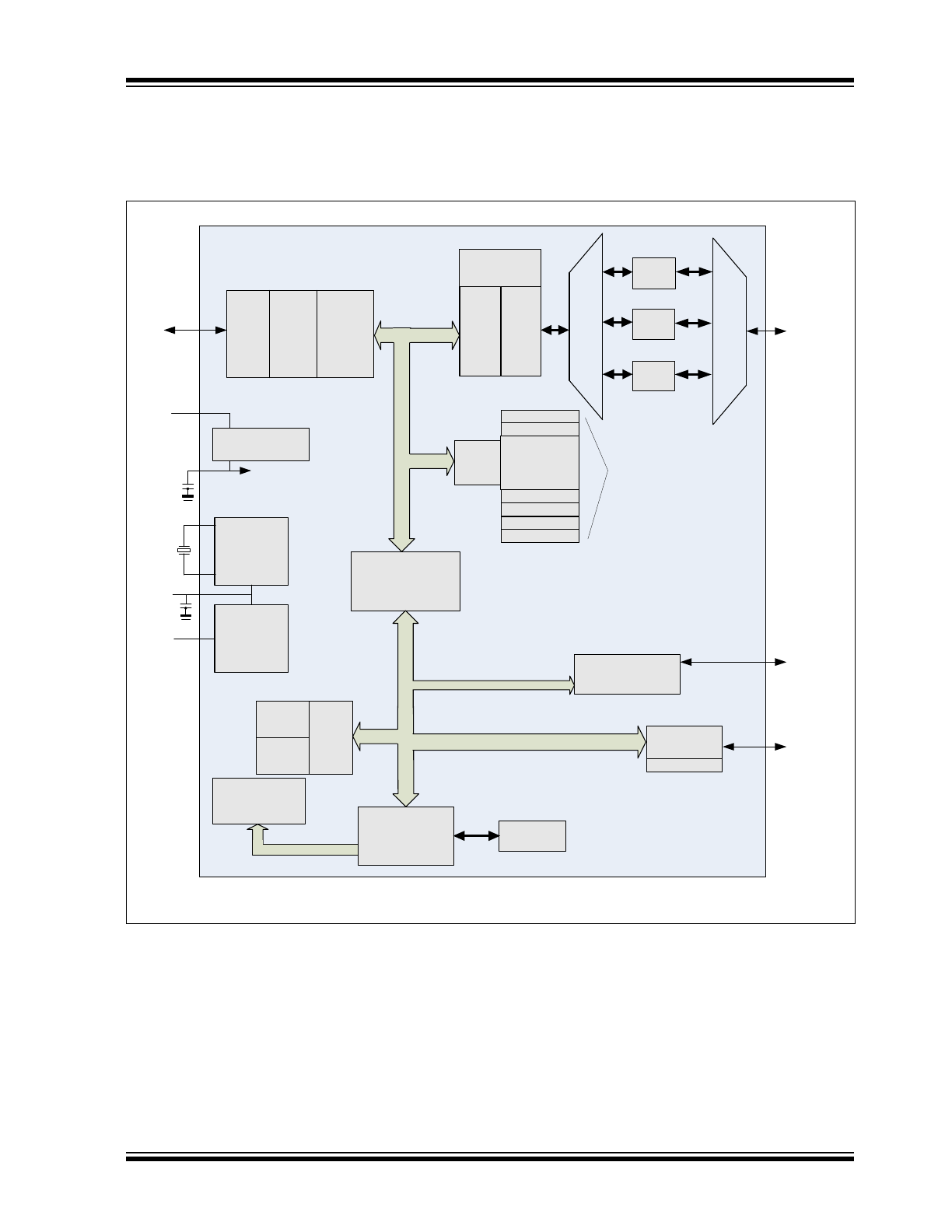

FIGURE 3-1:

USB2240/40I/41/41I BLOCK DIAGRAM

FMDU

CTL

8051

PROCESSOR

SFR

RAM

MS

RAM

USB

Host

AUTO_CBW

PROC

PHY

FMI

XDATA  BRIDGE

+ BUS ARBITER

BUS

INTFC

BUS

INTFC

BUS

INTFC



EP0 TX

EP0 RX

EP2 TX

EP2 RX

EP1 RX
EP1 TX

ROM

64 KB

RAM

10 KB

ADDR

MAP

PWR_FET1

Clock

Generation and

Control

SD/

MMC

4K

total

3.3 V

1.8 V Reg

VDD18

3.3 V

VDD18PLL

PLL

24 MHz

Crystal

SIE

CTL

1.8 V Reg

USB2240/40I

 USB2241/41I*

xD*

Multiplexed
Interface

NOTE: xD-Picture Card is not applicable to USB2241/41i.

CRD_PWR

SPI

Interface

SPI
Interface

Trace FIFO

Program Memory I/O Bus

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

USB224X

DS00001979A-page 6

 2010 - 2015 Microchip Technology Inc.

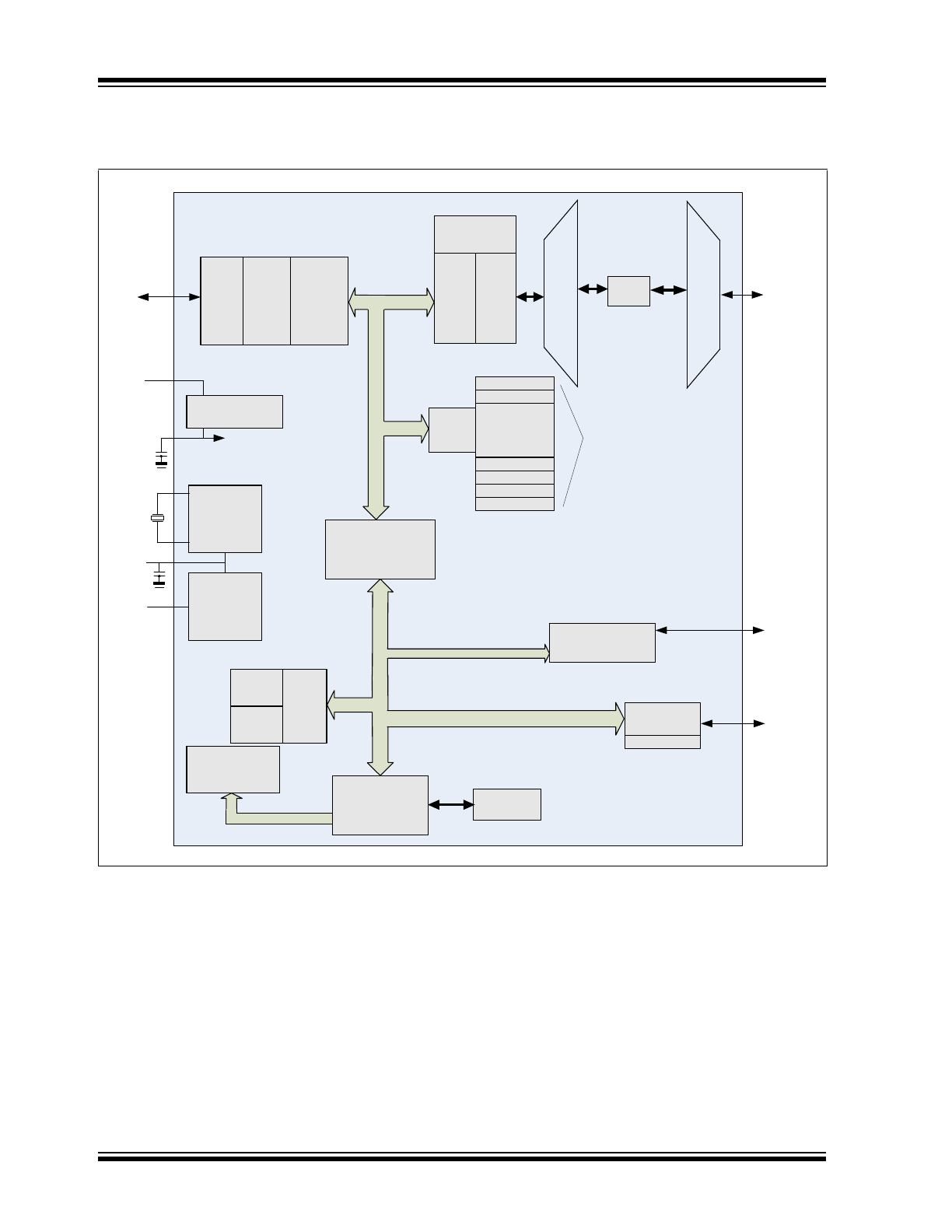

FIGURE 3-2:

USB2244/44I BLOCK DIAGRAM

FMDU

CTL

8051

PROCESSOR

SFR

RAM

SD/

MMC

RAM

USB

Host

AUTO_CBW

PROC

PHY

FMI

XDATA  BRIDGE

+ BUS ARBITER

BUS

INTFC

BUS

INTFC

BUS

INTFC



EP0 TX

EP0 RX

EP2 TX

EP2 RX

EP1 RX
EP1 TX

ROM

64 KB

RAM

10 KB

ADDR

MAP

PWR_FET1

CRD_PWR

Clock

Generation and

Control

4K

total

3.3 V

1.8 V Reg

VDD18

3.3 V

VDD18PLL

PLL

24 MHz

Crystal

SIE

CTL

1.8 V Reg

USB2244/USB2244I

Media
Interface

SPI

Interface

SPI
Interface

Trace FIFO

Program Memory I/O Bus

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

 2010 - 2015 Microchip Technology Inc.

DS00001979A-page 7

USB224X

4.0

PIN CONFIGURATIONS

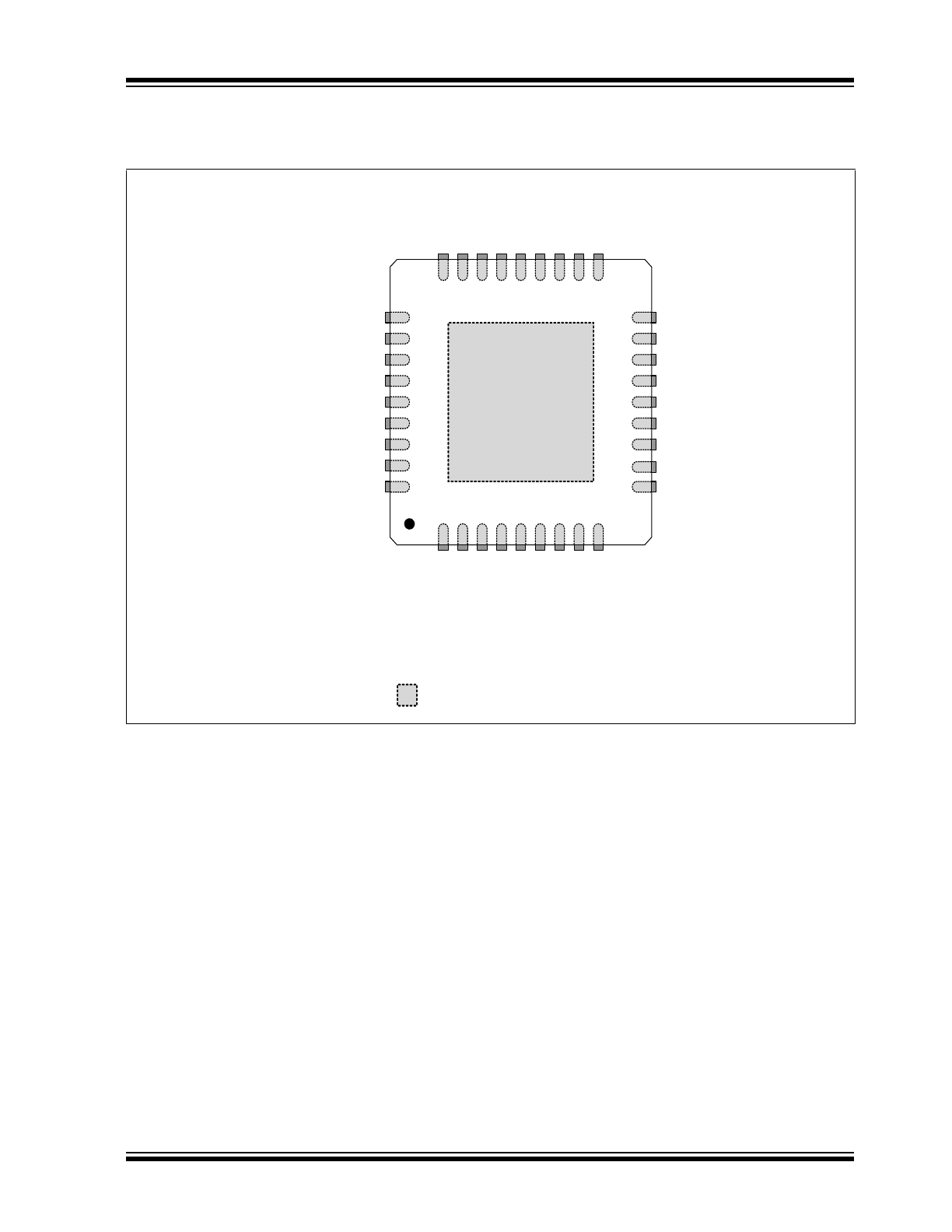

FIGURE 4-1:

USB2240/USB2240I 36-PIN QFN DIAGRAM

Ground Pad

(must be connected to VSS)

USB2240/2240I

(Top View QFN-36)

Indicates pins on the bottom of the device.

26

xD_

D

6 /

SD_D3

/ MS_

D

3

25

SD_nCD

24

xD_

D

5 /

SD_D2

23

MS

_I

NS

22

VDD33

21

CRD_

PWR

20

19

RXD /

S

D

A

27

18

17

16

15

14

13

12

11

10

28

29

31

32

33

36

35

34

30

1

2

3

4

5

6

7

8

9

TEST

NC

xD_D4 / (SD_WP) / MS_SCLK

TXD / SCK / MS_SKT_SEL

XTAL2

XTAL1 (CLKIN)

VDD18PLL

RBIAS

VDDA33

LE

USB+

USB-

x

D

_D

3

 /

 SD

_D

1

 /

 M

S

_

D

5

x

D

_D

2

 /

 SD

_D

0

 /

 M

S

_

D

4

VDD3

3

xD_

D

0

 / S

D

_D6 /

MS_

D

7

xD_n

WP /

SD_CL

K

 /

MS_

B

S

xD_ALE / SD_D5 / MS_D1

VDD18

xD_nWE

xD_CLE / SD_CMD / MS_D0

xD_nCE

xD_nRE

xD_nB/R

RESET_N

(x

D

_nCD)

x

D

_

D

7 /

 SD

_D

4

 /

 M

S

_

D

2

xD_

D

1

 / S

D

_D7 /

MS_

D

6

VDD33

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

USB224X

DS00001979A-page 8

 2010 - 2015 Microchip Technology Inc.

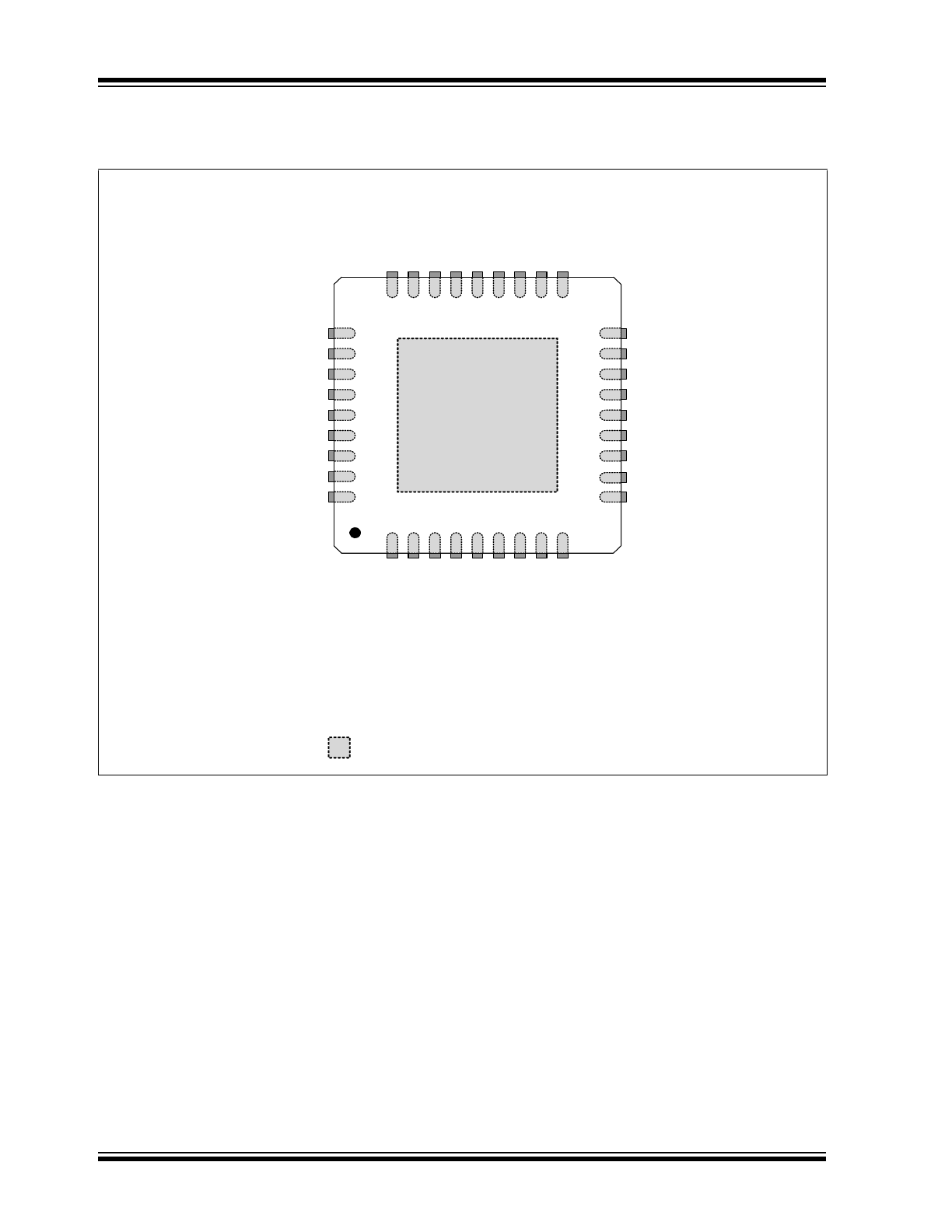

FIGURE 4-2:

USB2241/USB2241I 36-PIN QFN DIAGRAM

Ground Pad

(must be connected to VSS)

USB2241/2241I

(Top View QFN-36)

Indicates pins on the bottom of the device.

26

SD_D3 /

M

S

_D3

25

SD_nCD

24

SD_D2

23

MS

_

IN

S

22

VDD33

21

CRD

_

P

W

R

20

19

RXD / SDA

27

18

17

16

15

14

13

12

11

10

28

29

31

32

33

36

35

34

30

1

2

3

4

5

6

7

8

9

TEST

NC

             SD_WP / MS_SCLK

TXD / SCK / MS_SKT_SEL

XTAL2

XTAL1 (CLKIN)

VDD18PLL

RBIAS

VDDA33

LE

D



USB+

USB-

SD_D1

 /

M

S

_D5

SD_D0

 /

M

S

_D4

VDD33

SD_D6

 /

M

S

_D7

SD_CLK /

M

S

_

B

S

 SD_D5 / MS_D1

VDD18

NC

        SD_CMD / MS_D0

NC

NC

NC

RESET_N

NC

S

D

_D4 / MS_D2

SD_D7

 /

M

S

_D6

VDD33

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

 2010 - 2015 Microchip Technology Inc.

DS00001979A-page 9

USB224X

FIGURE 4-3:

USB2244/USB2244I 36-PIN QFN DIAGRAM

Ground Pad

(must be connected to VSS)

USB2244/2244I

(Top View QFN-36)

Indicates pins on the bottom of the device.

26

SD

_

D

3

25

SD

_

n

C

D

24

SD

_

D

2

23

NC

22

VD

D

3

3

21

CRD

_P

WR

20

19

RX

D

 /

 S

D

A

27

18

17

16

15

14

13

12

11

10

28

29

31

32

33

36

35

34

30

1

2

3

4

5

6

7

8

9

TEST

NC

                                                   SD_WP

TXD / SCK

XTAL2

XTAL1 (CLKIN)

VDD18PLL

RBIAS

VDDA33

LED

USB+

US

B-





 S

D

_D

1







SD

_

D

0



VDD33



SD

_D

6

SD_

C

L

K

SD_D5

VDD18

NC

SD_CMD

 NC

 NC

 NC

RESET_N

NC

SD

_

D

4



SD

_D

7

 VDD33

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00001979A-html.html
background image

USB224X

DS00001979A-page 10

 2010 - 2015 Microchip Technology Inc.

5.0

PIN TABLES

TABLE 5-1:

USB2240/2240I 36-PIN QFN PACKAGE

xD/SD/MS INTERFACE (18 PINS)

xD_D3 /

SD_D1 /

MS_D5

xD_D2 /

SD_D0 /

MS_D4

xD_D1 /

SD_D7 /

MS_D6

xD_D0 /

SD_D6 /

MS_D7

xD_nWP /

SD_CLK /

MS_BS

xD_ALE /

SD_D5 /

MS_D1

xD_CLE /

SD_CMD /

MS_D0

xD_D7 /

SD_D4 /

MS_D2

xD_D6 /

SD_D3 /

MS_D3

xD_D5 / SD_D2

xD_nRE

xD_nWE

xD_D4 /

SD_WP /

MS_SCLK

xD_nB/R

xD_nCE

MS_INS

xD_nCD

SD_nCD

USB INTERFACE (5 PINS)

USB+

USB-

XTAL1 (CLKIN)

XTAL2

RBIAS

MISC (7 Pins)

LED

RXD /

SDA

NC

TXD /

SCK /

MS_SKT_SEL

CRD_PWR

TEST

RESET_N

DIGITAL, POWER (6 PINS)

(3) VDD33

VDDA33

VDD18

VDD18PLL

TOTAL 36

Maker
Microchip Technology Inc.
Datasheet PDF Download
