High-Performance RISC CPU:

• Only 33 Single-Word Instructions
• All Single-Cycle Instructions except for Program

Branches which are Two-Cycle

• Two-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes

for Data and Instructions

• Operating Speed:

- DC – 20 MHz crystal oscillator
- DC – 200 ns instruction cycle

• On-chip Flash Program Memory:

- 1024 x 12

• General Purpose Registers (SRAM):

- 67  x  8

• Flash Data Memory:

- 64  x  8

Special Microcontroller Features:

• 8 MHz Precision Internal Oscillator:

- Factory calibrated to ±1%

• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) Support
• Power-On Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with Dedicated On-Chip

RC Oscillator for Reliable Operation

• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Internal Weak Pull-ups on I/O Pins
• Power-Saving Sleep mode
• Wake-Up from Sleep on Pin Change
• Selectable Oscillator Options:

- INTRC: 4 MHz or 8 MHz precision Internal

RC oscillator

- EXTRC: External low-cost RC oscillator
- XT:

Standard crystal/resonator

- HS:

High-speed crystal/resonator

- LP:

Power-saving, low-frequency crystal

- EC:

High-speed external clock input

Low-Power Features/CMOS Technology:

• Standby current:

- 100 nA @ 2.0V, typical

• Operating current:

- 11

A @ 32 kHz, 2.0V, typical

- 175

A @ 4 MHz, 2.0V, typical

• Watchdog Timer current:

- 1

A @ 2.0V, typical

- 7

A @ 5.0V, typical

• High Endurance Program and Flash Data Memory

cells:
- 100,000 write Program Memory endurance

- 1,000,000 write Flash Data Memory endurance

- Program and Flash Data retention: >40 years

• Fully Static Design
• Wide Operating Voltage Range: 2.0V to 5.5V:

- Wide temperature range
- Industrial: -40

C to +85C

- Extended: -40

C to +125C

Peripheral Features:

• 12 I/O Pins:

- 11 I/O pins with individual direction control
- 1 input-only pin
- High current sink/source for direct LED drive
- Wake-up on change
- Weak pull-ups

• 8-bit Real-time Clock/Counter (TMR0) with 8-bit

Programmable Prescaler

• Two Analog Comparators:

- Comparator inputs and output accessible

externally

- One comparator with 0.6V fixed on-chip

absolute voltage reference (V

REF

)

- One comparator with programmable on-chip

voltage reference (V

REF

)

• Analog-to-Digital (A/D) Converter:

- 8-bit resolution
- 3-channel external programmable inputs
- 1-channel internal input to internal absolute

0.6 voltage reference

Device

Program

Memory

Data Memory

I/O

Comparators

Timers 8-bit

8-bit A/D

Channels

Flash (words) SRAM (bytes)

Flash

(bytes)

PIC16F526

1024

67

64

12

2

1

3

14-Pin, 8-Bit Flash Microcontroller

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

PIC16F526

DS41326E-page 4

 2010 Microchip Technology Inc.

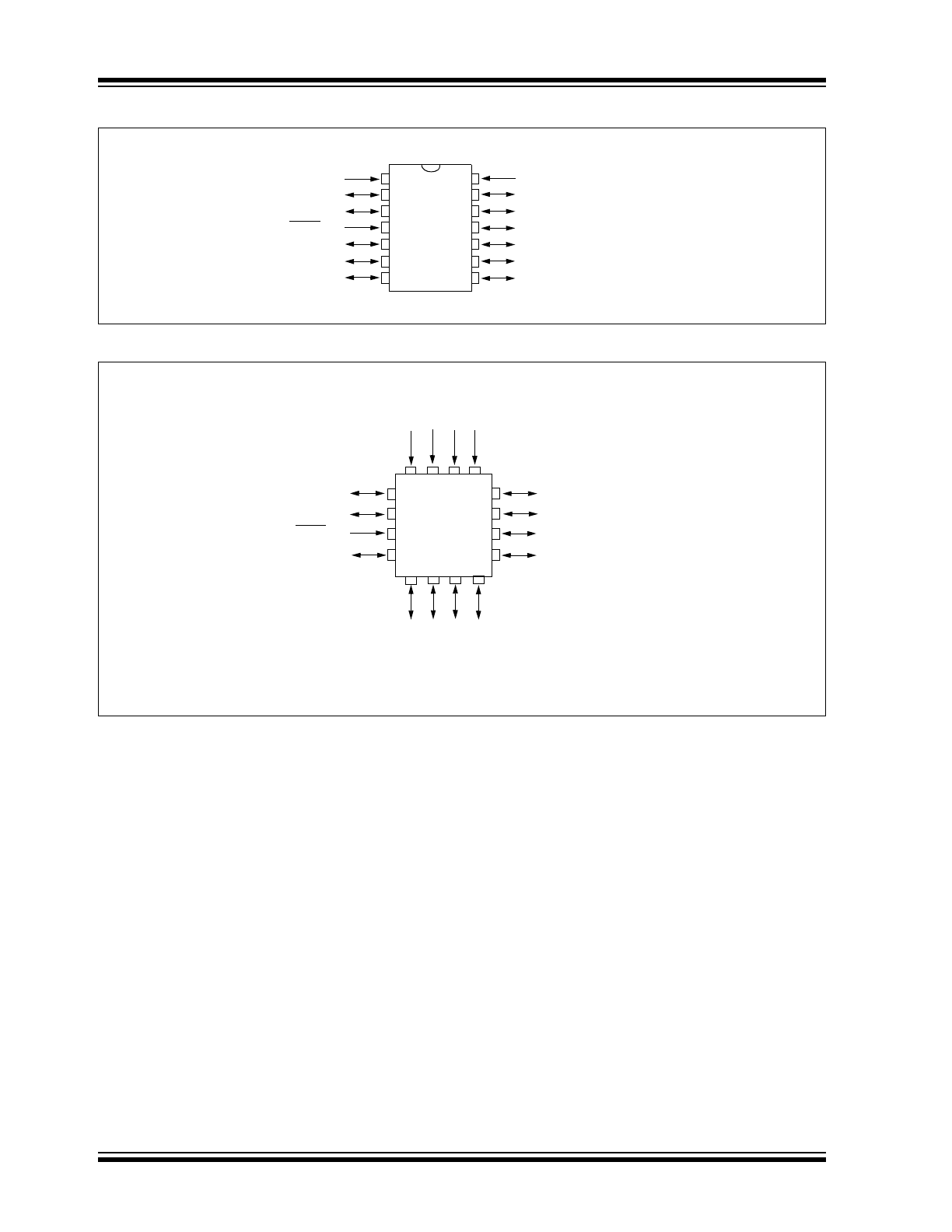

FIGURE 1-1:

14-PIN PDIP, SOIC, TSSOP DIAGRAM

FIGURE 1-2:

16-PIN QFN DIAGRAM

V

DD

RB5/OSC1/CLKIN

RB4/OSC2/CLKOUT

RB3/MCLR/V

PP

RC5/T0CKI

RC4/C2OUT

RC3

V

SS

RB0/C1IN+/AN0/ICSPDAT
RB1/C1IN-/AN1/ICSPCLK
RB2/C1OUT/AN2
RC0/C2IN+
RC1/C2IN-
RC2/CV

REF

P

IC1

6F

526

1
2
3
4
5
6
7

8

9

10

11

12

13

14

PI

C16F

526

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

V

DD

NC

NC

GND

RC5/T0CKI

RB4/OSC2/CLKOUT

RB3/MCLR/V

PP

RB5/OSC1/CLKIN

RB0/C1IN+/AN0/ICSPDAT

RB1/C1IN-/AN1/ICSPCLK

RB2/C1OUT/AN2

RC0/C2IN+

RC4

/C2

O

UT

RC3

RC2

/C

V

RE

F

RC1

/C2

IN-

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

 2010 Microchip Technology Inc.

DS41326E-page 5

PIC16F526

Table of Contents

1.0

General Description.....................................................................................................................................................................  7

2.0

PIC16F526 Device Varieties ......................................................................................................................................................   9

3.0

Architectural Overview ..............................................................................................................................................................  11

4.0

Memory Organization ................................................................................................................................................................  15

5.0

Flash Data Memory Control ......................................................................................................................................................  23

6.0

I/O Port ......................................................................................................................................................................................  27

7.0

Timer0 Module and TMR0 Register ..........................................................................................................................................  37

8.0

Special Features of the CPU.....................................................................................................................................................  43

9.0

Analog-to-Digital (A/D) Converter..............................................................................................................................................  59

10.0 Comparator(s) ...........................................................................................................................................................................  63
11.0 Comparator Voltage Reference Module....................................................................................................................................  69
12.0 Instruction Set Summary ...........................................................................................................................................................  71
13.0 Development Support................................................................................................................................................................  79
14.0 Electrical Characteristics ...........................................................................................................................................................  83
15.0 DC and AC Characteristics Graphs and Charts ........................................................................................................................  97
16.0 Packaging Information.............................................................................................................................................................  107
The Microchip Web Site....................................................................................................................................................................  115
Customer Change Notification Service .............................................................................................................................................  115
Customer Support.............................................................................................................................................................................  115
Reader Response .............................................................................................................................................................................  116
Index .................................................................................................................................................................................................. 117
Product Identification System................ ...........................................................................................................................................  119

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Micro-
chip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined
and enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at docerrors@mail.microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150.
We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current
devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision
of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site; http://www.microchip.com
• Your local Microchip sales office (see last page)
• The Microchip Corporate Literature Center; U.S. FAX: (480) 792-7277
When contacting a sales office or the literature center, please specify which device, revision of silicon and data sheet (include lit-
erature number) you are using.

Customer Notification System

Register on our web site at www.microchip.com/cn to receive the most current information on all of our products.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

PIC16F526

DS41326E-page 6

 2010 Microchip Technology Inc.

NOTES:

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

 2010 Microchip Technology Inc.

DS41326E-page 7

PIC16F526

1.0

GENERAL DESCRIPTION

The PIC16F526 device from Microchip Technology is
low-cost, high-performance, 8-bit, fully-static, Flash-
based CMOS microcontrollers. It employs a RISC
architecture with only 33 single-word/single-cycle
instructions. All instructions are single cycle (200

s)

except for program branches, which take two cycles.
The PIC16F526 device delivers performance an order
of magnitude higher than their competitors in the same
price category. The 12-bit wide instructions are highly
symmetrical, resulting in a typical 2:1 code
compression over other 8-bit microcontrollers in its
class. The easy-to-use and easy to remember
instruction set reduces development time significantly.
The PIC16F526 product is equipped with special
features that reduce system cost and power
requirements. The Power-on Reset (POR) and Device
Reset Timer (DRT) eliminate the need for external
Reset circuitry. There are four oscillator configurations
to choose from, including INTRC Internal Oscillator
mode and the power-saving LP (Low-Power) Oscillator
mode. Power-Saving Sleep mode, Watchdog Timer
and code protection features improve system cost,
power and reliability.
The PIC16F526 device is available in the cost-effective
Flash programmable version, which is suitable for
production in any volume. The customer can take full
advantage of Microchip’s price leadership in Flash
programmable microcontrollers, while benefiting from
the Flash programmable flexibility.
The PIC16F526 product is supported by a full-featured
macro assembler, a software simulator, an in-circuit
emulator, a ‘C’ compiler, a low-cost development
programmer and a full featured programmer. All the
tools are supported on IBM

®

 PC and compatible

machines.

1.1

Applications

The PIC16F526 device fits in applications ranging from
personal care appliances and security systems to low-
power remote transmitters/receivers. The Flash
technology makes customizing application programs
(transmitter codes, appliance settings, receiver
frequencies, etc.) extremely fast and convenient. The
small footprint packages, for through hole or surface
mounting, make these microcontrollers perfect for
applications with space limitations. Low cost, low
power, high performance, ease of use and I/O flexibility
make the PIC16F526 device very versatile even in
areas where no microcontroller use has been
considered before (e.g., timer functions, logic and
PLDs in larger systems and coprocessor applications).

TABLE 1-1:

FEATURES AND MEMORY OF PIC16F526

PIC16F526

Clock

Maximum Frequency of Operation (MHz)

20

Memory

Flash Program Memory

1024

SRAM Data Memory (bytes)

67

Flash Data Memory (bytes)

64

Peripherals

Timer Module(s)

TMR0

Wake-up from Sleep on Pin Change

Yes

Features

I/O Pins

11

Input Pins

1

Internal Pull-ups

Yes

In-Circuit Serial Programming

TM

Yes

Number of Instructions

33

Packages

14-pin PDIP, SOIC, TSSOP, QFN

The PIC16F526 device has Power-on Reset, selectable Watchdog Timer, selectable code-protect, high I/O current capability and
precision internal oscillator.
The PIC16F526 device uses serial programming with data pin RB0 and clock pin RB1.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

PIC16F526

DS41326E-page 8

 2010 Microchip Technology Inc.

NOTES:

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

 2010 Microchip Technology Inc.

DS41326E-page 9

PIC16F526

2.0

PIC16F526 DEVICE VARIETIES

A variety of packaging options are available.
Depending on application and production
requirements, the proper device option can be selected
using the information in this section. When placing
orders, please use the PIC16F526 Product
Identification System at the back of this data sheet to
specify the correct part number.

2.1

Quick Turn Programming (QTP)
Devices

Microchip offers a QTP programming service for
factory production orders. This service is made
available for users who choose not to program
medium-to-high quantity units and whose code
patterns have stabilized. The devices are identical to
the Flash devices but with all Flash locations and fuse
options already programmed by the factory. Certain
code and prototype verification procedures do apply
before production shipments are available. Please
contact your local Microchip Technology sales office for
more details.

2.2

Serialized Quick Turn
Programming

SM

 (SQTP

SM

) Devices

Microchip offers a unique programming service, where
a few user-defined locations in each device are
programmed with different serial numbers. The serial
numbers may be random, pseudo-random or
sequential.
Serial programming allows each device to have a
unique number, which can serve as an entry code,
password or ID number.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/41326E-html.html
background image

PIC16F526

DS41326E-page 10

 2010 Microchip Technology Inc.

NOTES:

Maker
Microchip Technology Inc.
Datasheet PDF Download
