MCP2025 Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

 2012-2014 Microchip Technology Inc.

DS20002306B-page 1

MCP2025

Features:

• Compliant with LIN Bus Specifications Version

1.3, 2.1 and with SAE J2602-2

• Supports Baud Rates up to 20 kBaud
• 43V Load Dump Protected
• Maximum Continuous Input Voltage: 30V
• Wide LIN-Compliant Supply Voltage: 6.0-18.0V
• Extended Temperature Range: -40°C to +125°C
• Interface to PIC

®

 EUSART and Standard USARTs

• Wake-Up on LIN Bus Activity or Local Wake Input
• Local Interconnect Network (LIN) Bus Pin:

- Internal Pull-Up Termination Resistor and

Diode for Slave Node

- Protected Against V

BAT

 Shorts

- Protected Against Loss of Ground
- High-Current Drive

• T

XD

 and LIN Bus Dominant Time-Out Function

• Two Low-Power Modes:

- Transmitter Off: 90 µA (typical)
- Power Down: 4.5 µA (typical)

• MCP2025 On-Chip Voltage Regulator:

- Output Voltage of 5.0V or 3.3V

at 70 mA Capability with Tolerances of ±3%
Over the Temperature Range

- Internal Short-Circuit Current Limit
- External Components Limited to Filter

Capacitor and Load Capacitor

• Automatic Thermal Shutdown
• High Electromagnetic Immunity (EMI), Low

Electromagnetic Emission (EME)

• Robust ESD Performance: ±15 kV for L

BUS

 and

V

BB

 Pin (IEC61000-4-2)

• Transient Protection for L

BUS

 and V

BB

 pins in

Automotive Environment (ISO7637)

• Meets Stringent Automotive Design Requirements,

including “OEM Hardware Requirements for LIN,
CAN and FlexRay Interfaces in Automotive
Applications”, Version 1.3, May 2012

• Multiple Package Options, Including Small

4x4 mm DFN Package

Description:

The MCP2025 provides a bidirectional, half-duplex
communication physical interface to meet the LIN bus
specification Revision 2.1 and SAE J2602-2. The
device incorporates a voltage regulator with 5V or 3.3V
at 70 mA regulated power supply output. The device
has been designed to meet the stringent quiescent
current requirements of the automotive industry, and
will survive +4

3

V load dump transients and double

battery jumps.
The MCP2025 family members include:

- MCP2025-500, 8-pin, LIN driver with 5.0V

regulator

- MCP2025-330, 8-pin, LIN driver with 3.3V

regulator

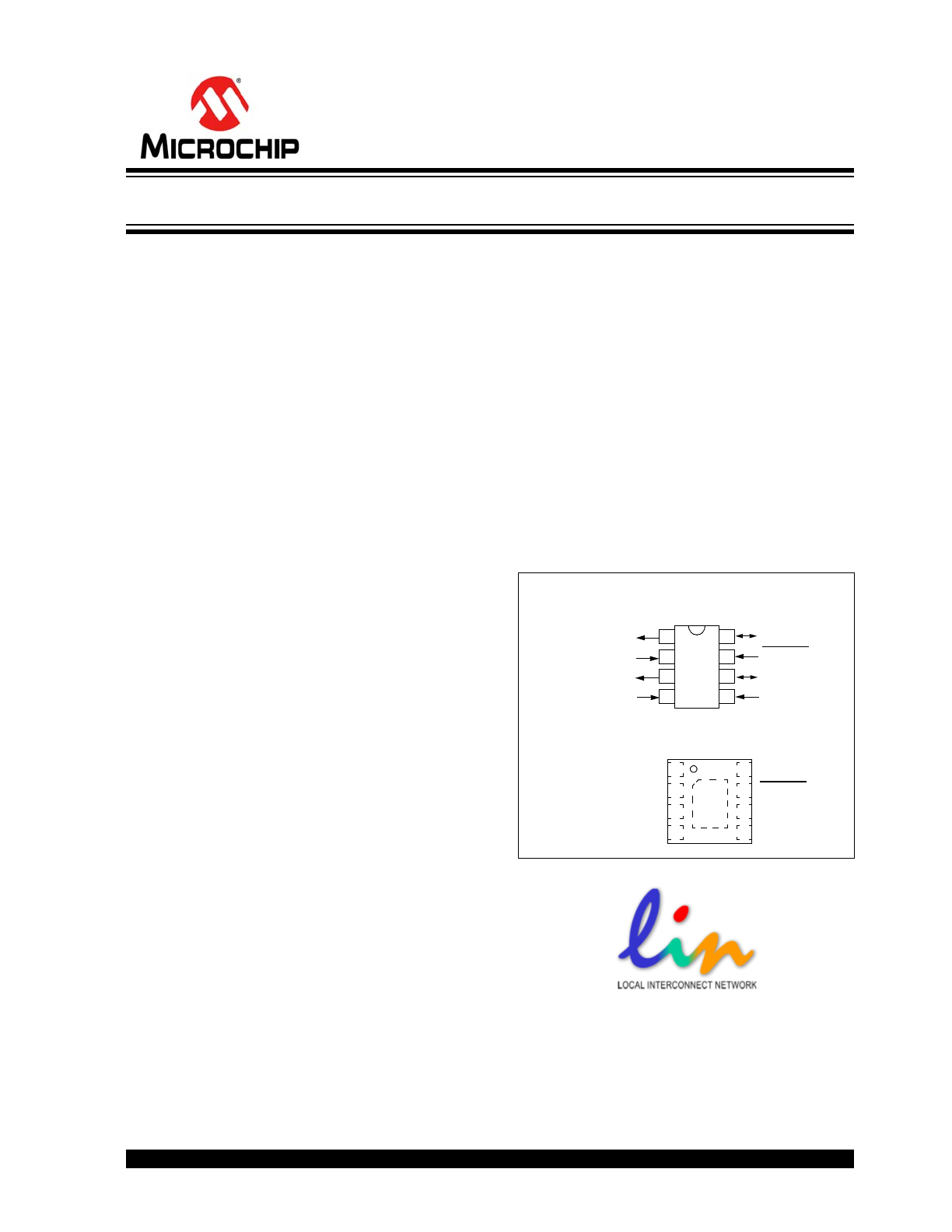

Package Types

MCP2025

PDIP, SOIC

V

SS

CS/LWAKE

L

BUS

1
2
3
4

8
7
6
5

V

BB

V

REG

RESET
T

XD

R

XD

MCP2025

4x4 DFN

1
2
3
4

8
7
6
5

EP

9

V

SS

CS/LWAKE

L

BUS

V

BB

V

REG

RESET
T

XD

R

XD

LIN Transceiver with Voltage Regulator

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

MCP2025

DS20002306B-page 2

 2012-2014 Microchip Technology Inc.

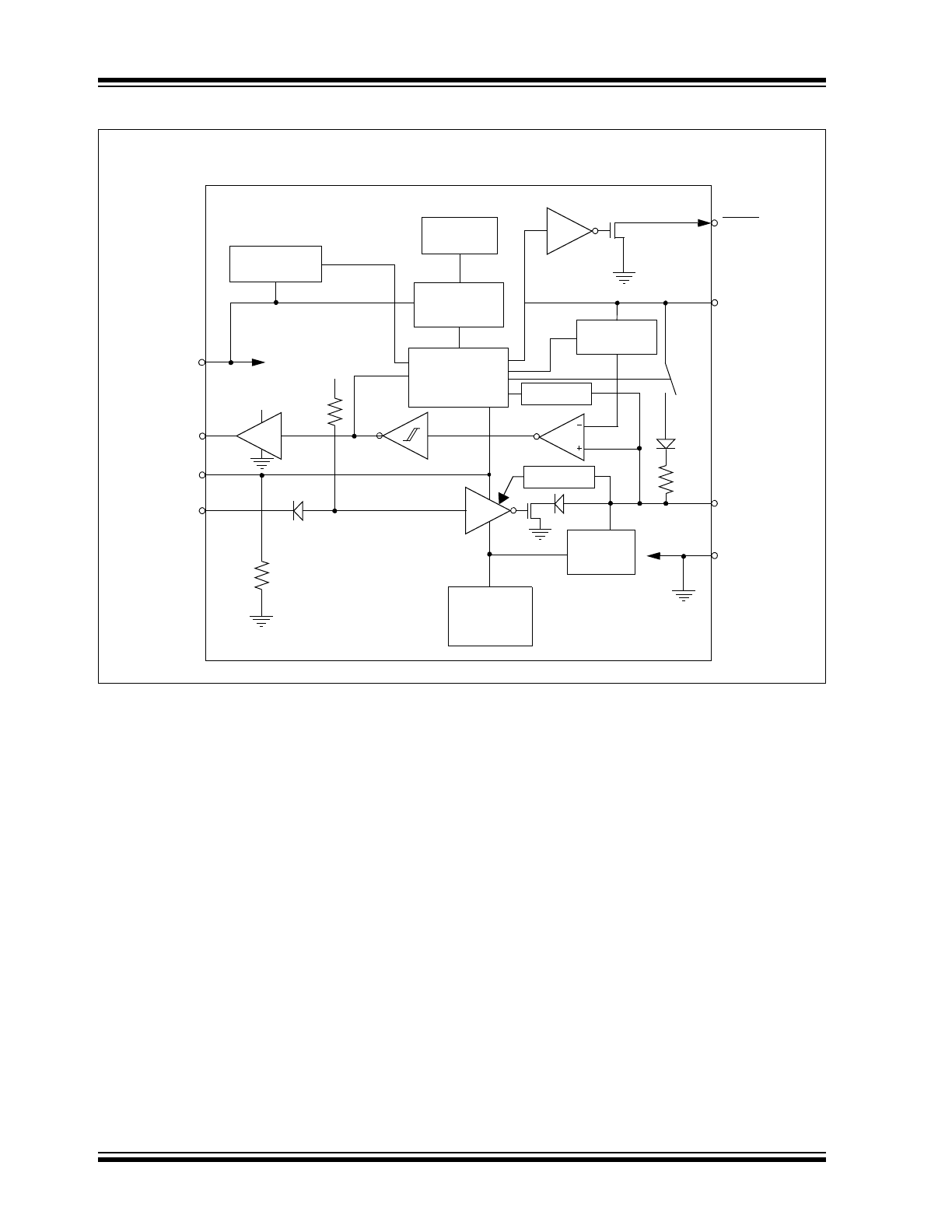

MCP2025 Block Diagram

V

REG

R

XD

T

XD

CS/LWAKE

Short-Circuit

Protection

Thermal

Protection

Voltage

Regulator

Internal Circuits

V

REG

4.2V

Wake-Up Logic

and

Power Control

Ratiometric

Reference

Bus Wake-Up

Slope Control

Thermal and
Short-Circuit

Protection

Bus

Dominant

Timer

~ 30 k

RESET

V

BB

L

BUS

V

SS

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

 2012-2014 Microchip Technology Inc.

DS20002306B-page 3

MCP2025

1.0

DEVICE OVERVIEW

The MCP2025 provides a physical interface between a
microcontroller and a LIN half-duplex bus. It is intended
for automotive and industrial applications with serial
bus baud rates up to 20 kBaud. This device will
translate the CMOS/TTL logic levels to LIN logic levels,
and vice versa.
The device offers optimum EMI and ESD performance
and it can withstand high voltage on the LIN bus. The
device supports two low-power modes to meet
automotive industry power consumption requirements.
The MCP2025 also provides a +5V or 3.3V regulated
power output at 70 mA.

1.1

Modes of Operation

The MCP2025 works in five modes: Power-On Reset,
Power-Down, Ready, Operation and Transmitter Off.
For an overview of all operational modes, please refer
to

Table 1-1

. For the operational mode transition,

please refer to

Figure 1-1

.

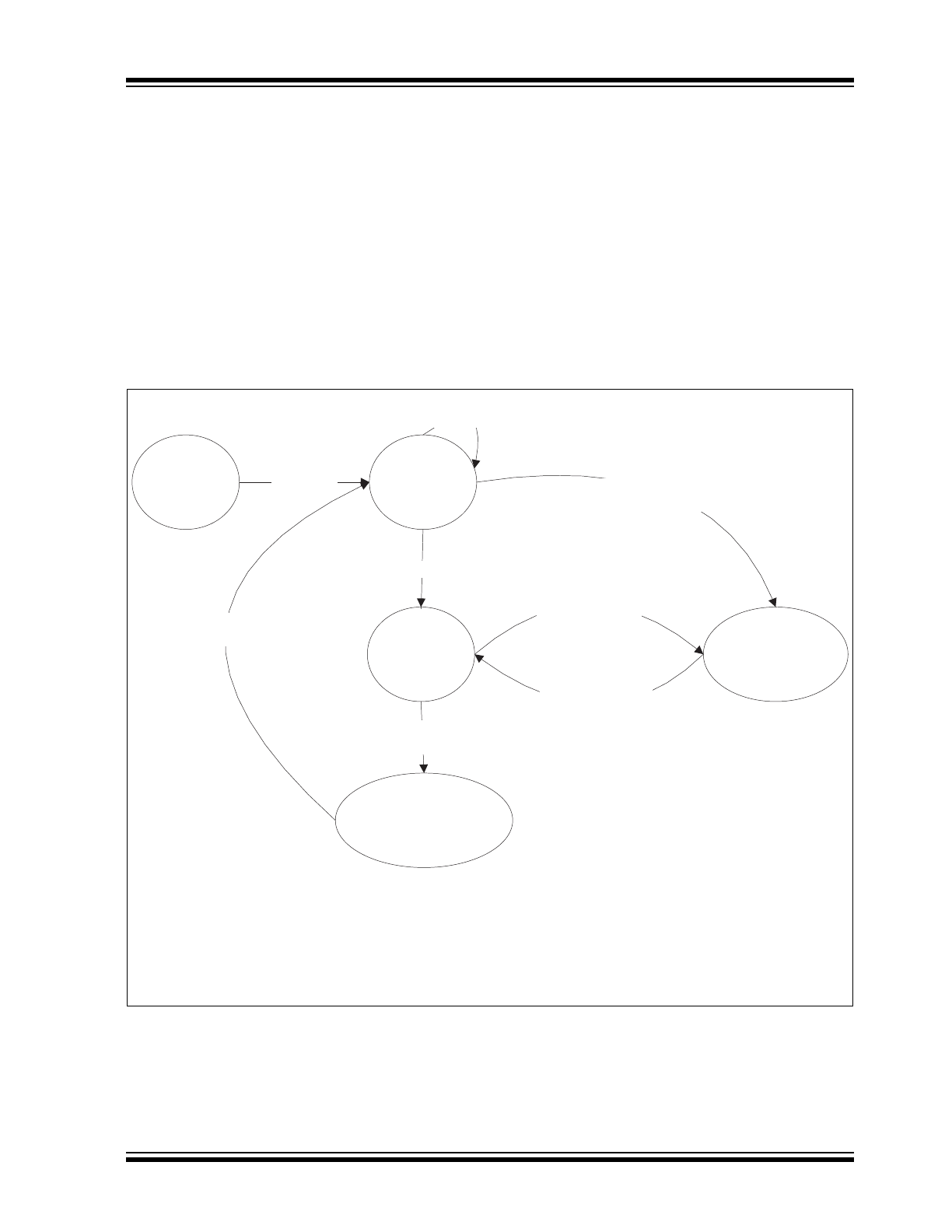

FIGURE 1-1:

STATE DIAGRAM

Note 1:

VREG_OK: Regulator Output Voltage > 0.8V

REG

_

NOM

.

2:

If the voltage on pin V

BB

 falls below V

OFF

, the device will enter Power-On Reset mode from all other

modes, which is not shown in the figure.

3:

Faults include T

XD

/L

BUS

 permanent dominant, L

BUS

 short to V

BB

, thermal protection and VREG_OK is

false.

POR

(2)

V

REG

OFF

RX OFF

TX OFF

READY

V

REG

ON

RX ON

TX OFF

TX OFF

V

REG

ON

RX ON

TX OFF

POWER-DOWN

V

REG

OFF

RX OFF

TX OFF

OPERATION

V

REG

ON

RX ON

TX ON

V

BB

> V

ON

CS =

1 &T

XD

=

0&

CS/LWAKE =

0

&T

XD

=

  0

CS/LWAKE =

1 &T

XD

=

1

VREG_OK =

1

(1)

CS/LWAKE =

1&

T

XD

=

1&

No Fault

(3)

CS/LWAKE =

0 or

Fault detected

(3)

CS/LWAKE =

1 OR

Voltage Rising Edge on L

BUS

CS/LWAKE =

0

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

MCP2025

DS20002306B-page 4

 2012-2014 Microchip Technology Inc.

1.1.1

POWER-ON RESET MODE

Upon application of V

BB

, or whenever the voltage on

V

BB

 is below the threshold of regulator turn-off voltage

V

OFF

 (typically 4.50V), the device enters Power-On

Reset (POR) mode. During this mode, the device
maintains the digital section in a Reset mode and waits
until the voltage on the V

BB

 pin rises above the

threshold of regulator turn-on voltage V

ON

 (typically

5.75V) to enter Ready mode. In Power-On Reset
mode, the LIN physical layer and voltage regulator are
disabled and the RESET pin is switched to ground.

1.1.2

READY MODE

The device enters Ready mode from POR mode after
the voltage on V

BB

 rises above the threshold of

regulator turn-on voltage V

ON

, or from Power-Down

mode when a remote or local wake-up event happens.
Upon entering Ready mode, the voltage regulator and
the receiver section of the transceiver are powered-up.
The transmitter remains in an off state. The device is
ready to receive data, but not to transmit. In order to
minimize the power consumption, the regulator
operates in a reduced-power mode. It has a lower
GBW product and it is thus slower. However, the 70 mA
drive capability is unchanged.
The device stays in Ready mode until the output of the
voltage regulator has stabilized and the CS/LWAKE pin
is high (‘1’).

1.1.3

OPERATION MODE

If the CS/LWAKE pin changes to high while V

REG

 is OK

(V

REG

> 0.8*V

REG

_

NOM

) and the T

XD

 pin is high, the

part enters Operation mode from either Ready or
Transmitter Off mode.
In this mode, all internal modules are operational. The
internal pull-up resistor between L

BUS

 and V

BB

 is

connected only in this mode.
The device goes into Transmitter Off mode at the falling
edge on the CS/LWAKE pin or when a fault is detected.

1.1.4

TRANSMITTER OFF MODE

If V

REG

 is OK (V

REG

> 0.8*V

REG

_

NOM

), the Transmitter

Off mode can be reached from Ready mode by setting
CS/LWAKE to high when the T

XD

 pin is low, or from

Operation mode by pulling down CS/LWAKE to low.
In Transmitter Off mode, the receiver is enabled but the
L

BUS

 transmitter is off. It is a lower-power mode.

In order to minimize power consumption, the regulator
operates in a reduced-power mode. It has a lower
GBW product and it is thus slower. However, the 70 mA
drive capability is unchanged.
The transmitter is also turned off whenever the voltage
regulator is unstable or recovering from a fault. This
prevents unwanted disruption on the bus during times
of uncertain operation.

1.1.5

POWER-DOWN MODE

Power-Down mode is entered by pulling down both the
CS/LWAKE pin and the T

XD

 pin to low from Transmitter

Off mode. In Power-Down mode, the transceiver and
the voltage regulator are both off. Only the bus wake-up
section and the CS/LWAKE pin wake-up circuits are in
operation. This is the lowest-power mode.
If any bus activity (e.g., a Break character) occurs or
CS/LWAKE is set to high during Power-Down mode,
the device will immediately enter Ready mode and
enable the voltage regulator. Then, once the regulator
output has stabilized (approximately 0.3 ms to 1.2 ms),
it can go into either Operation mode or Transmitter Off
mode. Refer to

Section 1.1.6 “Remote Wake-Up”

 for

more details.

1.1.6

REMOTE WAKE-UP

The Remote Wake-Up sub-module observes the L

BUS

in order to detect bus activity. In Power-Down mode,
the normal LIN recessive/dominant threshold is
disabled and the LIN bus wake-up voltage threshold
V

WK

(

LBUS

) is used to detect bus activities. Bus activity

is detected when the voltage on the L

BUS

 falls below

the LIN bus wake-up voltage threshold V

WK

(

LBUS

)

(approximately 3.4V) for at least t

BDB

 (a typical duration

of 80 µs) followed by a rising edge. Such a condition
causes the device to leave Power-Down mode.

Note:

The T

XD

 pin needs to be set high before

setting the CS/LWAKE pin to low in order
to jump and stay in Transmitter Off mode.
If the T

XD

 pin is set or maintained low

before setting the CS/LWAKE pin to low,
the part will transition to Transmitter Off
mode and then jump to Power-Down
mode after a deglitch delay of about
20 µs.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

 2012-2014 Microchip Technology Inc.

DS20002306B-page 5

MCP2025

TABLE 1-1:

OVERVIEW OF OPERATIONAL MODES

State

Transmitter Receiver

Internal

Wake

Module

Voltage

Regulator

Operation

Comments

POR

OFF

OFF

OFF

OFF

Proceed to Ready mode after
V

BB

> V

ON

.

Ready

OFF

ON

OFF

ON

If CS/LWAKE is high, then proceed to
Operation or Transmitter Off mode.

Bus Off
state

Operation

ON

ON

OFF

ON

If CS/LWAKE is low, then proceed to
Transmitter Off mode.

Normal
Operation
mode

Power-Down

OFF

OFF

ON

Activity

Detect

OFF

On LIN bus rising edge or CS/LWAKE
high level, go to Ready mode.

Lowest-
Power
mode

Transmitter Off

OFF

ON

OFF

ON

If T

XD

 and CS/LWAKE are low, then

proceed to Power-Down mode.
If T

XD

 and CS/LWAKE are high, then

proceed to Operation mode.

Bus Off
state,
lower-power
mode

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

MCP2025

DS20002306B-page 6

 2012-2014 Microchip Technology Inc.

1.2

Pin Descriptions

The descriptions of the pins are listed in

Table 1-2

.

1.2.1

BATTERY POSITIVE SUPPLY
VOLTAGE (V

BB

)

Battery Positive Supply Voltage pin. An external diode
is connected in series to prevent the device from being
reversely powered (refer to

Figure 1-7

).

1.2.2

CHIP SELECT AND LOCAL
WAKE-UP INPUT (CS/LWAKE)

Chip Select and Local Wake-Up Input pin (TTL level,
high-voltage tolerant). This pin controls the device state
transition. Refer to

Figure 1-1

.

An internal pull-down resistor will keep the CS/LWAKE
pin low to ensure that no disruptive data will be present
on the bus while the microcontroller is executing a
Power-On Reset and I/O initialization sequence. When
CS/LWAKE is ‘1’, a weak pull-down (~600 kΩ) is used
to reduce current. When CS/LWAKE is ‘0’, a stronger
pull-down (~300 kΩ) is used to maintain the logic level.
This pin may also be used as a local wake-up input
(see

Figure 1-7

). The microcontroller will set the I/O pin

to control the CS/LWAKE. An external switch or
another source can then wake up both the transceiver
and the microcontroller.

1.2.3

GROUND (V

SS

)

Ground pin.

1.2.4

LIN BUS (L

BUS

)

LIN Bus pin. L

BUS

 is a bidirectional LIN bus interface

pin and is controlled by the signal T

XD

. It has an open

collector output with a current limitation. To reduce
electromagnetic emission, the slopes during signal
changes are controlled and the L

BUS

 pin has

corner-rounding control for both falling and rising
edges.
The internal LIN receiver observes the activities on the
LIN bus and generates the output signal R

XD

 that

follows the state of the L

BUS

. A 1

st

 degree 160 kHz

low-pass input filter optimizes electromagnetic
immunity.

1.2.5

RECEIVE DATA OUTPUT (R

XD

)

Receive Data Output pin. The R

XD

 pin is a standard

CMOS output pin and it follows the state of the L

BUS

pin.

1.2.6

TRANSMIT DATA INPUT (T

XD

)

Transmit Data Input pin (TTL level, HV-compliant,
adaptive pull-up). The transmitter reads the data
stream on the T

XD

 pin and sends it to the LIN bus. The

L

BUS

 pin is low (dominant) when T

XD

 is low, and high

(recessive) when T

XD

 is high.

T

XD

 is internally pulled-up to approximately 4.2V. When

T

XD

 is ‘0’, a weak pull-up (~900 kΩ) is used to reduce

current. When T

XD

 is ‘1’, a stronger pull-up (~300 kΩ)

is used to maintain the logic level. A series
reverse-blocking diode allows applying T

XD

 input

voltages greater than the internally generated 4.2V and
renders the T

XD

 pin HV-compliant up to 30V (see

MCP2025 Block Diagram

).

TABLE 1-2:

PIN FUNCTION TABLE

Pin Name

Pin Number

Pin Type

Description

8-lead PDIP

4x4 DFN

V

BB

1

1

Power

Battery

CS/LWAKE

2

2

TTL input, HV-tolerant

Chip Select and Local Wake-up Input

V

SS

3

3

Power

Ground

L

BUS

4

4

I/O, HV

LIN Bus

R

XD

5

5

Output

Receive Data Output

T

XD

6

6

Input, HV-tolerant

Transmit Data Input

RESET

7

7

Open-drain output, HV-tolerant

Reset Output

V

REG

8

8

Output

Voltage Regulator Output

EP

9

Exposed Thermal Pad

Note:

CS/LWAKE should NOT be tied directly to
the V

REG

 pin, as this could force the

MCP2025 into Operation mode before the
microcontroller is initialized.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

 2012-2014 Microchip Technology Inc.

DS20002306B-page 7

MCP2025

1.2.7

 RESET

Reset output pin. This is an open-drain output pin. It
indicates the internal voltage has reached a valid,
stable level. As long as the internal voltage is valid
(above 0.8 V

REG

), this pin will present high impedance;

otherwise, the RESET pin switches to ground.

1.2.8

POSITIVE SUPPLY VOLTAGE
REGULATOR OUTPUT (V

REG

)

Positive Supply Voltage Regulator Output pin. An
on-chip Low Dropout Regulator (LDO) gives +5.0 or
+3.3V at 70 mA regulated voltage on this pin.

1.2.9

EXPOSED THERMAL PAD (EP)

There is an internal electrical connection between the
Exposed Thermal Pad (EP) and the V

SS

 pin; they must

be connected to the same potential on the Printed
Circuit Board (PCB).
This pad can be connected to a PCB ground plane to
provide a larger heat sink. This improves the package
thermal resistance (

JA

).

1.3

Fail-Safe Features

1.3.1

GENERAL FAIL-SAFE FEATURES

• An internal pull-down resistor on the CS/LWAKE

pin disables the transmitter if the pin is floating.

• An internal pull-up resistor on the T

XD

 pin places

T

XD

 in high and the L

BUS

 in recessive if the T

XD



pin is floating.

• High-Impedance and low-leakage current on L

BUS



during loss of power or ground.

• The current limit on L

BUS

 protects the transceiver

from being damaged if the pin is shorted to V

BB

.

1.3.2

THERMAL PROTECTION

The thermal protection circuit monitors the die
temperature and is able to shut down the



LIN

transmitter and voltage regulator.
There are three causes for a thermal overload. A
thermal shutdown can be triggered by any one, or a
combination of, the following thermal overload
conditions:
• Voltage regulator overload
• LIN bus output overload
• Increase in die temperature due to increase in

environment temperature

The recovery time from the thermal shutdown is equal
to adequate cooling time.
Driving the T

XD

 and checking the R

XD

 pin make it

possible to determine whether there is a bus contention
(T

XD

= high, R

XD

= low) or a thermal overload

condition (T

XD

= low,  R

XD

= high).

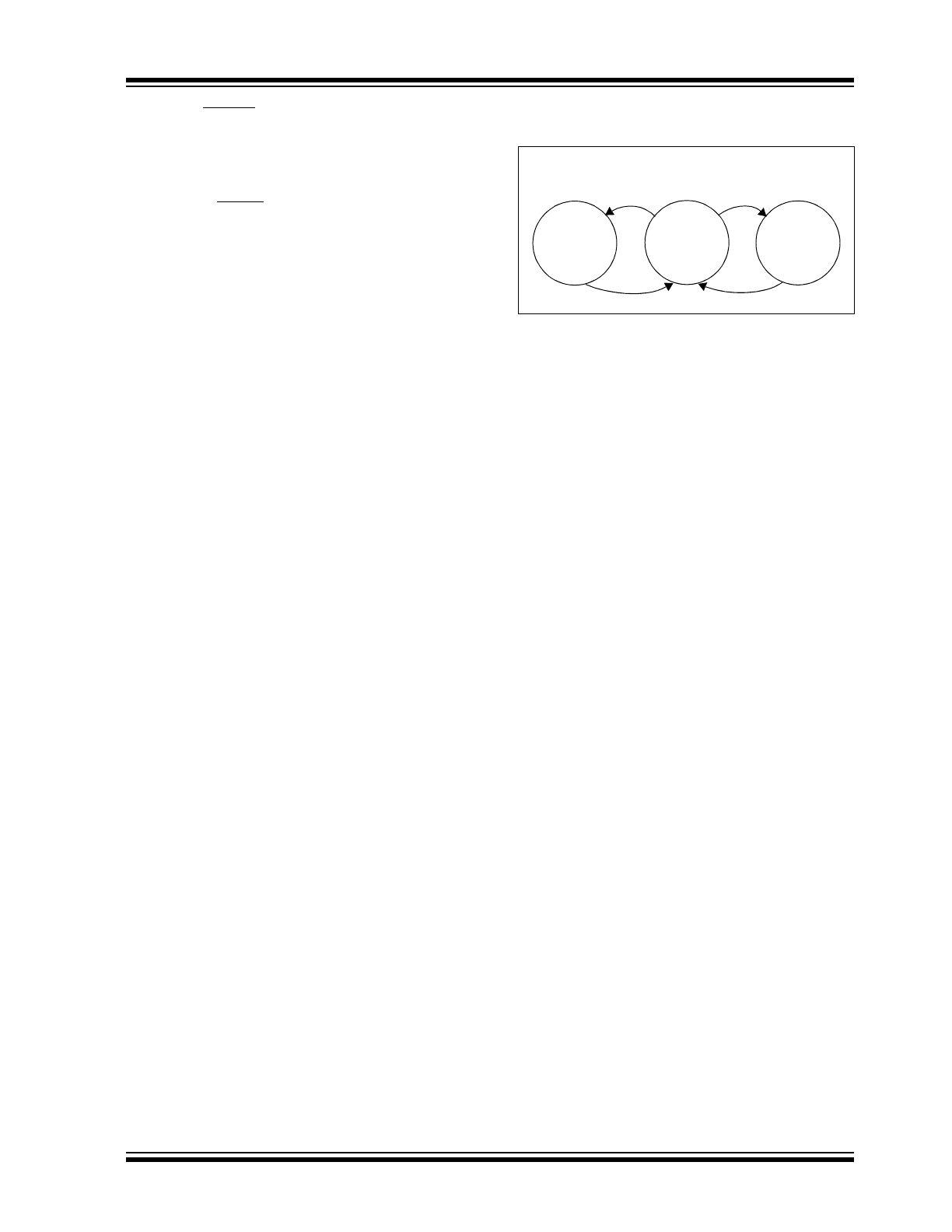

FIGURE 1-2:

THERMAL SHUTDOWN
STATE DIAGRAMS

1.3.3

T

XD

/L

BUS

 TIME-OUT TIMER

The LIN bus can be driven to a dominant level, either
from the T

XD

 pin or externally. An internal timer

deactivates the L

BUS

 transmitter if a dominant status

(low) on the LIN bus lasts longer than Bus Dominant
Time-Out Time, t

TO

(

LIN

) (approximately

20 milliseconds). At the same time, the R

XD

 output is

put in recessive (high) and the internal pull-up resistor
between L

BUS

 and V

BB

 is disconnected. The timer is

reset on any recessive L

BUS

 status or POR mode. The

recessive status on L

BUS

 can be caused either by the

bus being externally pulled-up or by the T

XD

 pin being

returned high.

1.4

Internal Voltage Regulator

The MCP2025 has a positive regulator capable of
supplying +5.00 or +3.30 V

DC

 ±3% at up to 70 mA of

load current over the entire operating temperature
range of -40°C to +125°C. The regulator uses an LDO
design, is short-circuit-protected and will turn the
regulator output off if its output falls below the shutdown
voltage threshold, V

SD

.

With a load current of 70 mA, the minimum
input-to-output voltage differential required for the
output to remain in regulation is typically +0.5V (+1V
maximum over the full operating temperature range).
Quiescent current is less than 100 µA with a full 70 mA
load current when the input-to-output voltage
differential is greater than +3.00V.
Regarding the correlation between V

BB

, V

REG

 and I

DD

,

please refer to

Figures 1-4

 and

 1-5

. When the input

voltage (V

BB

) drops below the differential needed to

provide stable regulation, the voltage regulator output,
V

REG

, will track the input down to approximately V

OFF

,

at which point the regulator will turn off the output. This
will allow PIC

®

 microcontrollers with internal POR

circuits to generate a clean arming of the POR trip
point. The MCP2025 will then monitor V

BB

 and turn on

the regulator when V

BB

 is above the threshold of

regulator turn-on voltage, V

ON

In Power-Down mode, the V

BB

 monitor is turned off.

Voltage

Regulator

Shutdown

Operation

Mode

Transmitter

Shutdown

Output

Overload

LIN Bus

Shorted to

V

BB

Temp < SHUTDOWN

TEMP

Temp < SHUTDOWN

TEMP

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

MCP2025

DS20002306B-page 8

 2012-2014 Microchip Technology Inc.

Under specific ambient temperature and battery
voltage range, the voltage regulator can output as high
as 150 mA current. For current load capability of the
voltage regulator, refer to

Figures 2-8

 and

 2-9

.

The regulator requires an external output bypass
capacitor for stability. See

Figure 2-1

 for correct

capacity and ESR for stable operation.

In worst-case scenarios, the ceramic capacitor may
derate by 50%, based on tolerance, voltage and
temperature. Therefore, in order to ensure stability,
ceramic capacitors smaller than 10 µF may require a
small series resistance to meet the ESR requirements,
as shown in

Table 1-3

.

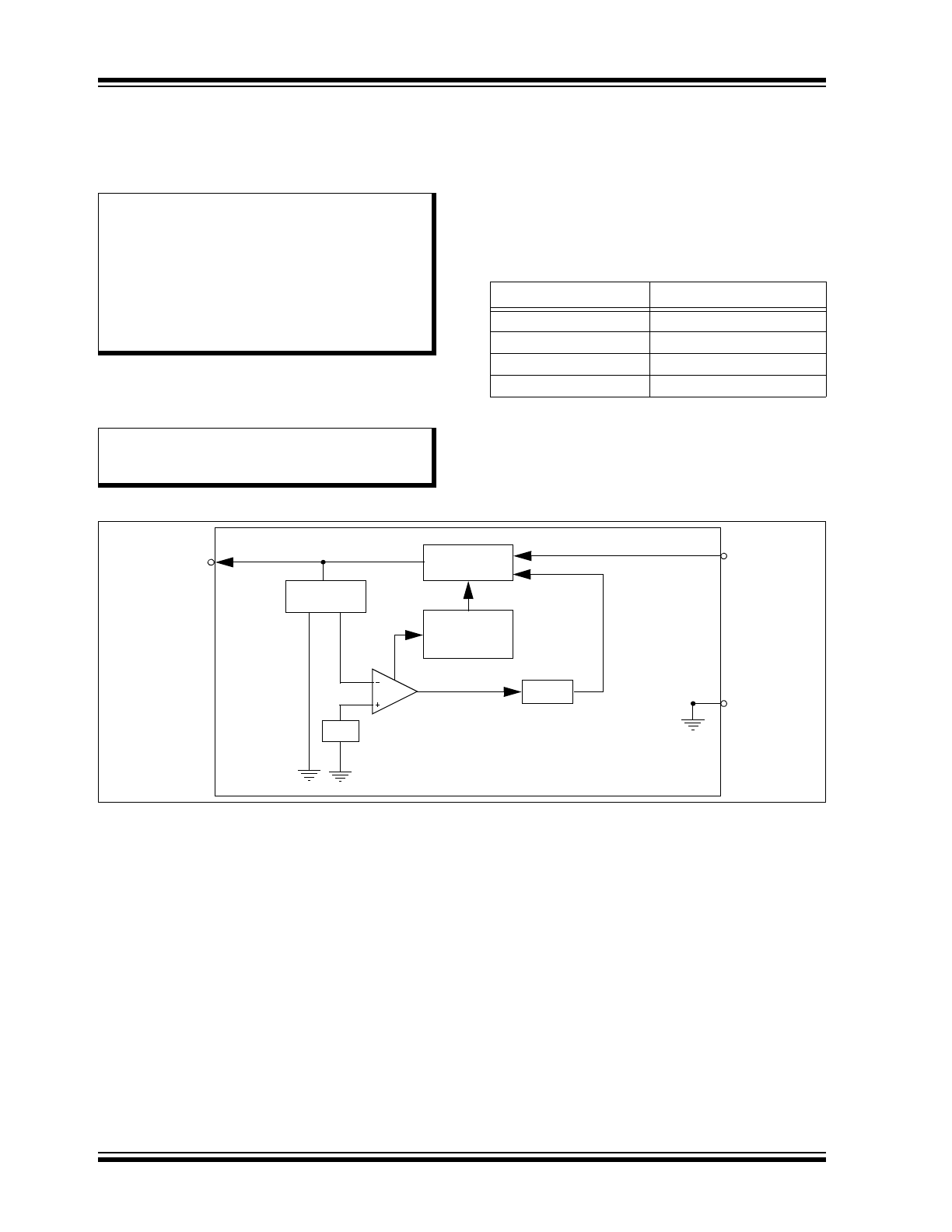

FIGURE 1-3:

VOLTAGE REGULATOR BLOCK DIAGRAM

Note:

The regulator has an overload current limit
of approximately 250 mA. The regulator
output voltage, V

REG

, is monitored. If

output voltage V

REG

 is lower than V

SD

, the

voltage regulator will turn off. After a
recovery time of about 3 ms, the V

REG

 will

be checked again. If there is no short
circuit, (V

REG

> V

SD

), then the voltage

regulator remains on.

Note:

A ceramic capacitor of at least 10 µF or a
tantalum capacitor of at least 2.2 µF is
recommended for stability.

TABLE 1-3:

RECOMMENDED SERIES
RESISTANCE FOR CERAMIC
CAPACITORS

Resistance

Capacitor

1

1 µF

0.47

2.2 µF

0.22

4.7 µF

0.1

6.8 µF

Pass

Element

Sampling

 Network

Buffer

V

REG

V

BB

V

SS

Fast

Transient

Loop

V

REF

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

 2012-2014 Microchip Technology Inc.

DS20002306B-page 9

MCP2025

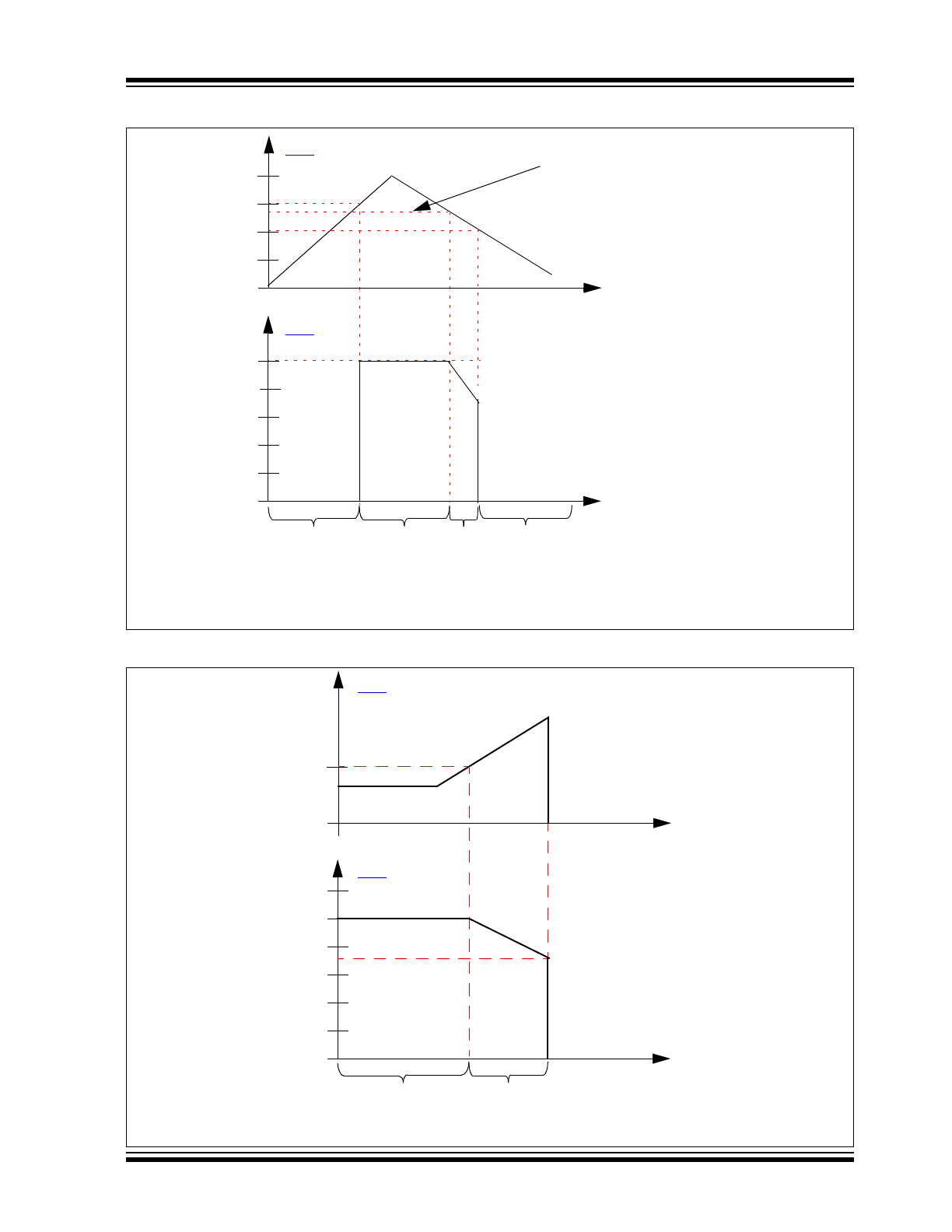

FIGURE 1-4:

VOLTAGE REGULATOR OUTPUT ON POWER-ON RESET

FIGURE 1-5:

VOLTAGE REGULATOR OUTPUT ON OVERCURRENT SITUATION

5

3

2

0

(1)

(2)

(3)

t

0

t

6

2

8

4

V

BB

V

V

REG

V

1

4

V

ON

Minimum V

BB



to maintain regulation

V

REG

-

NOM

(4)

V

OFF

Note 1:

Start-up, V

BB

< V

ON

, regulator off.

2:

V

BB

> V

ON

, regulator on.

3:

V

BB

 Minimum V

BB

 to maintain regulation.

4:

V

BB

< V

OFF

, regulator will turn off.

V

SD

0

(1)

(2)

t

0

t

I

LIM

I

REG

mA

V

REG

V

V

REG

-

NOM

1

2

3

4

5

6

Note 1:

I

REG

 less than l

LIM

, regulator on.

2:

After I

REG

 exceeds l

LIM

, the voltage regulator output will be reduced until V

SD

 is reached.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20002306B-html.html
background image

MCP2025

DS20002306B-page 10

 2012-2014 Microchip Technology Inc.

1.5

Optional External Protection

1.5.1

REVERSE BATTERY PROTECTION

An external reverse-battery-blocking diode should be
used to provide polarity protection (see

Figure 1-7

).

1.5.2

TRANSIENT VOLTAGE
PROTECTION (LOAD DUMP)

An external 43V transient suppressor (TVS) diode,
between V

BB

 and ground, with a transient protection

resistor (R

TP

) in series with the battery supply and the

V

BB

 pin, protects the device from power transients and

ESD events greater than 43V (see

Figure 1-7

). The

maximum value for the R

TP

 protection resistor depends

upon two parameters: the minimum voltage the part will
start at and the impacts of this R

TP

 resistor on the V

BB

value, thus on the bus recessive level and slopes.
This leads to a set of three equations to fulfill.

Equation 1-1

 provides a maximum R

TP

 value according

to the minimum battery voltage the user wants.

Equation 1-2

 provides a maximum R

TP

 value

according to the maximum error on the recessive level,
thus V

BB

,

 since the part uses V

BB

 as the reference

value for the recessive level.

Equation 1-3

 provides a maximum R

TP

 value

according to the maximum relative variation the user
can accept on the slope when I

REG

 varies.

Since both

Equations 1-1

 and

 1-2

 must be fulfilled, the

maximum allowed value for R

TP

 is thus the smaller of the

two values found when solving

Equations 1-1

 and

 1-2

.

Usually,

Equation 1-1

 gives the higher constraint

(smaller value) for R

TP

, as shown in the following

example where V

BATMIN

 is 8V.

However, the user needs to verify that the value found
with

Equation 1-1

 fulfills

Equations 1-2

 and

 1-3

While this protection is optional, it should be
considered as good engineering practice.

EQUATION 1-1:

Assume that V

BATMIN

= 8V.

Equation 1-1

 gives 10

.

EQUATION 1-2:

Assume that

V

RECCESSIVE

= 1V  and

I

REGMAX

= 50 mA.

Equation 1-2

 gives 20

.

EQUATION 1-3:

Assume that

Slope = 15%, V

BATMIN

= 8V  and

I

REGMAX

= 50 mA.

Equation 1-3

 gives 20

.

1.5.3

C

BAT

 CAPACITOR

Selecting C

BAT

= 10 x C

REG

 is recommended.

However, this leads to a high-value capacitor. Lower
values for C

BAT

 capacitor can be used with respect to

some rules. In any case, the voltage at the V

BB

 pin

should remain above V

OFF

 when the device is turned

on.
The current peak at start-up (due to the fast charge of
the C

REG

 and C

BAT

capacitors) may induce a

significant drop on the V

BB

 pin. This drop is

proportional to the impedance of the V

BAT

 connection

(see

Figure 1-7

).

The V

BAT

 connection is mainly inductive and resistive.

Therefore, it can be modeled as a resistor (R

TOT

) in

series with an inductor (L). R

TOT

 and L can be

measured.
The following formula gives an indication of the
minimum value of C

BAT

 using R

TOT

 and L:

EQUATION 1-4:

Equation 1-4

 allows lower C

BAT

/C

REG

 values than the

10x ratio we recommend.

R

TP

V

BATMIN

5.5V

250 mA

----------------------------------------

5.5V

V

OFF

1.0V

+

=

Where:

250 mA = Peak current at power-on when

V

BB

= 5.5V

R

TP

V

RECESSIVE

I

REGMAX

----------------------------------

Where:

V

RECESSIVE

= Maximum variation tolerated on

the recessive level

R

TP

Slope

V

BA TMIN

1V

I

REGMAX

-----------------------------------------------------------------

Where:

Slope = Maximum variation tolerated on the

slope level

I

REGMAX

= Maximum current the current will

provide to the load

V

BATMIN

> V

OFF

+ 1.0V

C

BAT

C

REG

--------------

100L

2

R

TOT

2

+

1

L

2

R

TOT

2

100

-------------

+

+

------------------------------------

=

Where:

L = Inductor (measured in mH)

R

TOT

= R

LINE

+ R

TP

 (measured in

)

Maker
Microchip Technology Inc.
Datasheet PDF Download
