MCP14A0051/MCP14A0052 Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

 2014 Microchip Technology Inc.

DS20005369A-page 1

MCP14A0051/2

Features

• High Peak Output Current: 0.5A (typical)
• Wide Input Supply Voltage Operating Range:

- 4.5V to 18V

• Low Shoot-Through/Cross-Conduction Current in

Output Stage

• High Capacitive Load Drive Capability:

- 1000 pF in 40 ns (typical)

• Short Delay Times: 33 ns (t

D1

), 24 ns (t

D2

) (typical)

• Low Supply Current: 375 µA (typical)
• Low Voltage Threshold Input and Enable with

Hysteresis

• Latch-Up Protected: Withstands 500 mA Reverse

Current

• Space-Saving Packages:

- 6L  SOT-23
- 6L  2 x 2  DFN

Applications

• Switch Mode Power Supplies
• Pulse Transformer Drive
• Line Drivers
• Level Translator
• Motor and Solenoid Drive

General Description

The MCP14A0051/2 devices are high-speed MOSFET
drivers that are capable of providing up to 0.5A of peak
current while operating from a single 4.5V to 18V
supply. The inverting (MCP14A0051) or non-inverting
(MCP14A0052) single-channel output is directly
controlled from either TTL or CMOS (2V to 18V) logic.
These devices also feature low shoot-through current,
matched rise and fall times, and short propagation
delays which make them ideal for high switching
frequency applications.
The MCP14A0051/2 family of devices offer enhanced
control with Enable functionality. The active-high
Enable pin can be driven low to drive the output of the
MCP14A0051/2 low regardless of the status of the
Input pin. An integrated pull-up resistor allows the user
to leave the Enable pin floating for standard operation.
Additionally, the MCP14A0051/2 devices feature sepa-
rate ground pins (A

GND

 and GND), allowing greater

noise isolation between the level-sensitive Input/
Enable pins and the fast, high-current transitions of the
push-pull output stage.
These devices are highly latch-up resistant under any
condition within their power and voltage ratings. They
can accept up to 500 mA of reverse current being
forced back into their outputs without damage or logic
upset. All terminals are fully protected against
electrostatic discharge (ESD) up to 1.75 kV (HBM) and
100V (MM).

Package Types

4

1

2

3

6

OUT

EN

V

DD

A

GND

IN

5

GND

6-Lead SOT-23

2x2 DFN-6*

GND

EN

IN

1

2

3

6

5

4

V

DD

EP

7

A

GND

OUT

OUT

MCP14A0051

MCP14A0052

OUT

MCP14A0052

MCP14A0051

* Includes Exposed Thermal Pad (EP); see

Table 3-1

.

0.5A MOSFET Driver

With Low Threshold Input And Enable

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

MCP14A0051/2

DS20005369A-page 2

 2014 Microchip Technology Inc.

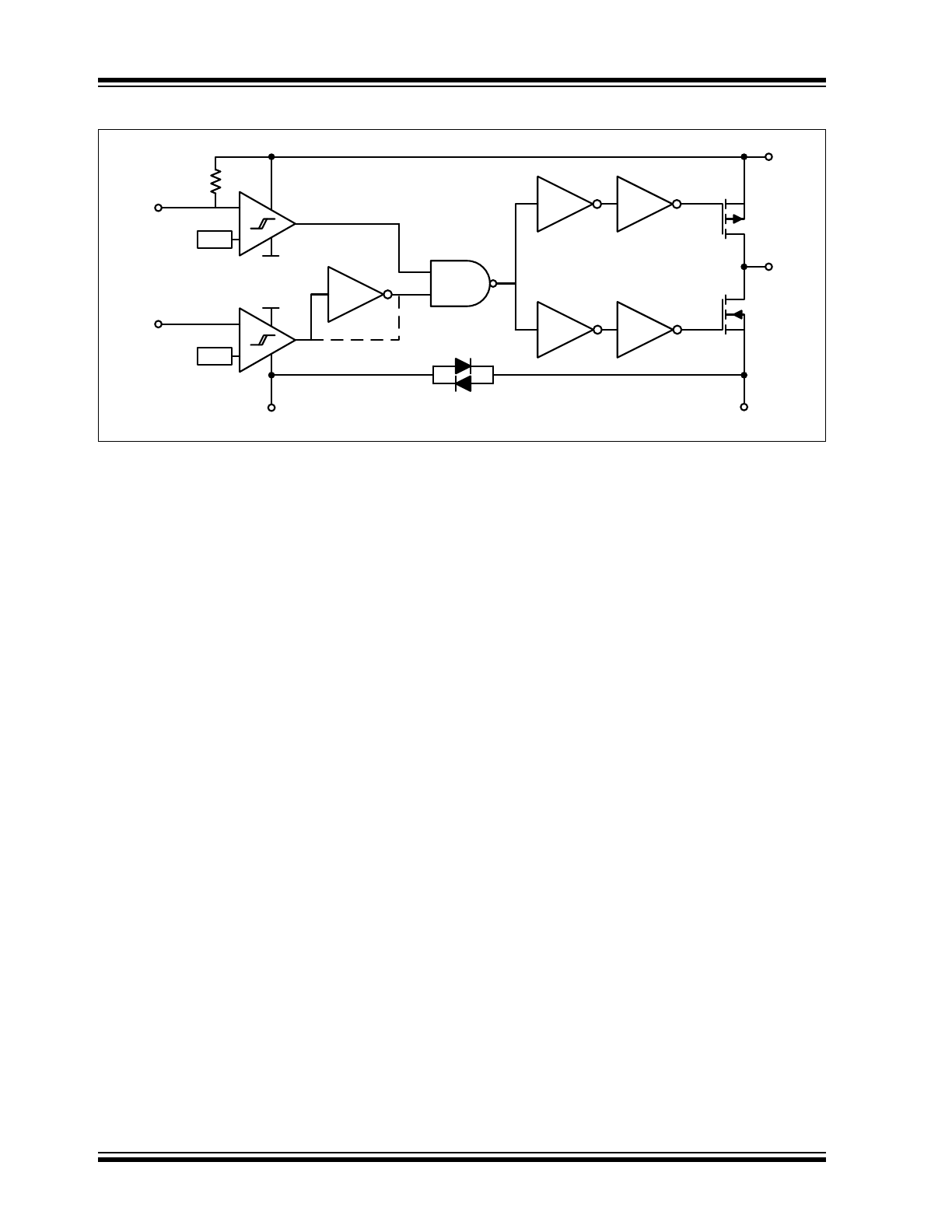

Functional Block Diagram

Non-Inverting

Enable

Input

GND

V

DD

Output

Inverting

V

REF

V

REF

V

DD

AGND

AGND

Internal

Pull-Up

MCP14A0051 Inverting

MCP14A0052 Non-Inverting

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

 2014 Microchip Technology Inc.

DS20005369A-page 3

MCP14A0051/2

1.0

ELECTRICAL
CHARACTERISTICS

Absolute Maximum Ratings †

V

DD

, Supply Voltage.............................................+20V

V

IN

, Input Voltage........... (V

DD

+ 0.3V) to (GND - 0.3V)

V

EN

, Enable Voltage....... (V

DD

+ 0.3V) to (GND - 0.3V)

Package Power Dissipation (T

A

= +50°C)

     6L SOT-23.................................................... 0.52 W
     6L 2 x 2 DFN................................................ 1.09 W
ESD Protection on all Pins ....................1.75 kV (HBM)

....................................................................100V (MM)

† Notice:

 Stresses above those listed under “Maximum

Ratings” may cause permanent damage to the device.
This is a stress rating only and functional operation of
the device at those or any other conditions above those
indicated in the operational sections of this
specification is not intended. Exposure to maximum
rating conditions for extended periods may affect
device reliability.

DC CHARACTERISTICS

Electrical Specifications:

 Unless otherwise noted, T

A

= +25°C, with 4.5V

 V

DD

 18V.

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Input
Input Voltage Range

V

IN

GND - 0.3V

V

DD

+ 0.3

V

Logic ‘1’ High Input Voltage

V

IH

2.0

1.6

V

Logic ‘0’ Low Input Voltage

V

IL

1.2

0.8

V

Input Voltage Hysteresis

V

HYST(IN)

0.4

V

Input Current

I

IN

-1

+1

µA

0V

 V

IN

 V

DD

Enable
Enable Voltage Range

V

EN

GND - 0.3V

V

DD

+ 0.3

V

Logic ‘1’ High Enable Voltage

V

EH

2.0

1.6

V

Logic ‘0’ Low Enable Voltage

V

EL

1.2

0.8

V

Enable Voltage Hysteresis

V

HYST(EN)

0.4

V

Enable Pin Pull-Up Resistance

R

ENBL

1.8

MΩ

V

DD

= 18V,  ENB = A

GND

Enable Input Current

I

EN

10

µA

V

DD

= 18V,  ENB = A

GND

Propagation Delay

t

D3

35

43

ns

V

DD

= 18V,  V

EN

= 5V,  see

Figure 4-3

, (

Note 1

)

Propagation Delay

t

D4

23

31

ns

V

DD

= 18V,  V

EN

= 5V,  see

Figure 4-3

, (

Note 1

)

Output
High Output Voltage

V

OH

V

DD

- 0.025

V

I

OUT

= 0A

Low Output Voltage

V

OL

0.025

V

I

OUT

= 0A

Output Resistance, High

R

OH

12.5

17

I

OUT

= 10 mA,  V

DD

= 18V

Output Resistance, Low

R

OL

7.5

10

I

OUT

= 10 mA,  V

DD

= 18V

Peak Output Current

I

PK

0.5

A

V

DD

= 18V  (

Note 1

)

Latch-Up Protection Withstand
Reverse Current

I

REV

0.5

A

Duty cycle

 2%, t   300 µs

(

Note 1

)

Switching Time

(

Note 1

)

Rise Time

t

R

40

51

ns

V

DD

= 18V,  C

L

= 1000 pF, see

Figure 4-1

Figure 4-2



(

Note 1

)

Fall Time

t

F

28

39

ns

V

DD

= 18V,  C

L

= 1000 pF, see

Figure 4-1

Figure 4-2



(

Note 1

)

Note 1:

Tested during characterization, not production tested.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

MCP14A0051/2

DS20005369A-page 4

 2014 Microchip Technology Inc.

Delay Time

t

D1

33

41

ns

V

DD

= 18V,  V

IN

= 5V,  see

Figure 4-1

Figure 4-2

(

Note 1

)

Delay Time

t

D2

24

32

ns

V

DD

= 18V,  V

IN

= 5V,  see

Figure 4-1

Figure 4-2

(

Note 1

)

Power Supply
Supply Voltage

V

DD

4.5

18

V

Power Supply Current

I

DD

330

560

µA

V

IN

= 3V,  V

EN

 = 3V

I

DD

360

580

µA

V

IN

= 0V,  V

EN

 = 3V

I

DD

360

580

µA

V

IN

= 3V,  V

EN

 = 0V

I

DD

375

600

µA

V

IN

= 0V,  V

EN

 = 0V

DC CHARACTERISTICS (CONTINUED)

Electrical Specifications:

 Unless otherwise noted, T

A

= +25°C, with 4.5V

 V

DD

 18V.

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Note 1:

Tested during characterization, not production tested.

DC CHARACTERISTICS (OVER OPERATING TEMP. RANGE) (

Note 1

)

Electrical Specifications:

 Unless otherwise indicated, over the operating range with 4.5V

 V

DD

 18V.

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Input
Input Voltage Range

V

IN

GND - 0.3V

V

DD

+ 0.3

V

Logic ‘1’ High Input Voltage

V

IH

2.0

1.6

V

Logic ‘0’ Low Input Voltage

V

IL

1.2

0.8

V

Input Voltage Hysteresis

V

HYST(IN)

0.4

V

Input Current

I

IN

-10

+10

µA

0V

 V

IN

 V

DD

Enable
Enable Voltage Range

V

EN

GND - 0.3V

V

DD

+ 0.3

V

Logic ‘1’ High Enable Voltage

V

EH

2.0

1.6

V

Logic ‘0’ Low Enable Voltage

V

EL

1.2

0.8

V

Enable Voltage Hysteresis

V

HYST(EN)

0.4

V

Enable Input Current

I

EN

12

µA

V

DD

= 18V,  ENB = A

GND

Propagation Delay

t

D3

33

41

ns

V

DD

= 18V,  V

EN

= 5V,  T

A

= +125°C,

see

Figure 4-3

Propagation Delay

t

D4

25

33

ns

V

DD

= 18V,  V

EN

= 5V,  T

A

= +125°C,

see

Figure 4-3

Output
High Output Voltage

V

OH

V

DD

- 0.025

V

DC Test

Low Output Voltage

V

OL

0.025

V

DC Test

Output Resistance, High

R

OH

24

I

OUT

= 10 mA,  V

DD

= 18V

Output Resistance, Low

R

OL

15

I

OUT

= 10 mA,  V

DD

= 18V

Note 1:

Tested during characterization, not production tested.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

 2014 Microchip Technology Inc.

DS20005369A-page 5

MCP14A0051/2

Switching Time (

Note 1

)

Rise Time

t

R

45

56

ns

V

DD

= 18V,  C

L

= 1000 pF,

T

A

= +125°C, see

Figure 4-1

Figure 4-2

Fall Time

t

F

34

45

ns

V

DD

= 18V,  C

L

= 1000 pF,

T

A

= +125°C, see

Figure 4-1

Figure 4-2

Delay Time

t

D1

32

40

ns

V

DD

= 18V,  V

IN

= 5V,  T

A

= +125°C,

see

Figure 4-1

Figure 4-2

Delay Time

t

D2

27

35

V

DD

= 18V,  V

IN

= 5V,  T

A

= +125°C,

see

Figure 4-1

Figure 4-2

Power Supply
Supply Voltage

V

DD

4.5

18

V

Power Supply Current

I

DD

760

uA

V

IN

= 3V,  V

EN

 = 3V

I

DD

780

uA

V

IN

= 0V,  V

EN

 = 3V

I

DD

780

uA

V

IN

= 3V,  V

EN

 = 0V

I

DD

800

uA

V

IN

= 0V,  V

EN

 = 0V

TEMPERATURE CHARACTERISTICS

Electrical Specifications:

Unless otherwise noted, all parameters apply with 4.5V

 V

DD

 18V

Parameter

Sym.

Min.

Typ.

Max.

Units

Comments

Temperature Ranges
Specified Temperature Range

T

A

-40

+125

°C

Maximum Junction Temperature

T

J

+150

°C

Storage Temperature Range

T

A

-65

+150

°C

Package Thermal Resistances
Thermal Resistance, 6LD 2x2 DFN

JA

91

°C/W

Thermal Resistance, 6LD SOT-23

JA

192

°C/W

DC CHARACTERISTICS (OVER OPERATING TEMP. RANGE) (

Note 1

) (CONTINUED)

Electrical Specifications:

 Unless otherwise indicated, over the operating range with 4.5V

 V

DD

 18V.

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Note 1:

Tested during characterization, not production tested.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

MCP14A0051/2

DS20005369A-page 6

 2014 Microchip Technology Inc.

2.0

TYPICAL PERFORMANCE CURVES

Note:

 Unless otherwise indicated, T

A

= +25°C with 4.5V

 V

DD

 18V.

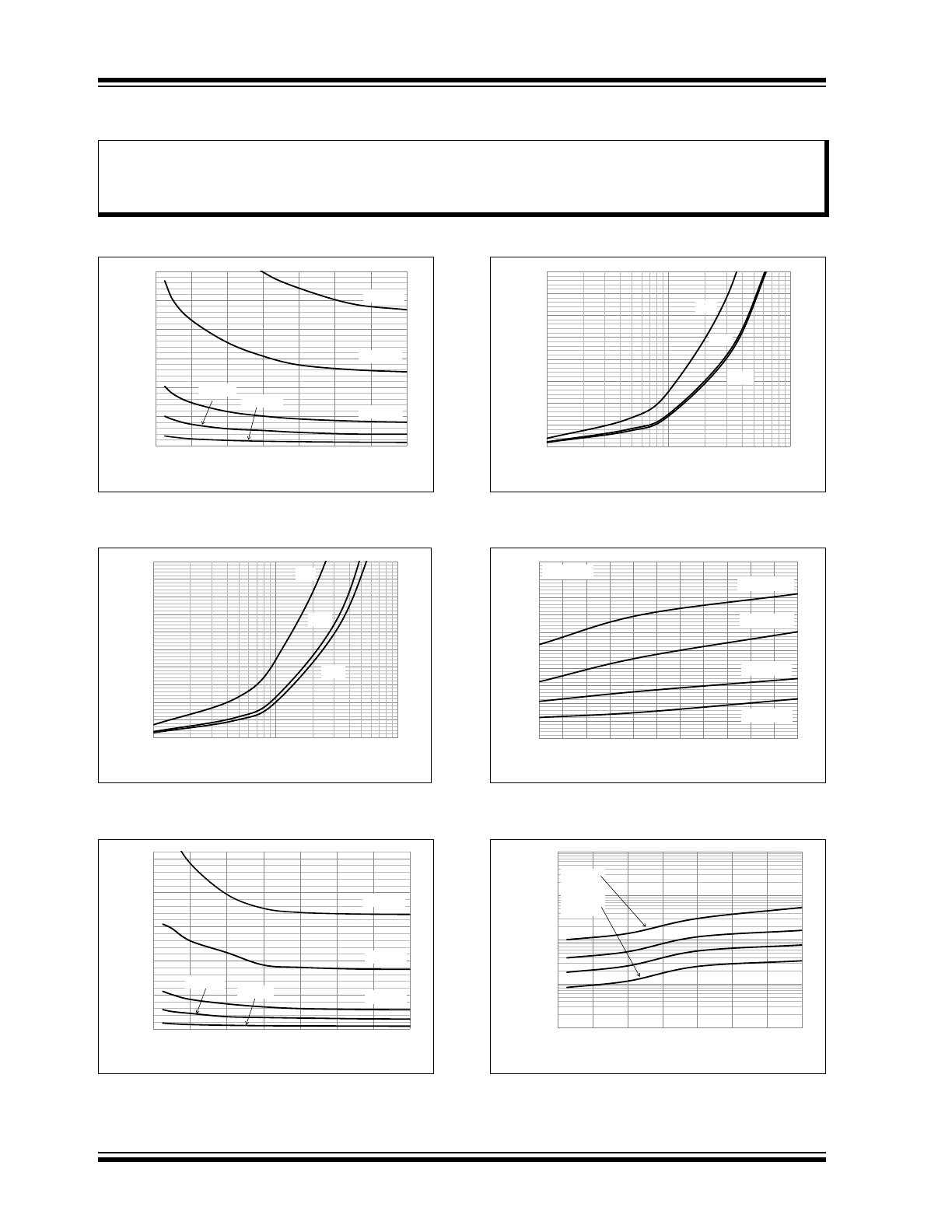

FIGURE 2-1:

Rise Time vs. Supply

Voltage.

FIGURE 2-2:

Rise Time vs. Capacitive

Load.

FIGURE 2-3:

Fall Time vs. Supply

Voltage.

FIGURE 2-4:

Fall Time vs. Capacitive

Load.

FIGURE 2-5:

Rise and Fall Time vs.

Temperature.

FIGURE 2-6:

Crossover Current vs.

Supply Voltage.

Note:

The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

0

50

100

150

200

250

300

4

6

8

10

12

14

16

18

Rise T

ime (ns)

Supply Voltage (V)

470 pF

1000 pF

3300 pF

6800 pF

100 pF

0

20

40

60

80

100

120

140

160

180

200

100

1000

10000

Rise T

ime (ns)

Capacitive Load (pF)

18V

12V

5V

0

50

100

150

200

250

4

6

8

10

12

14

16

18

Fall T

ime (ns)

Supply Voltage (V)

470 pF

1000 pF

3300 pF

6800 pF

100 pF

0

20

40

60

80

100

120

140

160

100

1000

10000

Fall T

ime (ns)

Capacitive Load (pF)

18V

12V

5V

5

10

15

20

25

30

35

40

45

50

55

-40 -25 -10

5

20

35

50

65

80

95 110 125

T

ime (ns)

Temperature (°C)

V

DD

= 18V

t

R

, 470 pF

t

F

, 470 pF

t

F

, 1000 pF

t

R

, 1000 pF

1

10

100

1000

10000

4

6

8

10

12

14

16

18

Crossover Current (µA)

Supply Voltage (V)

500 kHz
200 kHz
100 kHz
50 kHz

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

 2014 Microchip Technology Inc.

DS20005369A-page 7

MCP14A0051/2

Note:

 Unless otherwise indicated, T

A

= +25°C  with  4.5V

 V

DD

 18V.

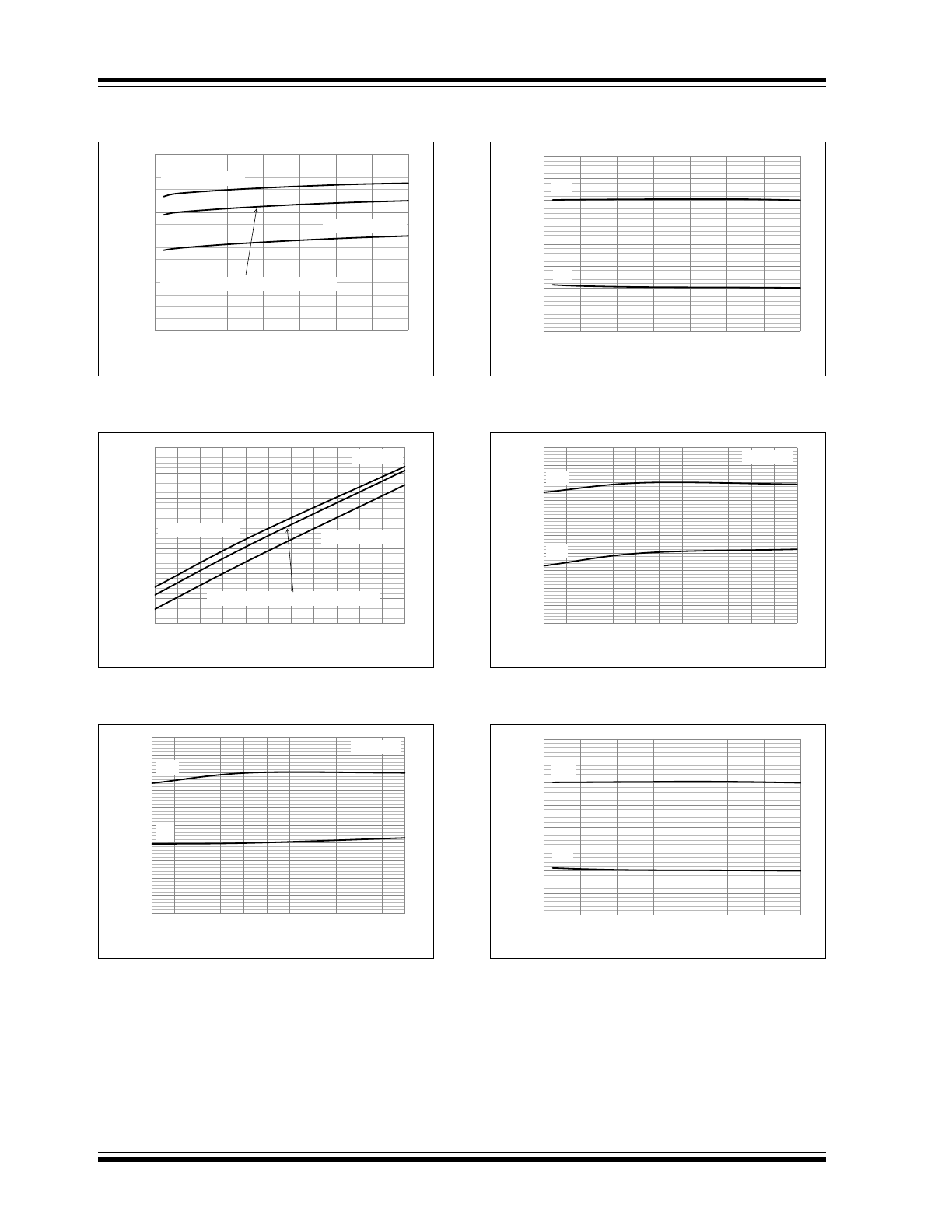

FIGURE 2-7:

Input Propagation Delay vs.

Supply Voltage.

FIGURE 2-8:

Input Propagation Delay

Time vs. Input Amplitude.

FIGURE 2-9:

Input Propagation Delay vs.

Temperature.

FIGURE 2-10:

Enable Propagation Delay

vs. Supply Voltage.

FIGURE 2-11:

Enable Propagation Delay

Time vs. Enable Voltage Amplitude.

FIGURE 2-12:

Enable Propagation Delay

vs. Temperature.

20

25

30

35

40

45

50

4

6

8

10

12

14

16

18

Input Propagation

Delay

 (ns)

Supply Voltage (V)

V

IN

= 5V

t

D1

t

D2

20

25

30

35

40

4

6

8

10

12

14

16

18

Input Propogation

Delay

 (ns)

Input Voltage Amplitude (V)

t

D2

t

D1

V

DD

= 18V

20

25

30

35

40

-40 -25 -10

5

20

35

50

65

80

95 110 125

Input Propagation

Delay

 (ns)

Temperature (°C)

V

DD

= 18V

V

IN

= 5V

t

D2

t

D1

20

25

30

35

40

45

50

4

6

8

10

12

14

16

18

Enable Propagation Delay

 (ns)

Supply Voltage (V)

V

EN

= 5V

t

D3

t

D4

20

25

30

35

40

4

6

8

10

12

14

16

18

Enable Propagation Delay

 (ns)

Enable Voltage Amplitude (V)

t

D4

t

D3

V

DD

= 18V

20

25

30

35

40

-40 -25 -10

5

20

35

50

65

80

95 110 125

Enable Propagation Delay

 (ns)

Temperature (°C)

t

D4

t

D3

V

DD

= 18V

V

EN

= 5V

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

MCP14A0051/2

DS20005369A-page 8

 2014 Microchip Technology Inc.

Note:

 Unless otherwise indicated, T

A

= +25°C with 4.5V

 V

DD

 18V.

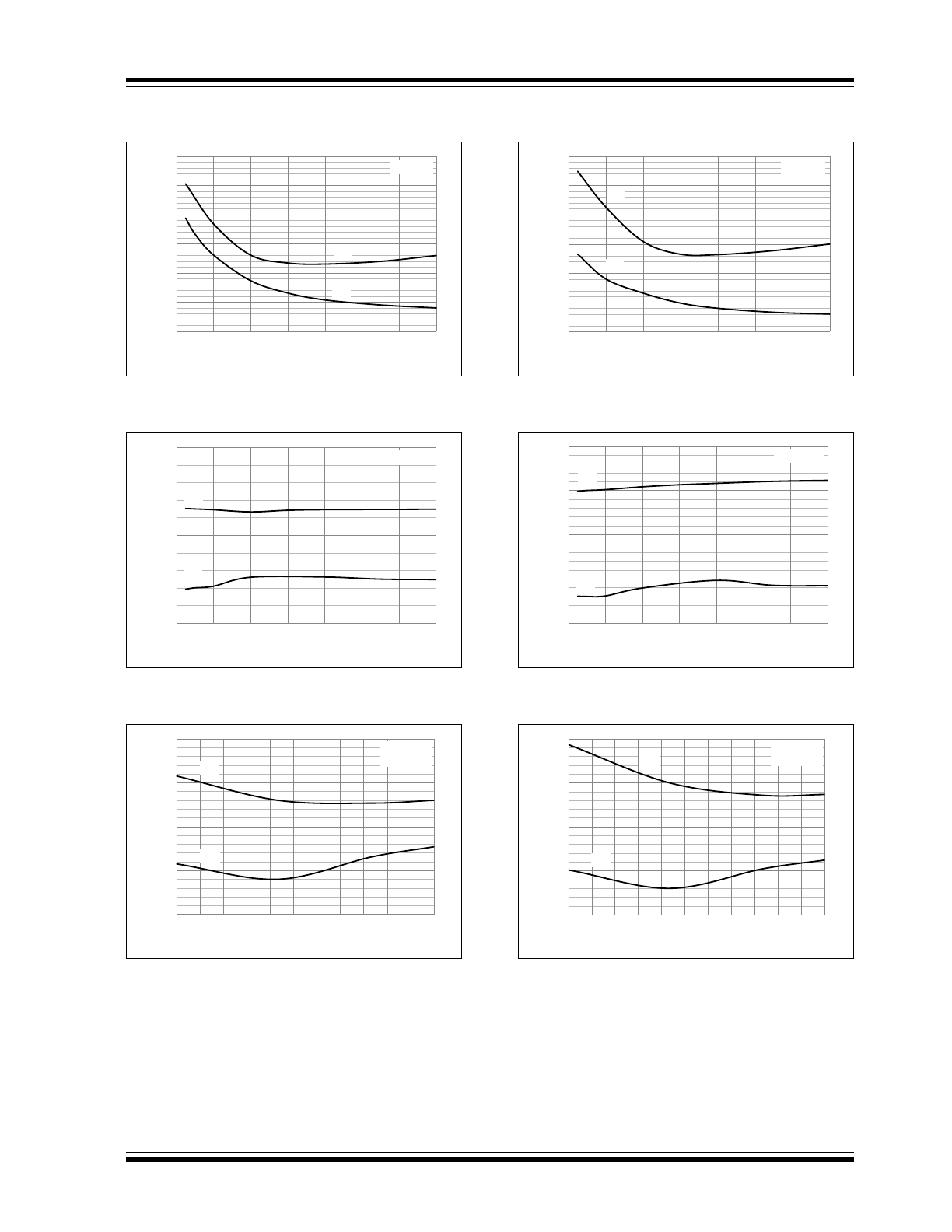

FIGURE 2-13:

Quiescent Supply Current

vs. Supply Voltage.

FIGURE 2-14:

Quiescent Supply Current

vs. Temperature.

FIGURE 2-15:

Input Threshold vs.

Temperature.

FIGURE 2-16:

Input Threshold vs Supply

Voltage.

FIGURE 2-17:

Enable Threshold vs.

Temperature.

FIGURE 2-18:

Enable Threshold vs Supply

Voltage.

250

300

350

400

4

6

8

10

12

14

16

18

Quiescent Current (µA)

Supply Voltage (V)

V

IN

= 3V,V

EN

= 3V

V

IN

= 0V,V

EN

= 0V

V

IN

= 3V,V

EN

= 0V  or V

IN

= 0V,V

EN

= 3V

200

250

300

350

400

450

500

550

-40 -25 -10

5

20 35 50 65 80 95 110 125

Quiescent Current (µA)

Temperature (°C)

V

DD

= 18V

V

IN

= 5V,V

EN

= 5V

V

IN

= 0V,V

EN

= 0V

V

IN

= 5V,V

EN

= 0V  or V

IN

= 0V,V

EN

= 5V

0.8

0.9

1

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

-40 -25 -10

5

20

35

50

65

80

95 110 125

Input Threshold

(V)

Temperature (°C)

V

DD

= 18V

V

IL

V

IH

1

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

4

6

8

10

12

14

16

18

Input Threshold

(V)

Supply Voltage (V)

V

IL

V

IH

0.8

0.9

1

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

-40 -25 -10

5

20

35

50

65

80

95 110 125

Enable Threshold (V)

Temperature (°C)

V

DD

= 18V

V

EL

V

EH

1

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

4

6

8

10

12

14

16

18

Enable Threshold (V)

Supply Voltage (V)

V

EL

V

EH

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

 2014 Microchip Technology Inc.

DS20005369A-page 9

MCP14A0051/2

Note:

 Unless otherwise indicated, T

A

= +25°C  with  4.5V

 V

DD

 18V.

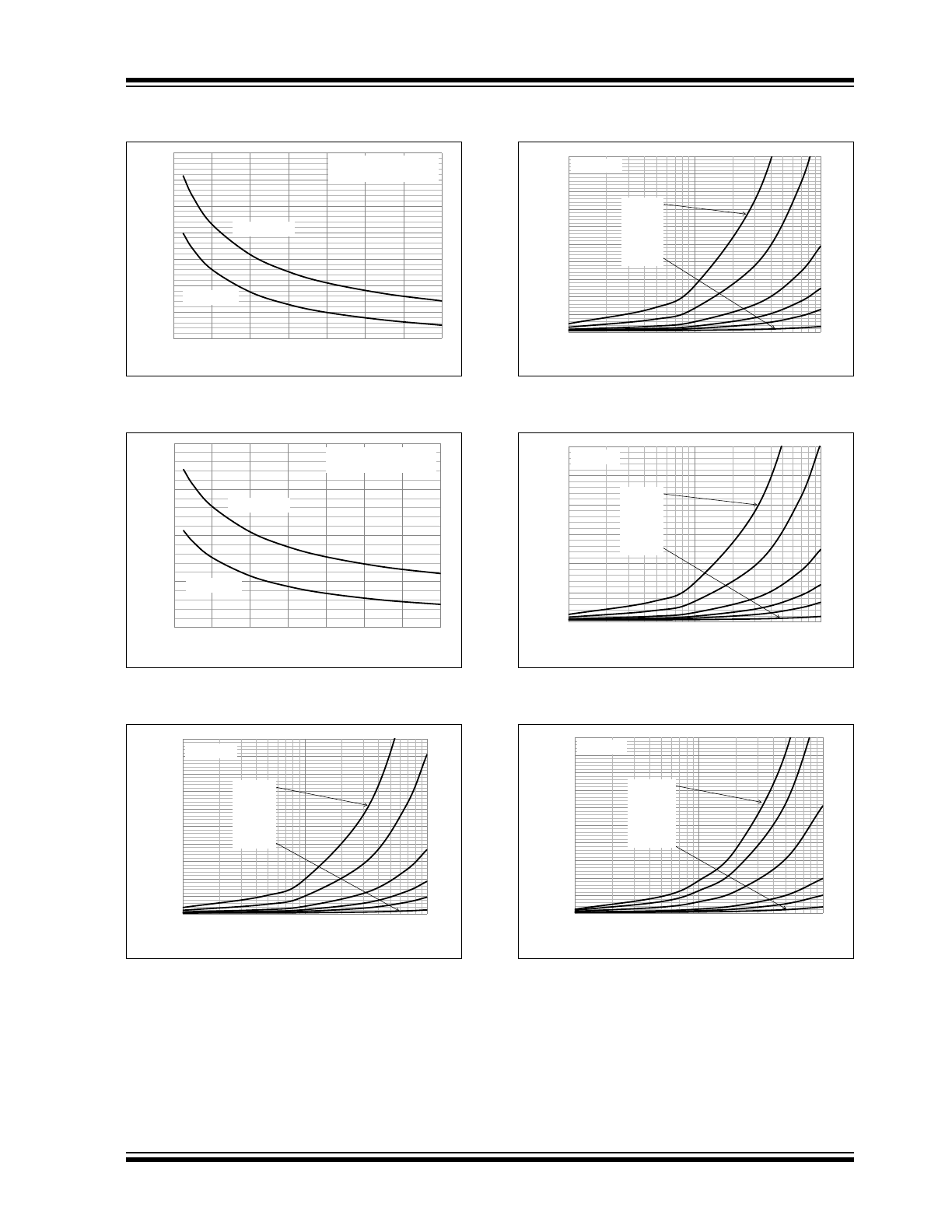

FIGURE 2-19:

Output Resistance (Output

High) vs. Supply Voltage.

FIGURE 2-20:

Output Resistance (Output

Low) vs. Supply Voltage.

FIGURE 2-21:

Supply Current vs.

Capacitive Load (V

DD

 = 18V).

FIGURE 2-22:

Supply Current vs.

Capacitive Load (V

DD

 = 12V).

FIGURE 2-23:

Supply Current vs.

Capacitive Load (V

DD

 = 6V).

FIGURE 2-24:

Supply Current vs.

Frequency (V

DD

 = 18V).

10

15

20

25

30

35

40

45

4

6

8

10

12

14

16

18

R

OH

 - Output Resistance

Supply Voltage (V)

T

A

 = +25

°C

T

A

 = +125

°C

V

IN

 = 0V (MCP14A0051)

V

IN

 = 5V (MCP14A0052)



5

10

15

20

25

4

6

8

10

12

14

16

18

R

OL

 - Output Resistance

Supply Voltage (V)

T

A

 = +25

°C

T

A

 = +125

°C

V

IN

 = 5V (MCP14A0051)

V

IN

 = 0V (MCP14A0052)



0

10

20

30

40

50

60

70

80

90

100

100

1000

10000

Supply

 Current

(mA)

Capacitive Load (pF)

1 MHz
500 kHz
200 kHz
100 kHz
50 kHz
10 kHz

V

DD

= 18V

0

5

10

15

20

25

30

35

40

45

50

100

1000

10000

Supply

 Current

(mA)

Capacitive Load (pF)

1 MHz
500 kHz
200 kHz
100 kHz
50 kHz
10 kHz

V

DD

= 12V

0

5

10

15

20

25

30

100

1000

10000

Supply

 Current

(mA)

Capacitive Load (pF)

1 MHz
500 kHz
200 kHz
100 kHz
50 kHz
10 kHz

V

DD

= 6V

0

10

20

30

40

50

60

70

80

90

100

10

100

1000

Supply

 Current

(mA)

Switching Frequency (kHz)

10000 pF
6800 pF
3300 pF
1000 pF
470 pF
100 pF

V

DD

= 18V

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005369A-html.html
background image

MCP14A0051/2

DS20005369A-page 10

 2014 Microchip Technology Inc.

Note:

 Unless otherwise indicated, T

A

= +25°C with 4.5V

 V

DD

 18V.

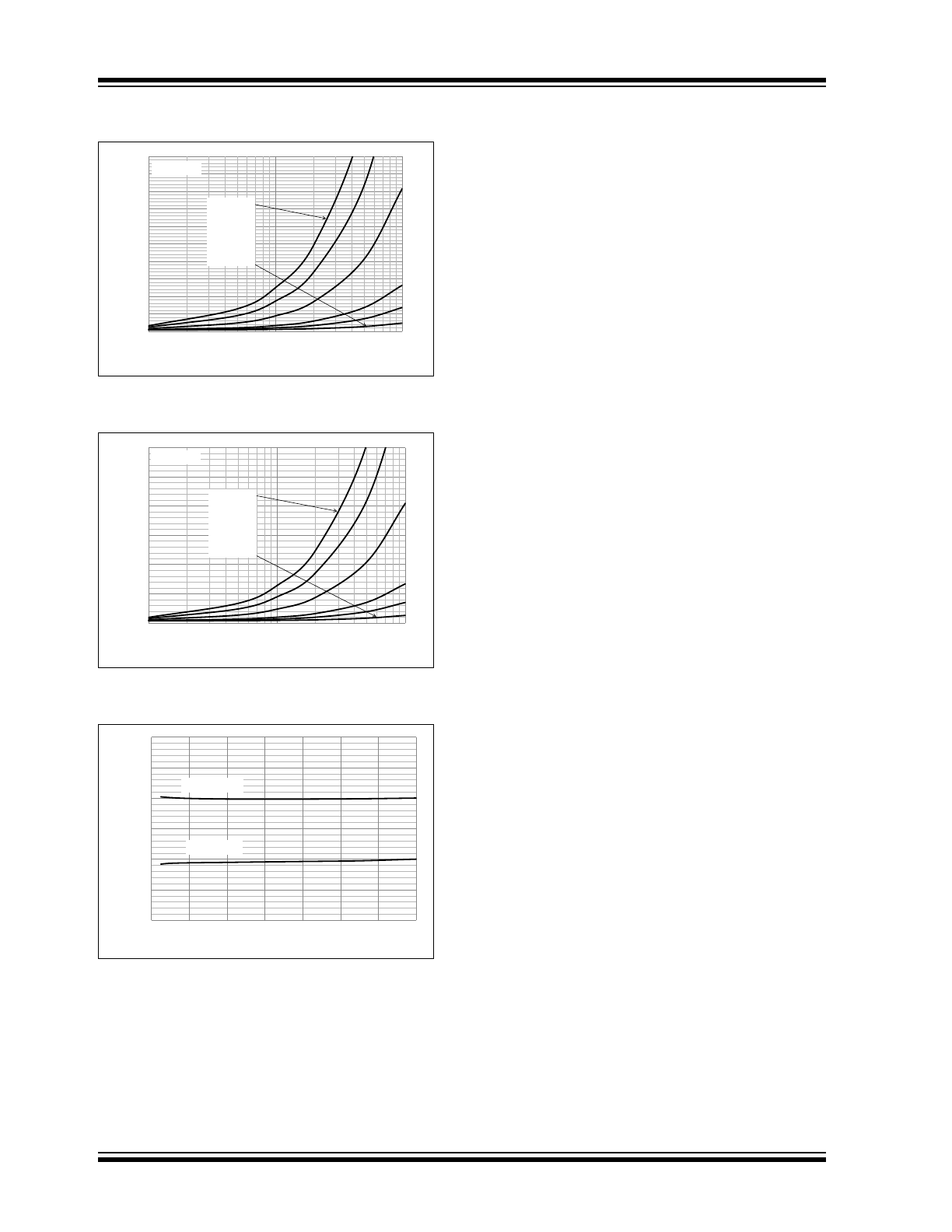

FIGURE 2-25:

Supply Current vs.

Frequency (V

DD

 = 12V).

FIGURE 2-26:

Supply Current vs.

Frequency (V

DD

 = 6V).

FIGURE 2-27:

Enable Current vs. Supply

Voltage.

0

5

10

15

20

25

30

35

40

45

50

10

100

1000

Supply

 Current

(mA)

Switching Frequency (kHz)

10000 pF
6800 pF
3300 pF
1000 pF
470 pF
100 pF

V

DD

= 12V

0

5

10

15

20

25

30

10

100

1000

Supply

 Current

(mA)

Switching Frequency (kHz)

10000 pF
6800 pF
3300 pF
1000 pF
470 pF
100 pF

V

DD

= 6V

8

9

10

11

12

13

14

4

6

8

10

12

14

16

18

Enable Current (uA)

Supply Voltage (V)

T

A

 = +25

°C

T

A

 = +125

°C

Maker
Microchip Technology Inc.
Datasheet PDF Download
