LAN9303M/LAN9303Mi Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

 2008-2016 Microchip Technology Inc.



DS00002309A-page 1

Highlights

• Up to 200Mbps via Turbo MII Interface
• 2nd MII/RMII/Turbo MII interface allows connec-

tion to an external MOCA, HomePNA, HomePlug,
cable/DSL modem module or 2nd SOC with
speeds up to 200Mbps

• High performance, full featured 3 port switch with

VLAN, QoS packet prioritization, Rate Limiting,
IGMP monitoring and management functions

• Serial management via I

2

C or SMI

• Unique Virtual PHY feature simplifies software

development by mimicking the multiple switch
ports as a single port PHY

Target Applications

• Cable, satellite, and IP set-top boxes
• Digital televisions
• Digital video recorders
• VoIP/Video phone systems
• Home gateways
• Test/Measurement equipment
• Industrial automation systems

Key Benefits

• Ethernet Switch Fabric

- 32K buffer RAM
- 512 entry forwarding table
- Port based IEEE 802.1Q VLAN support (16

groups)

–Programmable IEEE 802.1Q tag insertion/removal

- IEEE 802.1D spanning tree protocol support
- 4 separate transmit queues available per port
- Fixed or weighted egress priority servicing
- QoS/CoS Packet prioritization

–Input priority determined by VLAN tag, DA lookup,

TOS, DIFFSERV or port default value

–Programmable Traffic Class map based on input

priority on per port basis

–Remapping of 802.1Q priority field on per port basis
–Programmable rate limiting at the ingress with

coloring and random early discard, per port /
priority

–Programmable rate limiting at the egress with leaky

bucket algorithm, per port / priority

- IGMP v1/v2/v3 monitoring for Multicast

packet filtering

- Programmable broadcast storm protection

with global % control and enable per port

- Programmable buffer usage limits
- Dynamic queues on internal memory
- Programmable filter by MAC address

• Switch Management

- Port mirroring/monitoring/sniffing: ingress

and/or egress traffic on any port or port pair

- Fully compliant statistics (MIB) gathering

counters

- Control registers configurable on-the-fly

• Ports

- Port 0 - MII MAC, MII PHY, RMII PHY modes
- Port 1 - MII MAC, MII PHY, RMII PHY mode

options

- 2 internal 10/100 PHYs with HP Auto-MDIX

support

- 200Mbps Turbo MII (PHY or MAC mode)
- Fully compliant with IEEE 802.3 standards
- 10BASE-T and 100BASE-TX support
- Full and half duplex support
- Full duplex flow control
- Backpressure (forced collision) half duplex

flow control

- Automatic flow control based on programma-

ble levels

- Automatic 32-bit CRC generation & checking
- 2K Jumbo packet support
- Programmable interframe gap, flow control

pause value

- Full transmit/receive statistics
- Full LED support per port
- Auto-negotiation
- Automatic polarity correction
- Automatic MDI/MDI-X
- Loop-back mode

• Serial Management

- I

2

C (slave) access to all internal registers

- MIIM (MDIO) access to PHY related registers
- SMI (extended MIIM) access to all internal

registers

• Other Features

- General Purpose Timer
- I

2

C Serial EEPROM interface

- Programmable GPIOs/LEDs

• Single 3.3V power supply
• ESD Protection Levels

- ±8kV HBM without External Protection

Devices

- ±8kV contact mode (IEC61000-4-2)
- ±15kV air-gap discharge mode

(IEC61000-4-2)

• Latch-up exceeds ±150mA per EIA/JESD 78
• 72-pin QFN (10x10mm) RoHS Compliant Pkg.
• Available in Commercial & Industrial Temp.

Ranges

LAN9303M/LAN9303Mi

Small Form Factor Three Port 10/100 Managed

Ethernet Switch with Dual MII/RMII/Turbo MII

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

LAN9303M/LAN9303Mi

DS00002309A-page 2



 2008-2016 Microchip Technology Inc.

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at

docerrors@microchip.com

. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;

http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.

Customer Notification System

Register on our web site at

www.microchip.com

 to receive the most current information on all of our products.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

 2008-2016 Microchip Technology Inc.



DS00002309A-page 3

LAN9303M/LAN9303Mi

Table of Contents

1.0 Preface ............................................................................................................................................................................................ 4
2.0 Introduction  ..................................................................................................................................................................................... 6
3.0 Pin Description and Configuration  ................................................................................................................................................ 13
4.0 Clocking, Resets, and Power Management  .................................................................................................................................. 35
5.0 System Interrupts  .......................................................................................................................................................................... 48
6.0 Switch Fabric  ................................................................................................................................................................................ 52
7.0 Ethernet PHYs  .............................................................................................................................................................................. 77
8.0 Serial Management  ....................................................................................................................................................................... 92
9.0 MII Data Interfaces ...................................................................................................................................................................... 107
10.0 MII Management  ....................................................................................................................................................................... 112
11.0 General Purpose Timer & Free-Running Clock  ........................................................................................................................ 119
12.0 GPIO/LED Controller  ................................................................................................................................................................ 120
13.0 Register Descriptions  ................................................................................................................................................................ 124
14.0 Operational Characteristics ....................................................................................................................................................... 251
15.0 Package Outlines  ...................................................................................................................................................................... 270
Appendix A: Data sheet Revision History  ......................................................................................................................................... 272
The Microchip Web Site  .................................................................................................................................................................... 274
Customer Change Notification Service  ............................................................................................................................................. 274
Customer Support  ............................................................................................................................................................................. 274
Product Identification System  ........................................................................................................................................................... 275

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

LAN9303M/LAN9303Mi

DS00002309A-page 4



 2008-2016 Microchip Technology Inc.

1.0

PREFACE

1.1

General Terms

10BASE-T

10BASE-T (10Mbps Ethernet, IEEE 802.3)

100BASE-TX

100BASE-TX (100Mbps Fast Ethernet, IEEE 802.3u)

ADC

Analog-to-Digital Converter

ALR

Address Logic Resolution

BLW

Baseline Wander

BM

Buffer Manager - Part of the switch fabric

BPDU

Bridge Protocol Data Unit - Messages which carry the Spanning Tree
Protocol information

Byte

8-bits

CSMA/CD

Carrier Sense Multiple Access / Collision Detect

CSR

Control and Status Registers

CTR

Counter

DA

Destination Address

DWORD

32-bits

EPC

EEPROM Controller

FCS

Frame Check Sequence - The extra checksum characters added to the end
of an Ethernet frame, used for error detection and correction.

FIFO

First In First Out buffer

FSM

Finite State Machine

GPIO

General Purpose I/O

Host

External system (Includes processor, application software, etc.)

IGMP

Internet Group Management Protocol

Inbound

Refers to data input to the device from the host

Level-Triggered Sticky Bit

This type of status bit is set whenever the condition that it represents is
asserted. The bit remains set until the condition is no longer true, and the
status bit is cleared by writing a zero.

lsb

Least Significant Bit

LSB

Least Significant Byte

MDI

Medium Dependant Interface

MDIX

Media Independent Interface with Crossover

MII

Media Independent Interface

MIIM

Media Independent Interface Management

MIL

MAC Interface Layer

MLT-3

Multi-Level Transmission Encoding (3-Levels). A tri-level encoding method
where a change in the logic level represents a code bit “1” and the logic
output remaining at the same level represents a code bit “0”.

msb

Most Significant Bit

MSB

Most Significant Byte

NRZI

Non Return to Zero Inverted. This encoding method inverts the signal for a
“1” and leaves the signal unchanged for a “0”

N/A

Not Applicable

NC

No Connect

OUI

Organizationally Unique Identifier

Outbound

Refers to data output from the device to the host

PISO

Parallel In Serial Out

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

 2008-2016 Microchip Technology Inc.



DS00002309A-page 5

LAN9303M/LAN9303Mi

PLL

Phase Locked Loop

PTP

Precision Time Protocol

RESERVED

Refers to a reserved bit field or address. Unless otherwise noted, reserved
bits must always be zero for write operations. Unless otherwise noted, values
are not ensured when reading reserved bits. Unless otherwise noted, do not
read or write to reserved addresses.

RTC

Real-Time Clock

SA

Source Address

SFD

Start of Frame Delimiter - The 8-bit value indicating the end of the preamble
of an Ethernet frame.

SIPO

Serial In Parallel Out

SMI

Serial Management Interface

SQE

Signal Quality Error (also known as “heartbeat”)

SSD

Start of Stream Delimiter

UDP

User Datagram Protocol - A connectionless protocol run on top of IP
networks

UUID

Universally Unique IDentifier

WORD

16-bits

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

LAN9303M/LAN9303Mi

DS00002309A-page 6



 2008-2016 Microchip Technology Inc.

2.0

INTRODUCTION

2.1

General Description

The LAN9303M/LAN9303Mi is a full featured, 3 port 10/100 managed Ethernet switch designed for embedded applica-
tions where performance, flexibility, ease of integration and system cost control are required. The
LAN9303M/LAN9303Mi combines all the functions of a 10/100 switch system, including the Switch Fabric, packet buf-
fers, Buffer Manager, Media Access Controllers (MACs), PHY transceivers, and serial management. The
LAN9303M/LAN9303Mi complies with the IEEE 802.3 (full/half-duplex 10BASE-T and 100BASE-TX) Ethernet protocol
specification and 802.1D/802.1Q network management protocol specifications, enabling compatibility with industry
standard Ethernet and Fast Ethernet applications.

At the core of the device is the high performance, high efficiency 3 port Ethernet Switch Fabric. The Switch Fabric con-
tains a 3 port VLAN layer 2 Switch Engine that supports untagged, VLAN tagged, and priority tagged frames. The Switch
Fabric provides an extensive feature set which includes spanning tree protocol support, multicast packet filtering and
Quality of Service (QoS) packet prioritization by VLAN tag, destination address, port default value or DIFFSERV/TOS,
allowing for a range of prioritization implementations. 32K of buffer RAM allows for the storage of multiple packets while
forwarding operations are completed, and a 512 entry forwarding table provides ample room for MAC address forward-
ing tables. Each port is allocated a cluster of 4 dynamic QoS queues which allow each queue size to grow and shrink
with traffic, effectively utilizing all available memory. This memory is managed dynamically via the Buffer Manager block
within the Switch Fabric. All aspects of the Switch Fabric are managed via the Switch Fabric configuration and status
registers, which are indirectly accessible via the system control and status registers.

The LAN9303M/LAN9303Mi provides 3 switched ports. Each port is fully compliant with the IEEE 802.3 standard and
all internal MACs and PHYs support full/half duplex 10BASE-T and 100BASE-TX operation. The
LAN9303M/LAN9303Mi provides 2 on-chip PHYs, 1 Virtual PHY and 3 MACs. The Virtual PHY and the third MAC are
used to connect the Switch Fabric to an external MAC or PHY. In MAC mode, the device can be connected to an external
PHY via the MII/Turbo MII interface. In PHY mode, the device can be connected to an external MAC via the
MII/RMII/Turbo MII interface. Optionally, the internal PHY on Port 1 can be disabled and the associated Switch Fabric
port operated in the MII/Turbo MII PHY, RMII PHY, or MII/Turbo MII MAC modes. All ports support automatic or manual
full duplex flow control or half duplex backpressure (forced collision) flow control. 2K jumbo packet (2048 byte) support
allows for oversized packet transfers, effectively increasing throughput while decreasing CPU load. All MAC and PHY
related settings are fully configurable via their respective registers within the device.

The integrated I

2

C and SMI slave controllers allow for full serial management of the device via the integrated I

2

C or MII

interface, respectively. The inclusion of these interfaces allows for greater flexibility in the incorporation of the device
into various designs. It is this flexibility which allows the device to operate in 2 different modes and under various man-
agement conditions. In both MAC and PHY modes, the device can be SMI managed or I

2

C managed. This flexibility in

management makes the LAN9303M/LAN9303Mi a candidate for virtually all switch applications.

The LAN9303M/LAN9303Mi contains an I

2

C master EEPROM controller for connection to an optional EEPROM. This

allows for the storage and retrieval of static data. The internal EEPROM Loader can be optionally configured to auto-
matically load stored configuration settings from the EEPROM into the device at reset. The I

2

C management slave and

master EEPROM controller share common pins.

In addition to the primary functionality described above, the LAN9303M/LAN9303Mi provides additional features
designed for extended functionality. These include a configurable 16-bit General Purpose Timer (GPT), a 32-bit 25MHz
free running counter, and 6-bit configurable GPIO/LED interface.

The LAN9303M/LAN9303Mi’s performance, features and small size make it an ideal solution for many applications in
the consumer electronics and industrial automation markets. Targeted applications include: set top boxes (cable, satel-
lite and IP), digital televisions, digital video recorders, voice over IP and video phone systems, home gateways, and test
and measurement equipment.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

 2008

-2016 Microchip

Technology In

c.



D

S

00002309A-

p

age 7

LAN9303M/LAN9303Mi

2.2

Block Diagram

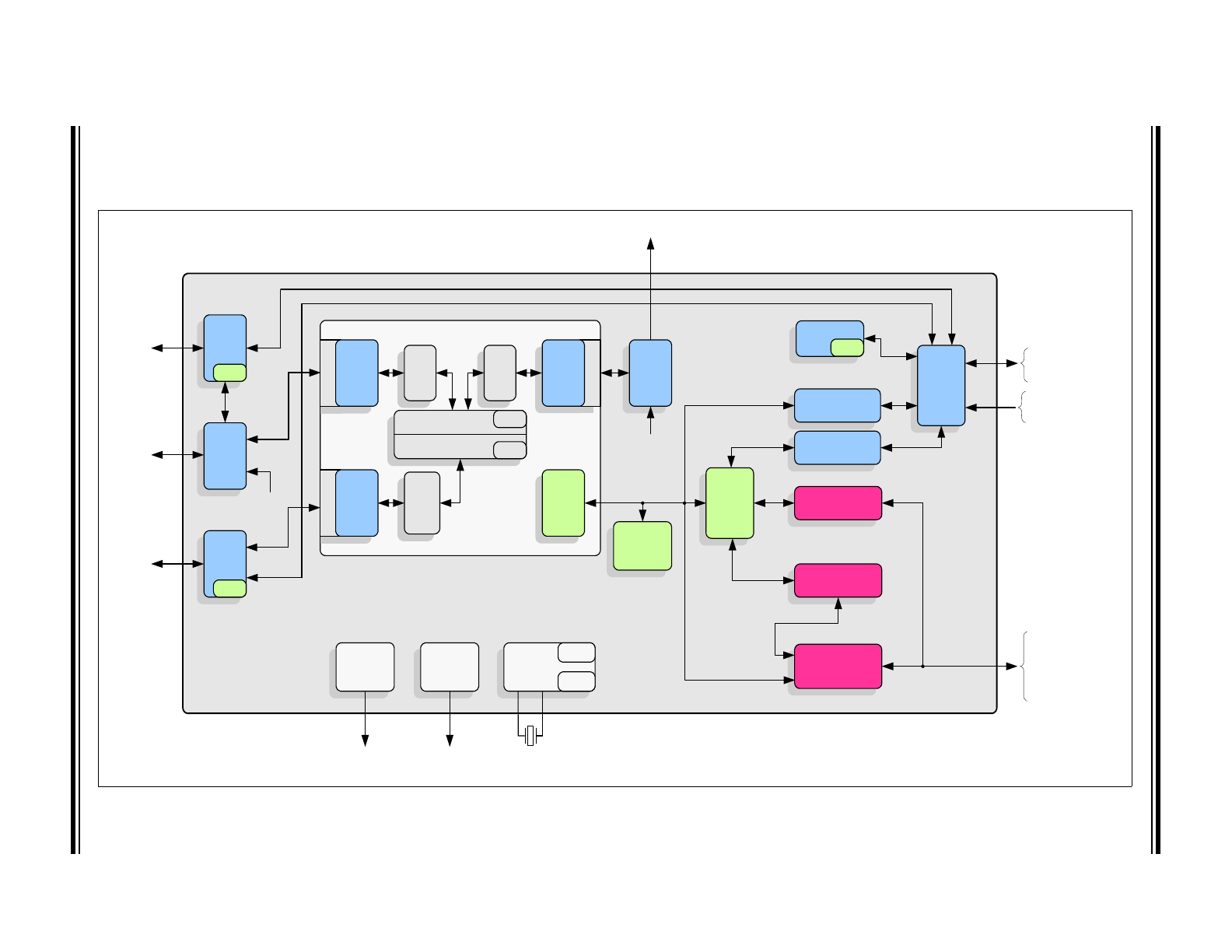

FIGURE 2-1:

INTERNAL BLOCK DIAGRAM

To optional EEPROM
(via I

2

C master)

EEPROM Controller

I

2

C (master)

EEPROM Loader

Register

Access

MUX

SMI (slave)

Controller

System

Registers

(CSRs)

MII

Mode

MUX

MDIO

MDIO

To optional SMI Master

Mode Configuration
Straps

MDIO

PHY Management

Interface (PMI)

MDIO

Registers

Virtual PHY

10/100

PHY

Registers

10/100

PHY

Registers

Switch

Registers

(CSRs)

Switch Fabric

D

y

nam

ic



QoS

4

 Qu

eue

s

Dyna

m

ic

QoS

4 Que

ues

D

y

nam

ic



QoS

4

 Qu

eue

s

Switch Engine

Buffer Manager

Search
Engine

Frame

Buffers

MII

MDIO

Mode Configuration

Straps

MDIO

Ethernet

Ethernet

LAN9303M/

LAN9303Mi

GPIO/LED

Controller

To optional GPIOs/LEDs

System

Interrupt

Controller

IRQ

GP Timer

Free-Run

Clk

System
Clocks/

Reset/PME

Controller

External

25MHz Crystal

I

2

Po
rt 0

10/100

MAC

Po
rt 1

10/100

MAC

Po
rt 2

10/100

MAC

MII

Mux/
Data

Path

MII

MII

I

2

C Slave

Controller

Mode Configuration

Straps

MII

Data
Path

To optional CPU
serial management
(via I

2

C slave)

MII/Turbo MII to PHY or
MII/RMII/Turbo MII to MAC

MII/Turbo MII to

PHY or MII/RMII/

Turbo MII to MAC

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

LAN9303M/LAN9303Mi

DS00002309A-page 8



 2008-2016 Microchip Technology Inc.

2.2.1

SYSTEM CLOCKS/RESET/PME CONTROLLER

A clock module generates all the system clocks required by the device. This module interfaces directly with the external
25MHz crystal/oscillator to generate the required clock divisions for each internal module. A 16-bit general purpose timer
and 32-bit free-running clock are provided by this module for general purpose use. The Port 1 & 2 PHYs provide general
power-down and energy detect power-down modes, which allow a reduction in PHY power consumption.

The device reset events are categorized as chip-level resets, multi-module resets, and single-module resets. These
reset events are summarized below:

• Chip Level Resets

- Power-On Reset (Entire chip reset)

- nRST Pin Reset (Entire chip reset)

• Multi-Module Reset

- Digital Reset (All sub-modules except Ethernet PHYs)

• Single-Module Resets

- Port 2 PHY Reset

- Port 1 PHY Reset

- Virtual PHY Reset

2.2.2

SYSTEM INTERRUPT CONTROLLER

The device provides a multi-tier programmable interrupt structure which is controlled by the System Interrupt Controller.
Top level interrupt registers aggregate and control all interrupts from the various sub-modules. The device is capable of
generating interrupt events from the following:

• Switch Fabric

• Ethernet PHYs

• GPIOs

• General Purpose Timer

• Software (general purpose)

A dedicated programmable IRQ interrupt output pin is provided for external indication of any device interrupts. The IRQ
buffer type, polarity, and de-assertion interval are register configurable.

2.2.3

SWITCH FABRIC

The Switch Fabric consists of the following major function blocks:

• 10/100 MACs

There is one 10/100 Ethernet MAC per Switch Fabric port, which provides basic 10/100 Ethernet functionality,
including transmission deferral, collision back-off/retry, TX/RX FCS checking/generation, TX/RX pause flow con-
trol, and transmit back pressure. The 10/100 MACs act as an interface between the Switch Engine and the 10/100
PHYs (for ports 1 and 2) or optional external PHY/MAC on port 1. The port 0 10/100 MAC interfaces the Switch
Engine to the external MAC/PHY (see

Section 2.3, "Modes of Operation"

). Each 10/100 MAC includes RX and TX

FIFOs and per port statistic counters.

• Switch Engine

This block, consisting of a 3 port VLAN layer 2 switching engine, provides the control for all forwarding/filtering
rules and supports untagged, VLAN tagged, and priority tagged frames. The Switch Engine provides an extensive
feature set which includes spanning tree protocol support, multicast packet filtering and Quality of Service (QoS)
packet prioritization by VLAN tag, destination address, and port default value or DIFFSERV/TOS, allowing for a
range of prioritization implementations. A 512 entry forwarding table provides ample room for MAC address for-
warding tables.

• Buffer Manager

This block controls the free buffer space, multi-level transmit queues, transmission scheduling, and packet drop-
ping of the Switch Fabric. 32K of buffer RAM allows for the storage of multiple packets while forwarding operations
are completed. Each port is allocated a cluster of 4 dynamic QoS queues which allow each queue size to grow
and shrink with traffic, effectively utilizing all available memory. This memory is managed dynamically via the Buf-
fer Manager block.

• Switch CSRs

This block contains all switch related control and status registers, and allows all aspects of the Switch Fabric to be
managed. These registers are indirectly accessible via the system control and status registers.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

 2008-2016 Microchip Technology Inc.



DS00002309A-page 9

LAN9303M/LAN9303Mi

2.2.4

ETHERNET PHYS

The device contains three PHYs: Port 1 PHY, Port 2 PHY and a Virtual PHY. The Port 1 & 2 PHYs are identical in func-
tionality and each connect their corresponding Ethernet signal pins to the Switch Fabric MAC of their respective port.
These PHYs interface with their respective MAC via an internal MII interface. The Virtual PHY provides the virtual func-
tionality of a PHY and allows connection of an external MAC to port 0 of the Switch Fabric as if it was connected to a
single port PHY. All PHYs comply with the IEEE 802.3 Physical Layer for Twisted Pair Ethernet and can be configured
for full/half duplex 100 Mbps (100BASE-TX) or 10Mbps (10BASE-T) Ethernet operation. All PHY registers follow the
IEEE 802.3 (clause 22.2.4) specified MII management register set.

2.2.5

PHY MANAGEMENT INTERFACE (PMI)

The PHY Management Interface (PMI) is used to serially access the internal PHYs as well as the external PHY on the
MII pins (in MAC mode only, see

Section 2.3, "Modes of Operation"

). The PMI implements the IEEE 802.3 management

protocol, providing read/write commands for PHY configuration.

2.2.6

I

2

C SLAVE CONTROLLER

This module provides an I

2

C slave interface which can be used for CPU serial management of the device. The I

2

C slave

controller implements the low level I

2

C slave serial interface (start and stop condition detection, data bit transmis-

sion/reception, and acknowledge generation/reception), handles the slave command protocol, and performs system
register reads and writes. The I

2

C slave controller conforms to the NXP I

2

C-Bus Specification. A list of management

modes and configurations settings for these modes is discussed in

Section 2.3, "Modes of Operation"

2.2.7

SMI SLAVE CONTROLLER

This module provides a SMI slave interface which can be used for CPU management of the device via the MII pins, and
allows CPU access to all system CSRs. SMI uses the same pins and protocol of the IEEE MII management function,
and differs only in that SMI provides access to all internal registers by using a non-standard extended addressing map.
The SMI protocol co-exists with the MII management protocol by using the upper half of the PHY address space (16
through 31). A list of management modes and configurations settings for these modes is discussed in

Section 2.3,

"Modes of Operation"

.

2.2.8

EEPROM CONTROLLER/LOADER

The EEPROM Controller is an I

2

C master module which interfaces an optional external EEPROM with the system reg-

ister bus and the EEPROM Loader. Multiple sizes of external EEPROMs are supported along with various EEPROM
commands, allowing for the efficient storage and retrieval of static data. The I

2

C interface conforms to the NXP I

2

C-Bus

Specification.

The EEPROM Loader module interfaces to the EEPROM Controller, Ethernet PHYs, and the system CSRs. The
EEPROM Loader provides the automatic loading of configuration settings from the EEPROM into the device at reset,
allowing the device to operate unmanaged. The EEPROM Loader runs upon a pin reset (nRST), power-on reset (POR),
digital reset, or upon the issuance of a EEPROM RELOAD command.

2.2.9

GPIO/LED CONTROLLER

bit Six configurable general-purpose input/output pins are provided which are controlled via this module. These pins can
be individually configured via the GPIO/LED CSRs to function as inputs, push-pull outputs, or open drain outputs and
each is capable of interrupt generation with configurable polarity. The GPIO pins can be alternatively configured as LED
outputs to drive Ethernet status LEDs for external indication of various attributes of the switch ports.

2.3

Modes of Operation

The LAN9303M/LAN9303Mi is designed to integrate into various embedded environments. To accomplish compatibility
with a wide range of applications, the LAN9303M/LAN9303Mi ports can operate in the following modes:

• Port 0 - Independently configured for MII MAC, MII PHY, RMII PHY modes

• Port 1 - Independently configured for internal PHY, MII MAC, MII PHY, RMII PHY modes

• Port 2 - Internal PHY mode

The mode of the device is determined by the P0_MODE[2:0] (Port 0) and P1_MODE[2:0] (Port 1) pin straps.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002309A-html.html
background image

LAN9303M/LAN9303Mi

DS00002309A-page 10



 2008-2016 Microchip Technology Inc.

The device can also be placed into the following management modes:

• SMI managed

• I

2

C managed

The management mode is determined by the MNGT1_LED4P and MNGT0_LED3P pin straps. These modes are
detailed in the following sections.

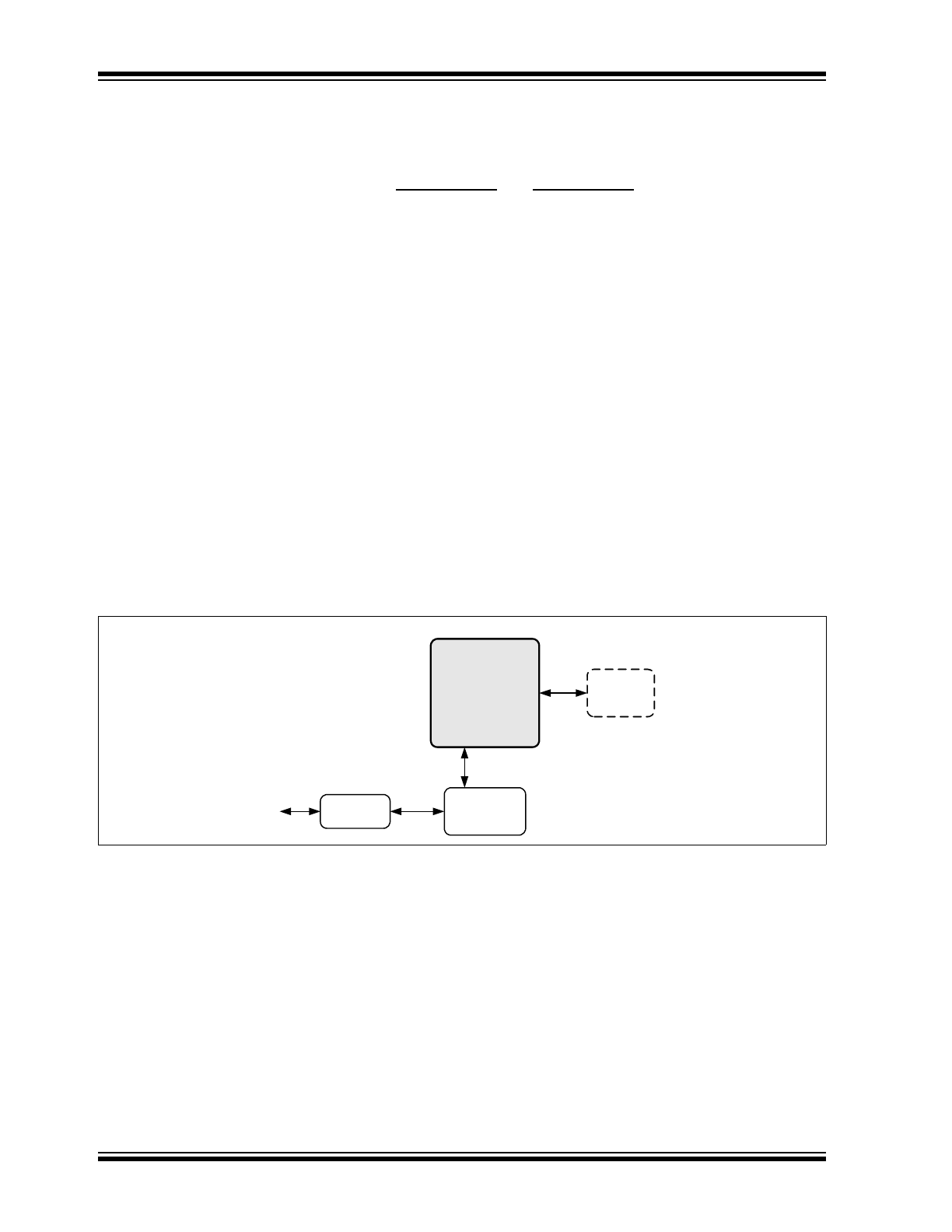

Figure 2-4

 displays a typical system configuration for each Port 0 mode and manage-

ment type supported by the device. Refer to

Section 9.0, "MII Data Interfaces," on page 107

 for additional information

on the usage of MII signals in each supported mode.

2.3.1

INTERNAL PHY MODE

Internal PHY mode (Port 1 and Port 2) utilizes the internal PHY for the network connection. The Switch Engine MAC’s
MII port is connected internally to the internal PHY in this mode. Internal PHY mode can operate at 10Mbps or 100Mbps.

When an EEPROM is connected, the EEPROM loader can be used to load the initial device configuration from the exter-
nal EEPROM via the I

2

C interface. Once operational, if managed, the CPU can use the I

2

C interface to read or write

the EEPROM.

2.3.2

MAC MODE

Both Port 0 and Port 1 can be configured independently into MAC mode. MAC mode utilizes an external PHY, which is
connected to the port’s MII pins, to provide an Ethernet network connection. In this mode, the port acts as a MAC, pro-
viding a communication path between the Switch Fabric and the external PHY. MAC mode can operate at 10, 100, or
200Mbps (Turbo mode). In MAC mode, the device may be SMI managed or I

2

C managed as detailed in

Section 2.3.4,

"Management Modes"

.

When an EEPROM is connected, the EEPROM loader can be used to load the initial device configuration from the exter-
nal EEPROM via the I

2

C interface. Once operational, if managed, the CPU can use the I

2

C interface to read or write

the EEPROM.

2.3.3

PHY MODE

Both Port 0 and Port 1 can be configured independently into PHY mode. PHY mode utilizes an external MAC to provide
a network path for the CPU. PHY mode supports MII and RMII interfaces. The external MII/RMII pins must be connected
to an external MAC, providing a communication path to the Switch Fabric. MII PHY mode can operate at 10, 100, or
200Mbps (Turbo mode). RMII PHY mode can operate at 10 or 100Mbps. In PHY mode, the device may be SMI managed
or I

2

C managed as detailed in

Section 2.3.4, "Management Modes"

.

When an EEPROM is connected, the EEPROM loader can be used to load the initial device configuration from the exter-
nal EEPROM via the I

2

C interface. Once operational, if managed, the CPU can use the I

2

C interface to read or write

the EEPROM.

FIGURE 2-2:

MII MAC MODE

10/100

PHY

Ethernet

Magnetics

MII

MIIM/

SMI

EEPROM

(optional)

I

2

C EEPROM/

I

2

C slave

I

2

C

LAN9303M/
LAN9303Mi

MII

Maker
Microchip Technology Inc.
Datasheet PDF Download
