Highlights
• Optimized for high performance applications
• Efficient architecture with low CPU overhead
• Easily interfaces to most 16-bit embedded CPU’s
• 1.8V to 3.3V variable voltage I/O accommodates
wide range of I/O signalling without voltage level
shifters
• Integrated PHY with HP Auto-MDIX support
• Integrated checksum offload engine helps reduce
CPU load
• Low pin count and small body size package for
small form factor system designs
Target Applications
• Cable, satellite, and IP set-top boxes
• Digital video recorders and DVD recorder/players
• Digital TV
• Digital media clients/servers and home gateways
• Video-over IP solutions, IP PBX & video phones
• Wireless routers & access points
• High-end audio distribution systems
Key Benefits
• Non-PCI Ethernet controller for high performance
applications
- 16-bit interface with fast bus cycle times
- Burst-mode read support
• Minimizes dropped packets
- Internal buffer memory can store over 200
packets
- Automatic PAUSE and back-pressure flow
control
• Minimizes CPU overhead
- Supports Slave-DMA
- Interrupt Pin with Programmable Hold-off
timer
• Reduces system cost and increases design flexi-
bility
• SRAM-like interface easily interfaces to most
embedded CPU’s or SoC’s
• Reduced Power Modes
- Numerous power management modes
- Wake on LAN
- Magic packet wakeup
- Wakeup indicator event signal
- Link Status Change
• Single chip Ethernet controller
- Fully compliant with IEEE 802.3/802.3u stan-
dards
- Integrated Ethernet MAC and PHY
- 10BASE-T and 100BASE-TX support
- Full- and Half-duplex support
- Full-duplex flow control
- Backpressure for half-duplex flow control
- Preamble generation and removal
- Automatic 32-bit CRC generation and
checking
- Automatic payload padding and pad removal
- Loop-back modes
• Flexible address filtering modes
- One 48-bit perfect address
- 64 hash-filtered multicast addresses
- Pass all multicast
- Promiscuous mode
- Inverse filtering
- Pass all incoming with status report
- Disable reception of broadcast packets
• Integrated 10/100 Ethernet PHY
- Supports HP Auto-MDIX
- Auto-negotiation
- Supports energy-detect power down
• Host bus interface
- Simple, SRAM-like interface
- 16-bit data bus
- 16Kbyte FIFO with flexible TX/RX allocation
- One configurable host interrupt
• Miscellaneous features
- Small form factor, 56-pin QFN RoHS Compli-
ant package
- Integrated 1.8V regulator
- Integrated checksum offload engine
- Mixed endian support
- General Purpose Timer
- Optional EEPROM interface
- Support for 3 status LEDs multiplexed with
Programmable GPIO signals
• Single 3.3V Power Supply with Variable Voltage
I/O
• Commercial and Industrial Temperature Support
LAN9221/LAN9221i
High-Performance 16-bit Non-PCI 10/100 Ethernet Controller
with Variable Voltage I/O
LAN9221/LAN9221i
DS
00002416A
-page 2
2006-2017 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2006-2017 Microchip Technology Inc.
DS
00002416A
-page 3
LAN9221/LAN9221i
Table of Contents
1.0 General Description ........................................................................................................................................................................ 4
2.0 Pin Description and Configuration .................................................................................................................................................. 8
3.0 Functional Description .................................................................................................................................................................. 15
4.0 Internal Ethernet PHY ................................................................................................................................................................... 56
5.0 Register Description ...................................................................................................................................................................... 65
6.0 Timing Diagrams ......................................................................................................................................................................... 113
7.0 Operational Characteristics ......................................................................................................................................................... 125
8.0 Package Information ................................................................................................................................................................... 134
Appendix A: Data Sheet Revision History ......................................................................................................................................... 136
LAN9221/LAN9221i
DS
00002416A
-page 4
2006-2017 Microchip Technology Inc.
1.0
GENERAL DESCRIPTION
The LAN9221/LAN9221i is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications
where performance, flexibility, ease of integration and system cost control are required. The LAN9221/LAN9221i has
been specifically designed to provide high performance and throughput for 16-bit applications. The LAN9221/LAN9221i
is fully IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant, and supports HP Auto-MDIX. The variable voltage
I/O signals of the LAN9221/LAN9221i accommodate lower voltage I/O signalling without the need for voltage level shift-
ers.
The LAN9221/LAN9221i includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave inter-
face. The simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit micro-
processors and microcontrollers as well as 32-bit microprocessors with a 16-bit external bus. The integrated checksum
offload engines enable the automatic generation of the 16-bit checksum for received and transmitted Ethernet frames,
offloading the task from the CPU. The LAN9221/LAN9221i also includes large transmit and receive data FIFOs to
accommodate high latency applications. In addition, the LAN9221/LAN9221i memory buffer architecture allows highly
efficient use of memory resources by optimizing packet granularity.
Applications
The LAN9221/LAN9221i is well suited for many high-performance embedded applications, including:
• Cable, satellite and IP set-top boxes
• High-end audio distribution systems
• Digital video recorders
• DVD Recorders/Players
• Digital TV
• Digital media clients/servers
• Home gateways
• Industrial and embedded systems with extended temperature support
The LAN9221/LAN9221i also supports features which reduce or eliminate packet loss. Its internal 16-KByte SRAM can
hold over 200 received packets. If the receive FIFO gets too full, the LAN9221/LAN9221i can automatically generate
flow control packets to the remote node, or assert back-pressure on the remote node by generating network collisions.
The LAN9221/LAN9221i supports numerous power management and wakeup features. The LAN9221/LAN9221i can
be placed in a reduced power mode and can be programmed to issue an external wake signal via several methods,
including “Magic Packet”, “Wake on LAN” and “Link Status Change”. This signal is ideal for triggering system power-up
using remote Ethernet wakeup events. The device can be removed from the low power state via a host processor com-
mand.
2006-2017 Microchip Technology Inc.
DS
00002416A
-page 5
LAN9221/LAN9221i
1.1
Block Diagram
The Microchip LAN9221/LAN9221i integrated 10/100 MAC/PHY controller is a peripheral chip that performs the function
of translating parallel data from a host controller into Ethernet packets. The LAN9221/LAN9221i Ethernet MAC/PHY
controller is designed and optimized to function in an embedded environment. All communication is performed with pro-
grammed I/O transactions using the simple SRAM-like host interface bus.
The diagram shown above, describes a typical system configuration of the LAN9221/LAN9221i in a typical embedded
environment.
The LAN9221/LAN9221i is a general purpose, platform independent, Ethernet controller. The LAN9221/LAN9221i con-
sists of four major functional blocks. The four blocks are:
• 10/100 Ethernet PHY
• 10/100 Ethernet MAC
• RX/TX FIFOs
• Host Bus Interface (HBI)

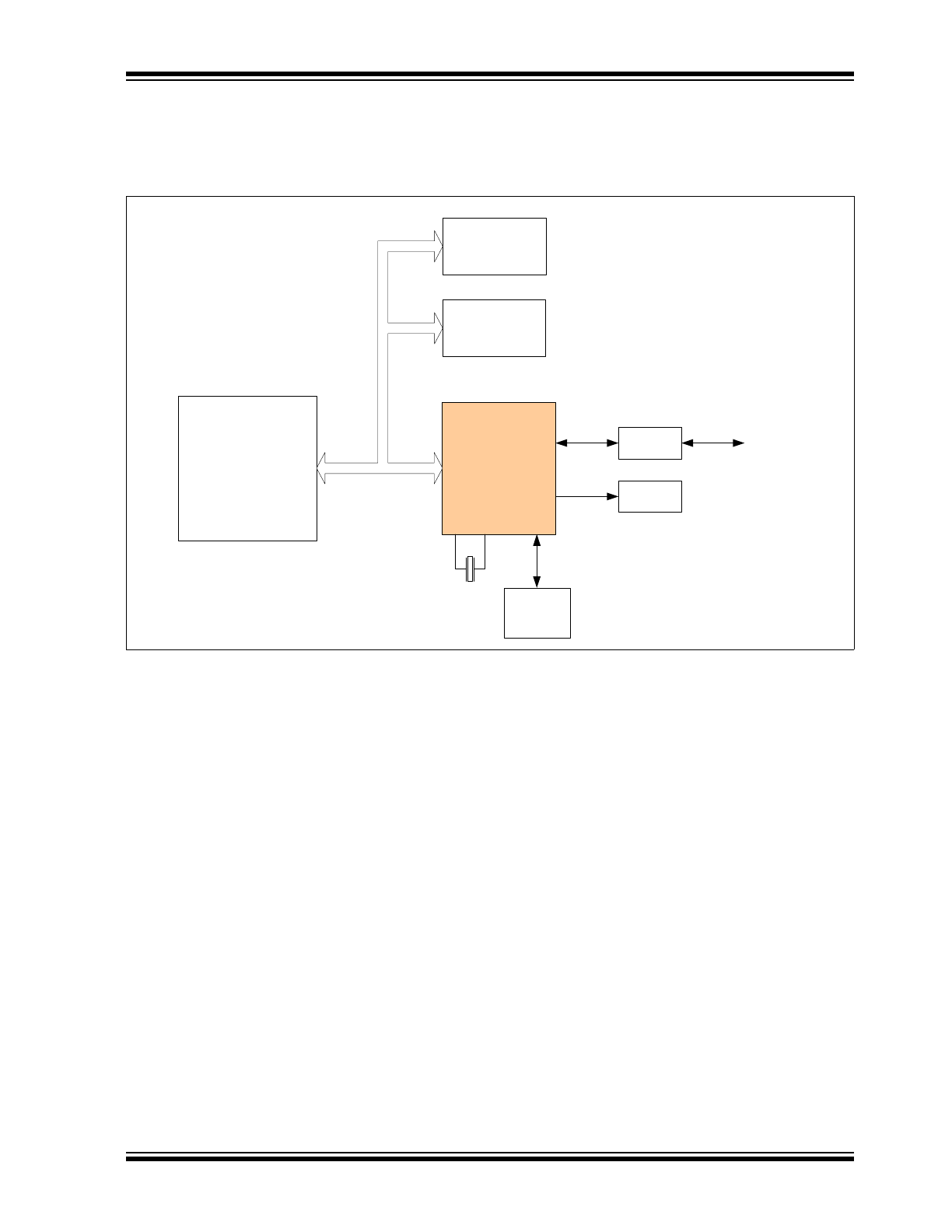

FIGURE 1-1:
SYSTEM BLOCK DIAGRAM
Microprocessor/
Microcontroller
LAN9221/
LAN9221i
Magnetics
Ethernet
System
Peripherals
System Memory
EEPROM
(Optional)
LEDS/
GPIO
25MHz
XTAL
System Bus
LAN9221/LAN9221i
DS
00002416A
-page 6
2006-2017 Microchip Technology Inc.
1.2
Internal Block Overview
This section provides an overview of each of these functional blocks as shown in Figure 1-2, "Internal Block Diagram".

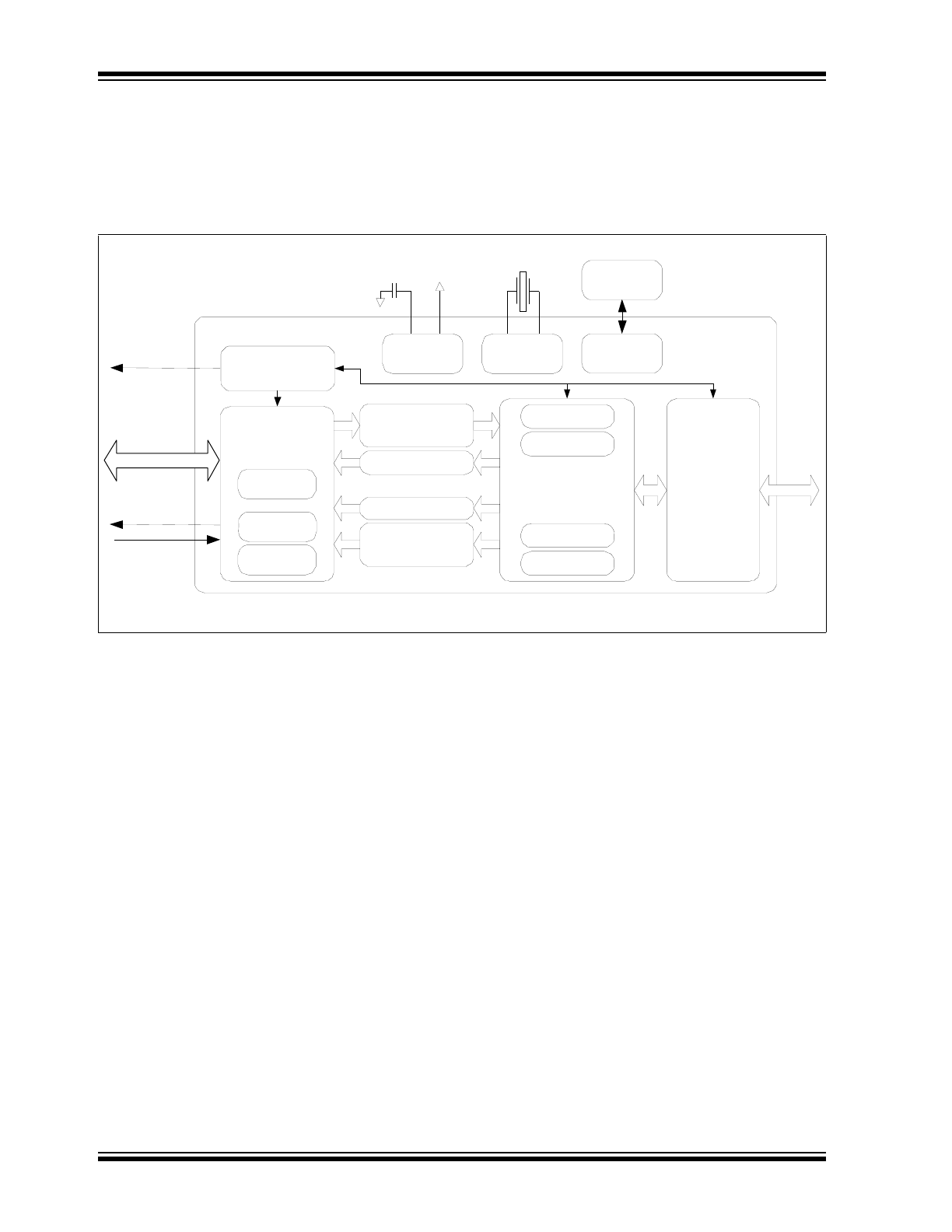

FIGURE 1-2:
INTERNAL BLOCK DIAGRAM
1.3
10/100 Ethernet PHY
The LAN9221/LAN9221i integrates an IEEE 802.3 physical layer for twisted pair Ethernet applications. The PHY can
be configured for either 100 Mbps (100BASE-TX) or 10 Mbps (10BASE-T) Ethernet operation in either full or half duplex
configurations. The PHY block supports HP Auto-MDIX and auto-negotiation.
Minimal external components are required for the utilization of the Integrated PHY.
1.4
10/100 Ethernet MAC
The transmit and receive data paths are separate within the MAC allowing the highest performance especially in full
duplex mode. The data paths connect to the PIO interface Function via separate busses to increase performance. Pay-
load data as well as transmit and receive status is passed on these busses.
A third internal bus is used to access the MAC’s Control and Status Registers (CSR’s). This bus is accessible from the
host through the PIO interface function.
On the backend, the MAC interfaces with the internal 10/100 PHY through a MII (Media Independent Interface) port
internal to the LAN9221/LAN9221i. The MAC CSR's also provide a mechanism for accessing the PHY’s internal regis-
ters through the internal SMI (Serial Management Interface) bus.
The MAC Interface Layer (MIL), within the MAC, contains a 2K Byte transmit and a 128 Byte receive FIFO which is sep-
arate from the TX and RX FIFOs. The FIFOs within the MAC are not directly accessible from the host interface. The
differentiation between the TX/RX FIFO memory buffers and the MAC buffers is that when the transmit or receive pack-
ets are in the MAC buffers, the host no longer can control or access the TX or RX data. The MAC buffers (both TX and
RX) are in effect the working buffers of the Ethernet MAC logic. In the case of reception, the data must be moved first
to the RX FIFOs for the host to access the data. For TX operations, the MIL operates in store-and-forward mode and
will queue an entire frame before beginning transmission.
10/100
Ethernet
PHY
10/100
Ethernet
MAC
2kB to 14kB
Configurable TX FIFO
2kB to 14kB
Configurable RX FIFO
Interrupt
Controller
GP Timer
PIO
Controller
3.3V to 1.8V
Core Regulator
PLL
25MHz
+3.3V
EEPROM
Controller
EEPROM
(Optional )
RX Status FIFO
TX Status FIFO
MIL - TX Elastic
Buffer - 2K bytes
MIL - RX Elastic
Buffer - 128 bytes
Power
Management
IRQ
FIFO _SEL
PME
Wakup Indicator
Host Bus Interface
(HBI)
16-bit SRAM I/F
RX Checksum
Offload Engine
TX Checksum
Offload Engine
LAN
2006-2017 Microchip Technology Inc.
DS
00002416A
-page 7
LAN9221/LAN9221i
1.5
Receive and Transmit FIFOs
The Receive and Transmit FIFOs allow increased packet buffer storage to the MAC. The FIFOs are a conduit between
the host interface and the MAC through which all transmitted and received data and status information is passed. Deep
FIFOs allow a high degree of latency tolerance relative to the various transport and OS software stacks thus reducing
or minimizing overrun conditions. Like the MAC, the FIFOs have separate receive and transmit data paths. In addition,
the RX and TX FIFOs are configurable in size, allowing increased flexibility.
1.6
Interrupt Controller
The LAN9221/LAN9221i supports a single programmable interrupt. The programmable nature of this interrupt allows
the user the ability to optimize performance dependent upon the application requirement. Both the polarity and buffer
type of the interrupt pin are configurable for the external interrupt processing. The interrupt line can be configured as an
open-drain output to facilitate the sharing of interrupts with other devices. In addition, a programmable interrupt de-
assertion interval is provided.
1.7
GPIO Interface
A 3-bit GPIO and 2-bit GPO (Multiplexed on the EEPROM and LED Pins) interface is included in the
LAN9221/LAN9221i. It is accessible through the host bus interface via the CSRs. The GPIO signals can function as
inputs, push-pull outputs and open drain outputs. The GPIO’s (GPO’s are not configurable) can also be configured to
trigger interrupts with programmable polarity.
1.8
Serial EEPROM Interface
A serial EEPROM interface is included in the LAN9221/LAN9221i. The serial EEPROM is optional and can be pro-
grammed with the LAN9221/LAN9221i MAC address. The LAN9221/LAN9221i can optionally load the MAC address
automatically after hardware reset, or soft reset.
1.9
Power Management Controls
The LAN9221/LAN9221i supports comprehensive array of power management modes to allow use in power sensitive
applications. Wake on LAN, Link Status Change and Magic Packet detection are supported by the LAN9221/LAN9221i.
An external PME (Power Management Event) interrupt is provided to indicate detection of a wakeup event.
1.10
General Purpose Timer
The general-purpose timer has no dedicated function within the LAN9221/LAN9221i and may be programmed to issue
a timed interrupt.
1.11
Host Bus Interface (SRAM Interface)
The host bus interface provides a FIFO interface for the transmit and receive data paths, as well as an interface for the
LAN9221/LAN9221i Control and Status Registers (CSR’s).
The host bus interface is the primary bus for connection to the embedded host system. This interface models an asyn-
chronous SRAM. TX FIFO, RX FIFO, and CSR’s are accessed through this interface. Programmed I/O transactions are
supported.
The LAN9221/LAN9221i host bus interface supports 16-bit bus transfers. Internally, all data paths are 32-bits wide. The
LAN9221/LAN9221i can be interfaced to either Big-Endian or Little-Endian processors and includes mixed endian sup-
port for FIFO accesses.
LAN9221/LAN9221i
DS
00002416A
-page 8
2006-2017 Microchip Technology Inc.
2.0
PIN DESCRIPTION AND CONFIGURATION

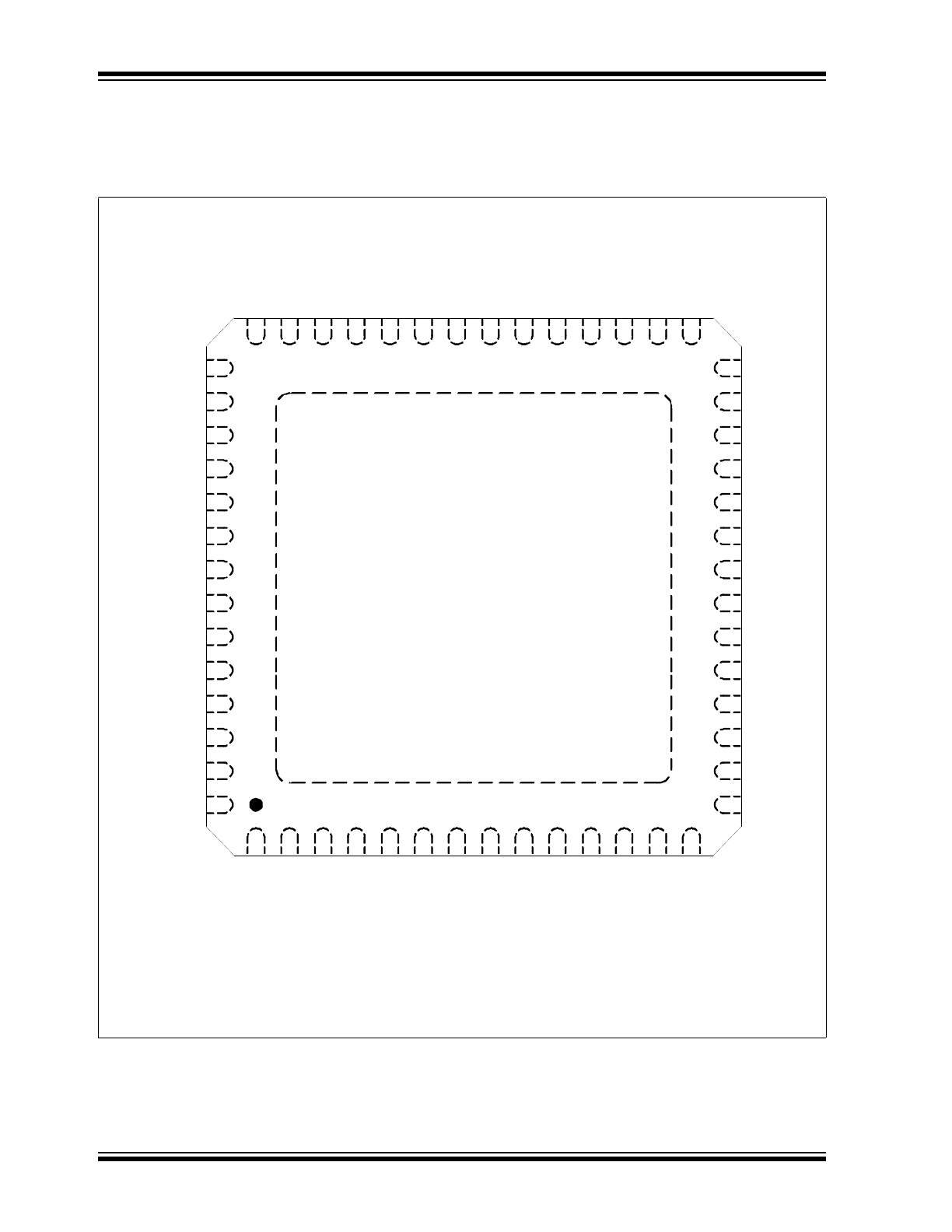

FIGURE 2-1:
56-QFN PIN CONFIGURATION (TOP VIEW)
VSS
NOTE: Exposed pad (VSS) on bottom of package must be connected to ground
**DENOTES A MULTIFUNCTION PIN
NOTE: When HP Auto-MDIX is activated, the TPO+/- pins can function as TPI +/- and vice-versa
LAN9221/LAN9221i
56-QFN
(TOP VIEW)
IRQ
nR
ESET
D7
TEST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
42
41
40
39
38
37
36
35
34
33
32
31
30
29
56
55
54
53
52
51
50
49
48
47
46
45
44
43
FI
FO
_S
EL
A1
A2
A3
A4
A5
A6
A7
GP
IO
2/
nL
ED
3*
*
GP
IO
1/
nL
ED
2*
*
GP
IO
0/
nL
ED
1*
*
VD
D1
8C
O
R
E
VD
D
33
R
EG
PM
E
EEC
LK
/G
PO
4*
*
EEC
S
EED
IO
/G
PO
3*
*
VDD1
8C
O
RE
D0
D1
D2
D3
D4
D5
VDDV
AR
IO
D6
TPO-
TPO+
VDD33A
TPI-
TPI+
VDD33A
EXRES
VDD33A
AMDIX_EN
VDD18A
XTAL2
XTAL1/CLKIN**
VDDVARIO
D8
D9
D10
VDDVARIO
D11
D12
D13
D14
D15
VDDVARIO
nCS
nWR
nRD
2006-2017 Microchip Technology Inc.
DS
00002416A
-page 9
LAN9221/LAN9221i
2.1
Pin List
TABLE 2-1:
HOST BUS INTERFACE SIGNALS
Name
Symbol
Buffer
Type
#
Pins
Description
Host Data
D[15:0]
VIS/VO8
16
Bi-directional data port.
Host Address
A[7:1]
VIS
7
7-bit Address Port. Used to select Internal CSR’s and
TX and RX FIFOs.
Read Strobe
nRD
VIS
1
Active low strobe to indicate a read cycle.
Write Strobe
nWR
VIS
1
Active low strobe to indicate a write cycle. This signal,
qualified with nCS, is also used to wakeup the
LAN9221/LAN9221i when it is in a reduced power
state.
Chip Select
nCS
VIS
1
Active low signal used to qualify read and write
operations. This signal qualified with nWR is also used
to wakeup the LAN9221/LAN9221i when it is in a
reduced power state.
Interrupt
Request
IRQ
VO8/
VOD8
1
Programmable Interrupt request. Programmable
polarity, source and buffer types.
FIFO Select
FIFO_SEL
VIS
1
When driven high all accesses to the
LAN9221/LAN9221i are to the RX or TX Data FIFOs.
In this mode, the A[7:3] upper address inputs are
ignored.
TABLE 2-2:
LAN INTERFACE SIGNALS
Name
Symbol
Buffer
Type
# Pins
Description
TPO+
TPO+
AO
1
Transmit Positive Output (normal)
Receive Positive Input (reversed)
TPO-
TPO-
AO
1
Transmit Negative Output (normal)
Receive Negative Input (reversed)
TPI+
TPI+
AI
1
Receive Positive Input (normal)
Transmit Positive Input (reversed)
TPI-
TPI-
AI
1
Receive Negative Input (normal)
Transmit Negative Output (reversed)
PHY External Bias
Resistor
EXRES
AI
1
Must be connected to ground through a 12.4K
ohm 1% resistor.
Note:
The pin names for the twisted pair pins shown above apply to a normal connection. If HP Auto-MDIX is
enabled and a reverse connection is detected, or a reverse connection is manually selected, the input pins
become outputs, and vice-versa, as indicated in the descriptions.
LAN9221/LAN9221i
DS
00002416A
-page 10
2006-2017 Microchip Technology Inc.
TABLE 2-3:
SERIAL EEPROM INTERFACE SIGNALS
Name
Symbol
Buffer
Type
# Pins
Description
EEPROM Data,
GPO3, TX_EN,
TX_CLK
EEDIO/GPO3/
TX_EN/TX_CLK
VIS/VO8
1
EEPROM Data: This bi-directional pin can be
connected to a serial EEPROM DIO. This is
optional.
General Purpose Output 3: This pin can also
function as a general purpose output, or it can
be configured to monitor the TX_EN or
TX_CLK signals on the internal MII port. When
configured as a GPO signal, or as a
TX_EN/TX_CLK monitor, the EECS pin is
deasserted so as to never unintentionally
access the serial EEPROM. This signal cannot
function as a general-purpose input.
EEPROM Chip
Select
EECS
VO8
1
Serial EEPROM chip select.
EEPROM Clock,
GPO4 RX_DV,
RX_CLK
EECLK/GPO4/
RX_DV/RX_CLK
VO8
(PU)
1
EEPROM Clock: Serial EEPROM Clock pin.
General Purpose Output 4: This pin can also
function as a general-purpose output, or it can
be configured to monitor the RX_DV or
RX_CLK signals on the internal MII port. When
configured as a GPO signal, or as an
RX_DV/RX_CLK monitor, the EECS pin is
deasserted so as to never unintentionally
access the serial EEPROM. This signal cannot
function as a general-purpose input.
Note:
When the EEPROM interface is not
used, the EECLK pin must be left
unconnected.
Note:
When operating at reduced
VDDVARIO voltage levels (less
than 3.0V), this pin must be pulled-
up with an external resistor. Refer to
Section 2.2, "External Pull-Up/Pull-
Down Resistors"
for more informa-
tion.
Note:
This pin must not be pulled low by
an external resistor or driven low
externally under any conditions.
