LAN9218i Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

 2006-2017 Microchip Technology Inc.



DS

00002410A

-page 1

Highlights

• Optimized for the highest performance applica-

tions

• Efficient architecture with low CPU overhead
• Easily interfaces to most 32-bit and 16-bit embed-

ded CPU’s

• Integrated PHY with HP Auto-MDIX support
• Supports audio & video streaming over Ethernet:

multiple high-definition (HD) MPEG2 streams

Target Applications

• Video distribution systems, multi-room PVR
• Cable, satellite, and IP set-top boxes
• Digital video recorders and DVD recorder/players
• Digital TV
• Digital media clients/servers and home gateways
• Video-over IP solutions, IP PBX & video phones
• Wireless routers & access points
• High-end audio distribution systems

Key Benefits

• Non-PCI Ethernet controller for the highest perfor-

mance applications
- Highest performing non-PCI Ethernet

controller

- 32-bit interface with fast bus cycle times
- Burst-mode read support

• Eliminates dropped packets

- Internal buffer memory can store over 200

packets

- Automatic PAUSE and back-pressure flow

control

• Minimizes CPU overhead

- Supports Slave-DMA
- Interrupt Pin with Programmable Hold-off

timer

• Reduces system cost and increases design flexi-

bility

• SRAM-like interface easily interfaces to most

embedded CPU’s or SoC’s

• Reduced Power Modes

- Numerous power management modes
- Wake on LAN
- Magic packet wakeup
- Wakeup indicator event signal
- Link Status Change

• Single chip Ethernet controller

- Fully compliant with IEEE 802.3/802.3u stan-

dards

- Integrated Ethernet MAC and PHY
- 10BASE-T and 100BASE-TX support
- Full- and Half-duplex support
- Full-duplex flow control
- Backpressure for half-duplex flow control
- Preamble generation and removal
- Automatic 32-bit CRC generation and

checking

- Automatic payload padding and pad removal
- Loop-back modes

• Flexible address filtering modes

- One 48-bit perfect address
- 64 hash-filtered multicast addresses
- Pass all multicast
- Promiscuous mode
- Inverse filtering
- Pass all incoming with status report
- Disable reception of broadcast packets

• Integrated 10/100 Ethernet PHY

- Supports HP Auto-MDIX
- Auto-negotiation
- Supports energy-detect power down

• Host bus interface

- Simple, SRAM-like interface
- 32 or 16-bit data bus
- 16Kbyte FIFO with flexible TX/RX allocation
- One configurable host interrupt

• Miscellaneous features

- Low-profile 100-pin TQFP, RoHS Compliant

package

- Integrated 1.8V regulator
- General Purpose Timer
- Optional EEPROM interface
- Support for 3 status LEDs multiplexed with

Programmable GPIO signals

• Single 3.3V Power Supply with 5V tolerant

I/O

• -40

C to +85C Industrial Temperature Support

LAN9218i

High-Performance Single-Chip 10/100 Ethernet Controller

with HP Auto-MDIX and Industrial Temperature Support

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

LAN9218i

DS

00002410A

-page 2



 2006-2017 Microchip Technology Inc.

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at

docerrors@microchip.com

. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;

http://www.microchip.com

• Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.

Customer Notification System

Register on our web site at

www.microchip.com

 to receive the most current information on all of our products.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

 2006-2017 Microchip Technology Inc.



DS

00002410A

-page 3

LAN9218i

Table of Contents

1.0 General Description  ........................................................................................................................................................................ 4
2.0 Pin Description and Configuration  .................................................................................................................................................. 8
3.0 Functional Description  .................................................................................................................................................................. 15
4.0 Internal Ethernet PHY  ................................................................................................................................................................... 47
5.0 Register Description ...................................................................................................................................................................... 56
6.0 Timing Diagrams  ......................................................................................................................................................................... 102
7.0 Operational Characteristics ......................................................................................................................................................... 113
8.0 Package Information  ................................................................................................................................................................... 120
Appendix A: Data Sheet Revision History ......................................................................................................................................... 121

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

LAN9218i

DS

00002410A

-page 4



 2006-2017 Microchip Technology Inc.

1.0

GENERAL DESCRIPTION

The LAN9218i is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where per-
formance, flexibility, ease of integration and system cost control are required.  The LAN9218i has been specifically archi-
tected to provide the highest performance possible for any given architecture. The LAN9218i is fully IEEE 802.3
10BASE-T and 802.3u 100BASE-TX compliant, and supports HP Auto-MDIX.

The LAN9218i includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The
simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit and 32-bit micro-
processors and microcontrollers . The LAN9218i includes large transmit and receive data FIFOs with a high-speed host
bus interface to accommodate high bandwidth, high latency applications. In addition, the LAN9218i memory buffer archi-
tecture allows highly efficient use of memory resources by optimizing packet granularity.

Applications

The LAN9218i is well suited for many high performance embedded applications, including:

• High-end cable, satellite and IP set-top boxes

• Video distribution systems

• Multi-room PVR (Personal Video Recorder)

• Digital video recorders

• High-definition televisions

• Digital media clients/servers

• Home gateways

The LAN9218i also supports features which reduce or eliminate packet loss. Its internal 16-KByte SRAM can hold over
200 received packets. If the receive FIFO gets too full, the LAN9218i can automatically generate flow control packets to
the remote node, or assert back-pressure on the remote node by generating network collisions.

The LAN9218i supports numerous power management and wakeup features. The LAN9218i can be placed in a reduced
power mode and can be programmed to issue an external wake signal via several methods, including “Magic Packet”,
“Wake on LAN” and “Link Status Change”. This signal is ideal for triggering system power-up using remote Ethernet
wakeup events. The device can be removed from the low power state via a host processor command.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

 2006-2017 Microchip Technology Inc.



DS

00002410A

-page 5

LAN9218i

1.1

Block Diagram

The Microchip LAN9218i integrated 10/100 MAC/PHY controller is a peripheral chip that performs the function of trans-
lating parallel data from a host controller into Ethernet packets. The LAN9218i Ethernet MAC/PHY controller is designed
and optimized to function in an embedded environment. All communication is performed with programmed I/O transac-
tions using the simple SRAM-like host interface bus.

The diagram shown above, describes a typical system configuration of the LAN9218i in a typical embedded environ-
ment.

The LAN9218i is a general purpose, platform independent, Ethernet controller. The LAN9218i consists of four major
functional blocks. The four blocks are:

• 10/100 Ethernet PHY

• 10/100 Ethernet MAC

• RX/TX FIFOs

• Host Bus Interface (HBI)

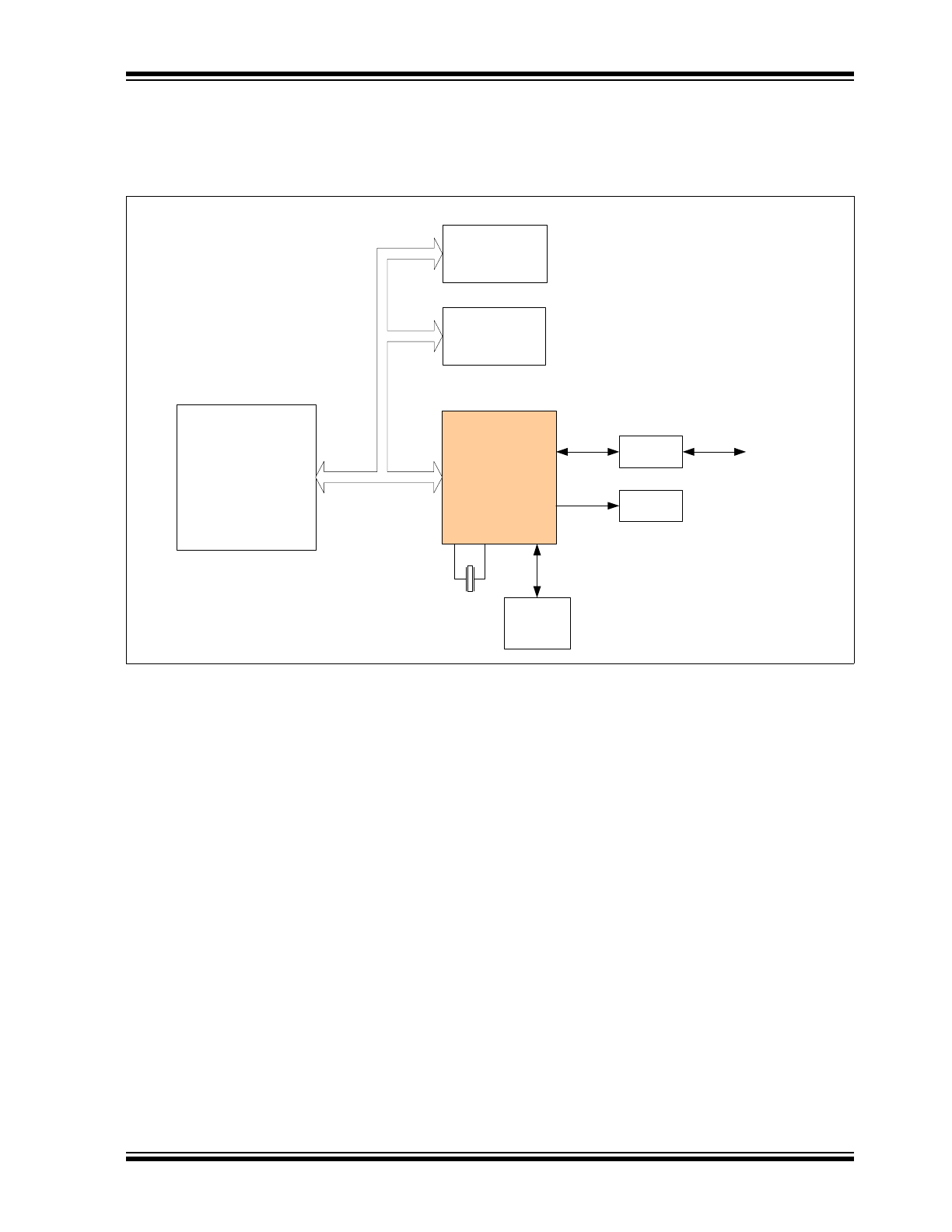

FIGURE 1-1:

SYSTEM BLOCK DIAGRAM

Microprocessor/

Microcontroller

LAN9218i

Magnetics

Ethernet

System

Peripherals

System Memory

EEPROM

(Optional)

LEDS/

GPIO

25MHz

XTAL

System Bus

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

LAN9218i

DS

00002410A

-page 6



 2006-2017 Microchip Technology Inc.

1.2

Compatibility with First-generation LAN9118 Family Devices

The LAN9218i is driver-, register-, and footprint-compatible with previous generation LAN9118 Family devices. Drivers
written for these products will work with the LAN9218i. However, in order to support HP Auto-MDIX, other components
such as the magnetics and the passive components around the magnetics need to change, and supporting these
changes does require a minor PCB change. A reference design for the LAN9218i will be available on Microchip’s web-
site.

1.3

Internal Block Overview

This section provides an overview of each of these functional blocks as shown in Figure 1-2, "Internal Block Diagram".

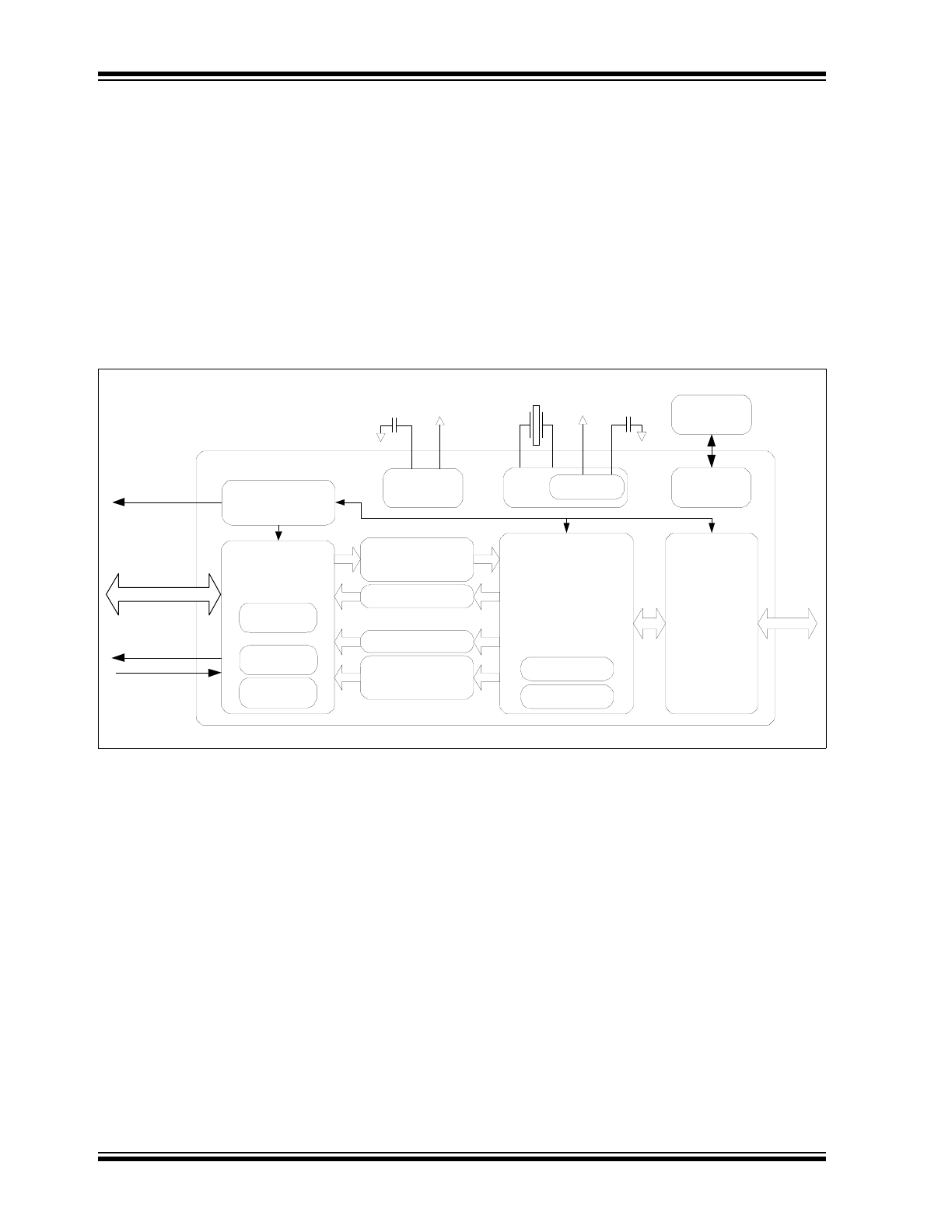

FIGURE 1-2:

INTERNAL BLOCK DIAGRAM



1.4

10/100 Ethernet PHY

The LAN9218i integrates an IEEE 802.3 physical layer for twisted pair Ethernet applications. The PHY can be config-
ured for either 100 Mbps (100BASE-TX) or 10 Mbps (10BASE-T) Ethernet operation in either full or half duplex config-
urations. The PHY block supports HP Auto-MDIX and auto-negotiation.

Minimal external components are required for the utilization of the Integrated PHY.

1.5

10/100 Ethernet MAC

The transmit and receive data paths are separate within the MAC allowing the highest performance especially in full
duplex mode. The data paths connect to the PIO interface Function via separate busses to increase performance. Pay-
load data as well as transmit and receive status is passed on these busses.

A third internal bus is used to access the MAC’s Control and Status Registers (CSR’s). This bus is accessible from the
host through the PIO interface function.

On the backend, the MAC interfaces with the internal 10/100 PHY through a MII (Media Independent Interface) port
internal to the LAN9218i. The MAC CSR's also provide a mechanism for accessing the PHY’s internal registers through
the internal SMI (Serial Management Interface) bus.

The MAC Interface Layer (MIL), within the MAC, contains a 2K Byte transmit and a 128 Byte receive FIFO which is sep-
arate from the TX and RX FIFOs. The FIFOs within the MAC are not directly accessible from the host interface. The
differentiation between the TX/RX FIFO memory buffers and the MAC buffers is that when the transmit or receive pack-

10/100

Ethernet

PHY

10/100

Ethernet

MAC

2kB to 14kB

Configurable TX FIFO

2kB to  14kB

Configurable  RX FIFO

Interrupt

Controller

GP

Timer

PIO

Controller

3.3V to 1.8V

Core Regulator

25MHz

+3.3V

EEPRO

M

Controller

EEPROM

(Optional )

RX Status FIFO

TX Status FIFO

MIL - TX Elastic

Buffer - 2K bytes

MIL - RX Elastic

Buffer - 128 bytes

Power

Management

IRQ

FIFO _SEL

PME

Wakup Indicator

Host Bus Interface

(HBI)

SRAM I/F

LAN

PLL

+3.3V

3.3V to  1.8V

PLL Regulator

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

 2006-2017 Microchip Technology Inc.



DS

00002410A

-page 7

LAN9218i

ets are in the MAC buffers, the host no longer can control or access the TX or RX data. The MAC buffers (both TX and
RX) are in effect the working buffers of the Ethernet MAC logic. In the case of reception, the data must be moved first
to the RX FIFOs for the host to access the data. For TX operations, the MIL operates in store-and-forward mode and
will queue an entire frame before beginning transmission.

1.6

Receive and Transmit FIFOs

The Receive and Transmit FIFOs allow increased packet buffer storage to the MAC. The FIFOs are a conduit between
the host interface and the MAC through which all transmitted and received data and status information is passed. Deep
FIFOs allow a high degree of latency tolerance relative to the various transport and OS software stacks thus reducing
or minimizing overrun conditions. Like the MAC, the FIFOs have separate receive and transmit data paths. In addition,
the RX and TX FIFOs are configurable in size, allowing increased flexibility.

1.7

Interrupt Controller

The LAN9218i supports a single programmable interrupt. The programmable nature of this interrupt allows the user the
ability to optimize performance dependent upon the application requirement. Both the polarity and buffer type of the
interrupt pin are configurable for the external interrupt processing. The interrupt line can be configured as an open-drain
output to facilitate the sharing of interrupts with other devices. In addition, a programmable interrupt de-assertion interval
is provided.

1.8

GPIO Interface

A 3-bit GPIO and 2-bit GPO (Multiplexed on the EEPROM and LED Pins) interface is included in the LAN9218i. It is
accessible through the host bus interface via the CSRs. The GPIO signals can function as inputs, push-pull outputs and
open drain outputs. The GPIO’s (GPO’s are not configurable) can also be configured to trigger interrupts with program-
mable polarity.

1.9

Serial EEPROM Interface

A serial EEPROM interface is included in the LAN9218i. The serial EEPROM is optional and can be programmed with
the LAN9218i MAC address. The LAN9218i can optionally load the MAC address automatically after power-on reset,
hardware reset, or soft reset.

1.10

Power Management Controls

The LAN9218i supports comprehensive array of power management modes to allow use in power sensitive applica-
tions. Wake on LAN, Link Status Change and Magic Packet detection are supported by the LAN9218i. An external PME
(Power Management Event) interrupt is provided to indicate detection of a wakeup event.

1.11

General Purpose Timer

The general-purpose timer has no dedicated function within the LAN9218i and may be programmed to issue a timed
interrupt.

1.12

Host Bus Interface (SRAM Interface)

The host bus interface provides a FIFO interface for the transmit and receive data paths, as well as an interface for the
LAN9218i Control and Status Registers (CSR’s).

The host bus interface is the primary bus for connection to the embedded host system. This interface models an asyn-
chronous SRAM. TX FIFO, RX FIFO, and CSR’s are accessed through this interface. Programmed I/O transactions are
supported.

The LAN9218i host bus interface supports 32-bit and 16-bit bus transfers. Internally, all data paths are 32-bits wide. The
LAN9218i can be interfaced to either Big-Endian or Little-Endian processors.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

LAN9218i

DS

00002410A

-page 8



 2006-2017 Microchip Technology Inc.

2.0

PIN DESCRIPTION AND CONFIGURATION



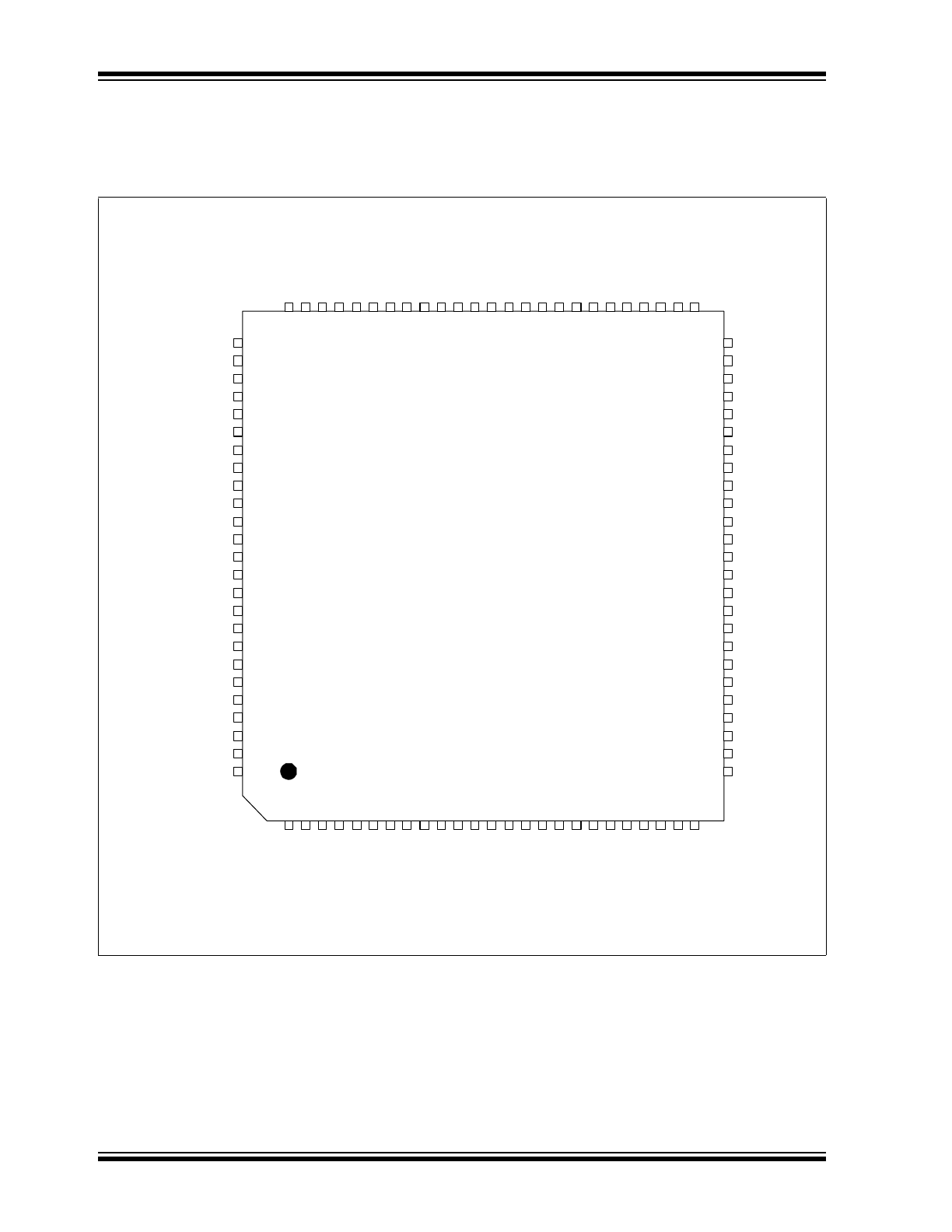

FIGURE 2-1:

PIN CONFIGURATION (TOP VIEW)

**DENOTES A MULTIFUNCTON PIN
NOTE 1: When HP Auto -MDIX is activated , the TPO+/- pins function as TPI +/- and vice -versa.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

75

74

73

72

71

70

69

68

67

66

65

64

63

62

61

60

59

58

57

56

55

54

53

52

51

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

G

ND_

CO

R

E

VREG

V

DD_

CO

R

E

V

SS_

P

L

L

XT

A

L

2

XT

A

L

1

VDD

_

PL

L

VD

D

_

R

E

F

A

T

EST

RB

IA

S

V

SS_

R

E

F

A7

A6

A5

A4

A3

A2

A1

GN

D

_

IO

VD

D

_

IO

D3

1

D3

0

D2

9

D2

8

D2

7

PD

S

PEED

_

S

EL

AM

DI

X

_

E

N

IR

Q

NC

PM

E

EE

C

L

K

**

EE

C

S

EE

D

IO

**

G

N

D_

C

O

RE

VDD

_

C

O

RE

D0

D1

D2

VDD

_

IO

GN

D

_

IO

D3

D4

D5

D6

VDD

_

IO

GN

D

_

IO

D7

D8

D9

D10

D11

VDD_IO

GND_IO

D12

D13

D14

D15

VDD_IO

GND_IO

D16

D17

D18

D19

D20

VDD_IO

GND_IO

D21

D22

D23

D24

D25

VDD_IO

GND_IO

D26

FIFO_SEL

VSS_A

(Note 1) TPO-

(Note 1) TPO+

VSS_A

VDD_A

(Note 1) TPI -

(Note 1) TPI+

NC

VDD_A

VSS_A

EXRES1

VSS_A

VDD_A

NC

NC

nRD

nWR

nCS

nRESET

GND_IO

VDD_IO

GPIO0/nLED1**

GPIO1/nLED2**

GPIO2/nLED3**

LAN9218i

100 PIN TQFP

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

 2006-2017 Microchip Technology Inc.



DS

00002410A

-page 9

LAN9218i

2.1

Pin List

TABLE 2-1:

HOST BUS INTERFACE SIGNALS

Name

Symbol

Buffer

Type

Pins

Description

Host Data High

D[31:16]

I/O8

(PD)

16

Bi-directional data port.
Note that Pull-downs are disabled in 32 bit mode.

Host Data Low

D[15:0]

I/O8

16

Bi-directional data port.

Host Address

A[7:1]

IS

7

7-bit Address Port. Used to select Internal CSR’s and
TX and RX FIFOs.

Read Strobe

nRD

IS

1

Active low strobe to indicate a read cycle.

Write Strobe

nWR

IS

1

Active low strobe to indicate a write cycle. This signal,
qualified with nCS, is also used to wakeup the
LAN9218i when it is in a reduced power state.

Chip Select

nCS

IS

1

Active low signal used to qualify read and write
operations. This signal qualified with nWR is also used
to wakeup the LAN9218i when it is in a reduced power
state.

Interrupt
Request

IRQ

O8/OD8

1

Programmable Interrupt request. Programmable
polarity, source and buffer types.

FIFO Select

FIFO_SEL

IS

1

When driven high all accesses to the LAN9218i are to
the RX or TX Data FIFOs. In this mode, the A[7:3]
upper address inputs are ignored.

TABLE 2-2:

DEFAULT ETHERNET SETTINGS

 Default Ethernet Settings

SPEED_SEL

Speed

Duplex

Auto Neg.

0

10Mbps

Half-Duplex

Disabled

1

100Mbps

Half-Duplex

Enabled

TABLE 2-3:

LAN INTERFACE SIGNALS

Name

Symbol

Buffer

Type

# Pins

Description

TPO+

TPO+

AO

1

Transmit Positive Output (normal)
Receive Positive Input (reversed)

TPO-

TPO-

AO

1

Transmit Negative Output (normal)
Receive Negative Input (reversed)

TPI+

TPI+

AI

1

Receive Positive Input (normal)
Transmit Positive Input (reversed)

TPI-

TPI-

AI

1

Receive Negative Input (normal)
Transmit Negative Output (reversed)

PHY External Bias

Resistor

EXRES1

AI

1

Must be connected to ground through a 12.4K
ohm 1% resistor.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/00002410A-html.html
background image

LAN9218i

DS

00002410A

-page 10



 2006-2017 Microchip Technology Inc.

Note:

The pin names for the twisted pair pins shown above apply to a normal connection. If HP Auto-MDIX is
enabled and a reverse connection is detected, or a reverse connection is manually selected, the input pins
become outputs, and vice-versa, as indicated in the descriptions.

TABLE 2-4:

SERIAL EEPROM INTERFACE SIGNALS

Name

Symbol

Buffer

Type

# Pins

Description

EEPROM Data,

GPO3, TX_EN,

TX_CLK,

D32/nD16

EEDIO/GPO3/

TX_EN/TX_CLK

 (D32/nD16

)

I/O8 1

EEPROM Data: This bi-directional pin can be
connected to a serial EEPROM DIO. This is
optional.

General Purpose Output 3: This pin can also
function as a general purpose output, or it can
be configured to monitor the TX_EN or
TX_CLK signals on the internal MII port. When
configured as a GPO signal, or as a
TX_EN/TX_CLK monitor, the EECS pin is
deasserted so as to never unintentionally
access the serial EEPROM. This signal cannot
function as a general-purpose input.

Data Bus Width Select: This signal also
functions as a configuration input on power-up
and is used to select the host bus data width.
Upon deassertion of reset, the value of the
input is latched. When high, a 32-bit data bus
is utilized. When low, a 16-bit interface is
utilized.

EEPROM Chip

Select

EECS

O8

1

Serial EEPROM chip select.

EEPROM Clock,

GPO4 RX_DV,

RX_CLK

EECLK/GPO4/

RX_DV/RX_CLK

O8 1

EEPROM Clock: Serial EEPROM Clock pin.

General Purpose Output 4: This pin can also
function as a general-purpose output, or it can
be configured to monitor the RX_DV or
RX_CLK signals on the internal MII port. When
configured as a GPO signal, or as an
RX_DV/RX_CLK monitor, the EECS pin is
deasserted so as to never unintentionally
access the serial EEPROM. This signal cannot
function as a general-purpose input.

Note:

When the EEPROM interface is not
used, the EECLK pin must be left
unconnected.

Maker
Microchip Technology Inc.
Datasheet PDF Download
