Highlights
• Optimized for medium to high performance appli-
cations
• Efficient architecture with low CPU overhead
• Easily interfaces to most 16-bit embedded CPU’s
• Integrated PHY with HP Auto-MDIX support
• Supports audio & video streaming over Ethernet:
1-2 high-definition (HD) MPEG2 streams
Target Applications
• Video distribution systems, multi-room PVR
• Cable, satellite, and IP set-top boxes
• Digital video recorders and DVD recorder/players
• Digital TV
• Digital media clients/servers and home gateways
• Video-over IP solutions, IP PBX & video phones
• Wireless routers & access points
• High-end audio distribution systems
Key Benefits
• Non-PCI Ethernet controller for medium-high per-
formance applications
- Highest performing non-PCI Ethernet
controller
- 16-bit interface with fast bus cycle times
- Burst-mode read support
- External MII Interface
• Eliminates dropped packets
- Internal buffer memory can store over 200
packets
- Automatic PAUSE and back-pressure flow
control
• Minimizes CPU overhead
- Supports Slave-DMA
- Interrupt Pin with Programmable Hold-off
timer
• Reduces system cost and increases design flexi-
bility
• SRAM-like interface easily interfaces to most
embedded CPU’s or SoC’s
• Reduced Power Modes
- Numerous power management modes
- Wake on LAN
- Magic packet wakeup
- Wakeup indicator event signal
- Link Status Change
• Single chip Ethernet controller
- Fully compliant with IEEE 802.3/802.3u stan-
dards
- Integrated Ethernet MAC and PHY
- 10BASE-T and 100BASE-TX support
- Full- and Half-duplex support
- Full-duplex flow control
- Backpressure for half-duplex flow control
- Preamble generation and removal
- Automatic 32-bit CRC generation and
checking
- Automatic payload padding and pad removal
- Loop-back modes
• Flexible address filtering modes
- One 48-bit perfect address
- 64 hash-filtered multicast addresses
- Pass all multicast
- Promiscuous mode
- Inverse filtering
- Pass all incoming with status report
- Disable reception of broadcast packets
• Integrated 10/100 Ethernet PHY
- Supports HP Auto-MDIX
- Auto-negotiation
- Supports energy-detect power down
• Host bus interface
- Simple, SRAM-like interface
- 16-bit data bus
- 16Kbyte FIFO with flexible TX/RX allocation
- One configurable host interrupt
• Miscellaneous features
- Low-profile 100-pin TQFP, RoHS Compliant
package
- Integrated 1.8V regulator
- General Purpose Timer
- Optional EEPROM interface
- Support for 3 status LEDs multiplexed with
Programmable GPIO signals
• Single 3.3V Power Supply with 5V tolerant
I/O
• 0
C to +70C Commercial Temperature Support
LAN9217
16-bit High-Performance Single-Chip 10/100 Ethernet
Controller with HP Auto-MDIX Support
LAN9217
DS
00002411A
-page 2
2006-2017 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2006-2017 Microchip Technology Inc.
DS
00002411A
-page 3
LAN9217
Table of Contents
1.0 General Description ........................................................................................................................................................................ 4
2.0 Pin Description and Configuration .................................................................................................................................................. 9
3.0 Functional Description .................................................................................................................................................................. 18
4.0 Internal Ethernet PHY ................................................................................................................................................................... 53
5.0 Register Description ...................................................................................................................................................................... 62
6.0 Timing Diagrams ......................................................................................................................................................................... 108
7.0 Operational Characteristics ......................................................................................................................................................... 119
8.0 Package Information ................................................................................................................................................................... 126
Appendix A: Data Sheet Revision History ......................................................................................................................................... 127
LAN9217
DS
00002411A
-page 4
2006-2017 Microchip Technology Inc.
1.0
GENERAL DESCRIPTION
The LAN9217 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where per-
formance, flexibility, ease of integration and system cost control are required. The LAN9217 has been specifically
designed to provide the highest performance possible for any 16-bit application. The LAN9217 is fully IEEE 802.3
10BASE-T and 802.3u 100BASE-TX compliant, and supports HP Auto-MDIX.
The LAN9217 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The
simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit microprocessors
and microcontrollers as well as 32-bit microprocessors with a 16-bit external bus. The LAN9217 includes large transmit
and receive data FIFOs to accommodate high latency applications. In addition, the LAN9217 memory buffer architecture
allows highly efficient use of memory resources by optimizing packet granularity.
Applications
The LAN9217 is well suited for many medium-high-performance embedded applications, including:
• Medium-range cable, satellite and IP set-top boxes
• High-end audio distribution systems
• Digital video recorders
• DVD Recorders/Players
• Digital TV
• Digital media clients/servers
• Home gateways
The LAN9217 also supports features which reduce or eliminate packet loss. Its internal 16-KByte SRAM can hold over
200 received packets. If the receive FIFO gets too full, the LAN9217 can automatically generate flow control packets to
the remote node, or assert back-pressure on the remote node by generating network collisions.
The LAN9217 supports numerous power management and wakeup features. The LAN9217 can be placed in a reduced
power mode and can be programmed to issue an external wake signal via several methods, including “Magic Packet”,
“Wake on LAN” and “Link Status Change”. This signal is ideal for triggering system power-up using remote Ethernet
wakeup events. The device can be removed from the low power state via a host processor command.
2006-2017 Microchip Technology Inc.
DS
00002411A
-page 5
LAN9217
1.1
Block Diagram
The Microchip LAN9217 integrated 10/100 MAC/PHY controller is a peripheral chip that performs the function of trans-
lating parallel data from a host controller into Ethernet packets. The LAN9217 Ethernet MAC/PHY controller is designed
and optimized to function in an embedded environment. All communication is performed with programmed I/O transac-
tions using the simple SRAM-like host interface bus.
The diagram shown above, describes a typical system configuration of the LAN9217 in a typical embedded environ-
ment.
The LAN9217 is a general purpose, platform independent, Ethernet controller. The LAN9217 consists of four major func-
tional blocks. The four blocks are:
• 10/100 Ethernet PHY
• 10/100 Ethernet MAC
• RX/TX FIFOs
• Host Bus Interface (HBI)

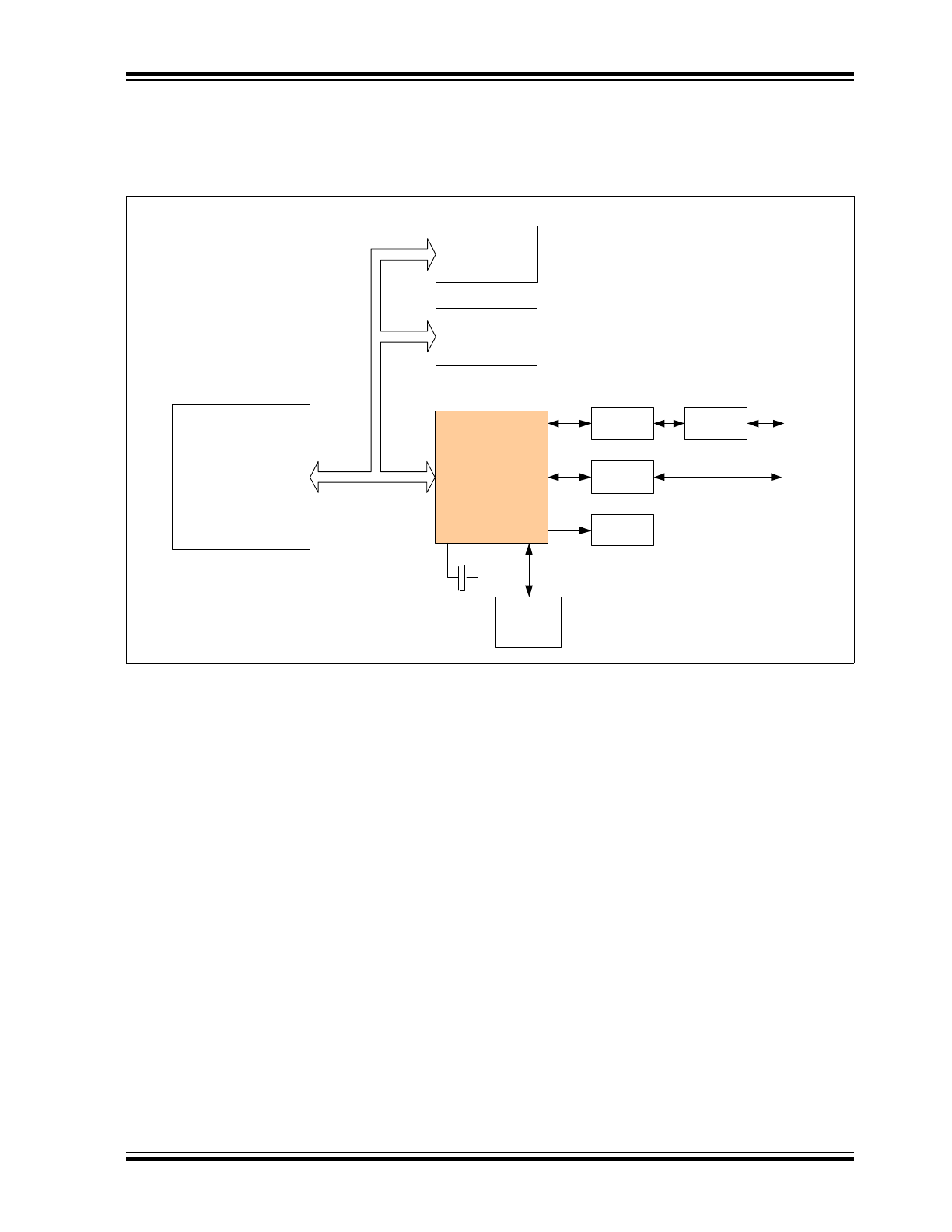

FIGURE 1-1:
SYSTEM BLOCK DIAGRAM
Microprocessor/
Microcontroller
LAN9217
System
Peripherals
System Memory
EEPROM
(Optional)
25MHz
XTAL
System Bus
Magnetics
Ethernet
LEDS/GPIO
External
PHY
MII
Magnetics
Optional
Optional
LAN9217
DS
00002411A
-page 6
2006-2017 Microchip Technology Inc.
1.2
Compatibility with First-generation LAN9118 Family Devices
The LAN9217 is driver-, register-, and footprint-compatible with previous generation LAN9118 Family devices. Drivers
written for these products will work with the LAN9217. However, in order to support HP Auto-MDIX, other components
such as the magnetics and the passive components around the magnetics need to change, and supporting these
changes does require a minor PCB change. A reference design for the LAN9217 will be available on Microchip’s web-
site.
1.3
Internal Block Overview
This section provides an overview of each of these functional blocks as shown in Figure 1-2, "Internal Block Diagram".

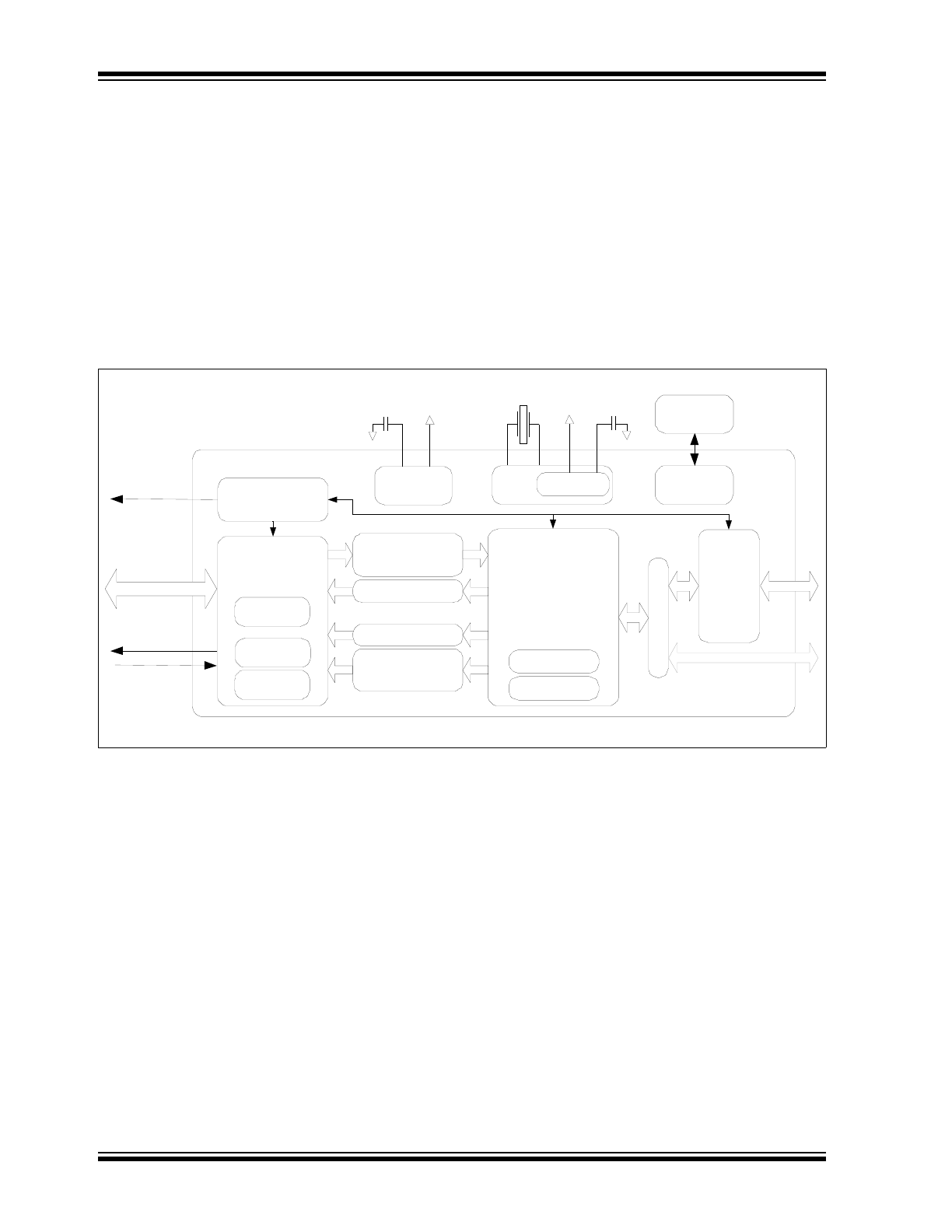

FIGURE 1-2:
INTERNAL BLOCK DIAGRAM
1.4
10/100 Ethernet PHY
The LAN9217 integrates an IEEE 802.3 physical layer for twisted pair Ethernet applications. The PHY can be configured
for either 100 Mbps (100BASE-TX) or 10 Mbps (10BASE-T) Ethernet operation in either full or half duplex configura-
tions. The PHY block supports HP Auto-MDIX and auto-negotiation.
Minimal external components are required for the utilization of the Integrated PHY.
1.5
10/100 Ethernet MAC
The transmit and receive data paths are separate within the MAC allowing the highest performance especially in full
duplex mode. The data paths connect to the PIO interface Function via separate busses to increase performance. Pay-
load data as well as transmit and receive status is passed on these busses.
A third internal bus is used to access the MAC’s Control and Status Registers (CSR’s). This bus is accessible from the
host through the PIO interface function.
On the backend, the MAC interfaces with the internal 10/100 PHY through a MII (Media Independent Interface) port
internal to the LAN9217. The MAC CSR's also provide a mechanism for accessing the PHY’s internal registers through
the internal SMI (Serial Management Interface) bus. The Ethernet MAC can also communicate with an external PHY.
This mode however, is optional.
10/100
Ethernet
MAC
2kB to 14kB
Configurable TX FIFO
2kB to 14kB
Configurable RX FIFO
Interrupt
Controller
GP Timer
PIO
Controller
3.3V to 1.8V
Core Regulator
25MHz
+3.3V
EEPROM
Controller
EEPROM
(Optional)
RX Status FIFO
TX Status FIFO
MIL - TX Elastic
Buffer - 2K bytes
MIL - RX Elastic
Buffer - 128 bytes
Power
Management
IRQ
FIFO_SEL
PME
Wakup Indicator
Host Bus Interface
(HBI)
16-bit SRAM I/F
PLL
+3.3V
3.3V to 1.8V
PLL Regulator
10/100
Ethernet
PHY
LAN
Optional
External PHY - MII
Interface
MU
X
2006-2017 Microchip Technology Inc.
DS
00002411A
-page 7
LAN9217
The MAC Interface Layer (MIL), within the MAC, contains a 2K Byte transmit and a 128 Byte receive FIFO which is sep-
arate from the TX and RX FIFOs. The FIFOs within the MAC are not directly accessible from the host interface. The
differentiation between the TX/RX FIFO memory buffers and the MAC buffers is that when the transmit or receive pack-
ets are in the MAC buffers, the host no longer can control or access the TX or RX data. The MAC buffers (both TX and
RX) are in effect the working buffers of the Ethernet MAC logic. In the case of reception, the data must be moved first
to the RX FIFOs for the host to access the data. For TX operations, the MIL operates in store-and-forward mode and
will queue an entire frame before beginning transmission.
1.6
Receive and Transmit FIFOs
The Receive and Transmit FIFOs allow increased packet buffer storage to the MAC. The FIFOs are a conduit between
the host interface and the MAC through which all transmitted and received data and status information is passed. Deep
FIFOs allow a high degree of latency tolerance relative to the various transport and OS software stacks thus reducing
or minimizing overrun conditions. Like the MAC, the FIFOs have separate receive and transmit data paths. In addition,
the RX and TX FIFOs are configurable in size, allowing increased flexibility.
1.7
Interrupt Controller
The LAN9217 supports a single programmable interrupt. The programmable nature of this interrupt allows the user the
ability to optimize performance dependent upon the application requirement. Both the polarity and buffer type of the
interrupt pin are configurable for the external interrupt processing. The interrupt line can be configured as an open-drain
output to facilitate the sharing of interrupts with other devices. In addition, a programmable interrupt de-assertion interval
is provided.
1.8
GPIO Interface
A 3-bit GPIO and 2-bit GPO (Multiplexed on the EEPROM and LED Pins) interface is included in the LAN9217. It is
accessible through the host bus interface via the CSRs. The GPIO signals can function as inputs, push-pull outputs and
open drain outputs. The GPIO’s (GPO’s are not configurable) can also be configured to trigger interrupts with program-
mable polarity.
1.9
Serial EEPROM Interface
A serial EEPROM interface is included in the LAN9217. The serial EEPROM is optional and can be programmed with
the LAN9217 MAC address. The LAN9217 can optionally load the MAC address automatically after power-on reset,
hardware reset, or soft reset.
1.10
Power Management Controls
The LAN9217 supports comprehensive array of power management modes to allow use in power sensitive applications.
Wake on LAN, Link Status Change and Magic Packet detection are supported by the LAN9217. An external PME (Power
Management Event) interrupt is provided to indicate detection of a wakeup event.
1.11
General Purpose Timer
The general-purpose timer has no dedicated function within the LAN9217 and may be programmed to issue a timed
interrupt.
1.12
Host Bus Interface (SRAM Interface)
The host bus interface provides a FIFO interface for the transmit and receive data paths, as well as an interface for the
LAN9217 Control and Status Registers (CSR’s).
The host bus interface is the primary bus for connection to the embedded host system. This interface models an asyn-
chronous SRAM. TX FIFO, RX FIFO, and CSR’s are accessed through this interface. Programmed I/O transactions are
supported.
The LAN9217 host bus interface supports 16-bit bus transfers. Internally, all data paths are 32-bits wide. The LAN9217
can be interfaced to either Big-Endian or Little-Endian processors.
LAN9217
DS
00002411A
-page 8
2006-2017 Microchip Technology Inc.
1.13
External MII Interface
The LAN9217 also supports the ability to interface to an external PHY device. This interface is compatible with all IEEE
802.3 MII compliant physical layer devices. For additional information on the MII interface and associated signals,
please refer to
Section 3.11, "MII Interface - External MII Switching," on page 36
for more information.
2006-2017 Microchip Technology Inc.
DS
00002411A
-page 9
LAN9217
2.0
PIN DESCRIPTION AND CONFIGURATION

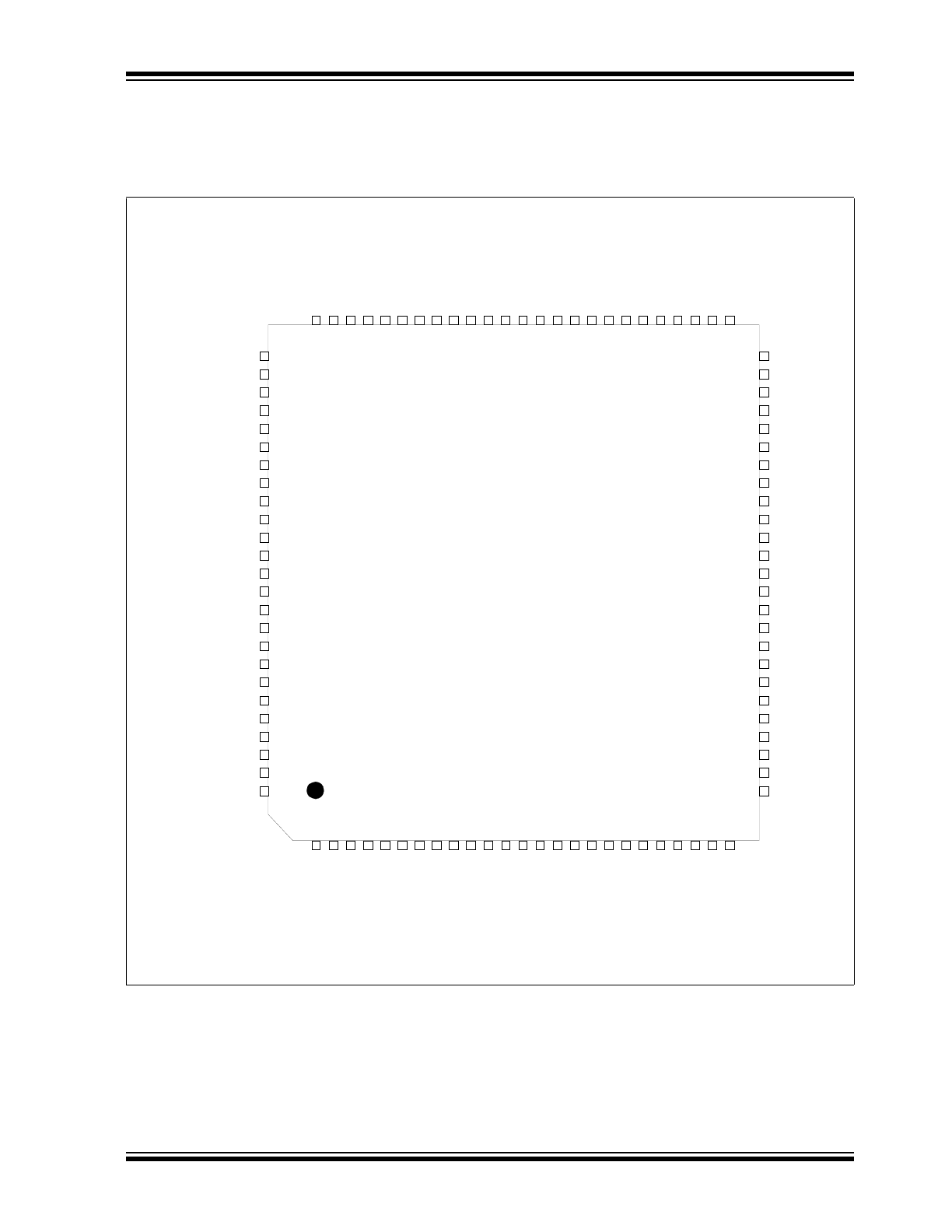

FIGURE 2-1:
PIN CONFIGURATION (TOP VIEW)
**Denotes a multifunction pin
NOTE 1: When HP Auto-MDIX is activated, the TPO+/- pins function as TPI+/- and vice-versa.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
G
N
D_
CO
RE
VR
EG
V
D
D_
CO
RE
VSS
_
P
L
L
XTA
L
2
XTA
L
1
V
DD_
P
L
L
VD
D
_
R
E
F
AT
E
S
T
RB
IA
S
V
SS_
R
E
F
A7
A6
A5
A4
A3
A2
A1
GN
D
_
IO
VD
D
_
IO
TX_
E
N
RX
D
1
RX
D
2
RX
D
3
RX
_
E
R
RX
D
0
S
P
EE
D
_
SE
L
A
M
D
IX_
EN
IR
Q
NC
PM
E
E
E
CL
K*
*
EE
C
S
EE
D
IO
**
G
N
D_
CO
R
E
V
D
D
_
CO
RE
D0
D1
D2
VD
D
_
IO
GN
D
_
IO
D3
D4
D5
D6
VD
D
_
IO
GN
D
_
IO
D7
D8
D9
FIFO_SEL
VSS_A
(Note 1) TPO -
(Note 1) TPO +
VSS_A
VDD_A
(Note 1) TPI -
(Note 1) TPI +
NC
VDD_A
VSS_A
EXRES1
VSS_A
VDD_A
NC
NC
nRD
nWR
nCS
nRESET
GND_IO
VDD_IO
GPIO0/nLED1**
GPIO1/nLED2**
GPIO2/nLED3**
D10
D11
VDD_IO
GND_IO
D12
D13
D14
D15
VDD_IO
GND_IO
TX_CLK
TXD0
TXD1
TXD2
TXD3
VDD_IO
GND_IO
COL
CRS
MDC
MDIO**
RX_DV
VDD_IO
GND_IO
RX_CLK
SMSC
LAN9215
100 PIN TQFP
LAN9217
100 PIN TQFP
LAN9217
DS
00002411A
-page 10
2006-2017 Microchip Technology Inc.
2.1
Pin List
TABLE 2-1:
HOST BUS INTERFACE SIGNALS
Name
Symbol
Buffer
Type
#
Pins
Description
Host Data
D[15:0]
I/O8
16
Bi-directional data port.
Host Address
A[7:1]
IS
7
7-bit Address Port. Used to select Internal CSR’s and
TX and RX FIFOs.
Read Strobe
nRD
IS
1
Active low strobe to indicate a read cycle.
Write Strobe
nWR
IS
1
Active low strobe to indicate a write cycle. This signal,
qualified with nCS, is also used to wakeup the
LAN9217 when it is in a reduced power state.
Chip Select
nCS
IS
1
Active low signal used to qualify read and write
operations. This signal qualified with nWR is also used
to wakeup the LAN9217 when it is in a reduced power
state.
Interrupt
Request
IRQ
O8/OD8
1
Programmable Interrupt request. Programmable
polarity, source and buffer types.
FIFO Select
FIFO_SEL
IS
1
When driven high all accesses to the LAN9217 are to
the RX or TX Data FIFOs. In this mode, the A[7:3]
upper address inputs are ignored.
TABLE 2-2:
DEFAULT ETHERNET SETTINGS
Default Ethernet Settings
SPEED_SEL
Speed
Duplex
Auto Neg.
0
10Mbps
Half-Duplex
Disabled
1
100Mbps
Half-Duplex
Enabled
TABLE 2-3:
LAN INTERFACE SIGNALS
Name
Symbol
Buffer
Type
# Pins
Description
TPO+
TPO+
AO
1
Transmit Positive Output (normal)
Receive Positive Input (reversed)
TPO-
TPO-
AO
1
Transmit Negative Output (normal)
Receive Negative Input (reversed)
TPI+
TPI+
AI
1
Receive Positive Input (normal)
Transmit Positive Input (reversed)
TPI-
TPI-
AI
1
Receive Negative Input (normal)
Transmit Negative Output (reversed)
PHY External Bias
Resistor
EXRES1
AI
1
Must be connected to ground through a 12.4K
ohm 1% resistor.
