Highlights
• Member of LAN9118 Family; optimized for
medium-high performance applications
• Easily interfaces to most 32-bit and 16-bit embed-
ded CPU’s
• Efficient architecture with low CPU overhead
• Integrated PHY
• Supports audio & video streaming over Ethernet:
1-2 high-definition (HD) MPEG2 streams
• Medium-high speed member of LAN9118 Family
(all members are pin-compatible)
Target Applications
• Medium-range Cable, satellite, and IP set-top
boxes
• Digital video recorders and DVD recorders/play-
ers
• High definition televisions
• Digital media clients/servers and home gateways
• Video-over IP Solutions, IP PBX & video phones
• Wireless routers & access points
Key Benefits
• Non-PCI Ethernet controller for medium-high per-
formance applications
- 32-bit interface
- Burst-mode read support
• Eliminates dropped packets
- Internal buffer memory can store over 200
packets
- Supports automatic or host-triggered PAUSE
and back-pressure flow control
• Minimizes CPU overhead
- Supports Slave-DMA
- Interrupt Pin with Programmable Hold-off
timer
• Reduces system cost and increases design flexi-
bility
-
SRAM-like interface easily interfaces to most
embedded CPU’s or SoC’s
- Low-cost, low--pin count non-PCI interface
for embedded designs
• Reduced Power Modes
- Numerous power management modes
- Wake on LAN*
- Magic packet wakeup*
- Wakeup indicator event signal
- Link Status Change
• Single chip Ethernet controller
- Fully compliant with IEEE 802.3/802.3u stan-
dards
- Integrated Ethernet MAC and PHY
- 10BASE-T and 100BASE-TX support
- Full- and Half-duplex support
- Full-duplex flow control
- Backpressure for half-duplex flow control
- Preamble generation and removal
- Automatic 32-bit CRC generation and check-
ing
- Automatic payload padding and pad removal
- Loop-back modes
• Flexible address filtering modes
- One 48-bit perfect address
- 64 hash-filtered multicast addresses
- Pass all multicast
- Promiscuous mode
- Inverse filtering
- Pass all incoming with status report
- Disable reception of broadcast packets
• Integrated Ethernet PHY
- Auto-negotiation
- Automatic polarity detection and correction
• High-Performance host bus interface
- Simple, SRAM-like interface
- 32/16-bit data bus
- Large, 16Kbyte FIFO memory that can be
allocated to RX or TX functions
- One configurable host interrupt
• Miscellaneous features
- Low profile 100-pin, TQFP RoHS Compliant
package
- Integral 1.8V regulator
- General Purpose Timer
- Support for optional EEPROM
- Support for 3 status LEDs multiplexed with
Programmable GPIO signals
• 3.3V Power Supply with 5V tolerant I/O
• 0 to 70
C
* Third-party brands and names are the property of their
respective owners.
LAN9116
Highly Efficient Single-Chip 10/100 Non-PCI
Ethernet Controller
LAN9116
DS00002268B-page 2
2005-2017 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2005-2017 Microchip Technology Inc.
DS00002268B-page 3
LAN9116
Table of Contents
1.0 General Description ........................................................................................................................................................................ 4
2.0 Pin Description and Configuration .................................................................................................................................................. 8
3.0 Functional Description .................................................................................................................................................................. 14
4.0 Internal Ethernet PHY ................................................................................................................................................................... 46
5.0 Register Description ...................................................................................................................................................................... 53
6.0 Timing Diagrams ........................................................................................................................................................................... 90
7.0 Operational Characteristics ......................................................................................................................................................... 100
8.0 Package Outline
................................................................................................................................................................................................. 104
Appendix A: Data Sheet Revision History ......................................................................................................................................... 105
The Microchip Web Site .................................................................................................................................................................... 106
Customer Change Notification Service ............................................................................................................................................. 106
Customer Support ............................................................................................................................................................................. 106
Product Identification System ........................................................................................................................................................... 107
LAN9116
DS00002268B-page 4
2005-2017 Microchip Technology Inc.
1.0
GENERAL DESCRIPTION
The LAN9116 is a full-featured, single-chip 10/100 Ethernet controller designed for embedded applications where per-
formance, flexibility, ease of integration and system cost control are required. The LAN9116 has been architected to
provide the best price-performance ratio for any 32-bit application with medium-high performance requirements. The
LAN9116 is fully IEEE 802.3 10BASE-T and 802.3u 100BASE-TX compliant.
The LAN9116 includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The
simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit and 32-bit micro-
processors and microcontrollers. The LAN9116 includes large transmit and receive data FIFOs to accommodate high
latency applications. In addition, the LAN9116 memory buffer architecture allows the most efficient use of memory
resources by optimizing packet granularity.
Applications
The LAN9116 is well suited for medium-high-performance embedded applications, including:
• Medium-range cable, satellite and IP set-top boxes
• Digital video recorders
• DVD Recorders/Players
• High-definition televisions
• Digital media clients/servers
• Home gateways
The LAN9116 also supports features which reduce or eliminate packet loss. Its internal 16-KByte SRAM can hold over
200 received packets. If the receive FIFO gets too full, the LAN9116 can automatically generate flow control packets to
the remote node, or assert back-pressure on the remote node by generating network collisions.
The LAN9116 supports numerous power management and wakeup features. The LAN9116 can be placed in a reduced
power mode and can be programmed to issue an external wake signal via several methods, including “Magic Packet”,
“Wake on LAN” and “Link Status Change”. This signal is ideal for triggering system power-up using remote Ethernet
wakeup events. The device can be removed from the low power state via a host processor command.
2005-2017 Microchip Technology Inc.
DS00002268B-page 5
LAN9116
The Microchip LAN9116 integrated 10/100 MAC/PHY controller is a peripheral chip that performs the function of trans-
lating parallel data from a host controller into Ethernet packets. The LAN9116 Ethernet MAC/PHY controller is designed
and optimized to function in an embedded environment. All communication is performed with programmed I/O transac-
tions using the simple SRAM-like host interface bus.
The diagram shown above, describes a typical system configuration of the LAN9116 in a typical embedded environ-
ment.
The LAN9116 is a general purpose, platform independent, Ethernet controller. The LAN9116 consists of four major func-
tional blocks. The four blocks are:
• 10/100 Ethernet PHY
• 10/100 Ethernet MAC
• RX/TX FIFOs
• Host Bus Interface (HBI)

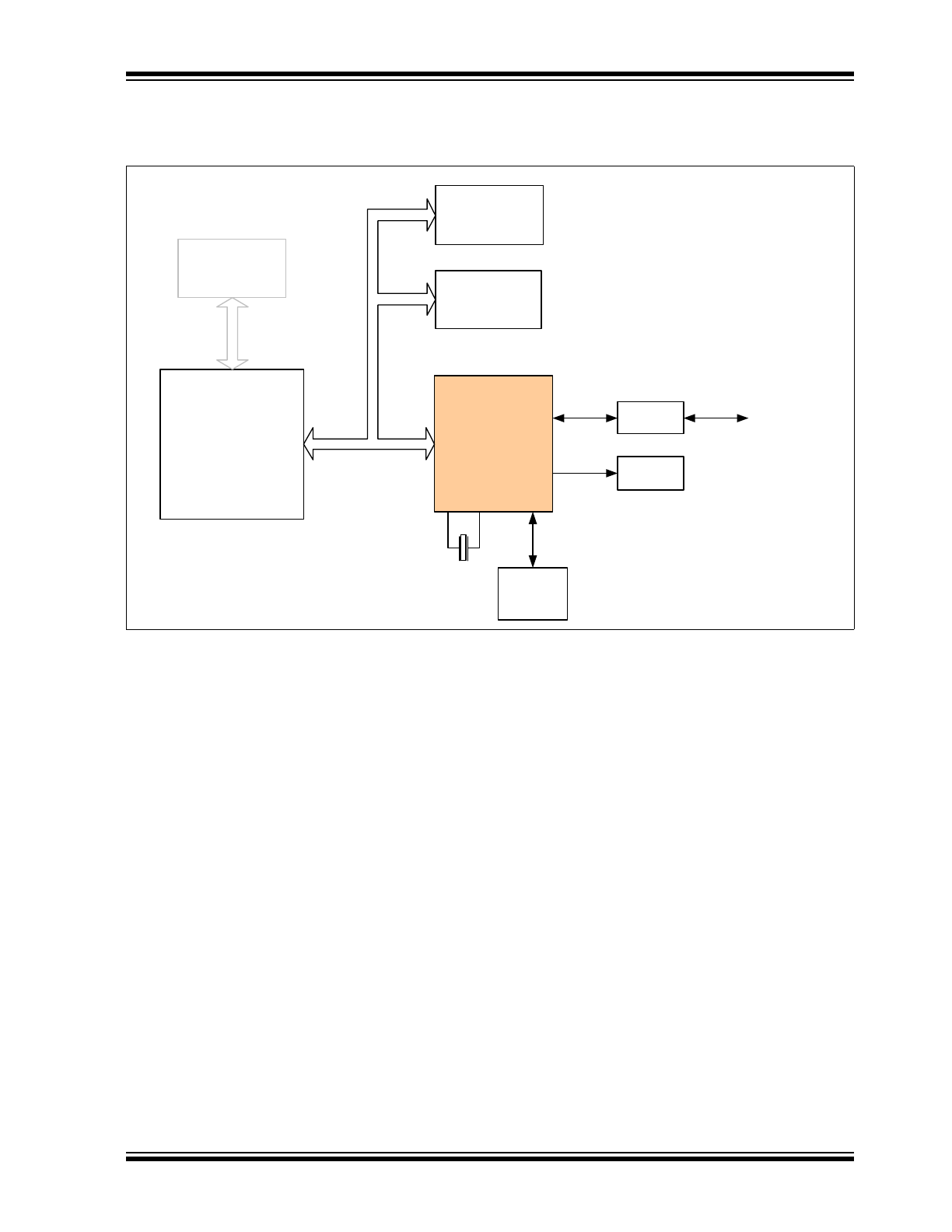

FIGURE 1-1:
SYSTEM BLOCK DIAGRAM UTILIZING THE LAN9116
Embedded
Microprocessor/
Microcontroller
LAN9116
Magnetics
Ethernet
System
Peripherals
System Memory
System Bus
EEPROM
(Optional)
LEDS/GPIO
25MHz
XTAL
System Memory
LAN9116
DS00002268B-page 6
2005-2017 Microchip Technology Inc.
1.1
Internal Block Overview
This section provides an overview of each of these functional blocks as shown in Figure 1-2, "Internal Block Diagram".
1.2
10/100 Ethernet PHY
The LAN9116 integrates an IEEE 802.3 physical layer for twisted pair Ethernet applications. The PHY can be configured
for either 100 Mbps (100Base-TX) or 10 Mbps (10Base-T) Ethernet operation in either full or half duplex configurations.
The PHY block includes auto-negotiation.
Minimal external components are required for the utilization of the Integrated PHY.
1.3
10/100 Ethernet MAC
The transmit and receive data paths are separate within the MAC allowing the highest performance especially in full
duplex mode. The data paths connect to the PIO interface Function via separate busses to increase performance. Pay-
load data as well as transmit and receive status is passed on these busses.
A third internal bus is used to access the MAC’s Control and Status Registers (CSR’s). This bus is accessible from the
host through the PIO interface function.
On the backend, the MAC interfaces with the internal 10/100 PHY through a the MII (Media Independent Interface) port
internal to the LAN9116. The MAC CSR's also provides a mechanism for accessing the PHY’s internal registers through
the internal SMI (Serial Management Interface) bus.
The MAC Interface Layer (MIL), within the MAC, contains a 2K Byte transmit and a 128 Byte receive FIFO which is sep-
arate from the TX and RX FIFOs. The FIFOs within the MAC are not directly accessible from the host interface. The
differentiation between the TX/RX FIFO memory buffers and the MAC buffers is that when the transmit or receive pack-
ets are in the MAC buffers, the host no longer can control or access the TX or RX data. The MAC buffers (both TX and
RX) are in effect the working buffers of the Ethernet MAC logic. In the case of reception, the data must be moved first
to the RX FIFOs for the host to access the data. For TX operations, the MIL operates in store-and-forward mode and
will queue an entire frame before beginning transmission.

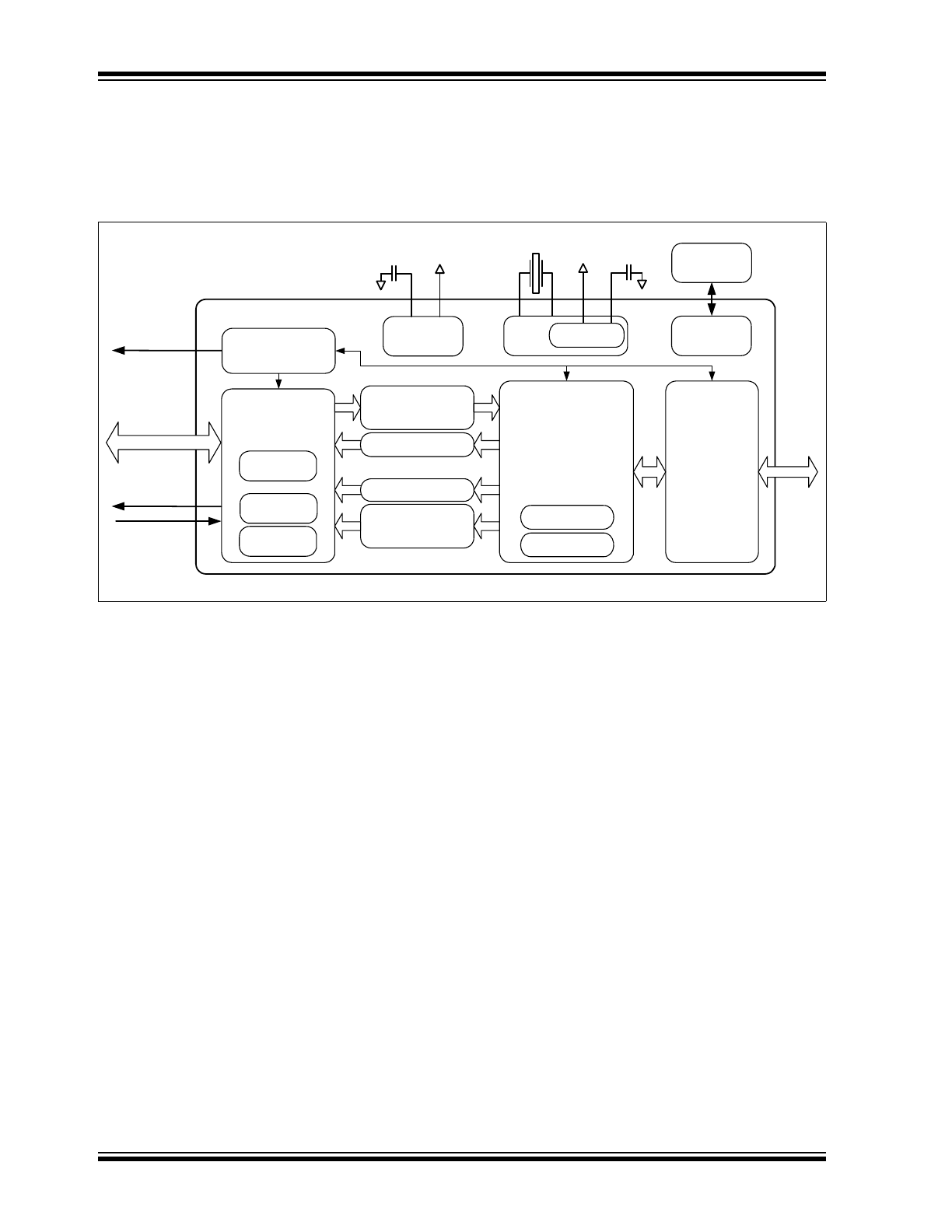

FIGURE 1-2:
INTERNAL BLOCK DIAGRAM
10/100
Ethernet
PHY
10/100
Ethernet
MAC
2kB to 14kB
Configurable TX FIFO
2kB to 14kB
Configurable RX FIFO
Interrupt
Controller
GP Timer
PIO Controller
3.3V to 1.8V
Core Regulator
25MHz
+3.3V
EEPROM
Controller
EEPROM
(Optional)
RX Status FIFO
TX Status FIFO
MIL - TX Elastic
Buffer - 2K bytes
MIL - RX Elastic
Buffer - 128 bytes
Power
Management
IRQ
FIFO_SEL
PME
Wakup Indicator
Host Bus Interface
(HBI)
SRAM I/F
LAN
PLL
+3.3V
3.3V to 1.8V
PLL Regulator
2005-2017 Microchip Technology Inc.
DS00002268B-page 7
LAN9116
1.4
Receive and Transmit FIFOs
The Receive and Transmit FIFOs allow increased packet buffer storage to the MAC. The FIFOs are a conduit between
the host interface and the MAC through which all transmitted and received data and status information is passed. Deep
FIFOs allow a high degree of latency tolerance relative to the various transport and OS software stacks thus reducing
or minimizing overrun conditions. Like the MAC, the FIFOs have separate receive and transmit data paths. In addition,
the RX and TX FIFOs are configurable in size, allowing increased flexibility.
1.5
Interrupt Controller
The LAN9116 supports a single programmable interrupt. The programmable nature of this interrupt allows the user the
ability to optimize performance dependent upon the application requirement. Both the polarity and buffer type of the
interrupt pin are configurable for the external interrupt processing. The interrupt line can be configured as an open-drain
output to facilitate the sharing of interrupts with other devices. In addition, a programmable interrupt de-assertion interval
is provided.
1.6
GPIO Interface
A 3-bit GPIO and 2-bit GPO (Multiplexed on the EEPROM and LED Pins) interface is included in the LAN9116. It is
accessible through the host bus interface via the CSRs. The GPIO signals can function as inputs, push-pull outputs and
open drain outputs. The GPIO’s (GPO’s are not configurable) can also be configured to trigger interrupts with program-
mable polarity.
1.7
Serial EEPROM Interface
A serial EEPROM interface is included in the LAN9116. The serial EEPROM is optional and can be programmed with
the LAN9116 MAC address. The LAN9116 can optionally load the MAC address automatically after power-on.
1.8
Power Management Controls
The LAN9116 supports comprehensive array of power management modes to allow use in power sensitive applications.
Wake on LAN, Link Status Change and Magic Packet detection are supported by the LAN9116. An external PME (Power
Management Event) interrupt is provided to indicate detection of a wakeup event.
1.9
General Purpose Timer
The general-purpose timer has no dedicated function within the LAN9116 and may be programmed to issue a timed
interrupt.
1.10
Host Bus Interface (SRAM Interface)
The host bus interface provides a FIFO interface for the transmit and receive data paths, as well as an interface for the
LAN9116 Control and Status Registers (CSR’s).
The host bus interface is the primary bus for connection to the embedded host system. This interface models an asyn-
chronous SRAM. TX FIFO, RX FIFO, and CSR’s are accessed through this interface. Programmed I/O transactions are
supported.
The LAN9116 host bus interface supports 32-bit and 16-bit bus transfers; internally, all data paths are 32-bits wide. The
LAN9116 can be interfaced to either Big-Endian or Little-Endian processors in either 32-bit or 16-bit external bus width
modes of operation.
The host bus data Interface is responsible for host address decoding and data bus steering. The host bus interface han-
dles the 16 to 32-bit conversion when the LAN9116 is configured with a 16-bit host interface. Additionally, when Big
Endian mode is selected, the data path to the internal controller registers will be reorganized accordingly.
LAN9116
DS00002268B-page 8
2005-2017 Microchip Technology Inc.
2.0
PIN DESCRIPTION AND CONFIGURATION

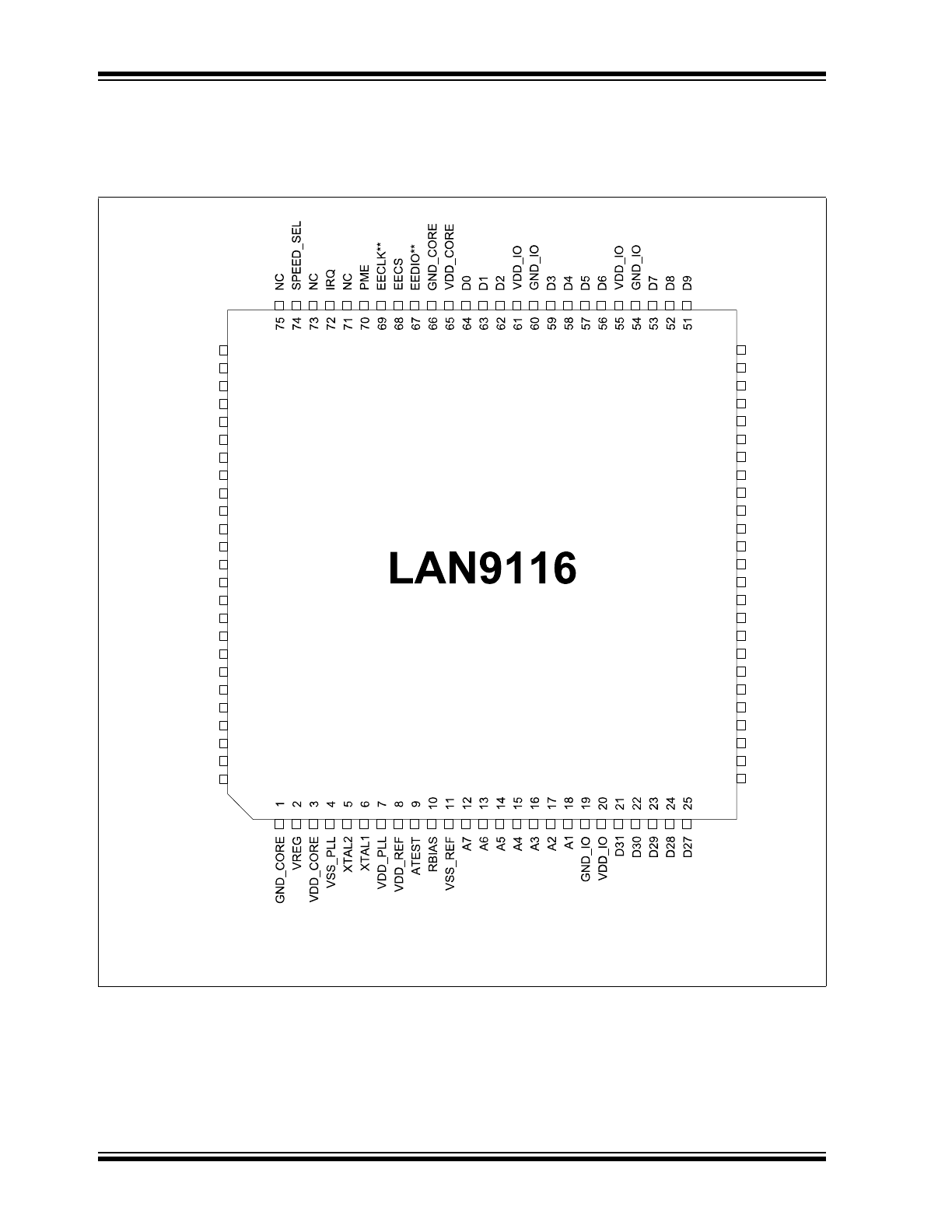

FIGURE 2-1:
PIN CONFIGURATION
**Denotes a multifunction pin
*1 This NC pin can also be tied to VDD_A for backward compatibility
*2 This NC pin can also be tied to VSS_A for backward compatibility
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
D26
GND_IO
VDD_IO
D25
D24
D23
D22
D21
GND_IO
VDD_IO
D20
D19
D18
D17
D16
GND_IO
VDD_IO
D15
D14
D13
D12
GND_IO
VDD_IO
D11
D10
GPIO2/nLED3**
GPIO1/nLED2**
GPIO0/nLED1**
VDD_IO
GND_IO
nRESET
nCS
nWR
nRD
NC*1
NC*2
VDD_A
VSS_A
EXRES1
VSS_A
VDD_A
NC
TPI+
TPI-
VDD_A
VSS_A
TPO+
TPO-
VSS_A
FIFO_SEL
100 PIN TQFP
2005-2017 Microchip Technology Inc.
DS00002268B-page 9
LAN9116
TABLE 2-1:
HOST BUS INTERFACE SIGNALS
Pin No.
Name
Symbol
Buffer
Type
# Pins
Description
21-26,29-
33,36-40
Host Data High
D[31:16]
I/O8 (PD)
16
Bi-directional data port.
Note that Pull-down’s are disabled in 32
bit mode.
43-46,49-
53,56-59,62-
64
Host Data Low
D[15:0]
I/O8
16
Bi-directional data port.
12-18
Host Address
A[7:1]
IS
7
7-bit Address Port. Used to select
Internal CSR’s and TX and RX FIFOs.
92
Read Strobe
nRD
IS
1
Active low strobe to indicate a read
cycle.
93
Write Strobe
nWR
IS
1
Active low strobe to indicate a write
cycle. This signal, qualified with nCS, is
also used to wakeup the LAN9116 when
it is in a reduced power state.
94
Chip Select
nCS
IS
1
Active low signal used to qualify read
and write operations. This signal
qualified with nWR is also used to
wakeup the LAN9116 when it is in a
reduced power state.
72
Interrupt
Request
IRQ
O8/OD8
1
Programmable Interrupt request.
Programmable polarity, source and
buffer types.
76
FIFO Select
FIFO_SEL
IS
1
When driven high all accesses to the
LAN9116 are to the RX or TX Data
FIFOs. In this mode, the A[7:3] upper
address inputs are ignored.
TABLE 2-2:
DEFAULT ETHERNET SETTINGS
Default Ethernet Settings
SPEED_SEL
Speed
Duplex
Auto Neg.
0
10MBPS
HALF-DUPLEX
DISABLED
1
100MBPS
HALF-DUPLEX
ENABLED
TABLE 2-3:
LAN INTERFACE SIGNALS
Pin No.
Name
Symbol
Buffer
Type
# Pins
Description
79
TXP
TPO+
AO
1
Twisted Pair Transmit Output, Positive
78
TXN
TPO-
AO
1
Twisted Pair Transmit Output, Negative
83
RXP
TPI+
AI
1
Twisted Pair Receive Input, Positive
82
RXN
TPI-
AI
1
Twisted Pair Receive Input, Negative
87
PHY External Bias
Resistor
EXRES1
AI
1
Must be connected to ground through a
12.4K ohm 1% resistor.
LAN9116
DS00002268B-page 10
2005-2017 Microchip Technology Inc.
TABLE 2-4:
SERIAL EEPROM INTERFACE SIGNALS
Pin No.
Name
Symbol
Buffer
Type
# Pins
Description
67
EEPROM Data,
GPO3, TX_EN,
TX_CLK, D32/nD16
EEDIO/GPO3/
TX_EN/TX_CLK
(D32/nD16
)
I/O8
1
EEPROM Data: This bi-directional pin
can be connected to a serial
EEPROM DIO. This is optional.
General Purpose Output 3: This pin
can also function as a general
purpose output, or it can be
configured to monitor the TX_EN or
TX_CLK signals on the internal MII
port. When configured as a GPO
signal, or as a TX_EN/TX_CLK
monitor, the EECS pin is deasserted
so as to never unintentionally access
the serial EEPROM. This signal
cannot function as a general-purpose
input.
Data Bus Width Select: This signal
also functions as a configuration input
on power-up and is used to select the
host bus data width. Upon deassertion
of reset, the value of the input is
latched. When high, a 32-bit data bus
is utilized. When low, a 16-bit interface
is utilized.
68
EEPROM Chip
Select
EECS
O8
1
Serial EEPROM chip select.
69
EEPROM Clock,
GPO4 RX_DV,
RX_CLK
EECLK/GPO4/
RX_DV/RX_CLK
O8
1
EEPROM Clock: Serial EEPROM
Clock pin.
General Purpose Output 4: This pin
can also function as a general-
purpose output, or it can be
configured to monitor the RX_DV or
RX_CLK signals on the internal MII
port. When configured as a GPO
signal, or as an RX_DV/RX_CLK
monitor, the EECS pin is deasserted
so as to never unintentionally access
the serial EEPROM. This signal
cannot function as a general-purpose
input.
Note:
When the EEPROM inter-
face is not used, the
EECLK pin must be left
unconnected.
TABLE 2-5:
SYSTEM AND POWER SIGNALS
Pin No.
Name
Symbol
Buffer
Type
# Pins
Description
6
Crystal 1
XTAL1
lclk
1
External 25MHz Crystal Input.
Can also be connected to single-ended
TTL oscillator. If this method is
implemented, XTAL2 should be left
unconnected.
5
Crystal 2
XTAL2
Oclk
1
External 25MHz Crystal output.
