Features
• Single-Chip 10BASE-T/100BASE-TX/100BASE-
FX Physical Layer Solution
• Fully Compliant with IEEE 802.3u Standard
• Low Power CMOS Design, Power Consumption
of <180 mW
• HP Auto MDI/MDI-X for Reliable Detection and
Correction for Straight-Through and Crossover
Cables with Disable and Enable Option
• Robust Operation Over Standard Cables
• LinkMD
®
TDR-Based Cable Diagnostics for Iden-
tification of Faulty Copper Cabling
• Power Down and Power Saving Modes
• Fiber Support: 100BASE-FX (KSZ8041FTL Only)
• Back-to-Back Mode Support for 100 Mbps
Repeater or Media Converter
• MII Interface Support
• RMII Interface Support with External 50 MHz Sys-
tem Clock (KSZ8041TL/FTL Only)
• SMII Interface Support with External 125 MHz
System Clock and 12.5 MHz Sync Clock from
MAC (KSZ8041TL/FTL Only)
• MIIM (MDC/MDIO) Management Bus to 12.5 MHz
for Rapid PHY Register Configuration
• Interrupt Pin Option
• Programmable LED Outputs for Link, Activity, and
Speed
• Single Power Supply (3.3V)
• Built-in 1.8V Regulator for Core
• Available in 48-Pin LQFP (KSZ8041MLL) or 48-
Pin TQFP (KSZ8041TL/FTL) Packages
Applications
• Printer
• LOM
• Game Console
• IPTV
• IP Phone
• IP Set-Top Box
• Media Converter
KSZ8041TL/FTL/MLL
10BASE-T/100BASE-TX/100BASE-FX
Physical Layer Transceiver
KSZ8041TL/FTL/MLL
DS00002436B-page 2
2017 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2017 Microchip Technology Inc.
DS00002436B-page 3
KSZ8041TL/FTL/MLL
Table of Contents
1.0 Introduction ..................................................................................................................................................................................... 4
2.0 Pin Description and Configuration .................................................................................................................................................. 6
3.0 Functional Description .................................................................................................................................................................. 19
4.0 Register Descriptions .................................................................................................................................................................... 35
5.0 Operational Characteristics ........................................................................................................................................................... 42
6.0 Electrical Characteristics ............................................................................................................................................................... 43
7.0 Timing Specifications .................................................................................................................................................................... 44
8.0 Selection of Isolation Transformers .............................................................................................................................................. 56
9.0 Package Outline ............................................................................................................................................................................ 57
Appendix A: Data Sheet Revision History ........................................................................................................................................... 59
The Microchip Web Site ...................................................................................................................................................................... 60
Customer Change Notification Service ............................................................................................................................................... 60
Customer Support ............................................................................................................................................................................... 60
Product Identification System ............................................................................................................................................................. 61
KSZ8041TL/FTL/MLL
DS00002436B-page 4
2017 Microchip Technology Inc.
1.0
INTRODUCTION
1.1
General Description
The KSZ8041TL is a single supply 10BASE-T/100BASE-TX Physical Layer Transceiver that provides MII/RMII/SMII
interfaces to transmit and receive data. It utilizes a unique mixed-signal design to extend signaling distance while reduc-
ing power consumption.
HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and
straight-through cables.
LinkMD
®
TDR-based cable diagnostics permit identification of faulty copper cabling.
The KSZ8041TL represents a new level of features and performance and is an ideal choice of physical layer transceiver
for 10BASE-T/100BASE-TX applications.
The KSZ8041FTL has all the identical rich features of the KSZ8041TL plus 100BASE-FX support for fiber and media
converter applications.
The KSZ8041MLL is the basic 10BASE-T/100BASE-TX physical layer transceiver version with MII support.
The KSZ8041TL and KSZ8041FTL are available in 48-pin, lead-free TQFP packages. The KSZ8041MLL is provided in
the 48-pin, lead-free LQFP package.

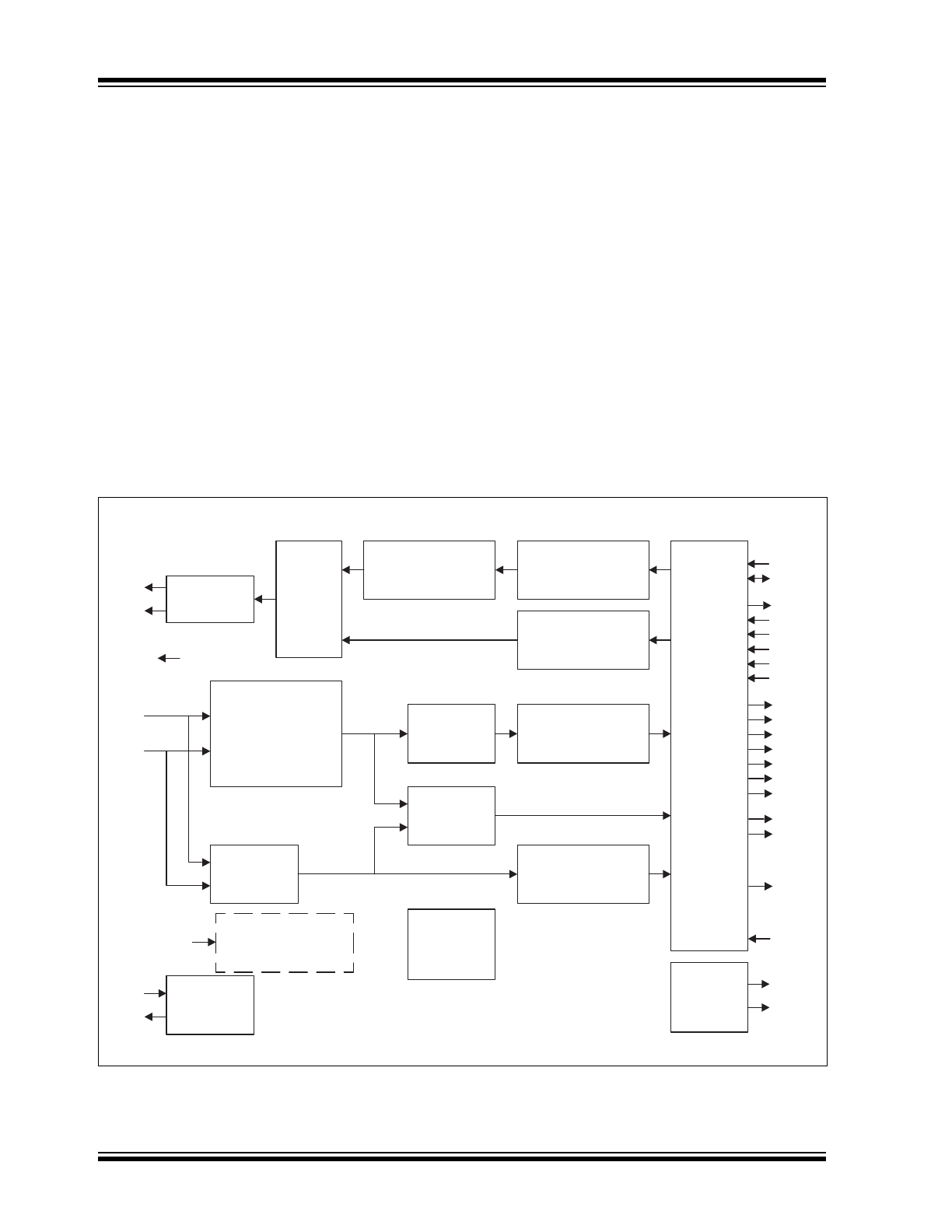

FIGURE 1-1:
SYSTEM BLOCK DIAGRAM, KSZ8041TL/FTL
10/100
Pulse
Shaper
NRZ/NRZI
MLT3 Encoder
Parallel /Serial
Manchester Encoder
4B/5B Encoder
Scrambler
Parallel /Serial
Transmitter
TX+
TX-
Adaptive EQ
Base Line
Wander Correction
MLT3 Decoder
NRZI/NRZ
Clock
Recovery
4B/5B Decoder
Descrambler
Serial/Parallel
Auto
Negotiation
10BASE-T
Receiver
Manchester Decoder
Serial/Parallel
PLL
LED
Driver
MII/RMII/SMII
Registers
and
Controller
Interface
RX-
RX+
XI
XO
LED1
LED0
Power Down
Power Saving
TXD3
TXD0
TXD1
TXD2
RXD3
TXEN
TXC
MDC
MDIO
RXER
RXD0
RXD1
RXD2
REXT
RXC
RXDV
CRS
COL
RST#
INTRP
100BASE-FX
Signal Detect
(KSZ8041FTL Only)
FXSD/
FXEN
2017 Microchip Technology Inc.
DS00002436B-page 5
KSZ8041TL/FTL/MLL

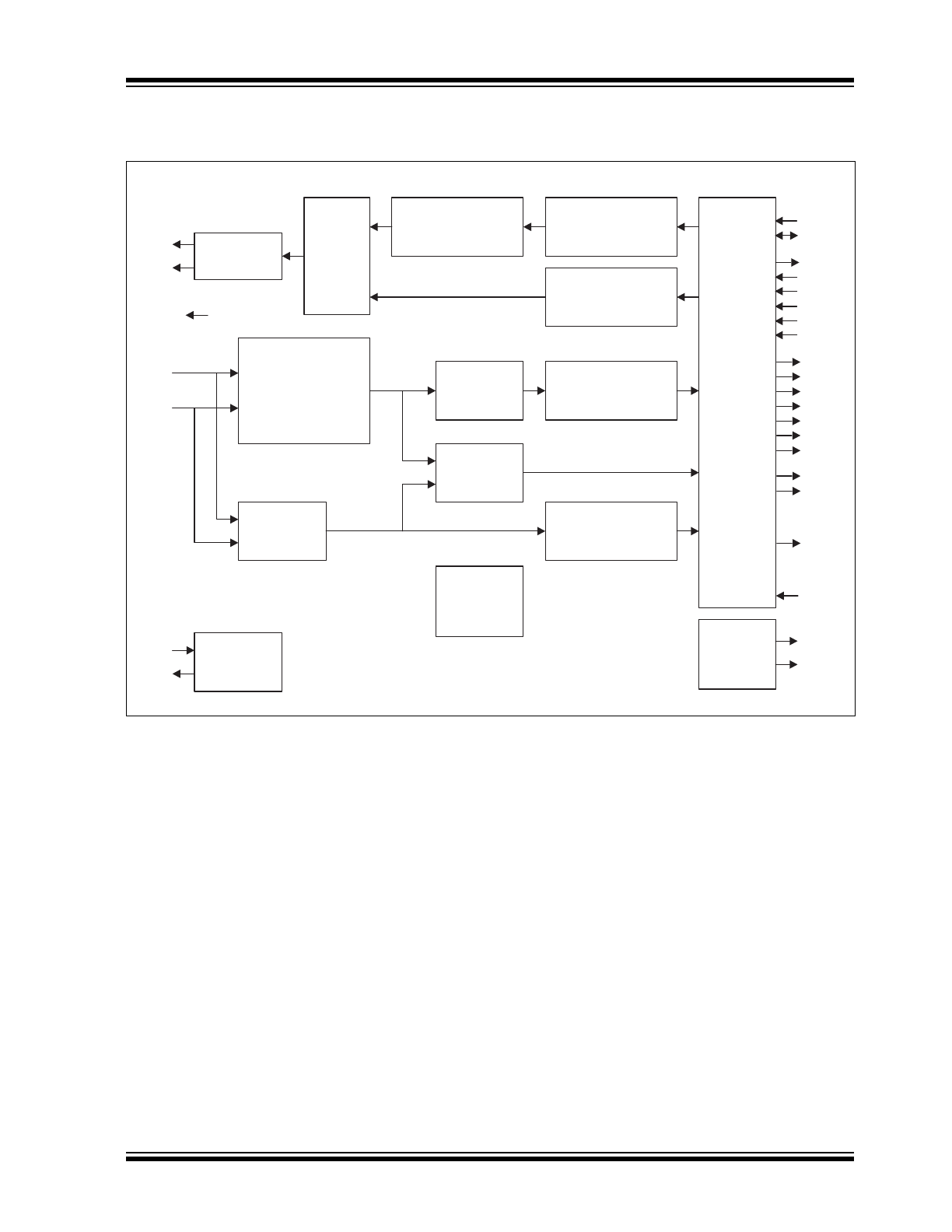

FIGURE 1-2:
SYSTEM BLOCK DIAGRAM, KSZ8041MLL
10/100
Pulse
Shaper
NRZ/NRZI
MLT3 Encoder
Parallel /Serial
Manchester Encoder
4B/5B Encoder
Scrambler
Parallel /Serial
Transmitter
TX+
TX-
Adaptive EQ
Base Line
Wander Correction
MLT3 Decoder
NRZI/NRZ
Clock
Recovery
4B/5B Decoder
Descrambler
Serial/Parallel
Auto
Negotiation
10BASE-T
Receiver
Manchester Decoder
Serial/Parallel
PLL
LED
Driver
MII
RX-
RX+
XI
XO
LED1
LED0
Power Down
Power Saving
TXD3
TXD0
TXD1
TXD2
RXD3
TXEN
TXC
MDC
MDIO
RXER
RXD0
RXD1
RXD2
REXT
RXC
RXDV
CRS
COL
RST#
INTRP
KSZ8041TL/FTL/MLL
DS00002436B-page 6
2017 Microchip Technology Inc.
2.0
PIN DESCRIPTION AND CONFIGURATION

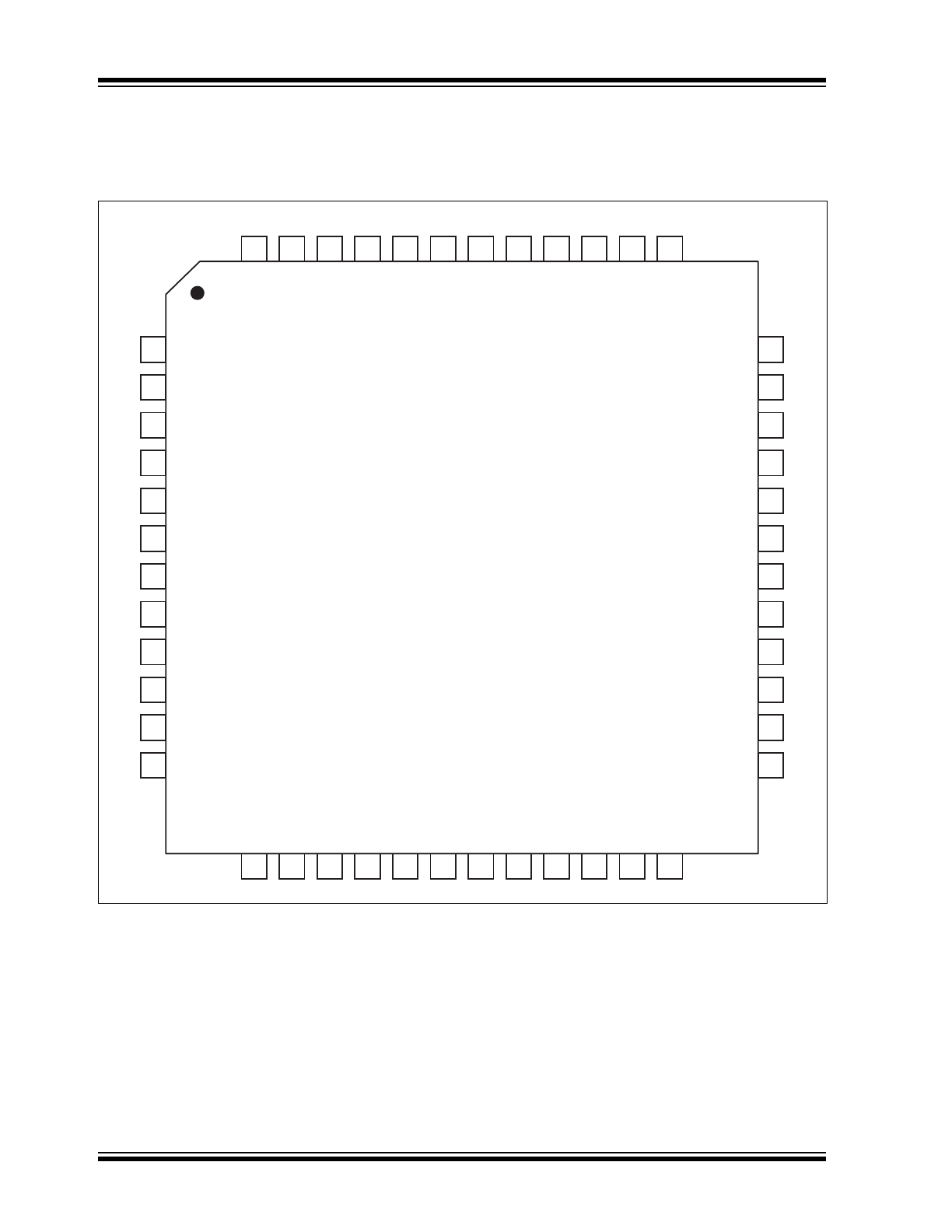

FIGURE 2-1:
KSZ8041TL 48-PIN TQFP ASSIGNMENT, (TOP VIEW)
1
NC
NC
TXC
RST#
INTRP
REXT
GND
RXER / RX_ER /
ISO
GND
VDD_1.8
GND
GND
GND
GND
XO
VDDA_3.3
NC
TXD1 / TXD[1] /
SYNC
TXD0 / TXD[0] /
TX
TXEN /
TX_EN
LED1 /
SPEED
LED0
/
NWA
YEN
CR
S /
CONFIG1
NC
2
3
8
13
14
16
17
29
30
31
32
33
34
35
36
41
42
43
44
45
46
47
48
RX+
TX-
RX-
9
10
11
GND
24
TXD3
TXD2
GND
CO
L /
CONFIG0
37
38
39
40
RXC
VDDIO_3.3
VDDIO_3.3
RXDV / CRSDV /
CONFIG2
25
26
27
28
R
X
D2 /
PHYAD1
R
X
D1 / R
X
D
[1] /
PHYAD2
RXD
0
/ RXD[0
] / RX
DUPLEX
21
22
23
MDIO
MD
C
RXD3
/
PHYAD0
18
19
20
XI /
REFCL
K /
CLOCK
15
TX+
12
VDDA_1.8
VDDA_1.8
4
5
V1.8_OUT
VDDA_3.3
6
7
KSZ8041TL
2017 Microchip Technology Inc.
DS00002436B-page 7
KSZ8041TL/FTL/MLL

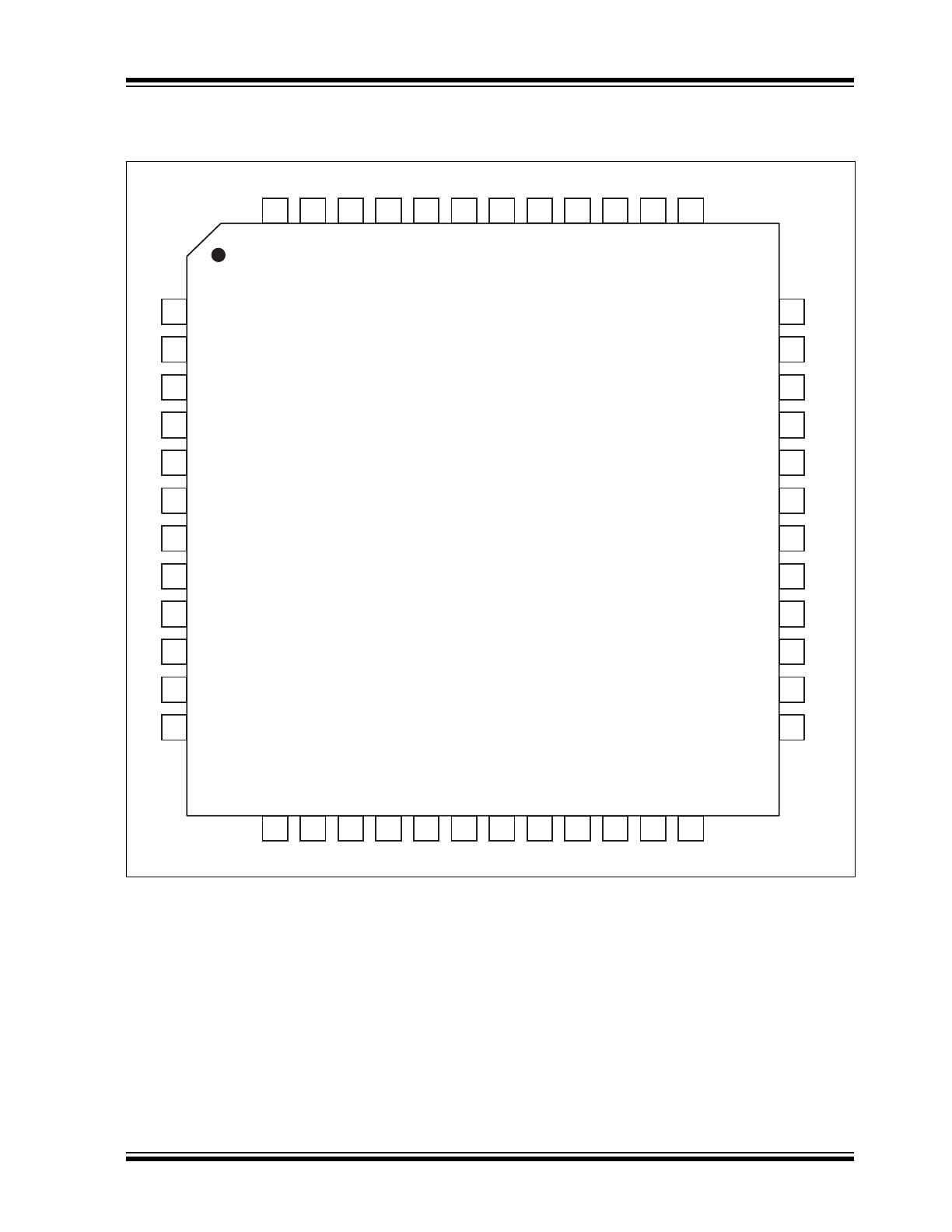

FIGURE 2-2:
KSZ8041FTL 48-PIN TQFP ASSIGNMENT, (TOP VIEW)
1
NC
NC
TXC
RST#
INTRP
REXT
GND
RXER / RX_ER /
ISO
GND
VDD_1.8
GND
GND
GND
GND
XO
VDDA_3.3
FXSD /
FXEN
TXD1 / TXD[1] /
SYNC
TXD0 / TXD[0] /
TX
TXEN /
TX_EN
LED1 /
SPEED / no FEF
LED0
/
NWA
YEN
CR
S /
CONFIG1
NC
2
3
8
13
14
16
17
29
30
31
32
33
34
35
36
41
42
43
44
45
46
47
48
RX+
TX-
RX-
9
10
11
GND
24
TXD3
TXD2
GND
CO
L /
CONFIG0
37
38
39
40
RXC
VDDIO_3.3
VDDIO_3.3
RXDV / CRSDV /
CONFIG2
25
26
27
28
R
X
D2 /
PHYAD1
R
X
D1 / R
X
D
[1] /
PHYAD2
RXD
0
/ RXD[0
] / RX
DUPLEX
21
22
23
MDIO
MD
C
RXD3
/
PHYAD0
18
19
20
XI /
REFCL
K /
CLOCK
15
TX+
12
VDDA_1.8
VDDA_1.8
4
5
V1.8_OUT
VDDA_3.3
6
7
KSZ8041FTL
KSZ8041TL/FTL/MLL
DS00002436B-page 8
2017 Microchip Technology Inc.
TABLE 2-1:
SIGNALS FOR KSZ8041TL/FTL
Pin
Number
Pin Name
Type
(
Note
2-1
)
Description
1
GND
GND
Ground
2
GND
GND
Ground
3
GND
GND
Ground
4
VDDA_1.8
P
1.8V analog V
DD
5
VDDA_1.8
P
1.8V analog V
DD
6
V1.8_OUT
P
1.8V output voltage from chip
7
VDDA_3.3
P
3.3V analog V
DD
8
VDDA_3.3
P
3.3V analog V
DD
9
RX–
I/O
Physical receive or transmit signal (– differential)
10
RX+
I/O
Physical receive or transmit signal (+ differential)
11
TX–
I/O
Physical transmit or receive signal (– differential)
12
TX+
I/O
Physical transmit or receive signal (+ differential)
13
GND
GND
Ground
14
XO
O
Crystal feedback
This pin is used only in MII mode when a 25 MHz crystal is used.
This pin is a no connect if oscillator or external clock source is used, or if RMII
mode or SMII mode is selected.
15
XI/REFCLK/
CLOCK
I
Crystal/Oscillator/External Clock Input
MII Mode: 25 MHz ±50 ppm (crystal, oscillator, or external clock)
RMII Mode: 50 MHz ±50 ppm (oscillator, or external clock only)
SMII Mode: 125 MHz ±100 ppm (oscillator, or external clock only)
16
REXT
I/O
Set physical transmit output current
Connect a 6.49 kΩ resistor in parallel with a 100 pF capacitor to ground on
this pin. See KSZ8041TL-FTL reference schematics.
17
GND
GND
Ground
18
MDIO
I/O
Management Interface (MII) Data I/O
This pin requires an external 4.7 kΩ pull-up resistor.
19
MDC
I
Management Interface (MII) Clock Input
This pin is synchronous to the MDIO data interface.
20
RXD3/
PHYAD0
Ipu/O
MII Mode: Receive Data Output[3](
Note 2-2
)
Config. Mode: The pull-up/pull-down value is latched as PHYADDR[0] during
power-up/reset. See
Table 2-2
for details.
21
RXD2/
PHYAD1
Ipd/O
MII Mode: Receive Data Output[2](
Note 2-2
)
Config. Mode: The pull-up/pull-down value is latched as PHYADDR[1] during
power-up/reset. See
Table 2-2
for details.
2017 Microchip Technology Inc.
DS00002436B-page 9
KSZ8041TL/FTL/MLL
22
RXD1/
RXD[1]/
PHYAD2
Ipd/O
MII Mode: Receive Data Output[1](
Note 2-2
)
RMII Mode: Receive Data Output[1](
Note 2-3
)
Config. Mode: The pull-up/pull-down value is latched as PHYADDR[2] during
power-up/reset. See
Table 2-2
for details.
23
RXD0/
RXD[0]/
RX
DUPLEX
Ipu/O
MII Mode: Receive Data Output[0](
Note 2-2
)
RMII Mode: Receive Data Output[0](
Note 2-3
)
SMII Mode: Receive Data and Control(
Note 2-4
)
Config. Mode: Latched as DUPLEX (register 0h, bit 8) during power-up/reset.
See
Table 2-2
for details.
24
GND
GND
Ground
25
VDDIO_3.3
P
3.3V digital V
DD
26
VDDIO_3.3
P
3.3V digital V
DD
27
RXDV/
CRSDV/
CONFIG2
Ipd/O
MII Mode: Receive Data Valid Output
RMII Mode: Carrier Sense/Receive Data Valid Output
Config. Mode: The pull-up/pull-down value is latched as CONFIG2 during
power-up/reset. See
Table 2-2
for details.
28
RXC
O
MII Mode: Receive Clock Output.
29
RXER/
RX_ER/
ISO
Ipd/O
MII Mode: Receive Error Output
RMII Mode: Receive Error Output
Config. Mode: The pull-up/pull-down value is latched as ISOLATE during
power-up/reset. See
Table 2-2
for details.
30
GND
GND
Ground
31
VDD_1.8
P
1.8V digital V
DD
32
INTRP
Opu
Interrupt Output: Programmable Interrupt Output
Register 1Bh is the Interrupt Control/Status Register for programming the
interrupt conditions and reading the interrupt status. Register 1Fh bit 9 sets
the interrupt output to active-low (default) or active-high.
33
TXC
I/O
MII Mode: Transmit Clock Output
MII Back-to-Back Mode: Transmit Clock Input
34
TXEN/
TX_EN
I
MII Mode: Transmit Enable Input
RMII Mode: Transmit Enable Input
35
TXD0/
TXD[0]/
TX
I
MII Mode: Transmit Data Input[0](
Note 2-5
)
RMII Mode: Transmit Data Input[0](
Note 2-6
)
SMII Mode: Transmit Data and Control(
Note 2-7
)
36
TXD1/
TXD[1]/
SYNC
I
MII Mode: Transmit Data Input[1](
Note 2-5
)
RMII Mode: Transmit Data Input[1](
Note 2-6
)
SMII Mode: SYNC Clock Input
37
GND
GND
Ground
38
TXD2
I
MII Mode: Transmit Data Input[2](
Note 2-5
)
39
TXD3
I
MII Mode: Transmit Data Input[3](
Note 2-5
)
TABLE 2-1:
SIGNALS FOR KSZ8041TL/FTL (CONTINUED)
Pin
Number
Pin Name
Type
(
Note
2-1
)
Description
KSZ8041TL/FTL/MLL
DS00002436B-page 10
2017 Microchip Technology Inc.
40
COL/
CONFIG0
Ipd/O
MII Mode: Collision Detect Output
Config. Mode: The pull-up/pull-down value is latched as CONFIG0 during
power-up/reset. See
Table 2-2
for details.
41
CRS/
CONFIG1
Ipd/O
MII Mode: Carrier Sense Output
Config. Mode: The pull-up/pull-down value is latched as CONFIG1 during
power-up/reset. See
Table 2-2
for details.
42
(TL)
LED0/
NWAYEN
Ipu/O
LED Output: Programmable LED0 Output
Config. Mode: Latched as Auto-Negotiation Enable (register 0h, bit 12) during
power-up/reset. See
Table 2-2
for details.
The LED0 pin is programmable via register 1Eh bits [15:14], and is defined as
follows:
LED Mode = [00]
Link/Activity
Pin State
LED Definition
No Link
High
OFF
Link
Low
ON
Activity
Toggle
Blinking
LED Mode = [01]
Link
Pin State
LED Definition
No Link
High
OFF
Link
Low
ON
LED Mode = [10]:
Reserved
LED Mode = [11]:
Reserved
TABLE 2-1:
SIGNALS FOR KSZ8041TL/FTL (CONTINUED)
Pin
Number
Pin Name
Type
(
Note
2-1
)
Description
