Target Applications
• Industrial Ethernet Applications that Employ IEEE
802.3-Compliant MACs. (Ethernet/IP, Profinet,
MODBUS TCP, etc.)
• VoIP Phone
• Set-Top/Game Box
• Automotive
• Industrial Control
• IPTV POF
• SOHO Residential Gateway with Full-Wire Speed
of Four LAN Ports
• Broadband Gateway/Firewall/VPN
• Integrated DSL/Cable Modem
• Wireless LAN Access Point + Gateway
• Standalone 10/100 Switch
• Networked Measurement and Control Systems
Features
• Management Capabilities
- The KSZ8765CLX Includes All the Functions
of a 10/100BASE-T/TX Switch System Which
Combines a Switch Engine, Frame Buffer
Management, Address Look-Up Table,
Queue Management, MIB Counters, Media
Access Controllers (MAC), and PHY Trans-
ceivers
- Non-Blocking Store-and-Forward Switch
Fabric Assures Fast Packet Delivery by Uti-
lizing a 1024-Entries Forwarding Table
- Port Mirroring/Monitoring/Sniffing: Ingress
and/or Egress Traffic to Any Port
- MIB Counters for Fully-Compliant Statistics
Gathering (36 Counters per Port)
- Support Hardware for Port-Based Flush and
Freeze Command in MIB Counter.
- Multiple Loopback of Remote, PHY, and MAC
Modes Support for the Diagnostics
- Rapid Spanning Tree Support (RSTP) for
Topology Management and Ring/Linear
Recovery
• Robust PHY Ports
- Four Integrated IEEE 802.3/802.3u-Compli-
ant Ethernet Transceivers; Port 1 and Port 2
Support 100Base-FX, Port 3 and Port 4 Sup-
port 10/100Base-T/TX
- 802.1az EEE Supported
- On-Chip Termination Resistors and Internal
Biasing for Differential Pairs to Reduce
Power
- HP Auto MDI/MDI-X Crossover Support Elim-
inates the Need to Differentiate Between
Straight or Crossover Cables in Applications
• MAC and GMAC Ports
- Four Internal Media Access Control (MAC1 to
MAC4) Units and One Internal Gigabit Media
Access Control (GMAC5) Unit
- GMII, RGMII, MII, or RMII Interfaces Support
for the Port 5 GMAC5 with Uplink
- 2 KByte Jumbo Packet Support
- Tail Tagging Mode (One Byte Added Before
FCS) Support on Port 5 to Inform the Proces-
sor in which the Ingress Port Receives the
Packet and its Priority
- Supports Reduced Media Independent Inter-
face (RMII) with 50 MHz Reference Clock
Output
- Supports Media Independent Interface (MII)
in Either PHY Mode or MAC Mode on Port 5
- LinkMD
®
Cable Diagnostic Capabilities for
Determining Cable Opens, Shorts, and
Length
• Advanced Switch Capabilities
- Non-Blocking Store-and-Forward Switch
Fabric Assures Fast Packet Delivery by Uti-
lizing 1024 Entry Forwarding Table
- 64 KB Frame Buffer RAM
- IEEE 802.1q VLAN Support for up to 128
Active VLAN Groups (Full-Range 4096 of
VLAN IDs)
- IEEE 802.1p/Q Tag Insertion or Removal on
a Per Port Basis (Egress)
- VLAN ID Tag/Untag Options on Per Port
Basis
- Fully Compliant with IEEE 802.3/802.3u
Standards
- IEEE 802.3x Full-Duplex with Force-Mode
KSZ8765CLX
Integrated 5-Port 10/100-Managed Ethernet
Switch with Gigabit GMII/RGMII and MII/
RMII Interfaces
KSZ8765CLX
2016 Microchip Technology Inc.
DS00002130A-page 2
Option and Half-Duplex Back-Pressure Colli-
sion Flow Control
- IEEE 802.1w Rapid Spanning Tree Protocol
Support
- IGMP v1/v2/v3 Snooping for Multicast Packet
Filtering
- QoS/CoS Packets Prioritization Support:
802.1p, DiffServ-Based and Re-Mapping of
802.1p Priority Field Per Port Basis on Four
Priority Levels
- IPv4/IPv6 QoS Support
- IPV6 Multicast Listener Discovery (MLD)
Snooping
- Programmable Rate Limiting at the Ingress
and Egress Ports on a Per Port Basis
- Jitter-Free Per Packet Based Rate Limiting
Support
- Tail Tag Mode (1 byte Added before FCS)
Support on Port 5 to Inform the Processor
which Ingress Port Receives the Packet
- Broadcast Storm Protection with Percentage
Control (Global and Per Port Basis)
- 1K Entry Forwarding Table with 64 KB Frame
Buffer
- 4 Priority Queues with Dynamic Packet Map-
ping for IEEE 802.1P, IPV4 TOS (DIFF-
SERV), IPv6 Traffic Class, etc.
- Supports WoL Using AMD’s Magic Packet
- VLAN and Address Filtering
- Supports 802.1x Port-Based Security,
Authentication and MAC-Based Authentica-
tion via Access Control Lists (ACL)
- Provides Port-Based and Rule-Based ACLs
to Support Layer 2 MAC SA/DA Address,
Layer 3 IP Address and IP Mask, Layer 4
TCP/UDP Port Number, IP Protocol, TCP
Flag and Compensation for the Port Security
Filtering
- Ingress and Egress Rate Limit Based on Bit
per Second (bps) and Packet-Based Rate
Limiting (pps)
• Configuration Registers Access
- High-Speed SPI (4-Wire, up to 50 MHz) Inter-
face to Access All Internal Registers
- MII Management (MIIM, MDC/MDIO 2-Wire)
Interface to Access All PHY Registers per
Clause 22.2.4.5 of the IEEE 802.3 Specifica-
tion
- I/O Pin Strapping Facility to Set Certain Reg-
ister Bits from I/O Pins During Reset Time
- Control Registers Configurable On-the-Fly
• Power and Power Management
- Full-Chip Software Power-Down (All Register
Values are Not Saved and Strap-In value Will
Re-Strap after it Releases the Power-Down)
- Per-Port Software Power-Down
- Energy Detect Power-Down (EDPD), which
Disables the PHY Transceiver When Cables
are Removed
- Supports IEEE P802.3az Energy Efficient
Ethernet (EEE) to Reduce Power Consump-
tion in Transceivers in LPI State Even
Though Cables are Not Removed
- Dynamic Clock Tree Control to Reduce
Clocking in Areas that are Not in Use
- Low Power Consumption without Extra
Power Consumption on Transformers
- Voltages: Using External LDO Power Sup-
plies
- Analog VDDAT 3.3V or 2.5V
- VDDIO Support 3.3V, 2.5V, and 1.8V
- Low 1.2V Voltage for Analog and Digital Core
Power
- WoL Support with Configurable Packet Con-
trol
• Additional Features
- Single 25 MHz +50 ppm Reference Clock
Requirement
- Comprehensive Programmable Two-LED
Indicator Support for Link, Activity, Full-/Half-
Duplex, and 10/100 Speed
• Packaging and Environmental
- Commercial Temperature Range: 0°C to
+70°C
- Industrial Temperature Range: –40°C to
+85°C
- Package Available in an 80-Pin LQFP, Lead-
Free (RoHS-Compliant) Package
- Supports Human Body Model (HBM) ESD
Rating of 5 kV
- 0.065 µm CMOS Technology for Lower
Power Consumption
2016 Microchip Technology Inc.
DS00002130A-page 3
KSZ8765CLX
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
KSZ8765CLX
DS00002130A-page 4
2016 Microchip Technology Inc.
Table of Contents
1.0 Introduction ..................................................................................................................................................................................... 5
2.0 Pin Description and Configuration ................................................................................................................................................... 6
3.0 Functional Description ................................................................................................................................................................... 13
4.0 Device Registers ........................................................................................................................................................................... 46
5.0 Operational Characteristics ......................................................................................................................................................... 111
6.0 Electrical Characteristics ............................................................................................................................................................. 112
7.0 Timing Diagrams .......................................................................................................................................................................... 114
8.0 Reset Circuit................................................................................................................................................................................. 124
9.0 Selection of Isolation Transformer ............................................................................................................................................... 125
10.0 Selection of Reference Crystal................................................................................................................................................... 125
11.0 Package Outlines ....................................................................................................................................................................... 126
Appendix A: Data Sheet Revision History ......................................................................................................................................... 127
The Microchip Web Site .................................................................................................................................................................... 128
Customer Change Notification Service ............................................................................................................................................. 128
Customer Support ............................................................................................................................................................................. 128
Product Identification System ............................................................................................................................................................ 129
2016 Microchip Technology Inc.
DS00002130A-page 5
KSZ8765CLX
1.0
INTRODUCTION
1.1
General Description
The KSZ8765CLX is a highly integrated, Layer 2-managed, five-port switch with numerous features designed to reduce
overall system cost. It is intended for cost-sensitive applications requiring four 10/100 Mbps copper ports and one 10/
100/1000 Mbps Gigabit uplink port. The KSZ8765CLX incorporates a small package outline, the lowest power consump-
tion with internal biasing, and on-chip termination. Its extensive set of features include enhanced power management,
programmable rate limiting and priority ratio, tagged and port-based VLAN, port-based security and ACL rule-based
packet filtering technology, QoS priority with four queues, management interfaces, enhanced MIB counters, high-per-
formance memory bandwidth, and a shared memory-based switch fabric with non-blocking support. The KSZ8765CLX
provides support for multiple CPU data interfaces to effectively address both current and emerging fast Ethernet and
Gigabit Ethernet applications where the Port 5 GMAC can be configured to any of the GMII, RGMII, MII, and RMII
modes.
The KSZ8765CLX is built upon industry-leading Ethernet analog and digital technology, with features designed to off-
load host processing and streamline the overall design.
• Two integrated MAC/PHYs 100BASE-FX on Port 1 and Port 2
• Two integrated MAC/PHYs 10/100BASE-T/TX on Port 3 and Port 4
• One integrated 10/100/1000BASE-T/TX GMAC with selectable GMII, RGMII, MII, and RMII interfaces
• Small 80-pin LQFP package
A robust assortment of power-management features including Energy Efficient Ethernet (EEE), power management
event (PME), and Wake-on-LAN (WoL) have been designed-in to satisfy energy-efficient environments.
All registers in the MAC/PHY units can be managed through the SPI interface. MIIM PHY registers can be accessed
through the MDC/MDIO interface.

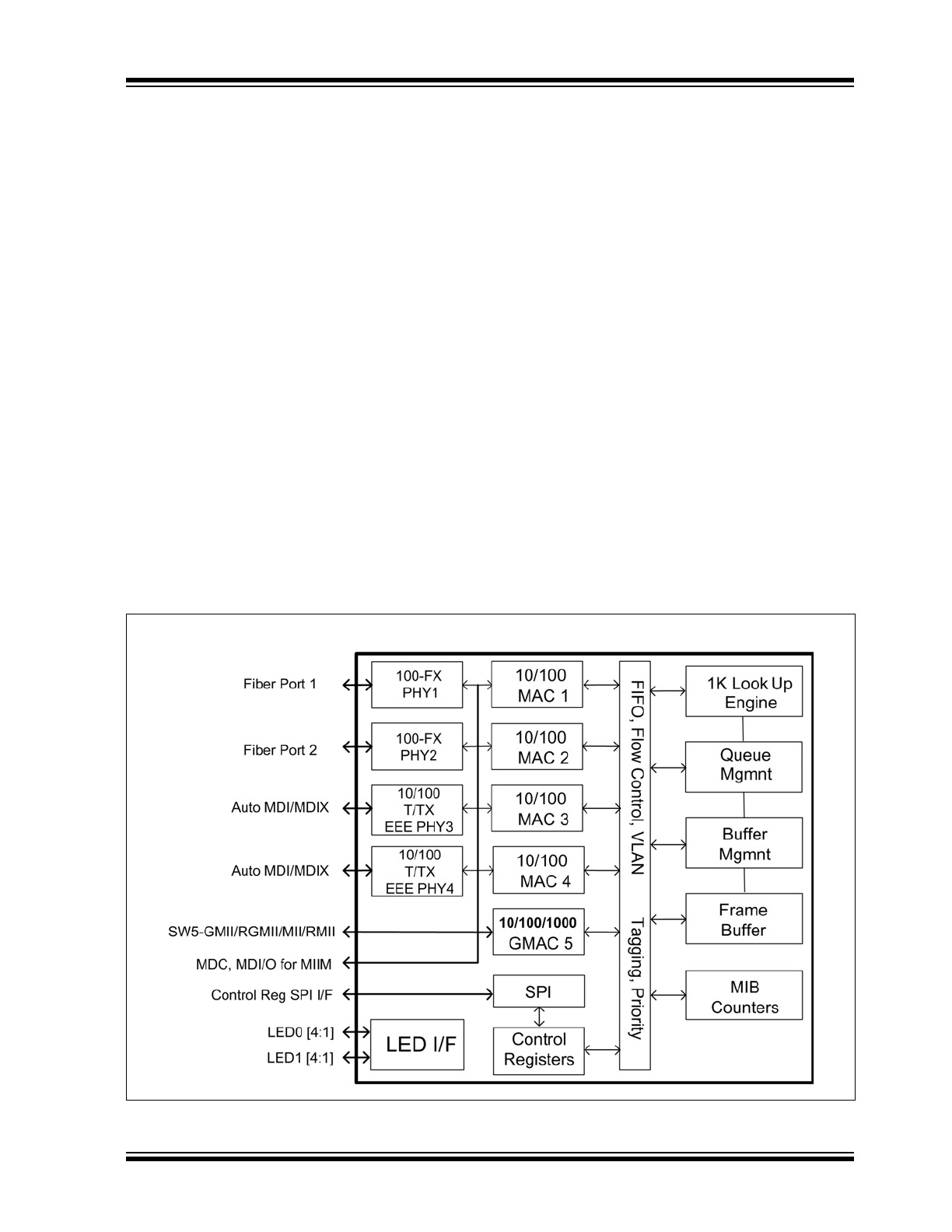

FIGURE 1-1:
FUNCTIONAL BLOCK DIAGRAM
KSZ8765CLX
DS00002130A-page 6
2016 Microchip Technology Inc.
2.0
PIN DESCRIPTION AND CONFIGURATION
FIGURE 2-1:

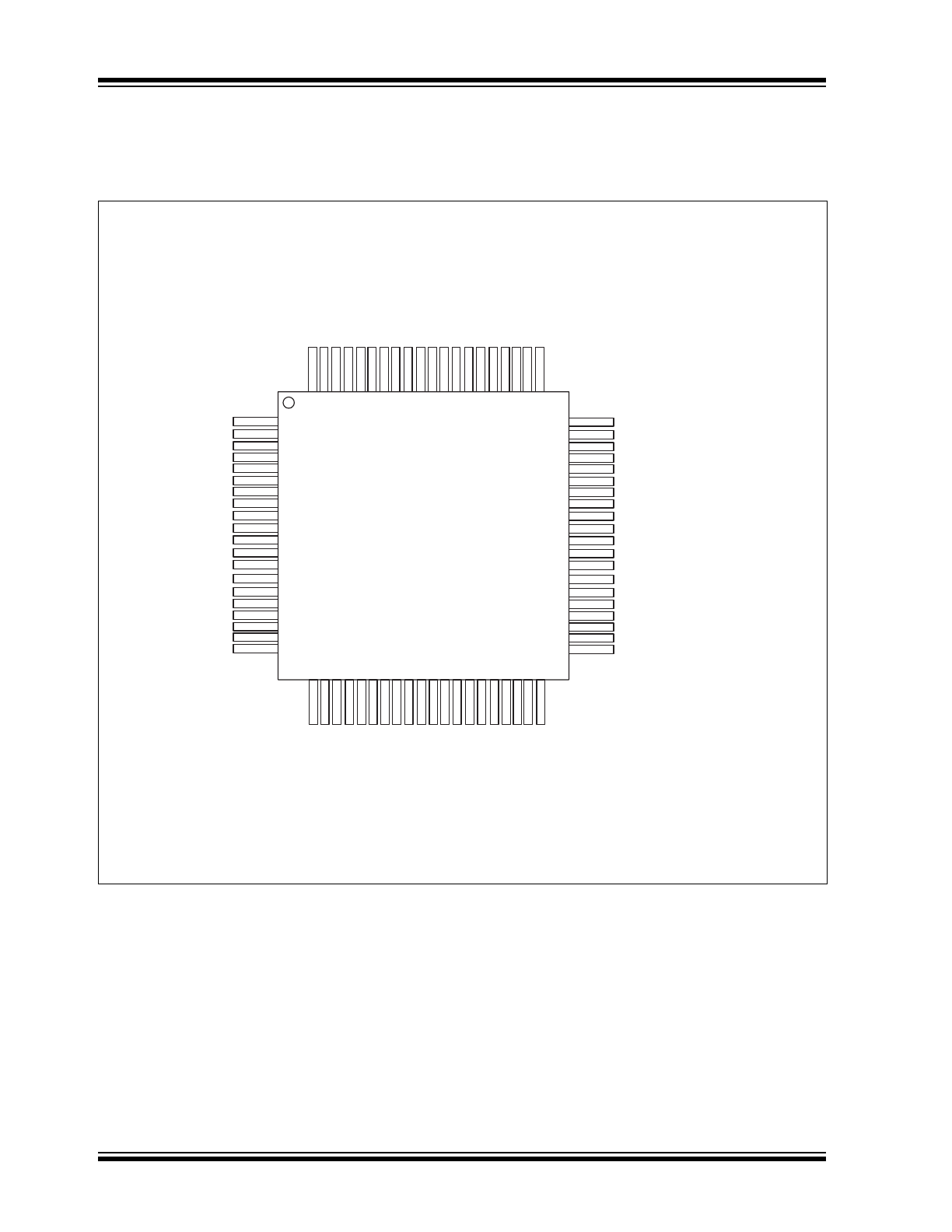

80-LQFP PIN ASSIGNMENT (TOP VIEW)
