HV5622 32-Channel Serial-to-Parallel Converter with Open Drain Outputs Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

 2017 Microchip Technology Inc.

DS20005854A-page  1

HV5622

Features

• 100 mA Minimum Sink Current
• 8 MHz Shift Register Speed
• Polarity and Blanking Inputs
• CMOS-compatible Inputs
• Forward and Reverse Shifting Options
• Diode to V

PP

 allows Efficient Power Recovery

Applications

• Inkjet and Electrostatic Print Heads
• AC-electroluminescent Displays
• Microelectromechanical Systems Applications

General Description

The  HV5622 is a low-voltage serial-to-high-voltage
parallel converter with open drain outputs. This device
has been designed as a driver for
AC-electroluminescent displays. It can also be used in
any application requiring multiple-output high-voltage
current-sinking capabilities such as driving inkjet and
electrostatic print heads, plasma panels, vacuum
fluorescent and large matrix LCD displays.
The device consists of a 32-bit Shift register, 32 latches
and control logic to perform the polarity select and
blanking of the outputs. Data is shifted through the Shift
register on the high-to-low transition of the clock. The
HV5622 shifts in a clockwise direction when viewed
from the top of the package. A data output buffer is
provided for cascading devices. This output reflects the
current status of the last bit of the Shift register. The
operation of the Shift register is not affected by the latch
enable (LE), blanking (BL) and polarity (POL) inputs.
Transfer of data from the Shift register to the latch
occurs when the LE input is high. The data in the latch
is stored when LE is low.

Package Types

See

Table 2-1

 and

Table 2-2

 for pin information.

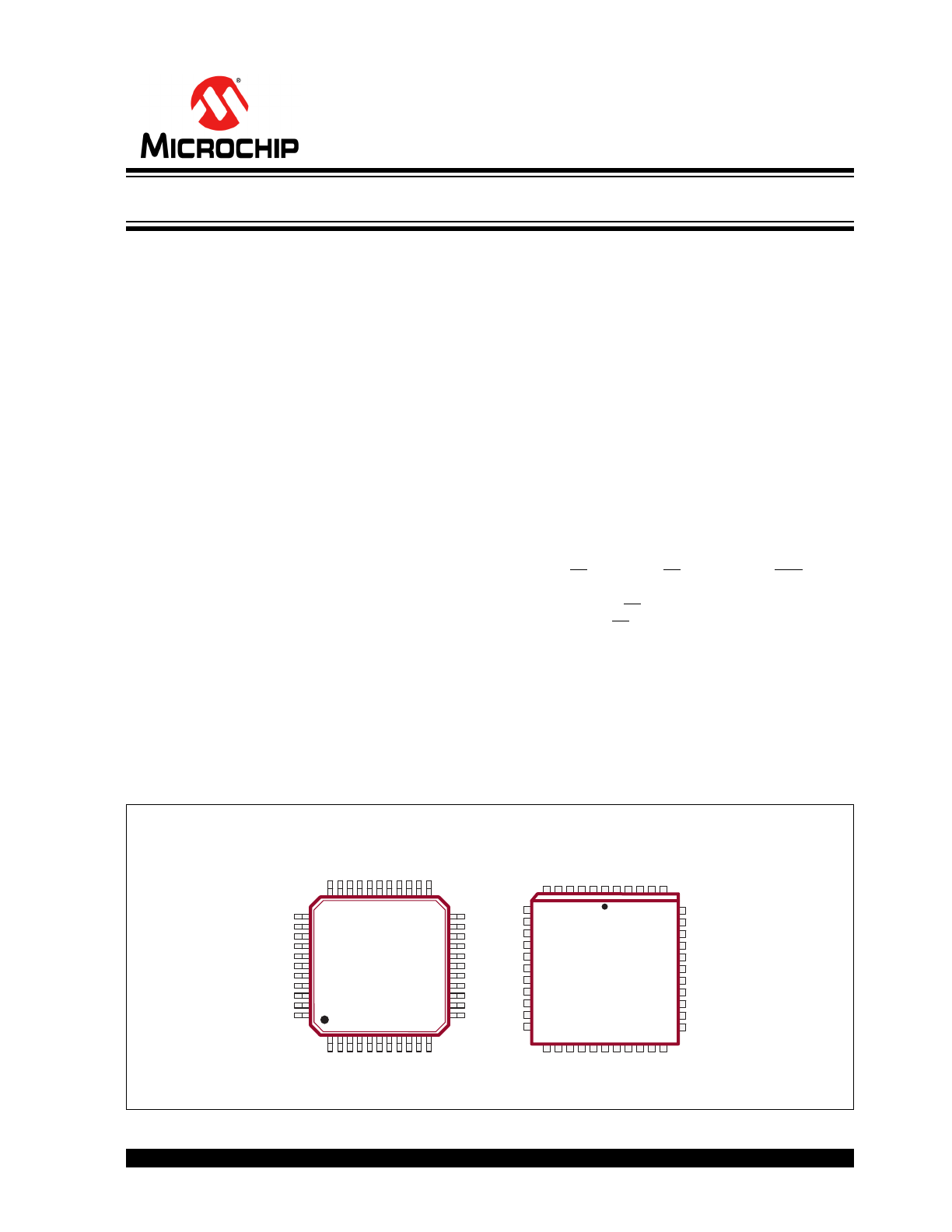

 44-lead PQFP

(Top view)

44-lead PLCC

(Top view)

1 44

40

44

32-Channel Serial-to-Parallel Converter With Open Drain Outputs

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

POL

BL

LE

DATA

IN

CLK

DATA

OUT

HV

OUT

1

(Outputs 3 to 30 not shown)

Latch

Latch

HV

OUT

2

HV

OUT

31

HV

OUT

32

Latch

Latch

32-Bit

Shift

Register

HV5622

DS20005854A-page  2

 2017 Microchip Technology Inc.

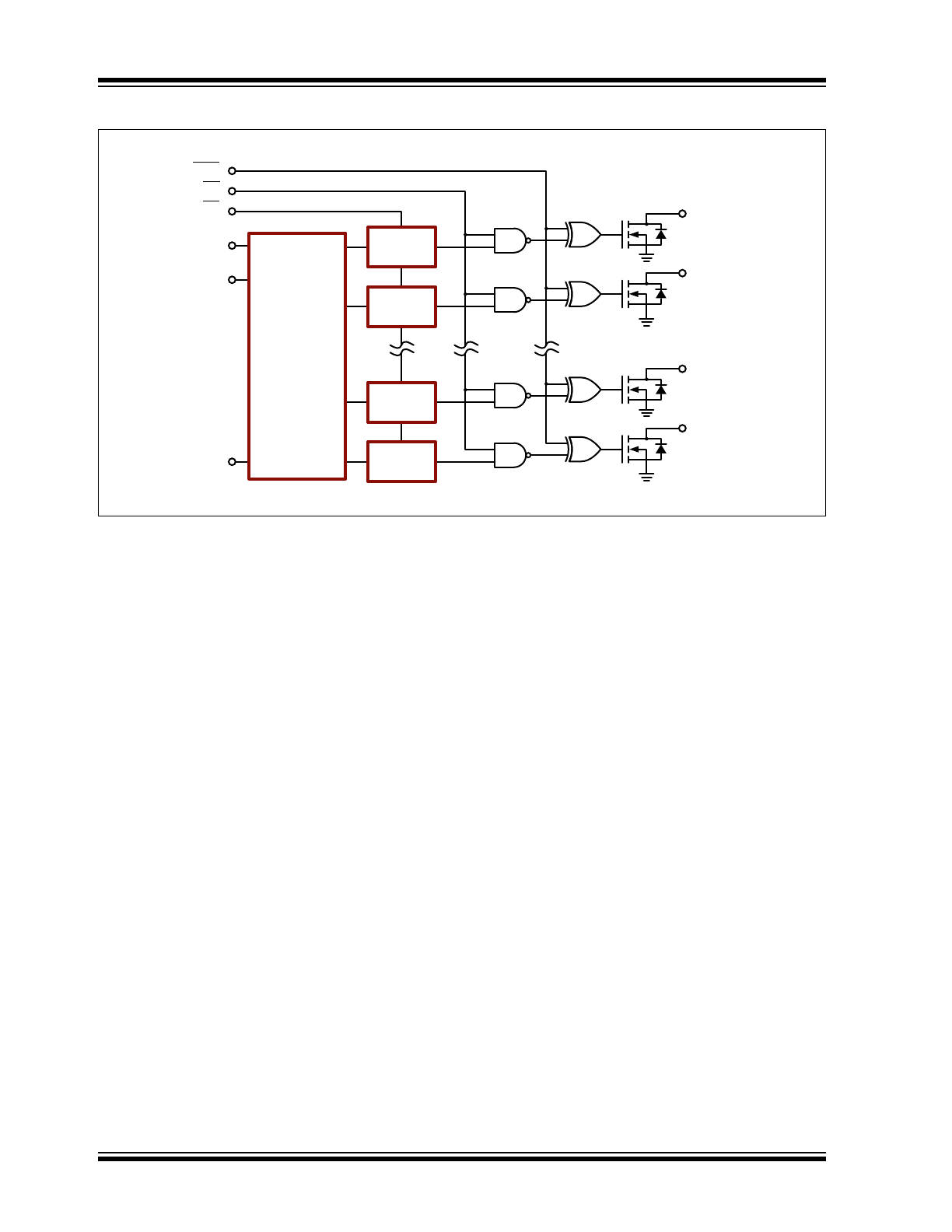

Functional Block Diagram

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

 2017 Microchip Technology Inc.

DS20005854A-page  3

HV5622

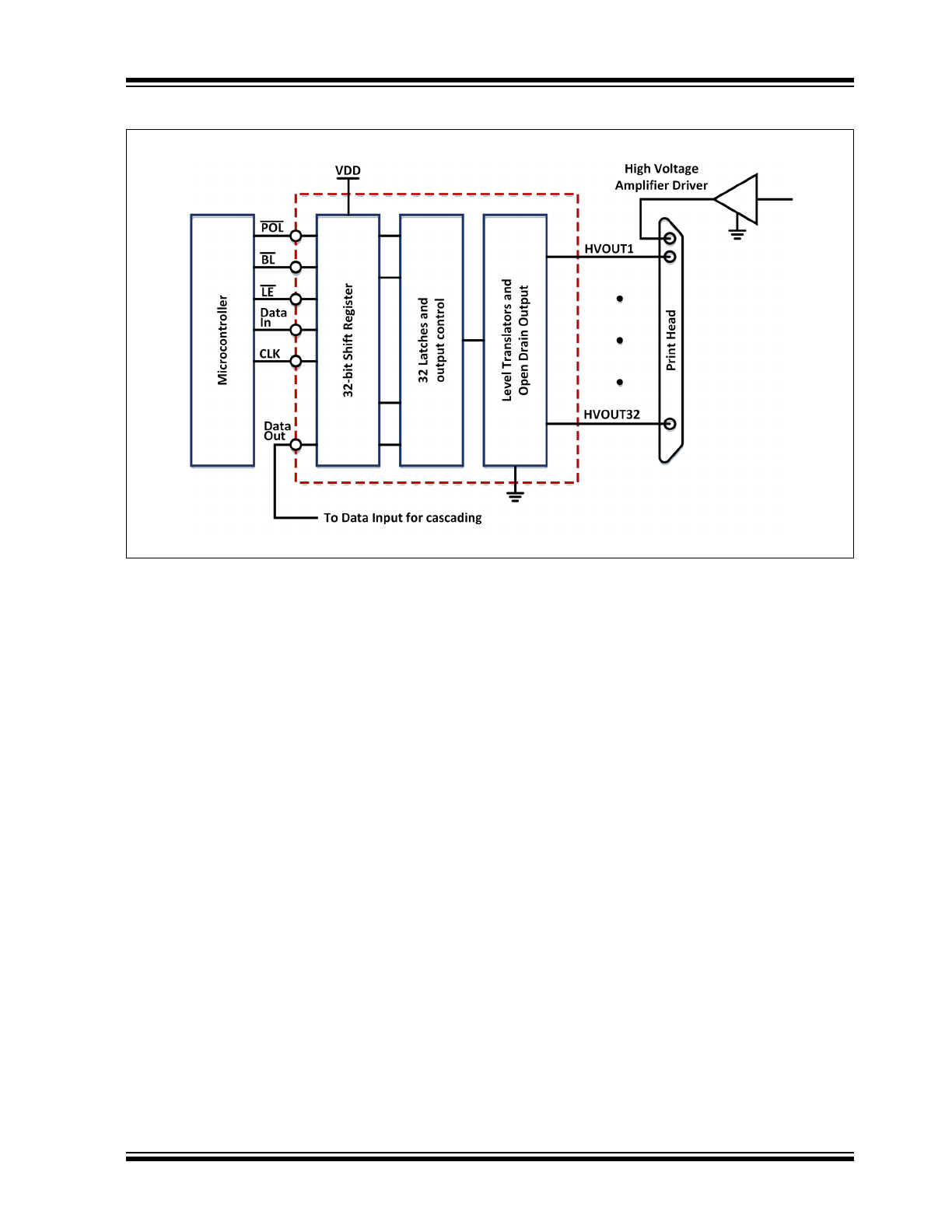

Typical Application Circuit

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

HV5622

DS20005854A-page  4

 2017 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings†

Supply Voltage, V

DD

(

Note 1

)



.................................................................................................................. –0.5V to +15V

Output Voltage, V

PP

(

Note 1

)  ................................................................................................................ –0.5V to +230V

Logic Input Levels (

Note 1

)  .............................................................................................................. –0.5V to V

DD

+0.5V

Ground Current (

Note 2

) ......................................................................................................................................... 1.5A

Operating Ambient Temperature, T

....................................................................................................  –40°C to +85°C

Storage Temperature, T

....................................................................................................................  –65°C to +150°C

Continuous Total Power Dissipation:

44-lead PQFP (

Note 3

) ............................................................................................................................ 1200 mW

44-lead PLCC (

Note 3

) ............................................................................................................................ 1200 mW

 Notice: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only, and functional operation of the device at those or any other conditions above those
indicated in the operational sections of this specification is not intended. Exposure to maximum rating conditions for
extended periods may affect device reliability.

Note 1: All voltages are referenced to V

SS

.

2: Duty cycle is limited by the total power dissipated in the package.
3: For operations above 25°C ambient, derate linearly to the maximum operating temperature at 20 mW/°C.

RECOMMENDED OPERATING CONDITIONS

Parameter

Sym.

Min.

Typ.

Max.

Unit

Conditions

Logic Supply Voltage

V

DD

10.8

13.2

V

High-voltage Output Voltage

HV

OUT

–0.3

+220

V

High-level Input Voltage

V

IH

V

DD

–2

V

DD

V

Low-level Input Voltage

V

IL

0

2

V

Clock Frequency

f

CLK

8

MHz

Operating Ambient Temperature

T

A

–40

+85

°C

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

DC ELECTRICAL CHARACTERISTICS

Electrical Specifications: Over recommended operating conditions unless otherwise stated

Parameter

Sym.

Min.

Typ. Max. Unit

Conditions

V

DD

 Supply Current

I

DD

15

mA

f

CLK

 = 8 MHz, f

DATA

 = 4 MHz

Quiescent V

DD

 Supply Current

I

DDQ

100

µA

V

IN

 = 0V

Off State Output Current

I

O(OFF)

10

µA

All outputs high, all SWS
parallel

High-level Logic Input Current

I

IH

1

µA

V

IH

 = V

DD

Low-level Logic Input Current

I

IL

–1

µA

V

IL

 = 0V

High-level Output Data Out

V

OH

V

DD

–1V

V

I

DOUT

 = –100 µA

Low-level Output Voltage

HV

OUT

V

OL

15

V

I

HVOUT

 = 100 mA

Data Out

1

V

I

DOUT

 = 100 µA

HV

OUT

 Clamp Voltage

V

OC

–1.5

V

I

OL

 = –100 mA

AC ELECTRICAL CHARACTERISTICS

Electrical Specifications: V

DD

 = 12V, T

= 25°C

Parameter

Sym.

Min.

Typ. Max. Unit

Conditions

Clock Frequency

f

CLK

8

MHz

Clock Width, High or Low

t

WL

, t

WH

62

ns

Data Set-up Time before CLK Falls

t

SU

25

ns

Data Hold Time after CLK Falls

t

H

10

ns

Turn-on Time, HV

OUT

from Enable

t

ON

500

ns

R

L

 = 2 kΩ to V

PP

 maximum

Delay Time Clock to Data High to Low

t

DHL

100

ns

C

L

 = 15 pF

Delay Time Clock to Data Low to High

t

DLH

100

ns

C

L

 = 15 pF

Delay Time Clock to Latch Enable Low to High

t

DLE

50

ns

Latch Enable Pulse Width

t

WLE

50

ns

Latch Enable Setup Time before Clock Falls

t

SLE

50

ns

TEMPERATURE SPECIFICATIONS

Parameter

Sym.

Min.

Typ. Max. Unit

Conditions

TEMPERATURE RANGE
Operating Ambient Temperature

T

A

–40

+85

°C

Storage Temperature

T

S

–65

+150

°C

PACKAGE THERMAL RESISTANCE
44-lead PQFP

JA

51

°C/W

44-lead PLCC

JA

37

°C/W

 2017 Microchip Technology Inc.

DS20005854A-page  5

HV5622

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

HV5622

DS20005854A-page  6

 2017 Microchip Technology Inc.

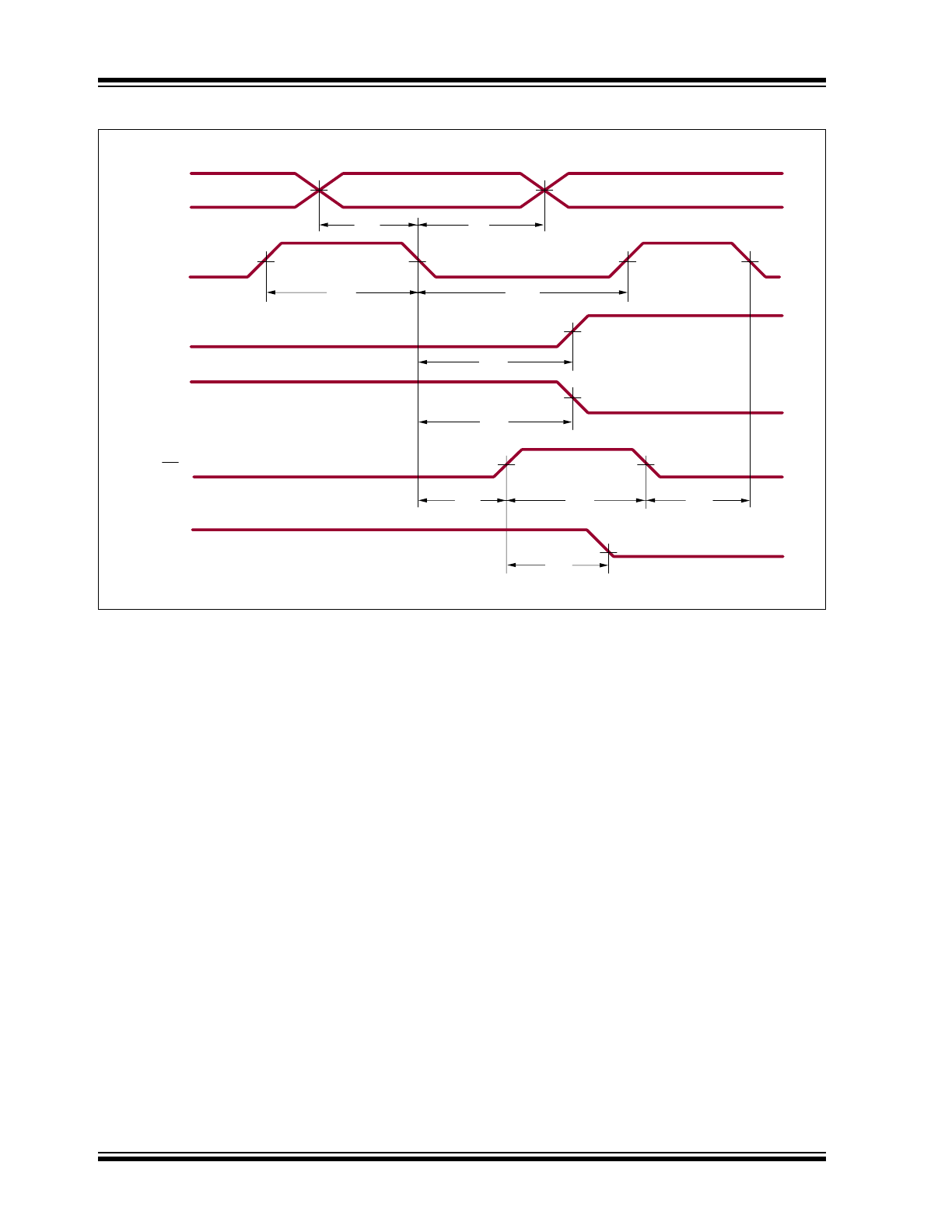

Timing Waveforms

LE

HV

OUT

w/ S/R HIGH

Data Valid

50%                                                                                     50%

DATA

IN

CLK

DATA

 OUT

50%                                                          50%                                                           50%

t

SU

t

t

WH

t

WL

50%

50%

t

DLH

t

DHL

50%

t

WLE

t

DLE

t

SLE

50%

50%

10%

t

ON

V

IH

V

IL

V

IH

V

IL

V

OH

V

OL

V

OH

V

OL

V

IH

V

IL

V

OH

V

OL

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

 2017 Microchip Technology Inc.

DS20005854A-page  7

HV5622

2.0

PIN DESCRIPTION

The details on the pins of HV5622 44-lead PQFP and
44-lead PLCC are in

Table 2-1

 and

Table 2-2

respectively. Refer to

Package Types

 for the location

of pins.

TABLE 2-1:

44-LEAD PQFP PIN FUNCTION TABLE

Pin Number

Pin Name

Description

1

HVOUT22

High-voltage output

2

HVOUT21

High-voltage output

3

HVOUT20

High-voltage output

4

HVOUT19

High-voltage output

5

HVOUT18

High-voltage output

6

HVOUT17

High-voltage output

7

HVOUT16

High-voltage output

8

HVOUT15

High-voltage output

9

HVOUT14

High-voltage output

10

HVOUT13

High-voltage output

11

HVOUT12

High-voltage output

12

HVOUT11

High-voltage output

13

HVOUT10

High-voltage output

14

HVOUT9

High-voltage output

15

HVOUT8

High-voltage output

16

HVOUT7

High-voltage output

17

HVOUT6

High-voltage output

18

HVOUT5

High-voltage output

19

HVOUT4

High-voltage output

20

HVOUT3

High-voltage output

21

HVOUT2

High-voltage output

22

HVOUT1

High-voltage output

23

DATA OUT

Data output pin

24

NC

No connection

25

NC

No connection

26

NC

No connection

27

POL

Inverts the polarity of the HVOUT pins

28

CLK

Clock pin. Shift registers shift data on the falling edge of the input clock.

29

VSS

Reference voltage (usually ground)

30

VDD

Logic supply voltage

31

LE

Latch enable pin. Data is shifted from the Shift register to the latches on logic
input high.

32

DATA IN

Data input pin

33

BL

This blanking pin sets all HVOUT pins low or high depending upon the state of
polarity. See

Table 3-2

.

34

NC

No connection

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

HV5622

DS20005854A-page  8

 2017 Microchip Technology Inc.

35

HVOUT32

High-voltage output

36

HVOUT31

High-voltage output

37

HVOUT30

High-voltage output

38

HVOUT29

High-voltage output

39

HVOUT28

High-voltage output

40

HVOUT27

High-voltage output

41

HVOUT26

High-voltage output

42

HVOUT25

High-voltage output

43

HVOUT24

High-voltage output

44

HVOUT23

High-voltage output

TABLE 2-1:

44-LEAD PQFP PIN FUNCTION TABLE (CONTINUED)

Pin Number

Pin Name

Description

TABLE 2-2:

44-LEAD PLCC PIN FUNCTION TABLE

Pin Number

Pin Name

Description

1

HVOUT17

High-voltage output

2

HVOUT16

High-voltage output

3

HVOUT15

High-voltage output

4

HVOUT14

High-voltage output

5

HVOUT13

High-voltage output

6

HVOUT12

High-voltage output

7

HVOUT11

High-voltage output

8

HVOUT10

High-voltage output

9

HVOUT9

High-voltage output

10

HVOUT8

High-voltage output

11

HVOUT7

High-voltage output

12

HVOUT6

High-voltage output

13

HVOUT5

High-voltage output

14

HVOUT4

High-voltage output

15

HVOUT3

High-voltage output

16

HVOUT2

High-voltage output

17

HVOUT1

High-voltage output

18

DATA OUT

Data output pin

19

NC

No connection

20

NC

No connection

21

NC

No connection

22

POL

Inverts the polarity of the HVOUT pins

23

CLK

Clock pin. Shift registers shift data on the falling edge of the input clock.

24

VSS

Reference voltage (usually ground)

25

VDD

Logic supply voltage

26

LE

Latch enable pin. Data is shifted from the Shift register to the latches on logic
input high.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

 2017 Microchip Technology Inc.

DS20005854A-page  9

HV5622

27

DATA IN

Data input pin

28

BL

This blanking pin sets all HVOUT pins low or high depending upon the state of
polarity. See

Table 3-2

.

29

NC

No internal connection

30

HVOUT32

High-voltage output

31

HVOUT31

High-voltage output

32

HVOUT30

High-voltage output

33

HVOUT29

High-voltage output

34

HVOUT28

High-voltage output

35

HVOUT27

High-voltage output

36

HVOUT26

High-voltage output

37

HVOUT25

High-voltage output

38

HVOUT24

High-voltage output

39

HVOUT23

High-voltage output

40

HVOUT22

High-voltage output

41

HVOUT21

High-voltage output

42

HVOUT20

High-voltage output

43

HVOUT19

High-voltage output

44

HVOUT18

High-voltage output

TABLE 2-2:

44-LEAD PLCC PIN FUNCTION TABLE (CONTINUED)

Pin Number

Pin Name

Description

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005854A-html.html
background image

HV5622

DS20005854A-page  10

 2017 Microchip Technology Inc.

3.0

FUNCTIONAL DESCRIPTION

Follow the steps in

Table 3-1

 to power up and power

down the HV5622.

TABLE 3-1:

POWER-UP AND POWER-DOWN SEQUENCE

Power-up

Power-down

Step

Description

Step

Description

1

Connect ground.

1

Remove all inputs.

2

Apply V

DD.

2

Remove V

DD.

3

Set all inputs to a known state.

3

Disconnect ground.

TABLE 3-2:

Function

Inputs

Outputs

Shift Register

High-voltage Output

Data Out

Data

CLK

LE

BL

POL

1

2

...

32

1

2

...

32

All On

X

X

X

L

L

p1

p2

...

p32

On

On

...

On

d

All Off

X

X

X

L

H

p1

p2

...

p32

Off

Off

...

Off

d

Invert Mode

X

X

L

H

L

p1

p2

...

p32

p1

p2

...

p32

d

Load S/R

H or L

L

H

H

H or L

p1

...

p31

p1

p2

...

p32

p32

Load Latches

X

H or L

H

H

p1

p2

...

p32

p1

p2

...

p32

d

X

H or L

H

L

p1

p2

...

p32

p1

p2

...

p32

d

Transparent

Latch Mode

L

H

H

H

L

p1

...

p31

Off

p1

...

p31

p32

H

H

H

H

H

p1

...

p31

On

p1

...

p31

p32

Note:

H = High-logic level

L = Low-logic level

X = Irrelevant

↓ = High-to-low transition

↑ = Low-to-high transition

d = Current state of the data output

pn = “p” represents the current state of the Shift register output, and
“n” represents the channel order.

TRUTH FUNCTION TABLE

VDD

DATA

IN

HV

OUT

Logic Inputs

DATA
OUT

Logic Data Output

High Voltage Outputs

VDD

HV

IN

VSS

VSS

VSS

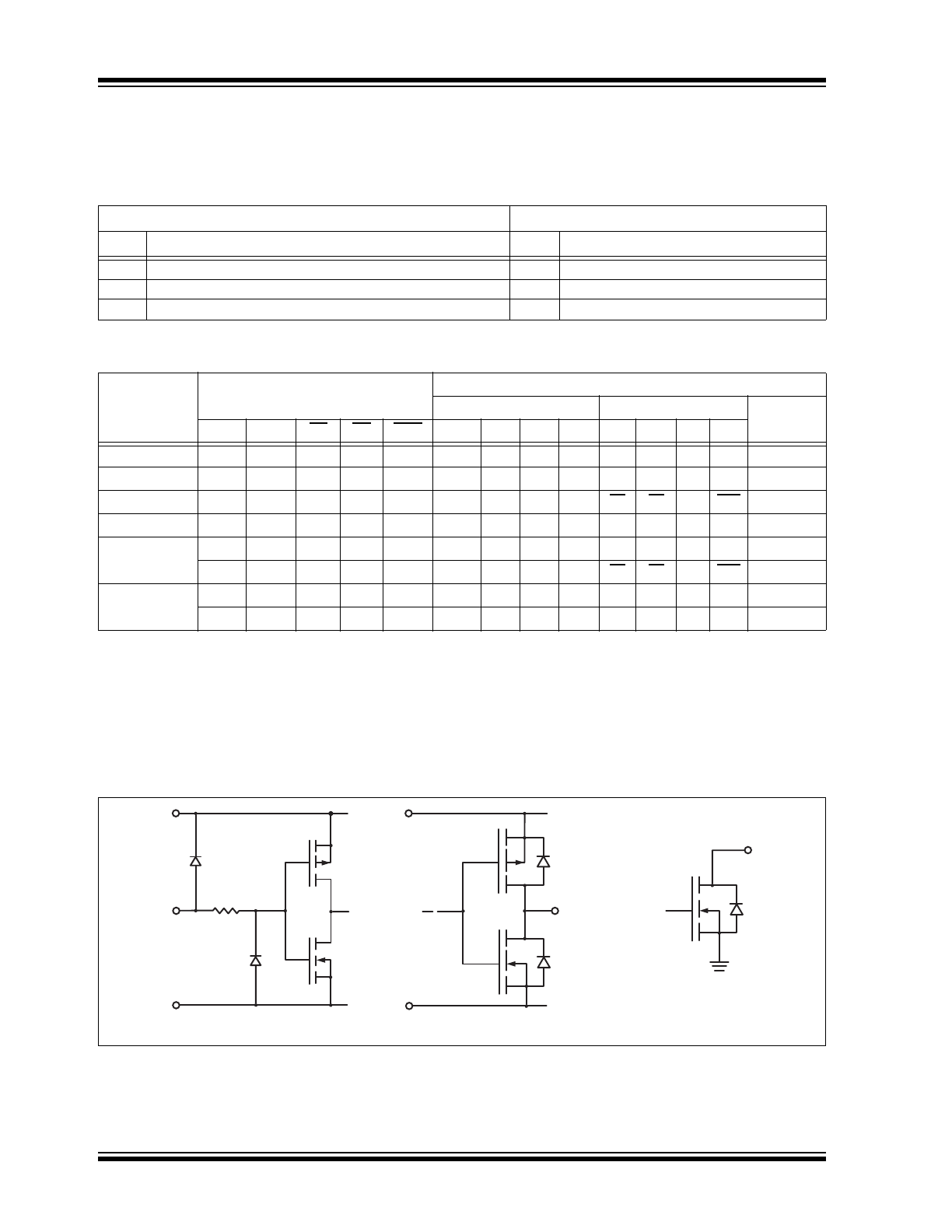

FIGURE 3-1:

Input and Output Equivalent Circuits.

Maker
Microchip Technology Inc.
