FDC37B72x
128 Pin Enhanced Super I/O Controller with
ACPI Support
FEATURES
•
5 Volt Operation
•
PC98/99 and ACPI 1.0 Compliant
•
Battery Back-up for Wake-Events
•
ISA Host Interface
•
ISA Plug-and-Play Compatible Register
Set
-
12 IRQ Options
-
15 Serial IRQ Options
-
16 Bit Address Qualification
-
Four DMA Options
-
12mA AT Bus Drivers
• BIOS
Buffer
•
20 GPI/O Pins
•
32 kHz Standby Clock Output
•
Soft Power Management
• ACPI/PME
Support
• SCI/SMI
Support
- Watchdog
timer
-
Power Button Override Event
-
Either Edge Triggered Interrupts
•
Intelligent Auto Power Management
-
Shadowed Write-only Registers
-
Programmable Wake-up Event
Interface
•
8042 Keyboard Controller
- 2K Program ROM
- 256 Bytes Data RAM
-
Asynchronous Access to Two Data
Registers and One Status Register
-
Supports Interrupt and Polling
Access
- 8 Bit Timer/Counter
- Port 92 Support
-
Fast Gate A20 and Hardware Keyboard
Reset
•
2.88MB Super I/O Floppy Disk Controller
-
Relocatable to 480 Different Addresses
-
Licensed CMOS 765B Floppy Disk
Controller
- Advanced Digital Data Separator
-
SMSC's Proprietary 82077AA
Compatible Core
-
Sophisticated Power Control Circuitry
(PCC) Including Multiple Powerdown
Modes for Reduced Power Consumption
-
Supports Two Floppy Drives Directly
-
Software Write Protect
-
FDC on Parallel Port
-
Low Power CMOS Design
- Supports Vertical Recording Format
- 16 Byte Data FIFO
-
100%
IBM
®
Compatibility
-
Detects All Overrun and Underrun
Conditions
-
24mA Drivers and Schmitt Trigger Inputs
•
Enhanced FDC Digital Data Separator
- Low Cost Implementation
- No Filter Components Required
-
2 Mbps, 1 Mbps, 500 Kbps, 300 Kbps,
250 Kbps Data Rates
-
Programmable Precompensation Modes
• Serial
Ports
-
Relocatable to 480 Different Addresses
2
-
Two High Speed NS16C550A
Compatible UARTs with
Send/Receive 16 Byte FIFOs
-
Programmable Baud Rate
Generator
-
Modem Control Circuitry Including
230K and 460K Baud
-
IrDA 1.0, HP-SIR, ASK-IR Support
-
Ring Wake Filter
• Multi-Mode
™
Parallel Port with ChiProtect
™
-
Relocatable to 480 Different Addresses
- Standard
Mode
-
IBM PC/XT
®
, PC/AT
®
, and PS/2
™
Compatible Bidirectional ParallelPort
- Enhanced
Mode
-
Enhanced Parallel Port (EPP)
Compatible EPP 1.7 and EPP 1.9 (IEEE
1284 Compliant)
- High Speed Mode
-
Microsoft and Hewlett Packard
Extended Capabilities Port (ECP)
Compatible (IEEE 1284 Compliant)
-
Incorporates ChiProtect
™
Circuitry for
Protection Against Damage Due to
Printer Power-On
- 14 mA Output Drivers
•
128 Pin QFP Package
3
TABLE OF CONTENTS
FEATURES
........................................................................................................................................... 1
GENERAL DESCRIPTION
................................................................................................................. 5
DESCRIPTION OF PIN FUNCTIONS
............................................................................................... 7
BUFFER
TYPE
DESCRIPTIONS............................................................................... 10
GENERAL PURPOSE I/O PINS
.......................................................................................................11
REFERENCE DOCUMENTS
............................................................................................................12
FUNCTIONAL DESCRIPTION
..........................................................................................................14
SUPER
I/O
REGISTERS ........................................................................................... 14
HOST
PROCESSOR
INTERFACE ............................................................................ 14
FLOPPY DISK CONTROLLER
.........................................................................................................15
FDC INTERNAL REGISTERS
...........................................................................................................15
COMMAND SET/DESCRIPTIONS
...................................................................................................38
INSTRUCTION SET
............................................................................................................................41
DATA
TRANSFER
COMMANDS ............................................................................... 53
CONTROL
COMMANDS ........................................................................................... 62
SERIAL PORT (UART)
.......................................................................................................................69
INFRARED
INTERFACE ........................................................................................... 85
PARALLEL PORT
...............................................................................................................................86
IBM
XT/AT
COMPATIBLE,
BI-DIRECTIONAL
AND
EPP
MODES ............................ 88
EXTENDED CAPABILITIES PARALLEL PORT
.............................................................................94
OPERATION ............................................................................................................ 102
PARALLEL PORT FLOPPY DISK CONTROLLER
......................................................................107
POWER MANAGEMENT
.................................................................................................................109
UART
POWER
MANAGEMENT .............................................................................. 113
PARALLEL
PORT .................................................................................................... 113
INTERNAL
PWRGOOD ........................................................................................... 113
32.768
K
H
Z
STANDBY
CLOCK
OUTPUT ................................................................ 114
SERIAL IRQ
.......................................................................................................................................115
BIOS BUFFER
...................................................................................................................................120
GENERAL PURPOSE I/O
................................................................................................................121
DESCRIPTION......................................................................................................... 121
RUN
STATE
GPIO
DATA
REGISTER
ACCESS...................................................... 122
GPIO
CONFIGURATION ......................................................................................... 122
WATCH DOG TIMER
.......................................................................................................................126
4
8042 KEYBOARD CONTROLLER DESCRIPTION
.....................................................................128
SOFT POWER MANAGEMENT
.....................................................................................................136
BUTTON
OVERRIDE
FEATURE ............................................................................. 139
ACPI/PME/SMI FEATURES
............................................................................................................141
ACPI
FEATURES..................................................................................................... 141
PME
SUPPORT ....................................................................................................... 143
ACPI,
PME
AND
SMI
REGISTERS
............................................................................... 143
E
ITHER
E
DGE
T
RIGGERED
I
NTERRUPTS
.............................................................................. 155
CONFIGURATION
............................................................................................................................157
SYSTEM
ELEMENTS
.................................................................................................... 10
CONFIGURATION
SEQUENCE................................................................................ 10
CONFIGURATION
REGISTERS
.................................................................................. 162
OPERATIONAL DESCRIPTION
.....................................................................................................199
MAXIMUM
GUARANTEED
RATINGS*
.......................................................................... 199
DC
ELECTRICAL
CHARACTERISTICS
........................................................................ 199
AC
TIMING............................................................................................................... 204
CAPACITIVE
LOADING........................................................................................... 204
ECP
PARALLEL
PORT
TIMING .............................................................................. 229
5
GENERAL DESCRIPTION
The FDC37B72x incorporates a keyboard
interface, SMSC's true CMOS 765B floppy disk
controller, advanced digital data separator, 16 byte
data FIFO, two 16C550 compatible UARTs, one
Multi-Mode parallel port which includes ChiProtect
circuitry plus EPP and ECP support, on-chip 12
mA AT bus drivers, and two floppy direct drive
support, soft power management and SMI support
and Intelligent Power Management including
PME and SCI/ACPI support. The true CMOS
765B core provides 100% compatibility with IBM
PC/XT and PC/AT architectures in addition to
providing data overflow and underflow protection.
The SMSC advanced digital data separator
incorporates SMSC's patented data separator
technology, allowing for ease of testing and use.
Both on-chip UARTs are compatible with the
NS16C550A. The parallel port is compatible with
IBM PC/AT architecture, as well as EPP and ECP.
The FDC37B72x incorporates sophisticated power
control circuitry (PCC) which includes support for
keyboard, mouse, modem ring, power button
support and other wake-up events. The PCC
supports multiple low power down modes.
The FDC37B72x provides features for compliance
with the “Advanced Configuration and Power
Interface Specification” (ACPI).
These features include support of both legacy and
ACPI power management models through the
selection of SMI or SCI. It implements a power
button override event (4 second button hold to turn
off the system) and either edge triggered
interrupts.
The FDC37B72x provides support for the ISA
Plug-and-Play Standard (Version 1.0a) and
provides for the recommended functionality to
support Windows '95/’98 and PC98/PC99.
Through internal configuration registers, each of
the FDC37B72x's logical device's I/O address,
DMA channel and IRQ channel may be
programmed. There are 480 I/O address location
options, 12 IRQ pin options or Serial IRQ option,
and four DMA channel options for each logical
device.
The FDC37B72x Floppy Disk Controller and data
separator do not require any external filter
components and are therefore easy to use, offer
lower system cost and reduced board area. The
FDC is software and register compatible with
SMSC's proprietary 82077AA core.
6

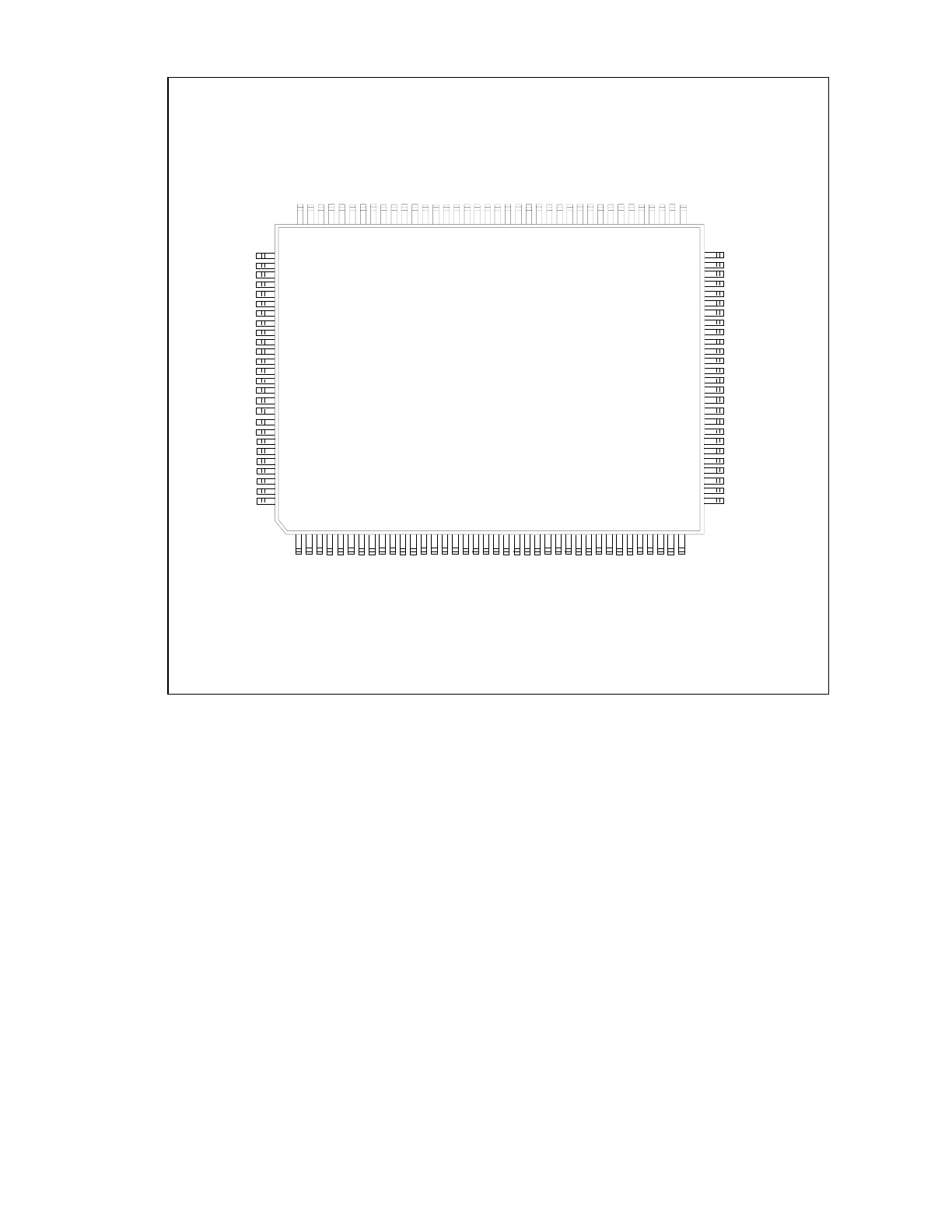

FIGURE 1 - FDC37B72x PIN CONFIGURATION
FDC37M72x
128 Pin QFP
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
IOCHRDY
TC
VCC
DRQ3
nDACK3
DRQ2
nDACK2
DRQ1
nDACK1
DRQ0
nDACK0
RESET_DRV
SD7
SD6
SD5
SD4
VSS
SD3
SD2
SD1
SD0
AEN
nIOW
nIOR
SER_IRQ/IRQ15
PCI_CLK/IRQ14/GP50
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
nCTS2
nRTS2
nDSR2
TXD2/IRTX
RXD2/IRRX
nDCD2
VCC
nRI2
nDCD1
nRI1
nDTR1
nCTS1
nRTS1/SYSOP
nDSR1
TXD1
RXD1
nSTROBE
nALF
nERROR
nACK
BUSY
PE
SLCT
VSS
PD7
nDTR2
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
34
35
36
37
38
DR
V
D
E
N
0
D
R
VD
E
N
1/
G
P
5
2
/I
R
Q
8/
nSM
I
nM
T
R
0
nD
S
1
/G
P
1
7
nD
S
0
nM
T
R
1/
G
P
16
VS
S
nD
IR
nST
E
P
nW
D
A
T
A
nW
G
A
T
E
n
H
D
SEL
nI
N
D
E
X
nT
R
K
0
nW
R
T
P
R
T
nR
D
A
T
A
nD
S
K
C
H
G
CL
K
3
2
O
UT
nP
OW
E
R
O
N
BU
T
T
O
N
_
IN
n
P
M
E
/S
C
I/I
R
Q
9
CL
O
C
K
I
SA9
SA0
SA1
SA2
SA4
SA
6
SA7
SA8
SA3
SA5
SA10
SA
1
1
SA
1
2
SA
1
3
SA
1
4
SA15
PD
0
nS
L
C
T
IN
nI
N
IT
VC
C
nR
O
M
O
E
/I
R
Q
12
/G
P54/
E
E
T
I
nR
O
M
C
S
/I
R
Q
11
/G
P5
3/
E
E
T
I
R
D
7/
IR
Q10/
GP
67
RD6
/I
R
Q
8
/G
P
6
6
R
D
5
/IR
Q
7
/G
P
6
5
R
D
4
/IR
Q
6
/G
P
6
4
/P
1
7
R
D
3
/IR
Q
5
/G
P
6
3
/W
D
T
RD2
/I
R
Q
4
/G
P
6
2
/n
R
ING
R
D
1
/IR
Q
3
/G
P
6
1
/L
E
D
R
D
0
/IR
Q
1
/G
P
6
0
/n
S
M
I
KC
LK
KD
A
T
VT
R
XT
AL2
AV
S
S
XT
A
L
1
G
P
1
5
/IR
T
X
2
VB
A
T
GP
1
4
/I
R
R
X
2
GP
1
3
/L
E
D
G
P
1
2
/W
D
T
/P
17/
EE
T
I
G
P
1
1
/n
RI
NG
/E
E
T
I
GP
1
0
/n
S
M
I
A20M
KBD
R
S
T
VSS
MC
L
K
MD
A
T
PD
6
PD
5
PD
4
PD
3
PD
2
PD
1
10
2
10
1
10
0
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
7
DESCRIPTION OF PIN FUNCTIONS
TABLE 1 - DESCRIPTION OF PIN FUNCTIONS
PIN
No./QFP
NAME
TOTAL
SYMBOL
BUFFER TYPE
PROCESSOR/HOST INTERFACE (40)
44-47,
49-52
System Data Bus
8
SD[0:7]
IO12
23-38
16-bit System Address Bus
16
SA[0:15]
I
43 Address
Enable
1 AEN
I
64
I/O Channel Ready
1
IOCHRDY
OD12
53
ISA Reset Drive
1
RESET_DRV
IS
40 Serial
IRQ/IRQ15
1 SER_IRQ
IO12
39 PCI
Clock/IRQ14/GP50
1 PCI_CLK
IO12
55
DMA Request 0
1
DRQ0
O12
57
DMA Request 1
1
DRQ1
O12
59
DMA Request 2
1
DRQ2
O12
54
DMA Acknowledge 0
1
nDACK0
I
56
DMA Acknowledge 1
1
nDACK1
I
58
DMA Acknowledge 2
1
nDACK2
I
61
DMA Request 3
1
DRQ3
O12
60
DMA Acknowledge 3
1
nDACK3
I
63 Terminal
Count
1 TC
I
41 I/O
Read
1 nIOR
I
42 I/O
Write
1 nIOW
I
CLOCKS (4)
22
14.318MHz Clock Input
1
CLOCKI
ICLK
66
32.768kHz Crystal Input
1
XTAL1
ICLK
68
32.768kHz Crystal Driver
1
XTAL2
OCLK2
18
32.768kHz Clock Out
1
CLK32OUT
O8
POWER PINS (10)
62, 93,
121
+5V Supply Voltage
3
VCC
7, 48,
74, 104
Digital Ground
4
VSS
67 Analog
Ground
1 AVSS
69
Trickle Supply Voltage
1
VTR
65 Battery
Voltage
1 VBAT
POWER MANAGEMENT (3)
19 Power
On
1 nPOWERON
OD24
20 Button
In
1 BUTTON_IN
I
21
Power Management Event/SCI/IRQ9
1
nPME
O12
FDD INTERFACE (16)
16
Read Disk Data
1
nRDATA
IS
11
Write Gate
1
nWGATE
O24
10
Write Disk Data
1
nWDATA
O24
8
PIN
No./QFP
NAME
TOTAL
SYMBOL
BUFFER TYPE
12 Head
Select
1 nHDSEL
O24
8 Step
Direction
1 nDIR
O24
9 Step
Pulse
1 nSTEP
O24
17 Disk
Change
1 nDSKCHG
IS
5
Drive Select 0
1
nDS0
O24
6
Drive Select 1/GP17
1
nDS1
IO24
3
Motor On 0
1
nMTR0
O24
4
Motor On 1/GP16
1
nMTR1
IO24
15 Write
Protected
1 nWRTPRT
IS
14 Track
0
1 nTRKO
IS
13
Index Pulse Input 1
nINDEX
IS
1
Drive Density Select 0
1
DRVDEN0
O24
2
Drive Density Select 1/GP52/IRQ8/nSMI
1
DRVDEN1
IO24
GENERAL PURPOSE I/O (6)
77 General
Purpose
10/nSMI 1
GP10
IO12
78
General Purpose 11/nRING/EETI (Note 4)
1
GP11
IO4
79
General Purpose 12/WDT/P17/P12/EETI
(Note 4)
1 GP12
IO4
80
General Purpose 13/LED Driver
1
GP13
IO24
81
General Purpose 14/Infrared Rx
1
GP14
IO4
82
General Purpose 15/Infrared Tx (Note 3)
1
GP15
IO24
BIOS INTERFACE (10)
83
ROM Bus 0/IRQ1/GP60/nSMI
1
RD0
IO12
84
ROM Bus 1/IRQ3/GP61/LED
1
RD1
IO24
85
ROM Bus 2/IRQ4/GP62/nRING
1
RD2
IO12
86
ROM Bus 3/IRQ5/GP63/WDT
1
RD3
IO12
87
ROM Bus 4/IRQ6/GP64/P17/P12
1
RD4
IO12
88
ROM Bus 5/IRQ7/GP65
1
RD5
IO12
89
ROM Bus 6/IRQ8/GP66
1
RD6
IO12
90
ROM Bus 7/IRQ10/GP67
1
RD7
IO12
91
nROMCS/IRQ11/GP53/EETI (Note 4)
1
nROMCS
IO12
92
nROMOE/IRQ12/GP54/EETI (Note 4)
1
nROMOE
IO12
SERIAL PORT 1 INTERFACE (8)
112
Receive Serial Data 1
1
RXD1
I
113
Transmit Serial Data 1
1
TXD1
O4
115
Request to Send 1
1
nRTS1/
SYSOP
IO4
116
Clear to Send 1
1
nCTS1
I
117
Data Terminal Ready 1
1
nDTR1
O4
114
Data Set Ready 1
1
nDSR1
I
119
Data Carrier Detect 1
1
nDCD1
I
118
Ring Indicator 1
1
nRI1
I
SERIAL PORT 2 INTERFACE (8)
123
Receive Serial Data 2/Infrared Rx
1
RXD2/IRRX
I
9
PIN
No./QFP
NAME
TOTAL
SYMBOL
BUFFER TYPE
124
Transmit Serial Data 2/Infrared Tx (Note 3)
1
TXD2/IRTX
O24
126
Request to Send 2
1
nRTS2
O4
127
Clear to Send 2
1
nCTS2
I
128
Data Terminal Ready
1
nDTR2
O4
125
Data Set Ready 2
1
nDSR2
I
122
Data Carrier Detect 2
1
nDCD2
I
120
Ring Indicator 2
1
nRI2
I
PARALLEL PORT INTERFACE (17)
96-103
Parallel Port Data Bus
8
PD[0:7]
IOP14
95 Printer
Select
1 nSLCTIN
OP14
94 Initiate
Output
1 nINIT
OP14
110
Auto Line Feed
1
nALF
OP14
111 Strobe
Signal
1 nSTROBE
OP14
107 Busy
Signal
1 BUSY
I
108 Acknowledge
Handshake
1 nACK
I
106 Paper
End
1 PE
I
105 Printer
Selected
1 SLCT
I
109
Error at Printer
1
nERROR
I
KEYBOARD/MOUSE INTERFACE (6)
70 Keyboard
Data
1 KDAT
IOD16
71 Keyboard
Clock
1 KCLK
IOD16
72 Mouse
Data
1 MDAT
IOD16
73 Mouse
Clock
1 MCLK
IOD16
75 Keyboard
Reset
1 KBDRST
(Note 2)
O4
76 Gate
A20
1 A20M
O4
Note 1: The “n” as the first letter of a signal name indicates an “Active Low” signal.
Note 2: KBDRST is active low.
Note 3: This pin defaults to an output and low. When configured as IRTX (or IRTX2), this pin is low when
the IR block is not transmitting.
Note 4: EETI is the Either Edge Triggered Interrupt Input function.
10
BUFFER TYPE DESCRIPTIONS
TABLE 2 - BUFFER TYPES
SYMBOL DESCRIPTION
I
Input, TTL compatible.
IS
Input with Schmitt trigger.
ICLK Clock
Input.
OCLK2
Clock Output, 2mA sink, 2mA source.
IO4
Input/Output, 4mA sink, 2mA source.
IOP4
Input/Output, 4mA sink, 2mA source. Backdrive Protected.
O4
Output, 4mA sink, 2mA source.
O8
Output, 8mA sink, 4mA source.
IO12
Input/Output, 12mA sink, 6mA source.
O12
Output, 12mA sink, 6mA source.
OP12
Output, 12mA sink, 6mA source. Backdrive Protected.
OD12
Output, Open Drain, 12 mA sink.
IOP14
Input/Output, 14mA sink, 14mA source. Backdrive Protected.
OD14
Output, Open Drain, 14mA sink.
OP14
Output, 14mA sink, 14mA source. Backdrive Protected.
IOD16
Input/Output, Open Drain, 16mA sink
O24
Output, 24mA sink, 12mA source.
OD24
Output, Open Drain, 24mA sink.
