 1996-2013 Microchip Technology Inc.

DS30445D-page 1

High Performance RISC CPU Features:

• Only 35 single word instructions to learn

• All instructions single cycle (400 ns @ 10 MHz)

except for program branches which are two-cycle

• Operating speed: DC - 10 MHz clock input

DC - 400 ns instruction cycle

• 14-bit wide instructions

• 8-bit wide data path

• 1K x 14 EEPROM program memory

• 36 x 8 general purpose registers (SRAM)

• 64 x 8 on-chip EEPROM data memory

• 15 special function hardware registers

• Eight-level deep hardware stack

• Direct, indirect and relative addressing modes

• Four interrupt sources:

- External RB0/INT pin

- TMR0 timer overflow

- PORTB<7:4> interrupt on change

- Data EEPROM write complete

• 1,000,000 data memory EEPROM

ERASE/WRITE cycles

• EEPROM Data Retention > 40 years

Peripheral Features:

• 13 I/O pins with individual direction control

• High current sink/source for direct LED drive

- 25 mA sink max. per pin

- 20 mA source max. per pin

• TMR0: 8-bit timer/counter with 8-bit

programmable prescaler

Special Microcontroller Features:

• Power-on Reset (POR)

• Power-up Timer (PWRT)

• Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Code protection

• Power saving SLEEP mode

• Selectable oscillator options

• Serial In-System Programming - via two pins

Pin Diagram

CMOS Technology:

• Low-power, high-speed CMOS EEPROM

technology

• Fully static design

• Wide operating voltage range:

- Commercial:  2.0V to 6.0V

- Industrial:

2.0V to 6.0V

• Low power consumption:

- < 2 mA typical @ 5V, 4 MHz

- 60

A typical @ 2V, 32 kHz

- 26

A typical standby current @ 2V

RA1

RA0

OSC1/CLKIN

OSC2/CLKOUT

V

DD

RB7

RB6

RB5

RB4

RA2

RA3

RA4/T0CKI

MCLR

V

SS

RB0/INT

RB1

RB2

RB3

1

2

3

4

5

6

7

8

9

18

17

16

15

14

13

12

11

10

P

IC

16C

8

4

PDIP, SOIC

PIC16C84

8-bit CMOS EEPROM Microcontroller

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

DS30445D-page 2

 1996-2013 Microchip Technology Inc.

Table of Contents

1.0 General Description ....................................................................................................................................................................... 3
2.0 PIC16C84 Device Varieties ........................................................................................................................................................... 5
3.0 Architectural Overview ................................................................................................................................................................... 7
4.0 Memory Organization................................................................................................................................................................... 11
5.0 I/O Ports ....................................................................................................................................................................................... 19
6.0 Timer0 Module and TMR0 Register ............................................................................................................................................. 25
7.0 Data EEPROM Memory ............................................................................................................................................................... 31
8.0 Special Features of the CPU ....................................................................................................................................................... 35
9.0 Instruction Set Summary.............................................................................................................................................................. 51
10.0 Development Support .................................................................................................................................................................. 67
11.0 Electrical Characteristics for PIC16C84 ....................................................................................................................................... 71
12.0 DC & AC Characteristics Graphs/Tables for PIC16C84 .............................................................................................................. 83
13.0 Packaging Information ................................................................................................................................................................. 97
Appendix A:

Feature Improvements - From PIC16C5X To PIC16C84 ............................................................................................ 99

Appendix B:

Code Compatibility -  from PIC16C5X to PIC16C84.................................................................................................... 99

Appendix C:

What’s New In This Data Sheet ................................................................................................................................. 100

Appendix D:

What’s Changed In This Data Sheet ......................................................................................................................... 100

Appendix E:

Conversion Considerations - PIC16C84 to PIC16F83/F84 And PIC16CR83/CR84.................................................. 101

Index .................................................................................................................................................................................................. 103
On-Line Support................................................................................................................................................................................. 105
PIC16C84 Product Identification System ........................................................................................................................................... 107
Sales and Support.............................................................................................................................................................................. 107



To Our Valued Customers

We constantly strive to improve the quality of all our products and documentation. We have spent a great deal of
time to ensure that these documents are correct. However, we realize that we may have missed a few things. If you
find any information that is missing or appears in error, please use the reader response form in the back of this data
sheet to inform us. We appreciate your assistance in making this a better document.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

 1996-2013 Microchip Technology Inc.

DS30445D-page 3

1.0

GENERAL DESCRIPTION

The PIC16C84 is a low-cost, high-performance,
CMOS, fully-static, 8-bit microcontroller.

All PIC16/17 microcontrollers employ an advanced
RISC architecture. PIC16CXX devices have enhanced
core features, eight-level deep stack, and multiple inter-
nal and external interrupt sources. The separate
instruction and data buses of the Harvard architecture
allow a 14-bit wide instruction word with a separate
8-bit wide data bus. The two stage instruction pipeline
allows all instructions to execute in a single cycle,
except for program branches (which require two
cycles). A total of 35 instructions (reduced instruction
set) are available. Additionally, a large register set is
used to achieve a very high performance level.

PIC16CXX microcontrollers typically achieve a 2:1
code compression and up to a 2:1 speed improvement
(at 10 MHz) over other 8-bit microcontrollers in their
class.

The PIC16C84 has 36 bytes of RAM, 64 bytes of Data
EEPROM memory, and 13 I/O pins. A timer/counter is
also available.

The PIC16CXX family has special features to reduce
external components, thus reducing cost, enhancing
system reliability and reducing power consumption.
There are four oscillator options, of which the single pin
RC oscillator provides a low-cost solution, the LP
oscillator minimizes power consumption, XT is a
standard crystal, and the HS is for High Speed crystals.
The SLEEP (power-down) mode offers power savings.
The user can wake the chip from sleep through several
external and internal interrupts and resets.

A highly reliable Watchdog Timer with its own on-chip
RC oscillator provides protection against software lock-
up.

The PIC16C84 EEPROM program memory allows the
same device package to be used for prototyping and
production. In-circuit reprogrammability allows the
code to be updated without the device being removed
from the end application. This is useful in the
development of many applications where the device
may not be easily accessible, but the prototypes may
require code updates. This is also useful for remote
applications where the code may need to be updated
(such as rate information).

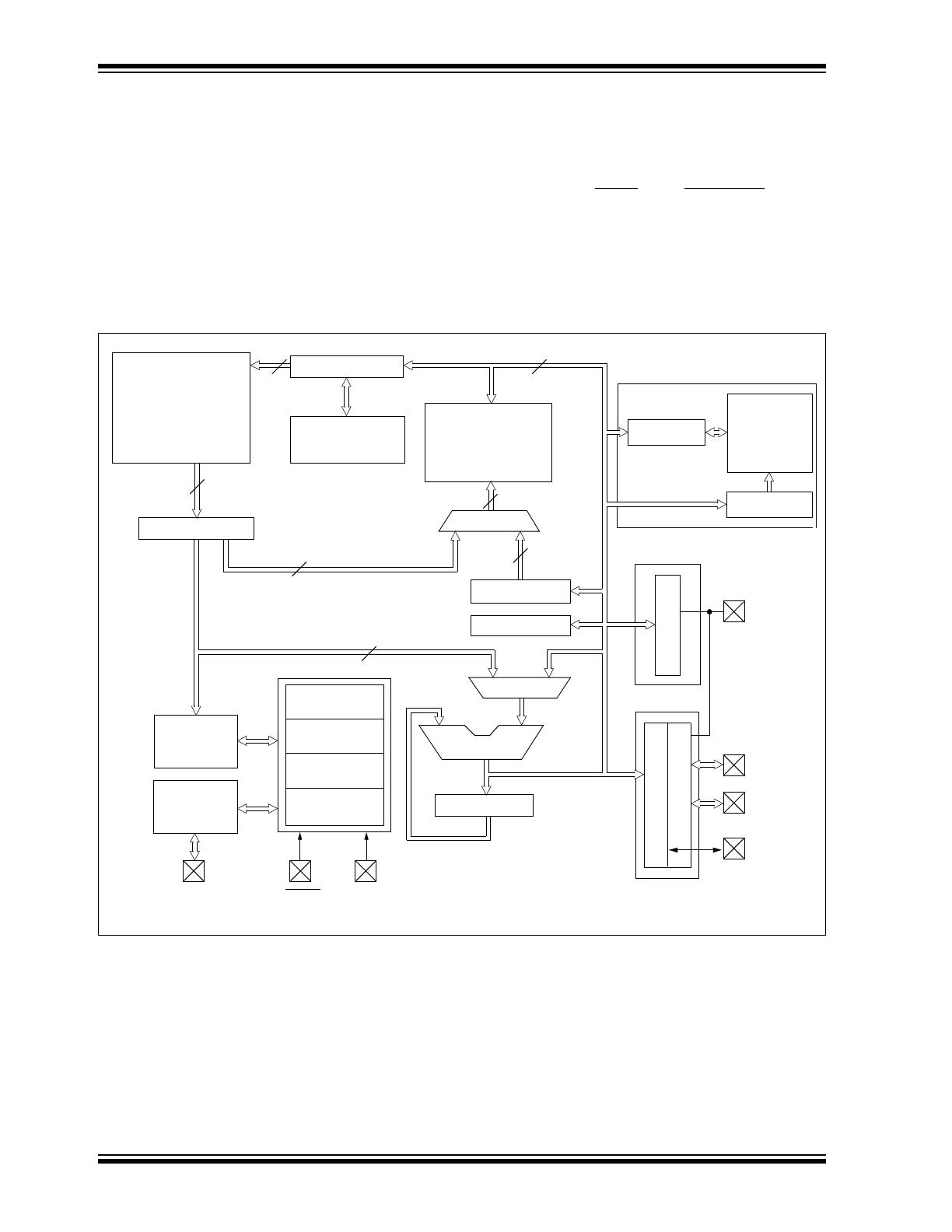

Table 1-1 lists the features of the PIC16C84. A simpli-
fied block diagram of the PIC16C84 is shown in
Figure 3-1.

The PIC16C84 fits perfectly in applications ranging
from high speed automotive and appliance motor
control to low-power remote sensors, electronic locks,
security devices and smart cards. The EEPROM
technology makes customization of application
programs (transmitter codes, motor speeds, receiver
frequencies, security codes, etc.) extremely fast and
convenient. The small footprint packages make this
microcontroller series perfect for all applications with
space limitations. Low cost, low power, high
performance, ease of use and I/O flexibility make the
PIC16C84 very versatile even in areas where no
microcontroller use has been considered before
(e.g., timer functions, serial communication, capture
and compare, PWM functions and co-processor
applications).

The serial in-system programming feature (via two
pins) offers flexibility of customizing the product after
complete assembly and testing. This feature can be
used to serialize a product, store calibration data, or
program the device with the current firmware before
shipping.

1.1

Family and Upward Compatibility

Those users familiar with the PIC16C5X family of
microcontrollers will realize that this is an enhanced
version of the PIC16C5X architecture. Please refer to
Appendix A for a detailed list of enhancements. Code
written for PIC16C5X can be easily ported to the
PIC16C84 (Appendix B).

1.2

Development Support

The PIC16CXX family is supported by a full-featured
macro assembler, a software simulator, an in-circuit
emulator, a low-cost development programmer and a
full-featured programmer. A “C” compiler and fuzzy
logic support tools are also available.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

DS30445D-page 4

 1996-2013 Microchip Technology Inc.

TABLE 1-1

PIC16C8X FAMILY OF DEVICES

PIC16F83

PIC16CR83

PIC16F84

PIC16CR84

Clock

Maximum Frequency
of Operation (MHz)

10

10

10

10

Flash Program Memory

512

1K

Memory

EEPROM Program Memory

ROM Program Memory

512

1K

Data Memory (bytes)

36

36

68

68

Data EEPROM (bytes)

64

64

64

64

Peripherals

Timer Module(s)

TMR0

TMR0

TMR0

TMR0

Features

Interrupt Sources

4

4

4

4

I/O Pins

13

13

13

13

Voltage Range (Volts)

2.0-6.0

2.0-6.0

2.0-6.0

2.0-6.0

Packages

18-pin DIP,
SOIC

18-pin DIP,
SOIC

18-pin DIP,
SOIC

18-pin DIP,
SOIC

All PIC

®

 Family devices have Power-on Reset, selectable Watchdog Timer, selectable code protect and high I/O current capability.

All PIC16C8X Family devices use serial programming with clock pin RB6 and data pin RB7.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

 1996-2013 Microchip Technology Inc.

DS30445D-page 5

2.0

PIC16C84 DEVICE VARIETIES

A variety of frequency ranges and packaging options
are available. Depending on application and production
requirements the proper device option can be selected
using the information in this section. When placing
orders, please use the “PIC16C84 Product
Identification System” at the back of this data sheet to
specify the correct part number.

There are two device “types” as indicated in the device
number.

1.

C, as in PIC16C84. These devices have
EEPROM program memory and operate over
the standard voltage range.

2.

LC, as in PIC16LC84. These devices have
EEPROM program memory and operate over an
extended voltage range.

When discussing memory maps and other architectural
features, the use of C also implies the LC versions.

2.1

Electrically Erasable Devices

These devices are offered in the lower cost plastic
package, even though the device can be erased and
reprogrammed. This allows the same device to be used
for prototype development and pilot programs as well
as production.

A further advantage of the electrically erasable version
is that they can be erased and reprogrammed in-circuit,
or by device programmers, such as Microchip's
PICSTART

 Plus or PRO MATE

 II programmers.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

DS30445D-page 6

 1996-2013 Microchip Technology Inc.

NOTES:

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

 1996-2013 Microchip Technology Inc.

DS30445D-page 7

3.0

ARCHITECTURAL OVERVIEW

The high performance of the PIC16CXX family can be
attributed to a number of architectural features
commonly found in RISC microprocessors. To begin
with, the PIC16CXX uses a Harvard architecture. This
architecture has the program and data accessed from
separate memories. So the device has a program
memory bus and a data memory bus. This improves
bandwidth over traditional von Neumann architecture
where program and data are fetched from the same
memory (accesses over the same bus). Separating
program and data memory further allows instructions to
be sized differently than the 8-bit wide data word.
PIC16CXX opcodes are 14-bits wide, enabling single
word instructions. The full 14-bit wide program memory
bus fetches a 14-bit instruction in a single cycle. A two-
stage pipeline overlaps fetch and execution of instruc-
tions (Example 3-1). Consequently, all instructions exe-
cute in a single cycle (400 ns @ 10 MHz) except for
program branches.

The PIC16C84 addresses 1K  x 14 program memory.
All program memory is internal.

PIC16CXX devices can directly or indirectly address its
register files or data memory. All special function
registers including the program counter are mapped in
the data memory. An orthogonal (symmetrical)
instruction set that makes it possible to carry out any
operation on any register using any addressing mode.
This symmetrical nature and lack of ‘special optimal
situations’ make programming with the PIC16CXX
simple yet efficient. In addition, the learning curve is
reduced significantly.

The PIC16C84 has 36 x 8 SRAM and 64 x 8 EEPROM
data memory.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

DS30445D-page 8

 1996-2013 Microchip Technology Inc.

PIC16CXX devices contain an 8-bit ALU and working
register. The ALU is a general purpose arithmetic unit.
It performs arithmetic and Boolean functions between
data in the working register and any register file.

The ALU is 8-bits wide and capable of addition,
subtraction, shift and logical operations. Unless
otherwise mentioned, arithmetic operations are two's
complement in nature. In two-operand instructions,
typically one operand is the working register
(W register), and the other operand is a file register or
an immediate constant. In single operand instructions,
the operand is either the W register or a file register.

The W register is an 8-bit working register used for ALU
operations. It is not an addressable register.

Depending on the instruction executed, the ALU may
affect the values of the Carry (C), Digit Carry (DC), and
Zero (Z) bits in the STATUS register. The C and DC bits
operate as a borrow and digit borrow out bit,
respectively, in subtraction. See the SUBLW and SUBWF
instructions for examples.

A simplified block diagram for the PIC16C84 is shown
in Figure 3-1, its corresponding pin description is
shown in Table 3-1.

FIGURE 3-1:

PIC16C84 BLOCK DIAGRAM

EEPROM

Program

Memory

Program Counter

13

Program

Bus 14

Instruction reg

8 Level Stack

(13-bit)

Direct Addr

8

Instruction

Decode &

Control

Timing

Generation

OSC2/CLKOUT

OSC1/CLKIN

Power-up

Timer

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Timer

MCLR

V

DD

, V

SS

W reg

ALU

MUX

I/O Ports

TMR0

STATUS reg

FSR reg

Indirect

Addr

RA3:RA0

RB7:RB1

RA4/T0CKI

EEADR

EEPROM

Data Memory

64 x 8

EEDATA

Addr Mux

RAM Addr

RAM

File Registers

EEPROM Data Memory

Data Bus 8

5

7

7

1K x 14

36 x 8

RB0/INT

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

 1996-2013 Microchip Technology Inc.

DS30445D-page 9

TABLE 3-1

PIC16C8X PINOUT DESCRIPTION





Pin Name

DIP

No.

SOIC

No.

I/O/P
Type

Buffer

Type

Description

OSC1/CLKIN

16

16

I

ST/CMOS

(1)

Oscillator crystal input/external clock source input.

OSC2/CLKOUT

15

15

O

Oscillator crystal output.  Connects to crystal or resonator  in crys-
tal oscillator mode.  In RC mode, OSC2 pin outputs CLKOUT which
has 1/4 the frequency of OSC1, and denotes the instruction cycle
rate.

MCLR

4

4

I/P

ST

Master clear (reset) input/programming voltage input. This pin is an
active low reset to the device.

PORTA is a bi-directional I/O port.

RA0

17

17

I/O

TTL

RA1

18

18

I/O

TTL

RA2

1

1

I/O

TTL

RA3

2

2

I/O

TTL

RA4/T0CKI

3

3

I/O

ST

Can also be selected to be the clock input to the TMR0 timer/
counter.  Output is open drain type.

PORTB is a bi-directional I/O port. PORTB can be software pro-
grammed for internal weak pull-up on all inputs.

RB0/INT

6

6

I/O

TTL

RB0/INT can also be selected as an external interrupt pin.

RB1

7

7

I/O

TTL

RB2

8

8

I/O

TTL

RB3

9

9

I/O

TTL

RB4

10

10

I/O

TTL

Interrupt on change pin.

RB5

11

11

I/O

TTL

Interrupt on change pin.

RB6

12

12

I/O

TTL/ST

(2)

Interrupt on change pin. Serial programming clock.

RB7

13

13

I/O

TTL/ST

(2)

Interrupt on change pin. Serial programming data.

V

SS

5

5

P

Ground reference for logic and I/O pins.

V

DD

14

14

P

Positive supply for logic and I/O pins.

Legend: I= input

O = output

I/O = Input/Output

P = power

— = Not used

TTL = TTL input

ST = Schmitt Trigger input

Note 1:

This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise.

2:

This buffer is a Schmitt Trigger input when used in serial programming mode.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/30445D-html.html
background image

PIC16C84

DS30445D-page 10

 1996-2013 Microchip Technology Inc.

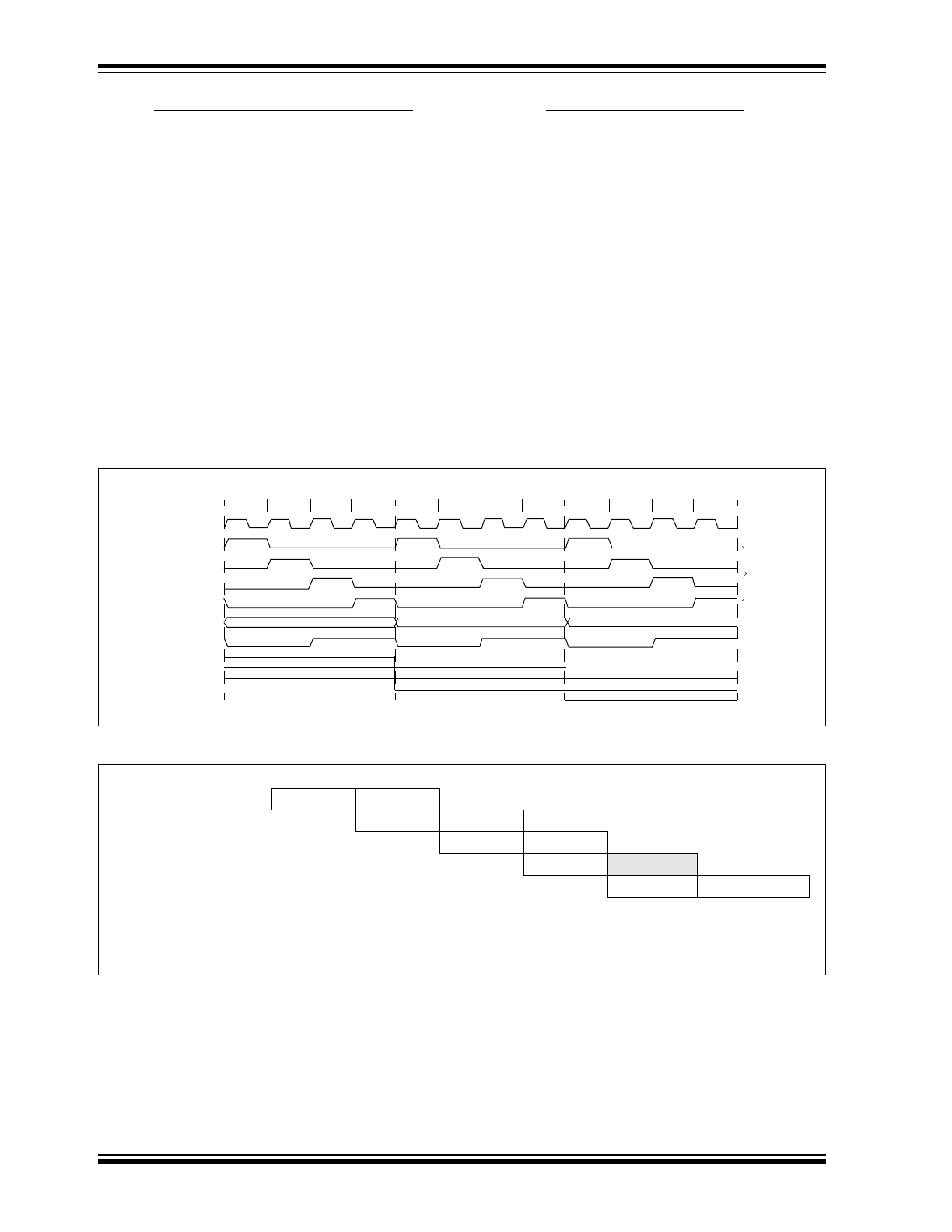

3.1

Clocking Scheme/Instruction Cycle

The clock input (from OSC1) is internally divided by
four to generate four non-overlapping quadrature
clocks namely Q1, Q2, Q3 and Q4.  Internally, the
program counter (PC) is incremented every Q1, the
instruction is fetched from the program memory and
latched into the instruction register in Q4. The
instruction is decoded and executed during the
following Q1 through Q4.  The clocks and instruction
execution flow is shown in Figure 3-2.

3.2

Instruction Flow/Pipelining

An “Instruction Cycle” consists of four Q cycles (Q1,
Q2, Q3 and Q4). The instruction fetch and execute are
pipelined such that fetch takes one instruction cycle
while decode and execute takes another instruction
cycle. However, due to the pipelining, each instruction
effectively executes in one cycle. If an instruction
causes the program counter to change (e.g., GOTO)
then two cycles are required to complete the instruction
(Example 3-1).

A fetch cycle begins with the Program Counter (PC)
incrementing in Q1.

In the execution cycle, the fetched instruction is latched
into the “Instruction Register” in cycle Q1. This
instruction is then decoded and executed during the
Q2, Q3, and Q4 cycles. Data memory is read during Q2
(operand read) and written during Q4 (destination
write).

FIGURE 3-2:

CLOCK/INSTRUCTION CYCLE

EXAMPLE 3-1:

INSTRUCTION PIPELINE FLOW

Q1

Q2

Q3

Q4

Q1

Q2

Q3

Q4

Q1

Q2

Q3

Q4

OSC1

Q1

Q2

Q3

Q4

PC

OSC2/CLKOUT

(RC mode)

PC

PC+1

PC+2

Fetch INST (PC)

Execute INST (PC-1)

Fetch INST (PC+1)

Execute INST (PC)

Fetch INST (PC+2)

Execute INST (PC+1)

Internal

phase

clock

All instructions are single cycle, except for any program branches. These take two cycles since the fetch
instruction is “flushed” from the pipeline while the new instruction is being fetched and then executed.

1. MOVLW 55h

Fetch 1

Execute 1

2. MOVWF PORTB

Fetch 2

Execute 2

3. CALL  SUB_1

Fetch 3

Execute 3

4. BSF   PORTA, BIT3

Fetch 4

Flush

Fetch SUB_1 Execute SUB_1

Maker
Microchip Technology Inc.
Datasheet PDF Download
