 1998-2013 Microchip Technology Inc.

Preliminary

DS39016B-page 1

Devices included:



Microcontroller Core Features:

• High-performance RISC CPU

• Only 35 single word instructions to learn

• All single cycle instructions except for program

branches which are two cycle

• Operating speed: DC - 20 MHz clock input

DC - 200 ns instruction cycle

• 2K x 14 words of Program Memory,

128 x 8 bytes of Data Memory (RAM)

• Interrupt capability

• Eight level deep hardware stack

• Direct, indirect, and relative addressing modes

• Power-on Reset (POR)

• Power-up Timer (PWRT) and

Oscillator Start-up Timer (OST)

• Watchdog Timer (WDT) with its own on-chip RC

oscillator for reliable operation

• Programmable code-protection

• Power saving SLEEP mode

• Selectable oscillator options

• Low-power, high-speed CMOS technology

• Fully static design

• Wide operating voltage range:

- 2.5V to 6.0V (PIC16C72)

- 2.5V to 5.5V (PIC16CR72)

• High Sink/Source Current 25/25 mA

• Commercial, Industrial and Extended temperature

ranges

• Low-power consumption:

- < 2 mA @ 5V, 4 MHz

- 15

A typical @ 3V, 32 kHz

- <  1

A typical standby current

Pin Diagrams

Peripheral Features:

• Timer0: 8-bit timer/counter with 8-bit prescaler

• Timer1: 16-bit timer/counter with prescaler,

can be incremented during sleep via external
crystal/clock

• Timer2: 8-bit timer/counter with 8-bit period

register, prescaler and postscaler

• Capture, Compare, PWM (CCP) module

- Capture is 16-bit, max. resolution is 12.5 ns

- Compare is 16-bit, max. resolution is 200 ns

- PWM max. resolution is 10-bit

• 8-bit 5-channel analog-to-digital converter

• Synchronous Serial Port (SSP) with

SPI and I

2

C

• Brown-out detection circuitry for

Brown-out Reset (BOR)

• PIC16C72

• PIC16CR72

PIC16C72

MCLR/V

PP

RA0/AN0

RA1/AN1

RA2/AN2

RA3/AN3/V

REF

RA4/T0CKI

RA5/SS/AN4

V

SS

OSC1/CLKIN

OSC2/CLKOUT

RC0/T1OSO/T1CKI

RC1/T1OSI

RC2/CCP1

RC3/SCK/SCL

RB7

RB6

RB5

RB4

RB3

RB2

RB1

RB0/INT

V

DD

V

SS

RC7

RC6

RC5/SDO

RC4/SDI/SDA

• 1

2

3

4

5

6

7

8

9

10

11

12

13

14

28

27

26

25

24

23

22

21

20

19

18

17

16

15

SDIP, SOIC, SSOP,

PIC16CR72

Windowed Side Brazed Ceramic

PIC16C72 SERIES

8-Bit CMOS Microcontrollers with A/D Converter

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

DS39016B-page 2

Preliminary

 1998-2013 Microchip Technology Inc.

Table of Contents

1.0

Device Overview .......................................................................................................................................................................... 3

2.0

Memory Organization ................................................................................................................................................................... 5

3.0

I/O Ports ..................................................................................................................................................................................... 19

4.0

Timer0 Module ........................................................................................................................................................................... 25

5.0

Timer1 Module ........................................................................................................................................................................... 27

6.0

Timer2 Module ........................................................................................................................................................................... 31

7.0

Capture/Compare/PWM (CCP) Module ..................................................................................................................................... 33

8.0

Synchronous Serial Port (SSP) Module ..................................................................................................................................... 39

9.0

Analog-to-Digital Converter (A/D) Module .................................................................................................................................. 53

10.0 Special Features of the CPU ...................................................................................................................................................... 59
11.0 Instruction Set Summary ............................................................................................................................................................ 73
12.0 Development Support................................................................................................................................................................. 75
13.0 Electrical Characteristics - PIC16C72 Series ............................................................................................................................. 77
14.0 DC and AC Characteristics Graphs and Tables - PIC16C72 ..................................................................................................... 97
15.0 DC and AC Characteristics Graphs and Tables - PIC16CR72 ................................................................................................ 107
16.0 Packaging Information.............................................................................................................................................................. 109
Appendix A:

What’s New in this Data Sheet .................................................................................................................................. 115

Appendix B:

What’s Changed in this Data Sheet ........................................................................................................................... 115

Appendix C:

Device Differences..................................................................................................................................................... 115

Index .................................................................................................................................................................................................. 117
On-Line Support................................................................................................................................................................................. 121
Reader Response .............................................................................................................................................................................. 122
PIC16C72 Series Product Identification System................................................................................................................................ 125
Sales and Support.............................................................................................................................................................................. 125



To Our Valued Customers

We constantly strive to improve the quality of all our products and documentation. We have spent an exceptional
amount of time to ensure that these documents are correct. However, we realize that we may have missed a few
things. If you find any information that is missing or appears in error, please use the reader response form in the
back of this data sheet to inform us. We appreciate your assistance in making this a better document.

Key Reference Manual Features

PIC16C72

PIC16CR72

Operating Frequency

DC - 20MHz

DC - 20MHz

Resets

POR, PWRT, OST, BOR

POR, PWRT, OST, BOR

Program Memory - (14-bit words)

2K (EPROM)

2K (ROM)

Data Memory - RAM (8-bit bytes)

128

128

Interrupts

8

8

I/O Ports

PortA, PortB, PortC

PortA, PortB, PortC

Timers

Timer0, Timer1, Timer2

Timer0, Timer1, Timer2

Capture/Compare/PWM Modules

1

1

Serial Communications

Basic SSP

SSP

8-Bit A/D Converter

5 channels

5 channels

Instruction Set (No. of Instructions)

35

35

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

 1998-2013 Microchip Technology Inc.

Preliminary

DS39016B-page 3

1.0

DEVICE OVERVIEW

This document contains device-specific information for
the operation of the PIC16C72 device. Additional infor-
mation may be found in the PIC

®

 Mid-Range MCU Ref-

erence Manual (DS33023) which may be downloaded
from the Microchip website. The Reference Manual
should be considered a complementary document to
this data sheet, and is highly recommended reading for
a better understanding of the device architecture and
operation of the peripheral modules.

The PIC16C72 belongs to the Mid-Range family of the
PIC devices. A block diagram of the device is shown in
Figure 1-1.

The program memory contains 2K words which trans-
late to 2048 instructions, since each 14-bit program
memory word is the same width as each device instruc-
tion. The data memory (RAM) contains 128 bytes.

There are also 22 I/O pins that are user-configurable on
a pin-to-pin basis. Some pins are multiplexed with other
device functions. These functions include:

• External interrupt
• Change on PORTB interrupt
• Timer0 clock input
• Timer1 clock/oscillator
• Capture/Compare/PWM
• A/D converter
• SPI/I

2

C

Table 1-1 details the pinout of the device with descrip-
tions and details for each pin.

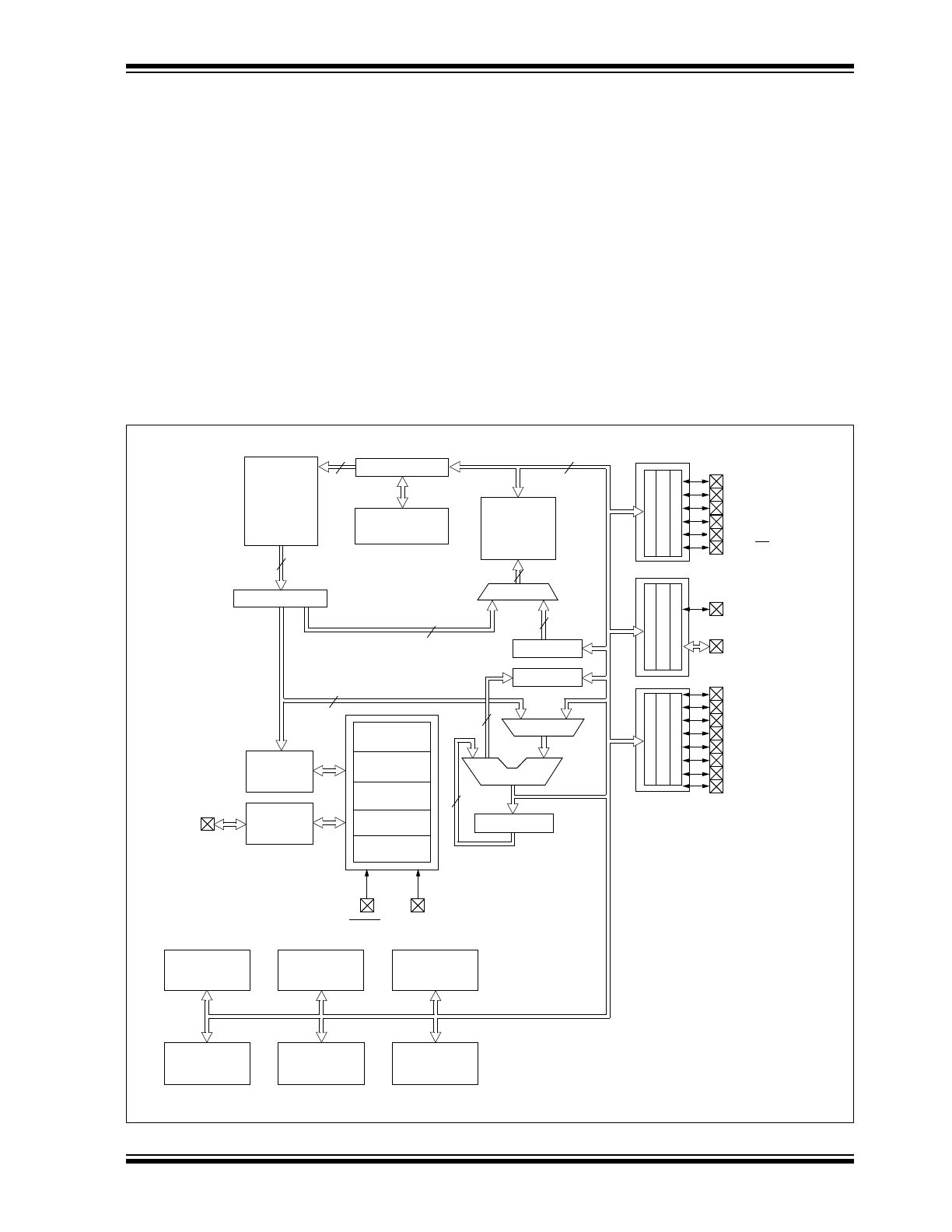

FIGURE 1-1:

PIC16C72/CR72 BLOCK DIAGRAM

EPROM/

Program

Memory

2K x 14

13

Data Bus

8

14

Program

Bus

Instruction reg

Program Counter

8 Level Stack

(13-bit)

RAM

File

Registers

128 x 8

Direct Addr

7

RAM Addr

(1)

9

Addr MUX

Indirect

Addr

FSR reg

STATUS reg

MUX

ALU

W reg

Power-up

Timer

Oscillator

Start-up Timer

Power-on

Reset

Watchdog

Timer

Instruction

Decode &

Control

Timing

Generation

OSC1/CLKIN

OSC2/CLKOUT

MCLR

V

DD

, V

SS

Timer0

A/D

Synchronous

Serial Port

PORTA

PORTB

PORTC

RB0/INT

RB7:RB1

RC0/T1OSO/T1CKI
RC1/T1OSI
RC2/CCP1
RC3/SCK/SCL
RC4/SDI/SDA
RC5/SDO
RC6
RC7

8

8

Brown-out

Reset

Note 1:

Higher order bits are from the STATUS register.

CCP1

Timer1

Timer2

RA4/T0CKI
RA5/SS/AN4

RA3/AN3/V

REF

RA2/AN2

RA1/AN1

RA0/AN0

8

3

ROM

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

DS39016B-page 4

Preliminary

 1998-2013 Microchip Technology Inc.

TABLE 1-1

PIC16C72/CR72 PINOUT DESCRIPTION

 Pin Name

Pin#

I/O/P
Type

Buffer

Type

Description

OSC1/CLKIN

9

I

ST/CMOS

(3)

Oscillator crystal input/external clock source input.

OSC2/CLKOUT

10

O

Oscillator crystal output. Connects to crystal or resonator in crystal
oscillator mode. In RC mode, the OSC2 pin outputs CLKOUT which
has 1/4 the frequency of OSC1, and denotes the instruction cycle rate.

MCLR/V

PP

1

I/P

ST

Master clear (reset) input or programming voltage input. This pin is an
active low reset to the device.

PORTA is a bi-directional I/O port.

RA0/AN0

2

I/O

TTL

RA0 can also be analog input0.

RA1/AN1

3

I/O

TTL

RA1 can also be analog input1.

RA2/AN2

4

I/O

TTL

RA2 can also be analog input2.

RA3/AN3/V

REF

5

I/O

TTL

RA3 can also be analog input3 or analog reference voltage

RA4/T0CKI

6

I/O

ST

RA4 can also be the clock input to the Timer0 module. Output is
open drain type.

RA5/SS/AN4

7

I/O

TTL

RA5 can also be analog input4 or the slave select for the
synchronous serial port.

PORTB is a bi-directional I/O port. PORTB can be software
programmed for internal weak pull-up on all inputs.

RB0/INT

21

I/O

TTL/ST

(1)

RB0 can also be the external interrupt pin.

RB1

22

I/O

TTL

RB2

23

I/O

TTL

RB3

24

I/O

TTL

RB4

25

I/O

TTL

Interrupt on change pin.

RB5

26

I/O

TTL

Interrupt on change pin.

RB6

27

I/O

TTL/ST

(2)

Interrupt on change pin. Serial programming clock.

RB7

28

I/O

TTL/ST

(2)

Interrupt on change pin. Serial programming data.

PORTC is a bi-directional I/O port.

RC0/T1OSO/T1CKI

11

I/O

ST

RC0 can also be the Timer1 oscillator output or Timer1 clock
input.

RC1/T1OSI

12

I/O

ST

RC1 can also be the Timer1 oscillator input.

RC2/CCP1

13

I/O

ST

RC2 can also be the Capture1 input/Compare1 output/PWM1
output.

RC3/SCK/SCL

14

I/O

ST

RC3 can also be the synchronous serial clock input/output for both
SPI and I

2

C modes.

RC4/SDI/SDA

15

I/O

ST

RC4 can also be the SPI Data In (SPI mode) or
data I/O (I

2

C mode).

RC5/SDO

16

I/O

ST

RC5 can also be the SPI Data Out (SPI mode).

RC6

17

I/O

ST

RC7

18

I/O

ST

V

SS

8, 19

P

Ground reference for logic and I/O pins.

V

DD

20

P

Positive supply for logic and I/O pins.

Legend: I = input

O = output

I/O = input/output

P = power

— = Not used

TTL = TTL input

ST = Schmitt Trigger input

Note 1:

This buffer is a Schmitt Trigger input when configured as the external interrupt.

2: This buffer is a Schmitt Trigger input when used in serial programming mode.

3:

This buffer is a Schmitt Trigger input when configured in RC oscillator mode and a CMOS input otherwise

.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

 1998-2013 Microchip Technology Inc.

Preliminary

DS39016B-page 5

2.0

MEMORY ORGANIZATION

There are two memory blocks in PIC16C72 Series
devices. These are the program memory and the data
memory. Each block has its own bus, so that access to
both blocks can occur during the same oscillator cycle.

The data memory can further be broken down into the
general purpose RAM and the Special Function
Registers (SFRs). The operation of the SFRs that
control the “core” are described here. The SFRs used
to control the peripheral modules are described in the
section discussing each individual peripheral module.

Additional information on device memory may be found
in the PIC

®

 Mid-Range Reference Manual, DS33023.

2.1

Program Memory Organization

PIC16C72 Series devices have a 13-bit program coun-
ter capable of addressing a 2K x 14 program memory
space. The address range for this program memory is
0000h - 07FFh. Accessing a location above the physi-
cally implemented address will cause a wraparound.

The reset vector is at 0000h and the interrupt vector is
at 0004h.

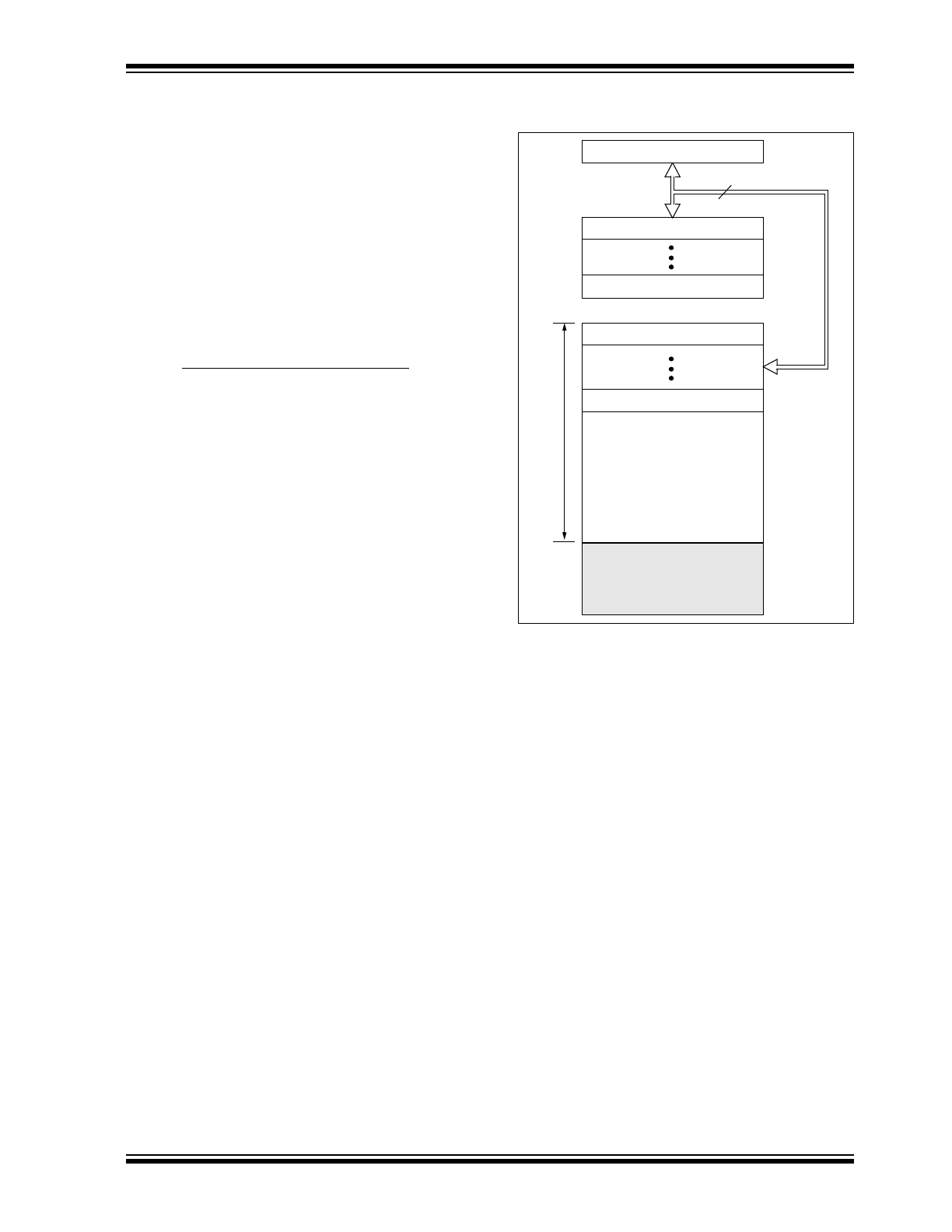

FIGURE 2-1:

PROGRAM MEMORY MAP
AND STACK

PC<12:0>

13

0000h

0004h
0005h

07FFh

1FFFh

Stack Level 1

Stack Level 8

Reset Vector

Interrupt Vector

On-chip Program

Memory

CALL, RETURN
RETFIE, RETLW

0800h

U

s

e

r Me

mo

ry

Spa

c

e

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

DS39016B-page 6

Preliminary

 1998-2013 Microchip Technology Inc.

2.2

Data Memory Organization

The data memory is partitioned into multiple banks
which contain the General Purpose Registers and the
Special Function Registers. Bits RP1 and RP0 are the
bank select bits.

  = 00

  Bank0

  = 01

  Bank1

  = 10

  Bank2 (not implemented)

  = 11

  Bank3 (not implemented)

Each bank extends up to 7Fh (128 bytes). The lower
locations of each bank are reserved for the Special
Function Registers. Above the Special Function Regis-
ters are General Purpose Registers, implemented as
static RAM.

All implemented banks contain special function regis-
ters. Some “high use” special function registers from
one bank may be mirrored in another bank for code
reduction and quicker access (ex; the STATUS register
is in Bank 0 and Bank 1).

2.2.1

GENERAL PURPOSE REGISTER FILE

The register file can be accessed either directly or indi-
rectly through the File Select Register FSR
(Section 2.5).

FIGURE 2-2:

REGISTER FILE MAP

RP1*

RP0

(STATUS<6:5>)

*

Maintain this bit clear to ensure upward com-
patibility with future products.

INDF

(1)

TMR0

PCL

STATUS

FSR

PORTA

PORTB

PORTC

PCLATH

INTCON

PIR1

TMR1L

TMR1H

T1CON

TMR2

T2CON

SSPBUF

SSPCON

CCPR1L

CCPR1H

CCP1CON

ADRES

ADCON0

INDF

(1)

OPTION

PCL

STATUS

FSR

TRISA
TRISB

TRISC

PCLATH

INTCON

PIE1

PCON

PR2

SSPADD

SSPSTAT

ADCON1

00h
01h

02h
03h

04h
05h
06h

07h
08h

09h

0Ah

0Bh

0Ch

0Dh

0Eh

0Fh

10h

11h

12h
13h

14h
15h
16h

17h
18h

19h

1Ah

1Bh

1Ch

1Dh

1Eh

1Fh

80h
81h

82h
83h

84h
85h
86h

87h
88h

89h
8Ah

8Bh
8Ch

8Dh
8Eh
8Fh

90h
91h

92h
93h

94h
95h
96h

97h
98h

99h
9Ah

9Bh
9Ch

9Dh
9Eh
9Fh

20h

A0h

General

Purpose
Register

General

Purpose
Register

7Fh

FFh

Bank 0

Bank 1

File

Address

BFh
C0h

  Unimplemented data memory locations, read as '0'.

Note 1:

Not a physical register.

File

Address

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

 1998-2013 Microchip Technology Inc.

Preliminary

DS39016B-page 7

2.2.2

SPECIAL FUNCTION REGISTERS

The Special Function Registers are registers used by
the CPU and Peripheral Modules for controlling the
desired operation of the device. These registers are
implemented as static RAM.

The special function registers can be classified into two

sets (core and peripheral). Those registers associated
with the “core” functions are described in this section,
and those related to the operation of the peripheral fea-
tures are described in the section of that peripheral fea-
ture.

TABLE 2-1

SPECIAL FUNCTION REGISTER SUMMARY

Address  Name

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Value on:

POR,

BOR

Value on all

other resets

(3)



Bank 0

00h

(1)

INDF

Addressing this location uses contents of FSR to address data memory (not a physical register)

0000 0000

0000 0000

01h

TMR0

Timer0 module’s register

xxxx xxxx

uuuu uuuu

02h

(1)

PCL

Program Counter's (PC) Least Significant Byte

0000 0000

0000 0000

03h

(1)

STATUS

IRP

(4)

RP1

(4)

RP0

TO

PD

Z

DC

C

0001 1xxx

000q quuu

04h

(1)

FSR

Indirect data memory address pointer

xxxx xxxx

uuuu uuuu

05h

PORTA

PORTA Data Latch when written: PORTA pins when read

--0x 0000

--0u 0000

06h

PORTB

PORTB Data Latch when written: PORTB pins when read

xxxx xxxx

uuuu uuuu

07h

PORTC

PORTC Data Latch when written: PORTC pins when read

xxxx xxxx

uuuu uuuu

08h

Unimplemented

09h

Unimplemented

0Ah

(1,2)

PCLATH

Write Buffer for the upper 5 bits of the Program Counter

---0 0000

---0 0000

0Bh

(1)

INTCON

GIE PEIE

T0IE

INTE

RBIE

T0IF

INTF

RBIF

0000 000x

0000 000u

0Ch

PIR1

ADIF

SSPIF

CCP1IF

TMR2IF

TMR1IF

-0-- 0000

-0-- 0000

0Dh

Unimplemented

0Eh

TMR1L

Holding register for the Least Significant Byte of the 16-bit TMR1 register

xxxx xxxx

uuuu uuuu

0Fh

TMR1H

Holding register for the Most Significant Byte of the 16-bit TMR1 register

xxxx xxxx

uuuu uuuu

10h

T1CON

T1CKPS1

T1CKPS0

T1OSCEN

T1SYNC

TMR1CS

TMR1ON

--00 0000

--uu uuuu

11h

TMR2

Timer2 module’s register

0000 0000

0000 0000

12h

T2CON

TOUTPS3

TOUTPS2

TOUTPS1

TOUTPS0

TMR2ON

T2CKPS1

T2CKPS0

-000 0000

-000 0000

13h

SSPBUF

Synchronous Serial Port Receive Buffer/Transmit Register

xxxx xxxx

uuuu uuuu

14h

SSPCON

WCOL

SSPOV

SSPEN

CKP

SSPM3

SSPM2

SSPM1

SSPM0

0000 0000

0000 0000

15h

CCPR1L

Capture/Compare/PWM Register (LSB)

xxxx xxxx

uuuu uuuu

16h

CCPR1H

Capture/Compare/PWM Register (MSB)

xxxx xxxx

uuuu uuuu

17h

CCP1CON

CCP1X

CCP1Y

CCP1M3

CCP1M2

CCP1M1

CCP1M0

--00 0000

--00 0000

18h-1Dh

Unimplemented

1Eh

ADRES

A/D Result Register

xxxx xxxx

uuuu uuuu

1Fh

ADCON0

ADCS1

ADCS0

CHS2

CHS1

CHS0

GO/DONE

ADON

0000 00-0

0000 00-0

Legend: x = unknown, u = unchanged, q = value depends on condition, - = unimplemented read as '0'.

Shaded locations are unimplemented, read as ‘0’.

Note 1:

These registers can be addressed from either bank.

2:

The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose con-
tents are transferred to the upper byte of the program counter.

3:

Other (non power-up) resets include external reset through MCLR and Watchdog Timer Reset.

4:

The IRP and RP1 bits are reserved on the PIC16C72/CR72. Always maintain these bits clear.

5:

SSPSTAT<7:6> are not implemented on the PIC16C72, read as '0'.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

DS39016B-page 8

Preliminary

 1998-2013 Microchip Technology Inc.

   Bank 1

80h

(1)

INDF

Addressing this location uses contents of FSR to address data memory (not a physical register)

0000 0000

0000 0000

81h

OPTION_REG

RBPU

INTEDG

T0CS

T0SE

PSA

PS2

PS1

PS0

1111 1111

1111 1111

82h

(1)

PCL

Program Counter's (PC) Least Significant Byte

0000 0000

0000 0000

83h

(1)

STATUS

IRP

(4)

RP1

(4)

RP0

TO

PD

Z

DC

C

0001 1xxx

000q quuu

84h

(1)

FSR

Indirect data memory address pointer

xxxx xxxx

uuuu uuuu

85h

TRISA

PORTA Data Direction Register

--11 1111

--11 1111

86h

TRISB

PORTB Data Direction Register

1111 1111

1111 1111

87h

TRISC

PORTC Data Direction Register

1111 1111

1111 1111

88h

Unimplemented

89h

Unimplemented

8Ah

(1,2)

PCLATH

Write Buffer for the upper 5 bits of the PC

---0 0000

---0 0000

8Bh

(1)

INTCON

GIE

PEIE

T0IE

INTE

RBIE

T0IF

INTF

RBIF

0000 000x

0000 000u

8Ch

PIE1

ADIE

SSPIE

CCP1IE

TMR2IE

TMR1IE

-0-- 0000

-0-- 0000

8Dh

Unimplemented

8Eh

PCON

POR

BOR

---- --qq

---- --uu

8Fh

Unimplemented

90h

Unimplemented

91h

Unimplemented

92h

PR2

Timer2 Period Register

1111 1111

1111 1111

93h

SSPADD

Synchronous Serial Port (I

2

C mode) Address Register

0000 0000

0000 0000

94h

SSPSTAT

SMP

(5)

CKE

(5)

D/A

P

S

R/W

UA

BF

0000 0000

0000 0000

95h

Unimplemented

96h

Unimplemented

97h

Unimplemented

98h

Unimplemented

99h

Unimplemented

9Ah

Unimplemented

9Bh

Unimplemented

9Ch

Unimplemented

9Dh

Unimplemented

9Eh

Unimplemented

9Fh

ADCON1

PCFG2

PCFG1

PCFG0

---- -000  ----  -000

TABLE 2-1

SPECIAL FUNCTION REGISTER SUMMARY  (CONTINUED)

Address  Name

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Value on:

POR,

BOR

Value on all

other resets

(3)

Legend: x = unknown, u = unchanged, q = value depends on condition, - = unimplemented read as '0'.

Shaded locations are unimplemented, read as ‘0’.

Note 1:

These registers can be addressed from either bank.

2:

The upper byte of the program counter is not directly accessible. PCLATH is a holding register for the PC<12:8> whose con-
tents are transferred to the upper byte of the program counter.

3:

Other (non power-up) resets include external reset through MCLR and Watchdog Timer Reset.

4:

The IRP and RP1 bits are reserved on the PIC16C72/CR72. Always maintain these bits clear.

5:

SSPSTAT<7:6> are not implemented on the PIC16C72, read as '0'.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

 1998-2013 Microchip Technology Inc.

Preliminary

DS39016B-page 9

2.2.2.1

STATUS REGISTER

The STATUS register, shown in Figure 2-3, contains
the arithmetic status of the ALU, the RESET status and
the bank select bits for data memory.

The STATUS register can be the destination for any
instruction, as with any other register. If the STATUS
register is the destination for an instruction that affects
the Z, DC or C bits, then the write to these three bits is
disabled. These bits are set or cleared according to the
device logic. Furthermore, the TO and PD bits are not
writable. Therefore, the result of an instruction with the
STATUS register as destination may be different than
intended.

For example, CLRF STATUS will clear the upper-three
bits and set the Z bit.   This leaves the STATUS register
as 000u u1uu (where u = unchanged).

It is recommended, therefore, that only BCF, BSF,
SWAPF

 and MOVWF instructions are used to alter the

STATUS register because these instructions do not
affect the Z, C or DC bits from the STATUS register. For
other instructions, not affecting any status bits, see the
"Instruction Set Summary."

FIGURE 2-3:

STATUS REGISTER (ADDRESS 03h, 83h)

Note 1: These devices do not use bits IRP and

RP1 (STATUS<7:6>). Maintain these bits
clear to ensure upward compatibility with
future products.

Note 2: The C and DC bits operate as a borrow

and digit borrow bit, respectively, in sub-
traction. See the SUBLW and SUBWF
instructions for examples.

R/W-0

R/W-0

R/W-0

R-1

R-1

R/W-x

R/W-x

R/W-x

IRP

RP1

RP0

TO

PD

Z

DC

C

R = Readable bit
W = Writable bit
U = Unimplemented bit,
       read as ‘0’
- n = Value at POR reset

bit7

bit0

bit 7:

IRP: Register Bank Select bit (used for indirect addressing)
1 = Bank 2, 3 (100h - 1FFh)
0 = Bank 0, 1 (00h - FFh)

bit  6-5: RP1:RP0: Register Bank Select bits (used for direct addressing)

11

 = Bank 3 (180h - 1FFh)

10

 = Bank 2 (100h - 17Fh)

01

 = Bank 1 (80h - FFh)

00

 = Bank 0 (00h - 7Fh)

Each bank is 128 bytes. For devices with only Bank0 and Bank1, the IRP bit is reserved. Always maintain
this bit clear.

bit  4:

TO: Time-out bit
1 = After power-up, CLRWDT instruction, or SLEEP instruction
0 = A WDT time-out occurred

bit  3:

PD: Power-down bit
1 = After power-up or by the CLRWDT instruction
0 = By execution of the SLEEP instruction

bit  2:

Z: Zero bit
1 = The result of an arithmetic or logic operation is zero
0 = The result of an arithmetic or logic operation is not zero

bit  1:

DC: Digit carry/borrow bit (ADDWF, ADDLW,SUBLW,SUBWF instructions) (for borrow the polarity is reversed)
1 = A carry-out from the 4th low order bit of the result occurred
0 = No carry-out from the 4th low order bit of the result

bit  0:

C: Carry/borrow bit (ADDWF, ADDLW,SUBLW,SUBWF instructions)
1 = A carry-out from the most significant bit of the result occurred
0 = No carry-out from the most significant bit of the result occurred
Note: For borrow the polarity is reversed. A subtraction is executed by adding the two’s complement of the
second operand. For rotate (RRF, RLF) instructions, this bit is loaded with either the high or low order bit of
the source register.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/39016B-html.html
background image

PIC16C72 Series

DS39016B-page 10

Preliminary

 1998-2013 Microchip Technology Inc.

2.2.2.2

OPTION_REG REGISTER

The OPTION_REG register is a readable and writable
register which contains various control bits to configure
the TMR0 prescaler/WDT postscaler (single assign-
able register known also as the prescaler), the External
INT Interrupt, TMR0, and the weak pull-ups on PORTB.

FIGURE 2-4:

OPTION_REG REGISTER



(ADDRESS 81h)

Note:

To achieve a 1:1 prescaler assignment for
the TMR0 register, assign the prescaler to
the Watchdog Timer.

R/W-1

R/W-1

R/W-1

R/W-1

R/W-1

R/W-1

R/W-1

R/W-1

RBPU

INTEDG

T0CS

T0SE

PSA

PS2

PS1

PS0

R

= Readable bit

W = Writable bit
U

= Unimplemented bit,

read as ‘0’

- n = Value at POR reset

bit7

bit0

bit 7:

RBPU: PORTB Pull-up Enable bit
1 = PORTB pull-ups are disabled
0 = PORTB pull-ups are enabled by individual port latch values

bit  6:

INTEDG: Interrupt Edge Select bit
1 = Interrupt on rising edge of RB0/INT pin
0 = Interrupt on falling edge of RB0/INT pin

bit  5:

T0CS: TMR0 Clock Source Select bit
1 = Transition on RA4/T0CKI pin
0 = Internal instruction cycle clock (CLKOUT)

bit  4:

T0SE: TMR0 Source Edge Select bit
1 = Increment on high-to-low transition on RA4/T0CKI pin
0 = Increment on low-to-high transition on RA4/T0CKI pin

bit  3:

PSA: Prescaler Assignment bit
1 = Prescaler is assigned to the WDT
0 = Prescaler is assigned to the Timer0 module

bit  2-0: PS2:PS0: Prescaler Rate Select bits

000

001

010

011

100

101

110

111

1 : 2
1 : 4
1 : 8
1 : 16
1 : 32
1 : 64
1 : 128
1 : 256

1 : 1
1 : 2
1 : 4
1 : 8
1 : 16
1 : 32
1 : 64
1 : 128

Bit Value

TMR0 Rate

WDT Rate

Maker
Microchip Technology Inc.
Datasheet PDF Download
