PIC12F519
Data Sheet
8-Pin, 8-Bit Flash Microcontrollers
*8-bit, 8-pin devices protected by Microchip’s Low Pin Count Patent: U.S. Patent No. 5,847,450. Additional U.S. and
foreign patents and applications may be issued or pending.
DS41319B-page ii
© 2008 Microchip Technology Inc.
Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights.
Trademarks
The Microchip name and logo, the Microchip logo, Accuron,
dsPIC, K
EE
L
OQ
, K
EE
L
OQ
logo, MPLAB, PIC, PICmicro,
PICSTART, rfPIC, SmartShunt and UNI/O are registered
trademarks of Microchip Technology Incorporated in the
U.S.A. and other countries.
FilterLab, Linear Active Thermistor, MXDEV, MXLAB,
SEEVAL, SmartSensor and The Embedded Control Solutions
Company are registered trademarks of Microchip Technology
Incorporated in the U.S.A.
Analog-for-the-Digital Age, Application Maestro, CodeGuard,
dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN,
ECONOMONITOR, FanSense, In-Circuit Serial
Programming, ICSP, ICEPIC, Mindi, MiWi, MPASM, MPLAB
Certified logo, MPLIB, MPLINK, mTouch, PICkit, PICDEM,
PICDEM.net, PICtail, PIC
32
logo, PowerCal, PowerInfo,
PowerMate, PowerTool, REAL ICE, rfLAB, Select Mode, Total
Endurance, WiperLock and ZENA are trademarks of
Microchip Technology Incorporated in the U.S.A. and other
countries.
SQTP is a service mark of Microchip Technology Incorporated
in the U.S.A.
All other trademarks mentioned herein are property of their
respective companies.
© 2008, Microchip Technology Incorporated, Printed in the
U.S.A., All Rights Reserved.
Printed on recycled paper.
Note the following details of the code protection feature on Microchip devices:
•
Microchip products meet the specification contained in their particular Microchip Data Sheet.
•
Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
•
There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
•
Microchip is willing to work with the customer who is concerned about the integrity of their code.
•
Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Microchip received ISO/TS-16949:2002 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC
®
MCUs and dsPIC
®
DSCs, K
EE
L
OQ
®
code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
© 2008 Microchip Technology Inc.
DS41319B-page 1
PIC12F519
High-Performance RISC CPU:
• Only 33 Single-Word Instructions
• All Single-Cycle Instructions except for Program
Branches which are Two-Cycle
• Two-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes
for Data and Instructions
• Operating Speed:
- DC – 8 MHz Oscillator
- DC – 500 ns instruction cycle
• On-chip Flash Program Memory
- 1024 x 12
• General Purpose Registers (SRAM)
- 41 x 8
• Flash Data Memory
- 64 x 8
Special Microcontroller Features:
• 8 MHz Precision Internal Oscillator
- Factory calibrated to ±1%
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) Support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with Dedicated On-Chip
RC Oscillator for Reliable Operation
• Programmable Code Protection
• Multiplexed MCLR Input Pin
• Internal Weak Pull-ups on I/O Pins
• Power-Saving Sleep mode
• Wake-up from Sleep on Pin Change
• Selectable Oscillator Options:
- INTRC: 4 MHz or 8 MHz precision Internal
RC oscillator
- EXTRC: External low-cost RC oscillator
- XT:
Standard crystal/resonator
- LP:
Power-saving, low-frequency crystal
Low-Power Features/CMOS Technology:
• Standby Current:
- 100 nA @ 2.0V, typical
• Operating Current:
- 11
μA @ 32 kHz, 2.0V, typical
- 175
μA @ 4 MHz, 2.0V, typical
• Watchdog Timer Current:
- 1
μA @ 2.0V, typical
- 7
μA @ 5.0V, typical
• High Endurance Program and Flash Data Memory
Cells
- 100,000 write Program Memory endurance
- 1,000,000 write Flash Data Memory endurance
- Program and Flash Data retention: >40 years
• Fully Static Design
• Wide Operating Voltage Range: 2.0V to 5.5V
- Wide temperature range
- Industrial: -40
°C to +85°C
- Extended: -40
°C to +125°C
Peripheral Features:
• 6 I/O Pins
- 5 I/O pins with individual direction control
- 1 input-only pin
- High current sink/source for direct LED drive
• 8-bit Real-Time Clock/Counter (TMR0) with 8-bit
Programmable Prescaler.
8-Pin, 8-Bit Flash Microcontroller
PIC12F519
DS41319B-page 2
© 2008 Microchip Technology Inc.

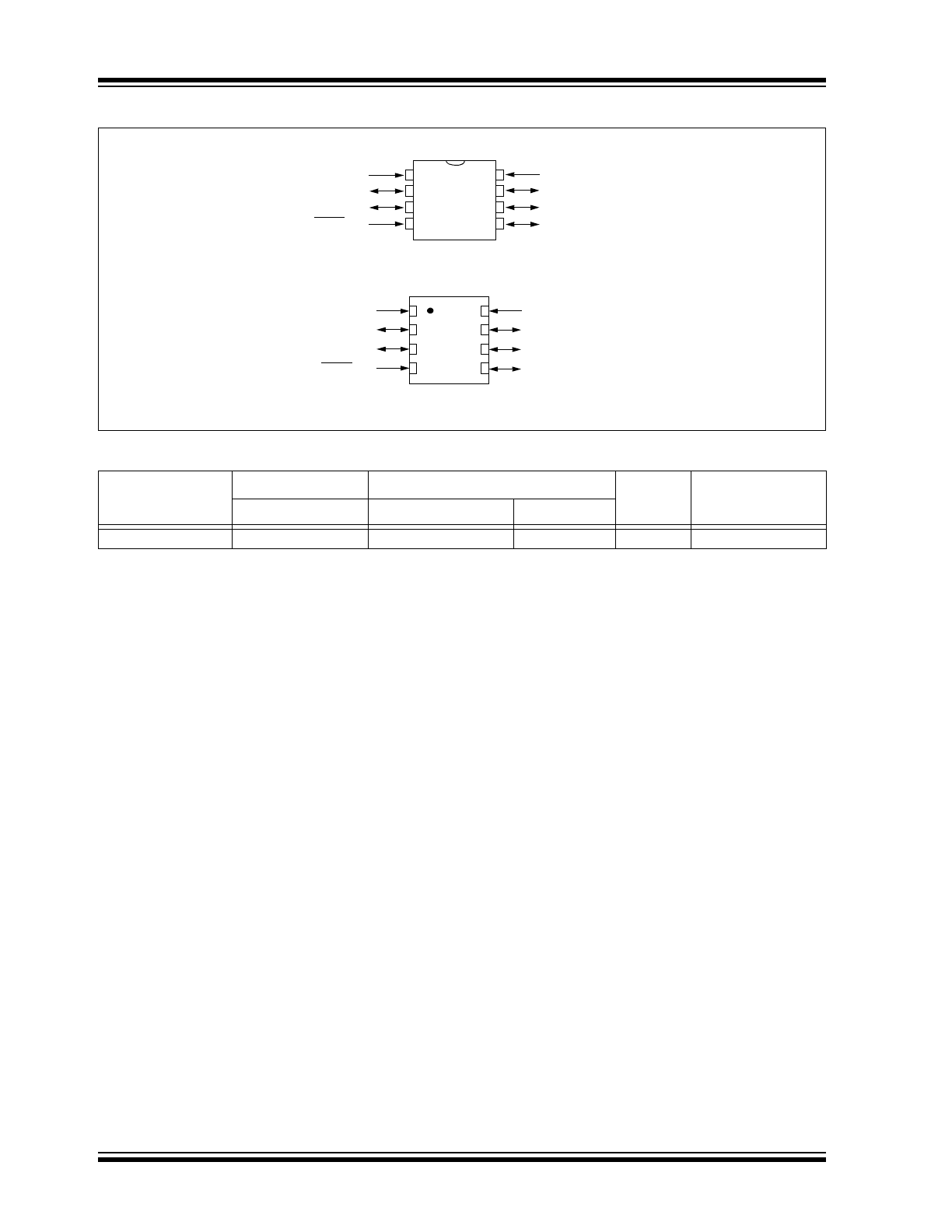

FIGURE 1:
PIC12F519 8-PIN PDIP, SOIC, MSOP, 2X3 DFN DIAGRAM
V
DD
GP5/OSC1/CLKIN
GP4/OSC2
GP3/MCLR/V
PP
V
SS
GP0/ICSPDAT
GP1/ICSPCLK
GP2/T0CKI
P
IC
12F
51
9
1
2
3
4
5
6
7
8
DFN
P
IC
1
2F
519
1
2
3
4
8
7
6
5
V
SS
GP0/ICSPDAT
GP1/ICSPCLK
GP2/T0CKI
V
DD
GP5/OSC1/CLKIN
GP4/OSC2
GP3/MCLR/V
PP
PDIP, SOIC, MSOP
Device
Program Memory
Data Memory
I/O
Timers 8-bit
Flash (words)
SRAM (bytes)
Flash (bytes)
PIC12F519
1024
41
64
6
1
© 2008 Microchip Technology Inc.
DS41319B-page 3
PIC12F519
Table of Contents
1.0
General Description .................................................................................................................................................................. 5
2.0
PIC12F519 Device Varieties .................................................................................................................................................... 7
3.0
Architectural Overview.............................................................................................................................................................. 9
4.0
Memory Organization ............................................................................................................................................................. 13
5.0
Flash Data Memory ................................................................................................................................................................ 21
6.0
I/O Port ................................................................................................................................................................................... 23
7.0
Timer0 Module and TMR0 Register ........................................................................................................................................ 31
8.0
Special Features Of The CPU ................................................................................................................................................ 37
9.0
Instruction Set Summary ........................................................................................................................................................ 49
10.0
Development Support ............................................................................................................................................................. 57
11.0
Electrical Characteristics ........................................................................................................................................................ 61
12.0
DC and AC Characteristics Graphs and Charts ..................................................................................................................... 73
13.0
Packaging Information ............................................................................................................................................................ 83
Index ................................................................................................................................................................................................... 89
The Microchip Web Site ...................................................................................................................................................................... 91
Customer Change Notification Service ............................................................................................................................................... 91
Customer Support ............................................................................................................................................................................... 91
Reader Response ............................................................................................................................................................................... 92
Product Identification System ............................................................................................................................................................. 93
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Micro-
chip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined
and enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at docerrors@mail.microchip.com or fax the Reader Response Form in the back of this data sheet to (480) 792-4150.
We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current
devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision
of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site; http://www.microchip.com
• Your local Microchip sales office (see last page)
• The Microchip Corporate Literature Center; U.S. FAX: (480) 792-7277
When contacting a sales office or the literature center, please specify which device, revision of silicon and data sheet (include lit-
erature number) you are using.
Customer Notification System
Register on our web site at www.microchip.com/cn to receive the most current information on all of our products.
PIC12F519
DS41319B-page 4
© 2008 Microchip Technology Inc.
NOTES:
© 2008 Microchip Technology Inc.
DS41319B-page 5
PIC12F519
1.0
GENERAL DESCRIPTION
The PIC12F519 device from Microchip Technology is
low-cost, high-performance, 8-bit, fully-static, Flash-
based CMOS microcontrollers. They employ a RISC
architecture with only 33 single-word/single-cycle
instructions. All instructions are single cycle except for
program branches, which take two cycles. The
PIC12F519 device delivers performance an order of
magnitude higher than their competitors in the same
price category. The 12-bit wide instructions are highly
symmetrical, resulting in a typical 2:1 code
compression over other 8-bit microcontrollers in its
class. The easy-to-use and easy to remember
instruction set reduces development time significantly.
The PIC12F519 product is equipped with special
features that reduce system cost and power
requirements. The Power-on Reset (POR) and Device
Reset Timer (DRT) eliminate the need for external
Reset circuitry. There are four oscillator configurations
to choose from including INTRC Internal Oscillator
mode and the power-saving LP (Low-power) Oscillator
mode. Power-Saving Sleep mode, Watchdog Timer
and code protection features improve system cost,
power and reliability.
The PIC12F519 device is available in the cost-effective
Flash programmable version, which is suitable for
production in any volume. The customer can take full
advantage of Microchip’s price leadership in Flash
programmable microcontrollers, while benefiting from
the Flash programmable flexibility.
The PIC12F519 product is supported by a full-featured
macro assembler, a software simulator, an in-circuit
emulator, a low-cost development programmer and a
full featured programmer. All the tools are supported on
PC and compatible machines.
1.1
Applications
The PIC12F519 device fits in applications ranging from
personal care appliances and security systems to low-
power remote transmitters/receivers. The Flash
technology makes customizing application programs
(transmitter codes, appliance settings, receiver
frequencies, etc.) extremely fast and convenient. The
small footprint packages, for through hole or surface
mounting, make these microcontrollers perfect for
applications with space limitations. Low cost, low
power, high performance, ease of use and I/O flexibility
make the PIC12F519 device very versatile even in
areas where no microcontroller use has been
considered before (e.g., timer functions, logic and
PLDs in larger systems and coprocessor applications).
TABLE 1-1:
FEATURES AND MEMORY OF PIC12F519
PIC12F519
Clock
Maximum Frequency of Operation (MHz)
8
Memory
Flash Program Memory
1024
SRAM Data Memory (bytes)
41
Flash Data Memory (bytes)
64
Peripherals
Timer Module(s)
TMR0
Wake-up from Sleep on Pin Change
Yes
Features
I/O Pins
5
Input Pins
1
Internal Pull-ups
Yes
In-Circuit Serial Programming™
Yes
Number of Instructions
33
Packages
8-pin PDIP, SOIC, MSOP, 2X3 DFN
The PIC12F519 device has Power-on Reset, selectable Watchdog Timer, selectable code-protect, high I/O current capability and
precision internal oscillator.
The PIC12F519 device uses serial programming with data pin GP0 and clock pin GP1.
PIC12F519
DS41319B-page 6
© 2008 Microchip Technology Inc.
NOTES:
© 2008 Microchip Technology Inc.
DS41319B-page 7
PIC12F519
2.0
PIC12F519 DEVICE VARIETIES
When placing orders, please use the PIC12F519
Product Identification System at the back of this data
sheet to specify the correct part number. A variety of
packaging options are available. Depending on
application and production requirements, the proper
device option can be selected using the information in
this section.
2.1
Quick Turn Programming (QTP)
Devices
Microchip offers a QTP programming service for factory
production orders. This service is made available for
users who choose not to program medium-to-high
quantity units and whose code patterns have stabilized.
The devices are identical to the Flash devices but with
all Flash locations and fuse options already
programmed by the factory. Certain code and prototype
verification procedures do apply before production
shipments are available. Please contact your local
Microchip Technology sales office for more details.
2.2
Serialized Quick Turn
Programming
SM
(SQTP
SM
) Devices
Microchip offers a unique programming service, where a
few user-defined locations in each device are
programmed with different serial numbers. The serial
numbers may be random, pseudo-random or sequential.
Serial programming allows each device to have a
unique number, which can serve as an entry code,
password or ID number.
PIC12F519
DS41319B-page 8
© 2008 Microchip Technology Inc.
NOTES:
