25LC512 Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

 2014 Microchip Technology Inc.

DS20005265A-page 1

25LC512

Device Selection Table

Features:

• 10 MHz max. Clock Speed
• Byte and Page-level Write Operations:

- 128-byte page
- 5  ms  max.
- No page or sector erase required

• Low-Power CMOS Technology:

- Max. Write Current: 7 mA at 5.5V
- Read Current: 10 mA at 5.5V, 10 MHz
- Standby Current: 1

A at 2.5V, 85°C (Deep

power-down)

• Electronic Signature for Device ID
• Self-Timed Erase and Write Cycles:

- Page Erase (5 ms, typical)
- Sector Erase (10 ms/sector, typical)
- Bulk Erase (10 ms, typical)

• Sector Write Protection (16K byte/sector):

- Protect none, 1/4, 1/2 or all of array

• Built-In Write Protection:

- Power-on/off data protection circuitry
- Write enable latch
- Write-protect pin

• High Reliability:

- Endurance: 1 Million erase/write cycles
- Data Retention: >200 years
- ESD Protection: >4000V

• Temperature Ranges Supported:

• RoHS Compliant

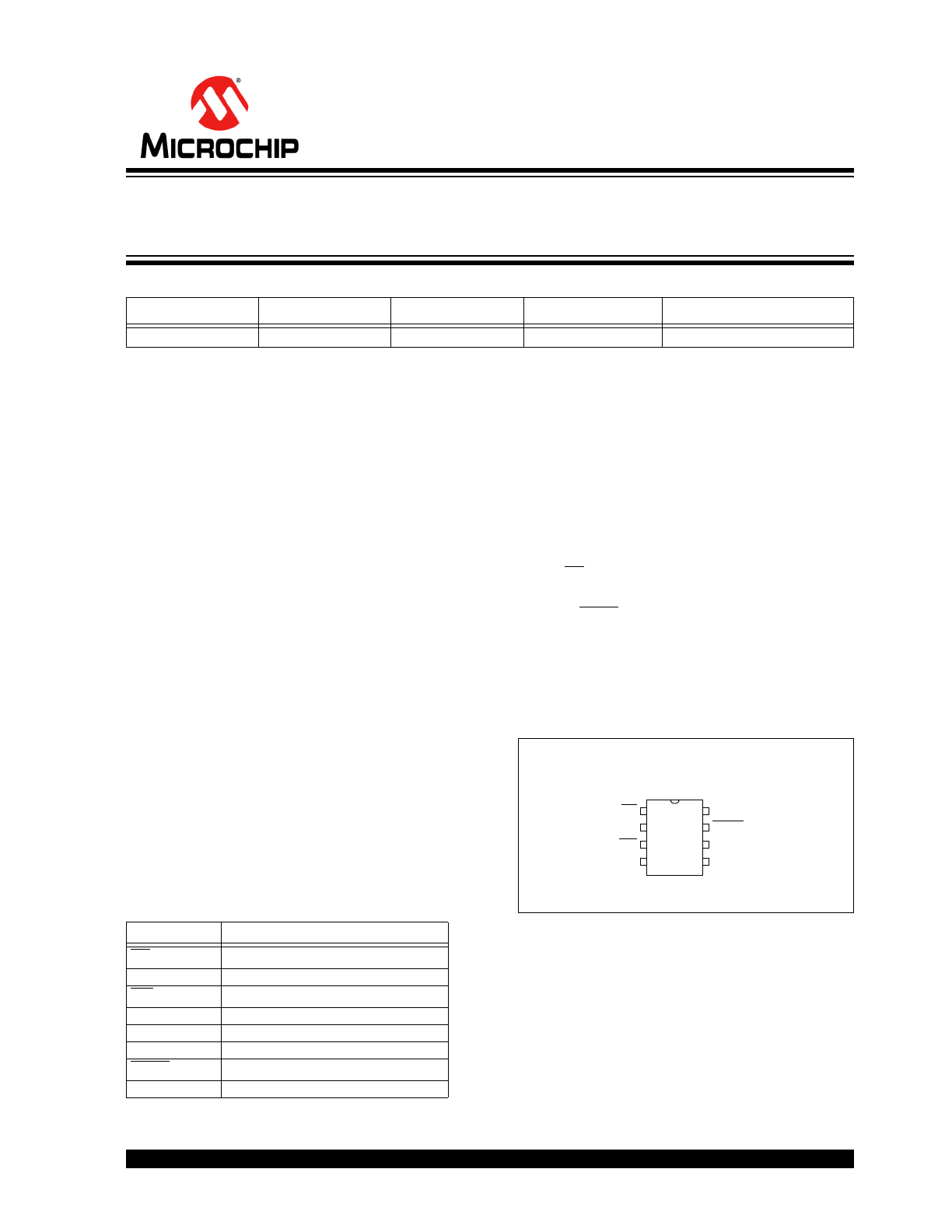

Pin Function Table

Description:

The Microchip Technology Inc. 25LC512 is a 512 Kbit
serial EEPROM memory with byte-level and page-level
serial EEPROM functions. It also features Page, Sector
and Chip erase functions typically associated with
Flash-based products. These functions are not required
for byte or page write operations. The memory is
accessed via a simple Serial Peripheral Interface (SPI)
compatible serial bus. The bus signals required are a
clock input (SCK) plus separate data in (SI) and data out
(SO) lines. Access to the device is controlled by a Chip
Select (CS) input.
Communication to the device can be paused via the
hold pin (HOLD). While the device is paused, transi-
tions on its inputs will be ignored, with the exception of
Chip Select, allowing the host to service higher priority
interrupts.
The 25LC512 is available in the 8-lead SOIC package.

Package Types (not to scale)

Part Number

V

CC

 Range

Page Size

Temp. Ranges

Packages

25LC512

2.5-5.5V

128 Byte

-55°C to +125°C (M)

SN

- Extended (M):

-55

C to +125C

Name

Function

CS

Chip Select Input

SO

Serial Data Output

WP

Write-Protect

V

SS

Ground

SI

Serial Data Input

SCK

Serial Clock Input

HOLD

Hold Input

V

CC

Supply Voltage

25L

C

512

CS

SO

WP

V

SS

1
2
3
4

8
7
6
5

V

CC

HOLD
SCK
SI

SOIC

(SN)

512 Kbit SPI Bus Serial EEPROM

Extended (M) Operating Temperatures

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

25LC512

DS20005265A-page 2

 2014 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................6.5V

All inputs and outputs w.r.t. V

SS

......................................................................................................... -0.6V to V

CC

 +1.0V

Storage temperature .................................................................................................................................-65°C to 150°C
Ambient temperature under bias ...............................................................................................................-55°C to 125°C
ESD protection on all pins ..........................................................................................................................................4 kV

TABLE 1-1:

DC CHARACTERISTICS

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for an
extended period of time may affect device reliability.

DC CHARACTERISTICS

Extended (M):

T

A

 = -55°C to +125°C

V

CC

 = 2.5V to 5.5V

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Test Conditions

D001

V

IH

1

High-level input
voltage

0.7 V

CC

V

CC

 + 1

V

D002

V

IL

1

Low-level input
voltage

-0.3

0.3 V

CC

V

V

CC

2.7V

D003

V

IL

2

-0.3

0.2 V

CC

V

V

CC

 < 2.7V

D004

V

OL

Low-level output
voltage

0.4

V

I

OL

 = 2.1 mA

D005

V

OH

High-level output
voltage

V

CC

 - 0.2

V

I

OH

 = -400

A

D006

I

LI

Input leakage current

±1

A

CS = V

CC

, V

IN

 = V

SS

 or V

CC

D007

I

LO

Output leakage
current

±1

A

CS = V

CC

, V

OUT

 = V

SS

 or V

CC

D008

C

INT

Internal capacitance
(all inputs and
outputs)

7

pF

T

A

 = 25°C, CLK = 1.0 MHz,

V

CC

 = 5.0V (

Note

)

D009

I

CC

 Read

Operating current

10

5

mA

mA

V

CC

 = 5.5V; F

CLK

 = 10.0 MHz;

SO = Open
V

CC

 = 2.5V; F

CLK

 = 10.0 MHz;

SO = Open

D010

I

CC

 Write


7
5

mA
mA

V

CC

 = 5.5V

V

CC

 = 2.5V

D011

I

CCS

Standby current

20

10

A

A

CS = V

CC

 = 5.5V, Inputs tied to V

CC

 or

V

SS

, 125°C

CS = V

CC

 = 5.5V, Inputs tied to V

CC

 or

V

SS

, 85°C

D012

I

CCSPD

Deep power-down
current

2

1

A

A

CS = V

CC

 = 2.5V, Inputs tied to V

CC

 or

V

SS

, 125°C

CS = V

CC

 = 2.5V, Inputs tied to V

CC

 or

V

SS

, 85°C

Note:

This parameter is periodically sampled and not 100% tested.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

 2014 Microchip Technology Inc.

DS20005265A-page 3

25LC512

TABLE 1-2:

AC CHARACTERISTICS

AC CHARACTERISTICS

Extended (M):

T

A

 = -55°C to +125°C

V

CC

 = 2.5V to 5.5V

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Conditions

1

F

CLK

Clock frequency

10

MHz

2

T

CSS

CS setup time

50

ns

3

T

CSH

CS hold time

100

ns

4

T

CSD

CS disable time

50

ns

5

Tsu

Data setup time

10

ns

6

T

HD

Data hold time

20

ns

7

T

R

CLK rise time

20

ns

(

Note 1

)

8

T

F

CLK fall time

20

ns

(

Note 1

)

9

T

HI

Clock high time

50

ns

10

T

LO

Clock low time

50

ns

11

T

CLD

Clock delay time

50

ns

12

T

CLE

Clock enable time

50

ns

13

T

V

Output valid from clock low

50

ns

14

T

HO

Output hold time

0

ns

(

Note 1

)

15

T

DIS

Output disable time

50

ns

16

T

HS

HOLD setup time

20

ns

17

T

HH

HOLD hold time

20

ns

18

T

HZ

HOLD low to output
High-Z

30

ns

(

Note 1

)

19

T

HV

HOLD high to output valid

30

ns

20

T

REL

CS High to Standby mode

100

s

21

T

PD

CS High to Deep power-
down

100

s

22

T

CE

Chip erase cycle time

10

ms

23

T

SE

Sector erase cycle time

10

ms

24

T

WC

Internal write cycle time

5

ms

Byte or Page mode and Page
Erase

25

Endurance

1M

E/W

Cycles

Page mode, 25°C, 5.5V (

Note 2

Note 1: This parameter is periodically sampled and not 100% tested.

2: This parameter is not tested but established by characterization and qualification. For endurance

estimates in a specific application, please consult the Total Endurance™ Model, which can be obtained
from Microchip’s web site at www.microchip.com.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

25LC512

DS20005265A-page 4

 2014 Microchip Technology Inc.

TABLE 1-3:

AC TEST CONDITIONS

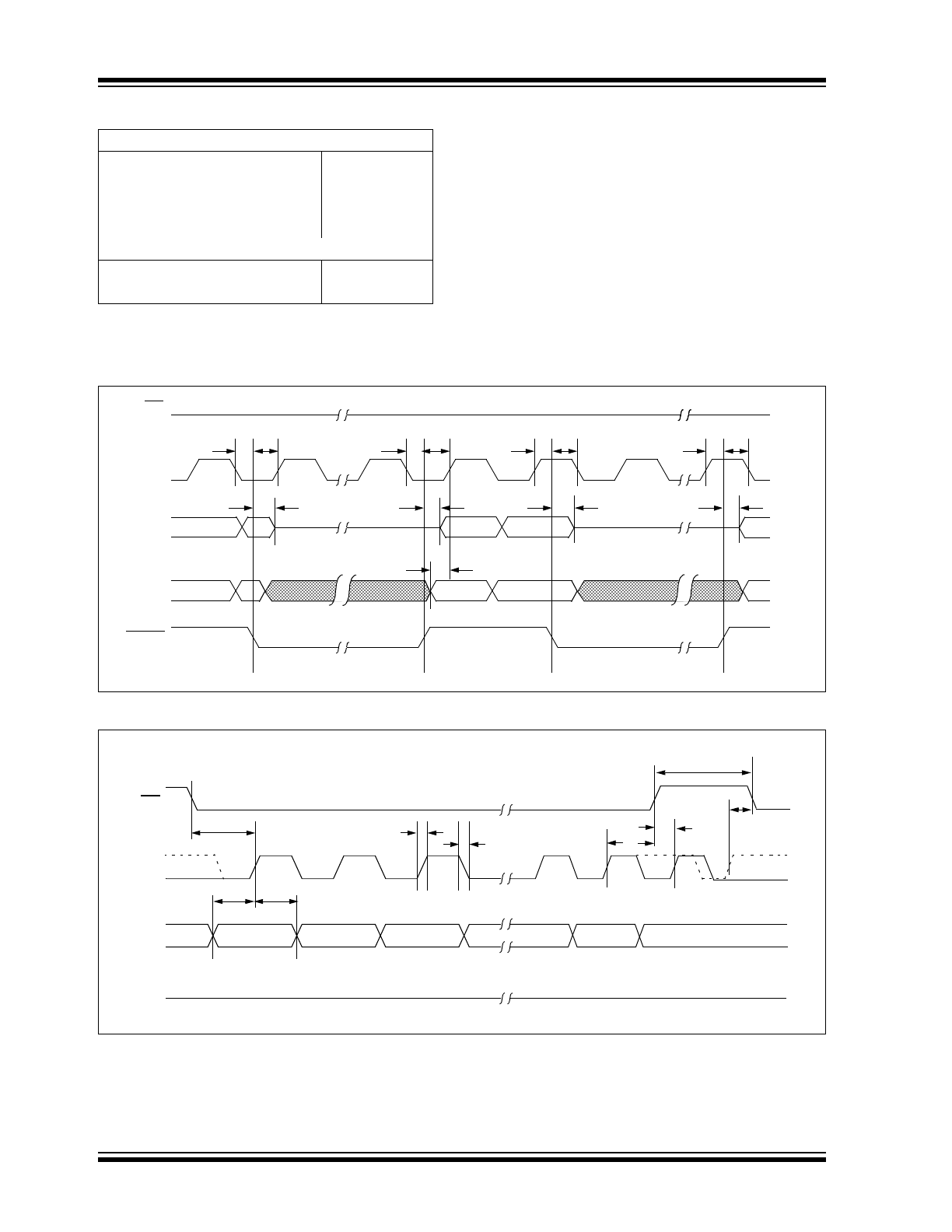

FIGURE 1-1:

HOLD TIMING

FIGURE 1-2:

SERIAL INPUT TIMING

AC Waveform:

V

LO

 = 0.2V

V

HI

 = V

CC

 - 0.2V

(

Note 1

)

V

HI

 = 4.0V

(

Note 2

)

C

L

 = 30 pF

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1: For V

CC



 4.0V

2: For V

CC

 > 4.0V

CS

SCK

SO

SI

HOLD

17

16

16

17

19

18

Don’t Care

5

High-Impedance

n + 1

n

n - 1

n

n

n  -  1

17

16

17

16

19

18

High-Impedance

n - 2

n + 1

n

n - 2

Don’t Care

CS

SCK

SI

SO

6

5

8

7

11

3

LSB in

MSB in

High-Impedance

12

Mode 1,1
Mode 0,0

2

4

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

 2014 Microchip Technology Inc.

DS20005265A-page 5

25LC512

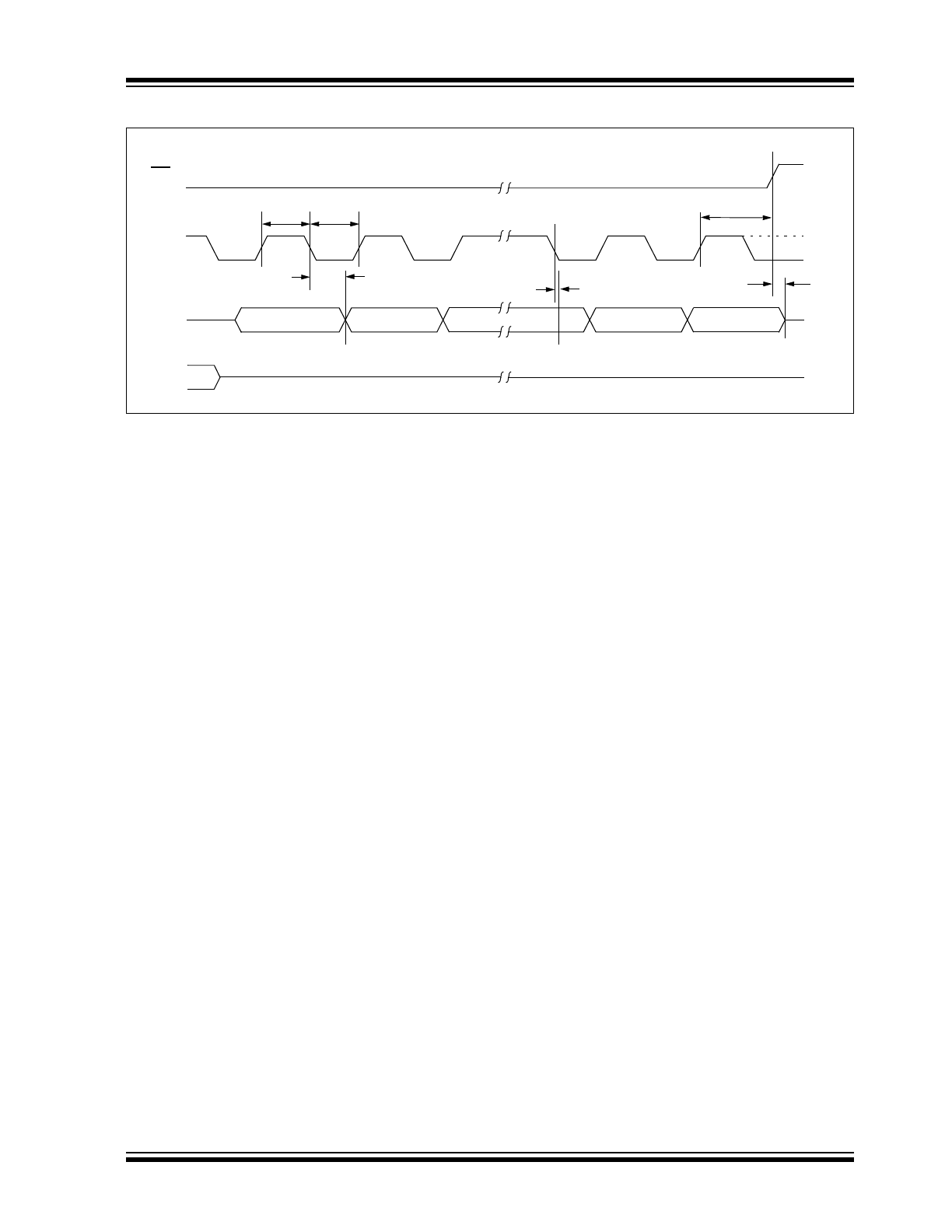

FIGURE 1-3:

SERIAL OUTPUT TIMING

CS

SCK

SO

10

9

13

MSB out

LSB out

3

15

Don’t Care

SI

Mode 1,1
Mode 0,0

14

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

25LC512

DS20005265A-page 6

 2014 Microchip Technology Inc.

2.0

FUNCTIONAL DESCRIPTION

2.1

Principles of Operation

The 25LC512 is a 65,536 byte Serial EEPROM
designed to interface directly with the Serial Periph-
eral Interface (SPI) port of many of today’s popular
microcontroller families, including Microchip’s PIC

®

microcontrollers. It may also interface with microcon-
trollers that do not have a built-in SPI port by using
discrete I/O lines programmed properly in firmware to
match the SPI protocol.
The 25LC512 contains an 8-bit instruction register. The
device is accessed via the SI pin, with data being
clocked in on the rising edge of SCK. The CS pin must
be low and the HOLD pin must be high for the entire
operation.

Table 2-1

 contains a list of the possible instruction

bytes and format for device operation. All instructions,
addresses, and data are transferred MSB first, LSB
last.
Data (SI) is sampled on the first rising edge of SCK
after CS goes low. If the clock line is shared with other
peripheral devices on the SPI bus, the user can assert
the HOLD input and place the 25LC512 in ‘HOLD’
mode. After releasing the HOLD pin, operation will
resume from the point when the HOLD was asserted.

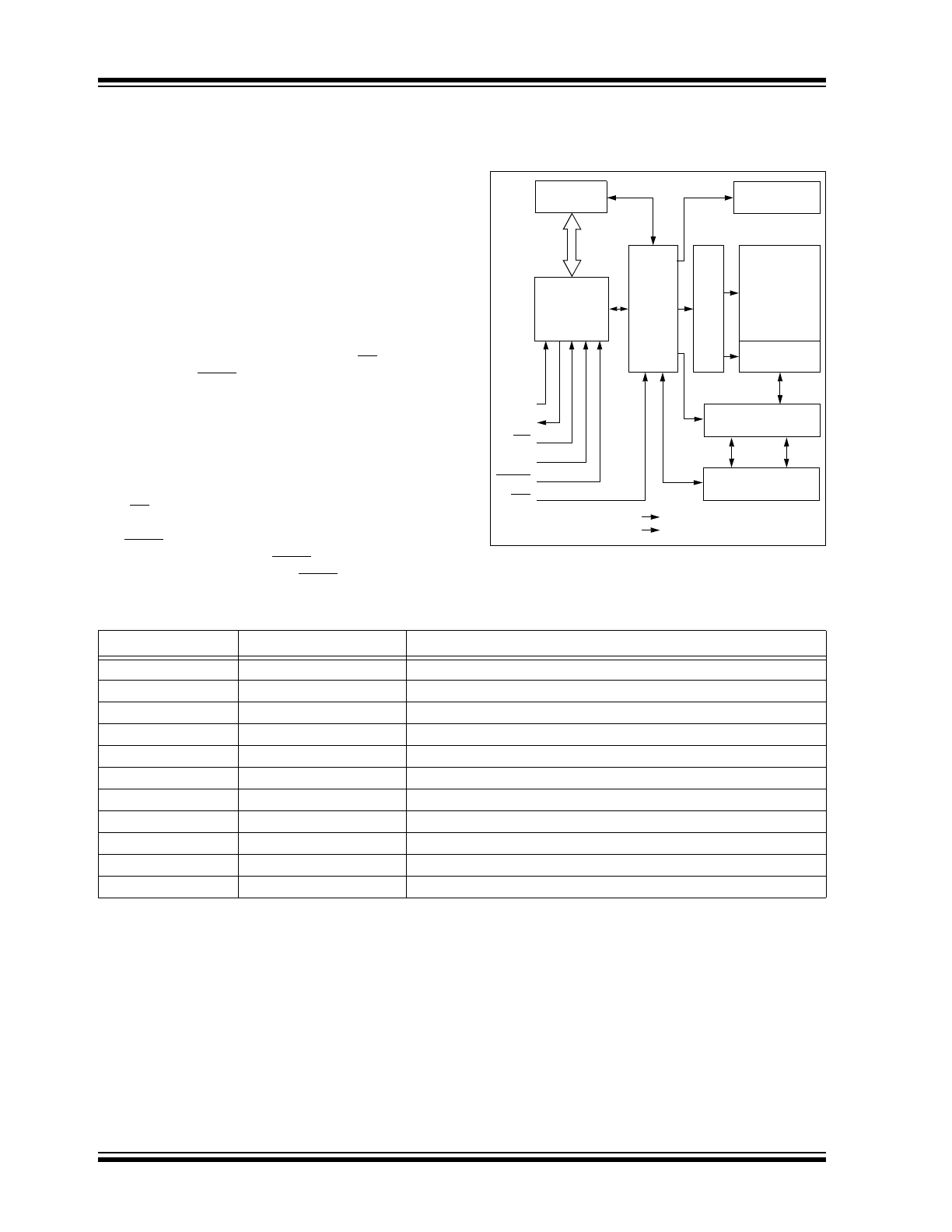

BLOCK DIAGRAM

TABLE 2-1:

INSTRUCTION SET

SI

SO

SCK

CS

HOLD

WP

STATUS

Register

I/O Control

Memory

Control

Logic

X

Dec

HV Generator

EEPROM

Array

Page Latches

Y Decoder

Sense Amp.
R/W Control

Logic

V

CC

V

SS

Instruction Name

Instruction Format

Description

READ

0000 0011

Read data from memory array beginning at selected address

WRITE

0000 0010

Write data to memory array beginning at selected address

WREN

0000 0110

Set the write enable latch (enable write operations)

WRDI

0000 0100

Reset the write enable latch (disable write operations)

RDSR

0000 0101

Read STATUS register

WRSR

0000 0001

Write STATUS register

PE

0100 0010

Page Erase – erase one page in memory array

SE

1101 1000

Sector Erase – erase one sector in memory array

CE

1100 0111

Chip Erase – erase all sectors in memory array

RDID

1010 1011

Release from Deep power-down and read electronic signature

DPD

1011 1001

Deep Power-Down mode

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

 2014 Microchip Technology Inc.

DS20005265A-page 7

25LC512

Read Sequence

The device is selected by pulling CS low. The 8-bit
READ instruction is transmitted to the 25LC512 fol-
lowed by the 16-bit address. After the correct READ
instruction and address are sent, the data stored in the
memory at the selected address is shifted out on the
SO pin. The data stored in the memory at the next
address can be read sequentially by continuing to

provide clock pulses. The internal Address Pointer is
automatically incremented to the next higher address
after each byte of data is shifted out. When the highest
address is reached (FFFFh), the address counter rolls
over to address 0000h allowing the read cycle to be
continued indefinitely. The READ instruction is
terminated by raising the CS pin (

Figure 2-1

).

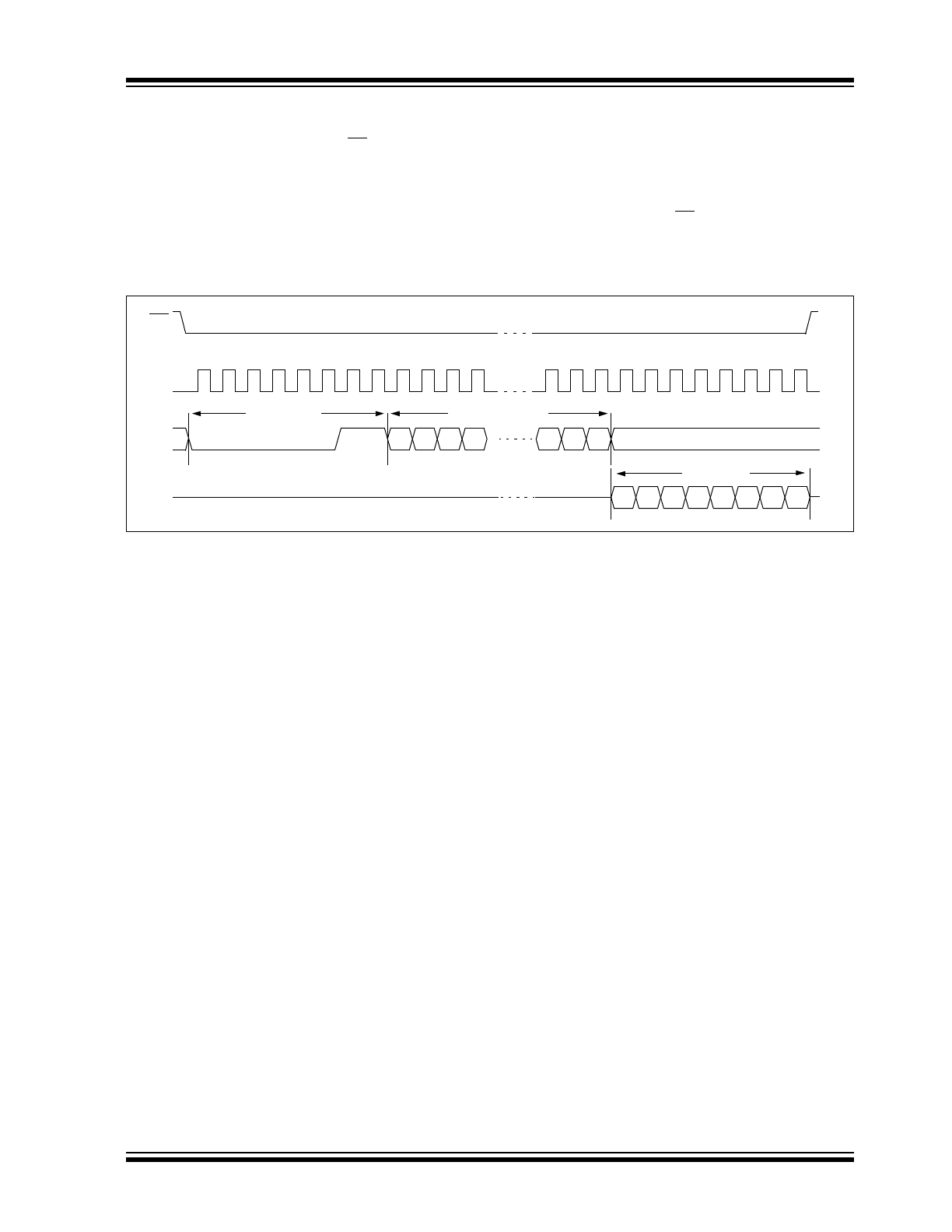

FIGURE 2-1:

READ SEQUENCE

SO

SI

SCK

CS

0

2

3

4

5

6

7

8

9 10 11

21 22 23 24 25 26 27 28 29 30 31

1

0

1

0

0

0

0

0

1

15 14 13 12

2

1

0

7

6

5

4

3

2

1

0

Instruction

16-bit Address

Data Out

High-Impedance

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

25LC512

DS20005265A-page 8

 2014 Microchip Technology Inc.

2.2

Write Sequence

Prior to any attempt to write data to the 25LC512, the
write enable latch must be set by issuing the WREN
instruction (

Figure 2-4

). This is done by setting CS low

and then clocking out the proper instruction into the
25LC512. After all eight bits of the instruction are trans-
mitted, the CS must be brought high to set the write
enable latch. If the write operation is initiated immedi-
ately after the WREN instruction without CS being
brought high, the data will not be written to the array
because the write enable latch will not have been
properly set.
A write sequence includes an automatic, self timed
erase cycle. It is not required to erase any portion of the
memory prior to issuing a WRITE instruction.
Once the write enable latch is set, the user may
proceed by setting the CS low, issuing a WRITE instruc-
tion, followed by the 16-bit address, and then the data
to be written. Up to 128 bytes of data can be sent to the
device before a write cycle is necessary. The only
restriction is that all of the bytes must reside in the
same page.

For the data to be actually written to the array, the CS
must be brought high after the Least Significant bit (D0)
of the n

th

 data byte has been clocked in. If CS is

brought high at any other time, the write operation will
not be completed. Refer to

Figure 2-2

 and

Figure 2-3

for more detailed illustrations on the byte write
sequence and the page write sequence, respectively.
While the write is in progress, the STATUS register may
be read to check the status of the WPEN, WIP, WEL,
BP1 and BP0 bits (

Figure 2-6

). A read attempt of a

memory array location will not be possible during a
write cycle. When the write cycle is completed, the
write enable latch is reset.

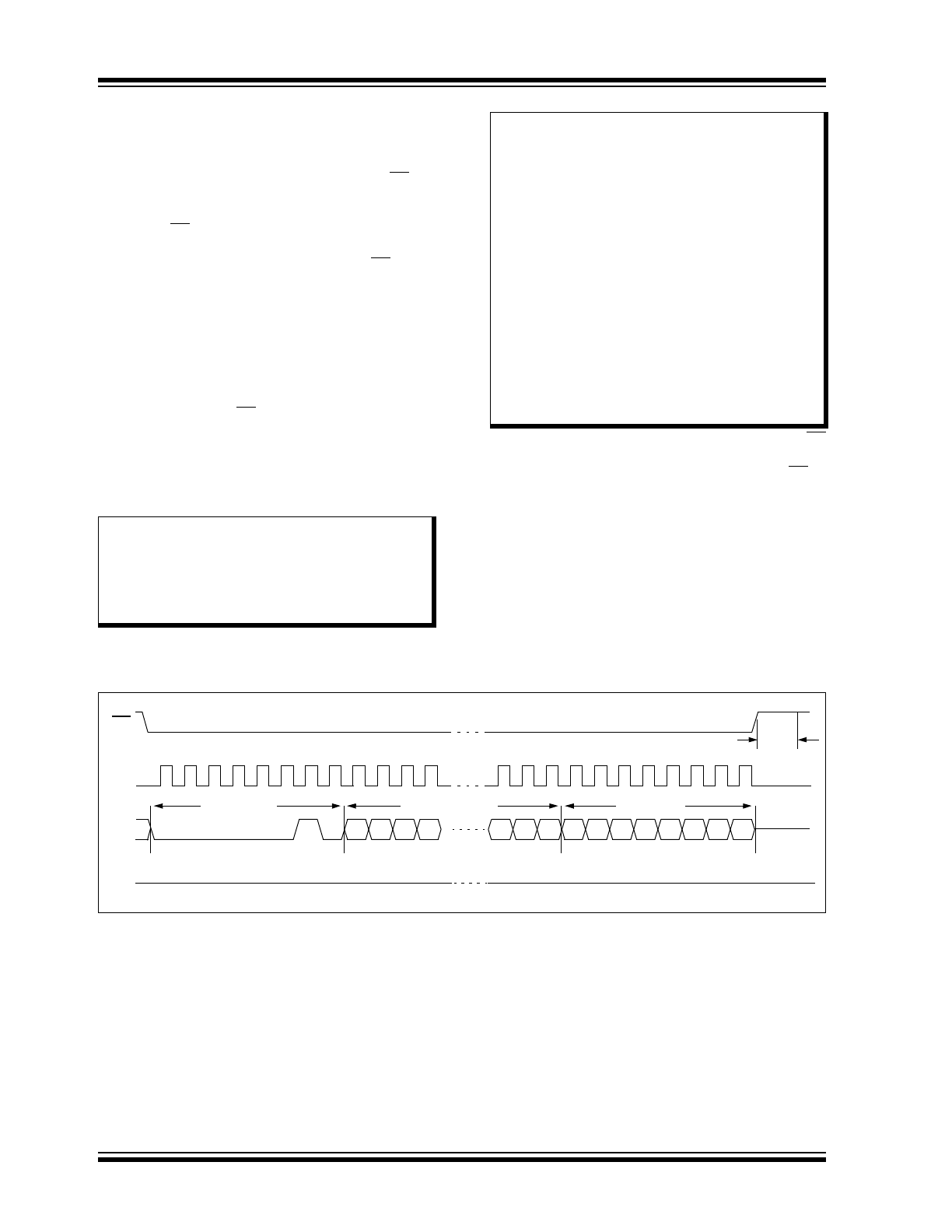

FIGURE 2-2:

BYTE WRITE SEQUENCE

Note:

When doing a write of less than 128 bytes
the data in the rest of the page is
refreshed along with the data bytes being
written. This will force the entire page to
endure a write cycle, for this reason
endurance is specified per page.

Note:

Page write operations are limited to
writing bytes within a single physical page,
regardless of the number of bytes
actually being written. Physical page
boundaries start at addresses that are
integer multiples of the page buffer size
(or ‘page size’), and end at addresses that
are integer multiples of page size – 1. If a
Page Write command attempts to write
across a physical page boundary, the
result is that the data wraps around to the
beginning of the current page (overwriting
data previously stored there), instead of
being written to the next page as might be
expected. It is, therefore, necessary for
the application software to prevent page
write operations that would attempt to
cross a page boundary.

SO

SI

CS

9 10 11

21 22 23 24 25 26 27 28 29 30 31

0

0

0

0

0

0

0

1

15 14 13 12

2

1

0 7

6

5

4

3

2

1

0

Instruction

16-bit Address

Data Byte

High-Impedance

SCK

0

2

3

4

5

6

7

1

8

Twc

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

 2014 Microchip Technology Inc.

DS20005265A-page 9

25LC512

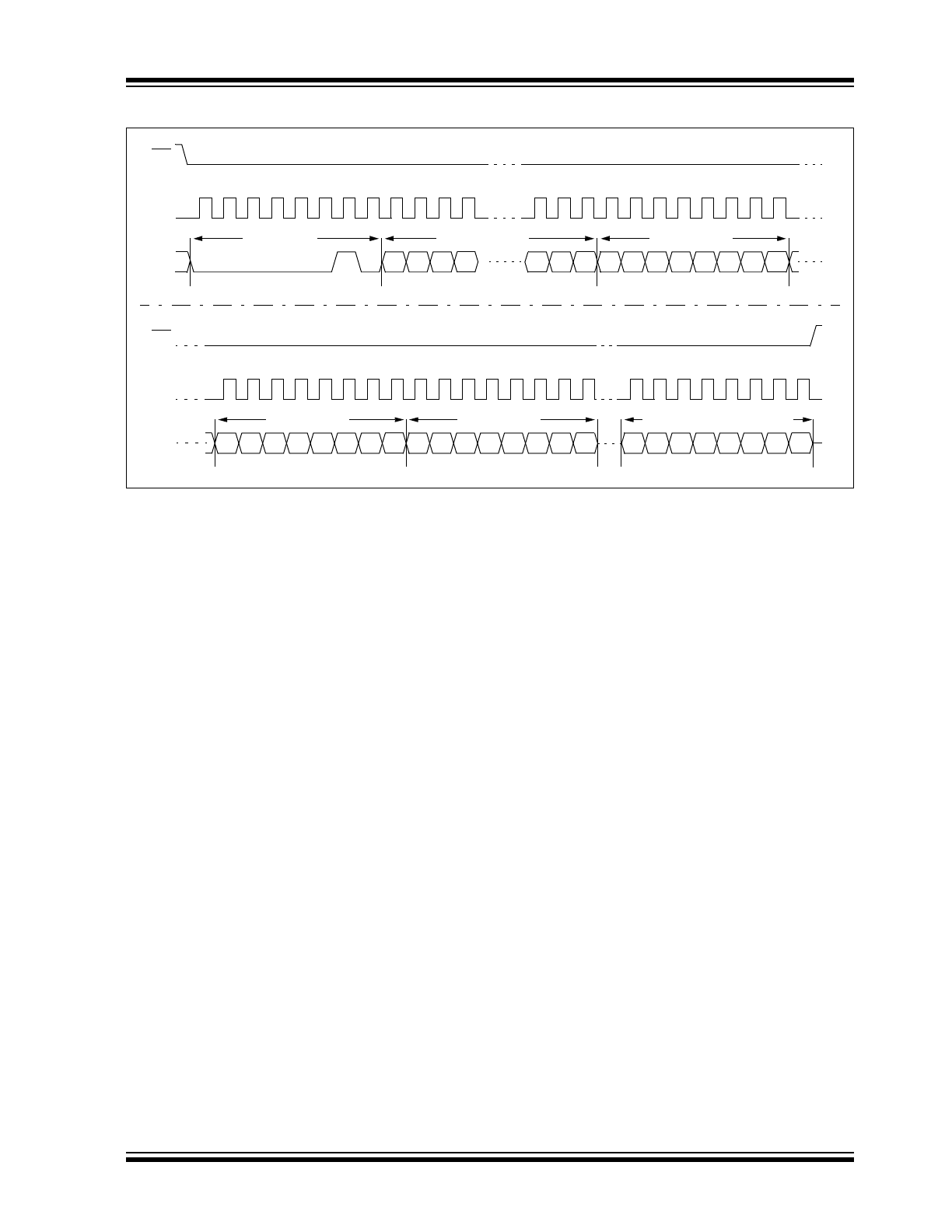

FIGURE 2-3:

PAGE WRITE SEQUENCE

SI

CS

9 10 11

21 22 23 24 25 26 27 28 29 30 31

0

0

0

0

0

0

0

1

15 14 13 12

2

1

0

7

6

5

4

3

2

1

0

Instruction

16-bit Address

Data Byte 1

SCK

0

2

3

4

5

6

7

1

8

SI

CS

41 42 43

46 47

7

6

5

4

3

2

1

0

Data Byte n (128 max)

SCK

32

34 35 36 37 38 39

33

40

7

6

5

4

3

2

1

0

Data Byte 3

7

6

5

4

3

2

1

0

Data Byte 2

44 45

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005265A-html.html
background image

25LC512

DS20005265A-page 10

 2014 Microchip Technology Inc.

2.3

Write Enable (WREN) and Write

Disable (WRDI)

The 25LC512 contains a write enable latch. See

Table 2-4

 for the Write-Protect Functionality Matrix.

This latch must be set before any write operation will be
completed internally. The WREN instruction will set the
latch, and the WRDI will reset the latch.
The following is a list of conditions under which the
write enable latch will be reset:

• Power-up
• WRDI instruction successfully executed
• WRSR instruction successfully executed
• WRITE instruction successfully executed
• PE instruction successfully executed
• SE instruction successfully executed
• CE instruction successfully executed

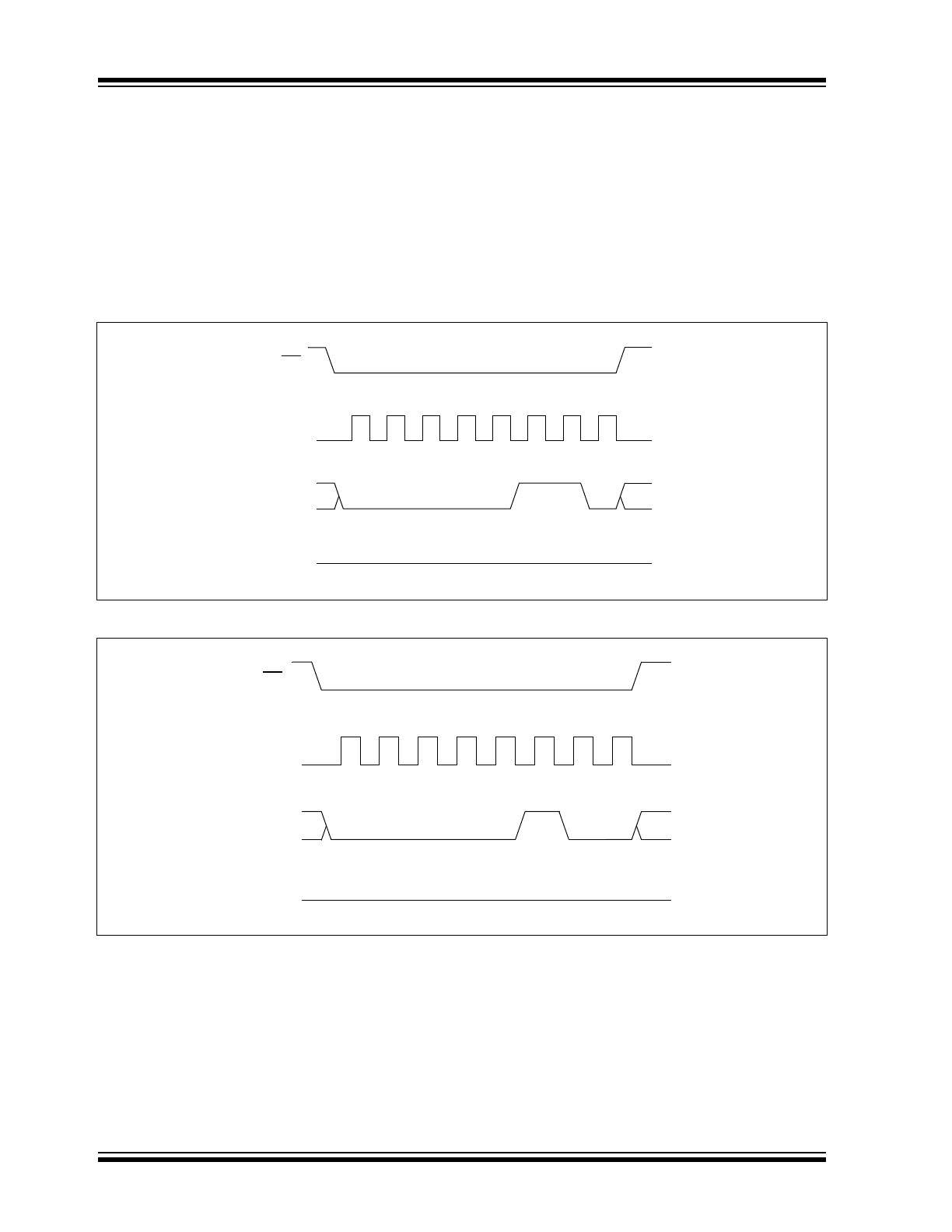

FIGURE 2-4:

WRITE ENABLE SEQUENCE (WREN)

FIGURE 2-5:

WRITE DISABLE SEQUENCE (WRDI)

SCK

0

2

3

4

5

6

7

1

SI

High-Impedance

SO

CS

0

1

0

0

0

0

0

1

SCK

0

2

3

4

5

6

7

1

SI

High-Impedance

SO

CS

0

1

0

0

0

0

0

10

Maker
Microchip Technology Inc.
Datasheet PDF Download
