25AA128/25LC128 Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

 2003-2011 Microchip Technology Inc.

DS21831E-page 1

25AA128/25LC128

Device Selection Table

Features:

• Max. Clock 10 MHz

• Low-power CMOS Technology

- Max. Write Current: 5 mA at 5.5V, 10 MHz

- Read Current: 5 mA at 5.5V, 10 MHz

- Standby Current: 5

A at 5.5V

• 16,384 x 8-bit Organization

• 64 Byte Page

• Self-timed Erase and Write Cycles (5 ms max.)

• Block Write Protection

- Protect none, 1/4, 1/2 or all of array

• Built-in Write Protection

- Power-on/off data protection circuitry

- Write enable latch

- Write-protect pin

• Sequential Read

• High Reliability

- Endurance: 1,000,000 erase/write cycles

- Data retention: > 200 years

- ESD protection: > 4000V

• Temperature Ranges Supported;

• Pb-free and RoHS Compliant

Pin Function Table

Description:

The Microchip Technology Inc. 25AA128/25LC128
(25XX128

*

) are 128k-bit Serial Electrically Erasable

PROMs. The memory is accessed via a simple Serial
Peripheral Interface (SPI) compatible serial bus. The
bus signals required are a clock input (SCK) plus sep-
arate data in (SI) and data out (SO) lines. Access to the
device is controlled through a Chip Select (CS) input.

Communication to the device can be paused via the
hold pin (HOLD). While the device is paused,
transitions on its inputs will be ignored, with the
exception of Chip Select, allowing the host to service
higher priority interrupts.

The 25XX128 is available in standard packages
including 8-lead PDIP, SOIJ and SOIC, and
advanced packaging including 8-lead DFN and 8-
lead TSSOP.

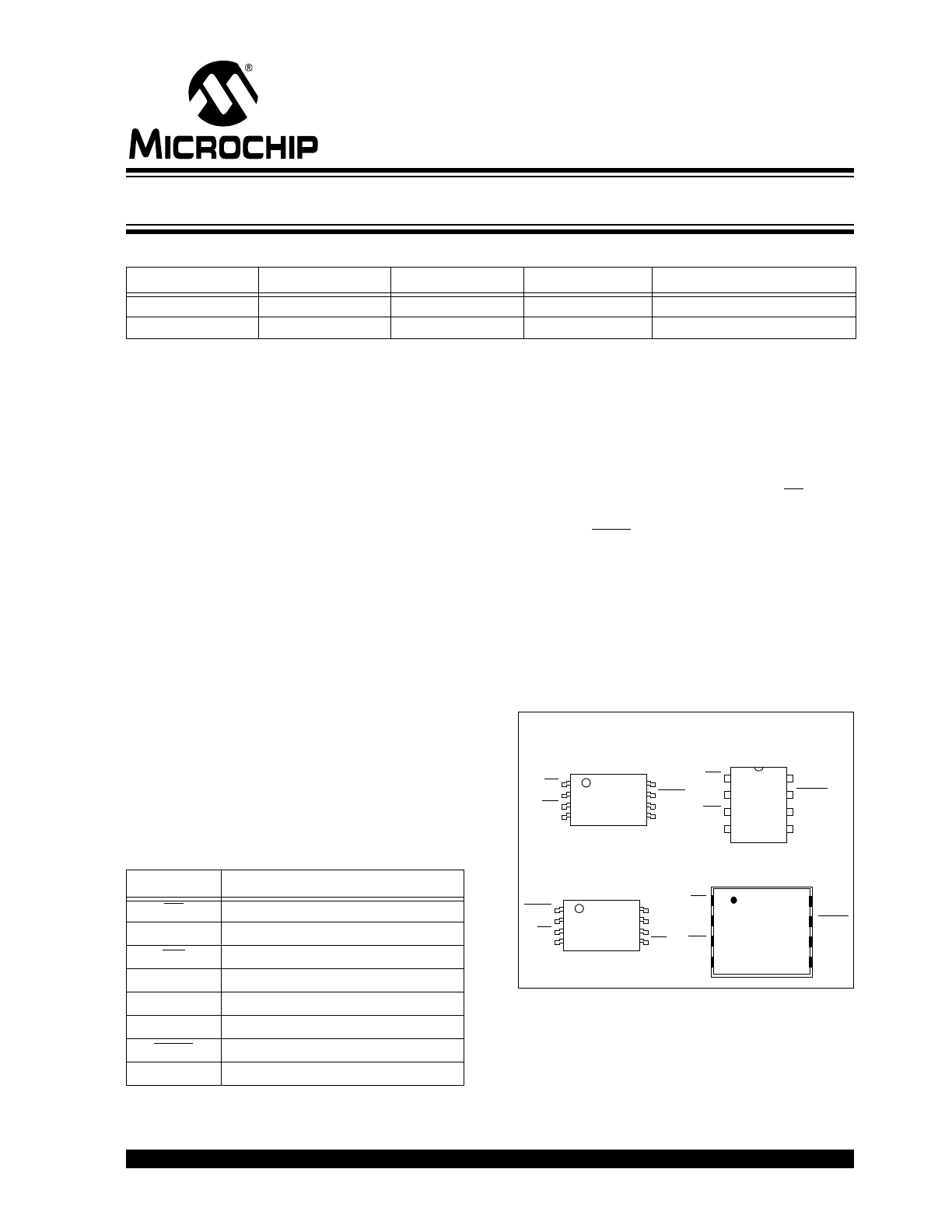

Package Types (not to scale)

Part Number

V

CC

 Range

Page Size

Temp. Ranges

Packages

25LC128

2.5-5.5V

64 Byte

I,E

P, SM, SN, ST, MF

25AA128

1.8-5.5V

64 Byte

I

P, SM, SN, ST, MF

- Industrial (I):

-40

C to +85C

- Automotive (E):

-40°C to +125°C

Name

Function

CS

Chip Select Input

SO

Serial Data Output

WP

Write-Protect

V

SS

Ground

SI

Serial Data Input

SCK

Serial Clock Input

HOLD

Hold Input

V

CC

Supply Voltage

25L

C12

8

CS

SO

WP

V

SS

1

2

3

4

8

7

6

5

V

CC

HOLD

SCK

SI

PDIP/SOIC/SOIJ

(P, SM, SN)

TSSOP

CS

SO

WP

V

SS

1
2
3
4

8
7
6
5

V

CC

HOLD
SCK
SI

(ST)

DFN

CS

SO

WP

V

SS

HOLD

SCK

SI

25L

C

1

28

5

6

7

8

4

3

2

1

V

CC

(MF)

X-Rotated TSSOP

HOLD

V

CC

CS

SO

1
2
3
4

8
7
6
5

SCK
SI
V

SS

WP

(X/ST)

128K SPI Bus Serial EEPROM

* 25XX128  is used in this document as a generic part number for the 25AA128, 25LC128 devices.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

25AA128/25LC128

DS21831E-page 2

 2003-2011 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................6.5V

All inputs and outputs w.r.t. V

SS

......................................................................................................... -0.6V to V

CC

 +1.0V

Storage temperature .................................................................................................................................-65°C to 150°C

Ambient temperature under bias ...............................................................................................................-40°C to 125°C

ESD protection on all pins .......................................................................................................................................... 4 kV

TABLE 1-1:

DC CHARACTERISTICS

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for an
extended period of time may affect device reliability.

DC CHARACTERISTICS

Industrial (I):

T

A

 = -40°C to +85°C

 V

CC

 = 1.8V to 5.5V

Automotive (E): T

A

 = -40°C to +125°C

 V

CC

 = 2.5V to 5.5V

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Test Conditions

D001

V

IH

1

High-level input
voltage

.7 V

CC

V

CC

+1

V

D002

V

IL

1

Low-level input
voltage

-0.3

0.3V

CC

V

V

CC

2.7V

D003

V

IL

2

-0.3

0.2V

CC

V

V

CC

 < 2.7V

D004

V

OL

Low-level output
voltage

0.4

V

I

OL

 = 2.1 mA

D005

V

OL

0.2

V

I

OL

 = 1.0 mA, V

CC

 < 2.5V

D006

V

OH

High-level output
voltage

V

CC

 -0.5

V

I

OH

 = -400

A

D007

I

LI

Input leakage current

±1

A

CS = V

CC

, V

IN

 = V

SS



TO

 V

CC

D008

I

LO

Output leakage
current

±1

A

CS = V

CC

, V

OUT

 = V

SS



TO

 V

CC

D009

C

INT

Internal Capacitance
(all inputs and
outputs)

7

pF

T

A

 = 25°C, CLK = 1.0 MHz,

V

CC

 = 5.0V (Note)

D010

I

CC

 Read

Operating Current


5

2.5

mA

mA

V

CC

 = 5.5V; F

CLK

 = 10.0 MHz;

SO = Open
V

CC

 = 2.5V; F

CLK

 = 5.0 MHz;

SO = Open

D011

I

CC

 Write


5
3

mA
mA

V

CC

 = 5.5V

V

CC

 = 2.5V

D012

I

CCS

Standby Current


5

1

A

A

CS = V

CC

 = 5.5V, Inputs tied to V

CC

 or

V

SS

, 125°C

CS = V

CC

 = 5.5V, Inputs tied to V

CC

 or

V

SS

, 85°C

Note:

This parameter is periodically sampled and not 100% tested.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

 2003-2011 Microchip Technology Inc.

DS21831E-page 3

25AA128/25LC128

TABLE 1-2:

AC CHARACTERISTICS

AC CHARACTERISTICS

Industrial (I):

T

A

 = -40°C to +85°C

V

CC

 = 1.8V to 5.5V

Automotive (E):

T

A

 = -40°C to +125°C

 V

CC

 = 2.5V to 5.5V

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Test Conditions

1

F

CLK

Clock Frequency



10

5
3

MHz
MHz
MHz

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

2

T

CSS

CS Setup Time

50

100
150



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

3

T

CSH

CS Hold Time

100
200
250



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

4

T

CSD

CS Disable Time

50

ns

5

Tsu

Data Setup Time

10
20
30



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

6

T

HD

Data Hold Time

20
40
50



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

7

T

R

CLK Rise Time

100

ns

(Note 1)

8

T

F

CLK Fall Time

100

ns

(Note 1)

9

T

HI

Clock High Time

50

100
150



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

10

T

LO

Clock Low Time

50

100
150



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

11

T

CLD

Clock Delay Time

50

ns

12

T

CLE

Clock Enable Time

50

ns

13

T

V

Output Valid from Clock
Low



50

100
160

ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

14

T

HO

Output Hold Time

0

ns

(Note 1)

15

T

DIS

Output Disable Time



40
80

160

ns
ns
ns

4.5V

Vcc  5.5V(Note 1)

2.5V

Vcc  4.5V(Note 1)

1.8V

Vcc  2.5V(Note 1)

16

T

HS

HOLD Setup Time

20
40
80



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

Note 1: This parameter is periodically sampled and not 100% tested.

2: T

WC

 begins on the rising edge of CS after a valid write sequence and ends when the internal write cycle is

complete.

3: This parameter is not tested but ensured by characterization. For endurance estimates in a specific

application, please consult the Total Endurance™ Model which can be obtained from Microchip’s web site:
www.microchip.com.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

25AA128/25LC128

DS21831E-page 4

 2003-2011 Microchip Technology Inc.

TABLE 1-3:

AC TEST CONDITIONS

17

T

HH

HOLD Hold Time

20
40
80



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

18

T

HZ

HOLD Low to Output
High-Z

30
60

160



ns
ns
ns

4.5V

Vcc  5.5V(Note 1)

2.5V

Vcc  4.5V(Note 1)

1.8V

Vcc  2.5V(Note 1)

19

T

HV

HOLD High to Output
Valid

30
60

160



ns
ns
ns

4.5V

Vcc  5.5V

2.5V

Vcc  4.5V

1.8V

Vcc  2.5V

20

T

WC

Internal Write Cycle Time

5

ms

(N

OTE

2)

21

Endurance

1,000,000

E/W

Cycles

Page mode, 25°C, V

CC

 = 5.5V (N

OTE

3)

TABLE 1-2:

AC CHARACTERISTICS (CONTINUED)

AC CHARACTERISTICS

Industrial (I):

T

A

 = -40°C to +85°C

V

CC

 = 1.8V to 5.5V

Automotive (E):

T

A

 = -40°C to +125°C

 V

CC

 = 2.5V to 5.5V

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Test Conditions

Note 1: This parameter is periodically sampled and not 100% tested.

2: T

WC

 begins on the rising edge of CS after a valid write sequence and ends when the internal write cycle is

complete.

3: This parameter is not tested but ensured by characterization. For endurance estimates in a specific

application, please consult the Total Endurance™ Model which can be obtained from Microchip’s web site:
www.microchip.com.

AC Waveform:

V

LO

 = 0.2V

V

H I

 = V

CC

 - 0.2V

(Note 1)

V

H I

 = 4.0V

(Note 2)

C

L

 = 50 pF

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1: For V

CC



 4.0V

2: For V

CC

 > 4.0V

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

 2003-2011 Microchip Technology Inc.

DS21831E-page 5

25AA128/25LC128

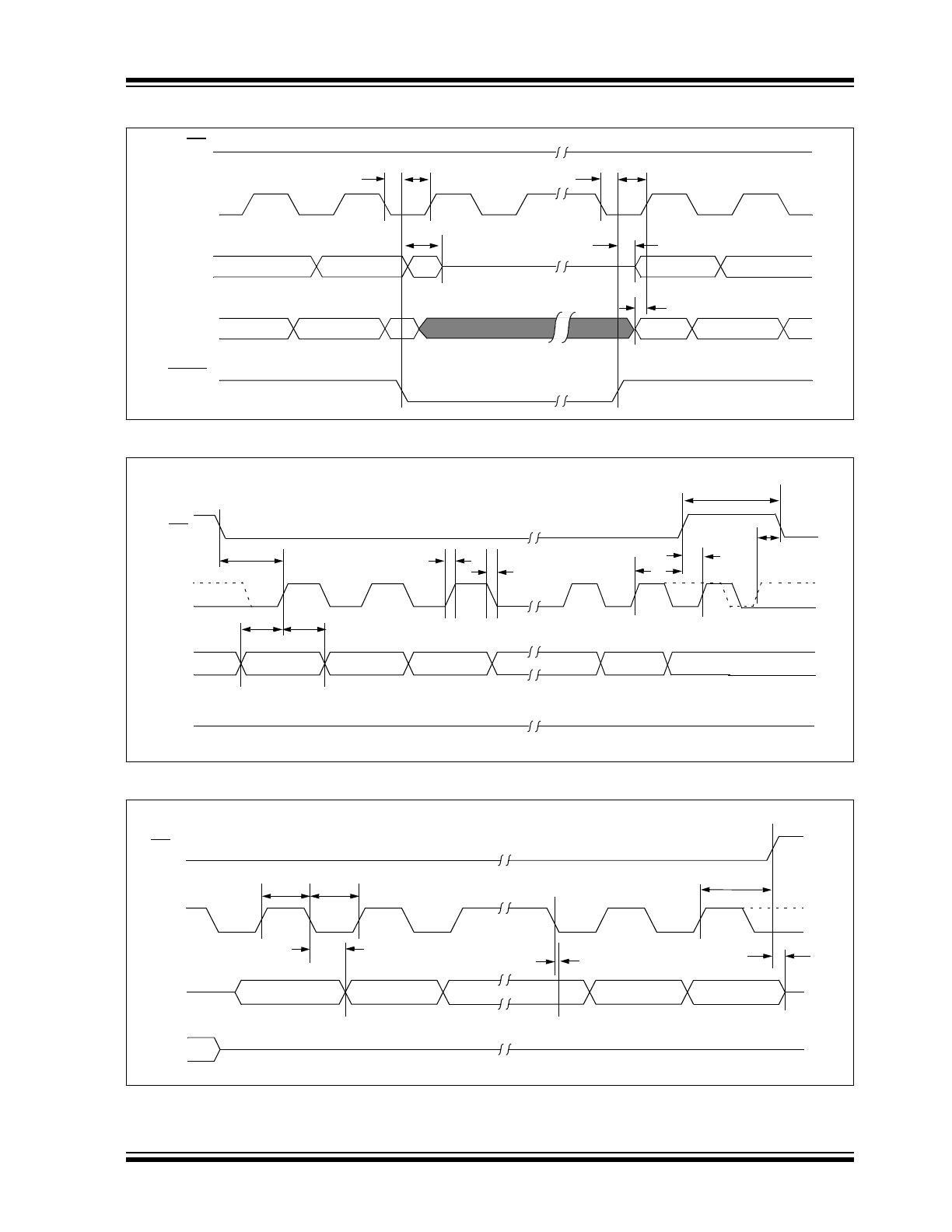

FIGURE 1-1:

HOLD TIMING

FIGURE 1-2:

SERIAL INPUT TIMING

FIGURE 1-3:

SERIAL OUTPUT TIMING

CS

SCK

SO

SI

HOLD

17

16

16

17

19

18

Don’t Care

5

High-Impedance

n + 2

n + 1

n

n - 1

n

n + 2

n + 1

n

n

n - 1

CS

SCK

SI

SO

6

5

8

7

11

3

LSB in

MSB in

High-Impedance

12

Mode 1,1

Mode 0,0

2

4

CS

SCK

SO

10

9

13

MSB out

ISB out

3

15

Don’t Care

SI

Mode 1,1

Mode 0,0

14

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

25AA128/25LC128

DS21831E-page 6

 2003-2011 Microchip Technology Inc.

2.0

FUNCTIONAL DESCRIPTION

2.1

Principles of Operation

The 25XX128 is a 16,384 byte Serial EEPROM
designed to interface directly with the Serial Peripheral
Interface (SPI) port of many of today’s popular
microcontroller families, including Microchip’s PIC

®

microcontrollers. It may also interface with microcon-
trollers that do not have a built-in SPI port by using dis-
crete I/O lines programmed properly in firmware to
match the SPI protocol.

The 25XX128 contains an 8-bit instruction register. The
device is accessed via the SI pin, with data being
clocked in on the rising edge of SCK. The CS pin must
be low and the HOLD pin must be high for the entire
operation.

Table 2-1 contains a list of the possible instruction
bytes and format for device operation. All instructions,
addresses and data are transferred MSB first, LSB last.

Data (SI) is sampled on the first rising edge of SCK
after CS goes low. If the clock line is shared with other
peripheral devices on the SPI bus, the user can assert
the HOLD input and place the 25XX128 in ‘HOLD’
mode. After releasing the HOLD pin, operation will
resume from the point when the HOLD was asserted.

2.2

Read Sequence

The device is selected by pulling CS low. The 8-bit
READ

 instruction is transmitted to the 25XX128 fol-

lowed by the 16-bit address, with two MSBs of the
address being “don’t care” bits. After the correct READ
instruction and address are sent, the data stored in the
memory at the selected address is shifted out on the
SO pin. The data stored in the memory at the next
address can be read sequentially by continuing to pro-
vide clock pulses. The internal Address Pointer is auto-
matically incremented to the next higher address after
each byte of data is shifted out. When the highest
address is reached (3FFFh), the address counter rolls
over to address 0000h, allowing the read cycle to be
continued indefinitely. The read operation is terminated
by raising the CS pin (Figure 2-1).

2.3

Write Sequence

Prior to any attempt to write data to the 25XX128, the
write enable latch must be set by issuing the WREN
instruction (Figure 2-4). This is done by setting CS low
and then clocking out the proper instruction into the
25XX128. After all eight bits of the instruction are
transmitted, the CS must be brought high to set the
write enable latch. If the write operation is initiated
immediately after the WREN instruction without CS
being brought high, the data will not be written to the
array because the write enable latch will not have been
properly set.

Once the write enable latch is set, the user may
proceed by setting the CS low, issuing a WRITE
instruction, followed by the 16-bit address, with two
MSBs of the address being “don’t care” bits, and then
the data to be written. Up to 64 bytes of data can be
sent to the device before a write cycle is necessary.
The only restriction is that all of the bytes must reside
in the same page.

For the data to be actually written to the array, the CS
must be brought high after the Least Significant bit (D0)
of the n

th

 data byte has been clocked in. If CS is

brought high at any other time, the write operation will
not be completed. Refer to Figure 2-2 and Figure 2-3
for more detailed illustrations on the byte write
sequence and the page write sequence respectively.
While the write is in progress, the STATUS register may
be read to check the status of the WPEN, WIP, WEL,
BP1 and BP0 bits (Figure 2-6). A read attempt of a
memory array location will not be possible during a
write cycle. When the write cycle is completed, the
write enable latch is reset.

Note:

Page write operations are limited to writing
bytes within a single physical page,
regardless of the number of bytes
actually being written. Physical page
boundaries start at addresses that are
integer multiples of the page buffer size (or
‘page size’) and, end at addresses that are
integer multiples of page size – 1. If a
Page Write command attempts to write
across a physical page boundary, the
result is that the data wraps around to the
beginning of the current page (overwriting
data previously stored there), instead of
being written to the next page as might be
expected. It is therefore necessary for the
application software to prevent page write
operations that would attempt to cross a
page boundary.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

 2003-2011 Microchip Technology Inc.

DS21831E-page 7

25AA128/25LC128

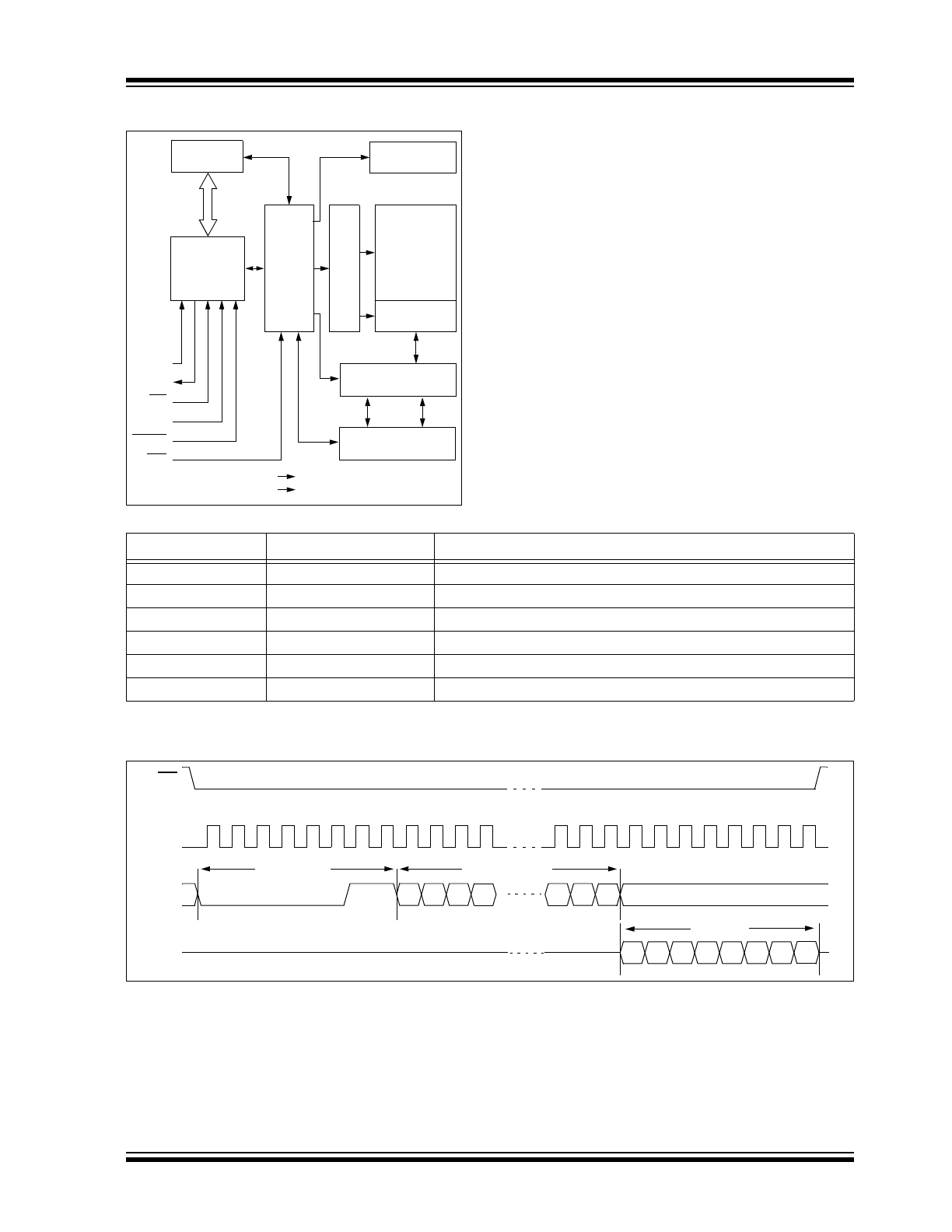

BLOCK DIAGRAM

FIGURE 2-1:

READ SEQUENCE

SI

SO

SCK

CS

HOLD

WP

STATUS

Register

I/O Control

Memory

Control

Logic

X

Dec

HV Generator

EEPROM

Array

Page Latches

Y Decoder

Sense Amp.
R/W Control

Logic

V

CC

V

SS

TABLE 2-1:

INSTRUCTION SET

Instruction Name

Instruction Format

Description

READ

0000 0011

Read data from memory array beginning at selected address

WRITE

0000 0010

Write data to memory array beginning at selected address

WRDI

0000 0100

Reset the write enable latch (disable write operations)

WREN

0000 0110

Set the write enable latch (enable write operations)

RDSR

0000 0101

Read STATUS register

WRSR

0000 0001

Write STATUS register

SO

SI

SCK

CS

0

2

3

4

5

6

7

8

9 10 11

21 22 23 24 25 26 27 28 29 30 31

1

0

1

0

0

0

0

0

1

15 14 13 12

2

1

0

7

6

5

4

3

2

1

0

Instruction

16-bit Address

Data Out

High-Impedance

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

25AA128/25LC128

DS21831E-page 8

 2003-2011 Microchip Technology Inc.

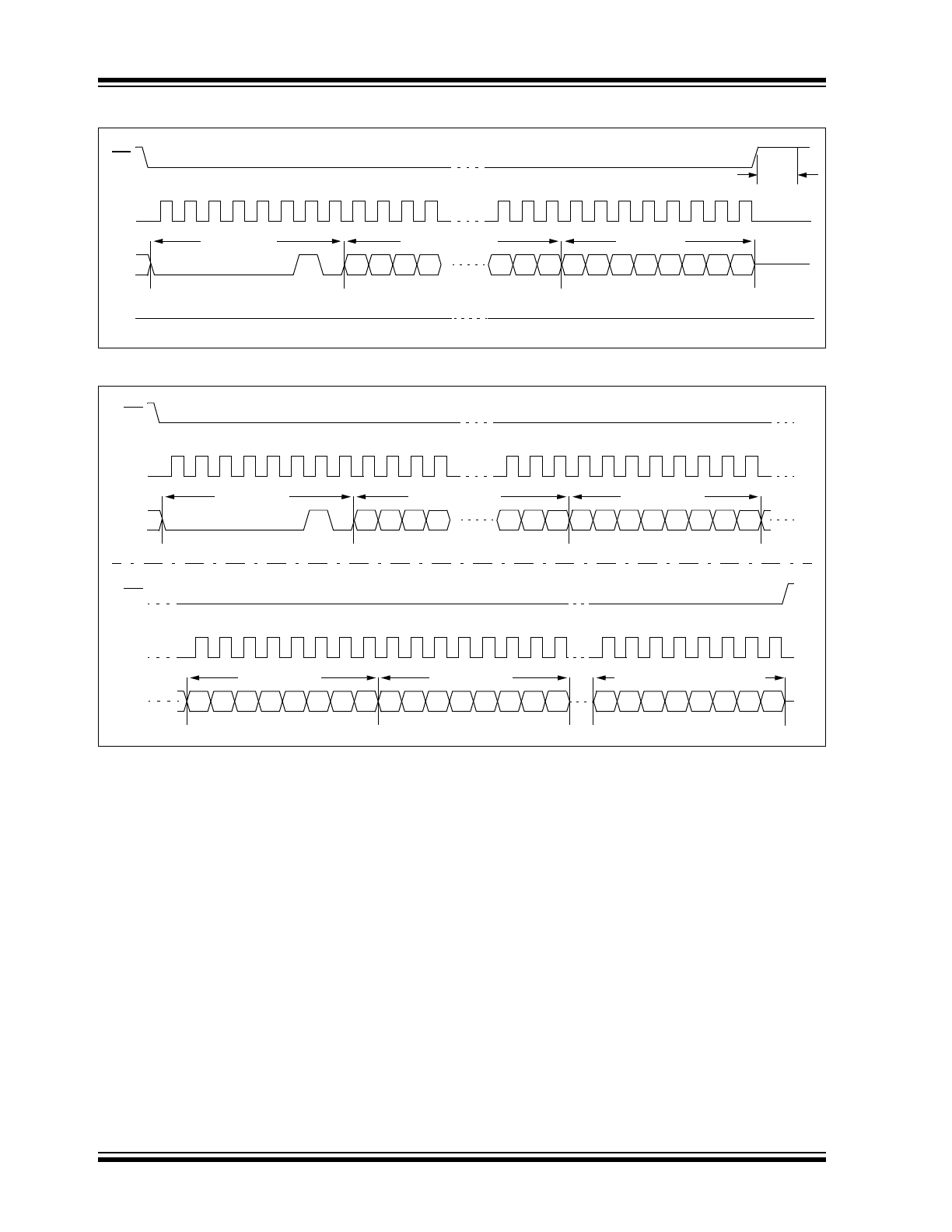

FIGURE 2-2:

BYTE WRITE SEQUENCE

FIGURE 2-3:

PAGE WRITE SEQUENCE

SO

SI

CS

9 10 11

21 22 23 24 25 26 27 28 29 30 31

0

0

0

0

0

0

0

1

15 14 13 12

2

1

0

7

6

5

4

3

2

1

0

Instruction

16-bit Address

Data Byte

High-Impedance

SCK

0

2

3

4

5

6

7

1

8

Twc

SI

CS

9 10 11

21 22 23 24 25 26 27 28 29 30 31

0

0

0

0

0

0

0

1

15 14 13 12

2

1

0

7

6

5

4

3

2

1

0

Instruction

16-bit Address

Data Byte 1

SCK

0

2

3

4

5

6

7

1

8

SI

CS

41 42 43

46 47

7

6

5

4

3

2

1

0

Data Byte n (64 max)

SCK

32

34 35 36 37 38 39

33

40

7

6

5

4

3

2

1

0

Data Byte 3

7

6

5

4

3

2

1

0

Data Byte 2

44 45

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

 2003-2011 Microchip Technology Inc.

DS21831E-page 9

25AA128/25LC128

2.4

Write Enable (WREN) and Write
Disable (WRDI)

The 25XX128 contains a write enable latch.   See
Table 2-4 for the write-protect functionality matrix. This
latch must be set before any write operation will be
completed internally. The WREN instruction will set the
latch, and the WRDI will reset the latch.

The following is a list of conditions under which the
write enable latch will be reset:

• Power-up

• WRDI instruction successfully executed

• WRSR instruction successfully executed

• WRITE instruction successfully executed

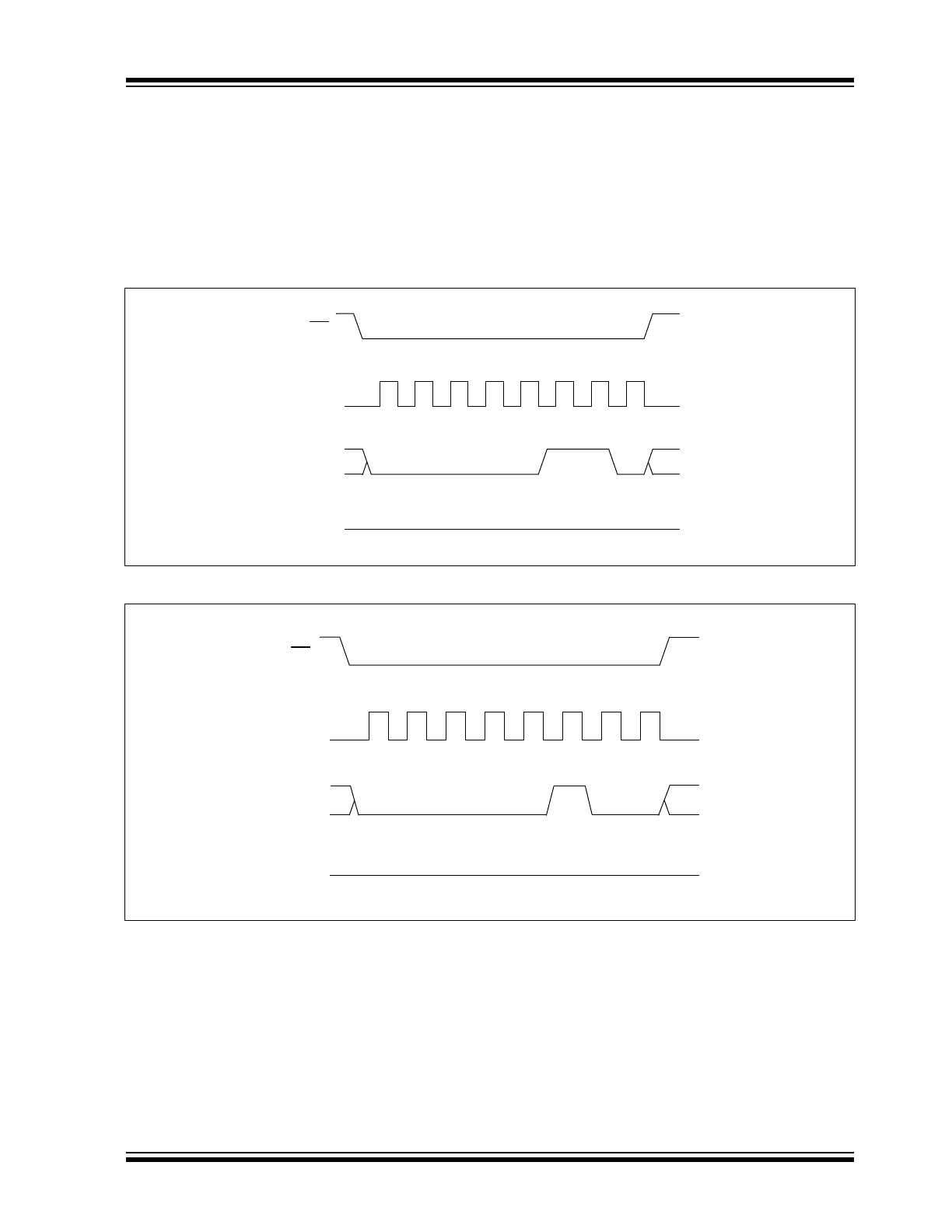

FIGURE 2-4:

WRITE ENABLE SEQUENCE (WREN)

FIGURE 2-5:

WRITE DISABLE SEQUENCE (WRDI)

SCK

0

2

3

4

5

6

7

1

SI

High-Impedance

SO

CS

0

1

0

0

0

0

0

1

SCK

0

2

3

4

5

6

7

1

SI

High-Impedance

SO

CS

0

1

0

0

0

0

0

0

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21831E-html.html
background image

25AA128/25LC128

DS21831E-page 10

 2003-2011 Microchip Technology Inc.

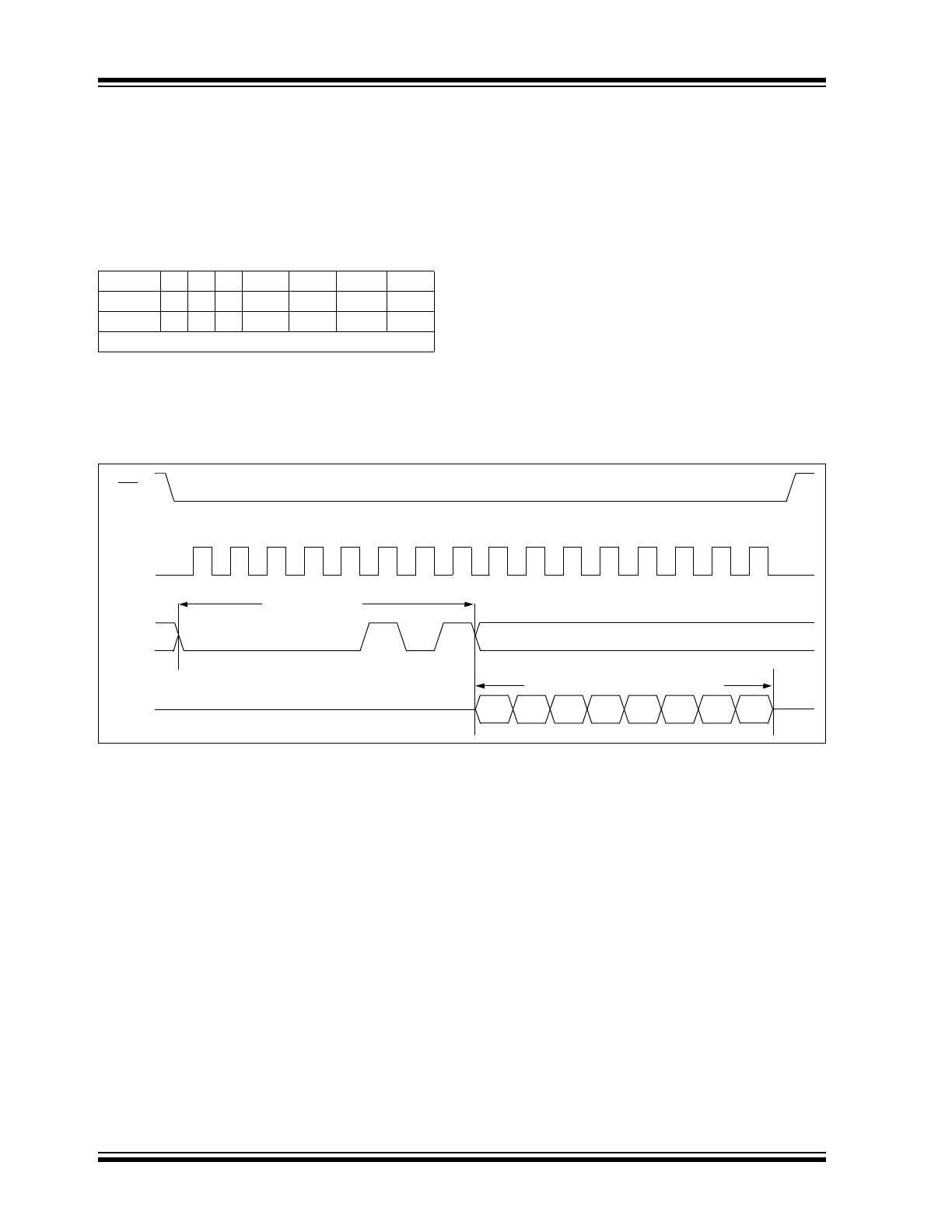

2.5

Read Status Register Instruction
(RDSR)

The Read Status Register instruction (RDSR) provides
access to the STATUS register. The STATUS register
may be read at any time, even during a write cycle. The
STATUS register is formatted as follows:

TABLE 2-2:

STATUS REGISTER

The Write-In-Process (WIP) bit indicates whether the
25XX128 is busy with a write operation. When set to a

1

’, a write is in progress, when set to a ‘

0

’, no write is

in progress. This bit is read-only.

The Write Enable Latch (WEL) bit indicates the status
of the write enable latch and is read-only. When set to
a ‘

1

’, the latch allows writes to the array, when set to a

0

’, the latch prohibits writes to the array. The state of

this bit can always be updated via the WREN or WRDI
commands regardless of the state of write protection
on the STATUS register. These commands are shown
in Figure 2-4 and Figure 2-5.

The  Block Protection (BP0 and BP1) bits indicate
which blocks are currently write-protected. These bits
are set by the user issuing the WRSR instruction. These
bits are nonvolatile, and are shown in Table 2-3.

See Figure 2-6 for the RDSR timing sequence.

FIGURE 2-6:

READ STATUS REGISTER TIMING SEQUENCE (RDSR)

7

6

5

4

3

2

1

0

W/R

W/R

W/R

R

R

WPEN

X

X

X

BP1

BP0

WEL

WIP

W/R = writable/readable.  R = read-only.

SO

SI

CS

9

10

11

12

13

14

15

1

1

0

0

0

0

0

0

7

6

5

4

2

1

0

Instruction

Data from STATUS Register

High-Impedance

SCK

0

2

3

4

5

6

7

1

8

3

Maker
Microchip Technology Inc.
Datasheet PDF Download
