23A1024/23LC1024 Data Sheet

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

 2012-2015 Microchip Technology Inc.

DS20005142C-page 1

23A1024/23LC1024

Device Selection Table

Features

• SPI Bus Interface:

- SPI compatible

- SDI (dual) and SQI (quad) compatible

- 20 MHz Clock rate for all modes

• Low-Power CMOS Technology:

- Read Current: 3 mA at 5.5V, 20 MHz

- Standby Current: 4

A at +85°C

• Unlimited Read and Write Cycles

• Zero Write Time

• 128K x 8-bit Organization:

- 32-byte page

• Byte, Page and Sequential Mode for Reads and

Writes

• High Reliability

• Temperature Ranges Supported:

• RoHS Compliant

• 8 Lead SOIC, TSSOP and PDIP Packages

Pin Function Table

Description

The Microchip Technology Inc. 23A1024/23LC1024
are 1 Mbit Serial SRAM devices. The memory is
accessed via a simple Serial Peripheral Interface (SPI)
compatible serial bus. The bus signals required are a
clock input (SCK), a data in line (SI) and a data out line
(SO). Access to the device is controlled through a Chip
Select (CS) input. Additionally, SDI (Serial Dual
Interface) and SQI (Serial Quad Interface) is supported
if your application needs faster data rates.

This device also supports unlimited reads and writes to
the memory array.

The 23A1024/23LC1024 is available in standard
packages including 8-lead SOIC, PDIP and advanced
8-lead TSSOP.

Package Types (not to scale)

Part

Number

V

CC

 Range

Temp.

Ranges

Dual I/O

(SDI)

Quad I/O

(SQI)

Max. Clock

Frequency

Packages

23A1024

1.7-2.2V

I, E

Yes

Yes

20 MHz

(1)

SN, ST, P

23LC1024

2.5-5.5V

I, E

Yes

Yes

20 MHz

(1)

SN, ST, P

Note 1:

16 MHz for E-temp.

- Industrial (I):

-40

C to +85C

- Automotive (E):

-40

C to +125C

Name

Function

CS

Chip Select Input Pin

SO/SIO1

Serial Output/SDI/SQI Pin

SIO2

SQI Pin

V

SS

Ground Pin

SI/SIO0

Serial Input/SDI/SQI Pin

SCK

Serial Clock Pin

HOLD/SIO3

Hold/SQI Pin

V

CC

Power Supply Pin

CS

SO/SIO1

SIO2

V

SS

V

CC

HOLD/SIO3

SCK

SI/SIO0

1

2

3

4

8

7

6

5

SOIC/TSSOP/PDIP

1Mbit SPI Serial SRAM with SDI and SQI Interface

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

23A1024/23LC1024

DS20005142C-page 2

 2012-2015 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................6.5V

All Inputs and Outputs w.r.t. V

SS

........................................................................................................ -0.3V to V

CC

 +0.3V

Storage Temperature...............................................................................................................................-65°C to +150°C

Ambient Temperature under Bias............................................................................................................-40°C to +125°C

TABLE 1-1:

DC CHARACTERISTICS

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at those or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for an
extended period of time may affect device reliability.

DC CHARACTERISTICS

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E):  T

A

 = -40°C to +125°C

Param.

No.

Sym.

Characteristic

Min.

Typ.

(3)

Max.

Units

Test Conditions

D001

V

CC

Supply Voltage

1.7

2.2

V

23A1024

2.5

5.5

V

23LC1024

D002

V

IH

High-level Input
Voltage

0.7V

CC

V

CC

 + 0.3

V

D003

V

IL

Low-level Input
Voltage

-0.3

0.2 V

CC

V

23A1024

0.1 V

CC

V

23LC1024

D004

V

OL

Low-level Output
Voltage

0.2

V

I

OL

 = 1 mA

D005

V

OH

High-level Output
Voltage

V

CC

 - 0.5

V

I

OH

 = -400

A

D006

I

LI

Input Leakage
Current

±1

A

CS = V

CC

, V

IN

 = V

SS

 OR V

CC

D007

I

LO

Output Leakage
Current

±1

A

CS = V

CC

, V

OUT

 = V

SS

 OR V

CC

D008

I

CC

 Read Operating Current

1

10

mA

F

CLK

 = 20 MHz; SO = O, 2.2V

3

10

mA

F

CLK

 = 20 MHz; SO = O, 5.5V

D009

I

CCS

Standby Current

1

4

A

CS = V

CC

 = 2.2V, Inputs tied to

V

CC

 or V

SS

, I-Temp

12

A

CS = V

CC

 = 2.2V, Inputs tied to

V

CC

 or V

SS

, E-Temp

4

10

A

CS = V

CC

 = 5.5V, Inputs tied to

V

CC

 or V

SS

, I-Temp

20

A

CS = V

CC

 = 5.5V, Inputs tied to

V

CC

 or V

SS

, E-Temp

D010

C

INT

Input Capacitance

7

pF

V

CC

= 5.0V, f = 1 MHz, T

A

= 25°C

(

Note 1

)

D011

V

DR

RAM Data Retention
Voltage

1.0

V

(

Note 2

)

Note 1:

This parameter is periodically sampled and not 100% tested.

2:

This is the limit to which V

CC

 can be lowered without losing RAM data. This parameter is periodically

sampled and not 100% tested.

3:

Typical measurements taken at room temperature.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

 2012-2015 Microchip Technology Inc.

DS20005142C-page 3

23A1024/23LC1024

TABLE 1-3:

AC TEST CONDITIONS

TABLE 1-2:

AC CHARACTERISTICS

AC CHARACTERISTICS

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E):  T

A

 = -40°C to +125°C

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Test Conditions

1

F

CLK

Clock Frequency

20

MHz

I-Temp

16

MHz

E-Temp

2

T

CSS

CS Setup Time

25

ns

I-Temp

32

ns

E-Temp

3

T

CSH

CS Hold Time

50

ns

4

T

CSD

CS Disable Time

25

ns

I-Temp

32

ns

E-Temp

5

T

SU

Data Setup Time

10

ns

6

T

HD

Data Hold Time

10

ns

7

T

R

CLK Rise Time

20

ns

(

Note 1

)

8

T

F

CLK Fall Time

20

ns

(

Note 1

)

9

T

HI

Clock High Time

25

ns

I-Temp

32

ns

E-Temp

10

T

LO

Clock Low Time

25

ns

I-Temp

32

ns

E-Temp

11

T

CLD

Clock Delay Time

25

ns

I-Temp

32

ns

E-Temp

12

T

V

Output Valid from Clock Low

25

ns

I-Temp

32

ns

E-Temp

13

T

HO

Output Hold Time

0

ns

(

Note 1

)

14

T

DIS

Output Disable Time

20

ns

15

T

HS

HOLD Setup Time

10

ns

16

T

HH

HOLD Hold Time

10

ns

17

T

HZ

HOLD Low to Output High-Z

10

ns

18

T

HV

HOLD High to Output Valid

50

ns

Note 1:

This parameter is periodically sampled and not 100% tested.

AC Waveform

Input Pulse Level

0.1 V

CC

 to 0.9 V

CC



Input Rise/Fall Time

5 ns

C

L

 = 30 pF

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

23A1024/23LC1024

DS20005142C-page 4

 2012-2015 Microchip Technology Inc.

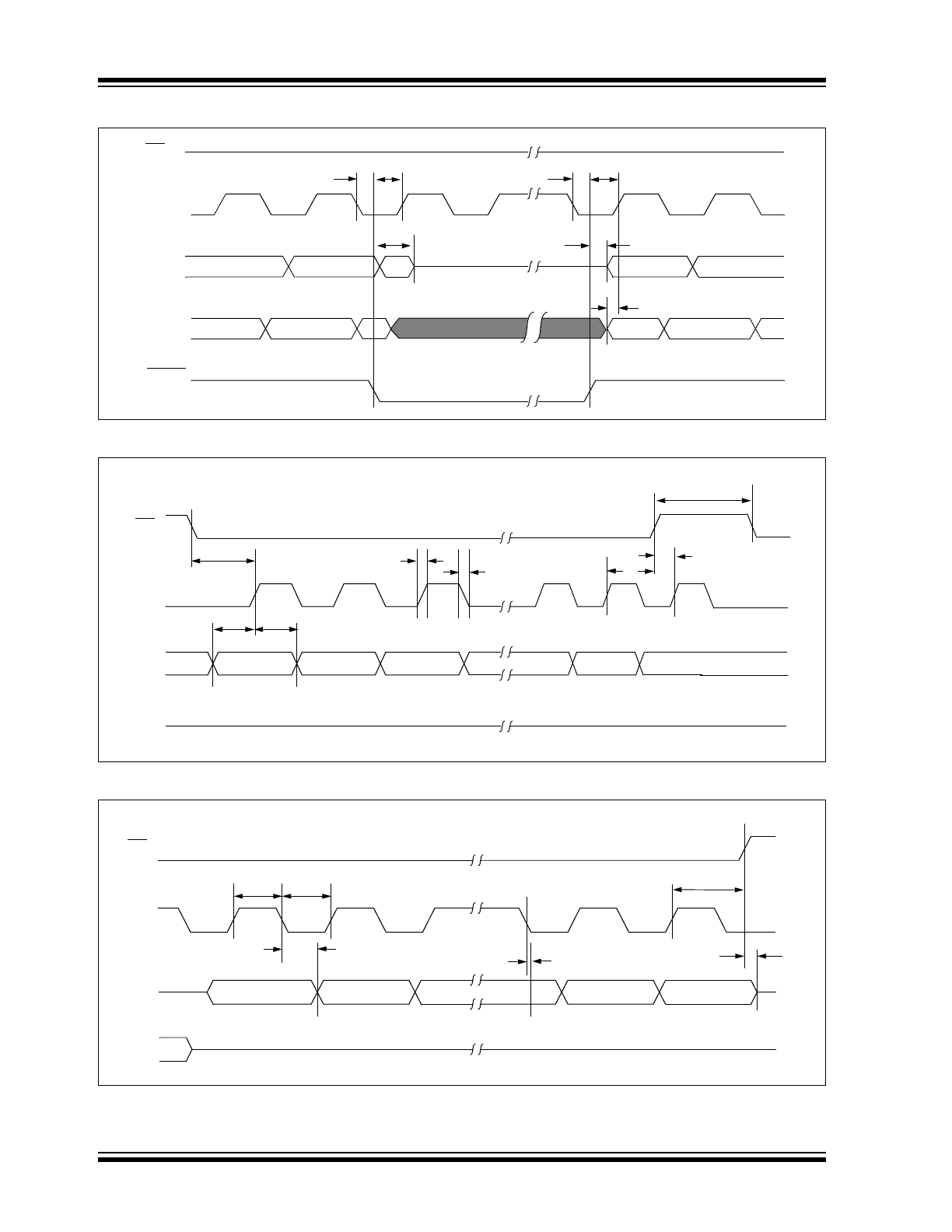

FIGURE 1-1:

HOLD TIMING

FIGURE 1-2:

SERIAL INPUT TIMING (SPI MODE)

FIGURE 1-3:

SERIAL OUTPUT TIMING (SPI MODE)

CS

SCK

SO

SI

HOLD

16

15

15

16

18

17

Don’t Care

5

High-Impedance

n + 2

n + 1

n

n - 1

n

n + 2

n + 1

n

n

n - 1

CS

SCK

SI

SO

6

5

8

7

11

3

LSB in

MSB in

High-Impedance

2

4

CS

SCK

SO

10

9

12

MSB out

LSB out

3

14

Don’t Care

SI

13

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

 2012-2015 Microchip Technology Inc.

DS20005142C-page 5

23A1024/23LC1024

2.0

FUNCTIONAL DESCRIPTION

2.1

Principles of Operation

The 23A1024/23LC1024 is an 1 Mbit Serial SRAM
designed to interface directly with the Serial Peripheral
Interface (SPI) port of many of today’s popular
microcontroller families, including Microchip’s PIC

®

microcontrollers. It may also interface with
microcontrollers that do not have a built-in SPI port by
using discrete I/O lines programmed properly in
firmware to match the SPI protocol. In addition, the
23A1024/23LC1024 is capable of operation in SDI and
SQI modes. In SDI mode, the SI and SO data lines are
bidirectional, allowing the transfer of two bits per clock
pulse. In SQI mode, two additional data lines enable
the transfer of four bits per clock pulse.

The 23A1024/23LC1024 contains an 8-bit instruction
register. The device is accessed via the SI pin, with
data being clocked in on the rising edge of SCK. The
CS pin must be low for the entire operation.

Table 2-1

 contains a list of the possible instruction

bytes and format for device operation. All instructions,
addresses and data are transferred MSB first, LSB last.

2.2

Modes of Operation

The 23X1024 has three modes of operation that are
selected by setting bits 7 and 6 in the MODE register.
The modes of operation are Byte, Page and Burst.

Byte Operation – is selected when bits 7 and 6 in the
MODE register are set to 00. In this mode, the
read/write operations are limited to only one byte. The
Command followed by the 24-bit address is clocked into
the device and the data to/from the device is transferred

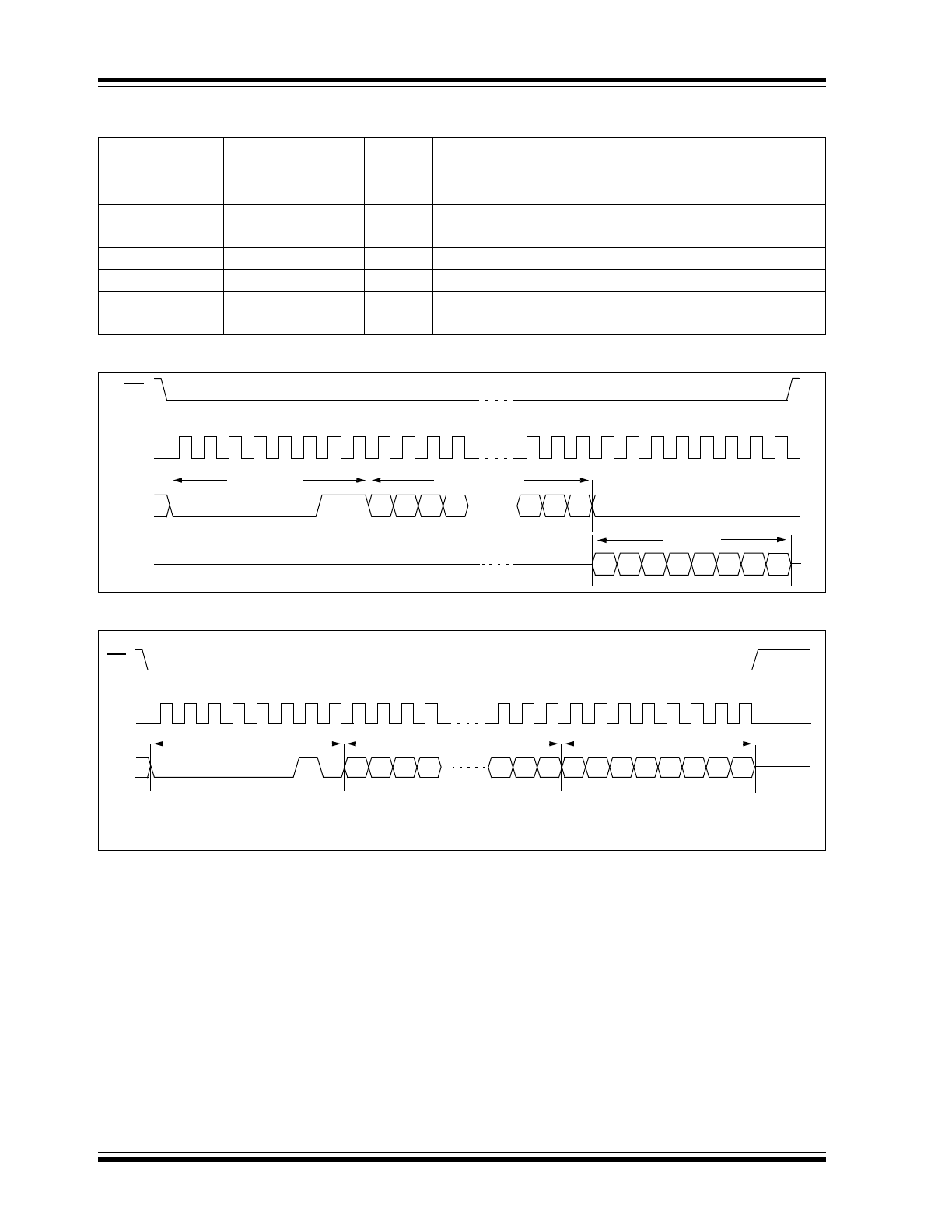

on the next eight clocks (

Figure 2-1

Figure 2-2

).

Page Operation – is selected when bits 7 and 6 in the
MODE register are set to 10. The 23X1024 has
4096 pages of 32 bytes. In this mode, the read and write
operations are limited to within the addressed page (the
address is automatically incremented internally). If the
data being read or written reaches the page boundary,
then the internal address counter will increment to the

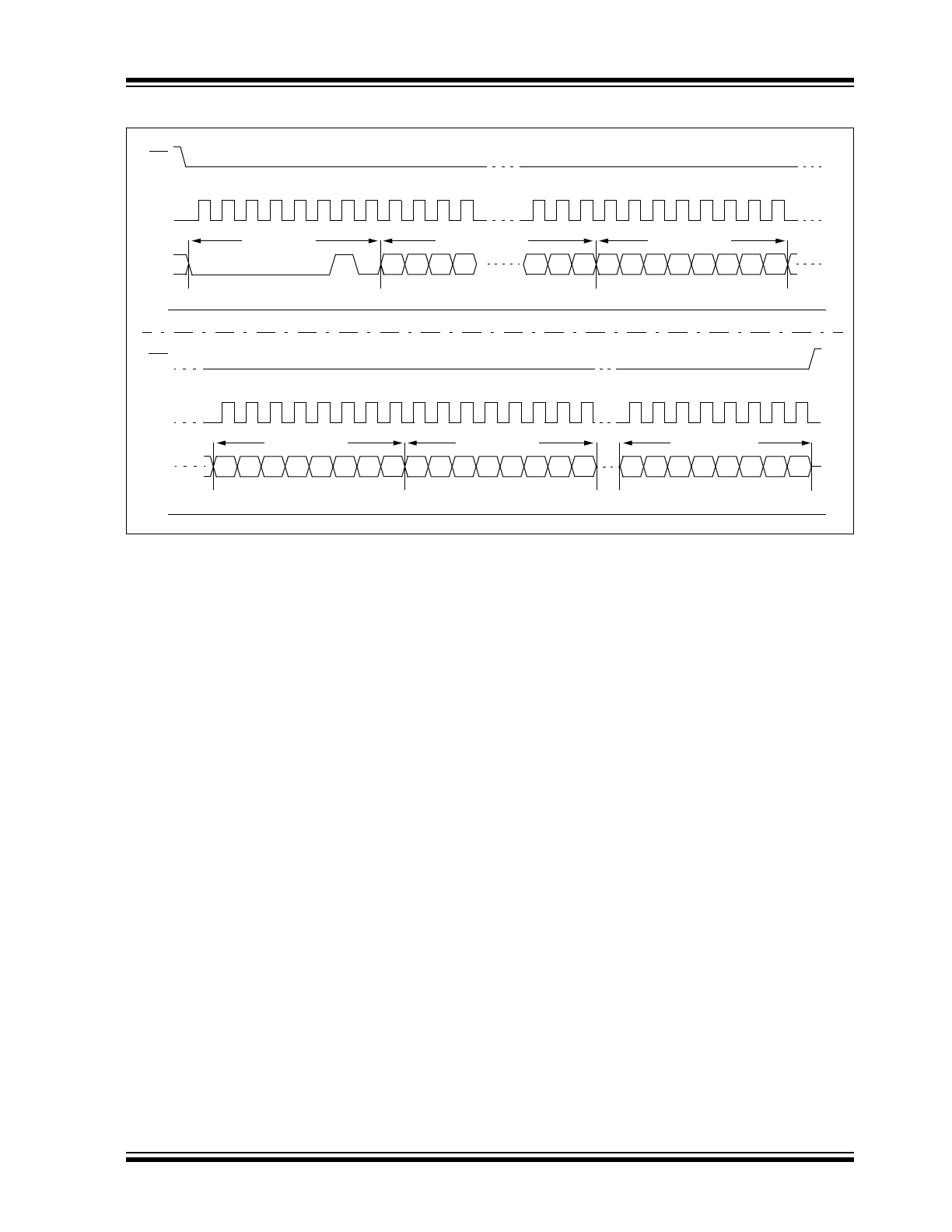

start of the page (

Figure 2-3

Figure 2-4

).

Sequential Operation – is selected when bits 7 and 6
in the MODE register are set to 01. Sequential
operation allows the entire array to be written to and
read from. The internal address counter is automatically
incremented and page boundaries are ignored. When
the internal address counter reaches the end of the
array, the address counter will roll over to 0x00000
(

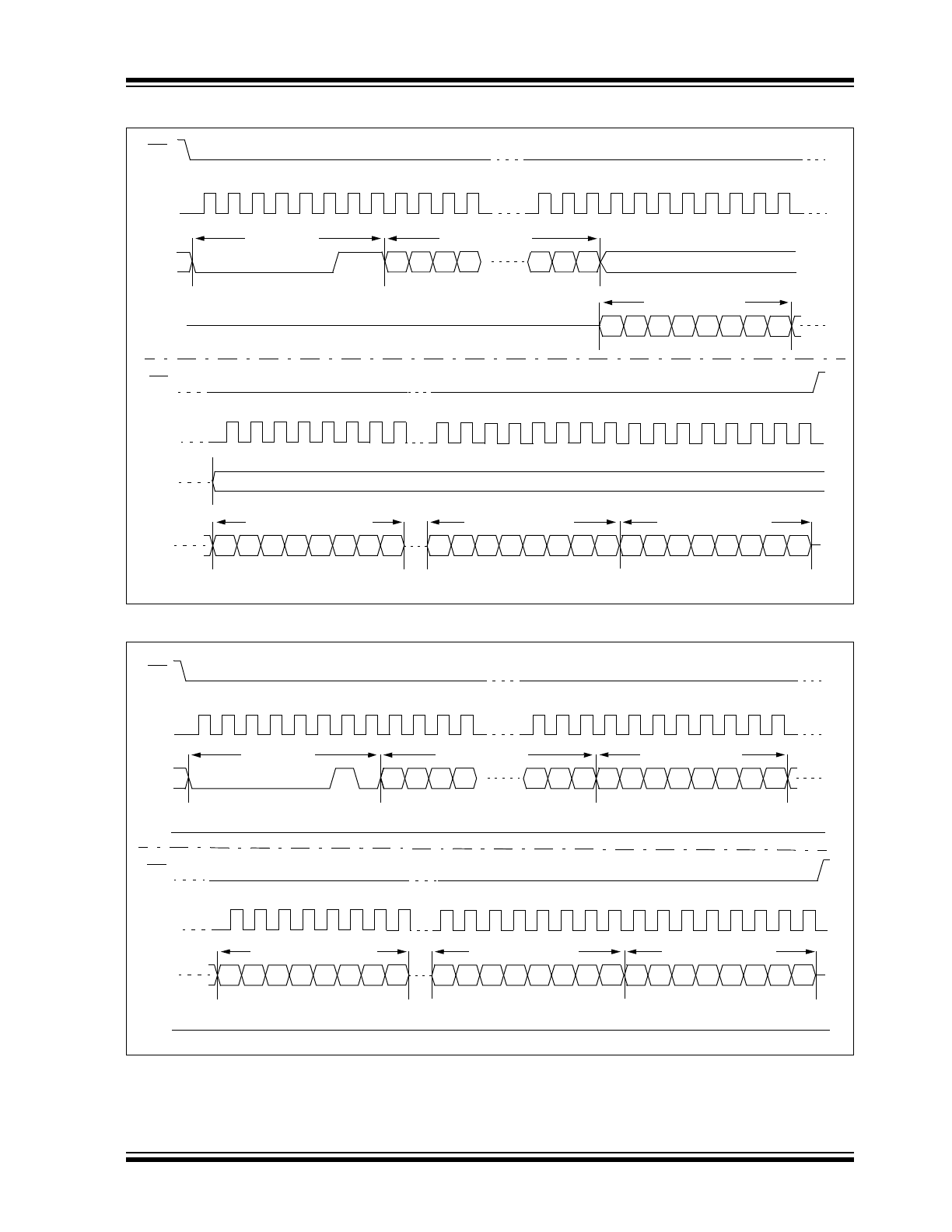

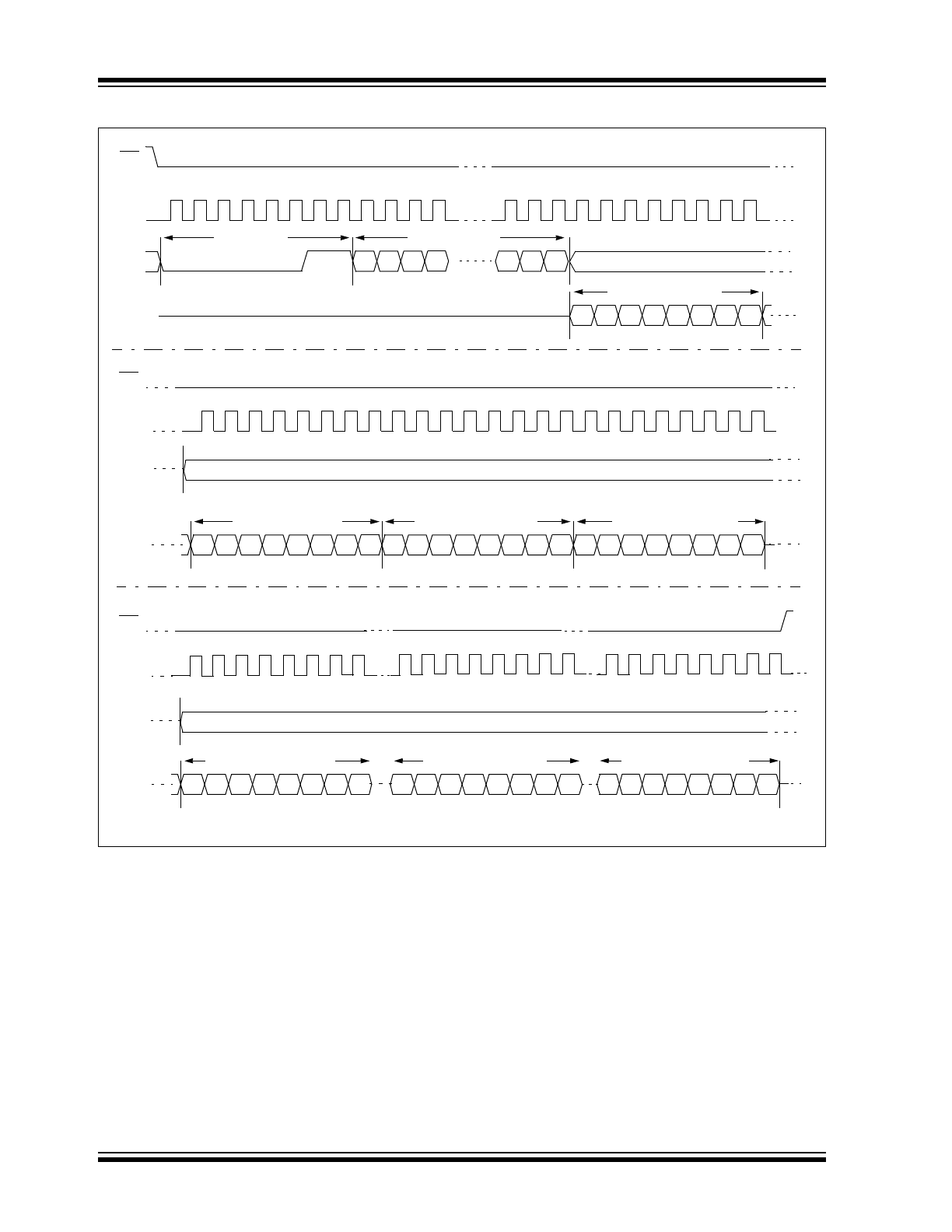

Figure 2-5

Figure 2-6

).

2.3

Read Sequence

The device is selected by pulling CS low. The 8-bit
READ

 instruction is transmitted to the

23A1024/23LC1024 followed by the 24-bit address,
with the first seven MSB’s of the address being “don’t
care” bits. After the correct READ instruction and
address are sent, the data stored in the memory at the
selected address is shifted out on the SO pin.

If operating in Sequential mode, the data stored in the
memory at the next address can be read sequentially
by continuing to provide clock pulses. The internal
Address Pointer is automatically incremented to the
next higher address after each byte of data is shifted
out. When the highest address is reached (1FFFFh),
the address counter rolls over to address 00000h,
allowing the read cycle to be continued indefinitely.
The read operation is terminated by raising the CS
pin.

2.4

Write Sequence

Prior to any attempt to write data to the
23A1024/23LC1024, the device must be selected by
bringing CS low.

Once the device is selected, the Write command can
be started by issuing a WRITE instruction, followed by
the 24-bit address, with the first seven MSB’s of the
address being “don’t care” bits, and then the data to be
written. A write is terminated by the CS being brought
high.

If operating in Page mode, after the initial data byte is
shifted in, additional bytes can be shifted into the
device. The Address Pointer is automatically
incremented. This operation can continue for the entire
page (32 bytes) before data will start to be overwritten.

If operating in Sequential mode, after the initial data
byte is shifted in, additional bytes can be clocked into
the device. The internal Address Pointer is
automatically incremented. When the Address Pointer
reaches the highest address (1FFFFh), the address
counter rolls over to (00000h). This allows the
operation to continue indefinitely, however, previous
data will be overwritten.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

23A1024/23LC1024

DS20005142C-page 6

 2012-2015 Microchip Technology Inc.

FIGURE 2-1:

BYTE READ SEQUENCE (SPI MODE)

FIGURE 2-2:

BYTE WRITE SEQUENCE (SPI MODE)

TABLE 2-1:

INSTRUCTION SET

Instruction Name

Instruction Format

Hex

Code

Description

READ

0000 0011

0x03

Read data from memory array beginning at selected address

WRITE

0000 0010

0x02

Write data to memory array beginning at selected address

EDIO

0011 1011

0x3B

Enter Dual I/O access (enter SDI bus mode)

EQIO

0011 1000

0x38

Enter Quad I/O access (enter SQI bus mode)

RSTIO

1111 1111

0xFF

Reset Dual and Quad I/O access (revert to SPI bus mode)

RDMR

0000 0101

0x05

Read Mode Register

WRMR

0000 0001

0x01

Write Mode Register

SO

SI

SCK

CS

0

2

3

4

5

6

7

8

9 10 11

29 30 31 32 33 34 35 36 37 38 39

1

0

1

0

0

0

0

0

1

23 22 21 20

2

1

0

7

6

5

4

3

2

1

0

Instruction

24-bit Address

Data Out

High-Impedance

SO

SI

CS

9 10 11

29 30 31 32 33 34 35 36 37 38 39

0

0

0

0

0

0

0

1

23 22 21 20

2

1

0

7

6

5

4

3

2

1

0

Instruction

24-bit Address

Data Byte

High-Impedance

SCK

0

2

3

4

5

6

7

1

8

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

 2012-2015 Microchip Technology Inc.

DS20005142C-page 7

23A1024/23LC1024

FIGURE 2-3:

PAGE READ SEQUENCE (SPI MODE)

FIGURE 2-4:

PAGE WRITE SEQUENCE (SPI MODE)

7

6

5

4

3

2

1

0

Page X, Word Y

SI

CS

9 10 11

29 30 31 32 33 34 35 36 37 38 39

23 22 21 20

2

1

0

24-bit Address

SCK

0

2

3

4

5

6

7

1

8

SO

CS

7

6

5

4

3

2

1

0

Page X, Word 0

SCK

40

42 43 44 45 46 47

41

7

6

5

4

3

2

1

0

Page X, Word 31

7

6

5

4

3

2

1

0

Page X, Word Y+1

Page X, Word Y

SO

High-Impedance

SI

0

1

0

0

0

0

0

1

Instruction

SI

CS

9 10 11

29 30 31 32 33 34 35 36 37 38 39

23 22 21 20

2

1

0

7

6

5

4

3

2

1

0

24-bit Address

SCK

0

2

3

4

5

6

7

1

8

CS

SI

7

6

5

4

3

2

1

0

Page X, Word 0

7

6

5

4

3

2

1

0

Page X, Word 31

7

6

5

4

3

2

1

0

Page X, Word Y+1

Page X, Word Y

Page X, Word Y

SCK

40

42 43 44 45 46 47

41

0

0

0

0

0

0

0

1

Instruction

SO

High-Impedance

SO

High-Impedance

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

23A1024/23LC1024

DS20005142C-page 8

 2012-2015 Microchip Technology Inc.

FIGURE 2-5:

SEQUENTIAL READ SEQUENCE (SPI MODE)

SI

CS

9 10 11

29 30 31 32 33 34 35 36 37 38 39

23 22 21 20

2

1

0

7

6

5

4

3

2

1

0

Instruction

24-bit Address

Page X, Word Y

SCK

0

2

3

4

5

6

7

1

8

SO

CS

7

6

5

4

3

2

1

0

Page X+1, Word 1

SCK

7

6

5

4

3

2

1

0

Page X+1, Word 0

7

6

5

4

3

2

1

0

Page X, Word 31

SO

CS

7

6

5

4

3

2

1

0

Page X+n, Word 31

SCK

7

6

5

4

3

2

1

0

Page X+n, Word 1

7

6

5

4

3

2

1

0

Page X+1, Word 31

SO

SI

SI

0

1

0

0

0

0

0

1

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

 2012-2015 Microchip Technology Inc.

DS20005142C-page 9

23A1024/23LC1024

FIGURE 2-6:

SEQUENTIAL WRITE SEQUENCE (SPI MODE)

SI

CS

9 10 11

29 30 31 32 33 34 35 36 37 38 39

0

0

0

0

0

0

0

1

23 22 21 20

2

1

0

7

6

5

4

3

2

1

0

Instruction

24-bit Address

Data Byte 1

SCK

0

2

3

4

5

6

7

1

8

SI

CS

49 50 51

54 55

7

6

5

4

3

2

1

0

Data Byte n

SCK

40

42 43 44 45 46 47

41

48

7

6

5

4

3

2

1

0

Data Byte 3

7

6

5

4

3

2

1

0

Data Byte 2

52 53

SO

High-Impedance

SO

High-Impedance

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/20005142C-html.html
background image

23A1024/23LC1024

DS20005142C-page 10

 2012-2015 Microchip Technology Inc.

2.5

Read Mode Register Instruction
(RDMR)

The Read Mode Register instruction (RDMR) provides
access to the MODE register. The MODE register may
be read at any time. The MODE register is formatted as
follows:

TABLE 2-2:

MODE REGISTER

The mode bits indicate the operating mode of the
SRAM. The possible modes of operation are:

0 0

 = Byte mode

1 0

 = Page mode

0 1

 = Sequential mode (default operation)

1 1

 = Reserved

Bits 0 through 5 are reserved and should always be set
to ‘0’.

See

Figure 2-7

 for the RDMR timing sequence.

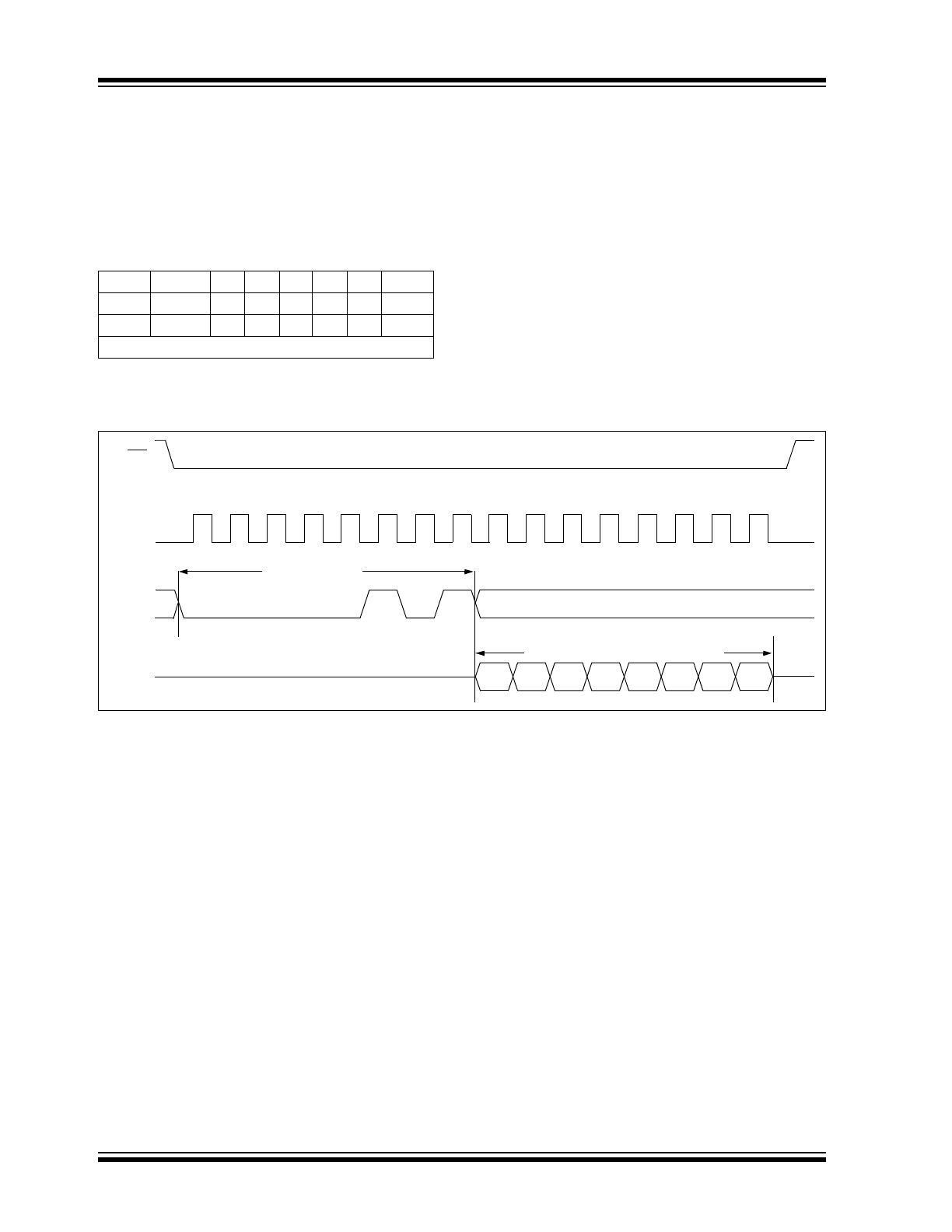

FIGURE 2-7:

READ MODE REGISTER TIMING SEQUENCE (RDMR)

7

6

5

4

3

2

1

0

W/R

W/R

MODE

MODE

0

0

0

0

0

0

W/R = writable/readable

SO

SI

CS

9

10

11

12

13

14

15

1

1

0

0

0

0

0

0

7

6

5

4

2

1

0

Instruction

Data from MODE Register

High-Impedance

SCK

0

2

3

4

5

6

7

1

8

3

Maker
Microchip Technology Inc.
Datasheet PDF Download
