MCP6291/1R/2/3/4/5
Features
• Gain Bandwidth Product: 10 MHz (typical)
• Supply Current: I
Q
= 1.0 mA
• Supply Voltage: 2.4V to 6.0V
• Rail-to-Rail Input/Output
• Extended Temperature Range: -40°C to +125°C
• Available in Single, Dual and Quad Packages
• Single with CS (
MCP6293)
• Dual with CS (
MCP6295)
Applications
• Automotive
• Portable Equipment
• Photodiode Amplifier
• Analog Filters
• Notebooks and PDAs
• Battery-Powered Systems
Design Aids
• SPICE Macro Models
• FilterLab
®
Software
• Mindi™ Simulation Tool
• MAPS (Microchip Advanced Part Selector)
• Analog Demonstration and Evaluation Boards
• Application Notes
Description
The Microchip Technology Inc. MCP6291/1R/2/3/4/5
family of operational amplifiers (op amps) provide wide
bandwidth for the current. This family has a 10 MHz
Gain Bandwidth Product (GBWP) and a 65° phase
margin. This family also operates from a single supply
voltage as low as 2.4V, while drawing 1 mA (typical)
quiescent current. In addition, the MCP6291/1R/2/3/4/5
supports rail-to-rail input and output swing, with a
common mode input voltage range of V
DD
+ 300 mV to
V
SS
– 300 mV. This family of operational amplifiers is
designed with Microchip’s advanced CMOS process.
The MCP6295 has a Chip Select (CS) input for dual op
amps in an 8-pin package. This device is manufactured
by cascading the two op amps, with the output of
op amp A being connected to the non-inverting input of
op amp B. The CS input puts the device in a Low-power
mode.
The MCP6291/1R/2/3/4/5 family operates over the
Extended Temperature Range of -40°C to +125°C. It
also has a power supply range of 2.4V to 6.0V.

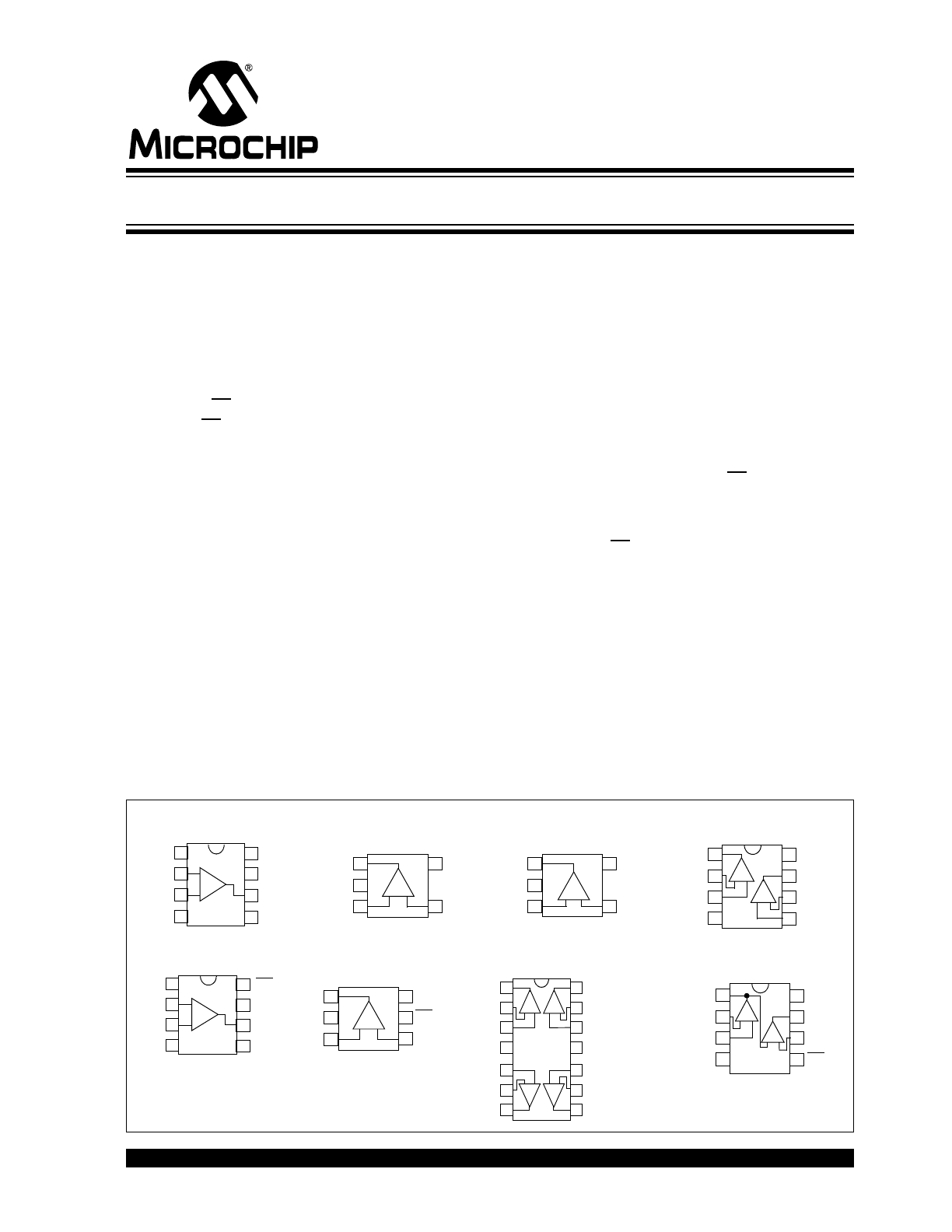

Package Types
1
2
3
4
V
IN
_
MCP6291
V
DD
1
2
3
4
8
7
6
5
-
+
NC
NC
NC
V
IN
+
V
SS
MCP6292
PDIP, SOIC, MSOP
MCP6294
1
2
3
4
14
13
12
11
-
+ -
+
10
9
8
5
6
7
+
-
-
+
PDIP, SOIC, TSSOP
1
2
3
4
8
7
6
5
-
+ -
+
V
OUT
MCP6293
8
7
6
5
-
+
V
INA
_
V
INA
+
V
SS
V
OUTA
V
OUTB
V
DD
V
INB
_
V
INB
+
V
SS
V
IN
+
V
IN
_
NC
CS
V
DD
V
OUT
NC
V
OUTA
V
INA
_
V
INA
+
V
DD
V
SS
V
OUTB
V
INB
_
V
INB
+
V
OUTC
V
INC
_
V
INC
+
V
OUTD
V
IND
_
V
IND
+
PDIP, SOIC, MSOP
PDIP, SOIC, MSOP
MCP6295
PDIP, SOIC, MSOP
1
2
3
4
8
7
6
5
+ -
V
INA
_
V
INA
+
V
SS
V
OUTA
/V
INB
+
V
OUTB
V
DD
V
INB
_
CS
- +
MCP6291
SOT-23-5
4
1
2
3
-
+
5 V
DD
V
IN
–
V
OUT
V
SS
V
IN
+
MCP6291R
SOT-23-5
4
1
2
3
-
+
5 V
SS
V
IN
–
V
OUT
V
DD
V
IN
+
MCP6293
SOT-23-6
4
1
2
3
-
+
6
5
V
SS
V
IN
+
V
OUT
CS
V
DD
V
IN
–
1.0 mA, 10 MHz Rail-to-Rail Op Amp
MCP6291/1R/2/3/4/5
DS21812E-page 2
© 2007 Microchip Technology Inc.
1.0
ELECTRICAL
CHARACTERISTICS
Absolute Maximum Ratings †
V
DD
– V
SS
........................................................................7.0V
Current at Input Pins .....................................................±2 mA
Analog Inputs (V
IN
+, V
IN
–) †† ........ V
SS
– 1.0V to V
DD
+ 1.0V
All Other Inputs and Outputs ......... V
SS
– 0.3V to V
DD
+ 0.3V
Difference Input Voltage ...................................... |V
DD
– V
SS
|
Output Short Circuit Current .................................Continuous
Current at Output and Supply Pins ............................±30 mA
Storage Temperature.................................... –65°C to +150°C
Maximum Junction Temperature (T
J
) ......................... .+150°C
ESD Protection On All Pins (HBM; MM)
.............. ≥ 4 kV; 400V
† Notice: Stresses above those listed under “Absolute
Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of
the device at those or any other conditions above those
indicated in the operational listings of this specification is not
implied. Exposure to maximum rating conditions for extended
periods may affect device reliability.
†† See Section 4.1.2 “Input Voltage and Current Limits”.
DC ELECTRICAL SPECIFICATIONS
Electrical Characteristics: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
OUT
≈ V
DD
/2,
V
CM
= V
DD
/2, V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
and CS is tied low (refer to
Figure 1-2
and
Figure 1-3
).
Parameters
Sym
Min
Typ
Max
Units
Conditions
Input Offset
Input Offset Voltage
V
OS
-3.0
—
+3.0
mV
V
CM
= V
SS
(Note 1)
Input Offset Voltage
(Extended Temperature)
V
OS
-5.0
—
+5.0
mV
T
A
= -40°C to +125°C,
V
CM
= V
SS
(Note 1)
Input Offset Temperature Drift
ΔV
OS
/
ΔT
A
—
±1.7
—
µV/°C
T
A
= -40°C to +125°C,
V
CM
= V
SS
(Note 1)
Power Supply Rejection Ratio
PSRR
70
90
—
dB
V
CM
= V
SS
(Note 1)
Input Bias, Input Offset Current and Impedance
Input Bias Current
I
B
—
±1.0
—
pA
Note 2
At Temperature
I
B
—
50
200
pA
T
A
= +85°C
(Note 2)
At Temperature
I
B
—
2
5
nA
T
A
= +125°C
(Note 2)
Input Offset Current
I
OS
—
±1.0
—
pA
Note 3
Common Mode Input Impedance
Z
CM
—
10
13
||6
—
Ω||pF
Note 3
Differential Input Impedance
Z
DIFF
—
10
13
||3
—
Ω||pF
Note 3
Common Mode (Note 4)
Common Mode Input Range
V
CMR
V
SS
− 0.3
—
V
DD
+ 0.3
V
Common Mode Rejection Ratio
CMRR
70
85
—
dB
V
CM
= -0.3V to 2.5V, V
DD
= 5V
Common Mode Rejection Ratio
CMRR
65
80
—
dB
V
CM
= -0.3V to 5.3V, V
DD
= 5V
Open-Loop Gain
DC Open-Loop Gain (Large Signal)
A
OL
90
110
—
dB
V
OUT
= 0.2V to V
DD
– 0.2V,
V
CM
= V
SS
(Note 1)
Output
Maximum Output Voltage Swing
V
OL
, V
OH
V
SS
+ 15
—
V
DD
– 15
mV
0.5V Input Overdrive
Output Short Circuit Current
I
SC
—
±25
—
mA
Power Supply
Supply Voltage
V
DD
2.4
—
6.0
V
T
A
= -40°C to +125°C
(Note 5)
Quiescent Current per Amplifier
I
Q
0.7
1.0
1.3
mA
I
O
= 0
Note 1:
The MCP6295’s V
CM
for op amp B (pins V
OUTA
/V
INB
+ and V
INB
–) is V
SS
+ 100 mV.
2:
The current at the MCP6295’s V
INB
– pin is specified by I
B
only.
3:
This specification does not apply to the MCP6295’s V
OUTA
/V
INB
+ pin.
4:
The MCP6295’s V
INB
– pin (op amp B) has a common mode range (V
CMR
) of V
SS
+ 100 mV to V
DD
– 100 mV.
The MCP6295’s V
OUTA
/V
INB
+ pin (op amp B) has a voltage range specified by V
OH
and V
OL
.
5:
All parts with date codes November 2007 and later have been screened to ensure operation at V
DD
= 6.0V. However,
the other minimum and maximum specifications are measured at 2.4V and or 5.5V.
© 2007 Microchip Technology Inc.
DS21812E-page 3
MCP6291/1R/2/3/4/5
AC ELECTRICAL SPECIFICATIONS
MCP6293/MCP6295 CHIP SELECT (CS) SPECIFICATIONS
Electrical Characteristics: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2,
V
OUT
≈ V
DD
/2, V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low (refer to
Figure 1-2
and
Figure 1-3
).
Parameters
Sym
Min
Typ
Max
Units
Conditions
AC Response
Gain Bandwidth Product
GBWP
—
10.0
—
MHz
Phase Margin at Unity-Gain
PM
—
65
—
°
G = +1 V/V
Slew Rate
SR
—
7
—
V/µs
Noise
Input Noise Voltage
E
ni
—
4.2
—
µV
P-P
f = 0.1 Hz to 10 Hz
Input Noise Voltage Density
e
ni
—
8.7
—
nV/
√Hz
f = 10 kHz
Input Noise Current Density
i
ni
—
3
—
fA/
√Hz
f = 1 kHz
Electrical Characteristics: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2,
V
OUT
≈ V
DD
/2, V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low (refer to
Figure 1-2
and
Figure 1-3
).
Parameters
Sym
Min
Typ
Max
Units
Conditions
CS Low Specifications
CS Logic Threshold, Low
V
IL
V
SS
—
0.2 V
DD
V
CS Input Current, Low
I
CSL
—
0.01
—
µA
CS = V
SS
CS High Specifications
CS Logic Threshold, High
V
IH
0.8 V
DD
—
V
DD
V
CS Input Current, High
I
CSH
—
0.7
2
µA
CS = V
DD
GND Current per Amplifier
I
SS
—
-0.7
—
µA
CS = V
DD
Amplifier Output Leakage
—
—
0.01
—
µA
CS = V
DD
Dynamic Specifications (Note 1)
CS Low to Valid Amplifier Output,
Turn-on Time
t
ON
—
4
10
µs
CS Low
≤ 0.2 V
DD
, G = +1 V/V,
V
IN
= V
DD
/2, V
OUT
= 0.9 V
DD
/2,
V
DD
= 5.0V
CS High to Amplifier Output High-Z
t
OFF
—
0.01
—
µs
CS High
≥ 0.8 V
DD
, G = +1 V/V,
V
IN
= V
DD
/2, V
OUT
= 0.1 V
DD
/2
Hysteresis
V
HYST
—
0.6
—
V
V
DD
= 5V
Note 1:
The input condition (V
IN
) specified applies to both op amp A and B of the MCP6295. The dynamic specification is tested
at the output of op amp B (V
OUTB
).
MCP6291/1R/2/3/4/5
DS21812E-page 4
© 2007 Microchip Technology Inc.
TEMPERATURE SPECIFICATIONS

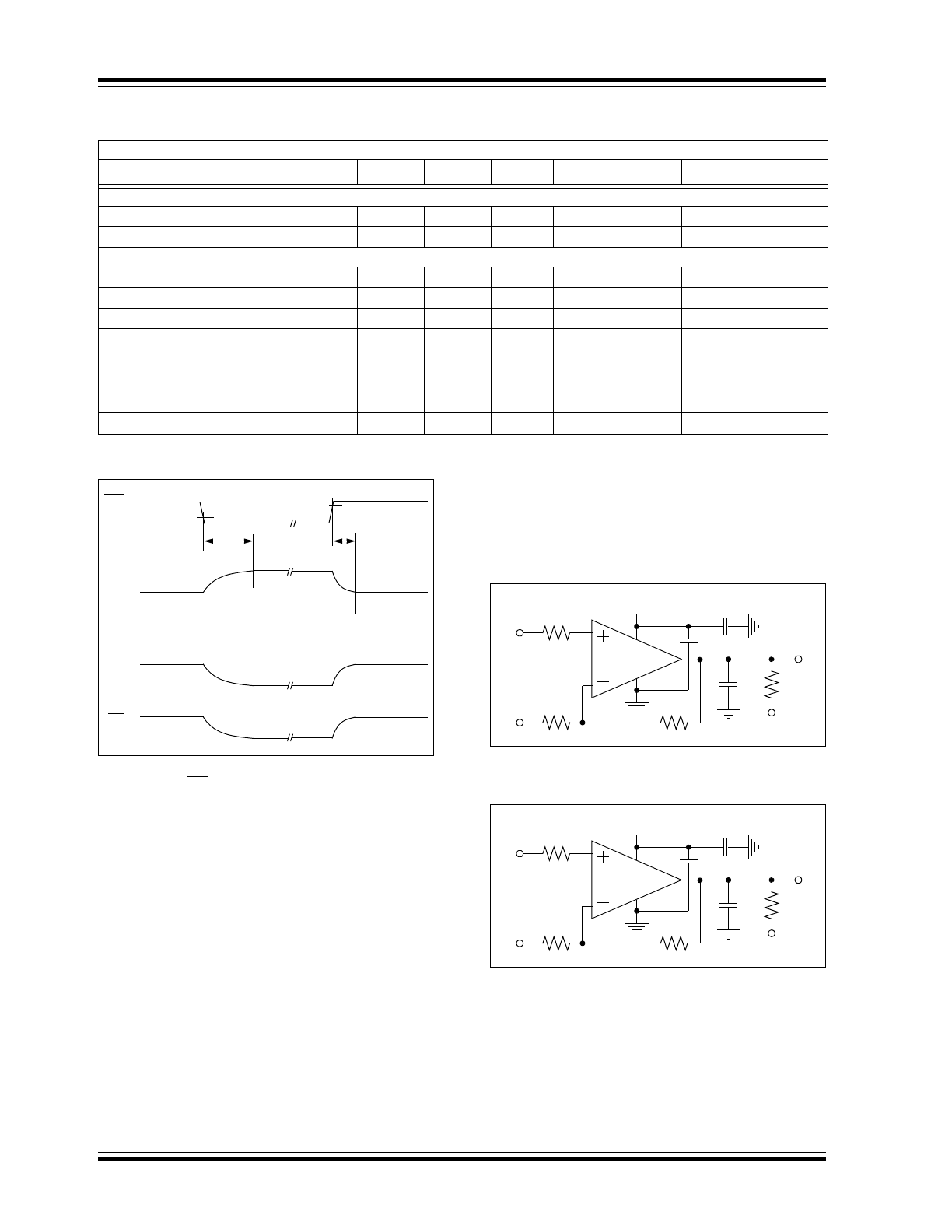

FIGURE 1-1:
Timing Diagram for the
Chip Select (CS) pin on the MCP6293 and
MCP6295.
1.1
Test Circuits
The test circuits used for the DC and AC tests are
shown in
Figure 1-2
and
Figure 1-2
. The bypass
capacitors are laid out according to the rules discussed
in
Section 4.6 “Supply Bypass”.
FIGURE 1-2:
AC and DC Test Circuit for
Most Non-Inverting Gain Conditions.
FIGURE 1-3:
AC and DC Test Circuit for
Most Inverting Gain Conditions.
Electrical Characteristics: Unless otherwise indicated, V
DD
= +2.4V to +5.5V and V
SS
= GND.
Parameters
Sym
Min
Typ
Max
Units
Conditions
Temperature Ranges
Operating Temperature Range
T
A
-40
—
+125
°C
Note
Storage Temperature Range
T
A
-65
—
+150
°C
Thermal Package Resistances
Thermal Resistance, 5L-SOT-23
θ
JA
—
256
—
°C/W
Thermal Resistance, 6L-SOT-23
θ
JA
—
230
—
°C/W
Thermal Resistance, 8L-PDIP
θ
JA
—
85
—
°C/W
Thermal Resistance, 8L-SOIC
θ
JA
—
163
—
°C/W
Thermal Resistance, 8L-MSOP
θ
JA
—
206
—
°C/W
Thermal Resistance, 14L-PDIP
θ
JA
—
70
—
°C/W
Thermal Resistance, 14L-SOIC
θ
JA
—
120
—
°C/W
Thermal Resistance, 14L-TSSOP
θ
JA
—
100
—
°C/W
Note:
The Junction Temperature (T
J
) must not exceed the Absolute Maximum specification of +150°C.
V
IL
Hi-Z
t
ON
V
IH
CS
t
OFF
V
OUT
-0.7 µA
Hi-Z
I
SS
I
CS
0.7 µA
0.7 µA
-0.7 µA
-1.0 mA
10 nA
(typical)
(typical)
(typical)
(typical)
(typical)
(typical)
V
DD
MCP629X
R
G
R
F
R
N
V
OUT
V
IN
V
DD
/2
1 µF
C
L
R
L
V
L
0.1 µF
V
DD
MCP629X
R
G
R
F
R
N
V
OUT
V
DD
/2
V
IN
1 µF
C
L
R
L
V
L
0.1 µF
© 2007 Microchip Technology Inc.
DS21812E-page 5
MCP6291/1R/2/3/4/5
2.0
TYPICAL PERFORMANCE CURVES
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low.

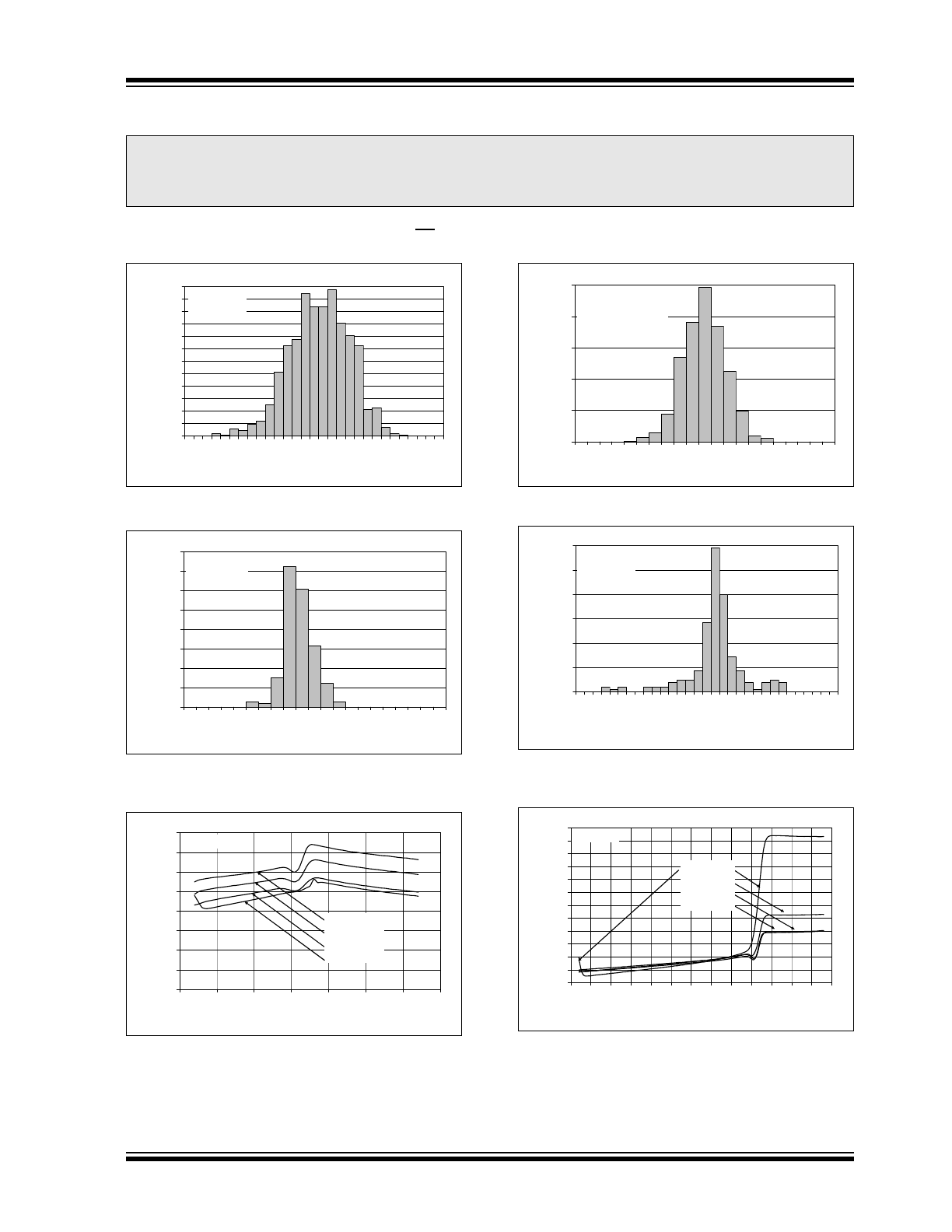

FIGURE 2-1:
Input Offset Voltage.
FIGURE 2-2:
Input Bias Current at
T
A
= +85 °C.
FIGURE 2-3:
Input Offset Voltage vs.
Common Mode Input Voltage at V
DD
= 2.4V.
FIGURE 2-4:
Input Offset Voltage Drift.
FIGURE 2-5:
Input Bias Current at
T
A
= +125 °C.
FIGURE 2-6:
Input Offset Voltage vs.
Common Mode Input Voltage at V
DD
= 5.5V.
Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
0%
1%
2%
3%
4%
5%
6%
7%
8%
9%
10%
11%
12%
-2.8
-2.4
-2.0
-1.6
-1.2
-0.8
-0.4
0.
0
0.
4
0.
8
1.
2
1.
6
2.
0
2.
4
2.
8
Input Offset Voltage (mV)
P
ercen
ta
g
e of
O
c
cu
rr
e
n
c
es
840 Samples
V
CM
= V
SS
0%
5%
10%
15%
20%
25%
30%
35%
40%
0
10
20
30
40
50
60
70
80
90
100
Input Bias Current (pA)
Per
c
en
ta
ge
of
Oc
cu
rre
nc
es
210 Samples
T
A
= 85°C
0
50
100
150
200
250
300
350
400
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Common Mode Input Voltage (V)
In
pu
t Offset
Voltage (µV)
V
DD
= 2.4V
T
A
= -40°C
T
A
= +25°C
T
A
= +85°C
T
A
= +125°C
0%
5%
10%
15%
20%
25%
-1
0
-8
-6
-4
-2
0
2
4
6
8
10
Input Offset Voltage Drift (µV/°C)
P
ercen
ta
ge
of
O
cc
u
rr
en
c
es
840 Samples
V
CM
= V
SS
T
A
= -40°C to +125°C
0%
5%
10%
15%
20%
25%
30%
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
2400
2600
2800
3000
Input Bias Current (pA)
Pe
rc
en
tag
e o
f Occu
rren
ces
210 Samples
T
A
= +125°C
200
250
300
350
400
450
500
550
600
650
700
750
800
-0.5 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0
Common Mode Input Voltage (V)
Input
O
ffse
t Voltage (
µ
V
)
V
DD
= 5.5V
T
A
= +125°C
T
A
= +85°C
T
A
= +25°C
T
A
= -40°C
MCP6291/1R/2/3/4/5
DS21812E-page 6
© 2007 Microchip Technology Inc.
TYPICAL PERFORMANCE CURVES (CONTINUED)
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low.

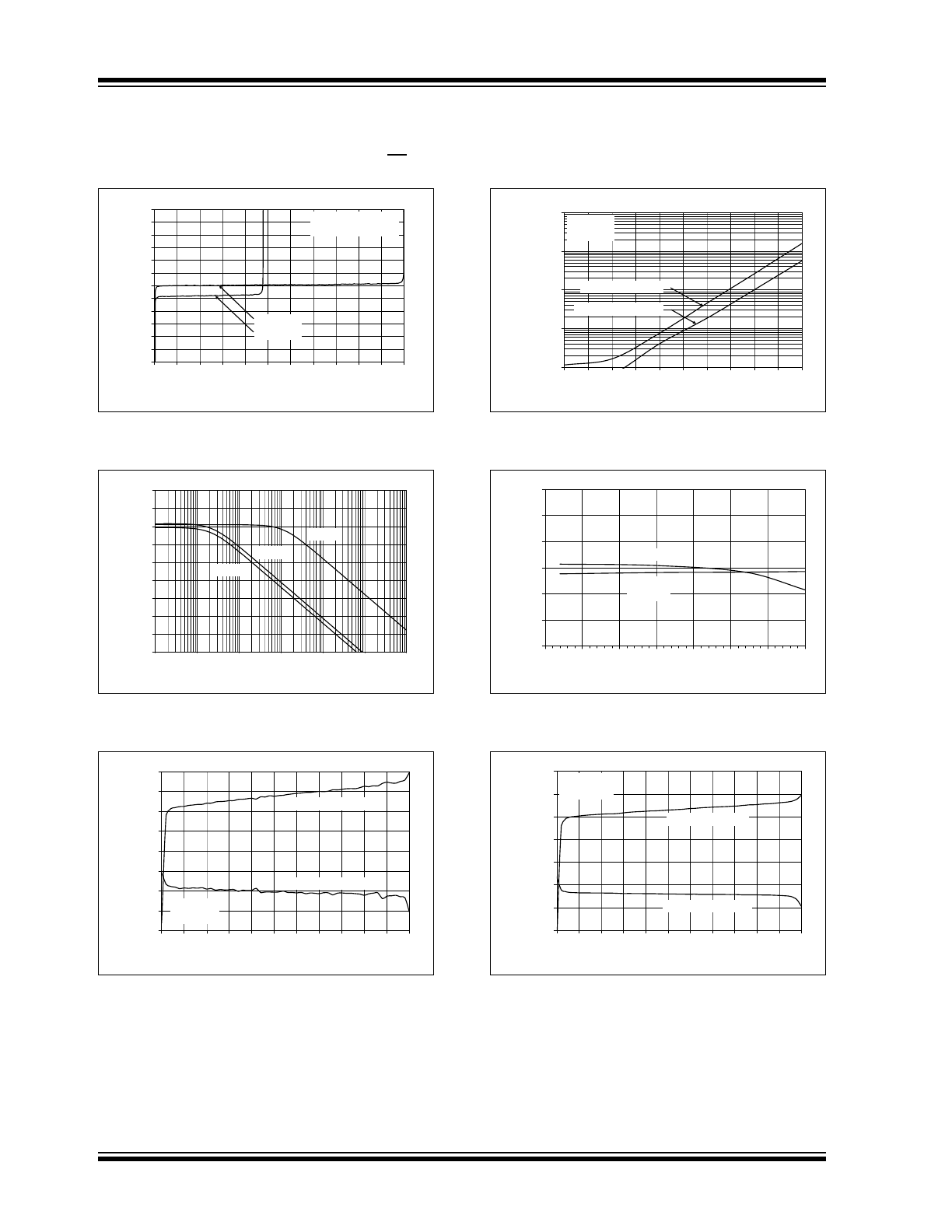

FIGURE 2-7:
Input Offset Voltage vs.
Output Voltage.
FIGURE 2-8:
CMRR, PSRR vs.
Frequency.
FIGURE 2-9:
Input Bias, Offset Currents
vs. Common Mode Input Voltage at T
A
= +85°C.
FIGURE 2-10:
Input Bias, Input Offset
Currents vs. Ambient Temperature.
FIGURE 2-11:
CMRR, PSRR vs. Ambient
Temperature.
FIGURE 2-12:
Input Bias, Offset Currents
vs. Common Mode Input Voltage at T
A
= +125°C.
100
150
200
250
300
350
400
450
500
550
600
650
700
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Output Voltage (V)
In
pu
t Off
set V
o
lt
ag
e (µ
V)
V
CM
= V
SS
Representative Part
V
DD
= 5.5V
V
DD
= 2.4V
20
30
40
50
60
70
80
90
100
110
1.E+00
1.E+01
1.E+02
1.E+03
1.E+04
1.E+05
1.E+06
Frequency (Hz)
C
M
RR,
P
S
RR (
d
B
)
1
10k
100k
1M
100
10
1k
PSRR+
PSRR-
CMRR
-25
-15
-5
5
15
25
35
45
55
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Common Mode Input Voltage (V)
Input
Bia
s,
Of
fs
et
Curr
ent
s
(p
A
)
T
A
= +85°C
V
DD
= 5.5V
Input Bias Current
Input Offset Current
1
10
100
1,000
10,000
25
35
45
55
65
75
85
95
105 115 125
Ambient Temperature (°C)
In
p
u
t Bi
as
, Of
fs
et
Curr
en
ts
(p
A
)
Input Bias Current
Input Offset Current
V
CM
= V
DD
V
DD
= 5.5V
60
70
80
90
100
110
120
-50
-25
0
25
50
75
100
125
Ambient Temperature (°C)
P
S
RR,
C
M
RR (
d
B)
PSRR
V
CM
= V
SS
CMRR
-1.0
-0.5
0.0
0.5
1.0
1.5
2.0
2.5
0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
Common Mode Input Voltage (V)
Inpu
t B
ias
, O
ff
set
Cu
rre
nts
(nA
)
T
A
= +125°C
V
DD
= 5.5V
Input Bias Current
Input Offset Current
© 2007 Microchip Technology Inc.
DS21812E-page 7
MCP6291/1R/2/3/4/5
TYPICAL PERFORMANCE CURVES (CONTINUED)
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low.

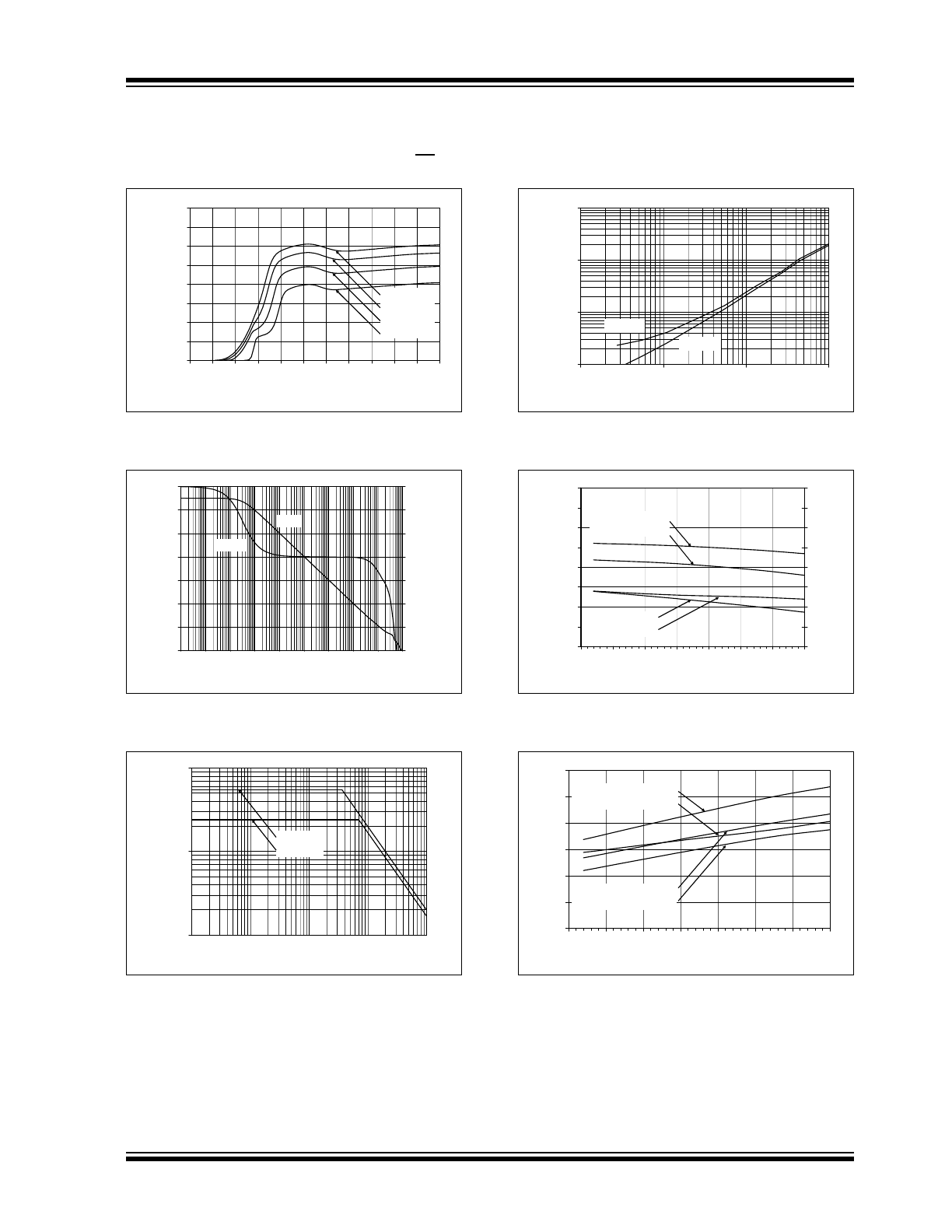

FIGURE 2-13:
Quiescent Current vs.
Power Supply Voltage.
FIGURE 2-14:
Open-Loop Gain, Phase vs.
Frequency.
FIGURE 2-15:
Maximum Output Voltage
Swing vs. Frequency.
FIGURE 2-16:
Output Voltage Headroom
vs. Output Current Magnitude.
FIGURE 2-17:
Gain Bandwidth Product,
Phase Margin vs. Ambient Temperature.
FIGURE 2-18:
Slew Rate vs. Ambient
Temperature.
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Power Supply Voltage (V)
Qu
ie
sce
nt
Cu
rren
t
(m
A/
Ampl
if
ie
r)
T
A
= +125°C
T
A
= +85°C
T
A
= +25°C
T
A
= -40°C
-20
0
20
40
60
80
100
120
1.
E
-0
1
1.
E
+
00
1.
E
+
01
1.
E
+
02
1.
E
+
03
1.
E
+
04
1.
E
+
05
1.
E
+
06
1.
E
+
07
1.
E
+
08
Frequency (Hz)
O
p
en
-L
oop G
a
in
(
d
B)
-210
-180
-150
-120
-90
-60
-30
0
O
p
e
n
-L
oop Phase (°)
Gain
Phase
0.1
1
10
100
1k
10k 100k 1M 10M 100M
0.1
1
10
1.
E
+
03
1.
E
+
04
1.
E
+
05
1.
E
+
06
1.
E
+
07
Frequency (Hz)
M
aximum Out
p
ut
Vo
ltag
e
Swing (V
P-
P
)
1k
10k
100k
1M
10M
V
DD
= 5.5V
V
DD
= 2.4V
1
10
100
1000
0.01
0.1
1
10
Output Current Magnitude (mA)
Ouput
Voltage
Hea
d
ro
om (mV)
V
OL
- V
SS
V
DD
- V
OH
0
2
4
6
8
10
12
14
16
-50
-25
0
25
50
75
100
125
Ambient Temperature (°C)
Ga
in Ba
nd
widt
h Prod
uc
t
(MH
z)
50
55
60
65
70
75
80
85
90
Ph
as
e Marg
in (°)
GBWP, V
DD
= 5.5V
GBWP, V
DD
= 2.4V
PM, V
DD
= 5.5V
PM, V
DD
= 2.4V
0
2
4
6
8
10
12
-50
-25
0
25
50
75
100
125
Ambient Temperature (°C)
Slew R
ate
(V/µ
s)
Rising Edge, V
DD
= 5.5V
V
DD
= 2.4V
Falling Edge, V
DD
= 5.5V
V
DD
= 2.4V
MCP6291/1R/2/3/4/5
DS21812E-page 8
© 2007 Microchip Technology Inc.
TYPICAL PERFORMANCE CURVES (CONTINUED)
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low.

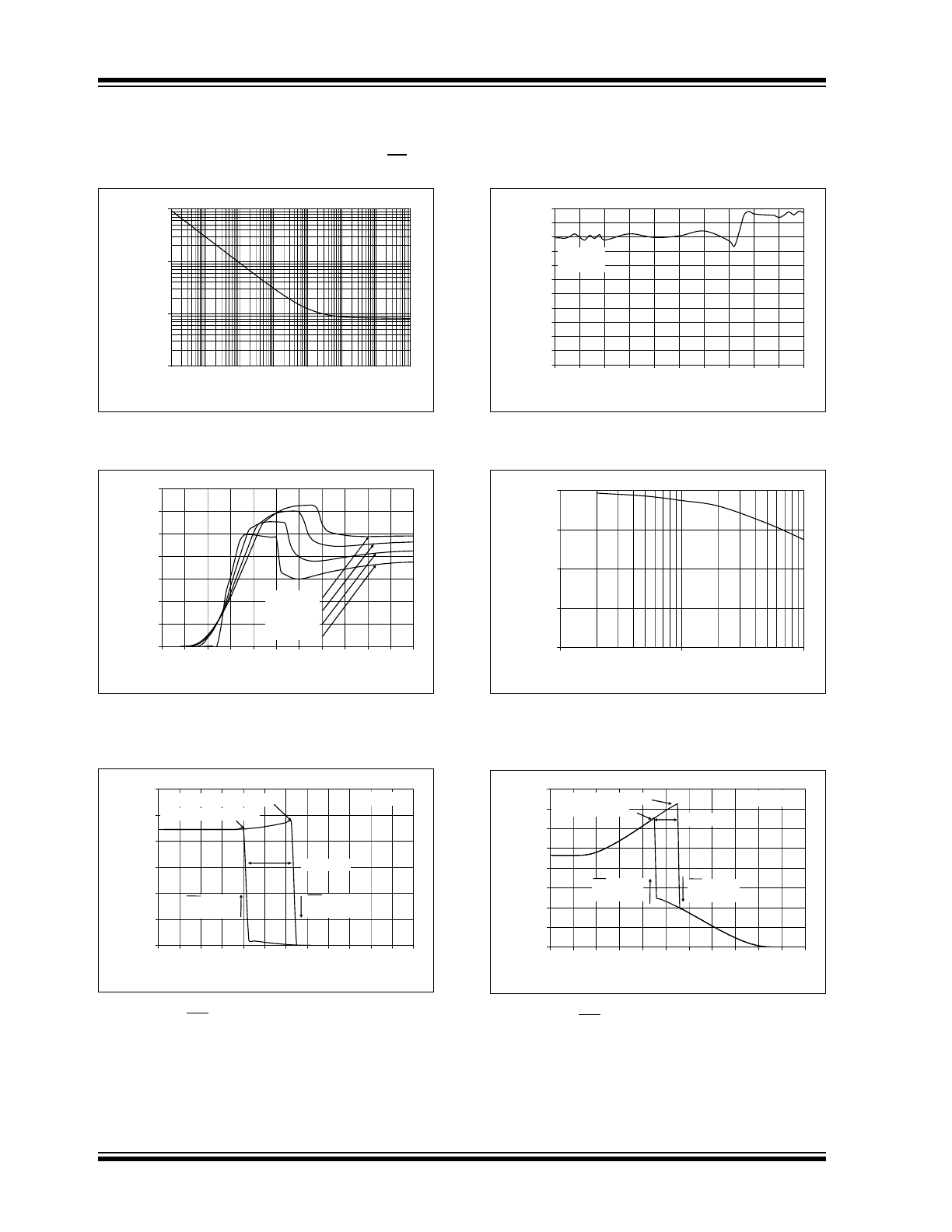

FIGURE 2-19:
Input Noise Voltage Density
vs. Frequency.
FIGURE 2-20:
Output Short Circuit Current
vs. Power Supply Voltage.
FIGURE 2-21:
Quiescent Current vs.
Chip Select (CS) Voltage at V
DD
= 2.4V
(MCP6293 and MCP6295 only).
FIGURE 2-22:
I
nput Noise Voltage Density
vs. Common Mode Input Voltage at 10 kHz.
FIGURE 2-23:
Channel-to-Channel
Separation vs. Frequency (MCP6292, MCP6294
and MCP6295 only).
FIGURE 2-24:
Quiescent Current vs.
Chip Select (CS) Voltage at V
DD
= 5.5V
(MCP6293 and MCP6295 only).
1
10
100
1,000
1.E-01
1.E+00
1.E+01
1.E+02
1.E+03
1.E+04
1.E+05
1.E+06
Frequency (Hz)
Input
No
is
e Vol
ta
g
e De
ns
it
y
(n
V/
√Hz
)
0.1
100
10
1k
100k
10k
1M
1
0
5
10
15
20
25
30
35
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Power Supply Voltage (V)
O
upt
ut
Short
Ci
rcu
it
Curr
ent
(m
A
)
T
A
= +125°C
T
A
= +85°C
T
A
= +25°C
T
A
= -40°C
0.0
0.2
0.4
0.6
0.8
1.0
1.2
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4
Chip Select Voltage (V)
Quiesc
ent Curre
n
t
(mA
/Amplifier
)
Hysteresis
Op-Amp shuts off here
Op-Amp turns on here
V
DD
= 2.4V
CS swept
high to low
CS swept
low to high
0
1
2
3
4
5
6
7
8
9
10
11
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
Common Mode Input Voltage (V)
Inp
u
t N
o
is
e Vo
ltag
e D
en
sit
y
(n
V/
√Hz)
f = 10 kHz
V
DD
= 5.0V
100
110
120
130
140
1
10
100
Frequency (kHz)
C
h
an
ne
l-to
-C
h
an
n
el
S
epa
ra
ti
o
n
(
d
B)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
Chip Select Voltage (V)
Qu
iesc
en
t C
u
rren
t
(mA
/Amplifier)
Hysteresis
V
DD
= 5.5V
CS swept
low to high
CS swept
high to low
Op Amp shuts off
Op Amp turns on
© 2007 Microchip Technology Inc.
DS21812E-page 9
MCP6291/1R/2/3/4/5
TYPICAL PERFORMANCE CURVES (CONTINUED)
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low.

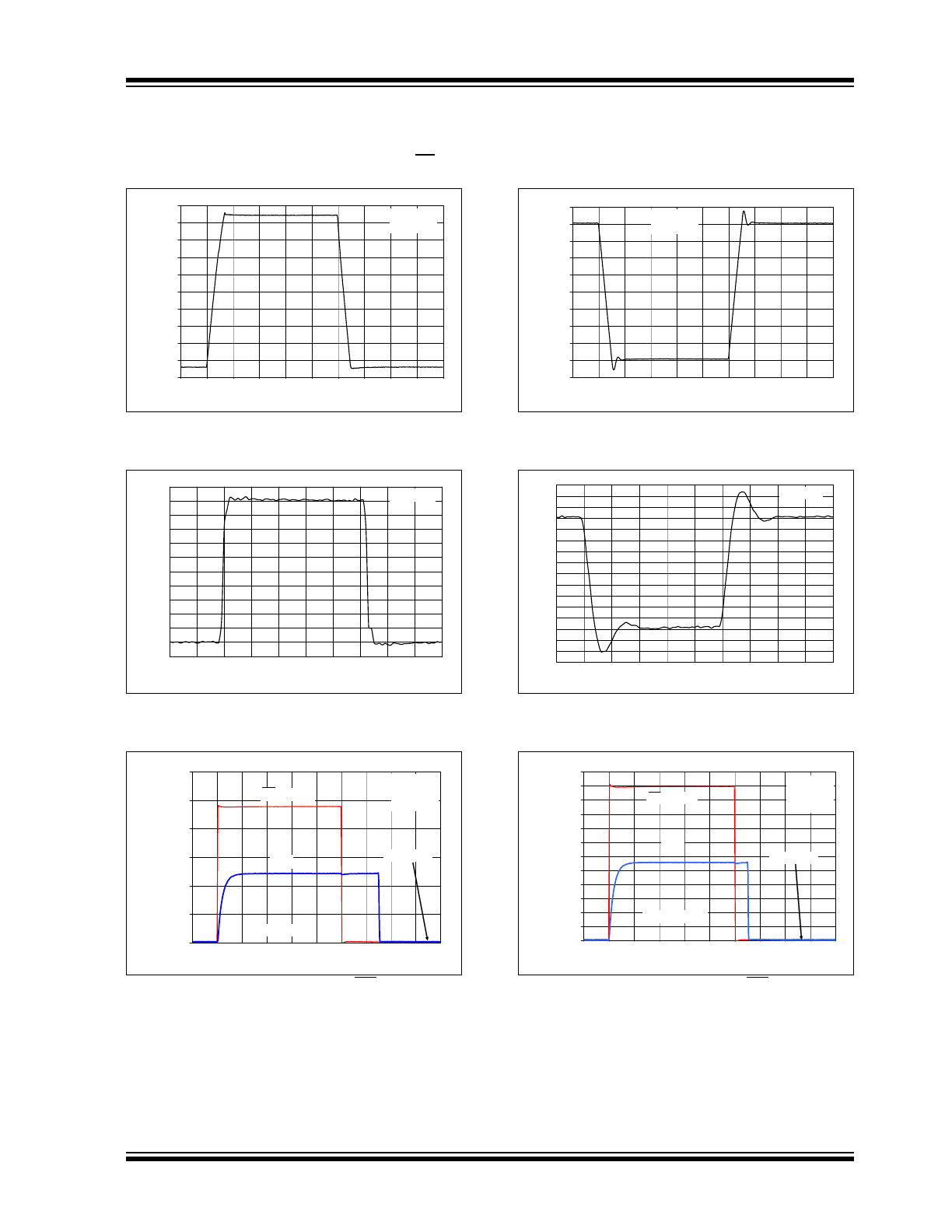

FIGURE 2-25:
Large-Signal Non-inverting
Pulse Response.
FIGURE 2-26:
Small-Signal Non-inverting
Pulse Response.
FIGURE 2-27:
Chip Select (CS) to
Amplifier Output Response Time at V
DD
= 2.4V
(MCP6293 and MCP6295 only).
FIGURE 2-28:
Large-Signal Inverting Pulse
Response.
FIGURE 2-29:
Small-Signal Inverting Pulse
Response.
FIGURE 2-30:
Chip Select (CS) to
Amplifier Output Response Time at V
DD
= 5.5V
(MCP6293 and MCP6295 only).
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0.E+00
1.E-06
2.E-06
3.E-06
4.E-06
5.E-06
6.E-06
7.E-06
8.E-06
9.E-06
1.E-05
Time (1 µs/div)
Ou
tp
ut
Vo
ltag
e (V
)
G = +1V/V
V
DD
= 5.0V
Time (200 ns/div)
Ou
tp
u
t Vo
ltag
e (
10 mV/d
iv
)
G = +1V/V
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0.E+00
5.E-06
1.E-05
2.E-05
2.E-05
3.E-05
3.E-05
4.E-05
4.E-05
5.E-05
5.E-05
Time (5 µs/div)
C
h
ip
Se
lect
, Output Volta
g
e
s
(V
)
V
OUT
Output On
Output High-Z
V
DD
= 2.4V
G = +1V/V
V
IN
= V
SS
CS Voltage
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
0.E+00
1.E-06
2.E-06
3.E-06
4.E-06
5.E-06
6.E-06
7.E-06
8.E-06
9.E-06
1.E-05
Time (1 µs/div)
O
u
tput
V
o
lt
ag
e (
V
)
G = -1V/V
V
DD
= 5.0V
Time (200 ns/div)
O
u
tput Volta
g
e
(
10 mV/div)
G = -1V/V
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0.E+00
5.E-06
1.E-05
2.E-05
2.E-05
3.E-05
3.E-05
4.E-05
4.E-05
5.E-05
5.E-05
Time (5 µs/div)
C
h
ip S
elect
, Output Volta
g
e
s
(V
)
V
OUT
Output High-Z
V
DD
= 5.5V
G = +1V/V
V
IN
= V
SS
CS Voltage
Output On
MCP6291/1R/2/3/4/5
DS21812E-page 10
© 2007 Microchip Technology Inc.
TYPICAL PERFORMANCE CURVES (CONTINUED)
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= +2.4V to +5.5V, V
SS
= GND, V
CM
= V
DD
/2, V
OUT
≈ V
DD
/2,
V
L
= V
DD
/2, R
L
= 10 k
Ω to V
L
, C
L
= 60 pF, and CS is tied low.

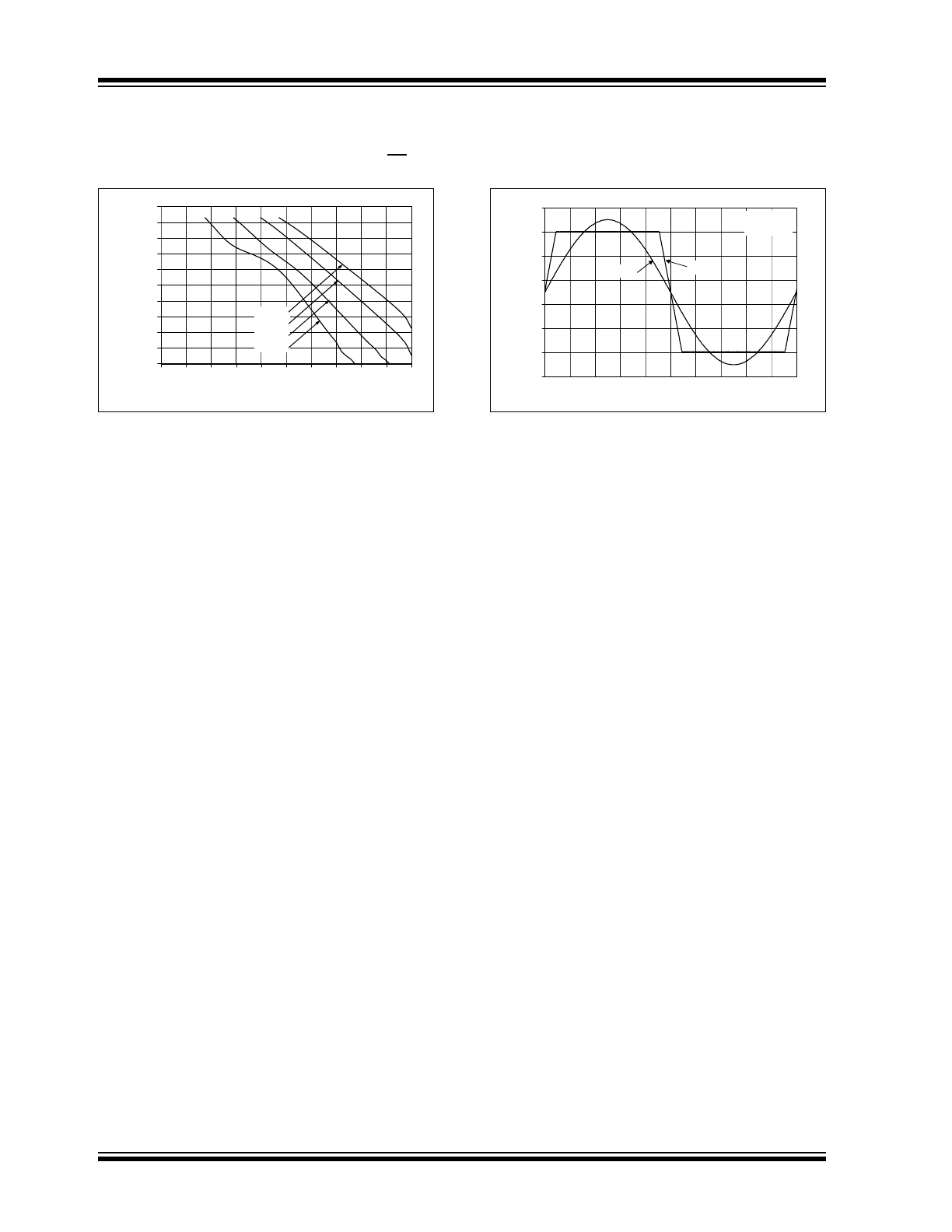

FIGURE 2-31:
Measured Input Current vs.
Input Voltage (below V
SS
).
FIGURE 2-32:
The MCP6291/1R/2/3/4/5
Show No Phase Reversal.
1.E-12
1.E-11
1.E-10
1.E-09
1.E-08
1.E-07
1.E-06
1.E-05
1.E-04
1.E-03
1.E-02
-1.0 -0.9 -0.8 -0.7 -0.6 -0.5 -0.4 -0.3 -0.2 -0.1 0.0
Input Voltage (V)
Input Current M
agnit
ude (
A
)
+125°C
+85°C
+25°C
-40°C
10m
1m
100µ
10µ
1µ
100n
10n
1n
100p
10p
1p
-1
0
1
2
3
4
5
6
-15
-14
-13
-12
-11
-10
-9
-8
-7
-6
-5
Time (1 ms/div)
Input, Output Voltage (V)
V
DD
= 5.0V
G = +2V/V
V
IN
V
OUT
