© 2008 Microchip Technology Inc.

DS21202J-page 1

24C02C

Features:

• Single-Supply with Operation from 4.5V to 5.5V

• Low-Power CMOS Technology:

- Read current 1 mA, max.

- Standby current 5

μA, max.

• 2-Wire Serial Interface, I

2

C™ Compatible

• Cascadable up to Eight Devices

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz and 400 kHz Clock Compatibility

• Fast Page or Byte Write Time 1 ms, typical

• Self-Timed Erase/Write Cycle

• 16-Byte Page Write Buffer

• Hardware Write-Protect for Upper Half of the

Array (80h-FFh)

• ESD Protection >4,000V

• More than 1 Million Erase/Write Cycles

• Data Retention >200 Years

• Factory Programming Available

• Packages Include 8-lead PDIP, SOIC, TSSOP,

DFN, TDFN and MSOP

• Pb-Free and RoHS Compliant

• Temperature ranges:

Description:

The Microchip Technology Inc. 24C02C is a 2K bit
Serial Electrically Erasable PROM with a voltage range
of 4.5V to 5.5V. The device is organized as a single
block of 256 x 8-bit memory with a 2-wire serial
interface. Low-current design permits operation with
max. standby and active currents of only 5

μA and 1

mA, respectively. The device has a page write capabil-
ity for up to 16 bytes of data and has fast write cycle
times of only 1 ms for both byte and page writes.
Functional address lines allow the connection of up to
eight 24C02C devices on the same bus for up to 16K
bits of contiguous EEPROM memory. The device is
available in the standard 8-pin PDIP, 8-pin SOIC (3.90
mm), 8-pin 2x3 DFN and TDFN, 8-pin MSOP and
TSSOP packages.

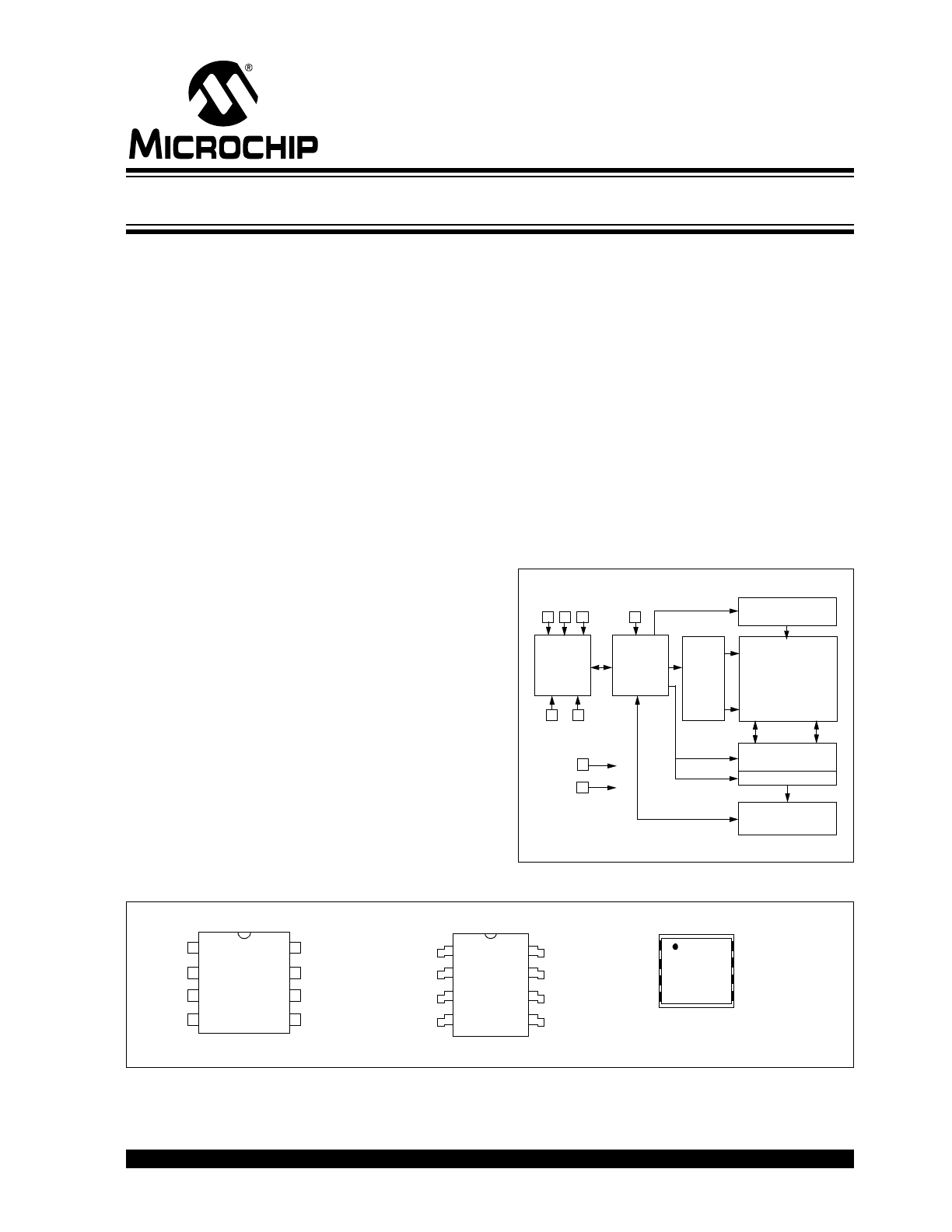

Block Diagram

Package Types

- Industrial (I):

 -40°C

to

+85°C

- Automotive (E):

 -40°C

to +125°C

   I/O
Control
 Logic

Memory
Control

Logic

XDEC

HV Generator

EEPROM

   Array

Write-Protect
    Circuitry

YDEC

Vcc

Vss

Sense Amp.
R/W Control

SDA SCL

A0 A1 A2

WP

A0

A1

A2

V

SS

V

CC

WP

SCL

SDA

1

2

3

4

8

7

6

5

PDIP, MSOP

SOIC, TSSOP

A0

A1

A2

V

SS

1

2

3

4

8

7

6

5

V

CC

WP

SCL

SDA

DFN/TDFN

A0

A1

A2

V

SS

WP

SCL

SDA

V

CC

8

7

6

5

1

2

3

4

2K 5.0V I

2

C

 Serial EEPROM

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

24C02C

DS21202J-page 2

© 2008 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................7.0V

All inputs and outputs w.r.t. V

SS

......................................................................................................... -0.6V to V

CC

 +1.0V

Storage temperature ...............................................................................................................................-65°C to +150°C

Ambient temperature with power applied ................................................................................................-40°C to +125°C

ESD protection on all pins

......................................................................................................................................................≥  4 kV

TABLE 1-1:

DC CHARACTERISTICS

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

DC CHARACTERISTICS

Electrical Characteristics:
Industrial (I):

V

CC

 = +4.5V to 5.5V

T

A

 = -40°C to +85°C

Automotive (E):

V

CC

 = +4.5V to 5.5V

T

A

 = -40°C to +125°C

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Conditions

D1

A0, A1, A2, SCL, SDA
and WP pins:

D2

V

IH

High-level input voltage

0.7 V

CC

V

D3

V

IL

Low-level input voltage

0.3 V

CC

V

D4

V

HYS

Hysteresis of Schmitt
Trigger inputs
(SDA, SCL pins)

0.05 V

CC

V

(Note)

D5

V

OL

Low-level output voltage

0.40

V

I

OL

 = 3.0 ma @ V

CC

 = 4.5V

D6

I

LI

Input leakage current

±1

μA

V

IN

 = V

SS

 or V

CC

, WP = V

SS

D7

I

LO

Output leakage current

±1

μA

V

OUT

 = V

SS

 or V

CC

D8

C

IN

C

OUT

Pin capacitance
(all inputs/outputs)

10

pF

V

CC

 = 5.0V (Note)

T

A

 = 25°C, f = 1 MHz

D9

I

CC

 Read Operating current

1

mA

V

CC

 = 5.5V, SCL = 400 kHz

I

CC

 Write

3

mA

V

CC

 = 5.5V

D10

I

CCS

Standby current

5

μA

V

CC

 = 5.5VSCL = SDA = V

CC

WP = V

SS

Note:

This parameter is periodically sampled and not 100% tested.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

© 2008 Microchip Technology Inc.

DS21202J-page 3

24C02C

TABLE 1-2:

AC CHARACTERISTICS

AC CHARACTERISTICS

Electrical Characteristics:
Industrial (I):

V

CC

 = +4.5V to 5.5V

T

A

 = -40°C to +85°C

Automotive (E):

V

CC

 = +4.5V to 5.5V

T

A

 = -40°C to +125°C

Param.

No.

Sym.

Characteristic

Min.

Max.

Units

Conditions

1

F

CLK

Clock frequency


100
400

kHz


(I-temp)

2

T

HIGH

Clock high time

4000

600


ns


(I-temp)

3

T

LOW

Clock low time

4700
1300


ns


(I-temp)

4

T

R

SDA and SCL rise time
(Note 1)


1000

300

ns


(I-temp)

5

T

F

SDA and SCL fall time
(Note 1)

300

ns


(I-temp)

6

T

HD

:

STA

Start condition hold time

4000

600


ns


(I-temp)

7

T

SU

:

STA

Start condition setup time

4700

600


ns


(I-temp)

8

T

HD

:

DAT

Data input hold time

0

ns

(Note 2)

9

T

SU

:

DAT

Data input setup time

250
100


ns


(I-temp)

10

T

SU

:

STO

Stop condition setup time

4000

600


ns


(I-temp)

11

T

AA

Output valid from clock
(Note 2)


3500

900

ns


(I-temp)

12

T

BUF

Bus free time: Time the bus
must be free before a new
transmission can start

4700
1300


ns


(I-temp)

13

T

OF

Output fall time from V

IH

minimum to V

IL

 maximum

C

B



≤ 100 pF

10 + 0.1CB

250

ns

(Note 1)

14

T

SP

Input filter spike suppression
(SDA and SCL pins)

50

ns

(Note 3)

15

T

WC

Write cycle time (byte or
page)

1.5

1

ms


(I-temp)

16

Endurance

1,000,000

cycles

25°C (Note 4)

Note 1:

Not 100% tested. C

B

 = total capacitance of one bus line in pF.

2:

As a transmitter, the device must provide an internal minimum delay time to bridge the undefined region
(minimum 300 ns) of the falling edge of SCL to avoid unintended generation of Start or Stop conditions.

3:

The combined T

SP

 and V

HYS

 specifications are due to new Schmitt Trigger inputs, which provide

improved noise spike suppression. This eliminates the need for a T

I

 specification for standard operation.

4:

This parameter is not tested but ensured by characterization. For endurance estimates in a specific
application, please consult the Total Endurance™ Model, which can be obtained from Microchip’s web site
at www.microchip.com.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

24C02C

DS21202J-page 4

© 2008 Microchip Technology Inc.

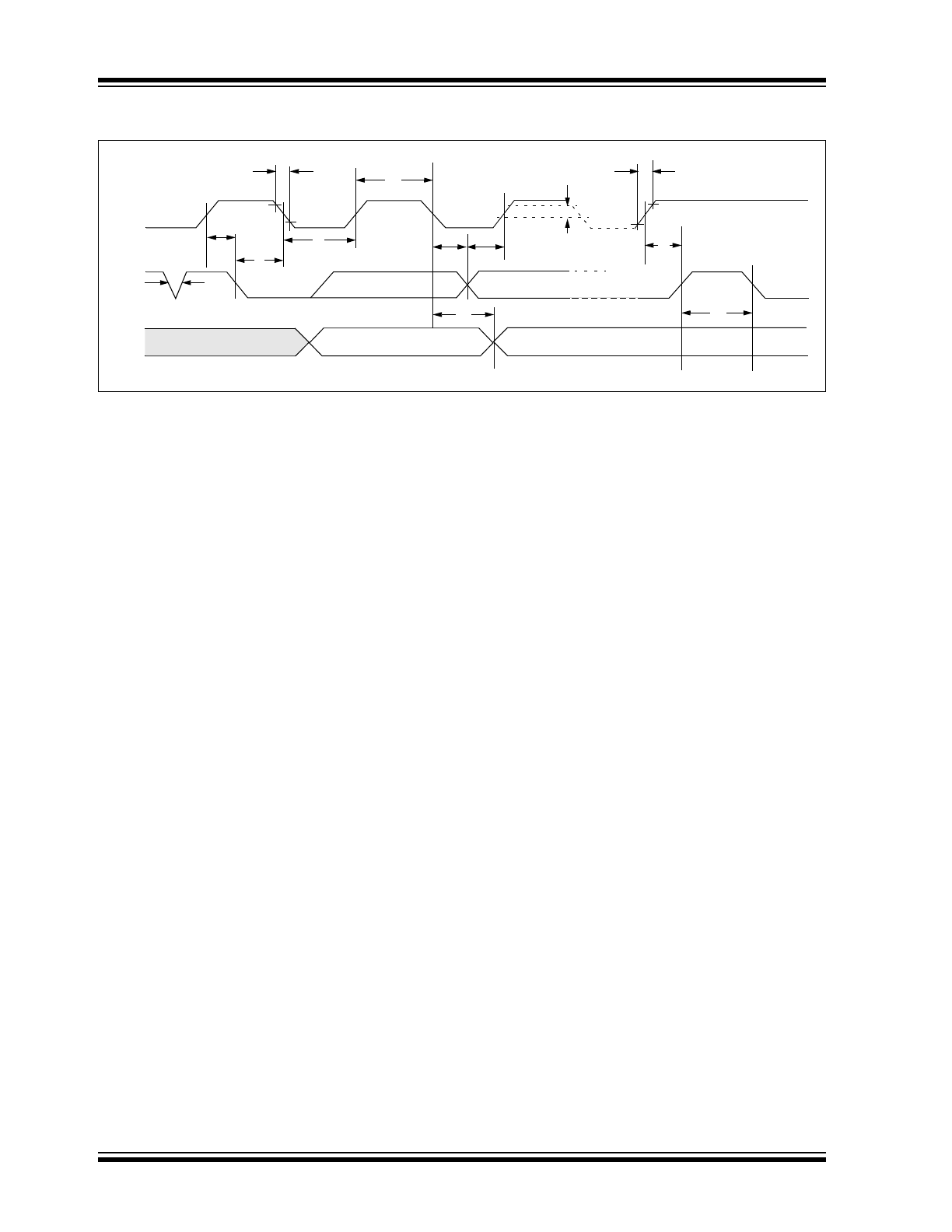

FIGURE 1-1:

BUS TIMING DATA

SCL

SDA
IN

SDA
OUT

5

7

6

14

3

2

8

9

11

D4

4

10

12

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

© 2008 Microchip Technology Inc.

DS21202J-page 5

24C02C

2.0

PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 2-1.

TABLE 2-1:

PIN FUNCTION TABLE

2.1

SDA Serial Data

This is a bidirectional pin used to transfer addresses
and data into and data out of the device. It is an open
drain terminal; therefore, the SDA bus requires a pull-
up resistor to V

CC

 (typical 10 k

Ω for 100 kHz, 2 kΩ for

400 kHz).

For normal data transfer SDA is allowed to change only
during SCL low. Changes during SCL high are
reserved for indicating the Start and Stop conditions.

2.2

SCL Serial Clock

This input is used to synchronize the data transfer from
and to the device.

2.3

A0, A1, A2

The levels on these inputs are compared with the
corresponding bits in the slave address. The chip is
selected if the compare is true.

Up to eight 24C02C devices may be connected to the
same bus by using different Chip Select bit combina-
tions. These inputs must be connected to either V

CC

 or

V

SS

.

2.4

WP

This is the hardware write-protect pin. It must be tied to
V

CC

 or V

SS

. If tied to Vcc, the hardware write protection

is enabled. If the WP pin is tied to V

SS

 the hardware

write protection is disabled.

2.5

Noise Protection

The 24C02C employs a V

CC

 threshold detector circuit

which disables the internal erase/write logic if the V

CC

is below 3.8 volts at nominal conditions.

The SCL and SDA inputs have Schmitt Trigger and
filter circuits which suppress noise spikes to assure
proper device operation even on a noisy bus.

Name

PDIP

SOIC

TSSOP

DFN/TDFN

MSOP

Function

A0

1

1

1

1

1

Address Pin A0

A1

2

2

2

2

2

Address Pin A1

A2

3

3

3

3

3

Address Pin A2

V

SS

4

4

4

4

4

Ground

SDA

5

5

5

5

5

Serial Address/Data I/O

SCL

6

6

6

6

6

Serial Clock

WP

7

7

7

7

7

Write-Protect Input

V

CC

8

8

8

8

8

+4.5 V to 5.5 V Power Supply

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

24C02C

DS21202J-page 6

© 2008 Microchip Technology Inc.

3.0

FUNCTIONAL DESCRIPTIONS

The 24C02C supports a bidirectional 2-wire bus and
data transmission protocol. A device that sends data
onto the bus is defined as transmitter, and a device
receiving data as receiver. The bus has to be controlled
by a master device that generates the Serial Clock
(SCL), controls the bus access, and generates the Start
and Stop conditions, while the 24C02C works as slave.
Both master and slave can operate as transmitter or
receiver but the master device determines which mode
is activated.

4.0

BUS CHARACTERISTICS

The following bus protocol has been defined:

• Data transfer may be initiated only when the bus

is not busy.

• During data transfer, the data line must remain

stable whenever the clock line is high. Changes in
the data line while the clock line is high will be
interpreted as a Start or Stop condition.

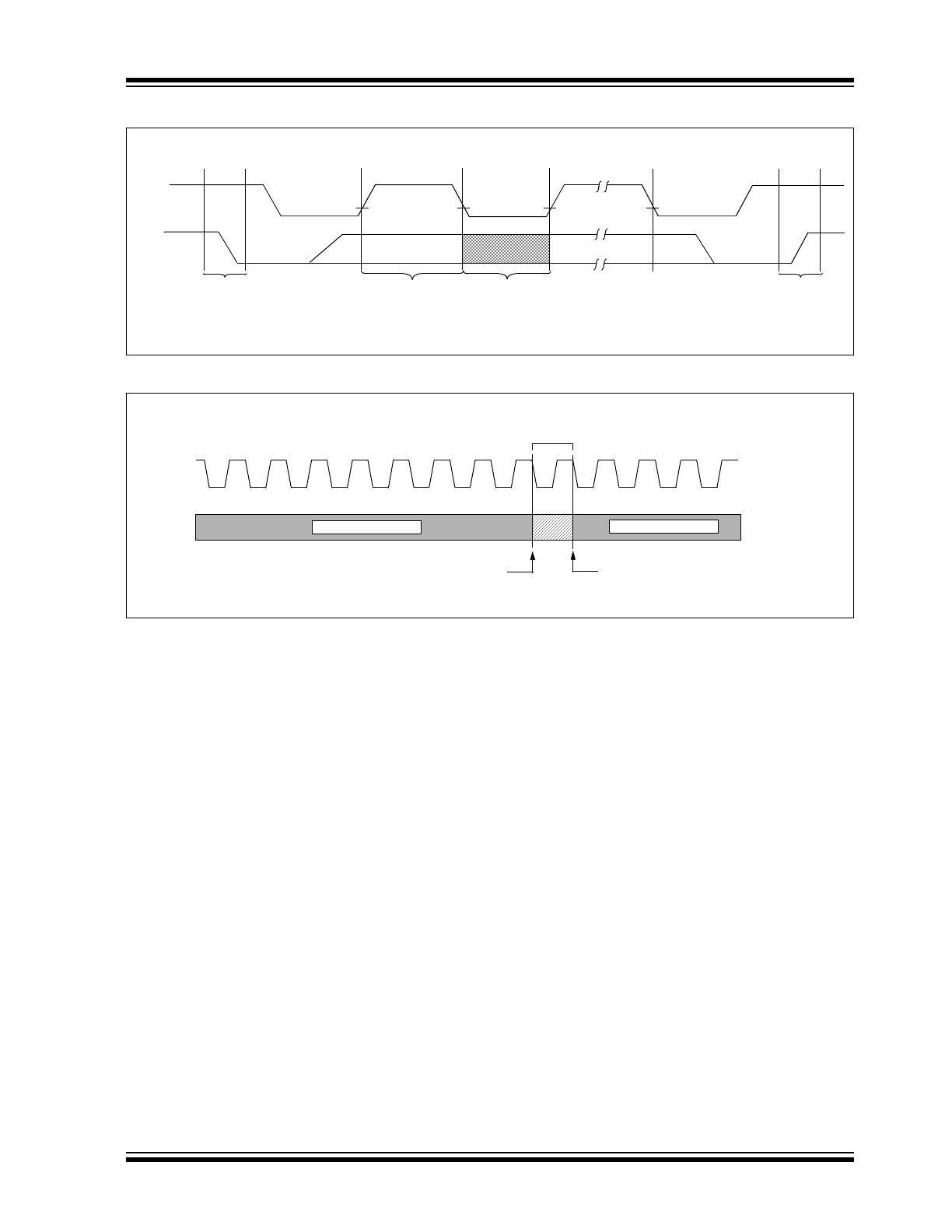

Accordingly, the following bus conditions have been
defined (Figure 4-1).

4.1

Bus Not Busy (A)

Both data and clock lines remain high.

4.2

Start Data Transfer (B)

A high-to-low transition of the SDA line while the clock
(SCL) is high determines a Start condition. All
commands must be preceded by a Start condition.

4.3

Stop Data Transfer (C)

A low-to-high transition of the SDA line while the clock
(SCL) is high determines a Stop condition. All opera-
tions must be ended with a Stop condition.

4.4

Data Valid (D)

The state of the data line represents valid data when,
after a Start condition, the data line is stable for the
duration of the high period of the clock signal.

The data on the line must be changed during the low
period of the clock signal. There is one bit of data per
clock pulse.

Each data transfer is initiated with a Start condition and
terminated with a Stop condition. The number of the
data bytes transferred between the Start and Stop
conditions is determined by the master device and is
theoretically unlimited, although only the last sixteen
will be stored when doing a write operation. When an
overwrite does occur it will replace data in a first-in first-
out fashion.

4.5

Acknowledge

Each receiving device, when addressed, is required to
generate an acknowledge after the reception of each
byte. The master device must generate an extra clock
pulse, which is associated with this Acknowledge bit.

The device that acknowledges has to pull down the
SDA line during the Acknowledge clock pulse in such a
way that the SDA line is stable low during the high
period of the acknowledge related clock pulse. Of
course, setup and hold times must be taken into
account. A master must signal an end of data to the
slave by not generating an Acknowledge bit on the last
byte that has been clocked out of the slave. In this
case, the slave must leave the data line high to enable
the master to generate the Stop condition (Figure 4-2).

Note:

The 24C02C does not generate any
Acknowledge bits if an internal
programming cycle is in progress.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

© 2008 Microchip Technology Inc.

DS21202J-page 7

24C02C

FIGURE 4-1:

DATA TRANSFER SEQUENCE ON THE SERIAL BUS

FIGURE 4-2:

ACKNOWLEDGE TIMING

(A)

(B)

(C)

(D)

(A)

(C)

SCL

SDA

Start

Condition

Address or

Acknowledge

Valid

Data

Allowed

to Change

Stop

Condition

SCL

9

8

7

6

5

4

3

2

1

1

2

3

Transmitter must release the SDA line at this point
allowing the Receiver to pull the SDA line low to
acknowledge the previous eight bits of data.

Receiver must release the SDA line at this point
so the Transmitter can continue sending data.

Data from transmitter

Data from transmitter

SDA

Acknowledge

Bit

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

24C02C

DS21202J-page 8

© 2008 Microchip Technology Inc.

5.0

DEVICE ADDRESSING

A control byte is the first byte received following the
Start condition from the master device (Figure 5-1).
The control byte consists of a four-bit control code; for
the 24C02C this is set as ‘1010’ binary for read and
write operations. The next three bits of the control byte
are the Chip Select bits (A2, A1, A0). The Chip Select
bits allow the use of up to eight 24C02C devices on the
same bus and are used to select which device is
accessed. The Chip Select bits in the control byte must
correspond to the logic levels on the corresponding A2,
A1 and A0 pins for the device to respond. These bits
are in effect the three Most Significant bits of the word
address.

The last bit of the control byte defines the operation to
be performed. When set to a ‘1’ a read operation is
selected, and when set to a ‘0’ a write operation is
selected. Following the Start condition, the 24C02C
monitors the SDA bus checking the control byte being
transmitted. Upon receiving a ‘1010’ code and appro-
priate Chip Select bits, the slave device outputs an
Acknowledge signal on the SDA line. Depending on the
state of the R/W bit, the 24C02C will select a read or
write operation.

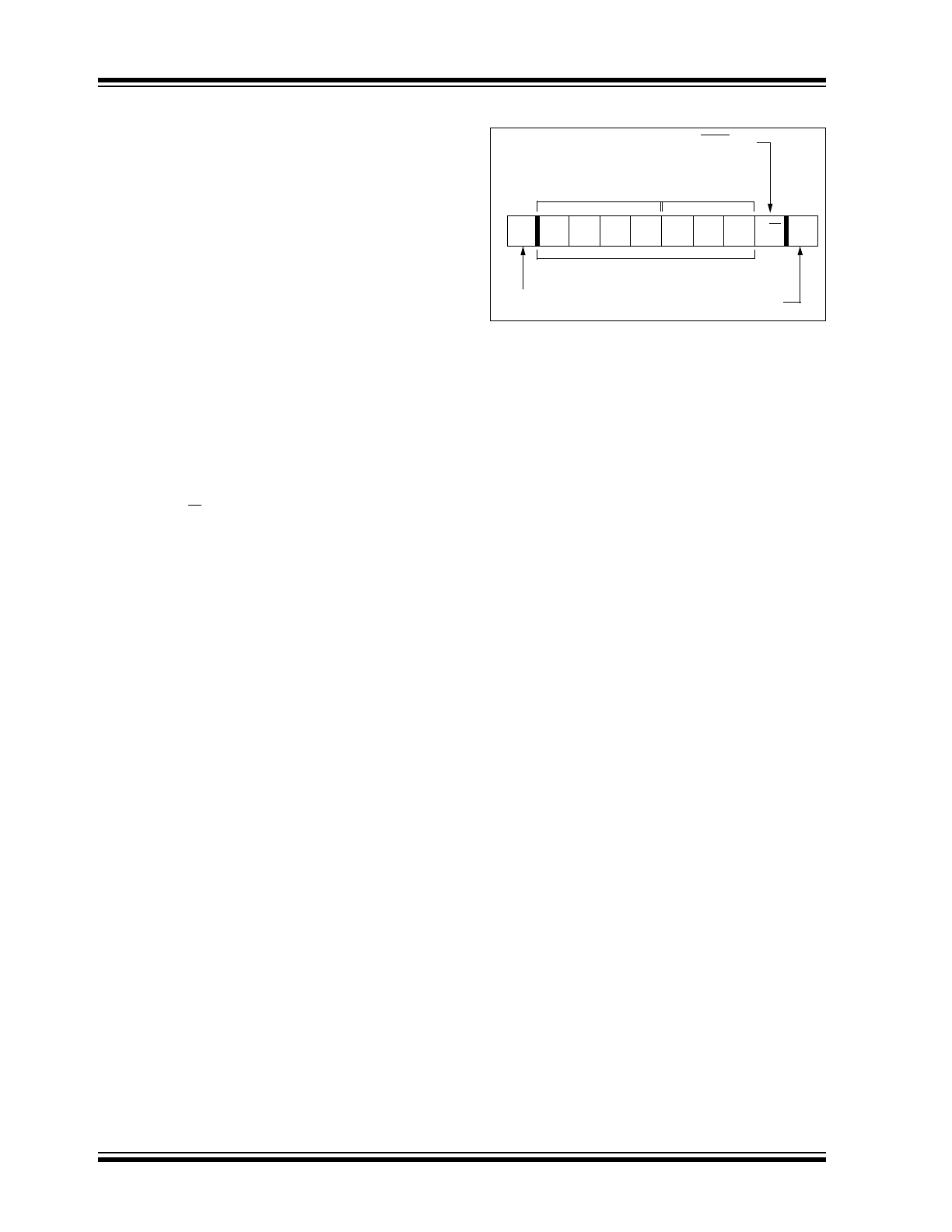

FIGURE 5-1:

CONTROL BYTE FORMAT

5.1

Contiguous Addressing Across
Multiple Devices

The Chip Select bits A2, A1, A0 can be used to expand
the contiguous address space for up to 16K bits by
adding up to eight 24C02C devices on the same bus.
In this case, software can use A0 of the control byte
as address bit A9, A1 as address bit A10, and A2 as
address bit A11. It is not possible to write or read across
device boundaries.

1

0

1

0

A2

A1

A0

S

ACK

R/W

Control Code

Chip Select

Bits

Slave Address

Acknowledge Bit

Start Bit

Read/Write Bit

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

© 2008 Microchip Technology Inc.

DS21202J-page 9

24C02C

6.0

WRITE OPERATIONS

6.1

Byte Write

Following the Start signal from the master, the device
code (4 bits), the Chip Select bits (3 bits) and the R/W
bit, which is a logic low, is placed onto the bus by the
master transmitter. The device will acknowledge this
control byte during the ninth clock pulse. The next byte
transmitted by the master is the word address and will
be written into the Address Pointer of the 24C02C.
After receiving another Acknowledge signal from the
24C02C the master device will transmit the data word
to be written into the addressed memory location. The
24C02C acknowledges again and the master gener-
ates a Stop condition. This initiates the internal write
cycle, and during this time the 24C02C will not gener-
ate Acknowledge signals (Figure 6-1). If an attempt is
made to write to the protected portion of the array when
the hardware write protection has been enabled, the
device will acknowledge the command but no data will
be written. The write cycle time must be observed even
if the write protection is enabled.

6.2

Page Write

The write control byte, word address and the first data
byte are transmitted to the 24C02C in the same way as
in a byte write. But instead of generating a Stop
condition, the master transmits up to 15 additional data
bytes to the 24C02C which are temporarily stored in
the on-chip page buffer and will be written into the
memory after the master has transmitted a Stop
condition. After the receipt of each word, the four lower
order Address Pointer bits are internally incremented
by one. The higher order four bits of the word address
remains constant. If the master should transmit more
than 16 bytes prior to generating the Stop condition, the
address counter will roll over and the previously
received data will be overwritten.

As with the byte write operation, once the Stop
condition is received an internal write cycle will begin
(Figure 6-2). If an attempt is made to write to the
protected portion of the array when the hardware write
protection has been enabled, the device will acknowl-
edge the command, but no data will be written. The
write cycle time must be observed even if the write
protection is enabled.

6.3

Write Protection

The WP pin must be tied to V

CC

 or V

SS

. If tied to V

CC

,

the upper half of the array (080-0FF) will be write-
protected. If the WP pin is tied to V

SS

, then write

operations to all address locations are allowed.

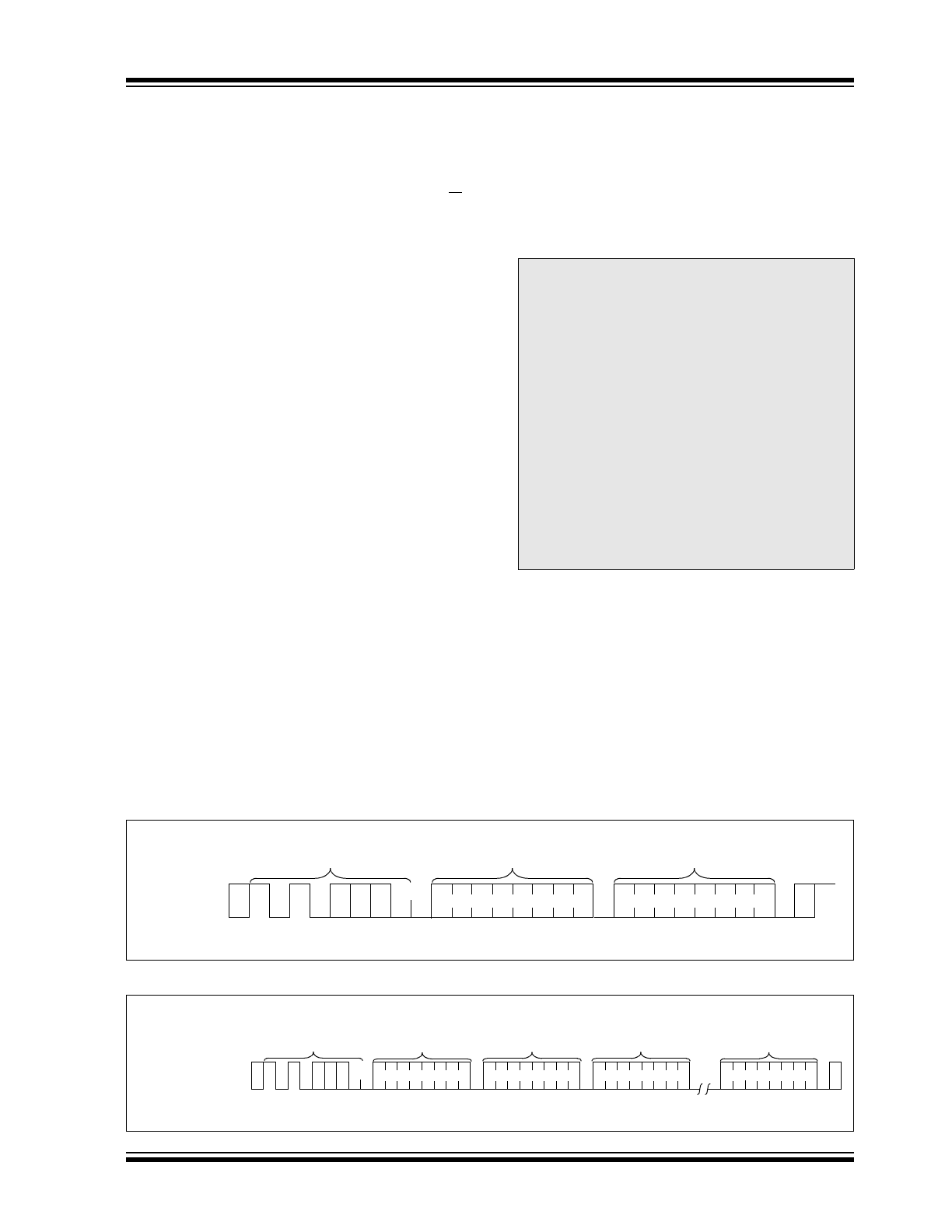

FIGURE 6-1:

BYTE WRITE

FIGURE 6-2:

PAGE WRITE

Note:

Page write operations are limited to writing
bytes within a single physical page,
regardless of the number of bytes
actually being written. Physical page
boundaries start at addresses that are
integer multiples of the page buffer size (or
‘page size’) and end at addresses that are
integer multiples of [page size – 1]. If a
Page Write command attempts to write
across a physical page boundary, the
result is that the data wraps around to the
beginning of the current page (overwriting
data previously stored there), instead of
being written to the next page as might be
expected. It is therefore necessary for the
application software to prevent page write
operations that would attempt to cross a
page boundary.

S

P

Bus Activity
Master

SDA Line

Bus Activity

S
T
A
R
T

S
T
O
P

Control

Byte

Word

Address

Data

A
C
K

A
C
K

A
C
K

S

P

Bus Activity
Master

SDA Line

Bus Activity

S
T
A
R
T

Control

Byte

Word

Address



(n)

Data



n

Data n + 15

S
T
O
P

A
C
K

A
C
K

A
C
K

A
C
K

A
C
K

Data n +1

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/21202J-html.html
background image

24C02C

DS21202J-page 10

© 2008 Microchip Technology Inc.

7.0

ACKNOWLEDGE POLLING

Since the device will not acknowledge during a write
cycle, this can be used to determine when the cycle is
complete (this feature can be used to maximize bus
throughput). Once the Stop condition for a Write
command has been issued from the master, the device
initiates the internally timed write cycle. ACK polling
can be initiated immediately. This involves the master
sending a Start condition followed by the control byte
for a Write command (R/W = 0). If the device is still
busy with the write cycle, then no ACK will be returned.
If no ACK is returned, then the Start bit and control byte
must be re-sent. If the cycle is complete, then the
device will return the ACK and the master can then
proceed with the next Read or Write command. See
Figure 7-1 for flow diagram.

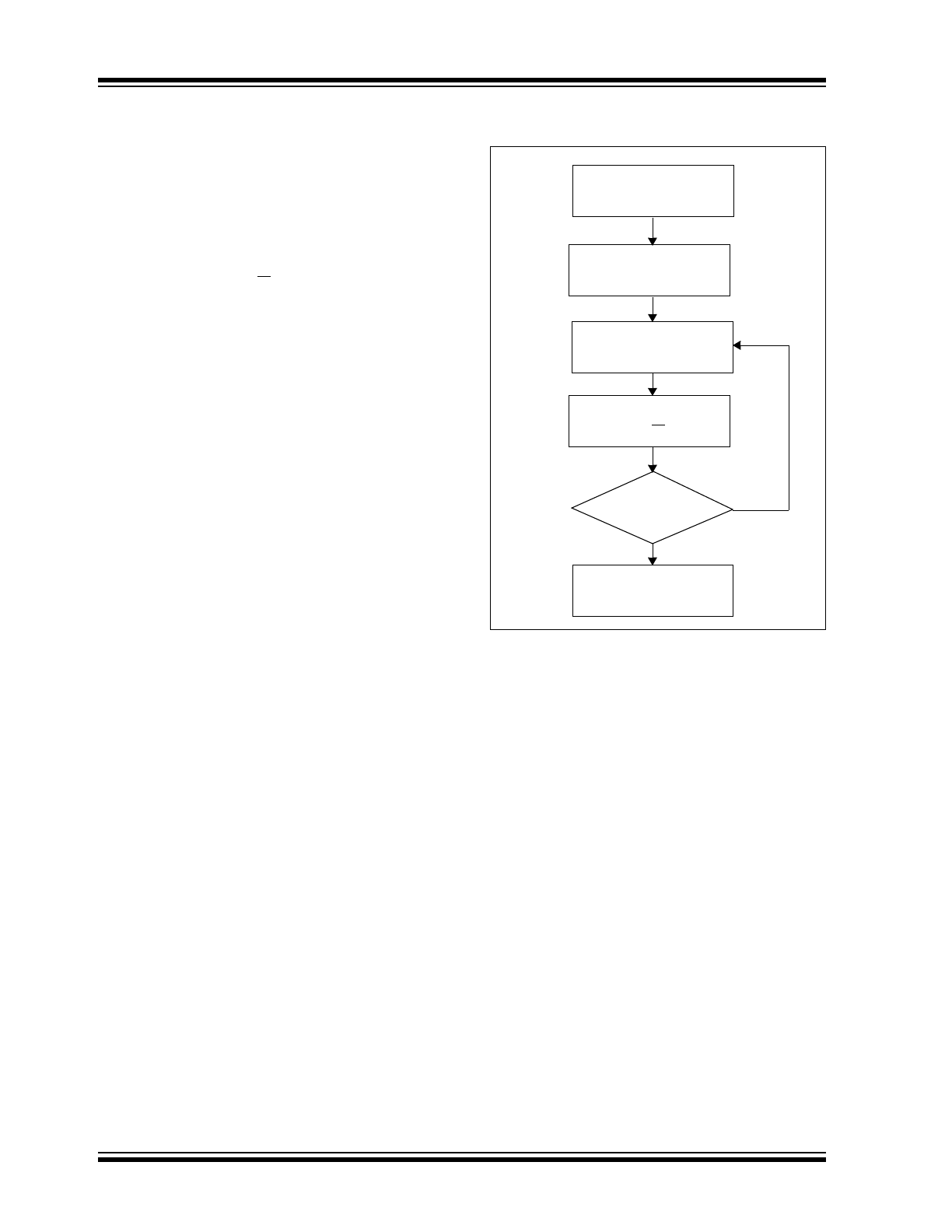

FIGURE 7-1:

ACKNOWLEDGE
POLLING FLOW

Send

Write Command

Send Stop

Condition to

Initiate Write Cycle

Send Start

Send Control Byte

with R/W = 0

Did Device

Acknowledge

(ACK = 0)?

Next

Operation

No

Yes

Maker
Microchip Technology Inc.
Datasheet PDF Download
