2015 Microchip Technology Inc.
DS20005044C-page 1
Features
• Single Voltage Read and Write Operations
- 2.7-3.6V
• Serial Interface Architecture
- SPI Compatible: Mode 0 and Mode 3
• High Speed Clock Frequency
- Up to 50 MHz
• Superior Reliability
- Endurance: 100,000 Cycles (typical)
- Greater than 100 years Data Retention
• Low Power Consumption:
- Active Read Current: 10 mA (typical)
- Standby Current: 5 µA (typical)
• Flexible Erase Capability
- Uniform 4 KByte sectors
- Uniform 32 KByte overlay blocks
- Uniform 64 KByte overlay blocks
• Fast Erase and Byte-Program:
- Chip-Erase Time: 35 ms (typical)
- Sector-/Block-Erase Time: 18 ms (typical)
- Byte-Program Time: 7 µs (typical)
• Auto Address Increment (AAI) Programming
- Decrease total chip programming time over
Byte-Program operations
• End-of-Write Detection
- Software polling the BUSY bit in Status Register
- Busy Status readout on SO pin in AAI Mode
• Hold Pin (HOLD#)
- Suspends a serial sequence to the memory
without deselecting the device
• Write Protection (WP#)
- Enables/Disables the Lock-Down function of the
status register
• Software Write Protection
- Write protection through Block-Protection bits in
status register
• Temperature Range
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C
• Packages Available
- 8-lead SOIC (200 mils)
- 8-contact WSON (6mm x 5mm)
• All devices are RoHS compliant
Product Description
The 25 series Serial Flash family features a four-wire,
SPI-compatible interface that allows for a low pin-count
package which occupies less board space and ulti-
mately lowers total system costs. The SST25VF016B
devices are enhanced with improved operating fre-
quency and even lower power consumption than the
original SST25VFxxxA devices. SST25VF016B SPI
serial flash memories are manufactured with propri-
etary, high-performance CMOS SuperFlash technol-
ogy. The split-gate cell design and thick-oxide tunneling
injector attain better reliability and manufacturability
compared with alternate approaches.
SST25VF016B devices significantly improve perfor-
mance and reliability, while lowering power consump-
tion. The devices write (Program or Erase) with a single
power supply of 2.7-3.6V for SST25VF016B. The total
energy consumed is a function of the applied voltage,
current, and time of application. Since for any given
voltage range, the SuperFlash technology uses less
current to program and has a shorter erase time, the
total energy consumed during any Erase or Program
operation is less than alternative flash memory technol-
ogies.
The SST25VF016B device is offered in both 8-lead
SOIC (200 mils) and 8-contact WSON (6mm x 5mm)
packages. See
Figure 2-1
for pin assignments.
SST25VF016B
16 Mbit SPI Serial Flash
SST25VF016B
DS20005044C-page 2
2015 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-
mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The
last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current
devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of
silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2015 Microchip Technology Inc.
DS20005044C-page 3
SST25VF016B
1.0
BLOCK DIAGRAM

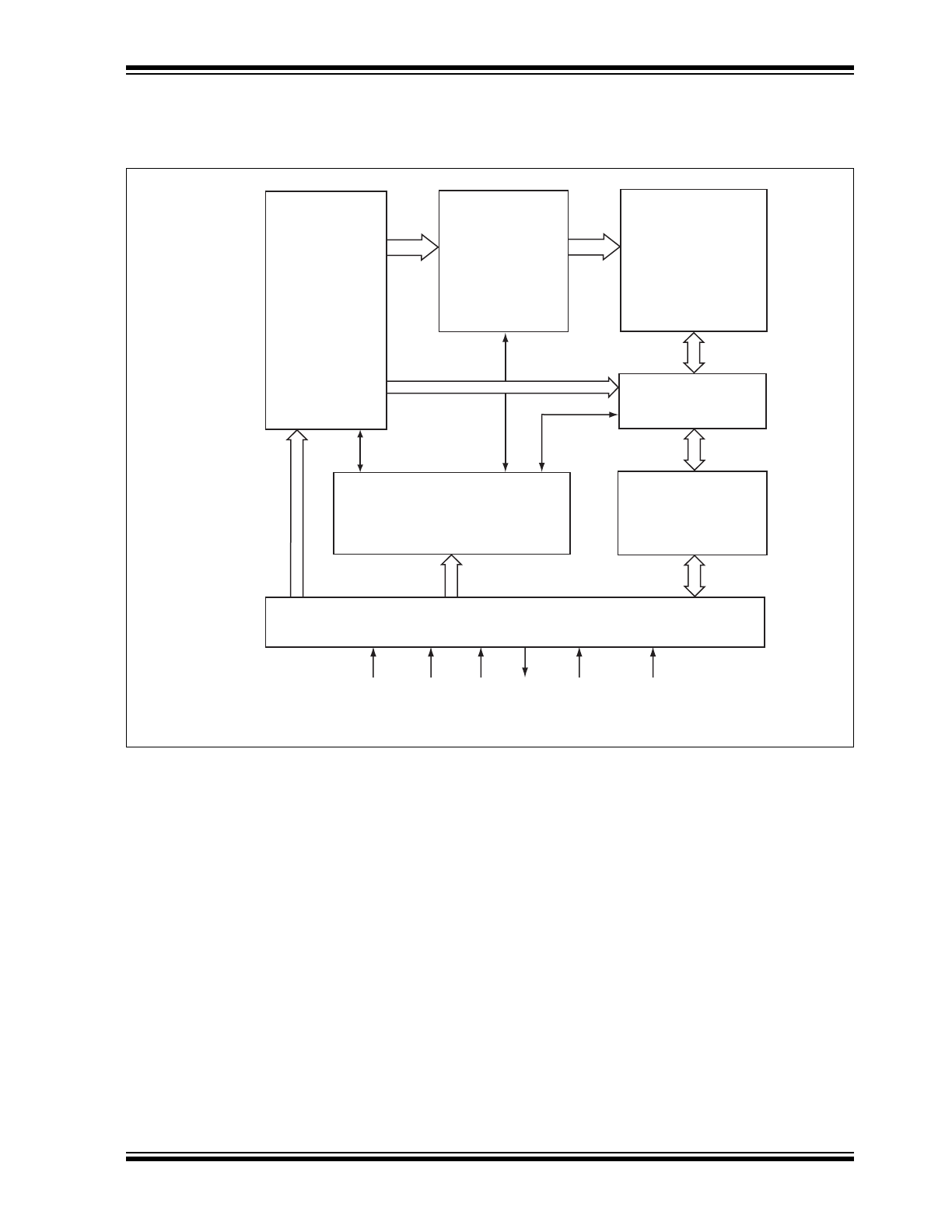

FIGURE 1-1:
FUNCTIONAL BLOCK DIAGRAM
1271 B1.0
I/O Buffers
and
Data Latches
SuperFlash
Memory
X - Decoder
Control Logic
Address
Buffers
and
Latches
CE#
Y - Decoder
SCK
SI
SO
WP#
HOLD#
Serial Interface
SST25VF016B
DS20005044C-page 4
2015 Microchip Technology Inc.
2.0
PIN DESCRIPTION

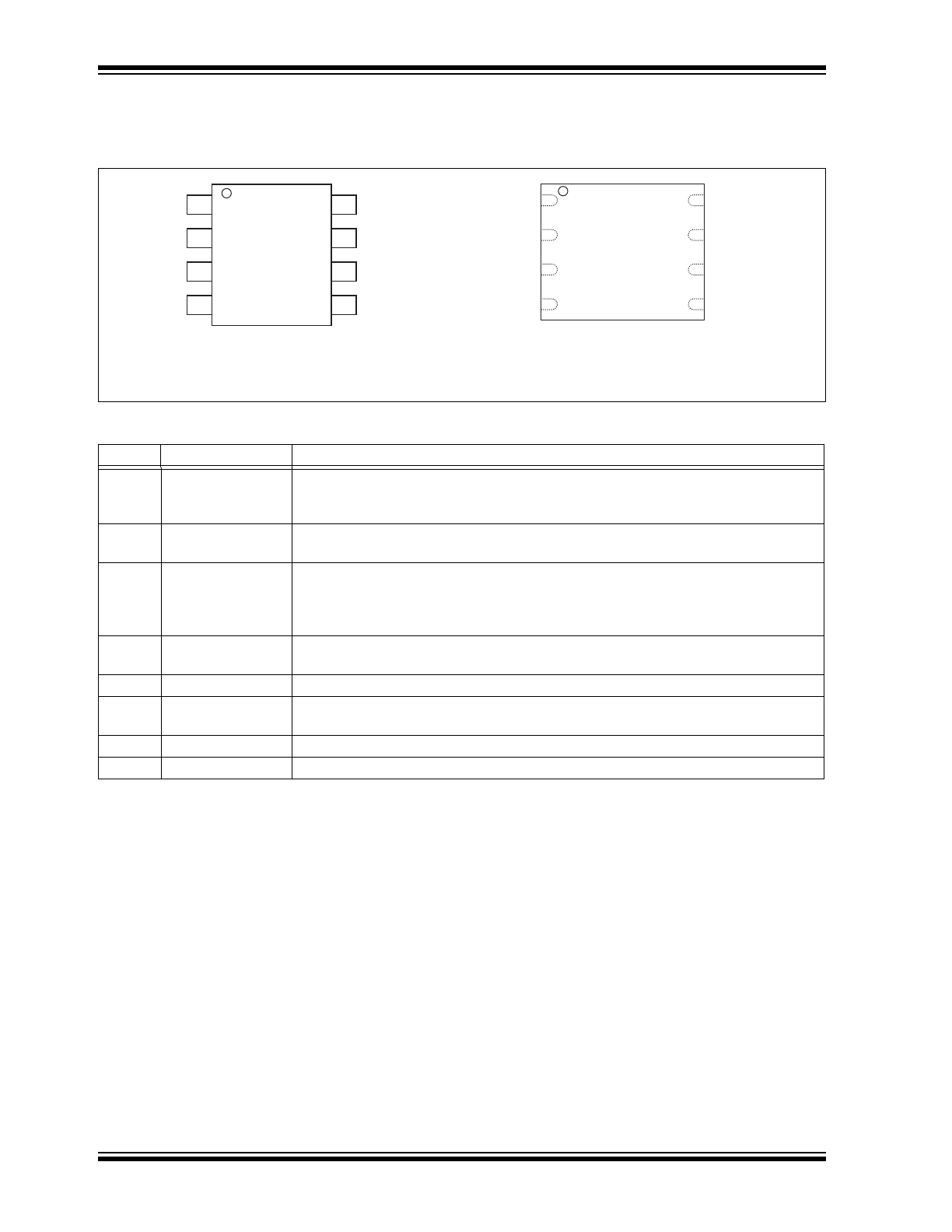

FIGURE 2-1:
PIN ASSIGNMENTS
TABLE 2-1:
PIN DESCRIPTION
Symbol Pin Name
Functions
SCK
Serial Clock
To provide the timing of the serial interface.
Commands, addresses, or input data are latched on the rising edge of the clock
input, while output data is shifted out on the falling edge of the clock input.
SI
Serial Data Input
To transfer commands, addresses, or data serially into the device.
Inputs are latched on the rising edge of the serial clock.
SO
Serial Data Output
To transfer data serially out of the device.
Data is shifted out on the falling edge of the serial clock.
Outputs Flash busy status during AAI Programming when reconfigured as RY/BY#
pin. See
“Hardware End-of-Write Detection” on page 11
for details.
CE#
Chip Enable
The device is enabled by a high to low transition on CE#. CE# must remain low for
the duration of any command sequence.
WP#
Write Protect
The Write Protect (WP#) pin is used to enable/disable BPL bit in the status register.
HOLD#
Hold
To temporarily stop serial communication with SPI flash memory without resetting the
device.
V
DD
Power Supply
To provide power supply voltage: 2.7-3.6V for SST25VF016B
V
SS
Ground
1
2
3
4
8
7
6
5
CE#
SO
WP#
VSS
VDD
HOLD#
SCK
SI
Top View
1271 08-soic S2A P1.0
1
2
3
4
8
7
6
5
CE#
SO
WP#
VSS
Top View
VDD
HOLD#
SCK
SI
1271 08-wson QA P2.0
8-Lead SOIC
8-Contact WSON
2015 Microchip Technology Inc.
DS20005044C-page 5
SST25VF016B
3.0
MEMORY ORGANIZATION
The SST25VF016B SuperFlash memory array is orga-
nized in uniform 4 KByte erasable sectors with
32 KByte overlay blocks and 64 KByte overlay eras-
able blocks.
4.0
DEVICE OPERATION
The SST25VF016B is accessed through the SPI (Serial
Peripheral Interface) bus compatible protocol. The SPI
bus consist of four control lines; Chip Enable (CE#) is
used to select the device, and data is accessed through
the Serial Data Input (SI), Serial Data Output (SO), and
Serial Clock (SCK).
The SST25VF016B supports both Mode 0 (0,0) and
Mode 3 (1,1) of SPI bus operations. The difference
between the two modes, as shown in
Figure 4-1
, is the
state of the SCK signal when the bus master is in
Stand-by mode and no data is being transferred. The
SCK signal is low for Mode 0 and SCK signal is high for
Mode 3. For both modes, the Serial Data In (SI) is sam-
pled at the rising edge of the SCK clock signal and the
Serial Data Output (SO) is driven after the falling edge
of the SCK clock signal.

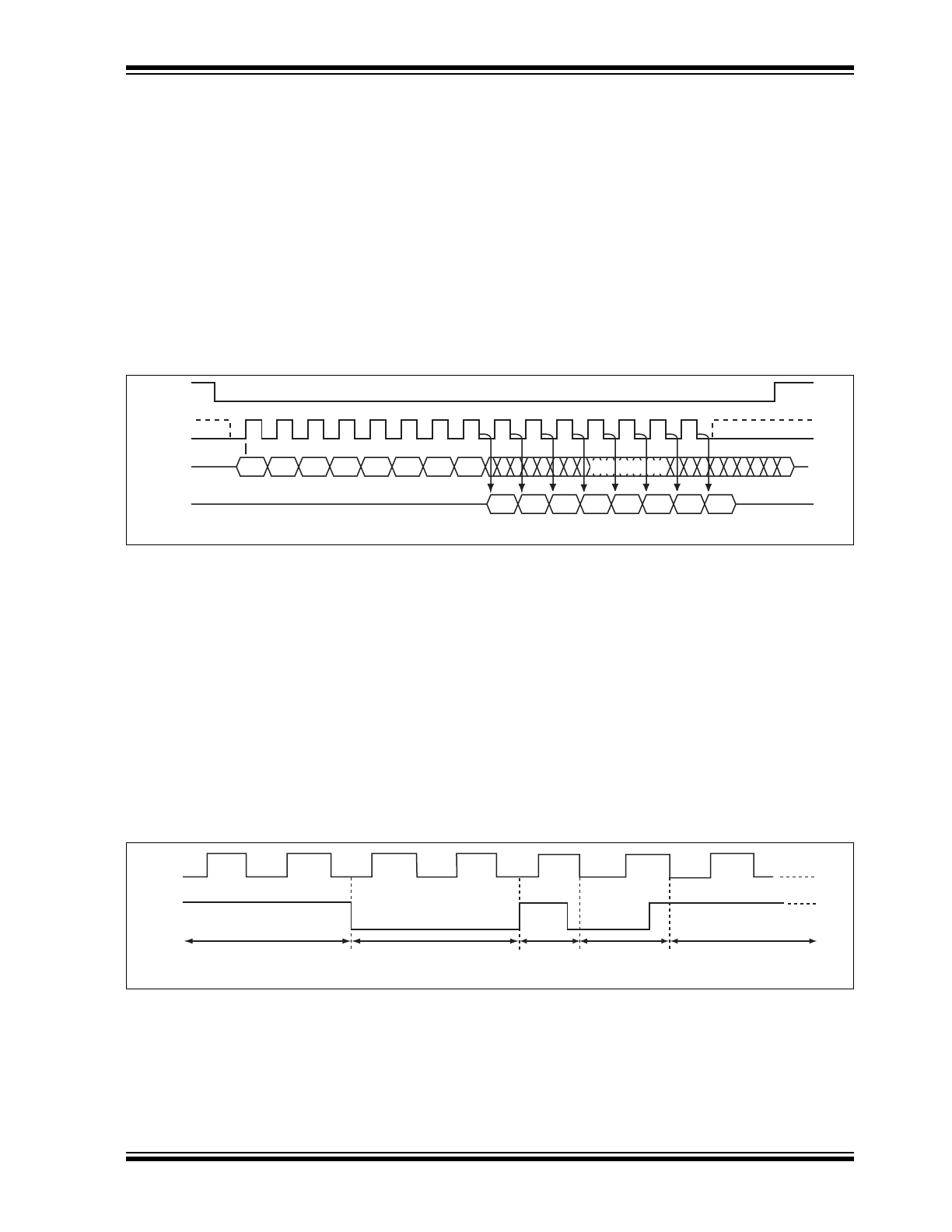

FIGURE 4-1:
SPI PROTOCOL
4.1
Hold Operation
The HOLD# pin is used to pause a serial sequence
underway with the SPI flash memory without resetting
the clocking sequence. To activate the HOLD# mode,
CE# must be in active low state. The HOLD# mode
begins when the SCK active low state coincides with
the falling edge of the HOLD# signal. The HOLD mode
ends when the HOLD# signal’s rising edge coincides
with the SCK active low state.
If the falling edge of the HOLD# signal does not coin-
cide with the SCK active low state, then the device
enters Hold mode when the SCK next reaches the
active low state. Similarly, if the rising edge of the
HOLD# signal does not coincide with the SCK active
low state, then the device exits in Hold mode when the
SCK next reaches the active low state. See
Figure 4-2
for Hold Condition waveform.
Once the device enters Hold mode, SO will be in high-
impedance state while SI and SCK can be V
IL
or V
IH.
If CE# is driven active high during a Hold condition, it
resets the internal logic of the device. As long as
HOLD# signal is low, the memory remains in the Hold
condition. To resume communication with the device,
HOLD# must be driven active high, and CE# must be
driven active low. See
Figure 5-3
for Hold timing.
FIGURE 4-2:
HOLD CONDITION WAVEFORM
4.2
Write Protection
SST25VF016B provides software Write protection. The
Write Protect pin (WP#) enables or disables the lock-
down function of the status register. The Block-Protec-
tion bits (BP3, BP2, BP1, BP0, and BPL) in the status
register provide Write protection to the memory array
and the status register. See
Table 4-3
for the Block-Pro-
tection description.
1271 SPIprot.0
MODE 3
SCK
SI
SO
CE#
MODE 3
DON'T CARE
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
MODE 0
MODE 0
HIGH IMPEDANCE
MSB
MSB
Active
Hold
Active
Hold
Active
1271 HoldCond.0
SCK
HOLD#
SST25VF016B
DS20005044C-page 6
2015 Microchip Technology Inc.
4.2.1
WRITE PROTECT PIN (WP#)
The Write Protect (WP#) pin enables the lock-down
function of the BPL bit (bit 7) in the status register.
When WP# is driven low, the execution of the Write-
Status-Register (WRSR) instruction is determined by
the value of the BPL bit (see
Table 4-1
). When WP# is
high, the lock-down function of the BPL bit is disabled.
4.3
Status Register
The software status register provides status on
whether the flash memory array is available for any
Read or Write operation, whether the device is Write
enabled, and the state of the Memory Write protection.
During an internal Erase or Program operation, the sta-
tus register may be read only to determine the comple-
tion of an operation in progress.
Table 4-2
describes
the function of each bit in the software status register.
4.3.1
BUSY
The Busy bit determines whether there is an internal
Erase or Program operation in progress. A “1” for the
Busy bit indicates the device is busy with an operation
in progress. A “0” indicates the device is ready for the
next valid operation.
4.3.2
WRITE ENABLE LATCH (WEL)
The Write-Enable-Latch (WEL) bit indicates the status
of the internal memory Write Enable Latch. If the Write-
Enable-Latch bit is set to “1”, it indicates the device is
Write enabled. If the bit is set to “0” (reset), it indicates
the device is not Write enabled and does not accept
any memory Write (Program/Erase) commands. The
Write-Enable-Latch bit is automatically reset under the
following conditions:
• Power-up
• Write-Disable (WRDI) instruction completion
• Byte-Program instruction completion
• Auto Address Increment (AAI) programming is
completed or reached its highest unprotected
memory address
• Sector-Erase instruction completion
• Block-Erase instruction completion
• Chip-Erase instruction completion
• Write-Status-Register instructions
4.3.3
AUTO ADDRESS INCREMENT (AAI)
The Auto Address Increment Programming-Status bit
provides status on whether the device is in Auto
Address Increment (AAI) programming mode or Byte-
Program mode. The default at power up is Byte-Pro-
gram mode.
TABLE 4-1:
CONDITIONS TO EXECUTE WRITE-STATUS-REGISTER (WRSR) INSTRUCTION
WP#
BPL
Execute WRSR Instruction
L
1
Not Allowed
L
0
Allowed
H
X
Allowed
TABLE 4-2:
SOFTWARE STATUS REGISTER
Bit
Name
Function
Default at
Power-up
Read/Write
0
BUSY
1 = Internal Write operation is in progress
0 = No internal Write operation is in progress
0
R
1
WEL
1 = Device is memory Write enabled
0 = Device is not memory Write enabled
0
R
2
BP0
Indicate current level of block write protection (See
Table 4-3
)
1
R/W
3
BP1
Indicate current level of block write protection (See
Table 4-3
)
1
R/W
4
BP2
Indicate current level of block write protection (See
Table 4-3
)
1
R/W
5
BP3
Indicate current level of block write protection (See
Table 4-3
)
0
R/W
6
AAI
Auto Address Increment Programming status
1 = AAI programming mode
0 = Byte-Program mode
0
R
7
BPL
1 = BP3, BP2, BP1, BP0 are read-only bits
0 = BP3, BP2, BP1, BP0 are read/writable
0
R/W
2015 Microchip Technology Inc.
DS20005044C-page 7
SST25VF016B
4.3.4
BLOCK PROTECTION (BP3,BP2,
BP1, BP0)
The Block-Protection (BP3, BP2, BP1, BP0) bits define
the size of the memory area, as defined in
Table 4-3
, to
be software protected against any memory Write (Pro-
gram or Erase) operation. The Write-Status-Register
(WRSR) instruction is used to program the BP3, BP2,
BP1 and BP0 bits as long as WP# is high or the Block-
Protect-Lock (BPL) bit is 0. Chip-Erase can only be
executed if Block-Protection bits are all 0. After power-
up, BP3, BP2, BP1 and BP0 are set to 1.
4.3.5
BLOCK PROTECTION LOCK-DOWN
(BPL)
WP# pin driven low (V
IL
), enables the Block-Protection-
Lock-Down (BPL) bit. When BPL is set to 1, it prevents
any further alteration of the BPL, BP3, BP2, BP1, and
BP0 bits. When the WP# pin is driven high (V
IH
), the
BPL bit has no effect and its value is “Don’t Care”. After
power-up, the BPL bit is reset to 0.
TABLE 4-3:
SOFTWARE STATUS REGISTER BLOCK PROTECTION FOR SST25VF016B
1
1. X = Don’t Care (RESERVED) default is “0
Protection Level
Status Register Bit
2
2. Default at power-up for BP2, BP1, and BP0 is ‘111’. (All Blocks Protected)
Protected Memory Address
BP3
BP2
BP1
BP0
16 Mbit
None
X
0
0
0
None
Upper 1/32
X
0
0
1
1F0000H-1FFFFFH
Upper 1/16
X
0
1
0
1E0000H-1FFFFFH
Upper 1/8
X
0
1
1
1C0000H-1FFFFFH
Upper 1/4
X
1
0
0
180000H-1FFFFFH
Upper 1/2
X
1
0
1
100000H-1FFFFFH
All Blocks
X
1
1
0
000000H-1FFFFFH
All Blocks
X
1
1
1
000000H-1FFFFFH
SST25VF016B
DS20005044C-page 8
2015 Microchip Technology Inc.
4.4
Instructions
Instructions are used to read, write (Erase and Pro-
gram), and configure the SST25VF016B. The instruc-
tion bus cycles are 8 bits each for commands (Op
Code), data, and addresses. Prior to executing any
Byte-Program, Auto Address Increment (AAI) program-
ming, Sector-Erase, Block-Erase, Write-Status-Regis-
ter, or Chip-Erase instructions, the Write-Enable
(WREN) instruction must be executed first. The com-
plete list of instructions is provided in
Table 4-4
. All
instructions are synchronized off a high to low transition
of CE#. Inputs will be accepted on the rising edge of
SCK starting with the most significant bit. CE# must be
driven low before an instruction is entered and must be
driven high after the last bit of the instruction has been
shifted in (except for Read, Read-ID, and Read-Status-
Register instructions). Any low to high transition on
CE#, before receiving the last bit of an instruction bus
cycle, will terminate the instruction in progress and
return the device to standby mode. Instruction com-
mands (Op Code), addresses, and data are all input
from the most significant bit (MSB) first.
TABLE 4-4:
DEVICE OPERATION INSTRUCTIONS
Instruction
Description
Op Code Cycle
1
1. One bus cycle is eight clock periods.
Address
Cycle(s)
2
2. Address bits above the most significant bit of each density can be V
IL
or V
IH
.
Dummy
Cycle(s)
Data
Cycle(s)
Maximum
Frequency
Read
Read Memory at 25 MHz
0000 0011b (03H)
3
0
1 to
25 MHz
High-Speed
Read
Read Memory at 50 MHz
0000 1011b (0BH)
3
1
1 to
50 MHz
4 KByte Sector-
Erase
3
3. 4KByte Sector Erase addresses: use A
MS
-A
12,
remaining addresses are don’t care but must be set either at V
IL
or V
IH.
Erase 4 KByte of
memory array
0010 0000b (20H)
3
0
0
50 MHz
32 KByte Block-
Erase
4
4. 32KByte Block Erase addresses: use A
MS
-A
15,
remaining addresses are don’t care but must be set either at V
IL
or V
IH.
Erase 32 KByte block
of memory array
0101 0010b (52H)
3
0
0
50 MHz
64 KByte Block-
Erase
5
5. 64KByte Block Erase addresses: use A
MS
-A
16,
remaining addresses are don’t care but must be set either at V
IL
or V
IH.
Erase 64 KByte block
of memory array
1101 1000b (D8H)
3
0
0
50 MHz
Chip-Erase
Erase Full Memory Array
0110 0000b (60H) or
1100 0111b (C7H)
0
0
0
50 MHz
Byte-Program
To Program One Data Byte
0000 0010b (02H)
3
0
1
50 MHz
AAI-Word-Pro-
gram
6
6. To continue programming to the next sequential address location, enter the 8-bit command, ADH, followed by 2 bytes of data
to be programmed. Data Byte 0 will be programmed into the initial address [A
23
-A
1
] with A
0
=0, Data Byte 1 will be pro-
grammed into the initial address [A
23
-A
1
] with A
0
=1.
Auto Address Increment
Programming
1010 1101b (ADH)
3
0
2 to
50 MHz
RDSR
7
7. The Read-Status-Register is continuous with ongoing clock cycles until terminated by a low to high transition on CE#.
Read-Status-Register
0000 0101b (05H)
0
0
1 to
50 MHz
EWSR
Enable-Write-Status-Register
0101b 0000b (50H)
0
0
0
50 MHz
WRSR
Write-Status-Register
0000 0001b (01H)
0
0
1
50 MHz
WREN
Write-Enable
0000 0110b (06H)
0
0
0
50 MHz
WRDI
Write-Disable
0000 0100b (04H)
0
0
0
50 MHz
RDID
8
8. Manufacturer’s ID is read with A
0
=0, and Device ID is read with A
0
=1. All other address bits are 00H. The Manufacturer’s ID
and device ID output stream is continuous until terminated by a low-to-high transition on CE#.
Read-ID
1001 0000b (90H) or
1010 1011b (ABH)
3
0
1 to
50 MHz
JEDEC-ID
JEDEC ID read
1001 1111b (9FH)
0
0
3 to
50 MHz
EBSY
Enable SO to output RY/BY#
status during AAI program-
ming
0111 0000b (70H)
0
0
0
50 MHz
DBSY
Disable SO as RY/BY#
status during AAI program-
ming
1000 0000b (80H)
0
0
0
50 MHz
2015 Microchip Technology Inc.
DS20005044C-page 9
SST25VF016B
4.4.1
READ (25 MHZ)
The Read instruction, 03H, supports up to 25 MHz
Read. The device outputs the data starting from the
specified address location. The data output stream is
continuous through all addresses until terminated by a
low to high transition on CE#. The internal address
pointer will automatically increment until the highest
memory address is reached. Once the highest memory
address is reached, the address pointer will automati-
cally increment to the beginning (wrap-around) of the
address space. Once the data from address location
1FFFFFH has been read, the next output will be from
address location 000000H.
The Read instruction is initiated by executing an 8-bit
command, 03H, followed by address bits [A
23
-A
0
]. CE#
must remain active low for the duration of the Read
cycle. See
Figure 4-3
for the Read sequence.

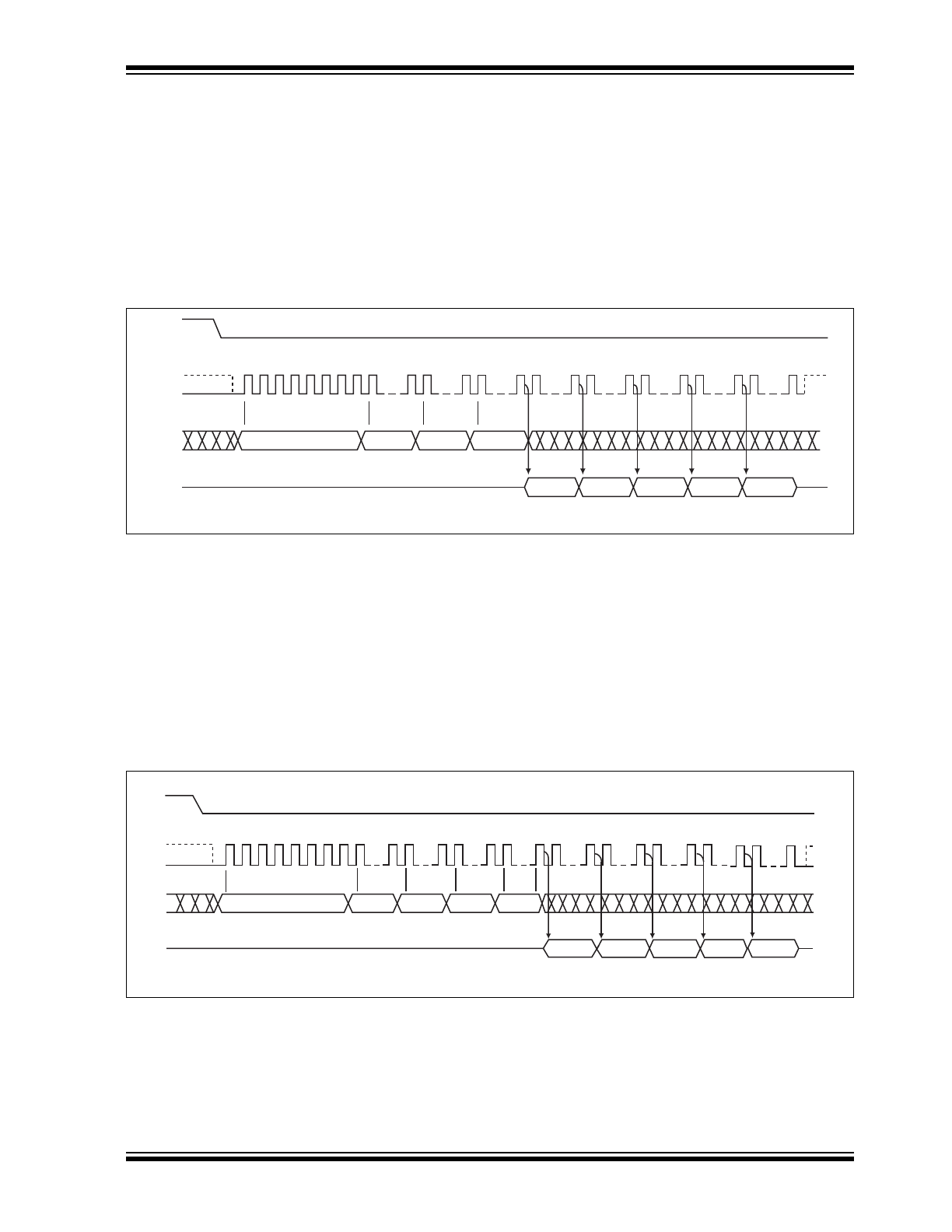

FIGURE 4-3:
READ SEQUENCE
4.4.2
HIGH-SPEED-READ (50 MHZ)
The High-Speed-Read instruction supporting up to 50
MHz Read is initiated by executing an 8-bit command,
0BH, followed by address bits [A
23
-A
0
] and a dummy
byte. CE# must remain active low for the duration of the
High-Speed-Read cycle. See
Figure 4-4
for the High-
Speed-Read sequence.
Following a dummy cycle, the High-Speed-Read
instruction outputs the data starting from the specified
address location. The data output stream is continuous
through all addresses until terminated by a low to high
transition on CE#. The internal address pointer will
automatically increment until the highest memory
address is reached. Once the highest memory address
is reached, the address pointer will automatically incre-
ment to the beginning (wrap-around) of the address
space. Once the data from address location 1FFFFFH
has been read, the next output will be from address
location 000000H.
FIGURE 4-4:
HIGH-SPEED-READ SEQUENCE
1271 ReadSeq.0
CE#
SO
SI
SCK
ADD.
0 1 2 3 4 5 6 7 8
ADD.
ADD.
03
HIGH IMPEDANCE
15 16
23 24
31 32
39 40
70
47
48
55 56
63 64
N+2
N+3
N+4
N
N+1
D
OUT
MSB
MSB
MSB
MODE 0
MODE 3
D
OUT
D
OUT
D
OUT
D
OUT
1271 HSRdSeq.0
CE#
SO
SI
SCK
ADD.
0 1 2 3 4 5
6 7 8
ADD.
ADD.
0B
HIGH IMPEDANCE
15 16
23 24
31 32
39 40
47 48
55 56
63 64
N+2
N+3
N+4
N
N+1
X
MSB
MSB
MSB
MODE 0
MODE 3
D
OUT
D
OUT
D
OUT
D
OUT
80
71 72
D
OUT
Note: X = Dummy Byte: 8 Clocks Input Dummy Cycle (V
IL
or V
IH
)
SST25VF016B
DS20005044C-page 10
2015 Microchip Technology Inc.
4.4.3
BYTE-PROGRAM
The Byte-Program instruction programs the bits in the
selected byte to the desired data. The selected byte
must be in the erased state (FFH) when initiating a Pro-
gram operation. A Byte-Program instruction applied to a
protected memory area will be ignored.
Prior to any Write operation, the Write-Enable (WREN)
instruction must be executed. CE# must remain active
low for the duration of the Byte-Program instruction.
The Byte-Program instruction is initiated by executing
an 8-bit command, 02H, followed by address bits [A
23
-
A
0
]. Following the address, the data is input in order
from MSB (bit 7) to LSB (bit 0). CE# must be driven
high before the instruction is executed. The user may
poll the Busy bit in the software status register or wait
T
BP
for the completion of the internal self-timed Byte-
Program operation. See
Figure 4-5
for the Byte-Pro-
gram sequence.

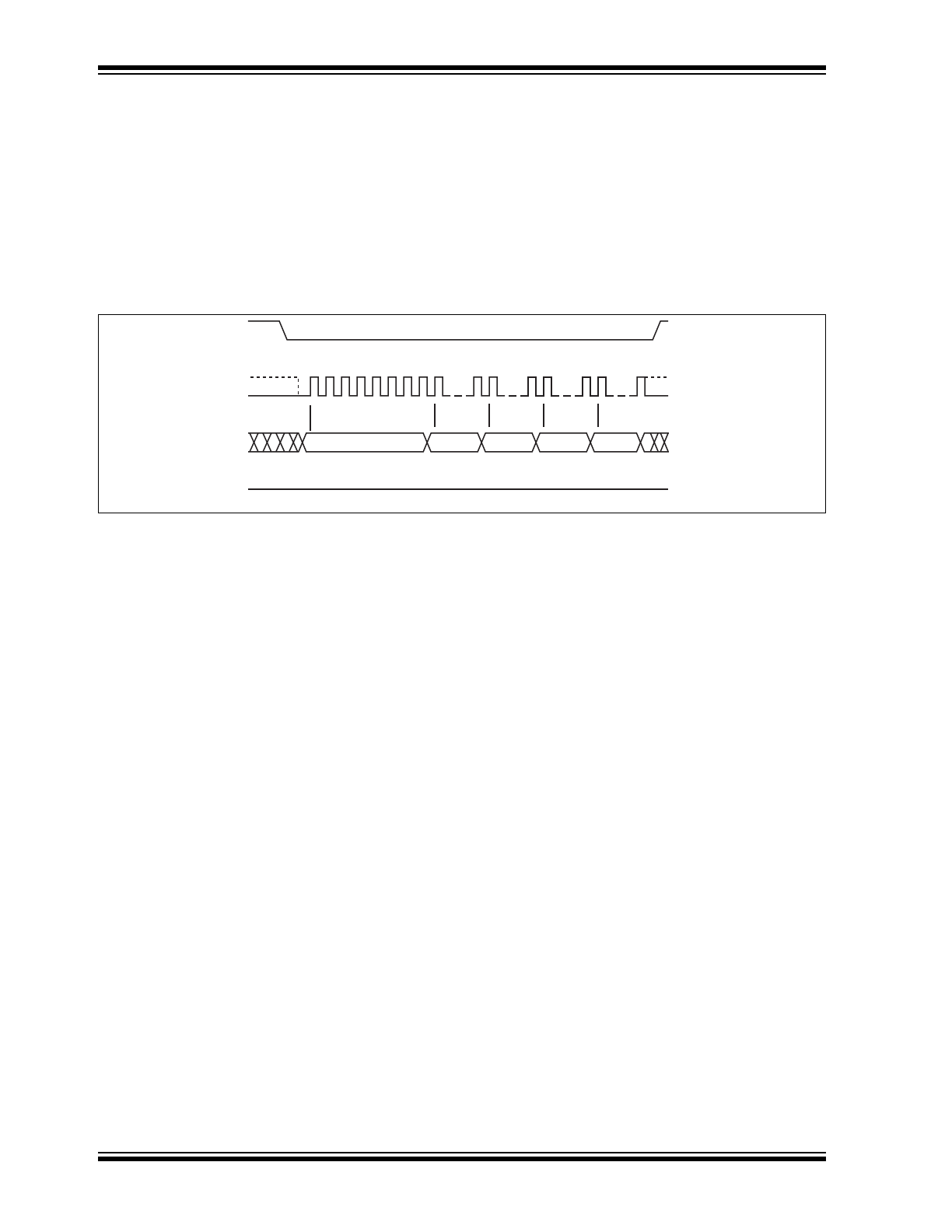

FIGURE 4-5:
BYTE-PROGRAM SEQUENCE
4.4.4
AUTO ADDRESS INCREMENT (AAI)
WORD-PROGRAM
The AAI program instruction allows multiple bytes of
data to be programmed without re-issuing the next
sequential address location. This feature decreases
total programming time when multiple bytes or entire
memory array is to be programmed. An AAI Word pro-
gram instruction pointing to a protected memory area
will be ignored. The selected address range must be in
the erased state (FFH) when initiating an AAI Word
Program operation. While within AAI Word Program-
ming sequence, only the following instructions are
valid: for software end-of-write detection—AAI Word
(ADH), WRDI (04H), and RDSR (05H); for hardware
end-of-write detection—AAI Word (ADH) and WRDI
(04H). There are three options to determine the com-
pletion of each AAI Word program cycle: hardware
detection by reading the Serial Output, software detec-
tion by polling the BUSY bit in the software status reg-
ister, or wait T
BP.
Refer to“End-of-Write Detection” for
details.
Prior to any write operation, the Write-Enable (WREN)
instruction must be executed. Initiate the AAI Word
Program instruction by executing an 8-bit command,
ADH, followed by address bits [A
23
-A
0
]. Following the
addresses, two bytes of data are input sequentially,
each one from MSB (Bit 7) to LSB (Bit 0). The first byte
of data (D0) is programmed into the initial address [A
23
-
A
1
] with A
0
=0, the second byte of Data (D1) is pro-
grammed into the initial address [A
23
-A
1
] with A
0
=1.
CE# must be driven high before executing the AAI
Word Program instruction. Check the BUSY status
before entering the next valid command. Once the
device indicates it is no longer busy, data for the next
two sequential addresses may be programmed, fol-
lowed by the next two, and so on.
When programming the last desired word, or the high-
est unprotected memory address, check the busy sta-
tus using either the hardware or software (RDSR
instruction) method to check for program completion.
Once programming is complete, use the applicable
method to terminate AAI. If the device is in Software
End-of-Write Detection mode, execute the Write-Dis-
able (WRDI) instruction, 04H. If the device is in AAI
Hardware End-of-Write Detection mode, execute the
Write-Disable (WRDI) instruction, 04H, followed by the
8-bit DBSY command, 80H. There is no wrap mode
during AAI programming once the highest unprotected
memory address is reached. See Figures
4-8
and
4-9
for the AAI Word programming sequence.
4.4.5
END-OF-WRITE DETECTION
There are three methods to determine completion of a
program cycle during AAI Word programming: hard-
ware detection by reading the Serial Output, software
detection by polling the BUSY bit in the Software Status
Register, or wait T
BP.
The Hardware End-of-Write
detection method is described in the section below.
1271 ByteProg.0
CE#
SO
SI
SCK
ADD.
0 1 2 3 4 5 6 7 8
ADD.
ADD.
D
IN
02
HIGH IMPEDANCE
15 16
23 24
31 32
39
MODE 0
MODE 3
MSB
MSB
MSB
LSB
