1 Mbit / 2 Mbit / 4 Mbit (x8) Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Features
• Organized as 128K x8 / 256K x8 / 512K x8
• Single Voltage Read and Write Operations
– 3.0-3.6V for SST39LF010/020/040
– 2.7-3.6V for SST39VF010/020/040
• Superior Reliability
– Endurance: 100,000 Cycles (typical)
– Greater than 100 years Data Retention
• Low Power Consumption
(typical values at 14 MHz)
– Active Current: 5 mA (typical)
– Standby Current: 1 µA (typical)
• Sector-Erase Capability
– Uniform 4 KByte sectors
• Fast Read Access Time:
– 55 ns for SST39LF010/020/040
– 70 ns for SST39VF010/020/040
• Latched Address and Data
• Fast Erase and Byte-Program:
– Sector-Erase Time: 18 ms (typical)
– Chip-Erase Time: 70 ms (typical)
– Byte-Program Time: 14 µs (typical)
– Chip Rewrite Time:
2 seconds (typical) for SST39LF/VF010
4 seconds (typical) for SST39LF/VF020
8 seconds (typical) for SST39LF/VF040
• Automatic Write Timing
– Internal V
PP
Generation
• End-of-Write Detection
– Toggle Bit
– Data# Polling
• CMOS I/O Compatibility
• JEDEC Standard
– Flash EEPROM Pinouts and command sets
• Packages Available
– 32-lead PLCC
– 32-lead TSOP (8mm x 14mm)
• All devices are RoHS compliant
The SST39LF010, SST39LF020, SST39LF040 and SST39VF010, SST39VF020,
SST39VF040 are 128K x8, 256K x8 and 5124K x8 CMOS Multi-Purpose Flash
(MPF) manufactured with SST’s proprietary, high performance CMOS SuperFlash
technology. The split-gate cell design and thick-oxide tunneling injector attain bet-
ter reliability and manufacturability compared with alternate approaches. The
SST39LF010/020/040 devices write (Program or Erase) with a 3.0-3.6V power
supply. The SST39VF010/020/040 devices write with a 2.7-3.6V power supply.
The devices conform to JEDEC standard pinouts for x8 memories.
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
2
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Product Description
The SST39LF010, SST39LF020, SST39LF040 and SST39VF010, SST39VF020, SST39VF040 are
128K x8, 256K x8 and 5124K x8 CMOS Multi-Purpose Flash (MPF) manufactured with SST’s proprie-
tary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tun-
neling injector attain better reliability and manufacturability compared with alternate approaches. The
SST39LF010/020/040 devices write (Program or Erase) with a 3.0-3.6V power supply. The
SST39VF010/020/040 devices write with a 2.7-3.6V power supply. The devices conform to JEDEC
standard pinouts for x8 memories.
Featuring high performance Byte-Program, the SST39LF010/020/040 and SST39VF010/020/040
devices provide a maximum Byte-Program time of 20 µsec. These devices use Toggle Bit or Data#
Polling to indicate the completion of Program operation. To protect against inadvertent write, they have
on-chip hardware and Software Data Protection schemes. Designed, manufactured, and tested for a
wide spectrum of applications, they are offered with a guaranteed typical endurance of 100,000 cycles.
Data retention is rated at greater than 100 years.
The SST39LF010/020/040 and SST39VF010/020/040 devices are suited for applications that require
convenient and economical updating of program, configuration, or data memory. For all system appli-
cations, they significantly improves performance and reliability, while lowering power consumption.
They inherently use less energy during Erase and Program than alternative flash technologies. The
total energy consumed is a function of the applied voltage, current, and time of application. Since for
any given voltage range, the SuperFlash technology uses less current to program and has a shorter
erase time, the total energy consumed during any Erase or Program operation is less than alternative
flash technologies. These devices also improve flexibility while lowering the cost for program, data, and
configuration storage applications.
The SuperFlash technology provides fixed Erase and Program times, independent of the number of
Erase/Program cycles that have occurred. Therefore the system software or hardware does not have
to be modified or de-rated as is necessary with alternative flash technologies, whose Erase and Pro-
gram times increase with accumulated Erase/Program cycles.
To meet surface mount requirements, the SST39LF010/020/040 and SST39VF010/020/040 devices
are offered in 32-lead PLCC and 32-lead TSOP packages. See Figures 2 and 3 for pin assignments.
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
3
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Block Diagram
Figure 1: Functional Block Diagram
Y-Decoder
I/O Buffers and Data Latches
1150 B1.1
Address Buffers & Latches
X-Decoder
DQ
7
- DQ
0
Memory Address
OE#
CE#
WE#
SuperFlash
Memory
Control Logic
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
4
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Pin Assignments

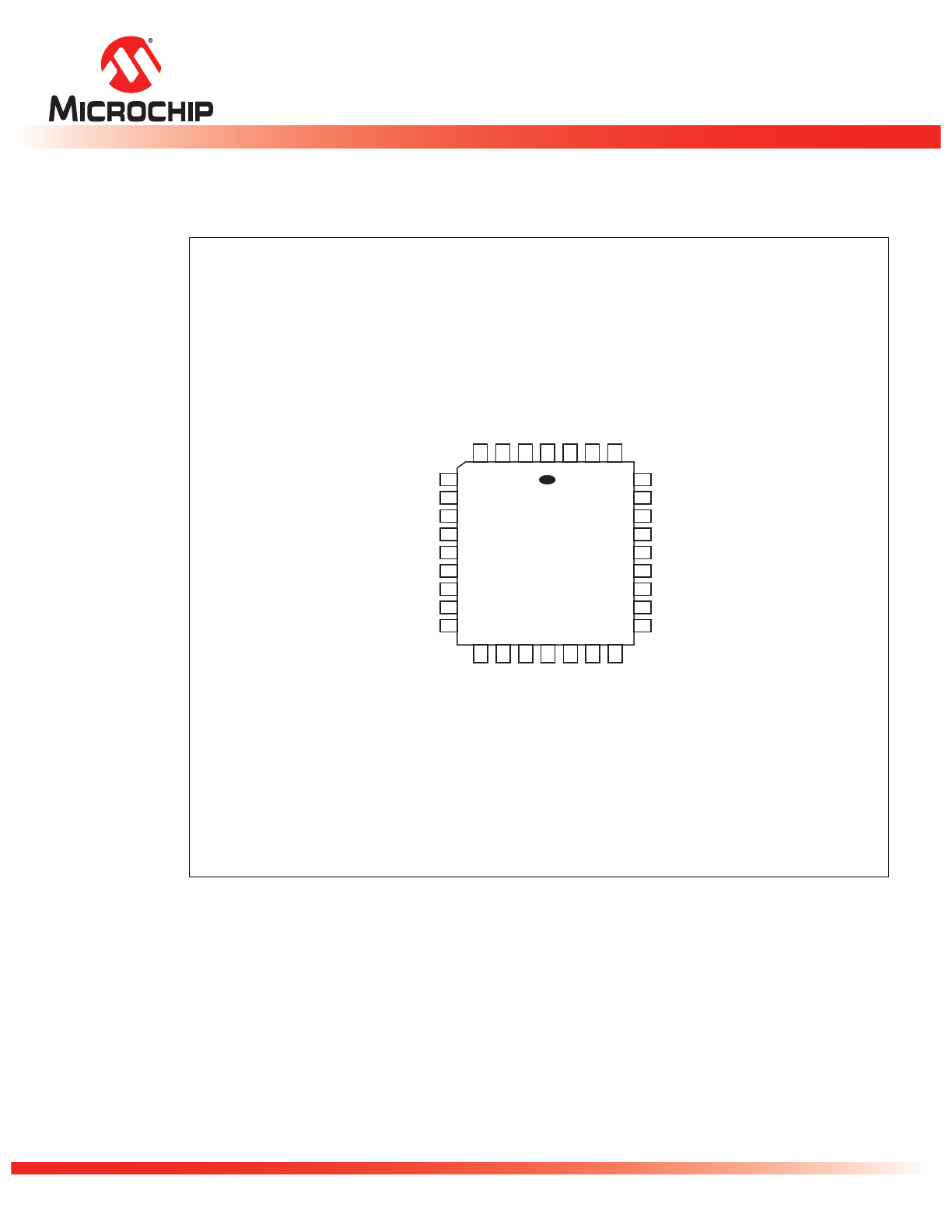

Figure 2: Pin Assignments for 32-lead PLCC
5
6
7
8
9
10
11
12
13
29
28
27
26
25
24
23
22
21
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
A14
A13
A8
A9
A11
OE#
A10
CE#
DQ7
A14
A13
A8
A9
A11
OE#
A10
CE#
DQ7
A14
A13
A8
A9
A11
OE#
A10
CE#
DQ7
4 3 2 1 32 31 30
A12
A15
A16
NC
V
DD
WE#
NC
A12
A15
A16
NC
V
DD
WE#
A17
A12
A15
A16
A18
V
DD
WE#
A17
32-lead PLCC
Top View
1150 32-plcc NH P4.4
14 15 16 17 18 19 20
DQ1
DQ2
V
SS
DQ3
DQ4
DQ5
DQ6
DQ1
DQ2
V
SS
DQ3
DQ4
DQ5
DQ6
DQ1
DQ2
V
SS
DQ3
DQ4
DQ5
DQ6
SST39LF/VF010
SST39LF/VF020
SST39LF/VF040
SST39LF/VF010 SST39LF/VF020 SST39LF/VF040
SST39LF/VF010
SST39LF/VF020
SST39LF/VF040
SST39LF/VF010
SST39LF/VF020
SST39LF/VF040
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
5
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet

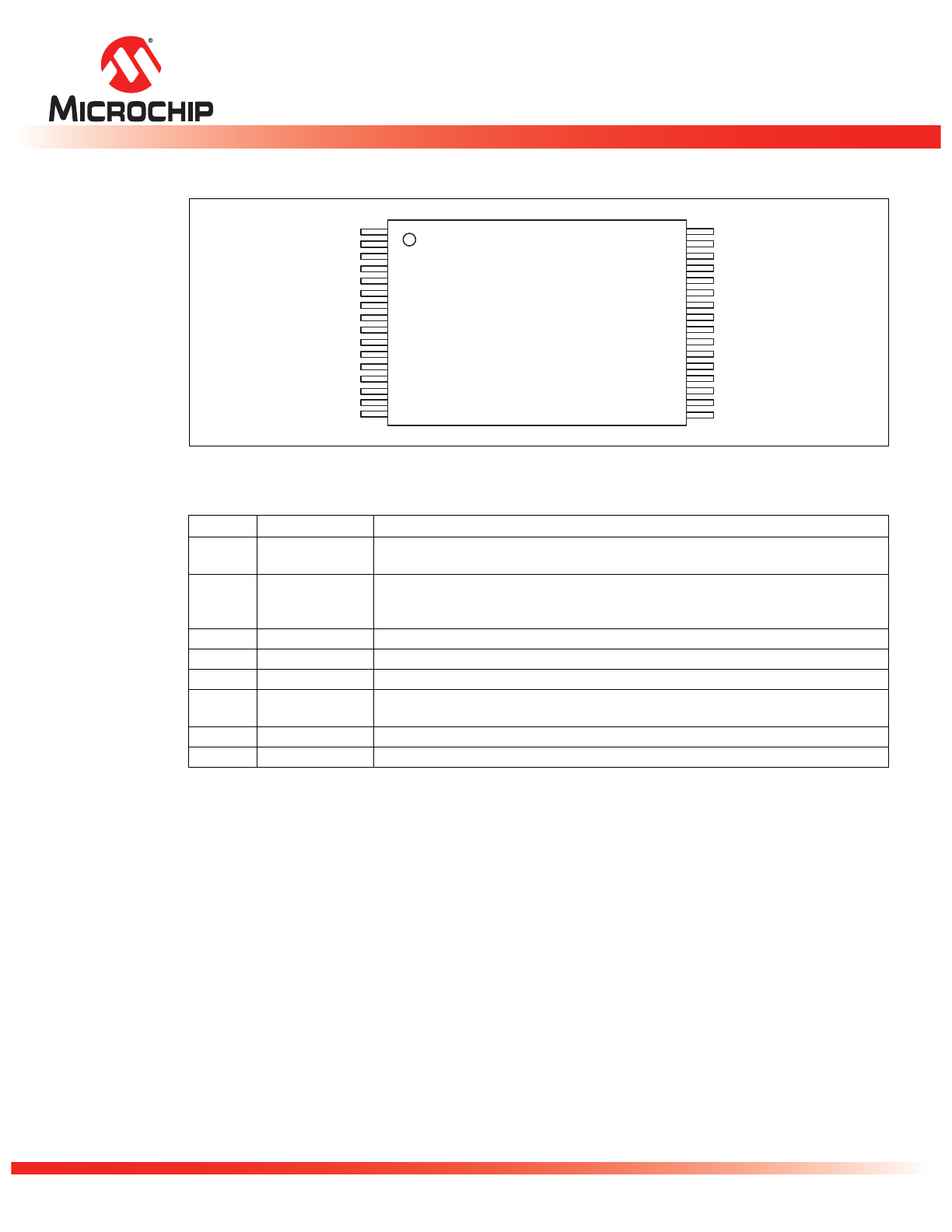

Figure 3: Pin Assignments for 32-lead TSOP (8mm x 14mm)
Table 1: Pin Description
Symbol
Pin Name
Functions
A
MS
1
-A
0
1. A
MS
= Most significant address
A
MS
= A
16
for SST39LF/VF010, A
17
for SST39LF/VF020, and A
18
for SST39LF/VF040
Address Inputs
To provide memory addresses. During Sector-Erase A
MS
-A
12
address lines will
select the sector. During Block-Erase A
MS
-A
16
address lines will select the block.
DQ
7
-DQ
0
Data Input/output To output data during Read cycles and receive input data during Write cycles.
Data is internally latched during a Write cycle.
The outputs are in tri-state when OE# or CE# is high.
CE#
Chip Enable
To activate the device when CE# is low.
OE#
Output Enable
To gate the data output buffers.
WE#
Write Enable
To control the Write operations.
V
DD
Power Supply
To provide power supply voltage:
3.0-3.6V for SST39LF010/020/040
2.7-3.6V for SST39VF010/020/040
V
SS
Ground
NC
No Connection
Unconnected pins.
T1.1 25023
A11
A9
A8
A13
A14
NC
WE#
VDD
NC
A16
A15
A12
A7
A6
A5
A4
A11
A9
A8
A13
A14
A17
WE#
VDD
NC
A16
A15
A12
A7
A6
A5
A4
A11
A9
A8
A13
A14
A17
WE#
VDD
A18
A16
A15
A12
A7
A6
A5
A4
SST39LF/VF010
SST39LF/VF020
SST39LF/VF040
SST39LF/VF010 SST39LF/VF020 SST39LF/VF040
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
OE#
A10
CE#
DQ7
DQ6
DQ5
DQ4
DQ3
VSS
DQ2
DQ1
DQ0
A0
A1
A2
A3
OE#
A10
CE#
DQ7
DQ6
DQ5
DQ4
DQ3
VSS
DQ2
DQ1
DQ0
A0
A1
A2
A3
OE#
A10
CE#
DQ7
DQ6
DQ5
DQ4
DQ3
VSS
DQ2
DQ1
DQ0
A0
A1
A2
A3
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
1150 32-tsop WH P1.1
Standard Pinout
Top View
Die Up
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
6
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Device Operation
Commands are used to initiate the memory operation functions of the device. Commands are written
to the device using standard microprocessor write sequences. A command is written by asserting WE#
low while keeping CE# low. The address bus is latched on the falling edge of WE# or CE#, whichever
occurs last. The data bus is latched on the rising edge of WE# or CE#, whichever occurs first.
Read
The Read operation of the SST39LF010/020/040 and SST39VF010/020/040 devices are controlled by
CE# and OE#, both have to be low for the system to obtain data from the outputs. CE# is used for
device selection. When CE# is high, the chip is deselected and only standby power is consumed. OE#
is the output control and is used to gate data from the output pins. The data bus is in high impedance
state when either CE# or OE# is high. Refer to the Read cycle timing diagram for further details (Figure
4).
Byte-Program Operation
The SST39LF010/020/040 and SST39VF010/020/040 are programmed on a byte-by-byte basis.
Before programming, the sector where the byte exists must be fully erased. The Program operation is
accomplished in three steps. The first step is the three-byte load sequence for Software Data Protec-
tion. The second step is to load byte address and byte data. During the Byte-Program operation, the
addresses are latched on the falling edge of either CE# or WE#, whichever occurs last. The data is
latched on the rising edge of either CE# or WE#, whichever occurs first. The third step is the internal
Program operation which is initiated after the rising edge of the fourth WE# or CE#, whichever occurs
first. The Program operation, once initiated, will be completed, within 20 µs. See Figures 5 and 6 for
WE# and CE# controlled Program operation timing diagrams and Figure 15 for flowcharts. During the
Program operation, the only valid reads are Data# Polling and Toggle Bit. During the internal Program
operation, the host is free to perform additional tasks. Any commands written during the internal Pro-
gram operation will be ignored.
Sector-Erase Operation
The Sector-Erase operation allows the system to erase the device on a sector-by-sector basis. The
sector architecture is based on uniform sector size of 4 KByte. The Sector-Erase operation is initiated
by executing a six-byte command sequence with Sector-Erase command (30H) and sector address
(SA) in the last bus cycle. The sector address is latched on the falling edge of the sixth WE# pulse,
while the command (30H) is latched on the rising edge of the sixth WE# pulse. The internal Erase
operation begins after the sixth WE# pulse. The End-of-Erase can be determined using either Data#
Polling or Toggle Bit methods. See Figure 9 for timing waveforms. Any commands written during the
Sector-Erase operation will be ignored.
Chip-Erase Operation
The SST39LF010/020/040 and SST39VF010/020/040 devices provide a Chip-Erase operation, which
allows the user to erase the entire memory array to the ‘1’s state. This is useful when the entire device
must be quickly erased.
The Chip-Erase operation is initiated by executing a six- byte Software Data Protection command
sequence with Chip-Erase command (10H) with address 5555H in the last byte sequence. The internal
Erase operation begins with the rising edge of the sixth WE# or CE#, whichever occurs first. During the
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
7
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
internal Erase operation, the only valid read is Toggle Bit or Data# Polling. See Table 4 for the com-
mand sequence, Figure 10 for timing diagram, and Figure 18 for the flowchart. Any commands written
during the Chip-Erase operation will be ignored.
Write Operation Status Detection
The SST39LF010/020/040 and SST39VF010/020/040 devices provide two software means to detect
the completion of a Write (Program or Erase) cycle, in order to optimize the system write cycle time.
The software detection includes two status bits: Data# Polling (DQ
7
) and Toggle Bit (DQ
6
). The End-of-
Write detection mode is enabled after the rising edge of WE# which initiates the internal Program or
Erase operation.
The actual completion of the nonvolatile write is asynchronous with the system; therefore, either a
Data# Polling or Toggle Bit read may be simultaneous with the completion of the Write cycle. If this
occurs, the system may possibly get an erroneous result, i.e., valid data may appear to conflict with
either DQ
7
or DQ
6
. In order to prevent spurious rejection, if an erroneous result occurs, the software
routine should include a loop to read the accessed location an additional two (2) times. If both reads
are valid, then the device has completed the Write cycle, otherwise the rejection is valid.
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
8
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Data# Polling (DQ
7
)
When the SST39LF010/020/040 and SST39VF010/020/040 are in the internal Program operation, any
attempt to read DQ
7
will produce the complement of the true data. Once the Program operation is
completed, DQ
7
will produce true data. Note that even though DQ
7
may have valid data immediately
following completion of an internal Write operation, the remaining data outputs may still be invalid: valid
data on the entire data bus will appear in subsequent successive Read cycles after an interval of 1 µs.
During internal Erase operation, any attempt to read DQ
7
will produce a “0”. Once the internal Erase
operation is completed, DQ
7
will produce a “1”. The Data# Polling is valid after the rising edge of fourth
WE# (or CE#) pulse for Program operation. For Sector- or Chip-Erase, the Data# Polling is valid after
the rising edge of sixth WE# (or CE#) pulse. See Figure 7 for Data# Polling timing diagram and Figure
16 for a flowchart.
Toggle Bit (DQ
6
)
During the internal Program or Erase operation, any consecutive attempts to read DQ
6
will produce
alternating ‘0’s and ‘1’s, i.e., toggling between 0 and 1. When the internal Program or Erase operation
is completed, the toggling will stop. The device is then ready for the next operation. The Toggle Bit is
valid after the rising edge of fourth WE# (or CE#) pulse for Program operation. For Sector- or Chip-
Erase, the Toggle Bit is valid after the rising edge of sixth WE# (or CE#) pulse. See Figure 8 for Toggle
Bit timing diagram and Figure 16 for a flowchart.
Data Protection
The SST39LF010/020/040 and SST39VF010/020/040 provide both hardware and software features to
protect nonvolatile data from inadvertent writes.
Hardware Data Protection
Noise/Glitch Protection: A WE# or CE# pulse of less than 5 ns will not initiate a Write cycle.
V
DD
Power Up/Down Detection: The Write operation is inhibited when V
DD
is less than 1.5V.
Write Inhibit Mode: Forcing OE# low, CE# high, or WE# high will inhibit the Write operation. This pre-
vents inadvertent writes during power-up or power-down.
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
9
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Software Data Protection (SDP)
The SST39LF010/020/040 and SST39VF010/020/040 provide the JEDEC approved Software Data
Protection scheme for all data alteration operation, i.e., Program and Erase. Any Program operation
requires the inclusion of a series of three-byte sequence. The three-byte load sequence is used to ini-
tiate the Program operation, providing optimal protection from inadvertent Write operations, e.g., dur-
ing the system power-up or power-down. Any Erase operation requires the inclusion of six-byte load
sequence. These devices are shipped with the Software Data Protection permanently enabled. See
Table 4 for the specific software command codes. During SDP command sequence, invalid commands
will abort the device to read mode, within T
RC.
Product Identification
The Product Identification mode identifies the devices as the SST39LF/VF010, SST39LF/VF020, and
SST39LF/VF040 and manufacturer as SST. This mode may be accessed by software operations.
Users may use the Software Product Identification operation to identify the part (i.e., using the device
ID) when using multiple manufacturers in the same socket. For details, see Table 4 for software opera-
tion, Figure 11 for the Software ID Entry and Read timing diagram, and Figure 17 for the Software ID
entry command sequence flowchart.
Product Identification Mode Exit/Reset
In order to return to the standard Read mode, the Software Product Identification mode must be exited.
Exit is accomplished by issuing the Software ID Exit command sequence, which returns the device to
the Read operation. Please note that the Software ID Exit command is ignored during an internal Pro-
gram or Erase operation. See Table 4 for software command codes, Figure 12 for timing waveform,
and Figure 17 for a flowchart.
Table 2: Product Identification
Address
Data
Manufacturer’s ID
0000H
BFH
Device ID
SST39LF/VF010
0001H
D5H
SST39LF/VF020
0001H
D6H
SST39LF/VF040
0001H
D7H
T2.1 25023
©2012 Silicon Storage Technology, Inc.
DS25023B
06/13
10
1 Mbit / 2 Mbit / 4 Mbit Multi-Purpose Flash
SST39LF010 / SST39LF020 / SST39LF040
SST39VF010 / SST39VF020 / SST39VF040
Data Sheet
Operations
Table 3: Operation Modes Selection
Mode
CE#
OE#
WE#
DQ
Address
Read
V
IL
V
IL
V
IH
D
OUT
A
IN
Program
V
IL
V
IH
V
IL
D
IN
A
IN
Erase
V
IL
V
IH
V
IL
X
1
1. X can be V
IL
or V
IH
, but no other value.
Sector address,
XXH for Chip-Erase
Standby
V
IH
X
X
High Z
X
Write Inhibit
X
V
IL
X
High Z/ D
OUT
X
X
X
V
IH
High Z/ D
OUT
X
Product Identification
Software Mode
V
IL
V
IL
V
IH
See Table 4
T3.4 25023
Table 4: Software Command Sequence
Command
Sequence
1st Bus
Write Cycle
2nd Bus
Write Cycle
3rd Bus
Write Cycle
4th Bus
Write Cycle
5th Bus
Write Cycle
6th Bus
Write Cycle
Addr
1
1. Address format A
14
-A
0
(Hex),
Addresses A
MS
-A
15
can be V
IL
or V
IH
, but no other value, for the Command sequence.
A
MS
= Most significant address
A
MS
= A
16
for SST39LF/VF010, A
17
for SST39LF/VF020, and A
18
for SST39LF/VF040
Data
Addr
1
Data
Addr
1
Data
Addr
1
Data
Addr
1
Data
Addr
1
Data
Byte-Program
5555H
AAH
2AAAH
55H
5555H
A0H
BA
2
2. BA = Program Byte address
Data
Sector-Erase
5555H
AAH
2AAAH
55H
5555H
80H
5555H
AAH
2AAAH
55H
SA
X
3
3. SA
X
for Sector-Erase; uses A
MS
-A
12
address lines
30H
Chip-Erase
5555H
AAH
2AAAH
55H
5555H
80H
5555H
AAH
2AAAH
55H
5555H
10H
Software ID
Entry
4,5
4. The device does not remain in Software Product ID mode if powered down.
5. With A
MS
-A
1
= 0; SST Manufacturer’s ID = BFH, is read with A
0
= 0,
SST39LF/VF010 Device ID = D5H, is read with A
0
= 1,
SST39LF/VF020 Device ID = D6H, is read with A
0
= 1,
SST39LF/VF040 Device ID = D7H, is read with A
0
= 1.
5555H
AAH
2AAAH
55H
5555H
90H
Software ID Exit
6
6. Both Software ID Exit operations are equivalent
XXH
F0H
Software ID Exit
6
5555H
AAH
2AAAH
55H
5555H
F0H
T4.2 25023
