2N6660
Features
• Free from secondary breakdown
• Low power drive requirement
• Ease of paralleling
• Low C
ISS
and fast switching speeds
• Excellent thermal stability
• Integral source-drain diode
• High input impedance and high gain
Applications
• Motor controls
• Converters
• Amplifiers
• Switches
• Power supply circuits
• Drivers: relays, hammers, solenoids, lamps,
memories, displays, bipolar transistors, etc.
Description
2N6660 is an enhancement-mode (normally-off) tran-
sistor that utilizes a vertical DMOS structure and a well-
proven silicon-gate manufacturing process. This com-
bination produces a device with the power-handling
capabilities of bipolar transistors, and the high input
impedance and positive temperature coefficient inher-
ent in MOS devices. Characteristic of all MOS struc-
tures, this device is free from thermal runaway and
thermally-induced secondary breakdown.
Vertical DMOS FETs are ideally suited to a wide range
of switching and amplifying applications where very-
low threshold voltage, high breakdown voltage, high-
input impedance, low-input capacitance, and fast
switching speeds are desired.

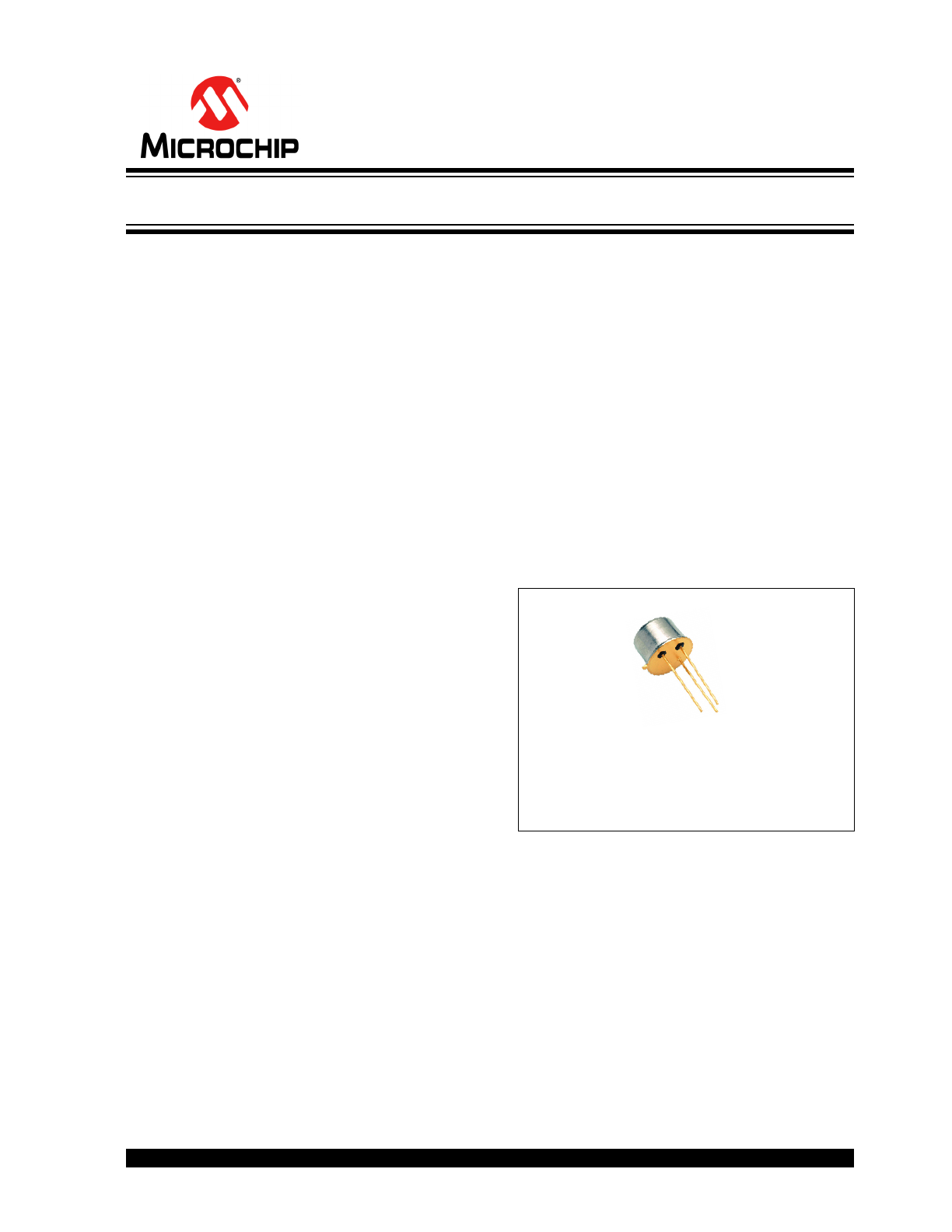

Package Types
TO-39
See
Table 2-1
for pin information
Case: Drain
GATE
SOURCE
DRAIN
N-Channel, Enhancement-Mode, Vertical DMOS FET
![background image](/sites/default/files/pdfhtml_microchip/20005509A002.png)
2N6660
DS20005509A-page 2
2016 Microchip Technology Inc.
1.0
ELECTRICAL CHARACTERISTICS
ABSOLUTE MAXIMUM RATINGS
†
Drain-to-source voltage .........................................................................................................................................BV
DSS
Drain-to-gate voltage.............................................................................................................................................BV
DGS
Gate-to-source voltage............................................................................................................................................ ±20V
Operating and Storage Temperature.......................................................................................................... -55 to 150 °C
Note 1: All DC parameters are 100% tested at 25°C unless otherwise stated. Pulse test: 300 µs pulse, 2% duty cycle.
2: Specification is obtained by characterization and is not 100% tested.
† Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is
a stress rating only and functional operation of the device at those or any other conditions above those indicated in the
operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods
may affect device reliability.
ELECTRICAL CHARACTERISTICS
Electrical Specifications: Unless otherwise specified, for all specifications T
A
= +25°C
Parameter
Symbol
Min
Typ
Max
Units Conditions
DC Parameters (
Note 1
, unless otherwise stated)
Drain-to-source breakdown voltage
BV
DSS
60
-
-
V
V
GS
= 0V, I
D
= 10µA
Gate threshold voltage
V
GS(th)
0.8
-
2.0
V
V
GS
= V
DS
, I
D
= 1.0mA
V
GS(th)
change with temperature
∆V
GS(th)
-
-3.8
-5.5
mV/°C V
GS
= V
DS
, I
D
= 1.0mA (
Note 2
)
Gate body leakage current
I
GSS
-
-
100
nA
V
GS
= ±20V, V
DS
= 0V
Zero gate voltage drain current
I
DSS
-
-
10
µA
V
GS
= 0V, V
DS
= Max rating
-
-
500
V
DS
= 0.8 Max Rating,
V
GS
= 0V, T
A
= 125°C (
Note 2
)
On-state drain current
I
D(ON)
1.5
-
-
A
V
GS
= 10V, V
DS
= 10V
Static drain-to-source on-state
resistance
R
DS(ON)
-
-
5.0
Ω
V
GS
= 5.0V, I
D
= 0.3A
-
-
3.0
V
GS
= 10V, I
D
= 1.0A
AC Parameters (
Note 2
)
Forward transconductance
G
FS
170
-
-
mmho V
DS
= 25V, I
D
= 0.5A
Input capacitance
C
ISS
-
-
50
pF
V
GS
= 0V,
V
DS
= 24V,
f = 1.0MHz
Common source output capacitance
C
OSS
-
-
40
Reverse transfer capacitance
C
RSS
-
-
10
Turn-on time
t
(ON)
-
-
10
ns
V
DD
= 25V, I
D
= 1.0A,
R
GEN
= 25Ω
Turn-off time
t
(OFF)
-
-
10
Diode Parameters
Diode forward voltage drop
V
SD
-
1.2
-
V
V
GS
= 0V, I
SD
= 1.0A (
Note 1
)
Reverse recovery time
t
rr
-
350
-
ns
V
GS
= 0V, I
SD
= 1.0A (
Note 2
)
TEMPERATURE SPECIFICATIONS
Parameter
Symbol
Min
Typ
Max
Units Conditions
Temperature Ranges
Operating and Storage Temperature
T
A
-55
–
150
°C
![background image](/sites/default/files/pdfhtml_microchip/20005509A003.png)
2016 Microchip Technology Inc.
DS20005509A-page 3
2N6660
Note 1: I
D
(continuous) is limited by max rated T
J
.
2.0
PIN DESCRIPTION
The locations of the pins are listed in
Package Types
and
Packaging Information
.
THERMAL CHARACTERISTICS
Package
I
D
(
1
)
continuous
(mA)
I
D
pulsed
(A)
Power
Dissipation
@T
A
= 25°C (W)
I
DR
(
1
)
(mA)
I
DRM
(A)
TO-39 410
3.0
6.25
410
3.0
Product Summary
BV
DSX
/BV
DGS
(V)
R
DS(ON)
(max) (Ω)
I
DSS
(min) (A)
60
3.0
1.5
TABLE 2-1:
PIN DESCRIPTION
Pin # TO-39
Function
1
SOURCE
2
GATE
3
DRAIN
![background image](/sites/default/files/pdfhtml_microchip/20005509A004.png)
2N6660
DS20005509A-page 4
2016 Microchip Technology Inc.
3.0
FUNCTIONAL DESCRIPTION

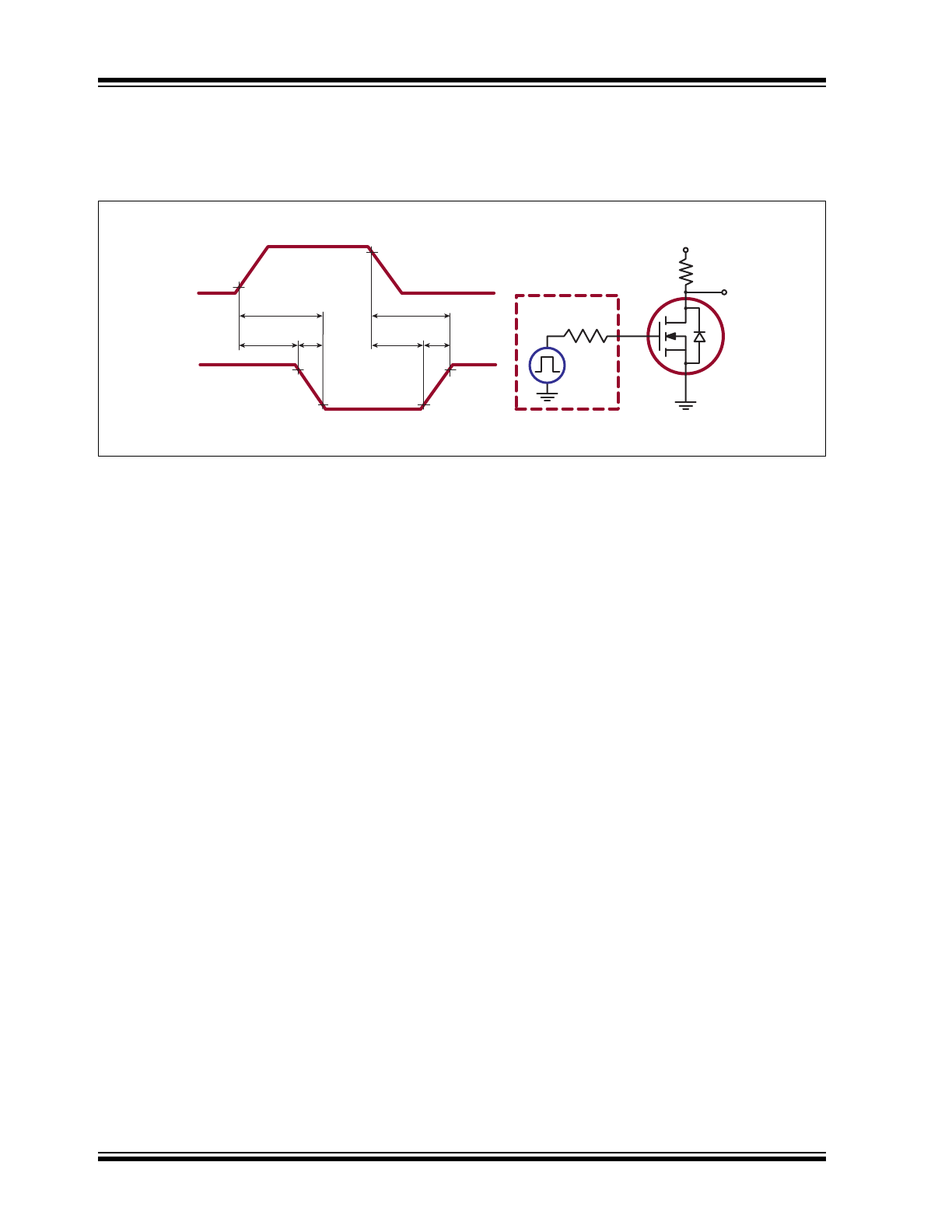

Figure 3-1
shows the switching waveform and test cir-
cuit for 2N6660.
FIGURE 3-1:
Switching Waveforms and Test Circuit
90%
10%
90%
90%
10%
10%
Pulse
Generator
VDD
R
L
OUTPUT
D.U.T.
t
(ON)
t
d(ON)
t
(OFF)
t
d(OFF)
t
r
INPUT
INPUT
OUTPUT
10V
VDD
R
GEN
0V
0V
t
f
![background image](/sites/default/files/pdfhtml_microchip/20005509A005.png)
2016 Microchip Technology Inc.
DS20005509A-page 5
2N6660
4.0
PACKAGING INFORMATION
4.1
Package Marking Information
Legend: XX...X
Product Code or Customer-specific information
Y
Year code (last digit of calendar year)
YY
Year code (last 2 digits of calendar year)
WW
Week code (week of January 1 is week ‘01’)
NNN
Alphanumeric traceability code
Pb-free JEDEC
®
designator for Matte Tin (Sn)
*
This package is Pb-free. The Pb-free JEDEC designator ( )
can be found on the outer packaging for this package.
Note:
In the event the full Microchip part number cannot be marked on one line, it will
be carried over to the next line, thus limiting the number of available
characters for product code or customer-specific information. Package may or
not include the corporate logo.
3
e
3
e
3-Lead TO-39
Example
NNN
YYWW
XXXXXXXXXX
XX
e4
343
1605
2N6660
e4
![background image](/sites/default/files/pdfhtml_microchip/20005509A006.png)
2N6660
DS20005509A-page 6
2016 Microchip Technology Inc.

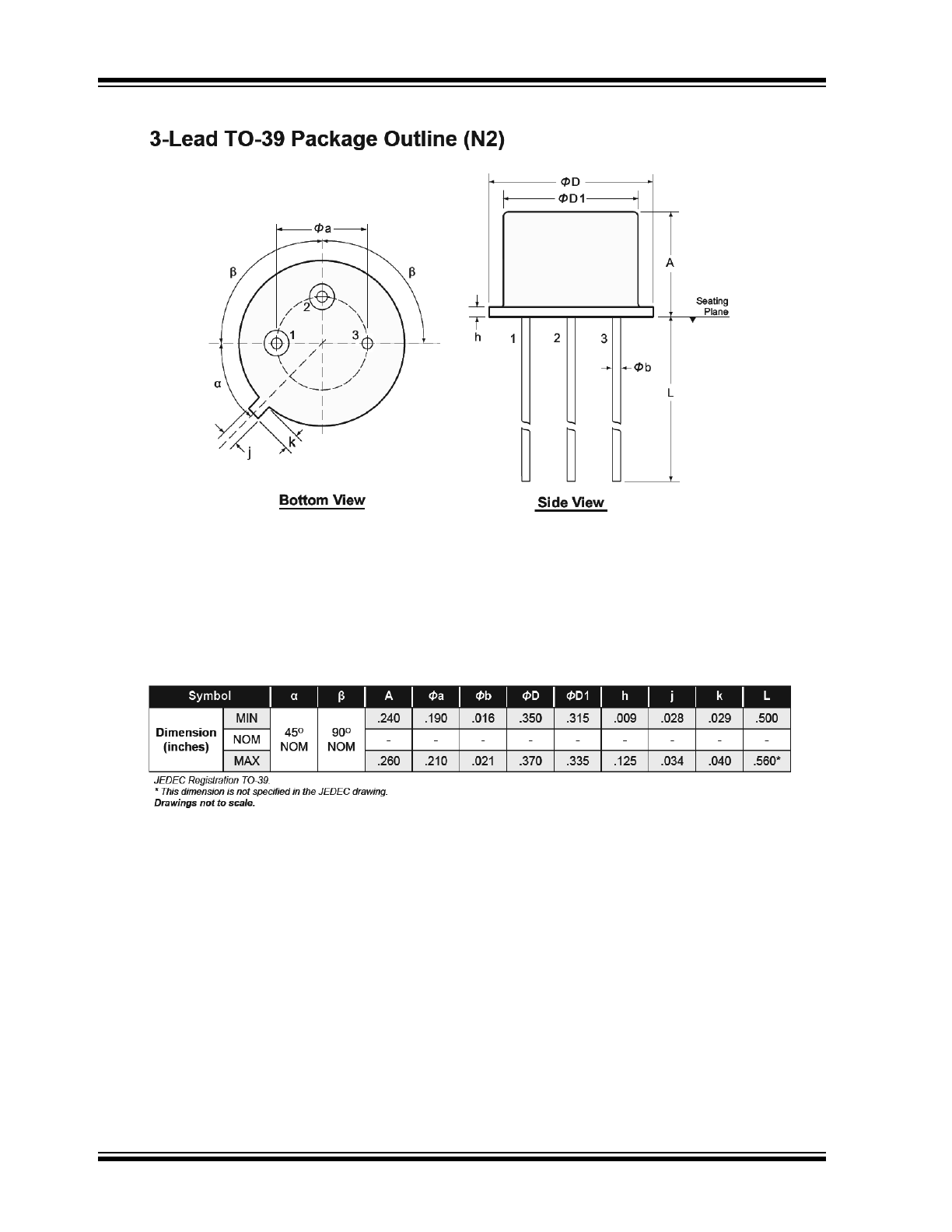

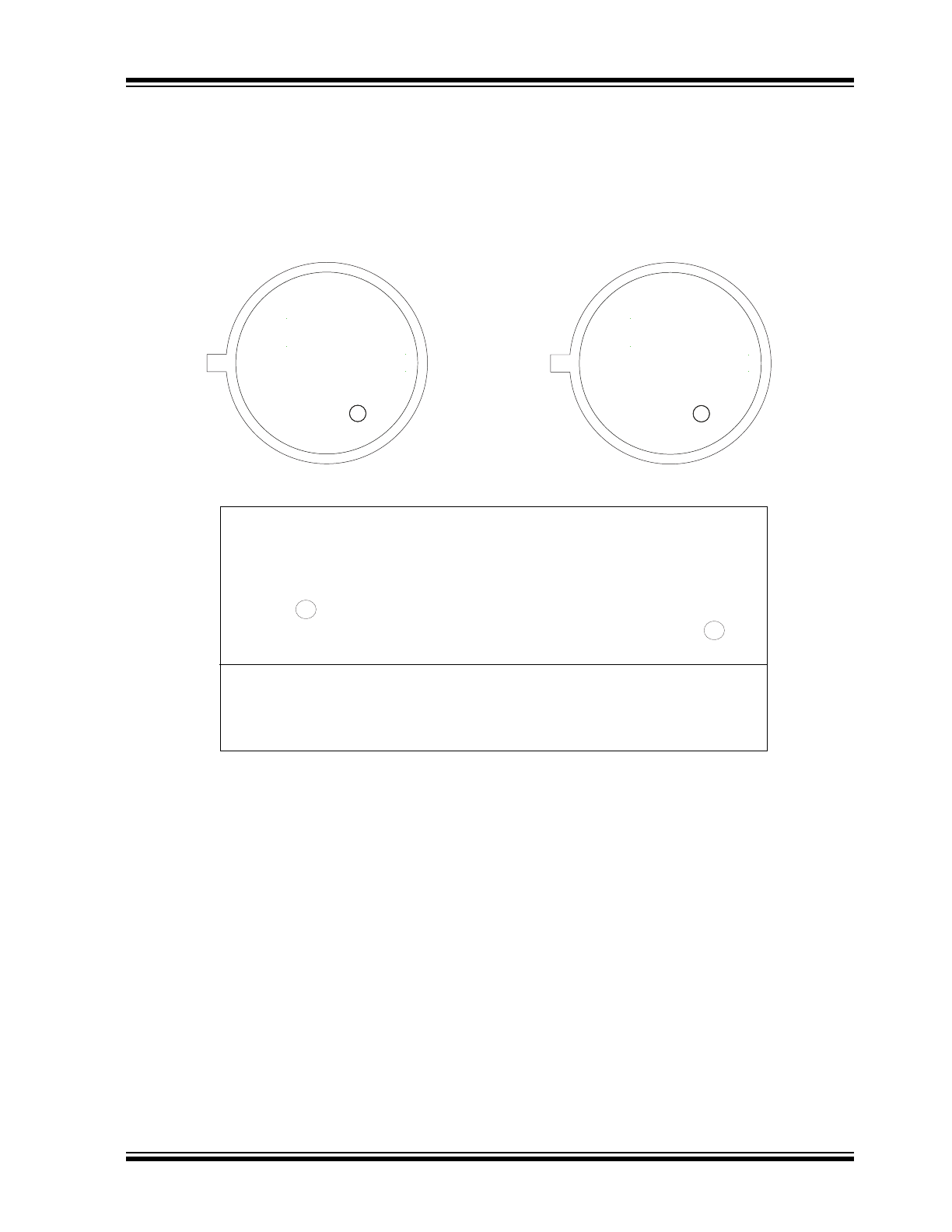

Note: For the most current package drawings, see the Microchip Packaging Specification at www.microchip.com/packaging.
![background image](/sites/default/files/pdfhtml_microchip/20005509A007.png)
2016 Microchip Technology Inc.
DS20005509A-page 7
2N6660
APPENDIX A: REVISION HISTORY
Revision A (March 2016)
• Converted Supertex Doc #DSFP-2N6660 to
Microchip DS20005509A.
• Minor text changes throughout.
• Update to
Features
.
![background image](/sites/default/files/pdfhtml_microchip/20005509A008.png)
2N6660
DS20005509A-page 8
2016 Microchip Technology Inc.
PRODUCT IDENTIFICATION SYSTEM
To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office
.
Device:
2N6660 = N-Channel, Enhancement-Mode,
Vertical DMOS FET
Package:
(blank) = TO-39, 3-lead
Environmental
(blank) = Lead (Pb)-free/ROHS-compliant package
Media Type:
(blank) = 500/Bag for TO-39 packages
Examples:
a)
2N6660
TO-39 package,
500/bag
PART NO.
X
Device
X
Environmental
XX
Package
Options
Media
-
-
Type
![background image](/sites/default/files/pdfhtml_microchip/20005509A009.png)
2016 Microchip Technology Inc.
DS20005509A-page 9
Information contained in this publication regarding device
applications and the like is provided only for your convenience
and may be superseded by updates. It is your responsibility to
ensure that your application meets with your specifications.
MICROCHIP MAKES NO REPRESENTATIONS OR
WARRANTIES OF ANY KIND WHETHER EXPRESS OR
IMPLIED, WRITTEN OR ORAL, STATUTORY OR
OTHERWISE, RELATED TO THE INFORMATION,
INCLUDING BUT NOT LIMITED TO ITS CONDITION,
QUALITY, PERFORMANCE, MERCHANTABILITY OR
FITNESS FOR PURPOSE. Microchip disclaims all liability
arising from this information and its use. Use of Microchip
devices in life support and/or safety applications is entirely at
the buyer’s risk, and the buyer agrees to defend, indemnify and
hold harmless Microchip from any and all damages, claims,
suits, or expenses resulting from such use. No licenses are
conveyed, implicitly or otherwise, under any Microchip
intellectual property rights unless otherwise stated.
Trademarks
The Microchip name and logo, the Microchip logo, AnyRate,
dsPIC, FlashFlex, flexPWR, Heldo, JukeBlox, KeeLoq,
KeeLoq logo, Kleer, LANCheck, LINK MD, MediaLB, MOST,
MOST logo, MPLAB, OptoLyzer, PIC, PICSTART, PIC32 logo,
RightTouch, SpyNIC, SST, SST Logo, SuperFlash and UNI/O
are registered trademarks of Microchip Technology
Incorporated in the U.S.A. and other countries.
ClockWorks, The Embedded Control Solutions Company,
ETHERSYNCH, Hyper Speed Control, HyperLight Load,
IntelliMOS, mTouch, Precision Edge, and QUIET-WIRE are
registered trademarks of Microchip Technology Incorporated
in the U.S.A.
Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut,
BodyCom, chipKIT, chipKIT logo, CodeGuard, dsPICDEM,
dsPICDEM.net, Dynamic Average Matching, DAM, ECAN,
EtherGREEN, In-Circuit Serial Programming, ICSP, Inter-Chip
Connectivity, JitterBlocker, KleerNet, KleerNet logo, MiWi,
motorBench, MPASM, MPF, MPLAB Certified logo, MPLIB,
MPLINK, MultiTRAK, NetDetach, Omniscient Code
Generation, PICDEM, PICDEM.net, PICkit, PICtail,
PureSilicon, RightTouch logo, REAL ICE, Ripple Blocker,
Serial Quad I/O, SQI, SuperSwitcher, SuperSwitcher II, Total
Endurance, TSHARC, USBCheck, VariSense, ViewSpan,
WiperLock, Wireless DNA, and ZENA are trademarks of
Microchip Technology Incorporated in the U.S.A. and other
countries.
SQTP is a service mark of Microchip Technology Incorporated
in the U.S.A.
Silicon Storage Technology is a registered trademark of
Microchip Technology Inc. in other countries.
GestIC is a registered trademarks of Microchip Technology
Germany II GmbH & Co. KG, a subsidiary of Microchip
Technology Inc., in other countries.
All other trademarks mentioned herein are property of their
respective companies.
© 2016, Microchip Technology Incorporated, Printed in the
U.S.A., All Rights Reserved.
ISBN: 978-1-5224-0433-0
Note the following details of the code protection feature on Microchip devices:
•
Microchip products meet the specification contained in their particular Microchip Data Sheet.
•
Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the
intended manner and under normal conditions.
•
There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our
knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip’s Data
Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
•
Microchip is willing to work with the customer who is concerned about the integrity of their code.
•
Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not
mean that we are guaranteeing the product as “unbreakable.”
Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our
products. Attempts to break Microchip’s code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts
allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.
Microchip received ISO/TS-16949:2009 certification for its worldwide
headquarters, design and wafer fabrication facilities in Chandler and
Tempe, Arizona; Gresham, Oregon and design centers in California
and India. The Company’s quality system processes and procedures
are for its PIC
®
MCUs and dsPIC
®
DSCs, K
EE
L
OQ
®
code hopping
devices, Serial EEPROMs, microperipherals, nonvolatile memory and
analog products. In addition, Microchip’s quality system for the design
and manufacture of development systems is ISO 9001:2000 certified.
QUALITY MANAGEMENT SYSTEM
CERTIFIED BY DNV
==
ISO/TS 16949
==
![background image](/sites/default/files/pdfhtml_microchip/20005509A010.png)
DS20005509A-page 10
2016 Microchip Technology Inc.
AMERICAS
Corporate Office
2355 West Chandler Blvd.
Chandler, AZ 85224-6199
Tel: 480-792-7200
Fax: 480-792-7277
Technical Support:
http://www.microchip.com/
support
Web Address:
www.microchip.com
Atlanta
Duluth, GA
Tel: 678-957-9614
Fax: 678-957-1455
Austin, TX
Tel: 512-257-3370
Boston
Westborough, MA
Tel: 774-760-0087
Fax: 774-760-0088
Chicago
Itasca, IL
Tel: 630-285-0071
Fax: 630-285-0075
Cleveland
Independence, OH
Tel: 216-447-0464
Fax: 216-447-0643
Dallas
Addison, TX
Tel: 972-818-7423
Fax: 972-818-2924
Detroit
Novi, MI
Tel: 248-848-4000
Houston, TX
Tel: 281-894-5983
Indianapolis
Noblesville, IN
Tel: 317-773-8323
Fax: 317-773-5453
Los Angeles
Mission Viejo, CA
Tel: 949-462-9523
Fax: 949-462-9608
New York, NY
Tel: 631-435-6000
San Jose, CA
Tel: 408-735-9110
Canada - Toronto
Tel: 905-673-0699
Fax: 905-673-6509
ASIA/PACIFIC
Asia Pacific Office
Suites 3707-14, 37th Floor
Tower 6, The Gateway
Harbour City, Kowloon
Hong Kong
Tel: 852-2943-5100
Fax: 852-2401-3431
Australia - Sydney
Tel: 61-2-9868-6733
Fax: 61-2-9868-6755
China - Beijing
Tel: 86-10-8569-7000
Fax: 86-10-8528-2104
China - Chengdu
Tel: 86-28-8665-5511
Fax: 86-28-8665-7889
China - Chongqing
Tel: 86-23-8980-9588
Fax: 86-23-8980-9500
China - Dongguan
Tel: 86-769-8702-9880
China - Hangzhou
Tel: 86-571-8792-8115
Fax: 86-571-8792-8116
China - Hong Kong SAR
Tel: 852-2943-5100
Fax: 852-2401-3431
China - Nanjing
Tel: 86-25-8473-2460
Fax: 86-25-8473-2470
China - Qingdao
Tel: 86-532-8502-7355
Fax: 86-532-8502-7205
China - Shanghai
Tel: 86-21-5407-5533
Fax: 86-21-5407-5066
China - Shenyang
Tel: 86-24-2334-2829
Fax: 86-24-2334-2393
China - Shenzhen
Tel: 86-755-8864-2200
Fax: 86-755-8203-1760
China - Wuhan
Tel: 86-27-5980-5300
Fax: 86-27-5980-5118
China - Xian
Tel: 86-29-8833-7252
Fax: 86-29-8833-7256
ASIA/PACIFIC
China - Xiamen
Tel: 86-592-2388138
Fax: 86-592-2388130
China - Zhuhai
Tel: 86-756-3210040
Fax: 86-756-3210049
India - Bangalore
Tel: 91-80-3090-4444
Fax: 91-80-3090-4123
India - New Delhi
Tel: 91-11-4160-8631
Fax: 91-11-4160-8632
India - Pune
Tel: 91-20-3019-1500
Japan - Osaka
Tel: 81-6-6152-7160
Fax: 81-6-6152-9310
Japan - Tokyo
Tel: 81-3-6880- 3770
Fax: 81-3-6880-3771
Korea - Daegu
Tel: 82-53-744-4301
Fax: 82-53-744-4302
Korea - Seoul
Tel: 82-2-554-7200
Fax: 82-2-558-5932 or
82-2-558-5934
Malaysia - Kuala Lumpur
Tel: 60-3-6201-9857
Fax: 60-3-6201-9859
Malaysia - Penang
Tel: 60-4-227-8870
Fax: 60-4-227-4068
Philippines - Manila
Tel: 63-2-634-9065
Fax: 63-2-634-9069
Singapore
Tel: 65-6334-8870
Fax: 65-6334-8850
Taiwan - Hsin Chu
Tel: 886-3-5778-366
Fax: 886-3-5770-955
Taiwan - Kaohsiung
Tel: 886-7-213-7828
Taiwan - Taipei
Tel: 886-2-2508-8600
Fax: 886-2-2508-0102
Thailand - Bangkok
Tel: 66-2-694-1351
Fax: 66-2-694-1350
EUROPE
Austria - Wels
Tel: 43-7242-2244-39
Fax: 43-7242-2244-393
Denmark - Copenhagen
Tel: 45-4450-2828
Fax: 45-4485-2829
France - Paris
Tel: 33-1-69-53-63-20
Fax: 33-1-69-30-90-79
Germany - Dusseldorf
Tel: 49-2129-3766400
Germany - Karlsruhe
Tel: 49-721-625370
Germany - Munich
Tel: 49-89-627-144-0
Fax: 49-89-627-144-44
Italy - Milan
Tel: 39-0331-742611
Fax: 39-0331-466781
Italy - Venice
Tel: 39-049-7625286
Netherlands - Drunen
Tel: 31-416-690399
Fax: 31-416-690340
Poland - Warsaw
Tel: 48-22-3325737
Spain - Madrid
Tel: 34-91-708-08-90
Fax: 34-91-708-08-91
Sweden - Stockholm
Tel: 46-8-5090-4654
UK - Wokingham
Tel: 44-118-921-5800
Fax: 44-118-921-5820
Worldwide Sales and Service
07/14/15
