MIC5200
Features
• High Output Voltage Accuracy
• Variety of Output Voltages
• Guaranteed 100 mA Output
• Low Quiescent Current
• Low Dropout Voltage
• Extremely Tight Load and Line Regulation
• Very Low Temperature Coefficient
• Current and Thermal Limiting
• Zero OFF Mode Current
• Logic-Controlled Electronic Shutdown
• Available in 8-Lead SOIC, MM8 8-Lead MSOP,
and SOT-223 Packages
Applications
• Cellular Telephones
• Laptop, Notebook, and Palmtop Computers
• Battery-Powered Equipment
• PCMCIA V
CC
and V
PP
Regulation/Switching
• Barcode Scanners
• SMPS Post-Regulator/DC-to-DC Modules
• High Efficiency Linear Power Supplies
General Description
The MIC5200 is an efficient linear voltage regulator
with very low dropout voltage (typically 17 mV at light
loads and 200 mV at 100 mA), and very low ground
current (1 mA at 100 mA output), offering better than
1% initial accuracy with a logic-compatible ON/OFF
switching input. Designed especially for hand-held
battery-powered devices, the MIC5200 is switched by
a CMOS- or TTL-compatible logic signal. The ENABLE
control may be tied directly to V
IN
if unneeded. When
disabled, power consumption drops nearly to zero. The
ground current of the MIC5200 increases only slightly
in dropout, further prolonging battery life. Key MIC5200
features include protection against reversed battery,
current limiting, and overtemperature shutdown.
The MIC5200 is available in several fixed voltages and
accuracy configurations. Other options are available;
contact Microchip for details.

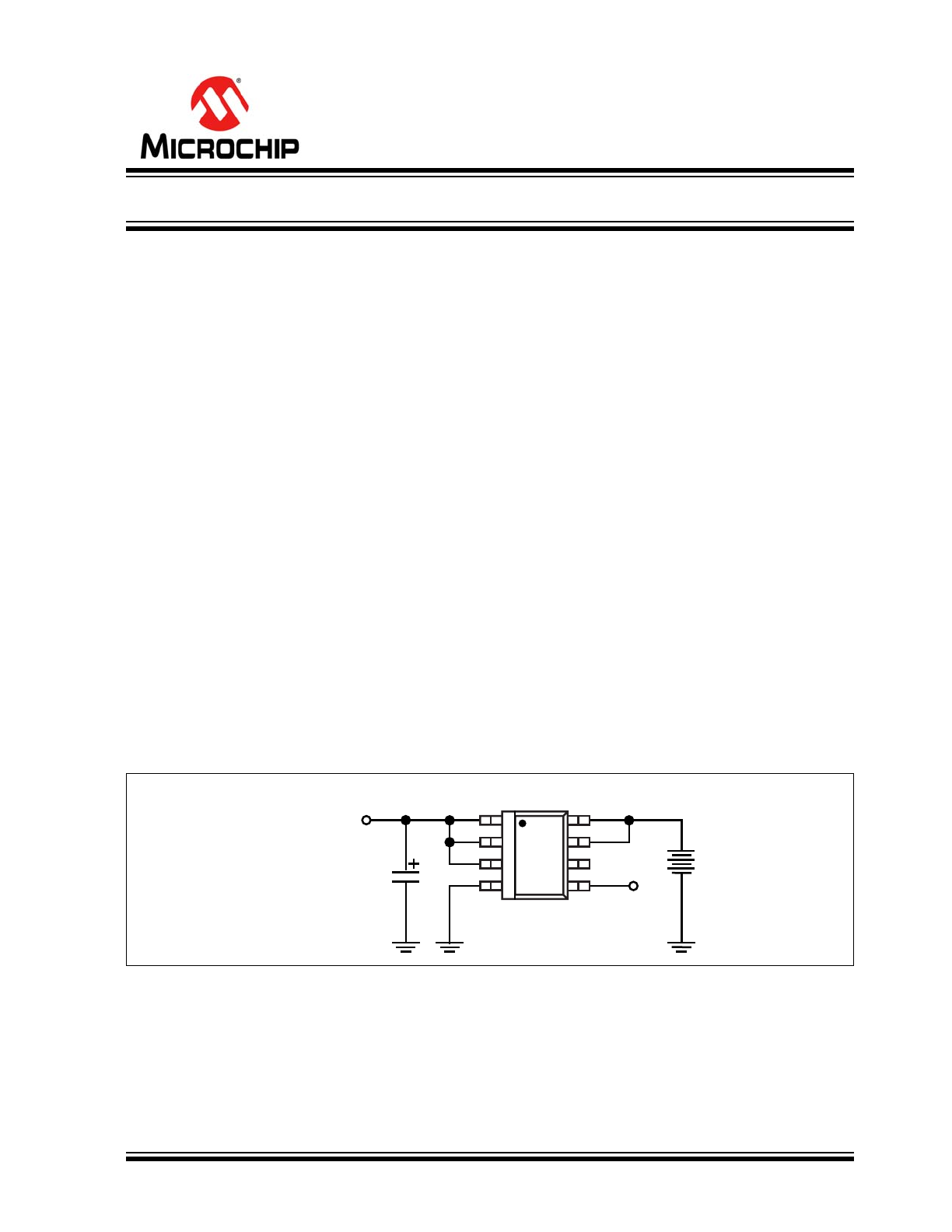

Typical Application Schematic
MIC5200-3.3
ENABLE
OUTPUT
1μF
100 mA Low-Dropout Regulator
MIC5200
DS20005578A-page 2
2016 Microchip Technology Inc.
1.0
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings †
Input Supply Voltage ................................................................................................................................... –20V to +60V
Enable Input Voltage ................................................................................................................................... –20V to +60V
Power Dissipation...................................................................................................................................Internally Limited
Operating Ratings ‡
Input Voltage .............................................................................................................................................. +2.5V to +26V
Enable Input Voltage ...................................................................................................................................... –20V to V
IN
†
Notice: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device.
This is a stress rating only and functional operation of the device at those or any other conditions above those indicated
in the operational sections of this specification is not intended. Exposure to maximum rating conditions for extended
periods may affect device reliability.
‡ Notice:
The device is not guaranteed to function outside its operating ratings.
2016 Microchip Technology Inc.
DS20005578A-page 3
MIC5200
TABLE 1-1:
ELECTRICAL CHARACTERISTICS
Electrical Characteristics:
Limits in standard typeface are for T
J
= 25°C and limits in boldface apply over the
junction temperature range of –40°C to +125°C. Unless otherwise specified, V
IN
= V
OUT
+ 1V, I
L
= 1 mA, C
L
= 3.3 μF,
and V
ENABLE
= V
DD
. (
Note 1
)
.
Parameters
Sym.
Min.
Typ.
Max.
Units
Conditions
Output Voltage Accuracy
V
O
–1
—
1
%
Variation from specified V
OUT
–2
—
2
Output Voltage Temperature
Coefficient
∆V
O
/∆T
—
40
150
ppm/°C
Note 2
Line Regulation
∆V
O
/V
IN
—
0.004
0.10
%
V
IN
= V
OUT
+ 1V to 26V
—
—
0.40
Load Regulation
∆V
O
/V
OUT
—
0.04
0.16
%
I
L
= 0.1 mA to 100 mA (
Note 3
)
—
—
0.30
Dropout Voltage (
Note 4
)
V
IN
– V
O
—
17
—
mV
I
L
= 100 µA
—
130
—
I
L
= 20 mA
—
150
—
I
L
= 30 mA
—
190
—
I
L
= 50 mA
—
230
350
I
L
= 100 mA
Quiescent Current
I
GND
—
0.01
10
µA
V
ENABLE
≤ 0.7V (shutdown)
Ground Pin Current
I
GND
—
130
—
µA
V
ENABLE
= V
DD
, I
L
= 100 µA
—
270
350
I
L
= 20 mA
—
330
—
I
L
= 30 mA
—
500
—
I
L
= 50 mA
—
1000
1500
I
L
= 100 mA
Ripple Rejection
PSRR
—
70
—
dB
—
Ground Pin Current at Dropout
I
GNDDO
—
270
330
µA
V
IN
= 0.5V less than specified
V
OUT
, I
L
= 100 µA (
Note 5
)
Current Limit
I
LIMIT
100
250
—
mA
V
OUT
= 0V
Thermal Regulation
∆V
O
/∆P
D
—
0.05
—
%/W
Note 6
Output Noise
e
n
—
100
—
µV
—
Note 1:
Specification for packaged product only.
2:
Output voltage temperature coefficient is defined as the worst case voltage change divided by the total
temperature range.
3:
Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are
tested for load regulation in the load range from 0.1 mA to 100 mA. Changes in output voltage due to
heating effects are covered by the thermal regulation specification.
4:
Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
5:
Ground pin current is the regulator quiescent current plus pass transistor base current. The total current
drawn from the supply is the sum of the load current plus the ground pin current.
6:
Thermal regulation is defined as the change in output voltage at a time (t) after a change in power dissipa-
tion is applied, excluding load or line regulation effects. Specifications are for a 100 mA load pulse at V
IN
=
26V for t = 10 ms.
MIC5200
DS20005578A-page 4
2016 Microchip Technology Inc.
ENABLE Input
Input Voltage Level, Logic Low
V
IL
—
—
0.7
V
OFF
Input Voltage Level, Logic High
V
IH
2.0
—
—
ON
Enable Input Current
I
IL
—
0.01
1
µA
V
IL
≤ 0.7V
I
IH
—
15
50
V
IH
≥ 2.0V
TABLE 1-1:
ELECTRICAL CHARACTERISTICS (CONTINUED)
Electrical Characteristics:
Limits in standard typeface are for T
J
= 25°C and limits in boldface apply over the
junction temperature range of –40°C to +125°C. Unless otherwise specified, V
IN
= V
OUT
+ 1V, I
L
= 1 mA, C
L
= 3.3 μF,
and V
ENABLE
= V
DD
. (
Note 1
)
.
Parameters
Sym.
Min.
Typ.
Max.
Units
Conditions
Note 1:
Specification for packaged product only.
2:
Output voltage temperature coefficient is defined as the worst case voltage change divided by the total
temperature range.
3:
Regulation is measured at constant junction temperature using low duty cycle pulse testing. Parts are
tested for load regulation in the load range from 0.1 mA to 100 mA. Changes in output voltage due to
heating effects are covered by the thermal regulation specification.
4:
Dropout voltage is defined as the input to output differential at which the output voltage drops 2% below its
nominal value measured at 1V differential.
5:
Ground pin current is the regulator quiescent current plus pass transistor base current. The total current
drawn from the supply is the sum of the load current plus the ground pin current.
6:
Thermal regulation is defined as the change in output voltage at a time (t) after a change in power dissipa-
tion is applied, excluding load or line regulation effects. Specifications are for a 100 mA load pulse at V
IN
=
26V for t = 10 ms.
2016 Microchip Technology Inc.
DS20005578A-page 5
MIC5200
TEMPERATURE SPECIFICATIONS
Parameters
Sym.
Min.
Typ.
Max.
Units
Conditions
Temperature Ranges
Junction Operating Temperature
Range
T
J
–40
—
+125
°C
Note 1
Lead Temperature
—
—
—
+260
°C
Soldering, 5s
Package Thermal Resistances
Thermal Resistance, SOT-223
JC
—
15
—
°C/W
—
Thermal Resistance, SOIC-8
JA
—
160
—
°C/W
Note 2
Note 1:
The maximum allowable power dissipation is a function of ambient temperature, the maximum allowable
junction temperature and the thermal resistance from junction to air (i.e., T
A
, T
J
,
JA
). Exceeding the
maximum allowable power dissipation will cause the device operating junction temperature to exceed the
maximum +125°C rating. Sustained junction temperatures above +125°C can impact the device reliability.
2:
The maximum allowable power dissipation at any ambient temperature is calculated using: P
(MAX)
=
(T
J(MAX)
– T
A
) ÷ θ
JA
. Exceeding the maximum allowable power dissipation will result in excessive die tem-
perature, and the regulator will go into thermal shutdown. The θ
JC
of the MIC5200-x.xYS is 15°C/W and
θ
JA
for the MIC5200YM is 160°C/W mounted on a PC board (see
Thermal Considerations
for further
details).
MIC5200
DS20005578A-page 6
2016 Microchip Technology Inc.
2.0

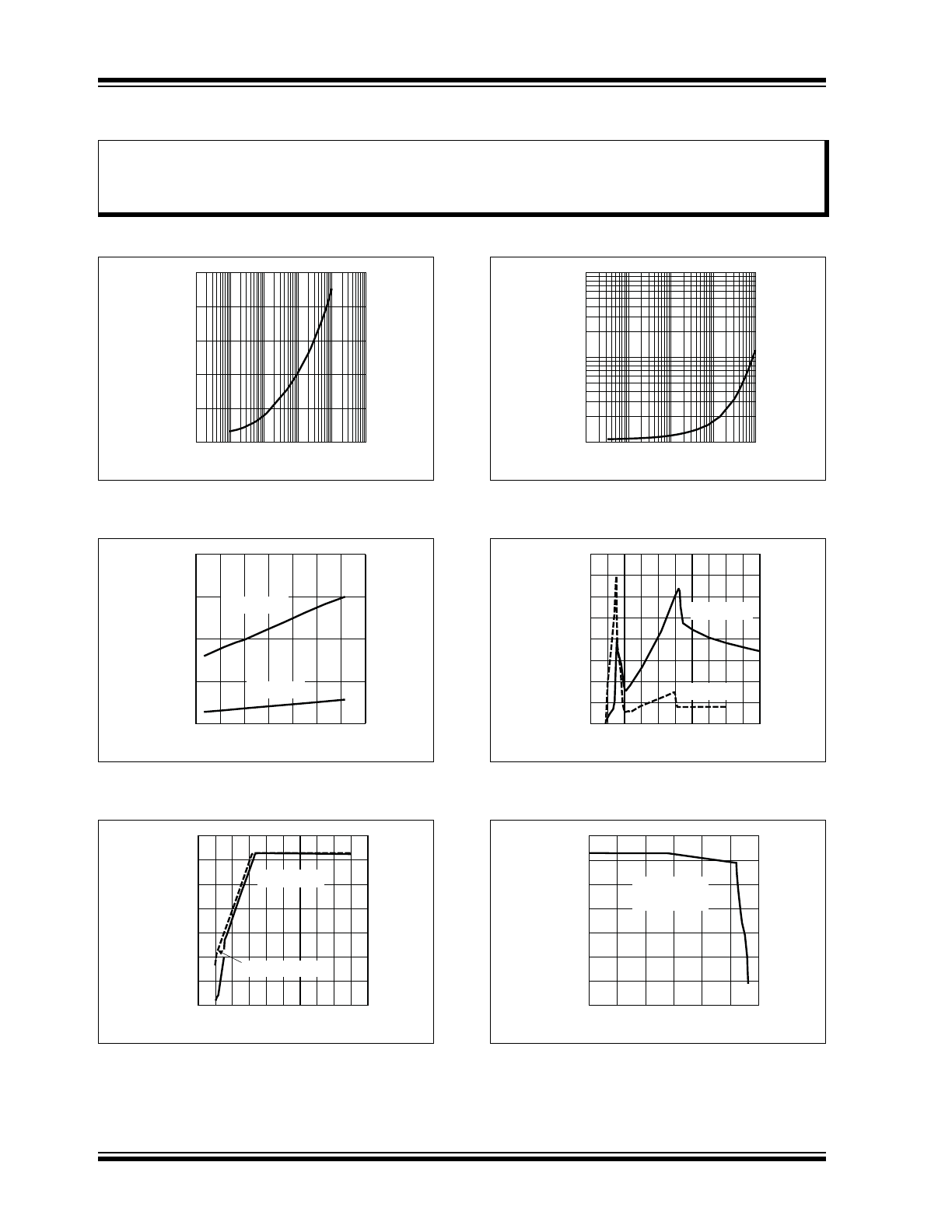

TYPICAL PERFORMANCE CURVES
FIGURE 2-1:
Dropout Voltage vs. Output
Current.
FIGURE 2-2:
Dropout Voltage vs.
Temperature.
FIGURE 2-3:
Dropout Characteristics.
FIGURE 2-4:
Ground Current vs. Output
Current.
FIGURE 2-5:
Ground Current vs. Supply
Voltage.
FIGURE 2-6:
Output Voltage vs. Output
Current.
Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
0
50
100
150
200
250
0.01
0.1
1
10
100 1000
DROPOUT VOLTAGE (mV)
OUTPUT CURRENT (mA)
0.0
0.1
0.2
0.3
0.4
-60 -30
0
30 60 90 120 150
DROPOUT VOLTAGE (V)
TEMPERATURE (°C)
I
L
= 100mA
I
L
= 1mA
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0
2
4
6
8
10
OUTPUT VOLTAGE (V)
INPUT VOLTAGE (V)
I
L
= 100mA
I
L
= 100μA, 1mA
0.1
1
10
0.01
0.1
1
10
100
GROUND CURRENT (mA)
OUTPUT CURRENT (mA)
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
0
2
4
6
8
10
GROUND CURRENT (mA)
SUPPLY VOLTAGE (V)
I
L
= 100mA
I
L
= 1mA
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.0
0.1
0.2
0.3
OUTPUT VOLTAGE (V)
OUTPUT CURRENT (A)
C
IN
= 2.2μF
C
OUT
= 4.7μF
2016 Microchip Technology Inc.
DS20005578A-page 7
MIC5200

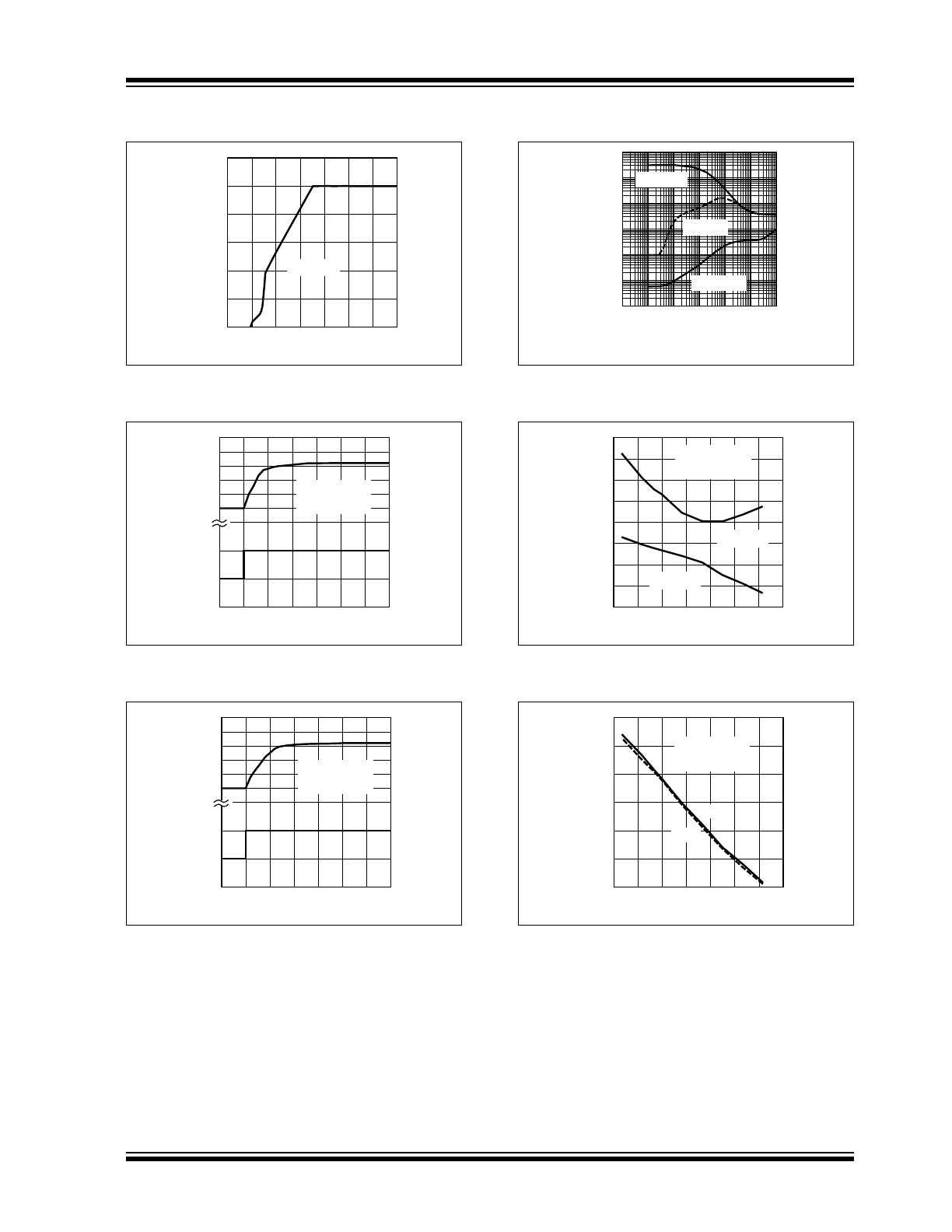

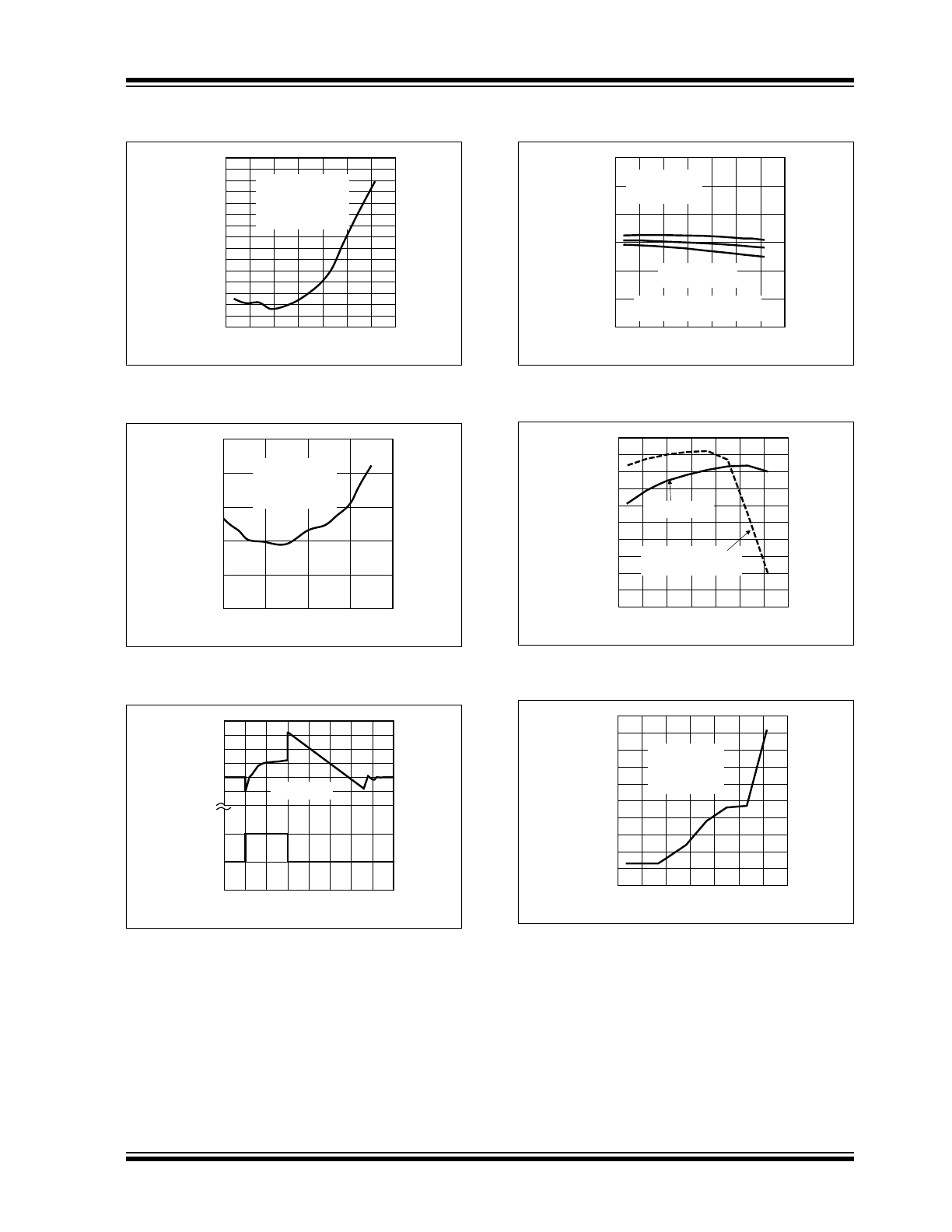

FIGURE 2-7:
Ground Current vs.
Temperature.
FIGURE 2-8:
Ground Current vs.
Temperature.
FIGURE 2-9:
Thermal Regulation (3.3V
Version).
FIGURE 2-10:
Output Voltage vs.
Temperature (3.3V Version).
FIGURE 2-11:
Output Current vs.
Temperature.
FIGURE 2-12:
Minimum Input Voltage vs.
Temperature.
0.15
0.20
0.25
0.30
-60 -30
0
30 60 90 120 150
GROUND CURRENT (mA)
TEMPERATURE (°C)
I
LOAD
= 100μA
C
IN
= 2.2μF
C
OUT
= 4.7μF
1.0
1.1
1.2
1.3
1.4
1.5
-50
0
50
100
150
GROUND CURRENT (mA)
TEMPERATURE (°C)
I
LOAD
= 100mA
C
IN
= 2.2μF
C
OUT
= 4.7μF
-100
0
100
200
-5
0
5 10 15 20 25 30 35
LOAD (mA)
TIME (ms)
-50
0
50
100
Δ OUTPUT (mV)
C
L
= 4.7 μF
3.0
3.1
3.2
3.3
3.4
3.5
3.6
-60 -30
0
30 60 90 120 150
OUTPUT VOLTAGE (V)
TEMPERATURE (°C)
C
IN
= 2.2μF
C
OUT
= 4.7μF
3 DEVICES:
HI / AVG / LO
CURVES APPLICABLE
AT 100μA AND 100mA
100
120
140
160
180
200
220
240
260
280
300
-60 -30
0
30 60 90 120 150
OUTPUT CURRENT (mA)
TEMPERATURE (°C)
V
OUT
= 0V
(SHORT CIRCUIT)
V
OUT
= 3.3V
3.20
3.21
3.22
3.23
3.24
3.25
3.26
3.27
3.28
3.29
3.30
-60 -30
0
30 60 90 120 150
MIN. INPUT VOLTAGE (V)
TEMPERATURE (°C)
C
IN
= 2.2μF
C
OUT
= 4.7μF
I
LOAD
= 1mA
MIC5200
DS20005578A-page 8
2016 Microchip Technology Inc.

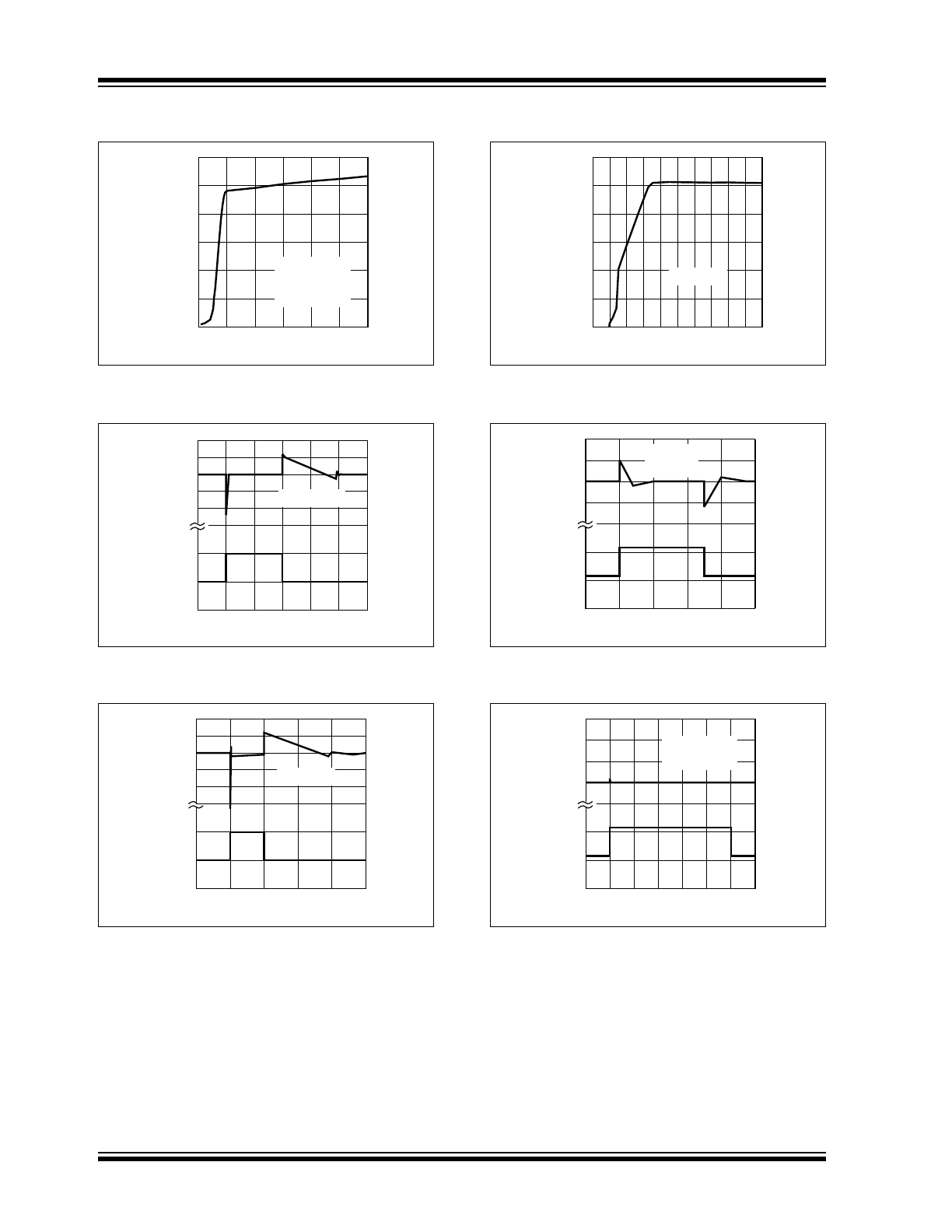

FIGURE 2-13:
Short Circuit Current vs.
Input Voltage
.
FIGURE 2-14:
Load Transient
.
FIGURE 2-15:
Load Transient.
FIGURE 2-16:
Supply Current vs. Supply
Voltage (3.3V Version)
.
FIGURE 2-17:
Line Transient
.
FIGURE 2-18:
Line Transient
.
0
50
100
150
200
250
300
1
2
3
4
5
6
7
SHORT CIRCUIT CURRENT (mA)
INPUT VOLTAGE (V)
C
IN
= 2.2μF
C
OUT
= 4.7μF
V
OUT
= 3.3V
-30
-20
-10
0
10
20
Δ OUTPUT (mV)
0
100
200
300
-2
0
2
4
6
8
10
OUTPUT (mA)
TIME (ms)
C
L
= 4.7μF
0
100
200
300
-10
0
10
20
30
40
OUTPUT (mA)
TIME (ms)
-30
-20
-10
0
10
20
Δ OUTPUT (mV)
C
L
= 47μF
0
20
40
60
80
100
120
0 1 2 3 4 5 6 7 8 9 10
SUPPLY CURRENT (mA)
SUPPLY VOLTAGE (V)
R
L
= 33Ω
-10
-5
0
5
10
Δ OUTPUT (mV)
2
4
6
8
-0.2
0
0.2
0.4
0.6
0.8
INPUT (V)
TIME (ms)
C
L
= 1 μF
I
L
= 1mA
-5
0
5
10
15
Δ OUTPUT (mV)
2
4
6
8
-0.1
0
0.1 0.2 0.3 0.4 0.5 0.6
INPUT (V)
TIME (ms)
C
L
= 10 μF
I
L
= 1mA
2016 Microchip Technology Inc.
DS20005578A-page 9
MIC5200
FIGURE 2-19:
Supply Current vs. Supply
Voltage (3.3V Version).
FIGURE 2-20:
Enable Transient (3.3V
Version).
FIGURE 2-21:
Enable Transient (3.3V
Version).
FIGURE 2-22:
Output Impedance.
FIGURE 2-23:
Enable Current Threshold
vs. Temperature.
FIGURE 2-24:
Enable Voltage Threshold
vs. Temperature.
0
10
20
30
40
50
60
0
1
2
3
4
5
6
7
SUPPLY CURRENT (mA)
SUPPLY VOLTAGE (V)
R
L
= 66Ω
-1
0
1
2
3
4
5
OUTPUT (V)
-2
0
2
4
-50
0
50 100 150 200 250 300
ENABLE (V)
TIME (μs)
C
L
= 4.7 μF
I
L
= 1mA
-1
0
1
2
3
4
5
OUTPUT (V)
-2
0
2
4
-50
0
50 100 150 200 250 300
ENABLE (V)
TIME (μs)
C
L
= 4.7 μF
I
L
= 100mA
0.001
0.01
0.1
1
10
100
1000
1x10
0
10x10
0
100x10
0
1x10
3
10x10
3
100x10
3
1x10
6
OUTPUT IMPEDANCE (
Ω
)
FREQUENCY (Hz)
I
L
= 100μA
I
L
= 1mA
I
L
= 100mA
-5
0
5
10
15
20
25
30
35
-60 -30
0
30 60 90 120 150
ENABLE CURRENT (
μA)
TEMPERATURE (°C)
C
IN
= 2.2μF
C
OUT
= 4.7μF
V
EN
= 2V
V
EN
= 5V
0.4
0.6
0.8
1
1.2
1.4
1.6
-60 -30
0
30 60 90 120 150
ENABLE VOLTAGE (V)
TEMPERATURE (°C)
C
IN
= 2.2μF
C
OUT
= 4.7μF
OFF
ON
MIC5200
DS20005578A-page 10
2016 Microchip Technology Inc.

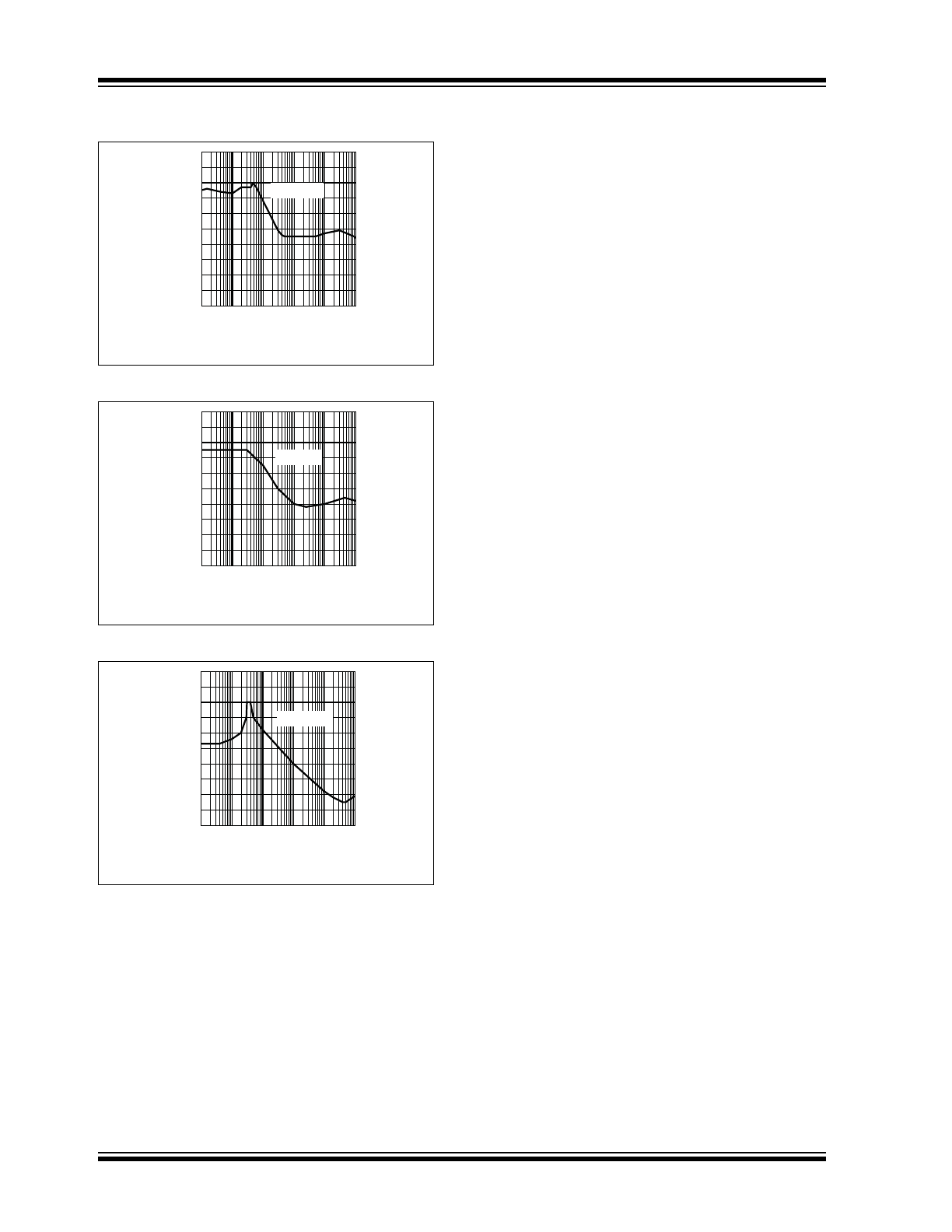

FIGURE 2-25:
Ripple vs. Frequency.
FIGURE 2-26:
Ripple vs. Frequency.
FIGURE 2-27:
Ripple vs. Frequency.
0
20
40
60
80
100
10x10
0
100x10
0
1x10
3
10x10
3
100x10
3
1x10
6
RIPPLE VOLTAGE (dB)
FREQUENCY (Hz)
I
L
= 100μA
0
20
40
60
80
100
10x10
0
100x10
0
1x10
3
10x10
3
100x10
3
1x10
6
RIPPLE VOLTAGE (dB)
FREQUENCY (Hz)
I
L
= 1mA
0
20
40
60
80
100
10x10
0
100x10
0
1x10
3
10x10
3
100x10
3
1x10
6
RIPPLE VOLTAGE (dB)
FREQUENCY (Hz)
I
L
= 100mA
