MCP1727
Features
• 1.5A Output Current Capability
• Input Operating Voltage Range: 2.3V to 6.0V
• Adjustable Output Voltage Range: 0.8V to 5.0V
• Standard Fixed Output Voltages:
- 0.8V, 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V
• Other Fixed Output Voltage Options Available
Upon Request
• Low Dropout Voltage: 330 mV Typical at 1.5A
• Typical Output Voltage Tolerance: 0.5%
• Stable with 1.0 µF Ceramic Output Capacitor
• Fast response to Load Transients
• Low Supply Current: 120 µA (typ)
• Low Shutdown Supply Current: 0.1 µA (typ)
• Adjustable Delay on Power Good Output
• Short Circuit Current Limiting and
Overtemperature Protection
• 3x3 DFN-8 and SOIC-8 Package Options
Applications
• High-Speed Driver Chipset Power
• Networking Backplane Cards
• Notebook Computers
• Network Interface Cards
• Palmtop Computers
• 2.5V to 1.XV Regulators
Description
The MCP1727 is a 1.5A Low Dropout (LDO) linear
regulator that provides high current and low output
voltages in a very small package. The MCP1727
comes in a fixed (or adjustable) output voltage version,
with an output voltage range of 0.8V to 5.0V. The 1.5A
output current capability, combined with the low output
voltage capability, make the MCP1727 a good choice
for new sub-1.8V output voltage LDO applications that
have high current demands.
The MCP1727 is stable using ceramic output
capacitors that inherently provide lower output noise
and reduce the size and cost of the entire regulator
solution. Only 1 µF of output capacitance is needed to
stabilize the LDO.
Using CMOS construction, the quiescent current
consumed by the MCP1727 is typically less than
120 µA over the entire input voltage range, making it
attractive for portable computing applications that
demand high output current. When shut down, the
quiescent current is reduced to less than 0.1 µA.
The scaled-down output voltage is internally monitored
and a power good (PWRGD) output is provided when
the output is within 92% of regulation (typical). An
external capacitor can be used on the C
DELAY
pin to
adjust the delay from 200 µs to 300 ms.
The overtemperature and short circuit current-limiting
provide additional protection for the LDO during system
fault conditions.
Package Types
V
IN
V
IN
SHDN
GND
PWRGD
C
DELAY
Sense
V
OUT
V
IN
V
IN
SHDN
GND
PWRGD
C
DELAY
ADJ
V
OUT
Adjustable (SOIC-8)
Fixed (SOIC-8)
V
IN
V
IN
SHDN
GND
PWRGD
C
DELAY
Sense
V
OUT
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
Fixed (3x3 DFN)
V
IN
V
IN
SHDN
GND
PWRGD
C
DELAY
V
OUT
Adjustable (3x3 DFN)
ADJ
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1.5A, Low Voltage, Low Quiescent Current LDO Regulator
MCP1727
DS21999B-page 2
© 2007 Microchip Technology Inc.

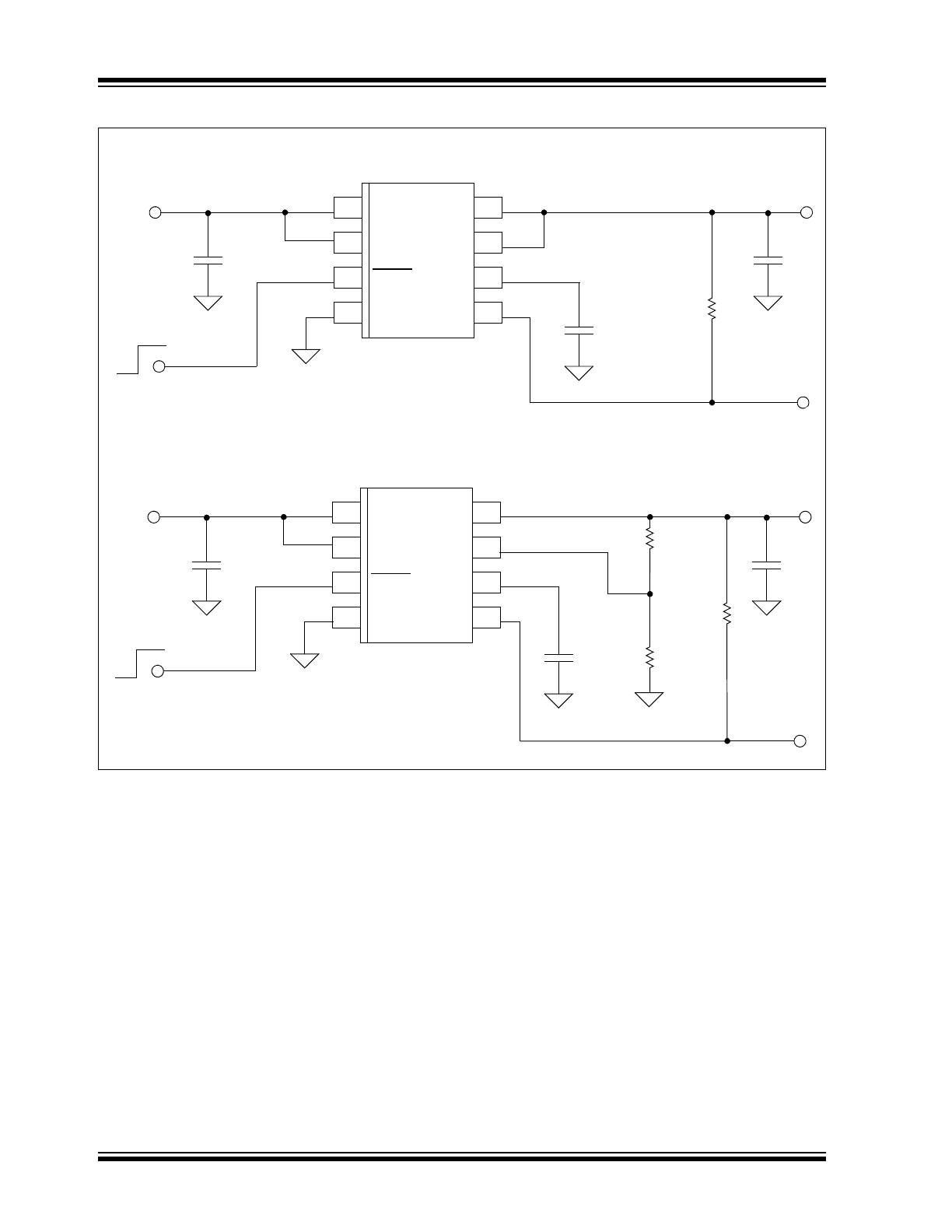

Typical Application
MCP1727 Adjustable Output Voltage
V
IN
SHDN
GND PWRGD
C
DELAY
ADJ
V
OUT
1
2
3
4
5
6
7
8
1 µF
PWRGD
V
OUT
= 1.2V @ 1A
100 k
Ω
4.7 µF
V
IN
= 2.3V to 2.8V
On
Off
V
IN
20 k
Ω
40 k
Ω
R
1
R
2
C
1
C
2
R
3
1000 pF
C
3
MCP1727 Fixed Output Voltage
V
IN
SHDN
GND PWRGD
C
DELAY
Sense
V
OUT
1
2
3
4
5
6
7
8
PWRGD
V
OUT
= 1.8V @ 1A
V
IN
= 2.3V to 2.8V
On
Off
V
IN
1 µF
100 k
Ω
4.7 µF
C
1
C
2
R
1
1000 pF
C
3
© 2007 Microchip Technology Inc.
DS21999B-page 3
MCP1727

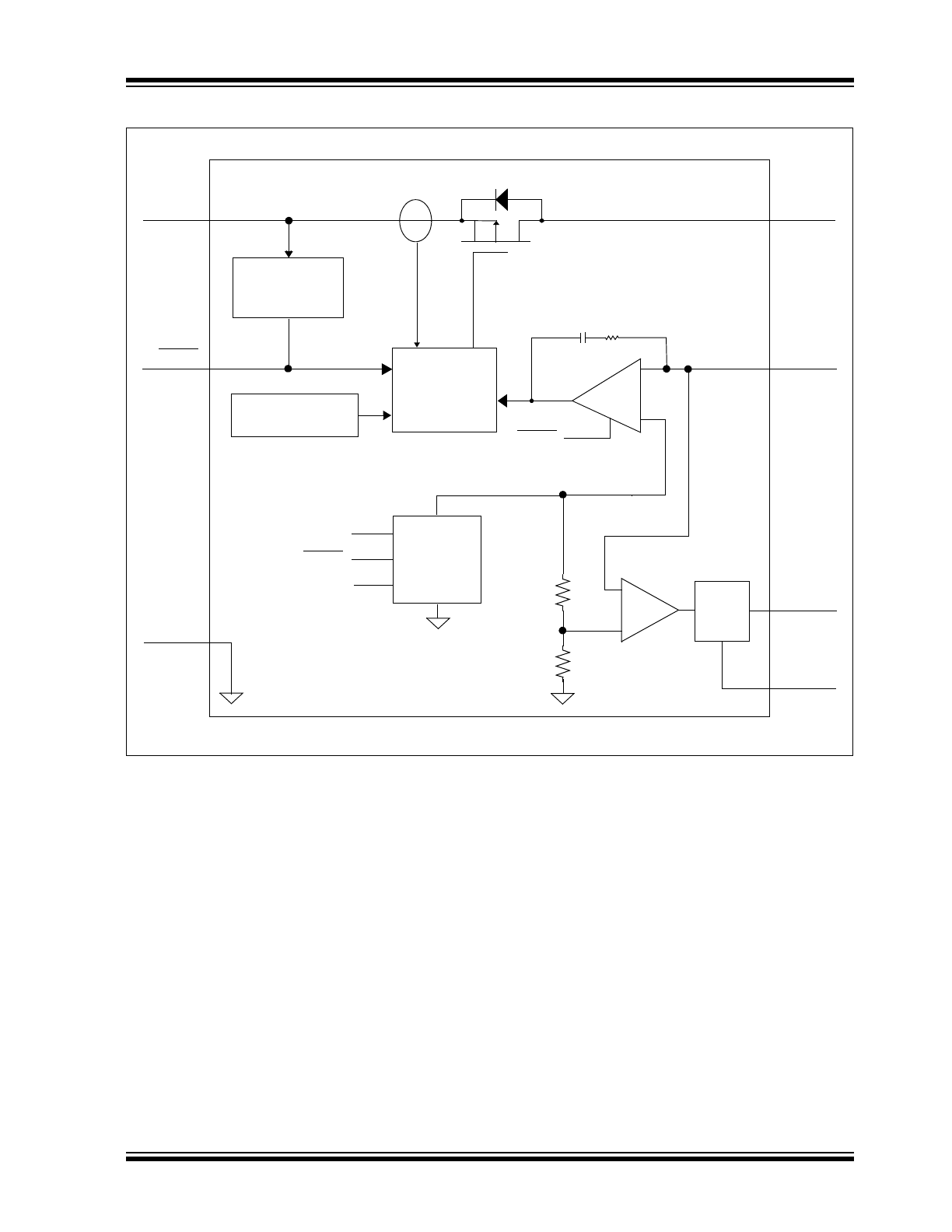

Functional Block Diagram - Adjustable Output
EA
+
–
V
OUT
PMOS
R
f
C
f
I
SNS
Overtemperature
V
REF
Comp
92% of V
REF
T
DELAY
PWRGD
C
DELAY
V
IN
Driver w/limit
and SHDN
GND
Soft-Start
ADJ
Undervoltage
Lock Out
VIN
Reference
SHDN
SHDN
SHDN
Sensing
(UVLO)
MCP1727
DS21999B-page 4
© 2007 Microchip Technology Inc.

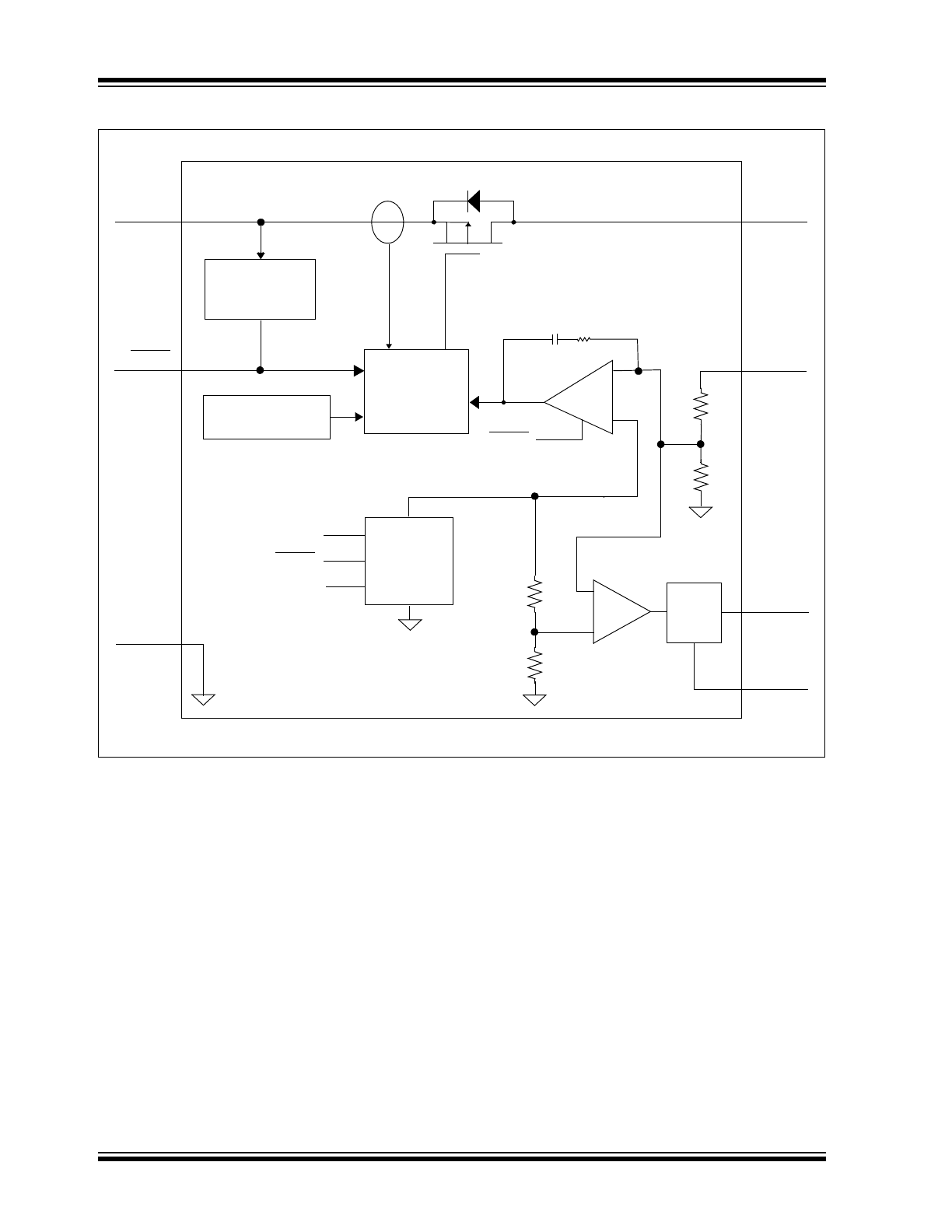

Functional Block Diagram - Fixed Output
EA
+
–
V
OUT
PMOS
R
f
C
f
I
SNS
Overtemperature
V
REF
Comp
92% of V
REF
T
DELAY
PWRGD
C
DELAY
V
IN
Driver w/limit
and SHDN
GND
Soft-Start
Sense
Undervoltage
Lock Out
VIN
Reference
SHDN
SHDN
SHDN
Sensing
(UVLO)
© 2007 Microchip Technology Inc.
DS21999B-page 5
MCP1727
1.0
ELECTRICAL
CHARACTERISTICS
Absolute Maximum Ratings †
V
IN
....................................................................................6.5V
Maximum Voltage on Any Pin .. (GND – 0.3V) to (V
DD
+ 0.3)V
Maximum Power Dissipation......... Internally-Limited (Note 6)
Output Short Circuit Duration................................ Continuous
Storage temperature .....................................-65°C to +150°C
Maximum Junction Temperature, T
J
........................... +150°C
ESD protection on all pins (HBM/MM)
........... ≥
2 kV;
≥
200V
† Notice: Stresses above those listed under “Maximum Rat-
ings” may cause permanent damage to the device. This is a
stress rating only and functional operation of the device at
those or any other conditions above those indicated in the
operational listings of this specification is not implied. Expo-
sure to maximum rating conditions for extended periods may
affect device reliability.
AC/DC CHARACTERISTICS
Electrical Specifications: Unless otherwise noted, V
IN
= V
OUT(MAX)
+ V
DROPOUT(MAX)
(Note 1), V
R
=1.8V for Adjustable Output,
I
OUT
= 1 mA, C
IN
= C
OUT
= 4.7 µF (X7R Ceramic), T
A
= +25°C.
Boldface type applies for junction temperatures, T
J
(Note 7) of -40°C to +125°C
Parameters
Sym
Min
Typ
Max
Units
Conditions
Input Operating Voltage
V
IN
2.3
6.0
V
Note 1
Input Quiescent Current
I
q
—
120
220
µA
I
L
= 0 mA, V
IN
= Note 1,
V
OUT
= 0.8V to 5.0V
Input Quiescent Current for
SHDN Mode
I
SHDN
—
0.1
3
µA
SHDN = GND
Maximum Output Current
I
OUT
1.5
—
—
A
V
IN
= 2.3V to 6.0V
V
R
= 0.8V to 5.0V, Note 1
Line Regulation
ΔV
OUT
/
(V
OUT
x
ΔV
IN
)
—
0.05
0.16
%/V
(Note 1)
≤ V
IN
≤ 6V
Load Regulation
ΔV
OUT
/V
OUT
-1.0
±0.5
1.0
%
I
OUT
= 1 mA to 1.5A,
V
IN
= Note 1, (Note 4)
Output Short Circuit Current
I
OUT_SC
—
2.2
—
A
V
IN
= Note 1, R
LOAD
< 0.1
Ω,
Peak Current
Adjust Pin Characteristics (Adjustable Output Only)
Adjust Pin Reference Voltage
V
ADJ
0.402
0.410
0.418
V
V
IN
= 2.3V to V
IN
= 6.0V,
I
OUT
= 1 mA
Adjust Pin Leakage Current
I
ADJ
-10
±0.01
+10
nA
V
IN
= 6.0V, V
ADJ
= 0V to 6V
Adjust Temperature Coefficient
TCV
OUT
—
40
—
ppm/°C Note 3
Fixed-Output Characteristics (Fixed Output Only)
Voltage Regulation
V
OUT
V
R
- 2.5%
V
R
±0.5%
V
R
+ 2.5%
V
Note 2
Note 1:
The minimum V
IN
must meet two conditions: V
IN
≥ 2.3V and V
IN
≥ V
OUT(MAX)
+ V
DROPOUT(MAX).
2:
V
R
is the nominal regulator output voltage for the fixed cases. V
R
= 1.2V, 1.8V, etc. V
R
is the desired set point output
voltage for the adjustable cases. V
R
= V
ADJ
*
((R
1
/R
2
)+1).
Figure 4-1
.
3:
TCV
OUT
= (V
OUT-HIGH
– V
OUT-LOW
) *10
6
/ (V
R
*
ΔTemperature). V
OUT-HIGH
is the highest voltage measured over the
temperature range. V
OUT-LOW
is the lowest voltage measured over the temperature range.
4:
Load regulation is measured at a constant junction temperature using low duty-cycle pulse testing. Load regulation is
tested over a load range from 1 mA to the maximum specified output current.
5:
Dropout voltage is defined as the input-to-output voltage differential at which the output voltage drops 2% below its
nominal value that was measured with an input voltage of V
OUT
= V
R
+ V
DROPOUT(MAX)
.
6:
The maximum allowable power dissipation is a function of ambient temperature, the maximum allowable junction
temperature and the thermal resistance from junction to air. (i.e., T
A
, T
J
,
θ
JA
). Exceeding the maximum allowable power
dissipation will cause the device operating junction temperature to exceed the maximum +150°C rating. Sustained
junction temperatures above 150°C can impact device reliability.
7:
The junction temperature is approximated by soaking the device under test at an ambient temperature equal to the
desired junction temperature. The test time is small enough such that the rise in the junction temperature over the
ambient temperature is not significant.
MCP1727
DS21999B-page 6
© 2007 Microchip Technology Inc.
Dropout Characteristics
Dropout Voltage
V
IN
-V
OUT
—
330
550
mV
Note 5, I
OUT
= 1.5A,
V
IN(MIN)
= 2.3V
Power Good Characteristics
PWRGD Input Voltage Operat-
ing Range
V
PWRGD_VIN
1.0
—
6.0
V
T
A
= +25°C
1.2
—
6.0
T
A
= -40°C to +125°C
For V
IN
< 2.3V, I
SINK
= 100 µA
PWRGD Threshold Voltage
(Referenced to V
OUT
)
V
PWRGD_TH
—
—
—
%V
OUT
Falling Edge
89
92
95
V
OUT
< 2.5V Fixed, V
OUT
= Adj.
90
92
94
V
OUT
>= 2.5V Fixed
PWRGD Threshold Hysteresis
V
PWRGD_HYS
1.0
2.0
3.0
%V
OUT
PWRGD Output Voltage Low
V
PWRGD_L
—
0.2
0.4
V
I
PWRGD
SINK
= 1.2 mA,
ADJ = 0V, SENSE = 0V
PWRGD Leakage
P
WRGD
_
LK
—
1
—
nA
V
PWRGD
= V
IN
= 6.0V
PWRGD Time Delay
T
PG
Rising Edge
R
PULLUP
= 10 k
Ω
I
CDELAY
= 140 nA (Typ)
—
200
—
µs
C
DELAY
= OPEN
10
30
55
ms
C
DELAY
= 0.01 µF
—
300
—
ms
C
DELAY
= 0.1 µF
Detect Threshold to PWRGD
Active Time Delay
T
VDET-PWRGD
—
200
—
µs
V
ADJ
or V
SENSE
= V
PWRGD_TH
+
20 mV to V
PWRGD_TH
- 20 mV
Shutdown Input
Logic High Input
V
SHDN-HIGH
45
%V
IN
V
IN
= 2.3V to 6.0V
Logic Low Input
V
SHDN-LOW
15
%V
IN
V
IN
= 2.3V to 6.0V
SHDN Input Leakage Current
SHDN
ILK
-0.1
±0.001
+0.1
µA
V
IN
= 6V, SHDN =V
IN
,
SHDN = GND
AC Performance
Output Delay From SHDN
T
OR
100
µs
SHDN = GND to V
IN
V
OUT
= GND to 95% V
R
AC/DC CHARACTERISTICS (CONTINUED)
Electrical Specifications: Unless otherwise noted, V
IN
= V
OUT(MAX)
+ V
DROPOUT(MAX)
(Note 1), V
R
=1.8V for Adjustable Output,
I
OUT
= 1 mA, C
IN
= C
OUT
= 4.7 µF (X7R Ceramic), T
A
= +25°C.
Boldface type applies for junction temperatures, T
J
(Note 7) of -40°C to +125°C
Parameters
Sym
Min
Typ
Max
Units
Conditions
Note 1:
The minimum V
IN
must meet two conditions: V
IN
≥ 2.3V and V
IN
≥ V
OUT(MAX)
+ V
DROPOUT(MAX).
2:
V
R
is the nominal regulator output voltage for the fixed cases. V
R
= 1.2V, 1.8V, etc. V
R
is the desired set point output
voltage for the adjustable cases. V
R
= V
ADJ
*
((R
1
/R
2
)+1).
Figure 4-1
.
3:
TCV
OUT
= (V
OUT-HIGH
– V
OUT-LOW
) *10
6
/ (V
R
*
ΔTemperature). V
OUT-HIGH
is the highest voltage measured over the
temperature range. V
OUT-LOW
is the lowest voltage measured over the temperature range.
4:
Load regulation is measured at a constant junction temperature using low duty-cycle pulse testing. Load regulation is
tested over a load range from 1 mA to the maximum specified output current.
5:
Dropout voltage is defined as the input-to-output voltage differential at which the output voltage drops 2% below its
nominal value that was measured with an input voltage of V
OUT
= V
R
+ V
DROPOUT(MAX)
.
6:
The maximum allowable power dissipation is a function of ambient temperature, the maximum allowable junction
temperature and the thermal resistance from junction to air. (i.e., T
A
, T
J
,
θ
JA
). Exceeding the maximum allowable power
dissipation will cause the device operating junction temperature to exceed the maximum +150°C rating. Sustained
junction temperatures above 150°C can impact device reliability.
7:
The junction temperature is approximated by soaking the device under test at an ambient temperature equal to the
desired junction temperature. The test time is small enough such that the rise in the junction temperature over the
ambient temperature is not significant.
© 2007 Microchip Technology Inc.
DS21999B-page 7
MCP1727
TEMPERATURE SPECIFICATIONS
Output Noise
e
N
—
2.0
—
µV/
√Hz I
OUT
= 200 mA, f = 1 kHz, C
OUT
= 10 µF (X7R Ceramic), V
OUT
=
2.5V
Power Supply Ripple Rejection
Ratio
PSRR
—
60
—
dB
f = 100 Hz, C
OUT
= 10 µF,
I
OUT
= 10 mA,
V
INAC
= 30 mV pk-pk,
C
IN
= 0 µF
Thermal Shutdown Temperature
T
SD
—
150
—
°C
I
OUT
= 100 µA, V
OUT
= 1.8V,
V
IN
= 2.8V
Thermal Shutdown Hysteresis
ΔT
SD
—
10
—
°C
I
OUT
= 100 µA, V
OUT
= 1.8V,
V
IN
= 2.8V
Electrical Specifications: Unless otherwise indicated, all limits apply for V
IN
= 2.3V to 6.0V.
Parameters
Sym
Min
Typ
Max
Units
Conditions
Temperature Ranges
Operating Junction Temperature Range
T
J
-40
—
+125
°C
Steady State
Maximum Junction Temperature
T
J
—
—
+150
°C
Transient
Storage Temperature Range
T
A
-65
—
+150
°C
Thermal Package Resistances
Thermal Resistance, 8LD 3x3 DFN
θ
JA
—
41
—
°C/W
4-Layer JC51-7
Standard Board with
vias
Thermal Resistance, 8LD SOIC
θ
JA
—
150
—
°C/W
4-Layer JC51-7
Standard Board
AC/DC CHARACTERISTICS (CONTINUED)
Electrical Specifications: Unless otherwise noted, V
IN
= V
OUT(MAX)
+ V
DROPOUT(MAX)
(Note 1), V
R
=1.8V for Adjustable Output,
I
OUT
= 1 mA, C
IN
= C
OUT
= 4.7 µF (X7R Ceramic), T
A
= +25°C.
Boldface type applies for junction temperatures, T
J
(Note 7) of -40°C to +125°C
Parameters
Sym
Min
Typ
Max
Units
Conditions
Note 1:
The minimum V
IN
must meet two conditions: V
IN
≥ 2.3V and V
IN
≥ V
OUT(MAX)
+ V
DROPOUT(MAX).
2:
V
R
is the nominal regulator output voltage for the fixed cases. V
R
= 1.2V, 1.8V, etc. V
R
is the desired set point output
voltage for the adjustable cases. V
R
= V
ADJ
*
((R
1
/R
2
)+1).
Figure 4-1
.
3:
TCV
OUT
= (V
OUT-HIGH
– V
OUT-LOW
) *10
6
/ (V
R
*
ΔTemperature). V
OUT-HIGH
is the highest voltage measured over the
temperature range. V
OUT-LOW
is the lowest voltage measured over the temperature range.
4:
Load regulation is measured at a constant junction temperature using low duty-cycle pulse testing. Load regulation is
tested over a load range from 1 mA to the maximum specified output current.
5:
Dropout voltage is defined as the input-to-output voltage differential at which the output voltage drops 2% below its
nominal value that was measured with an input voltage of V
OUT
= V
R
+ V
DROPOUT(MAX)
.
6:
The maximum allowable power dissipation is a function of ambient temperature, the maximum allowable junction
temperature and the thermal resistance from junction to air. (i.e., T
A
, T
J
,
θ
JA
). Exceeding the maximum allowable power
dissipation will cause the device operating junction temperature to exceed the maximum +150°C rating. Sustained
junction temperatures above 150°C can impact device reliability.
7:
The junction temperature is approximated by soaking the device under test at an ambient temperature equal to the
desired junction temperature. The test time is small enough such that the rise in the junction temperature over the
ambient temperature is not significant.
MCP1727
DS21999B-page 8
© 2007 Microchip Technology Inc.
2.0
TYPICAL PERFORMANCE CURVES
NOTE: Unless otherwise indicated V
OUT
= 1.8V (Adjustable), V
IN
= 2.8V, C
OUT
= 4.7 µF Ceramic (X7R), C
IN
= 4.7 µF
Ceramic (X7R), I
OUT
= 1 mA, Temperature = +25°C, V
IN
= V
OUT
+ 0.6V, RPWRGD = 10 k
Ω To V
IN
.
NOTE: Junction Temperature (T
J
) is approximated by soaking the device under test to an ambient temperature equal
to the desired Junction temperature. The test time is small enough such that the rise in Junction temperature over the
Ambient temperature is not significant.

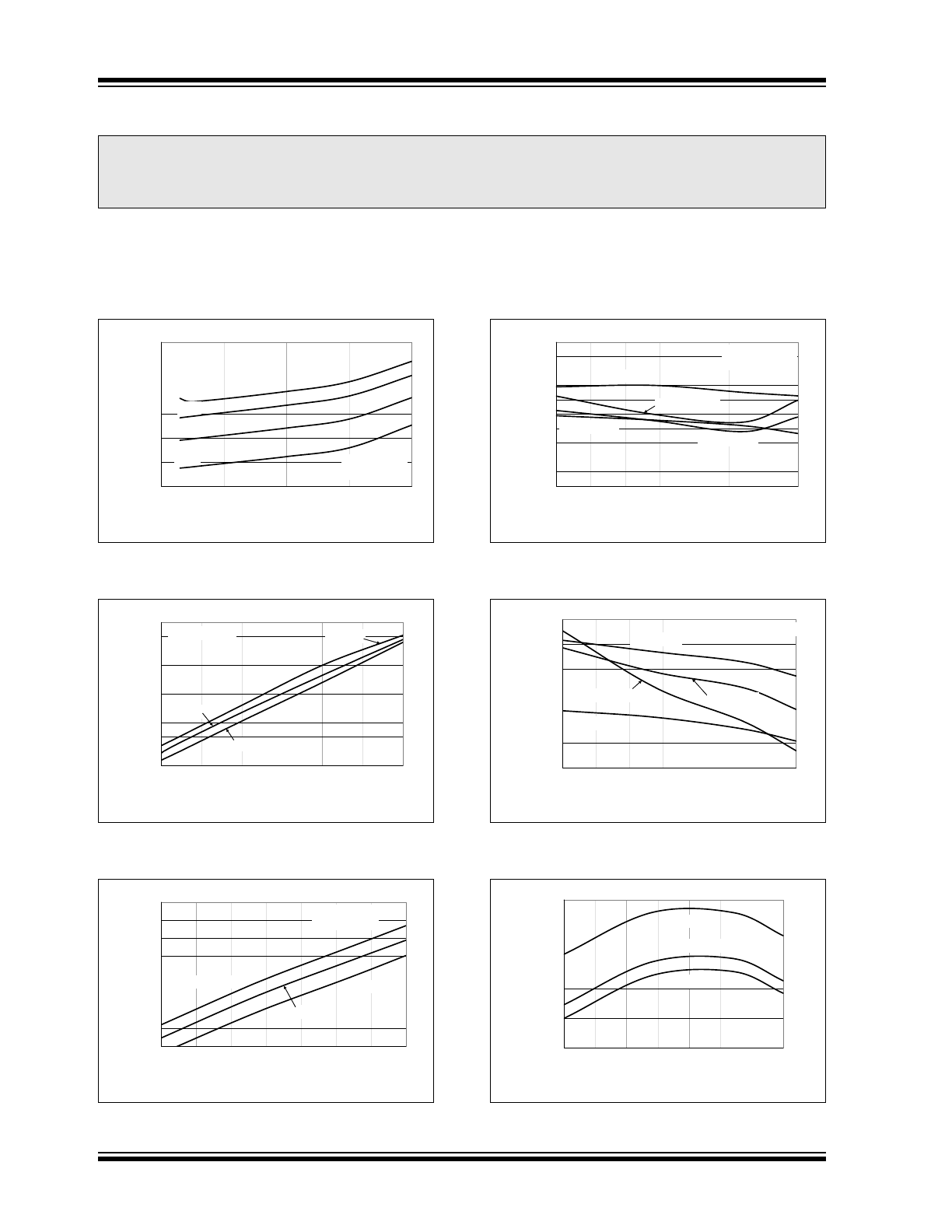

FIGURE 2-1:
Quiescent Current vs. Input
Voltage (1.2V Adjustable).
FIGURE 2-2:
Ground Current vs. Load
Current (1.2V Adjustable).
FIGURE 2-3:
Quiescent Current vs.
Junction Temperature (1.2V Adjustable).
FIGURE 2-4:
Line Regulation vs.
Temperature (1.2V Adjustable).
FIGURE 2-5:
Load Regulation vs.
Temperature.
FIGURE 2-6:
Adjust Pin Voltage vs.
Temperature.
Note:
The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
90
100
110
120
130
140
150
2
3
4
5
6
Input Voltage (V)
Qui
escen
t Cu
rren
t
(μ
A)
130
°C
-45
°C
25
°C
90
°C
V
OUT
= 1.2V Adj
I
OUT
= 0 mA
100
110
120
130
140
150
160
170
180
190
200
0
250
500
750
1000
1250
1500
Load Current (mA)
Ground
C
u
rren
t (
μ
A)
V
IN
=3.3V
V
OUT
= 1.2V Adj
V
IN
=5.0V
V
IN
=2.3V
100
105
110
115
120
125
130
135
140
-45
-20
5
30
55
80
105
130
Temperature (°C)
Qu
iesc
ent Cur
rent
(μ
A)
V
IN
=5.0V
V
IN
=2.5V
V
IN
=4.0V
I
OUT
= 0 mA
V
OUT
= 1.2V Adj
0
0.01
0.02
0.03
0.04
0.05
0.06
0.07
0.08
0.09
0.1
-45
-20
5
30
55
80
105
130
Temperature (°C)
Li
ne
R
e
g
u
la
ti
on
(
%
/V)
V
OUT
= 1.2V adj
V
IN
= 2.3V to 6.0V
I
OUT
= 1 mA
I
OUT
= 500 mA
I
OUT
= 1000 mA
I
OUT
= 100 mA
-0.15
-0.10
-0.05
0.00
0.05
0.10
0.15
-45
-20
5
30
55
80
105
130
Temperature (°C)
Lo
ad
R
e
g
u
la
tion
(%)
I
OUT
= 1.0 mA to 1500 mA
V
OUT
= 5.0V
V
OUT
= 3.3V
V
OUT
= 0.8V
V
OUT
= 1.8V
0.408
0.409
0.409
0.410
0.410
0.411
-45
-20
5
30
55
80
105
130
Temperature (°C)
A
d
ju
st
P
in
Vo
lta
g
e (V
)
I
OUT
= 1.0 mA
V
IN
= 6.0V
V
IN
= 2.3V
V
IN
= 5.0V
© 2007 Microchip Technology Inc.
DS21999B-page 9
MCP1727
NOTE: Unless otherwise indicated V
OUT
= 1.8V (Adjustable), V
IN
= 2.8V, C
OUT
= 4.7 µF Ceramic (X7R), C
IN
= 4.7 µF
Ceramic (X7R), I
OUT
= 1 mA, Temperature = +25°C, V
IN
= V
OUT
+ 0.6V, RPWRGD = 10 k
Ω To V
IN
.

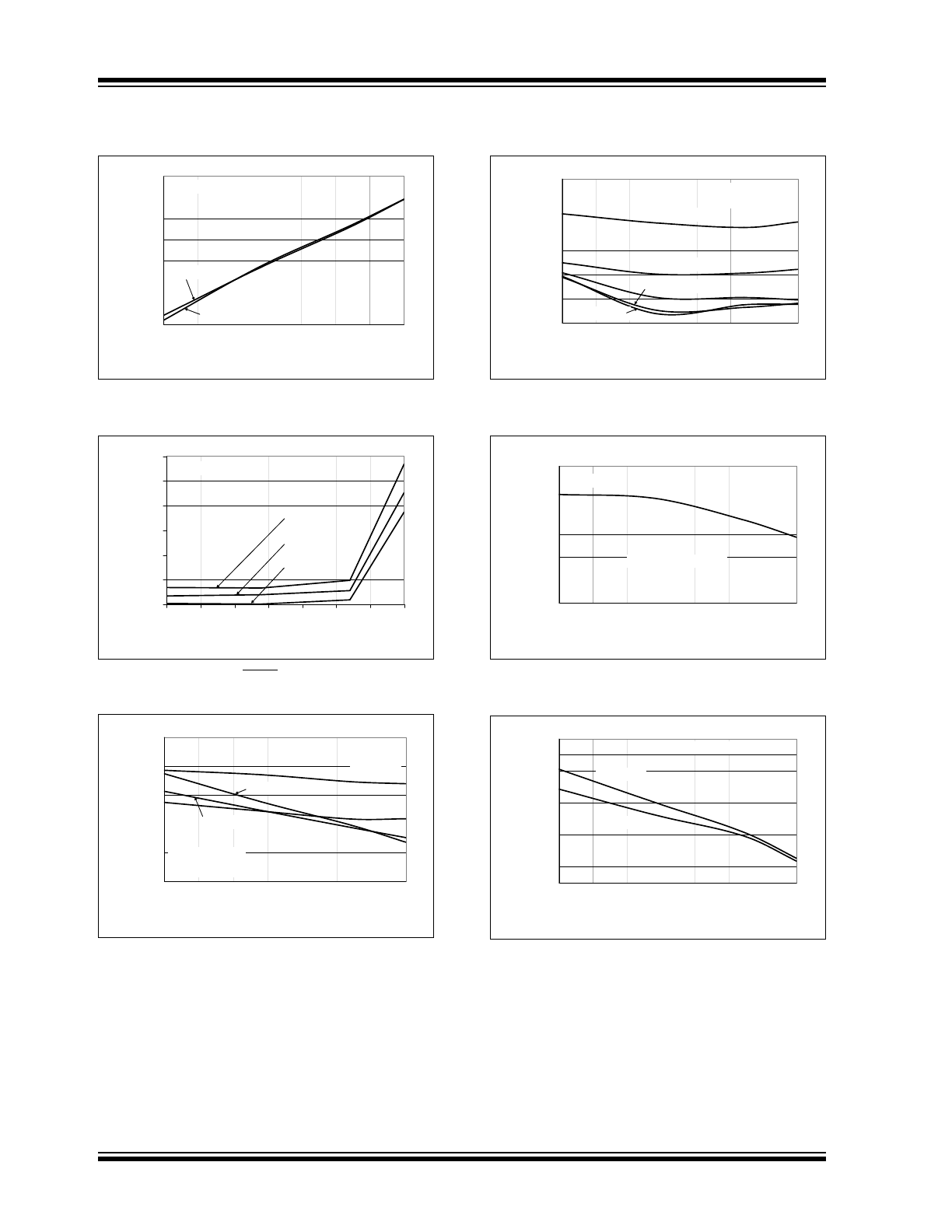

FIGURE 2-7:
Dropout Voltage vs. Load
Current (Adjustable Version).
FIGURE 2-8:
Dropout Voltage vs.
Temperature (Adjustable Version).
FIGURE 2-9:
Power Good (PWRGD)
Time Delay vs. Temperature.
FIGURE 2-10:
Quiescent Current vs. Input
Voltage (0.8V Fixed).
FIGURE 2-11:
Quiescent Current vs. Input
Voltage (2.5V Fixed).
FIGURE 2-12:
Ground Current vs. Load
Current.
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0
250
500
750
1000
1250
1500
Load Current (mA)
Drop
out Vol
tag
e (V)
V
OUT
= 2.5V Adj
V
OUT
= 5.0V Adj
0.30
0.32
0.34
0.36
0.38
0.40
0.42
-45
-20
5
30
55
80
105
130
Temperature (°C)
D
ropo
ut Vo
lt
ag
e (
V
)
V
OUT
= 3.3V Adj
V
OUT
= 5.0V Adj
V
OUT
= 2.5V Adj
I
OUT
= 1.5A
25
26
27
28
29
30
31
32
-45
-20
5
30
55
80
105
130
Temperature (°C)
P
o
we
r Go
od
T
ime D
elay
(m
S
)
C
DELAY
= 0.01
μF
V
OUT
= 1.8V Adj
V
IN
= 2.4V
V
IN
= 5.0V
V
IN
= 3.3V
80
90
100
110
120
130
140
150
2
3
4
5
6
Input Voltage (V)
Qu
iesce
nt C
u
rren
t (
μ
A)
-45°C
+130°C
+85°C
+25°C
V
OUT
= 0.8V
I
OUT
= 0 mA
80
90
100
110
120
130
140
150
3
3.5
4
4.5
5
5.5
6
Input Voltage (V)
Q
u
ie
scen
t Cu
rren
t (
μ
A)
V
OUT
= 2.5V
I
OUT
= 0 mA
+130
°C
-45
°C
+25
°C
+90
°C
0.00
50.00
100.00
150.00
200.00
250.00
0
250
500
750
1000
1250
1500
Load Current (mA)
G
rou
nd
C
u
rr
en
t
(μ
A)
V
IN
= 2.3V for V
R
=0.8V
V
IN
= 3.1V for V
R
=2.5V
V
OUT
=0.8V
V
OUT
=2.5V
MCP1727
DS21999B-page 10
© 2007 Microchip Technology Inc.
NOTE: Unless otherwise indicated V
OUT
= 1.8V (Adjustable), V
IN
= 2.8V, C
OUT
= 4.7 µF Ceramic (X7R), C
IN
= 4.7 µF
Ceramic (X7R), I
OUT
= 1 mA, Temperature = +25°C, V
IN
= V
OUT
+ 0.6V, RPWRGD = 10 k
Ω To V
IN
.
FIGURE 2-13:
Quiescent Current vs.
Temperature.

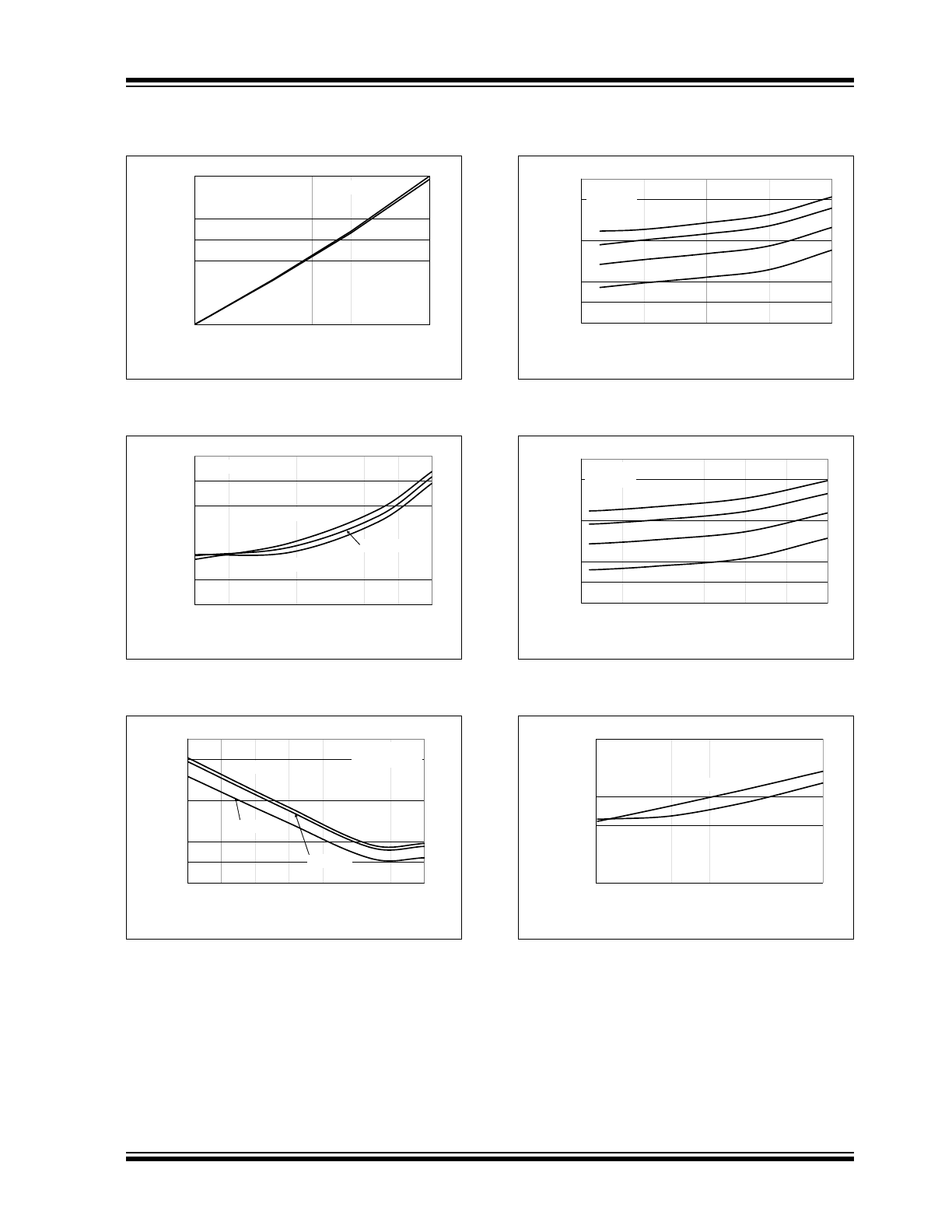

FIGURE 2-14:
I
SHDN
vs. Temperature.
FIGURE 2-15:
Line Regulation vs.
Temperature (0.8V Fixed).
FIGURE 2-16:
Line Regulation vs.
Temperature (2.5V Fixed).
FIGURE 2-17:
Load Regulation vs.
Temperature (V
OUT
< 2.5V Fixed).
FIGURE 2-18:
Load Regulation vs.
Temperature (V
OUT
≥
2.5V Fixed).
95
100
105
110
115
120
125
130
-45
-20
5
30
55
80
105
130
Temperature (°C)
Q
u
ies
cen
t C
u
rren
t (
μ
A)
V
OUT
= 0.8V
V
OUT
= 2.5V
I
OUT
= 0 mA
0.00
0.05
0.10
0.15
0.20
0.25
0.30
-45
-20
5
30
55
80
105
130
Temperature (°C)
Is
hdn
(
μ
A)
V
IN
= 2.3V
V
IN
= 4.0V
V
IN
= 6.0V
V
R
= 0.8V
0.00
0.02
0.04
0.06
0.08
0.10
-45
-20
5
30
55
80
105
130
Temperature (°C)
Li
n
e
R
e
g
u
la
ti
on (%
/V)
V
OUT
= 0.8V
V
IN
= 2.3V to 6.0V
I
OUT
= 1 mA
I
OUT
= 100 mA
I
OUT
= 500mA
I
OUT
= 1A
0.015
0.020
0.025
0.030
0.035
0.040
0.045
-45
-20
5
30
55
80
105
130
Temperature (°C)
L
ine
R
egu
la
ti
o
n
(%
/V
)
I
OUT
= 1000 mA
I
OUT
= 1 mA
I
OUT
= 100 mA
I
OUT
= 1500 mA
I
OUT
= 500 mA
V
R
= 2.5V
V
IN
= 3.1 to 6.0V
-0.30
-0.20
-0.10
0.00
0.10
0.20
0.30
-45
-20
5
30
55
80
105
130
Temperature (°C)
Lo
ad
Re
gu
lat
io
n
(%)
V
OUT
= 0.8V
I
OUT
= 1 mA to 1500 mA
V
IN
= 2.3V
-0.45
-0.40
-0.35
-0.30
-0.25
-0.20
-0.15
-0.10
-0.05
0.00
-45
-20
5
30
55
80
105
130
Temperature (°C)
Lo
ad
R
egu
la
ti
o
n
(%
)
V
OUT
= 2.5V
V
OUT
= 5.0V
I
OUT
= 1 mA to 1500 mA
