Standard Power
Data Sheet
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
Smart High-Side NMOS-Power Switch
PG-DSO-8
Data Sheet
2
Rev 1.0, 2012-09-01
Smart High-Side NMOS-Power Switch
ITS4300S-SJ-D
Type
Package
Marking
ITS4300S-SJ-D
PG-DSO-8
I300SD
1
Overview
Features
•
CMOS compatible input
•
Switching all types of resistive, inductive and capacitive loads
•
Fast demagnetization of inductive loads
•
Very low standby current
•
Optimized Electromagnetic Compatibility (EMC)
•
Open drain diagnostic output for overtemperature and short circuit
•
Open load detection in OFF-state with external resistor
•
Overload protection
•
Current limitation
•
Short circuit protection
•
Thermal shutdown with restart
•
Overvoltage protection (including load dump)
•
Reverse battery protection with external resistor
•
Loss of GND and loss of Vbb protection
•
Electrostatic Discharge Protection (ESD)
•
Green Product (RoHS compliant)
ITS4300S-SJ-D is not qualified and manufactured according to the requirements of Infineon Technologies with
regards to automotive and/or transportation applications.
Description
The ITS4300S-SJ-D is a protected single channel Smart High-Side NMOS-Power Switch in a PG-DSO-8 package
with charge pump, CMOS compatible input and diagnostic feedback.
Product Summary
Overvoltage protection
V
SAZmin
= 41V
Operating voltage range: 5V <
V
S
< 34V
On-state resistance
R
DSON
= typ 300mΩ
Nominal load current
I
LNOM
= 0.4A
Operating Temperature range:
T
j
= -40°C to 125°C
Standby Current:
I
SSTB
= 26µA
Application
•
All types of resistive, inductive and capacitive loads
•
Power switch for 12V and 24V DC applications with CMOS compatible control interface
•
Driver for electromagnetic relays
•
Power managment for high-side-switching with low current consumption in OFF-mode
Data Sheet
3
Rev 1.0, 2012-09-01
ITS4300S-SJ-D

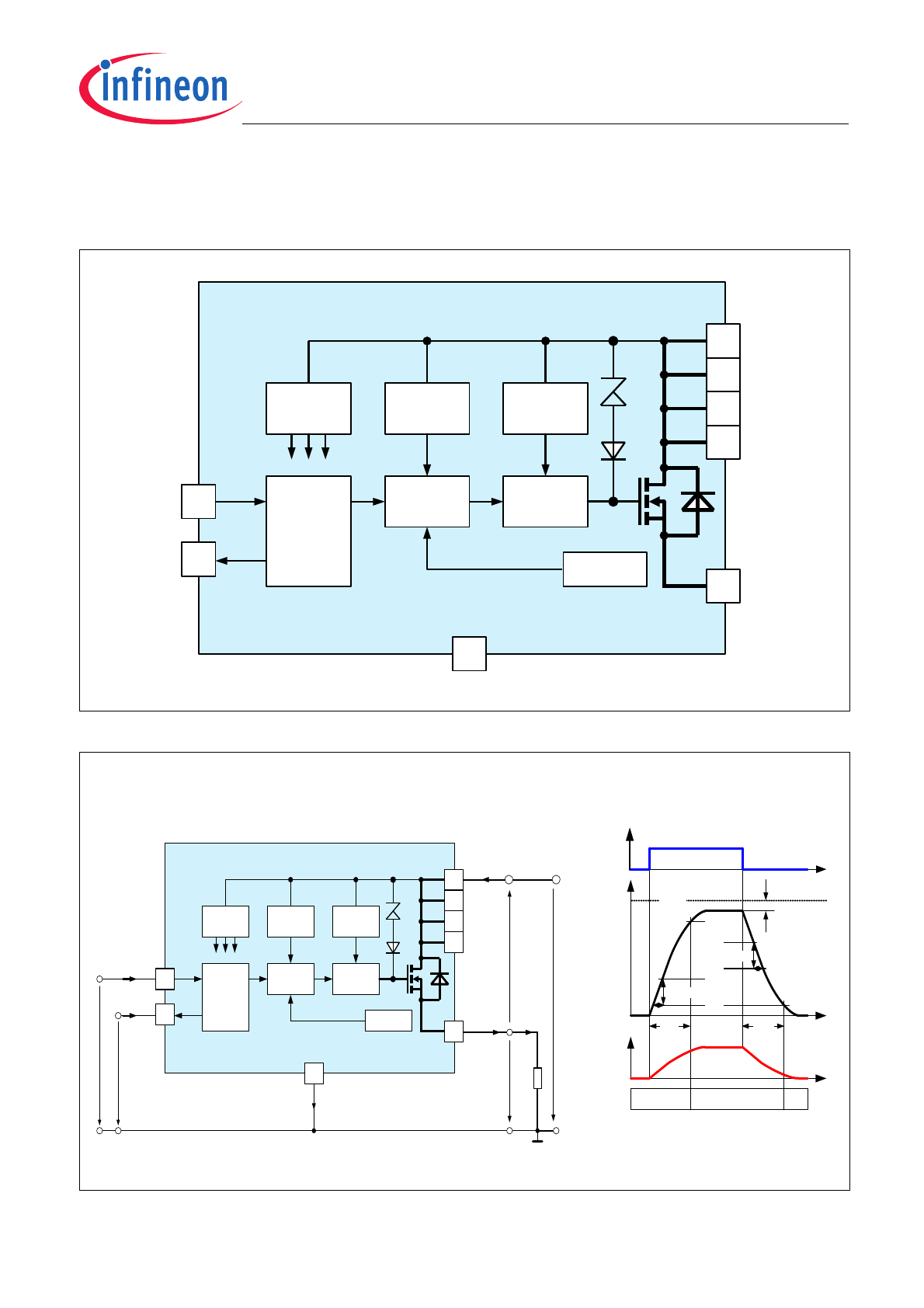

Block Diagram and Terms
2
Block Diagram and Terms
Figure 1
Block diagram
Figure 2
Terms - parameter definition
3
ITS4300S-SJ-D
4
Gate
Control
Circuit
7
Temperature
Sensor
IN
OUT
VS
6
5
8
Bias
Supervision
Overvoltage
Protection
ESD
Protection
Logic
Current
Limiter
2
1
ST
GND
V
ST
V
OU
T
V
S
I
S
I
L
R
L
V
FD
S
GND
Voltage- and Current-Definitions:
Switching Times and Slew Rate Definitions:
OFF
OFF
ON
V
DS
V
OUT
90%
0
+V
S
10%
t
OFF
t
I
L
t
0
t
ON
SR
ON
30%
SR
OFF
70%
40%
t
3
ITS4300S-SJ-D
4
Gate
Control
Circuit
7
Temperature
Sensor
IN
OUT
VS
6
5
8
Bias
Supervision
Overvoltage
Protection
ESD
Protection
Logic
Current
Limiter
2
1
ST
GND
I
ST
V
IN
I
IN
I
OUT
V
IN
L
H
Data Sheet
4
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
Pin Configuration
3
Pin Configuration
3.1
Pin Assignment

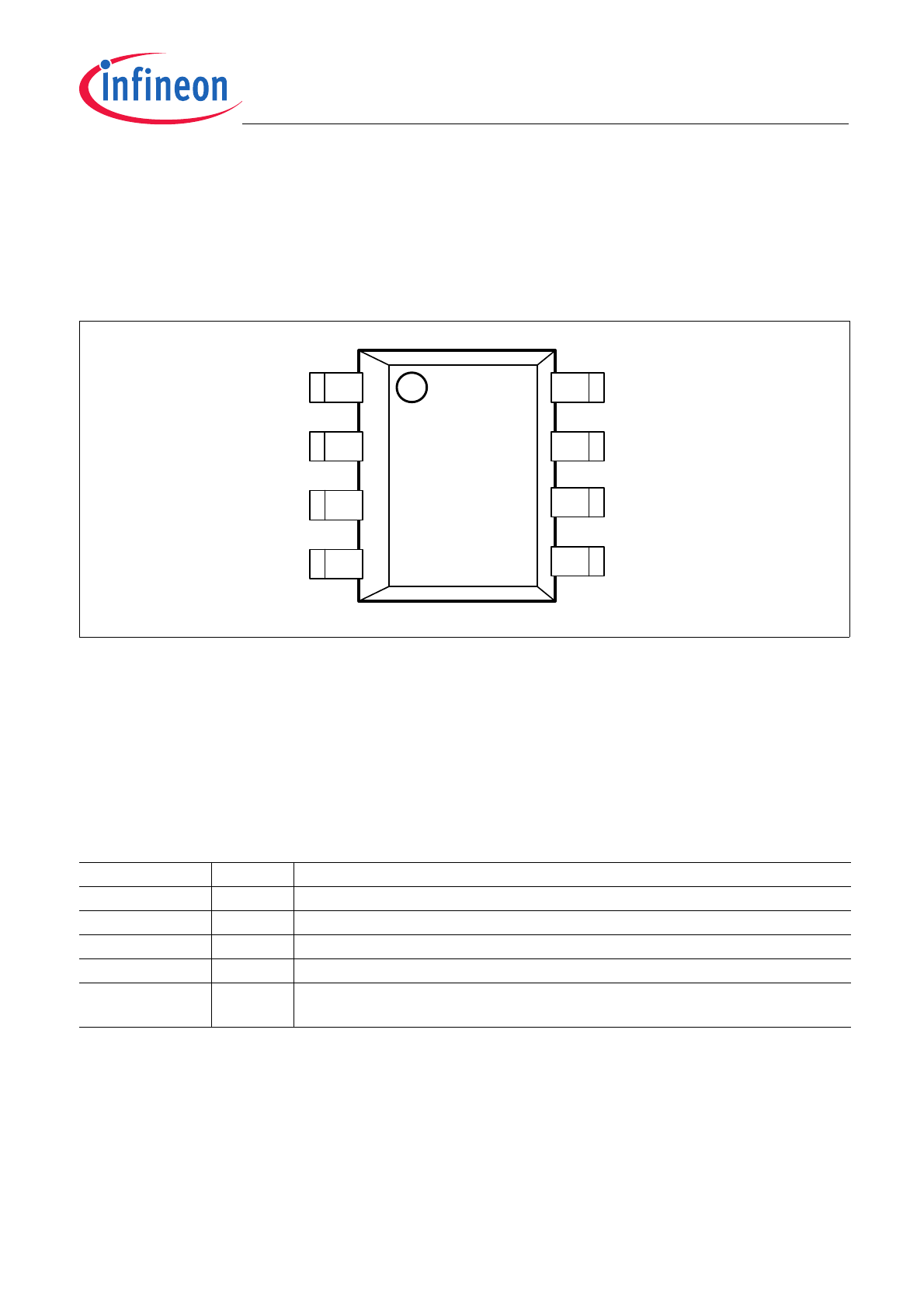

Figure 3
Pin configuration top view, PG-DSO-8
3.2
Pin Definitions and Functions
Pin
Symbol
Function
1
GND
Logic ground
2
IN
Input, controles the power switch; the powerswitch is ON when high
3
OUT
Output to the load
4
ST
Status flag; diagnosis feedback; NMOS open drain
5, 6, 7, 8
VS
Supply voltage (design the wiring for the maximum short circuit current
and also for low thermal resistance)
VS
IN
ST
GND
VS
OUT
VS
VS
8
5
6
7
1
4
3
2
P-DSO-8
Data Sheet
5
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
General Product Characteristics
4
General Product Characteristics
4.1
Absolute Maximum Ratings
Note: Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” the normal operating range. Protection functions
are neither designed for continuous nor repetitive operation.
Table 1
Absolute maximum ratings
1)
at Tj = 25°C unless otherwise specified. Currents flowing into the
device unless otherwise specified in chapter “Block Diagram and Terms”
1) Not subject to production test, specified by design
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Supply voltage VS
Voltage
V
S
–
–
40
V
4.1.1
Voltage for short circuit protection
V
SSC
–
–
28
V
4.1.2
Output stage OUT
Output Current; (Short circuit current
see electrical characteristics)
I
OUT
–
–
self
limited
A
4.1.3
Input IN
Voltage
V
IN
-10
–
16
V
4.1.4
Current
I
IN
-5
–
5
mA
4.1.5
Status ST
Current
I
ST
-5
–
5
mA
4.1.6
Temperatures
Junction Temperature
T
j
-40
–
125
°C
4.1.7
Storage Temperature
T
stg
-55
–
125
°C
4.1.8
Power dissipation
Ta = 25 °C
2)
2) Device on 50mm*50mm*1.5mm epoxy PCB FR4 with 6 cm2 (one layer, 70mm thick) copper area for Vbb connection. PCB
is vertical without blown air
P
tot
–
1.4
W
4.1.9
Inductive load switch-off energy dissipation
Tj = 125 °C;
V
S
=13.5V; IL= 0.3A
3)
3) Not subject to production test, specified by design
E
AS
–
800
mJ
single pulse
4.1.10
ESD Susceptibility
ESD susceptibility (input pin)
V
ESD
-1
–
1
kV
HBM
4)
4) ESD susceptibility HBM according to EIA/JESD 22-A 114.
4.1.11
ESD susceptibility (all other pins)
V
ESD
-5
–
5
kV
HBM
4)
4.1.12
Data Sheet
6
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
General Product Characteristics
4.2
Functional Range
Note: Within the functional range the IC operates as described in the circuit description. The electrical
characteristics are specified within the conditions given in the related electrical characteristics table.
4.3
Thermal Resistance
This thermal data was generated in accordance to JEDEC JESD51 standards.
More information on www.jedec.org
Table 2
Functional Range
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Nominal Operating Voltage
V
S
5
34
V
V
S
increasing
4.2.1
Table 3
Thermal Resistance
1)
1) Not subject to production test, specified by design
Parameter
Symbol
Values
Unit Note /
Test Condition
Number
Min.
Typ.
Max.
Thermal Resistance - Junction to
pin5
R
thj-pin5
34.5
K/W
4.3.1
Thermal Resistance - Junction to
Ambient - 1s0p, minimal footprint
R
thJA_1s0p
145
K/W
2)
2) Specified
R
thJA
value is according to Jedec JESD51-3 at natural convection on FR4 1s0p board, footprint; the Product
(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 1x 70µm Cu.
4.3.2
Thermal Resistance - Junction to
Ambient - 1s0p, 300mm
2
R
thJA_1s0p_300mm
89
K/W
3)
3) Specified
R
thJA
value is according to Jedec JESD51-3 at natural convection on FR4 1s0p board, Cu, 300mm
2
; the Product
(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 1x 70µm Cu.
4.3.3
Thermal Resistance - Junction to
Ambient - 1s0p, 600mm
2
R
thJA_1s0p_600mm
78
K/W
4)
4) Specified
R
thJA
value is according to Jedec JESD51-3 at natural convection on FR4 1s0p board, 600mm
2
; the Product
(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 1x 70µm Cu.
4.3.4
Thermal Resistance - Junction to
Ambient - 2s2p
R
thJA_2s2p
85
K/W
5)
5) Specified
R
thJA
value is according to Jedec JESD51-2,-5,-7 at natural convection on FR4 2s2p board; the Product
(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 2 inner copper layers (2 x 70µm Cu, 2 x 35µm Cu).
4.3.5
Thermal Resistance - Junction to
Ambient with thermal vias - 2s2p
R
thJA_2s2p
60.4
K/W
6)
6) Specified
R
thJA
value is according to Jedec JESD51-2,-5,-7 at natural convection on FR4 2s2p board with two thermal vias;
the Product (Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 2 inner copper layers (2 x 70µm Cu, 2
x 35µm Cu. The diameter of the two vias are equal 0.3mm and have a plating of 25um with a copper heatsink area of 3mm
x 2mm). JEDEC51-7: The two plated-through hole vias should have a solder land of no less than 1.25 mm diameter with a
drill hole of no less than 0.85 mm diameter.
4.3.6
Data Sheet
7
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
Electrical Characteristics
5
Electrical Characteristics
Table 4
V
S
=13.5V;
T
j
= -40°C to 125°C; all voltages with respect to ground. Currents flowing into the
device unless otherwise specified in chapter “Block Diagram and Terms”. Typical values at
Vs = 13.5V, Tj = 25°C
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Powerstage
NMOS ON Resistance
R
DSON
300
400
mΩ
I
OUT
= 0.3A;
T
j
= 25°C;
9V <
V
S
< 34V;
V
IN
= 5V
5.0.1
NMOS ON Resistance
R
DSON
480
600
mΩ
I
OUT
= 0.3A;
T
j
= 125°C;
9V <
V
S
< 34V;
V
IN
= 5V
5.0.2
Nominal Load Current;
device on PCB
1)
I
LNOM
0.4
A
T
pin5
= 85°C
5.0.3
Timings of Power Stages
2)
Turn ON Time(to 90% of
V
out
);
L to H transition of
V
IN
t
ON
140
µs
V
S
=13.5V;
R
L
= 47Ω
5.0.4
Turn OFF Time (to 10% of
V
out
);
H to L transition of
V
IN
t
OFF
170
µs
V
S
=13.5V;
R
L
= 47Ω
5.0.5
ON-Slew Rate (10 to 30% of
V
out
);
L to H transition of
V
IN
SR
ON
2.0
V /µs
V
S
=13.5V;
R
L
= 47Ω
5.0.6
OFF-Slew Rate;
dV
OUT
/ dt
ON
(70 to
40% of
V
out
);
H to L transition of
V
IN
SR
OFF
2.0
V / µs
V
S
=13.5V;
R
L
= 47Ω
5.0.7
Under voltage lockout (charge pump start-stop-restart)
Supply undervoltage;
charge pump stop voltage
V
SUV
5.5
V
V
S
decreasing
5.0.8
Supply startup voltage;
Charge pump restart voltage
V
SSU
5.5
V
V
S
increasing
5.0.9
Current consumption
Operating current
I
GND
1.3
mA
V
IN
= 5V
5.0.10
Standby current
I
SSTB
26
µA
V
IN
= 0V;
V
OUT
= 0V
-40°C <
T
j
< 85°C
5.0.11
Standby current
I
SSTB
26
µA
V
IN
= 0V;
T
j
= 125°C
5.0.12
Output leakage current
I
OUTLK
12
µA
V
IN
= 0V;
V
OUT
= 0V
5.0.13
Protection functions
3)
Initial peak short circuit current limit
I
LSCP
2
A
T
j
= -40°C
;
V
S
= 20V
;V
IN
= 5.0V
5.0.14
Initial peak short circuit current limit
I
LSCP
1.2
A
T
j
= 25°C
;
V
S
= 20V;
V
IN
= 5.0V
5.0.15
Initial peak short circuit current limit
I
LSCP
0.4
A
T
j
=125°C
;
V
S
= 20V
;V
IN
= 5.0V
5.0.16
Data Sheet
8
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
Electrical Characteristics
Repetitive short circuit current limit
T
j
=
T
jTrip
; see timing diagrams
I
LSCR
1
A
V
IN
= 5.0V
5.0.17
Output clamp at
V
OUT
=
V
S
-
V
DSCL
(inductive load switch off)
V
DSCL
41
47
V
I
S
= 4mA
5.0.18
Overvoltage protection
V
OUT
=
V
S
-
V
ONCL
V
SAZ
41
V
I
S
= 4mA
5.0.19
Thermal overload
trip temperature
T
jTrip
150
°C
5.0.20
Thermal hysteresis
T
HYS
10
K
5.0.21
Reverse Battery
4)
Continuous reverse battery voltage
V
SREV
- 32
V
5.0.22
Forward voltage of the drain-source
reverse diode
V
FDS
600
mV
I
FDS
= 200mA;
V
IN
= 0V;
T
j
= 125°C
5.0.23
Input interface; pin IN
Input turn-ON threshold voltage
V
INON
2.2
V
5.0.24
Input turn-OFF threshold voltage
V
INOFF
0.8
V
5.0.25
Input threshold hysteresis
V
INHYS
0.3
V
5.0.26
Off state input current
I
INOFF
1
30
µA
V
IN
= 0.7V
5.0.27
On state input current
I
INON
1
30
µA
V
IN
= 5.0V
5.0.28
Input resistance
R
IN
1.5
3.5
5.0
kΩ
5.0.29
Status output (NMOS open drain); pin ST
Status output zener voltage
V
STZ
5.4
6.1
6.8
V
I
ST
= 1.6mA
5.0.30
Status output low voltage
V
STLO
0.4
V
I
ST
= 1.6mA
T
j
< 25°C
5.0.31
Status output low voltage
V
STLO
0.6
V
I
ST
= 1.6mA
T
j
< 125°C
5.0.32
Status leakage current
I
STLK
2
µA
V
ST
= 5V
T
j
< 105°C
5.0.33
Status invalid time after positive
input slope
5)
t
dP
300
600
µs
V
S
= 20V
5.0.34
Diagnostic characteristics
Short circuit detection voltage
V
OUTSC
2.8
V
5.0.35
Open load detection voltage
6)
V
OUTOL
3
V
5.0.36
Open load detection current
7)
(included in standby current)
I
OUTOL
5
µA
V
OUT
= 4V
5.0.37
1) Device on 50mm x 50mm x 1,5mm epoxy FR4 PCB with 6cm² (one layer copper 70um thick) copper area for supply voltage
connection. PCB in vertical position without blown air.
2) Timing values only with high slewrate input signal; otherwise slower.
3) Integrated protection functions are designed to prevent IC destruction under fault conditions described in the data sheet.
Fault conditions are considered as “outside” normal operating range. Protection functions are not designed for continuous
repetitive operation.
Table 4
V
S
=13.5V;
T
j
= -40°C to 125°C; all voltages with respect to ground. Currents flowing into the
device unless otherwise specified in chapter “Block Diagram and Terms”. Typical values at
Vs = 13.5V, Tj = 25°C
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Data Sheet
9
Rev 1.0, 2012-09-01
ITS4300S-SJ-D
Electrical Characteristics
4) Requires a 150
Ω resistor in GND connection. The reverse load current trough the intrinsic drain-source diode of the power-
MOS has to be limited by the connected load. Power dissipation is higher compared to normal operation due to the votage
drop across the drain-source diode. The temperature protection is not functional during reverse current operation! Input
current has to be limited (see max ratings).
5) No delay time after overtemparature switch off and short circuit in on-state.
6) External pull up resistor required for open load detection in off state.
7) External pull up resistor required for open load detection in off state.
Data Sheet
10
Rev 1.0, 2012-09-01
ITS4300S-SJ-D

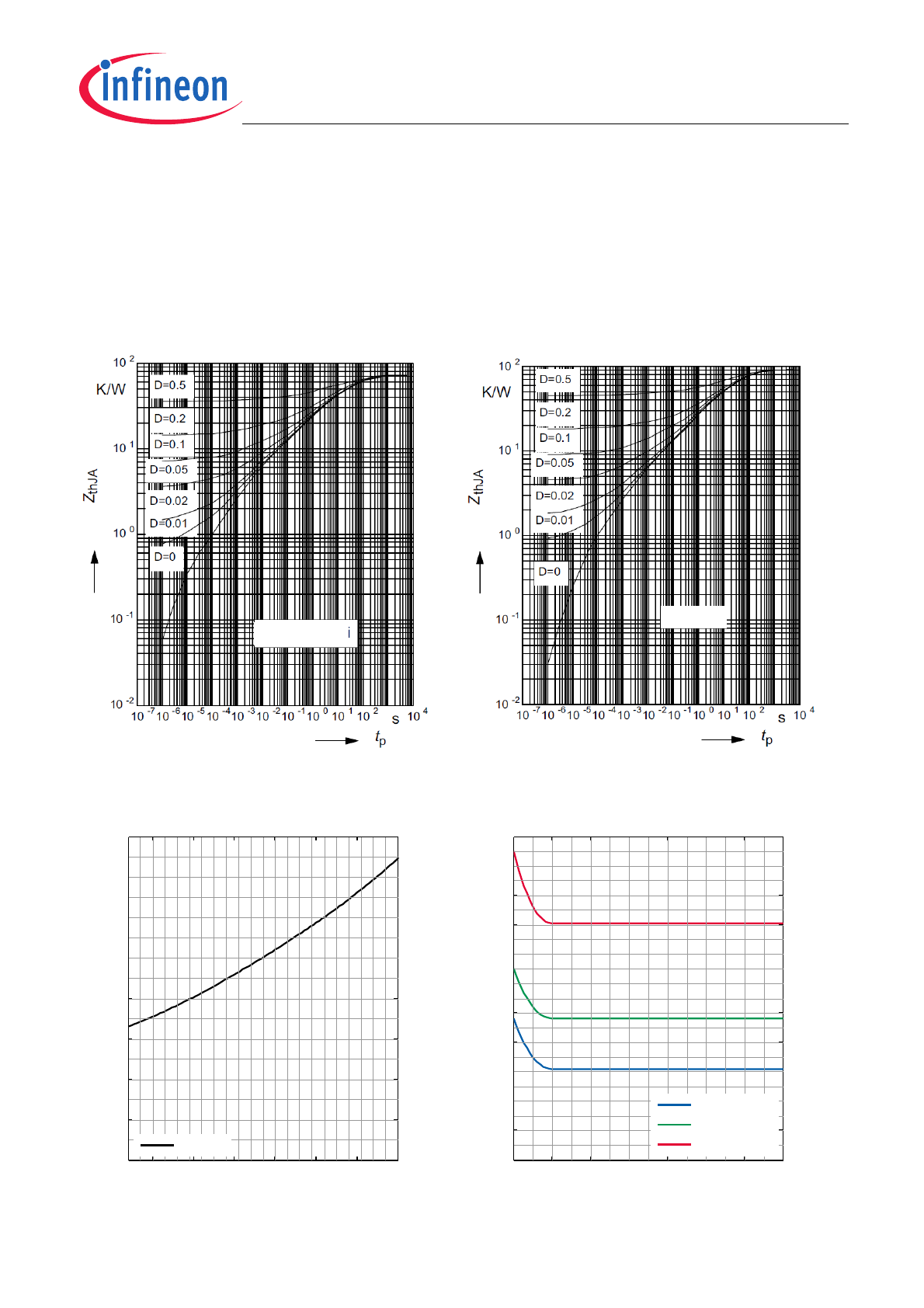

Typical Performance Graphs
6
Typical Performance Graphs
Typical Performance Characteristics
Transient Thermal Impedance Z
thJA
versus
Pulse Time
t
p
@ 6cm² heatsink area
Transient Thermal Impedance Z
thJA
versus
Pulse Time
t
p
@ min footprint
On-Resistance
R
DSON
versus
Junction Temperature
T
j
On-Resistance
R
DSON
versus
Supply Voltage
V
S
D = t
p
/ T
D = t
p
/ T
−40 −25
0
25
50
75
100
125
0
50
100
150
200
250
300
350
400
T
j
[
°
C]
R
DSON
[m
Ω
]
V
s
=13.5V
5
10
15
20
25
30
35
40
0
50
100
150
200
250
300
350
400
450
500
550
V
s
[V]
R
DSON
[m
Ω
]
T
j
=−40
°
C;I
L
=1A
T
j
=25
°
C;I
L
=1A
T
j
=125
°
C;I
L
=1A
