ITS4100S-SJ-N

Smart High-Side NMOS-Power Switch

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

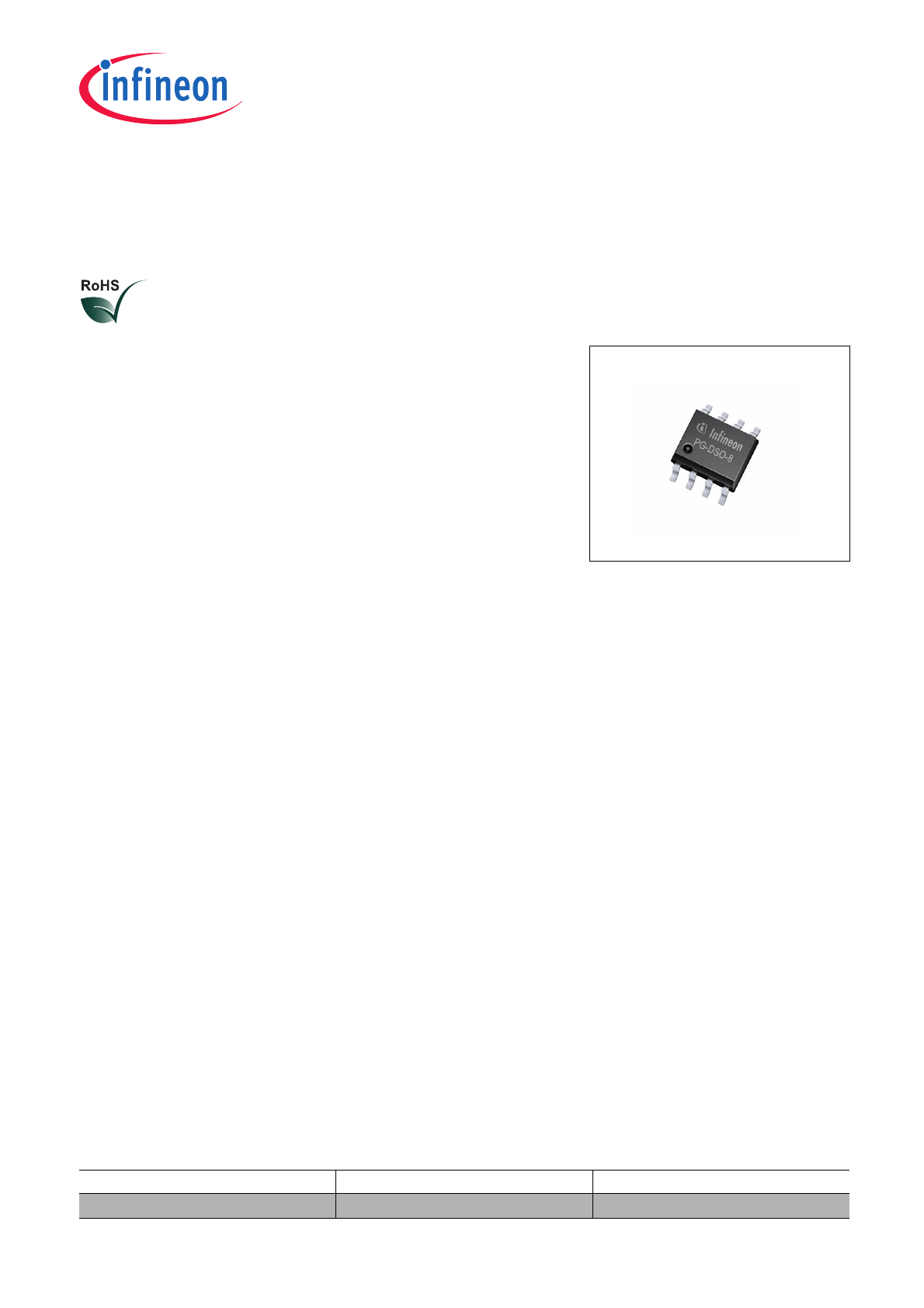

PG-DSO-8

Data Sheet

2

Rev 1.0, 2012-09-01

Smart High-Side NMOS-Power Switch


ITS4100S-SJ-N

Type

Package

Marking

ITS4100S-SJ-N

PG-DSO-8

I100SN

1

Overview

Features

CMOS compatible input

Switching all types of resistive, inductive and capacitive loads

Fast demagnetization of inductive loads

Very low standby current

Optimized Electromagnetic Compatibility (EMC)

Overload protection

Current limitation

Short circuit protection

Thermal shutdown with restart

Overvoltage protection (including load dump)

Reverse battery protection with external resistor

Loss of GND and loss of Vbb protection

Electrostatic Discharge Protection (ESD)

Green Product (RoHS compliant)

ITS4100S-SJ-N is not qualified and manufactured according to the requirements of Infineon Technologies with
regards to automotive and/or transportation applications.

Description

The ITS4100S-SJ-N is a protected single channel Smart High-Side NMOS-Power Switch in a PG-DSO-8 package
with charge pump and CMOS compatible input. The device is monolithically integrated in Smart technology.

Product Summary

Overvoltage protection

 V

SAZmin

= 41V

Operating voltage range: 5V <

V

S

< 34V

On-state resistance

R

DSON

 = typ 70mΩ

Nominal load current

I

LNOM

= 2A

Operating Temperature range: T

= -40°C to 125°C

Standby Current:

I

SSTB

 = 15µA

Application

All types of resistive, inductive and capacitive loads

Power switch for 12V and 24V DC applications with CMOS compatible control interface

Driver for electromagnetic relays

Power managment for high-side-switching with low current consumption in OFF-mode

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

3

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

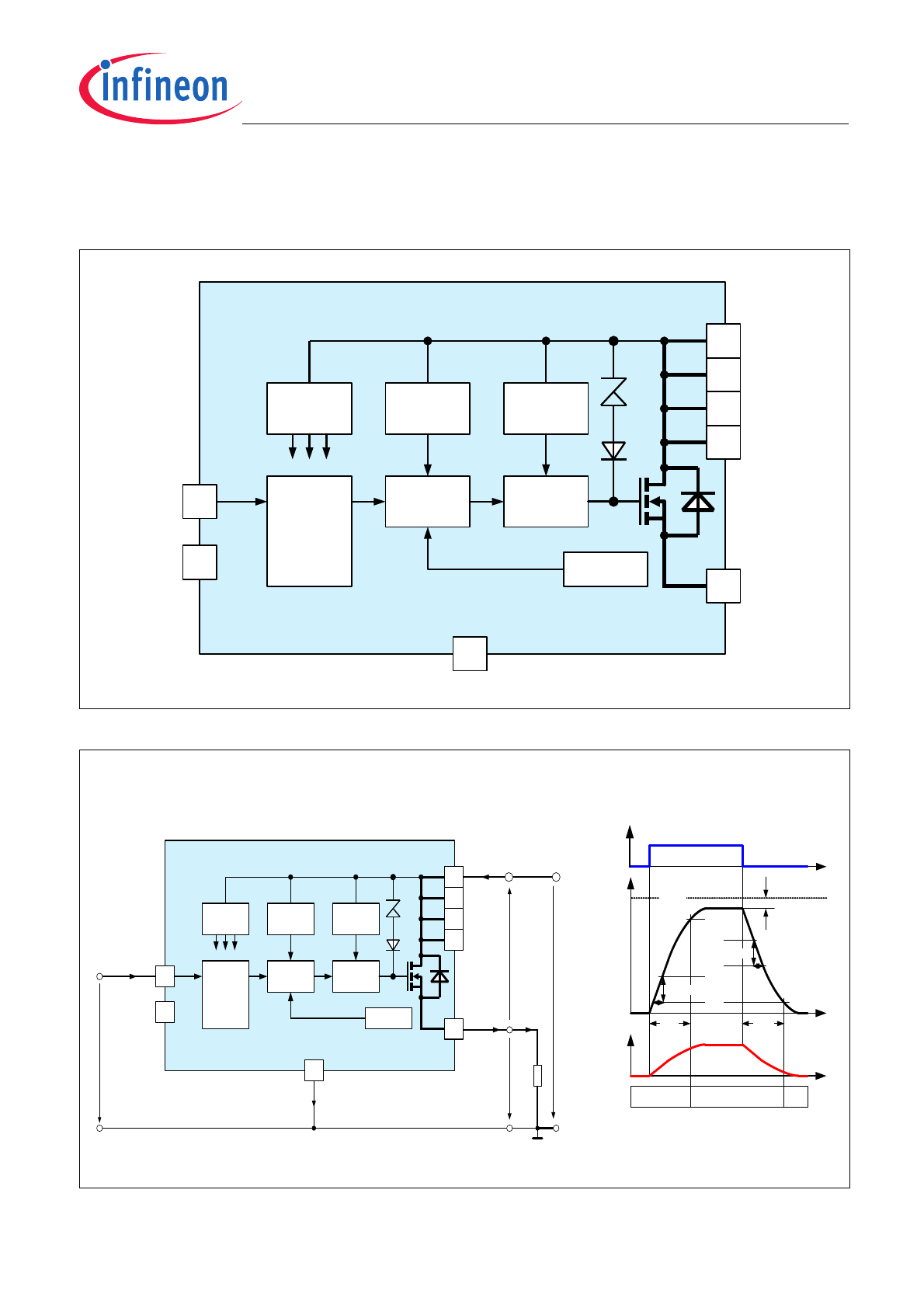

Block Diagram and Terms

2

Block Diagram and Terms

Figure 1

Block diagram

Figure 2

Terms - parameter definition

3

ITS4100S-SJ-N

Gate

Control

Circuit

7

Temperature

Sensor

IN

OUT

VS

6

5

8

Bias

Supervision

Overvoltage

Protection

ESD

Protection

Logic

Current

Limiter

2

1

GND

NC

4

V

ST

V

OU
T

V

S

I

S

I

L

R

L

V

FD

S

GND

Voltage- and Current-Definitions:

Switching Times and Slew Rate Definitions:

OFF

OFF

ON

V

DS

V

OUT

90%

0

+V

S

10%

t

OFF

t

I

L

t

0

t

ON

SR

ON

30%

SR

OFF

70%

40%

t

3

ITS4100S-SJ-N

4

Gate

Control

Circuit

7

Temperature

Sensor

IN

OUT

VS

6

5

8

Bias

Supervision

Overvoltage

Protection

ESD

Protection

Logic

Current

Limiter

2

1

NC

GND

V

IN

I

IN

I

OUT

V

IN

L

H

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

4

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

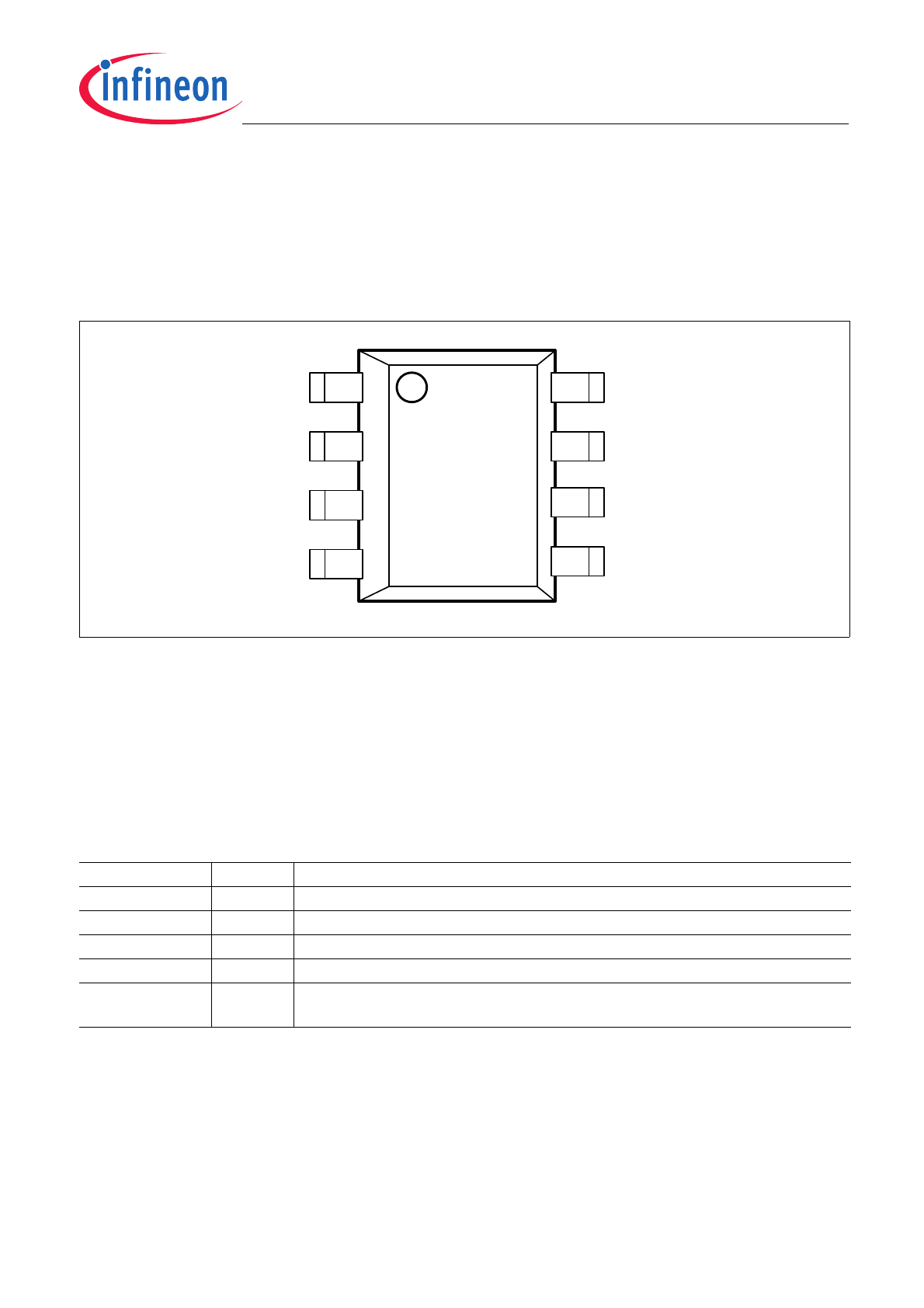

Pin Configuration

3

Pin Configuration

3.1

Pin Assignment

Figure 3

Pin configuration top view, PG-DSO-8

3.2

Pin Definitions and Functions

Pin

Symbol

Function

1

GND

Logic ground

2

IN

Input, controles the power switch; the powerswitch is ON when high

3

OUT

Output to the load

4

NC

Not connected

5, 6, 7, 8

VS

Supply voltage (design the wiring for the maximum short circuit current and also
for low thermal resistance)

VS

IN

NC

GND

VS

OUT

VS

VS

8

5

6

7

1

4

3

2

P-DSO-8

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

5

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

General Product Characteristics

4

General Product Characteristics

4.1

Absolute Maximum Ratings

Note: Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” the normal operating range. Protection functions
are neither designed for continuous nor repetitive operation.

Table 1

Absolute maximum ratings

1)

at

T

j

= 25°C unless otherwise specified. Currents flowing into the

device unless otherwise specified in chapter “Block Diagram and Terms”

1)

Not subject to production test, specified by design

Parameter

Symbol

Values

Unit

Note /
Test Condition

Number

Min.

Typ.

Max.

Supply voltage VS
Voltage

V

S

40

V

4.1.1

Voltage for short circuit protection

V

SSC

V

S

V

-40°C <

T

j

< 150°C

4.1.2

Output stage OUT
Output Current; (Short circuit
current see electrical
characteristics)

I

OUT

self
limited

A

4.1.3

Input IN
Voltage

V

IN

-10

16

V

4.1.4

Current

I

IN

-5

5

mA

4.1.5

Temperatures
Junction Temperature

T

j

-40

125

°C

4.1.6

Storage Temperature

T

stg

-55

125

°C

4.1.7

Power dissipation
Ta = 25 °C

2)

2) Device on 50mm*50mm*1.5mm epoxy PCB FR4 with 6 cm2 (one layer, 70mm thick) copper area for Vbb connection. PCB

is vertical without blown air

P

 tot

1.5

W

4.1.8

Inductive load switch-off energy dissipation
Tj = 125 °C;

V

S

=13.5V;

I

L

= 1A

3)

3) Not subject to production test, specified by design

E

AS

870

mJ

single pulse

4.1.9

ESD Susceptibility
ESD susceptibility (input pin)

V

ESD

-1

1

kV

HBM

4)

4) ESD susceptibility HBM according to EIA/JESD 22-A 114.

4.1.10

ESD susceptibility (all other pins)

V

ESD

-5

5

kV

HBM

4)

4.1.11

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

6

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

General Product Characteristics

4.2

Functional Range

Note: Within the functional range the IC operates as described in the circuit description. The electrical

characteristics are specified within the conditions given in the related electrical characteristics table.

4.3

Thermal Resistance

Note: This thermal data was generated in accordance with JEDEC JESD51 standards. For more information, go

to

www.jedec.org

.

Table 2

Functional Range

Parameter

Symbol

Values

Unit

Note /
Test Condition

Number

Min.

Typ.

Max.

Nominal Operating Voltage

V

S

5

34

V

V

S

 increasing

4.2.1

Table 3

Thermal Resistance

1)

1) Not subject to production test, specified by design

Parameter

Symbol

Values

Unit Note /

Test Condition

Number

Min.

Typ.

Max.

Thermal Resistance - Junction to
pin5

R

thj-pin5

32.0

K/W

4.3.1

Thermal Resistance - Junction to
Ambient - 1s0p, minimal footprint

R

thJA_1s0p

135.3

K/W

2)

2) Specified

R

thJA

 value is according to Jedec JESD51-3 at natural convection on FR4 1s0p board, footprint; the Product

(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 1x 70µm Cu.

4.3.2

Thermal Resistance - Junction to
Ambient - 1s0p, 300mm

2

R

thJA_1s0p_300mm

86.1

K/W

3)

3) Specified

R

thJA

 value is according to Jedec JESD51-3 at natural convection on FR4 1s0p board, Cu, 300mm

2

; the Product

(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 1x 70µm Cu.

4.3.3

Thermal Resistance - Junction to
Ambient - 1s0p, 600mm

2

R

thJA_1s0p_600mm

75.3

K/W

4)

4) Specified

R

thJA

 value is according to Jedec JESD51-3 at natural convection on FR4 1s0p board, 600mm

2

; the Product

(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 1x 70µm Cu.

4.3.4

Thermal Resistance - Junction to
Ambient - 2s2p

R

thJA_2s2p

66.8

K/W

5)

5) Specified

R

thJA

 value is according to Jedec JESD51-2,-5,-7 at natural convection on FR4 2s2p board; the Product

(Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 2 inner copper layers (2 x 70µm Cu, 2 x 35µm Cu).

4.3.5

Thermal Resistance - Junction to
Ambient with thermal vias - 2s2p

R

thJA_2s2p

58.4

K/W

6)

6) Specified

R

thJA

 value is according to Jedec JESD51-2,-5,-7 at natural convection on FR4 2s2p board with two thermal vias;

the Product (Chip+Package) was simulated on a 76.2 x 114.3 x 1.5 mm board with 2 inner copper layers (2 x 70µm Cu, 2
x 35µm Cu. The diameter of the two vias are equal 0.3mm and have a plating of 25um with a copper heatsink area of 3mm
x 2mm). JEDEC51-7: The two plated-through hole vias should have a solder land of no less than 1.25 mm diameter with a
drill hole of no less than 0.85 mm diameter.

4.3.6

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

7

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

Electrical Characteristics

5

Electrical Characteristics

Table 4

V

S

=13.5V; T

= -40°C to 125°C;all voltages with respect to ground. Currents flowing into the

device unless otherwise specified in chapter “Block Diagram and Terms”. Typical values at

V

= 13.5V,

T

j

= 25°C

Parameter

Symbol

Values

Unit

Note /
Test Condition

Number

Min.

Typ.

Max.

Powerstage
NMOS ON Resistance

R

DSON

70

100

mΩ

I

OUT

= 2A;

 T

= 25°C;

9V <

V

S

< 34V;

V

IN

= 5V

5.0.1

NMOS ON Resistance

R

DSON

140

200

mΩ

I

OUT

= 2A;

 T

= 125°C;

9V <

V

S

< 34V;

V

IN

= 5V

5.0.2

Nominal Load Current;
device on PCB

1)

I

LNOM

2.0

2.4

A

T

pin5

= 85°C

5.0.3

Timings of Power Stages

2)

Turn ON Time(to 90% of

V

out

);

L to H transition of

V

IN

t

ON

90

170

µs

V

S

=13.5V;

R

L

= 47Ω

5.0.4

Turn OFF Time (to 10% of

V

out

);

H to L transition of

V

IN

t

OFF

90

230

µs

V

S

=13.5V;

R

L

= 47Ω

5.0.5

ON-Slew Rate (10 to 30% of

V

out

);

L to H transition of

V

IN

SR

ON

0.8

1.7

V / µs

V

S

=13.5V;

R

L

= 47Ω

5.0.6

OFF-Slew Rate;

dV

OUT

/ dt

ON

(70 to

40% of

V

out

);

H to L transition of

V

IN

SR

OFF

0.8

1.7

V / µs

V

S

=13.5V;

R

L

= 47Ω

5.0.7

Under voltage lockout (charge pump start-stop-restart)
Supply undervoltage;
charge pump stop voltage

V

SUV

5.5

V

V

S

decreasing

5.0.8

Supply startup voltage;
Charge pump restart voltage

V

SSU

4.0

5.5

V

V

S

increasing

5.0.9

Current consumption
Operating current

I

GND

0.5

1.3

mA

V

IN

= 5V

5.0.10

Standby current

I

SSTB

10

µA

V

IN

= 0V;

V

OUT

= 0V;

-40°C <

T

j

< 85°C

5.0.11

Standby current

I

SSTB

15

µA

V

IN

= 0V;

V

OUT

= 0V;

T

j

= 125°C

5.0.12

Output leakage current

I

OUTLK

5

µA

V

IN

= 0V;

V

OUT

= 0V

5.0.13

Protection functions

3)

Initial peak short circuit current limit

I

LSCP

18

A

T

j

 = -40°C;

 V

S

= 20V;

V

IN

= 5.0V;

t

m

=150µAs

5.0.14

Initial peak short circuit current limit

I

LSCP

10

A

T

j

 = 25°C

; V

S

= 20V;

V

IN

= 5.0V;

t

m

=150µAs

5.0.15

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

8

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

Electrical Characteristics

Initial peak short circuit current limit

I

LSCP

4

A

T

j

 =125°C

; V

S

= 20V;

V

IN

= 5.0V;

t

m

=150µAs

5.0.16

Repetitive short circuit current limit

T

j

 =

T

jTrip

 ; see timing diagrams

I

LSCR

7

A

V

IN

= 5.0V

5.0.17

Output clamp at

V

OUT

 =

V

S

 -

V

DSCL

(inductive load switch off)

V

DSCL

41

47

V

I

S

 = 4mA

5.0.18

Overvoltage protection

V

OUT

 =

V

S

 -

V

ONCL

V

SAZ

41

V

I

S

 = 4mA

5.0.19

Thermal overload
trip temperature

T

jTrip

150

°C

5.0.20

Thermal hysteresis

T

HYS

10

K

5.0.21

Reverse Battery

4)

Continuous reverse battery voltage

V

SREV

- 32

V

5.0.22

Forward voltage of the drain-source
reverse diode

V

FDS

600

mV

I

FDS

= 200mA;

V

IN

= 0V;

T

j

 = 125°C

5.0.23

Input interface; pin IN
Input turn-ON threshold voltage

V

INON

2.2

V

5.0.24

Input turn-OFF threshold voltage

V

INOFF

0.8

V

5.0.25

Input threshold hysteresis

V

INHYS

0.3

V

5.0.26

Off state input current

I

INOFF

1

30

µA

V

IN

= 0.7V

5.0.27

On state input current

I

INON

1

30

µA

V

IN

= 5.0V

5.0.28

Input resistance

R

IN

1.5

3.5

5.0

kΩ

5.0.29

1) Device on 50mm x 50mm x 1,5mm epoxy FR4 PCB with 6cm² (one layer copper 70um thick) copper area for supply voltage

connection. PCB in vertical position without blown air.

2) Timing values only with high slewrate input signal; otherwise slower.
3) Integrated protection functions are designed to prevent IC destruction under fault conditions described in the data sheet.

Fault conditions are considered as “outside” normal operating range. Protection functions are not designed for continuous
repetitive operation.

4) Requires a 150W resistor in GND connection. The reverse load current trough the intrinsic drain-source diode of the power-

MOS has to be limited by the connected load. Power dissipation is higher compared to normal operation due to the votage
drop across the drain-source diode. The temperature protection is not functional during reverse current operation! Input
current has to be limited (see max ratings).

Table 4

V

S

=13.5V; T

= -40°C to 125°C;all voltages with respect to ground. Currents flowing into the

device unless otherwise specified in chapter “Block Diagram and Terms”. Typical values at

V

= 13.5V,

T

j

= 25°C

Parameter

Symbol

Values

Unit

Note /
Test Condition

Number

Min.

Typ.

Max.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

9

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

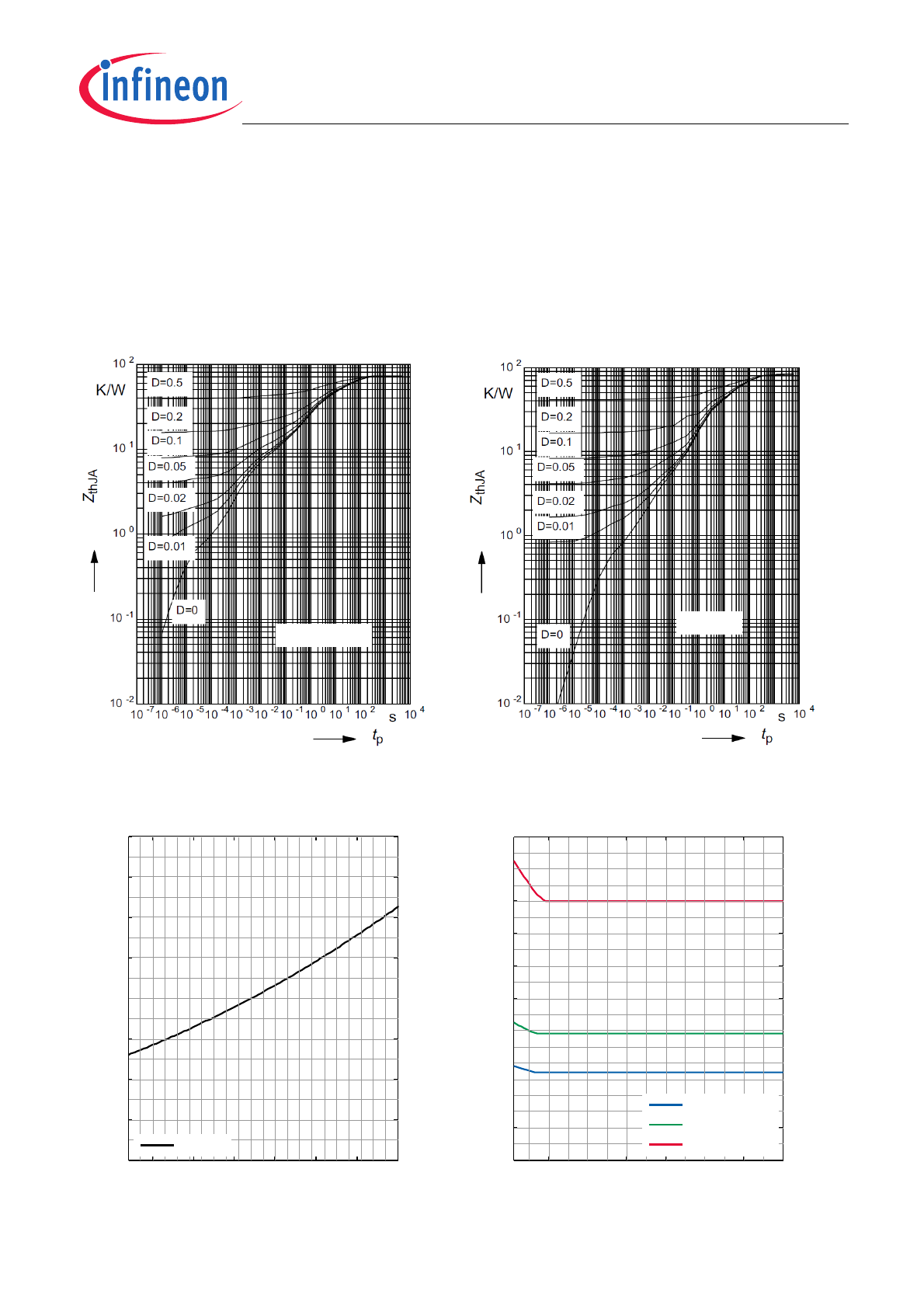

Typical Performance Graphs

6

Typical Performance Graphs

Typical Performance Characteristics

Transient Thermal Impedance Z

thJA

versus

Pulse Time

t

p

 @ 6cm² heatsink area

Transient Thermal Impedance Z

thJA

versus

Pulse Time

t

p

 @ min footprint

On-Resistance

R

DSON

versus

Junction Temperature

T

j



On-Resistance

R

DSON

versus

Supply Voltage

V

S



D = t

/ T

D = t

/ T

−40 −25

0

25

50

75

100

125

0

20

40

60

80

100

120

140

160

T

j

 [

°

C]

R

DSON

 [m

Ω

]





V

s

=13.5V

10

15

20

25

30

35

40

0

20

40

60

80

100

120

140

160

180

200

V

s

[V]

R

DSON

 [m

Ω

]





T

j

=−40

°

C;I

L

=0.5A

T

j

=25

°

C;I

L

=0.5A

T

j

=125

°

C;I

L

=0.5A

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/Infineon-ITS4100S_SJ_N_01092012S-DS-v01_00-en-html.html
background image

Data Sheet

10

Rev 1.0, 2012-09-01

ITS4100S-SJ-N

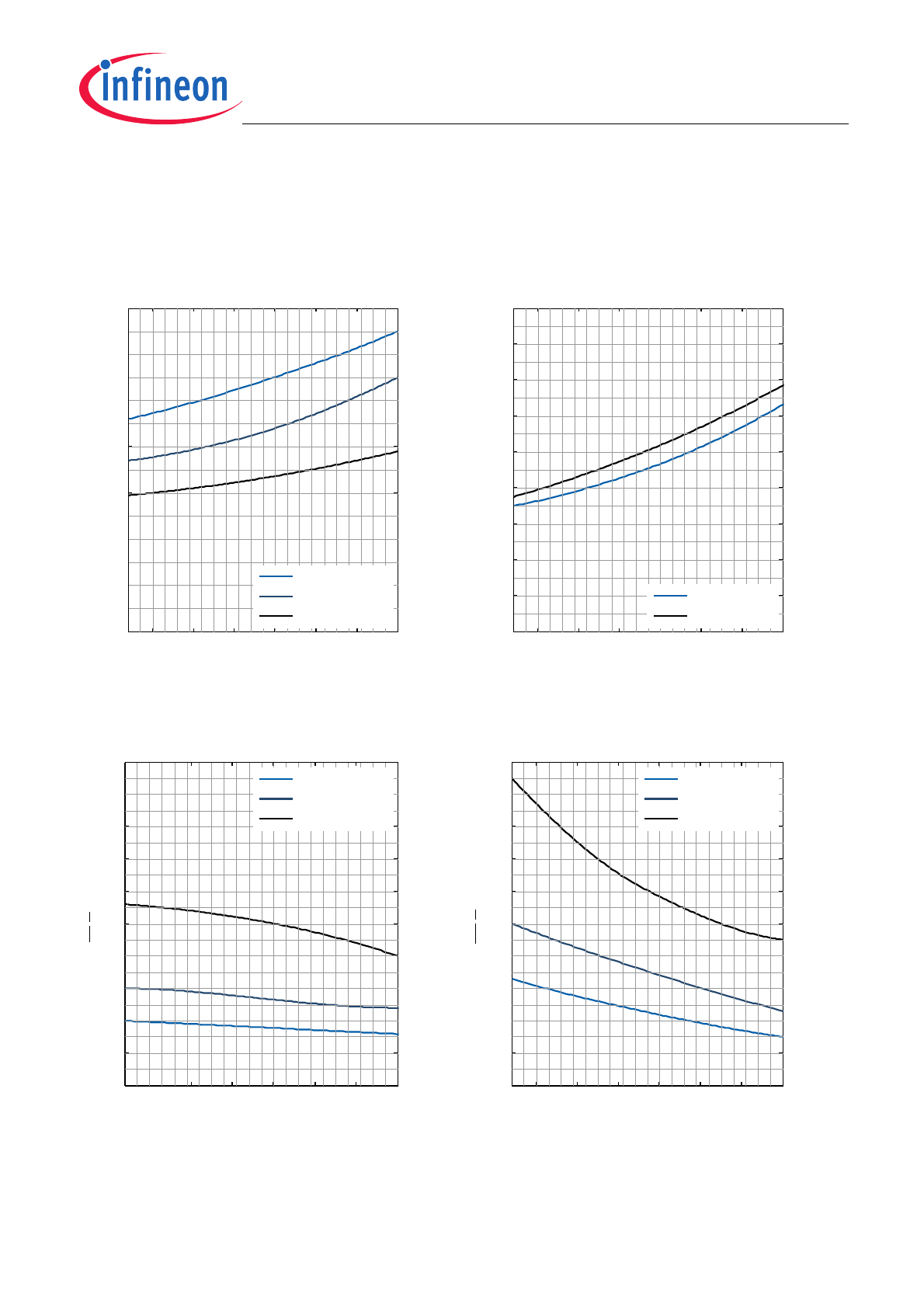

Typical Performance Graphs

Typical Performance Characteristics

Switch ON Time

t

ON

versus

Junction Temperature

T

Switch OFF Time

t

OFF

 versus

Junction Temperature

T

ON Slewrate

SR

ON

versus

Junction Temperature

T

OFF Slewrate

SR

OFF

versus

Junction Temperature

T

−40 −25

0

25

50

75

100

125

0

20

40

60

80

100

120

140

 T

j

[

°

C]

t

ON

 [

μ

s]





V

s

=9V;R

L

=47

Ω

V

s

=13.5V;R

L

=47

Ω

V

s

=32V;R

L

=47

Ω

−40 −25

0

25

50

75

100

125

0

20

40

60

80

100

120

140

160

180

 T

j

[

°

C]

t

OFF

 [

μ

s]





V

s

=9V;R

L

=47

Ω

V

s

=32V;R

L

=47

Ω

−40 −25

0

25

50

75

100

125

0

0.2

0.4

0.6

0.8

1

1.2

1.4

1.6

1.8

2

T

j

[

°

C]

dV

dt

on

[

V

μs

]





V

s

=9V;R

L

=47

Ω

V

s

=13.5V;R

L

=47

Ω

V

s

=32V;R

L

=47

Ω

−40 −25

0

25

50

75

100

125

0

0.2

0.4

0.6

0.8

1

1.2

1.4

1.6

1.8

2

T

j

[

°

C]

dV

dt

of

f

[

V

μs

]





V

s

=9V;R

L

=47

Ω

V

s

=13.5V;R

L

=47

Ω

V

s

=32V;R

L

=47

Ω

Maker
Infineon Technologies
