CURRENT SENSE HIGH SIDE SWITCH

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

November, 29th 2009

Automotive grade




AUIPS7111S



CURRENT SENSE HIGH SIDE SWITCH



Features



Suitable for 24V systems



www.irf.com

1







Over current shutdown





Over temperature shutdown



 Current

sensing

 Active

clamp

 Low

current



Reverse battery

 ESD

protection



Optimized Turn On/Off for EMI

Applications



24V loads for trucks

Description

The AUIPS7111S is a fully protected four terminal high
side switch. It features current sensing, over-current, over-
temperature, ESD protection and drain to source active
clamp. When the input voltage Vcc - Vin is higher than the
specified threshold, the output power Mosfet is turned on.
When the Vcc - Vin is lower than the specified Vil
threshold, the output Mosfet is turned off. The Ifb pin is
used for current sensing.


Product Summary


Rds(on)              7.5 m



max.

Vclamp                       65V
Current shutdown   30A min.






Package












                                  D²Pak-5 leads








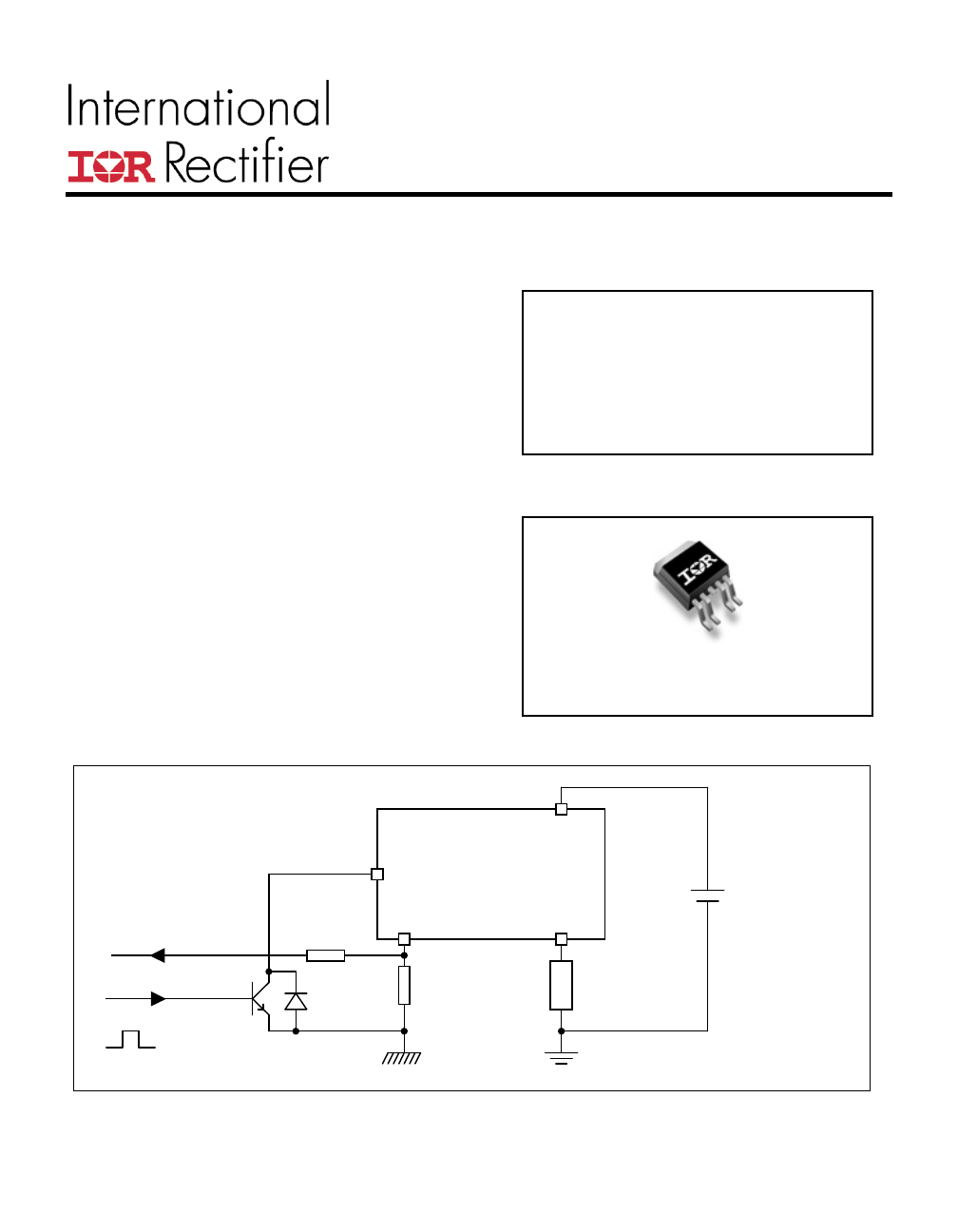

Typical Connection



Out

IPS

IN

Rifb

Vcc

Load

Battery

Input

Power

Ground

Ifb

Logic

Ground

Current feeback

10k

On

Off



/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

Qualification Information



Automotive



(per AEC-Q100

††

Qualification Level

Comments: This family of ICs has passed an Automotive qualification.
IR’s Industrial and Consumer qualification level is granted by extension
of the higher Automotive level.

Moisture Sensitivity Level

D2PAK-5L

MSL1,



260°C

(per IPC/JEDEC J-STD-020)

Machine Model

Class M3 (300V)

(per AEC-Q100-003)

Human Body Model

Class H2 (2,500 V)

(per AEC-Q100-002)

ESD

Charged Device Model

Class C4 (1000 V)

(per AEC-Q100-011)

IC Latch-Up Test

Class II, Level A

(per AEC-Q100-004)

RoHS Compliant

Yes

†   Qualification standards can be found at International Rectifier’s web site

http://www.irf.com/



†† Exceptions to AEC-Q100 requirements are noted in the qualification report.

www.irf.com

2





/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

Absolute Maximum Ratings

Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. (Tj= -40°C..150°C,
Vcc=8..50V unless otherwise specified).

Symbol Parameter

Min.

Max.

Units

Vout

Maximum output voltage

Vcc-60  Vcc+0.3

Vcc-Vin max.  Maximum Vcc voltage



-32 60  V

Ifb, max.

Maximum feedback current

-50

10

mA

Maximum power dissipation (internally limited by thermal protection)





Pd

Tambient=25°C, Tj=150°C

Rth=50°C/W D²Pack 6cm² footprint



2.5

Tj max.

Max. storage & operating junction temperature

-40

150

°C



Thermal Characteristics

Symbol Parameter

Typ.

Max.

Units

Rth1

Thermal resistance junction to ambient D²Pak Std footprint

60



Rth2

Thermal resistance junction to ambient D²pak 6cm² footprint

40



Rth3

Thermal resistance junction to case D²pak

0.8



°C/W



Recommended Operating Conditions

These values are given for a quick design.

Symbol Parameter

Min.

Max.

Units

Continuous output current, Tambient=85°C, Tj=125°C





Iout




Rth=40°C/W, D²pak 6cm² footprint



10

Rifb

1.5



k



www.irf.com

3





/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

Static Electrical Characteristics

Tj=-40..150°C, Vcc=8..50V (unless otherwise specified)

Symbol Parameter

Min.

Typ.

Max.

Units

Test

Conditions

Vcc op.

Operating voltage range



50 V



ON state resistance Tj=25°C



6 7.5

Rds(on)

ON state resistance Tj=150°C



12 15

m



Ids=10A

Icc off

Supply leakage current



2 6

Iout off

Output leakage current



2 6

µA

Vin=Vcc=28V,Vifb=Vgnd
Vout=Vgnd, Tj=25°C

V clamp1

Vcc to Vout clamp voltage 1

60

65



Id=10mA

V clamp2

Vcc to Vout clamp voltage 2



66



Id=10A see fig. 2

Vih(2)

High level Input threshold voltage



5.5 6.8

Id=10mA

Vil(2)

Low level Input threshold voltage

3.5





Reverse On state resistance Tj=25°C



7 10 m



Rds(on) rev

Reverse On state resistance Tj=150°C



13 18

Isd=10A,
Vcc-Vin=7..32V

Forward body diode voltage Tj=25°C



0.75 0.8

Vf

Forward body diode voltage Tj=125°C



0.6 0.65

If=10A

Rin

Internal input resistor

180

250

350



Tj=-40°C..125°C

(2) Input thresholds are measured directly between the input pin and the tab. See also page 6

Switching Electrical Characteristics

Vcc=28V, Resistive load=3

, Tj=25°C

Symbol Parameter

Min.

Typ.

Max.

Units

Test

Conditions

tdon

Turn on delay time to 20%

25

35

50

tr

Rise time from 20% to 80% of Vcc

17

25

µs

tdoff

Turn off delay time

50

80

120

tf

Fall time from 80% to 20% of Vcc

13

35

µs

See fig. 1



Protection Characteristics

Tj=-40..150°C, Vcc=8..50V (unless otherwise specified)

Symbol Parameter

Min.

Typ.

Max.

Units

Test

Conditions

Tsd

Over temperature threshold

150(3)

165



°C

See fig. 3 and fig. 10

Isd

Over-current shutdown

30

45

60

See fig. 3 and page 7

I fault

Ifb after an over-current or an over-
temperature (latched)

2.4 4  6

mA

See fig. 3



Current Sensing Characteristics

Tj=-40..150°C, Vcc=8..50V (unless otherwise specified)

Symbol Parameter

Min.

Typ.

Max.

Units

Test

Conditions

Ratio

I load / Ifb current ratio

11000 13000

14500



Ratio_TC

I load / Ifb variation over temperature

-5%

+5

Iout=10A

I offset

Load current offset

-0.25

0.25

Iout<10A

Ifb leakage

Ifb leakage current on

15

µA

Iout=0A, Tj=25°C

(3) Guaranteed by design

www.irf.com

4





/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

Lead Assignments



1- In
2- Ifb
3- Vcc
4- Out
5- Out

1 2    4 5

D²Pak - 5 leads

3- Vcc





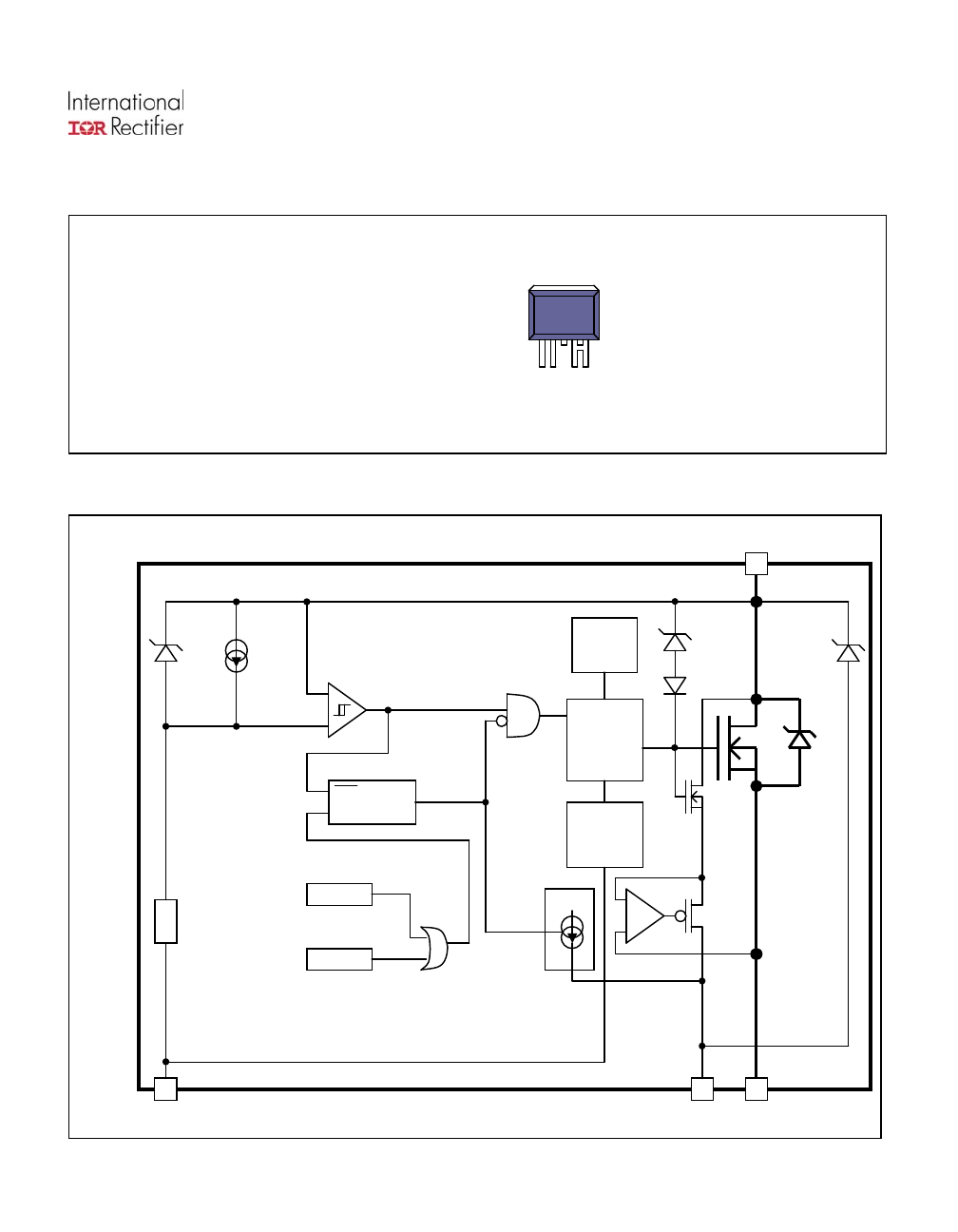

Functional Block Diagram

All values are typical





Diag

Charge

Pump

Driver

Reverse

Battery

Protection

IFB OUT

VCC

75V

250



Tj > 165°C

Iout > 45A

58V

75V

75V

3mA

IN

Set

Reset

Latch



www.irf.com

5





/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

Truth Table

Op. Conditions

Input

Output

Ifb pin voltage

Normal mode

0V

Normal mode

I load x Rfb / Ratio

Open load

0V

Open load

Ifb leakage x Rifb

Short circuit to GND

0V

Short circuit to GND

I fault x Rifb (latched)

Over temperature

0V

Over temperature

 I fault x Rifb (latched)



Operating voltage

Maximum Vcc voltage : this is the maximum voltage before the breakdown of the IC process.
Operating voltage : This is the Vcc range in which the functionality of the part is guaranteed. The AEC-Q100 qualification
is run at the maximum operating voltage specified in the datasheet.


Reverse battery

During the reverse battery the Mosfet is turned on if the input pin is powered with a diode in parallel of the input transistor.
Power dissipation in the IPS : P = Rdson rev * I load² + Vcc² / 250 ( internal input resistor ).
If the power dissipation I too hight in Rifb, a diode in serial can be added to block the current.


Active clamp

The purpose of the active clamp is to limit the voltage across the MOSFET to a value below the body diode break down
voltage to reduce the amount of stress on the device during switching.
The temperature increase during active clamp can be estimated as follows:

)

t

(

Z

P

CLAMP

TH

CL

Tj



Where:

 is the thermal impedance at t

CLAMP

and can be read from the thermal impedance curves given in the

data sheets.

)

t

(

Z

CLAMP

TH

CLavg

CL

CL

I

V

P

: Power dissipation during active clamp

V

39

V

CL

: Typical V

CLAMP

 value

2

I

I

CL

CLavg

: Average current during active clamp

dt

di

I

t

CL

CL

: Active clamp duration

L

V

V

dt

di

CL

Battery

: Demagnetization current



Figure 9 gives the maximum inductance versus the load current in the worst case : the part switch off after an over
temperature detection. If the load inductance exceed the curve, a free wheeling diode is required.






www.irf.com

6





/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

Input level VIH/VIL

The input level are referenced to Vcc. When Vcc-Vin exceed VIH the part turns on and when Vcc-Vin goes below VIL the
part turns off


Current sensing accuracy













Iout

Ifb

Ifb leakage

Ifb2

Ifb1

Iout2

Iout1

I offset



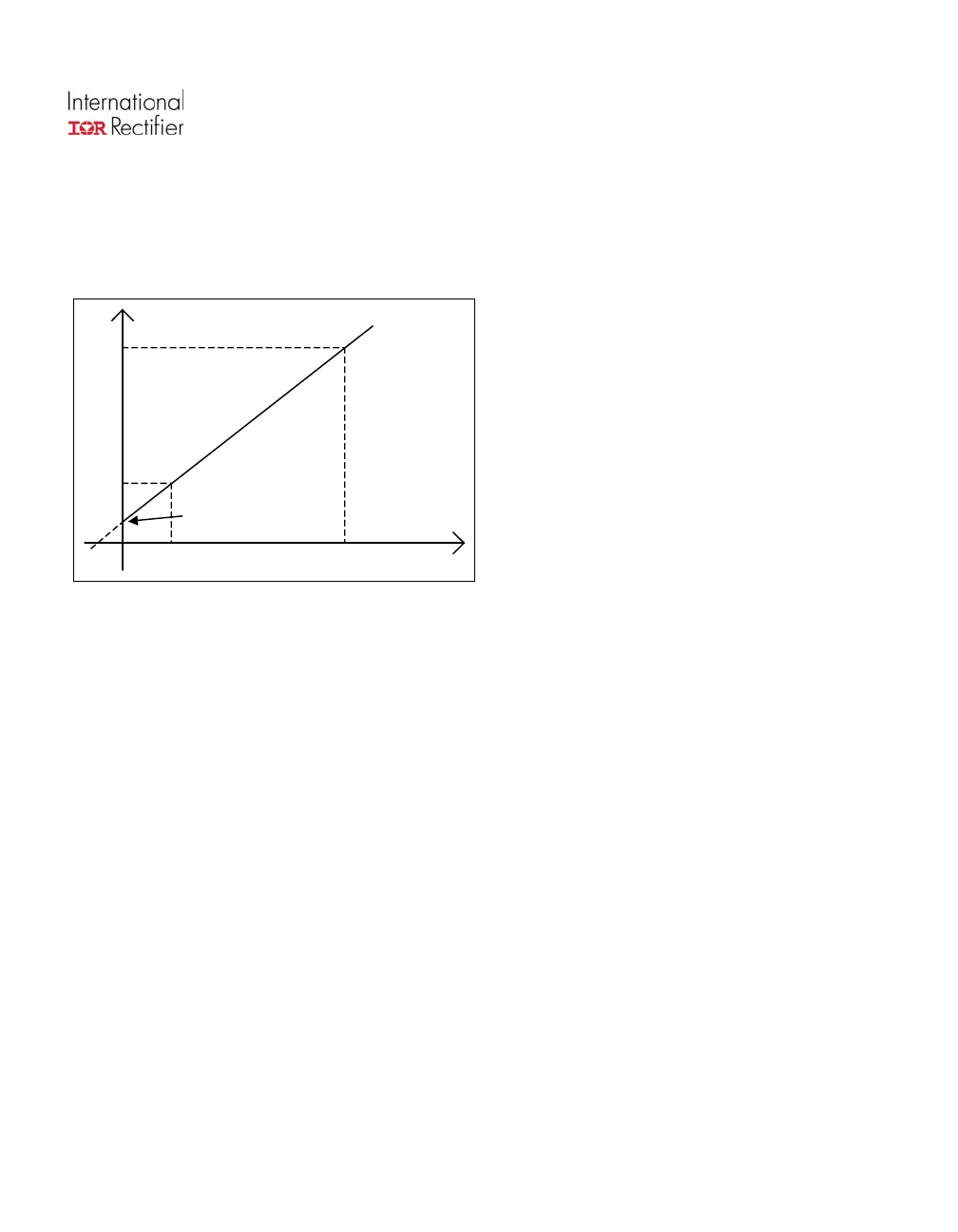

The current sensing is specified by measuring 3 points :
- Ifb1 for Iout1
- Ifb2 for Iout2
- Ifb leakage for Iout=0

The parameters in the datasheet are computed with the following formula :
Ratio = ( Iout2 – Iout1 )/( Ifb2 – Ifb1)
I offset = Ifb1 x Ratio – Iout1

This allows the designer to evaluate the Ifb for any Iout value using :
Ifb = ( Iout + I offset ) / Ratio if Ifb > Ifb leakage

For some applications, a calibration is required. In that case, the accuracy of the system will depends on the variation of
the I offset and the ratio over the temperature range. The ratio variation is given by Ratio_TC specified in page 4.
The Ioffset variation depends directly of the Rdson :
I offset@-40°C= I offset@25°C / 0.7
I offset@150°C= I offset@25°C / 1.9


Over-current protection

The threshold of the over-current protection is set in order to guaranteed that the device is able to turn on a load with an
inrush current lower than the minimum of Isd. Nevertheless for high current and high temperature the device may switch
off for a lower current due to the over-temperature protection (see Figure 10).


www.irf.com

7





/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

www.irf.com

8






















Vds

Ids

Vcc-Vin

Vcc

Vds clamp

T clamp

See Application Notes to evaluate power dissipation










Vout

Vcc-Vin

80%

20%

80%

20%

Td on

Tr

Td off

Tf























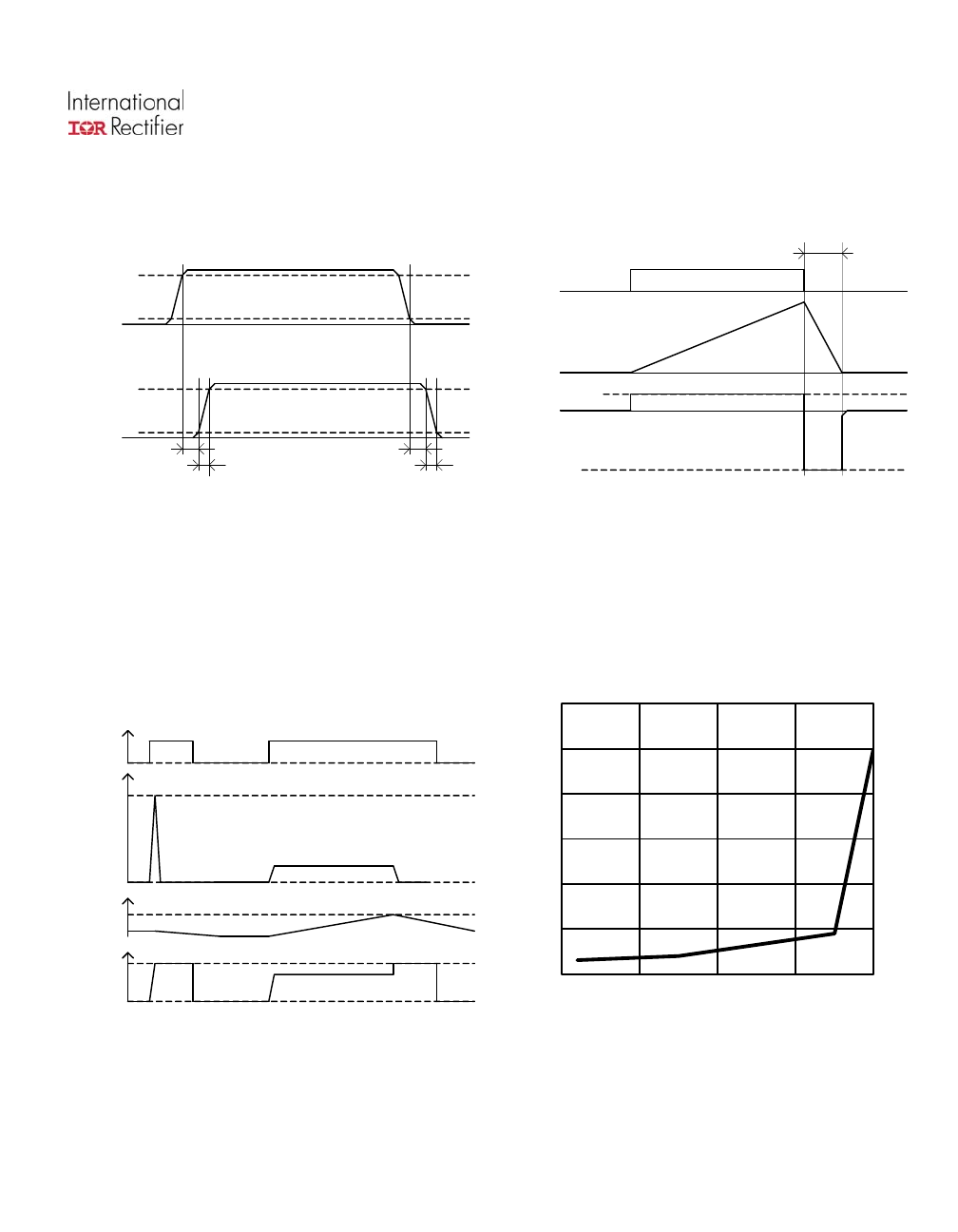

Figure 2 – Active clamp waveforms



Figure 1 – IN rise time & switching definitions







0

5

10

15

20

25

30

-50

0

50

100

150

















Tj

Tsd

165°C



Icc off, supply le

akage current

A)

Ids

Vin

I shutdown

Tshutdown

Vifb

















V fault





Tj, junction temperature (°C)





Figure 3 – Protection timing diagram

Figure 4 – Icc off (µA) Vs Tj (°C)






/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

www.irf.com

9










0

1

2

3

4

5

6

-50

-25

0

25

50

75

100

125

150

VIH

VIL

0.01

0.1

1

10

100

1E-4

1E-3

1E-2

1E-1

1E+0

1E+1

1E+2

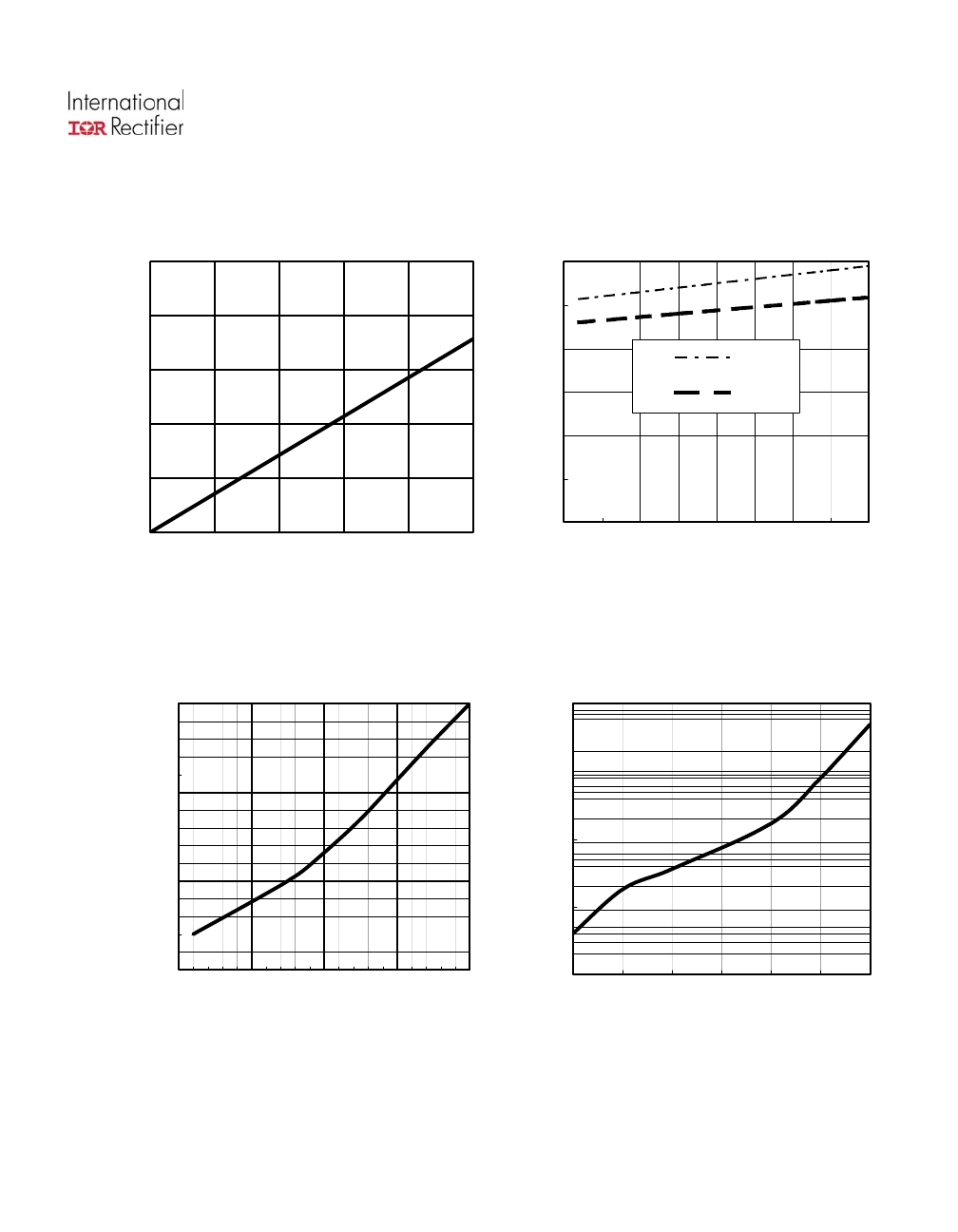

Figure 8 – Transient thermal impedance (°C/W)

Vs time (s)

Zth, transient the

rmal impedance

(°C/W)

Time (s)

50%

10

Rds(on), Drain-to

-Source On

Resi

stance

(Normalized)

0%

150%

200%

-50

0

50

100

150

Figure 7 - Normalized Rds(on) (%) Vs Tj (°C)

Tj, junction temperature (°C)

Tj, junction temperature (°C)

Vih and Vil (V)

0

1

2

3

4

5

0

10

20

30

40







Icc, supply current (µA)














50



Vcc-Vout, supply voltage (V)





Figure 5 – Icc Off(µA) Vs Vcc-Vout (V)

Figure 6 – Vih and Vil (V) Vs Tj (°C)


































/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auips7111s-html.html
background image

AUIPS7111S

www.irf.com

10










1

10

100

1.E+00

1.E+01

1.E+02

1.E+03

1.E+04

0.1

1

10

100

0

10

20

30






Tsd, time to shut

down(s)



Max. output curr

ent (A)











40

'-40°C

'+25°C

'+125°C












Inductance (µH)

Iout, output current (A)





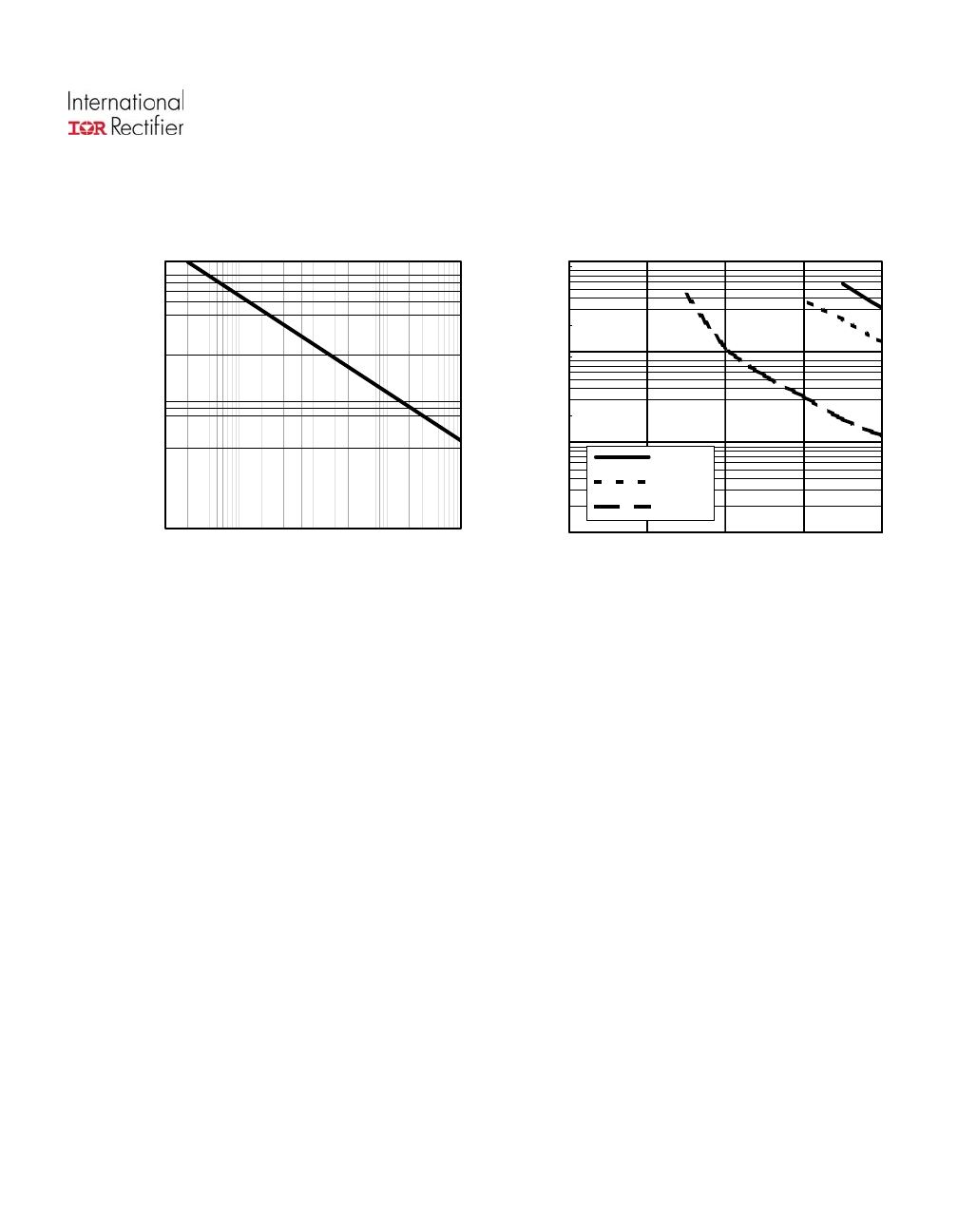

Figure 10 – Tsd (s) Vs I out (A)

SMD with 6cm²

Figure 9 – Max. Iout (A) Vs inductance (µH)































Maker
Infineon Technologies
Datasheet PDF Download
