Automotive Power
Data Sheet
PROFET™+ 24V
Rev. 1.1, 2015-03-04
BTT6020-1EKA
Smart High-Side Power Switch
Single Channel,
20
m
Ω
PROFET™+ 24V
Data Sheet
2
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Table of Contents
1
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
Pin Configuration
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1
Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2
Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3
Voltage and Current Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4
General Product Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2
Functional Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3.1
PCB set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3.2
Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5
Power Stage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1
Output ON-state Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2
Turn ON/OFF Characteristics with Resistive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3
Inductive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.1
Output Clamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.2
Maximum Load Inductance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.4
Inverse Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5
Electrical Characteristics Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6
Protection Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.1
Loss of Ground Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2
Undervoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3
Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4
Reverse Polarity Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5
Overload Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.1
Current Limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.2
Temperature Limitation in the Power DMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6
Electrical Characteristics for the Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7
Diagnostic Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1
IS Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2
SENSE Signal in Different Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.3
SENSE Signal in the Nominal Current Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.3.1
SENSE Signal Variation as a Function of Temperature and Load Current . . . . . . . . . . . . . . . . . . . 29
7.3.2
SENSE Signal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.3.3
SENSE Signal in Open Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.1
Open Load in ON Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.2
Open Load in OFF Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.3
Open Load Diagnostic Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.3.4
SENSE Signal with OUT in Short Circuit to
V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.5
SENSE Signal in Case of Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.6
SENSE Signal in Case of Inverse Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4
Electrical Characteristics Diagnostic Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8
Input Pins
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.1
Input Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2
DEN Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table of Contents
BTT6020-1EKA
Table of Contents
Data Sheet
3
Rev. 1.1, 2015-03-04
PROFET™+ 24V
8.3
Input Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.4
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9
Characterization Results
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1
General Product Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.1
Minimum Functional Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.2
Undervoltage Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.3
Current Consumption Channel active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.1.4
Standby Current for Whole Device with Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2
Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2.1
Output Voltage Drop Limitation at Low Load Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2.2
Drain to Source Clamp Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9.2.3
Slew Rate at Turn ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.4
Slew Rate at Turn OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.5
Turn ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.6
Turn OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2.7
Turn ON / OFF matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2.8
Switch ON Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.2.9
Switch OFF Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.3
Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3.1
Overload Condition in the Low Voltage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3.2
Overload Condition in the High Voltage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.4
Diagnostic Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.1
Current Sense at no Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.2
Open Load Detection Threshold in ON State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.3
Sense Signal Maximum Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.4.4
Sense Signal maximum Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.5
Input Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.1
Input Voltage Threshold ON to OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.2
Input Voltage Threshold OFF to ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.3
Input Voltage Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.5.4
Input Current High Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
10
Application Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1
Further Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
11
Package Outlines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12
Revision History
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
PG-DSO-14-47 EP
Type
Package
Marking
BTT6020-1EKA
PG-DSO-14-47 EP
BTT6020-1EKA
Data Sheet
4
Rev. 1.1, 2015-03-04
PROFET™+ 24V
Smart High-Side Power Switch
BTT6020-1EKA
1
Overview
Application
•
Suitable for resistive, inductive and capacitive loads
•
Replaces electromechanical relays, fuses and discrete circuits
•
Most suitable for loads with high inrush current, such as lamps
•
Suitable for 24V truck and transportation system
Basic Features
•
One channel device
•
Very low stand-by current
•
3.3 V and 5 V compatible logic inputs
•
Electrostatic discharge protection (ESD)
•
Optimized electromagnetic compatibility
•
Logic ground independent from load ground
•
Very low power DMOS leakage current in OFF state
•
Green product (RoHS compliant)
•
AEC qualified
Description
The BTT6020-1EKA is a 20 m
Ω single channel Smart High-Side Power Switch, embedded in a PG-DSO-14-47
EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an
N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially
designed to drive lamps up to 5 x P21W 24V or 1 x 70W 24V, as well as LEDs in the harsh automotive
environment.
Table 1
Product Summary
Parameter
Symbol
Value
Operating voltage range
V
S(OP)
5 V ... 36 V
Maximum supply voltage
V
S(LD)
65 V
Maximum ON state resistance at
T
J
= 150
°C
R
DS(ON)
40 m
Ω
Nominal load current
I
L(NOM)
7 A
Typical current sense ratio
k
ILIS
2950
Minimum current limitation
I
L5(SC)
70 A
Maximum standby current with load at
T
J
= 25 °C
I
S(OFF)
0.5 µA
BTT6020-1EKA
Overview
Data Sheet
5
Rev. 1.1, 2015-03-04
PROFET™+ 24V
Diagnostic Functions
•
Proportional load current sense
•
Open load in ON and OFF
•
Short circuit to battery and ground
•
Overtemperature
•
Stable diagnostic signal during short circuit
•
Enhanced
k
ILIS
dependency with temperature and load current
Protection Functions
•
Stable behavior during undervoltage
•
Reverse polarity protection with external components
•
Secure load turn-off during logic ground disconnect with external components
•
Overtemperature protection with latch
•
Overvoltage protection with external components
•
Voltage dependent current limitation
•
Enhanced short circuit operation
Data Sheet
6
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Block Diagram
2
Block Diagram

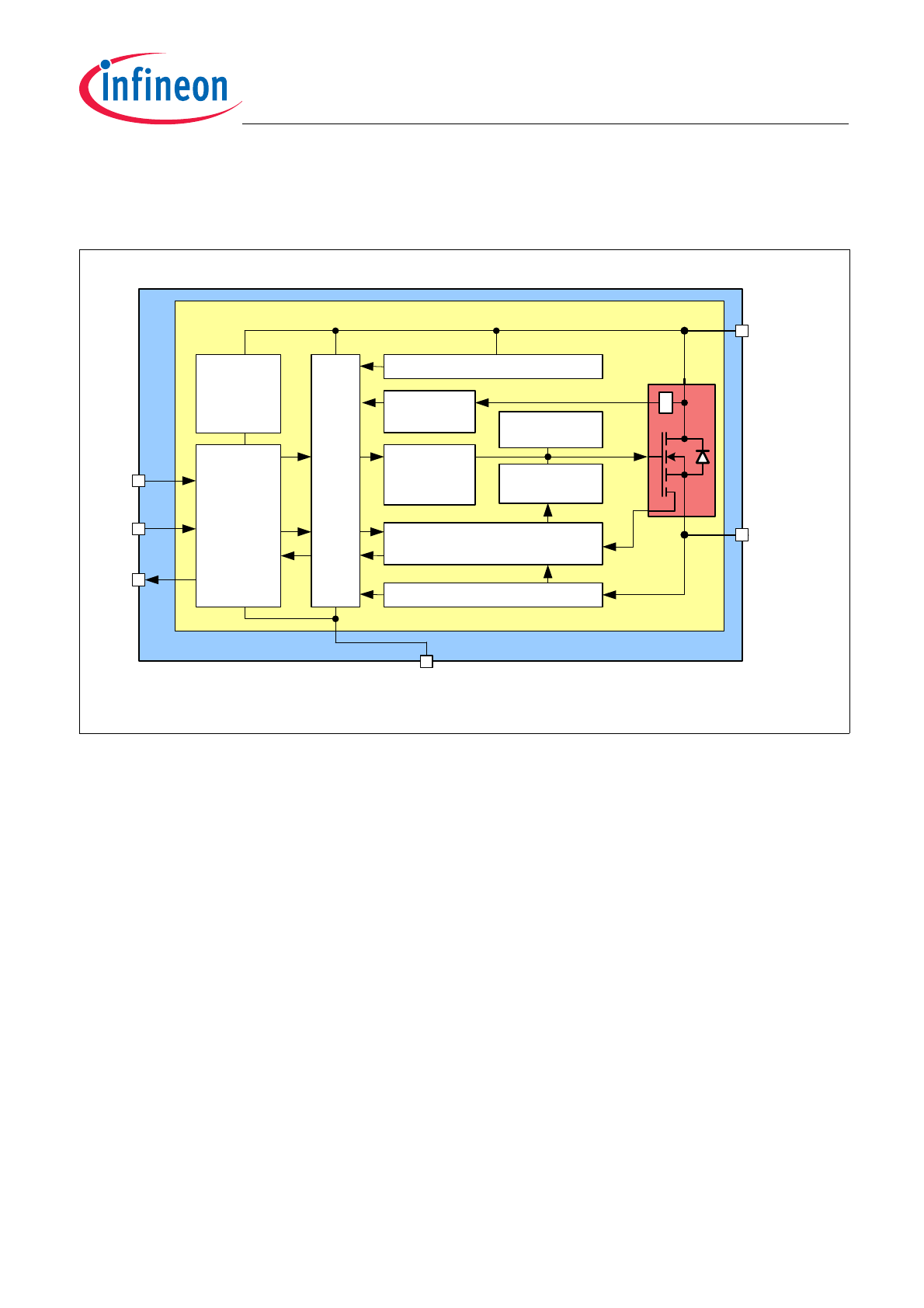

Figure 1
Block Diagram for the BTT6020-1EKA
Block diagram.emf
V
S
OUT
IN
T
driver
logic
gate control
&
charge pump
load current sense and
open load detection
over
temperature
clamp for
inductive load
over current
switch limit
forward voltage drop detection
voltage sensor
GND
ESD
protection
IS
DEN
internal
power
supply
BTT6020-1EKA
Pin Configuration
Data Sheet
7
Rev. 1.1, 2015-03-04
PROFET™+ 24V
3
Pin Configuration
3.1
Pin Assignment

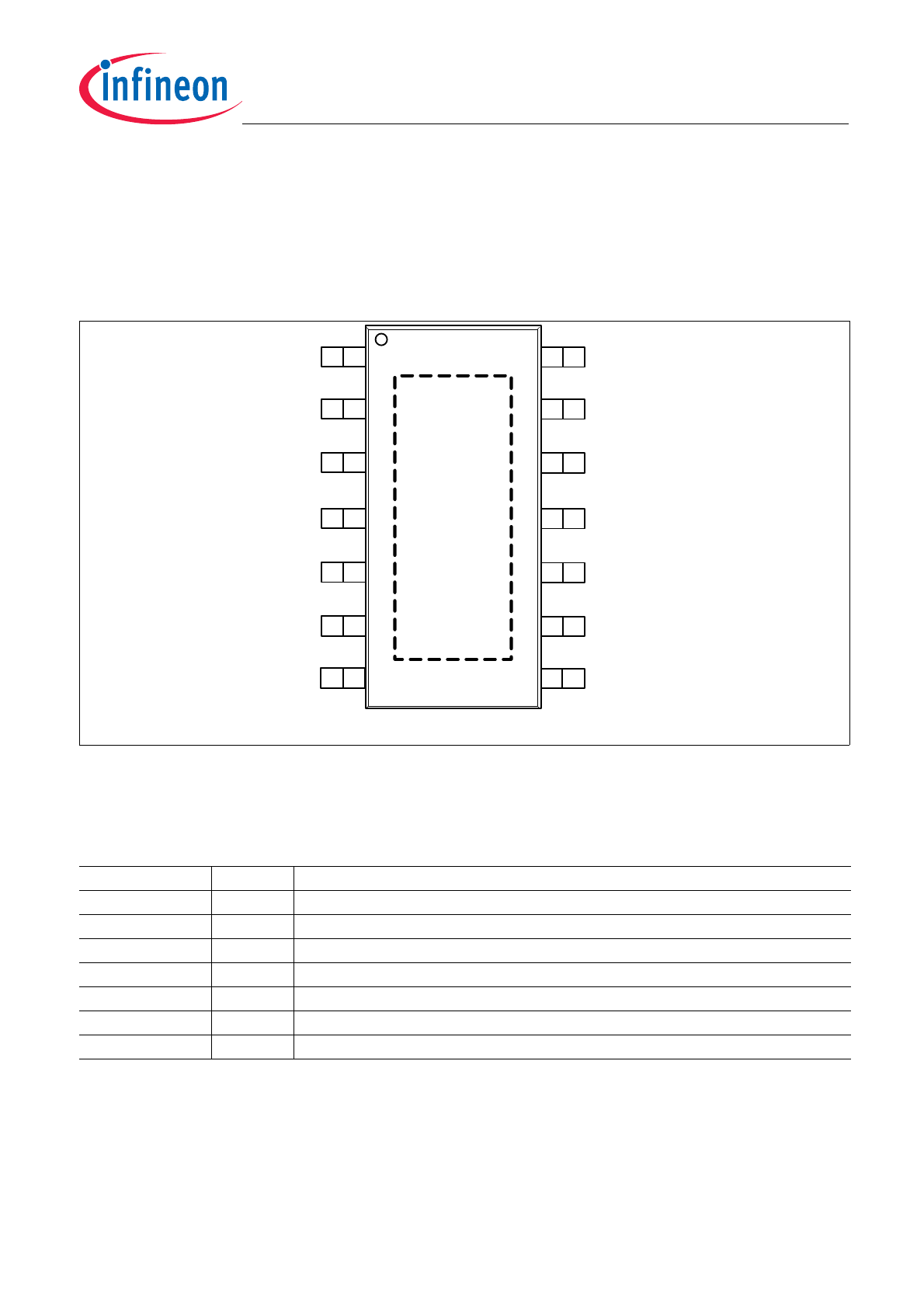

Figure 2
Pin Configuration
3.2
Pin Definitions and Functions
Pin
Symbol
Function
Cooling Tab
V
S
Voltage Supply;
Battery voltage
1, 2, 7, 8, 9, 13, 14 NC
Not Connected;
No internal connection to the chip
3
GND
GrouND;
Ground connection
4
IN
INput channel;
Input signal for channel activation
5
DEN
Diagnostic ENable;
Digital signal to enable/disable the diagnosis of the device
6
IS
Sense;
Sense current of the selected channel
10, 11, 12
OUT
OUTput;
Protected high side power output channel
1)
1) All output pins must be connected together on the PCB. All pins of the output are internally connected together. PCB traces
have to be designed to withstand the maximum current which can flow.
Pinout single SO14.vsd
NC
NC
OUT
OUT
OUT
NC
NC
NC
NC
GND
IN
DEN
IS
NC
14
13
12
11
10
9
8
1
2
3
4
5
6
7
Data Sheet
8
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Pin Configuration
3.3
Voltage and Current Definition

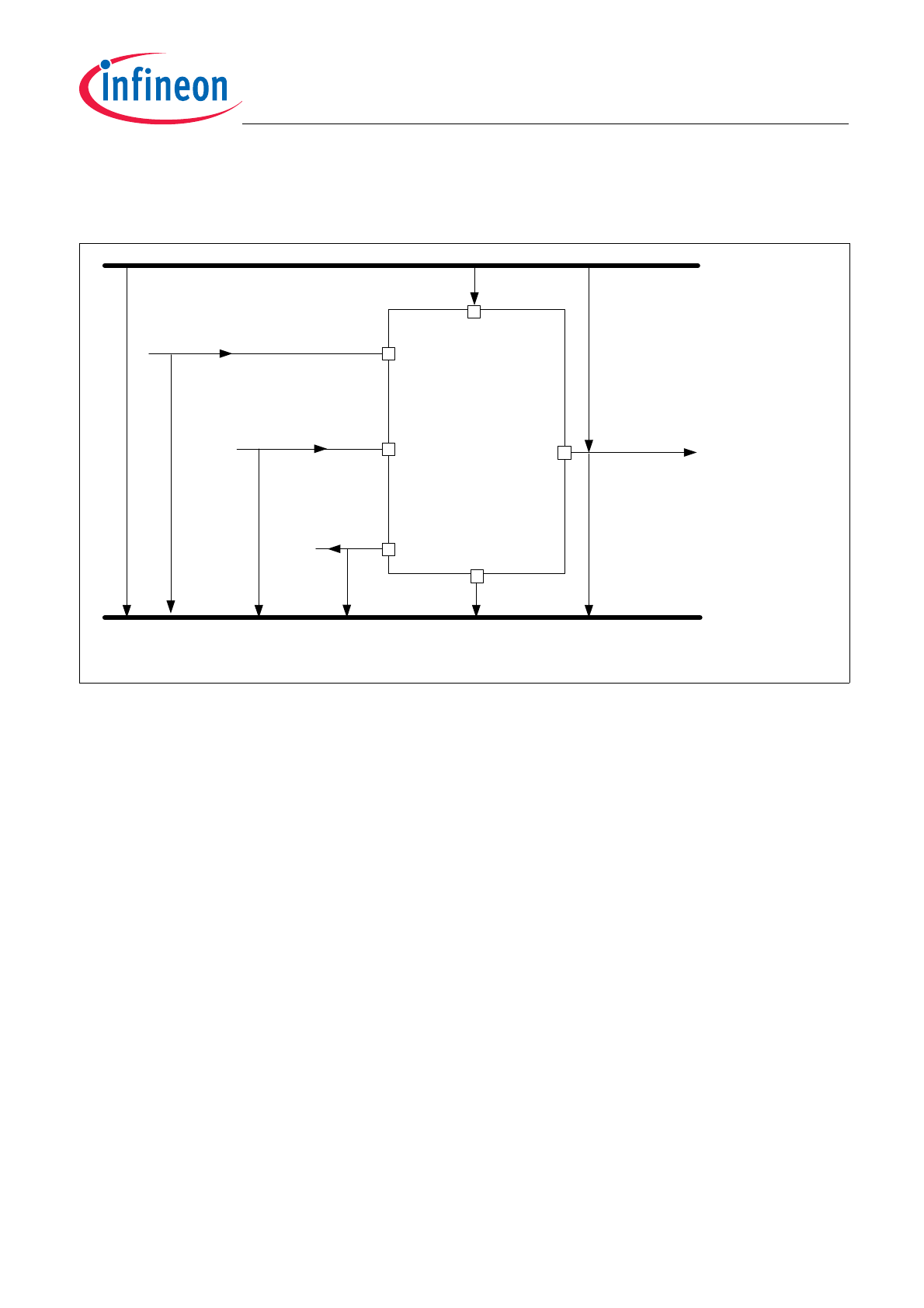

Figure 3
shows all terms used in this data sheet, with associated convention for positive values.
Figure 3
Voltage and Current Definition
V
S
IN
DEN
IS
GND
OUT
I
IN
I
DEN
I
IS
V
S
V
IN
V
DEN
V
IS
I
S
I
GND
V
DS
V
OUT
I
OUT
voltage and current convention single.vsd
BTT6020-1EKA
General Product Characteristics
Data Sheet
9
Rev. 1.1, 2015-03-04
PROFET™+ 24V
4
General Product Characteristics
4.1
Absolute Maximum Ratings
Table 2
Absolute Maximum Ratings
1)
T
J
= -40 °C to +150°C; (unless otherwise specified)
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Supply Voltages
Supply voltage
V
S
-0.3
–
48
V
–
P_4.1.1
Reverse polarity voltage
-
V
S(REV)
0
–
28
V
t
< 2 min
T
A
= 25
°C
R
L
≥ 6 Ω
R
GND
= 150
Ω
P_4.1.2
Supply voltage for short
circuit protection
V
BAT(SC)
0
–
36
V
R
ECU
= 20 m
Ω
R
Cable
= 16 m
Ω/m
L
Cable
= 1
μH/m,
l
= 0 or 5 m
See
Chapter 6
and
Figure 52
P_4.1.3
Supply voltage for Load dump
protection
V
S(LD)
– –
65 V
2)
R
I
= 2
Ω
R
L
= 6
Ω
P_4.1.12
Short Circuit Capability
Permanent short circuit
IN pin toggles
n
RSC1
–
100
k
cycles
3)
V
Supply
= 28V
P_4.1.4
Input Pins
Voltage at INPUT pin
V
IN
-0.3
–
–
6
7
V
–
t
< 2 min
P_4.1.13
Current through INPUT pin
I
IN
-2
–
2
mA
–
P_4.1.14
Voltage at DEN pin
V
DEN
-0.3
–
–
6
7
V
–
t
< 2 min
P_4.1.15
Current through DEN pin
I
DEN
-2
–
2
mA
–
P_4.1.16
Sense Pin
Voltage at IS pin
V
IS
-0.3
–
V
S
V
–
P_4.1.19
Current through IS pin
I
IS
-25
–
50
mA
–
P_4.1.20
Power Stage
Load current
|
I
L
|
–
–
I
L(LIM)
A
–
P_4.1.21
Power dissipation (DC)
P
TOT
–
–
1.6
W
T
A
= 85
°C
T
J
< 150
°C
P_4.1.22
Maximum energy dissipation
Single pulse
E
AS
–
–
150
mJ
I
L(0)
= 7 A
T
J(0)
= 150
°C
V
S
= 28 V
P_4.1.23
Voltage at power transistor
V
DS
–
–
65
V
–
P_4.1.26
Data Sheet
10
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
General Product Characteristics
Notes
1. Stresses above the ones listed here may cause permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
2. Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” normal operating range. Protection functions are not
designed for continuous repetitive operation.
Currents
Current through ground pin
I
GND
-20
-200
–
20
20
mA
–
t
< 2 min
P_4.1.27
Temperatures
Junction temperature
T
J
-40
–
150
°C
–
P_4.1.28
Storage temperature
T
STG
-55
–
150
°C
–
P_4.1.30
ESD Susceptibility
ESD susceptibility (all pins)
V
ESD
-2
–
2
kV
4)
HBM
P_4.1.31
ESD susceptibility OUT Pin
vs. GND and
V
S
connected
V
ESD
-4
–
4
kV
4)
HBM
P_4.1.32
ESD susceptibility
V
ESD
-500
–
500
V
5)
CDM
P_4.1.33
ESD susceptibility pin
(corner pins)
V
ESD
-750
–
750
V
5)
CDM
P_4.1.34
1) Not subject to production test. Specified by design.
2)
V
S(LD)
is setup without the DUT connected to the generator per ISO 7637-1.
3) Threshold limit for short circuit failures : 100ppm. Please refer to the legal disclaimer for short circuit capability at the end
of this document.
4) ESD susceptibility HBM according to ANSI/ESDA/JEDEC JS-001
5) ESD susceptibility, Charge Device Model “CDM” ESDA STM5.3.1 or ANSI/ESD S.5.3.1
Table 2
Absolute Maximum Ratings
(cont’d)
1)
T
J
= -40 °C to +150°C; (unless otherwise specified)
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Automotive Power
Data Sheet
PROFET™+ 24V
Rev. 1.1, 2015-03-04
BTT6020-1EKA
Smart High-Side Power Switch
Single Channel,
20
m
Ω
PROFET™+ 24V
Data Sheet
2
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Table of Contents
1
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
Pin Configuration
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1
Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2
Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3
Voltage and Current Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4
General Product Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2
Functional Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3.1
PCB set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3.2
Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5
Power Stage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1
Output ON-state Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2
Turn ON/OFF Characteristics with Resistive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3
Inductive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.1
Output Clamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.2
Maximum Load Inductance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.4
Inverse Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5
Electrical Characteristics Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6
Protection Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.1
Loss of Ground Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2
Undervoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3
Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4
Reverse Polarity Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5
Overload Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.1
Current Limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.2
Temperature Limitation in the Power DMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6
Electrical Characteristics for the Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7
Diagnostic Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1
IS Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2
SENSE Signal in Different Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.3
SENSE Signal in the Nominal Current Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.3.1
SENSE Signal Variation as a Function of Temperature and Load Current . . . . . . . . . . . . . . . . . . . 29
7.3.2
SENSE Signal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.3.3
SENSE Signal in Open Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.1
Open Load in ON Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.2
Open Load in OFF Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.3
Open Load Diagnostic Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.3.4
SENSE Signal with OUT in Short Circuit to
V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.5
SENSE Signal in Case of Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.6
SENSE Signal in Case of Inverse Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4
Electrical Characteristics Diagnostic Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8
Input Pins
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.1
Input Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2
DEN Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table of Contents
BTT6020-1EKA
Table of Contents
Data Sheet
3
Rev. 1.1, 2015-03-04
PROFET™+ 24V
8.3
Input Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.4
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9
Characterization Results
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1
General Product Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.1
Minimum Functional Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.2
Undervoltage Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.3
Current Consumption Channel active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.1.4
Standby Current for Whole Device with Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2
Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2.1
Output Voltage Drop Limitation at Low Load Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2.2
Drain to Source Clamp Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9.2.3
Slew Rate at Turn ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.4
Slew Rate at Turn OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.5
Turn ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.6
Turn OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2.7
Turn ON / OFF matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2.8
Switch ON Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.2.9
Switch OFF Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.3
Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3.1
Overload Condition in the Low Voltage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3.2
Overload Condition in the High Voltage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.4
Diagnostic Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.1
Current Sense at no Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.2
Open Load Detection Threshold in ON State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.3
Sense Signal Maximum Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.4.4
Sense Signal maximum Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.5
Input Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.1
Input Voltage Threshold ON to OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.2
Input Voltage Threshold OFF to ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.3
Input Voltage Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.5.4
Input Current High Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
10
Application Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1
Further Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
11
Package Outlines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12
Revision History
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
PG-DSO-14-47 EP
Type
Package
Marking
BTT6020-1EKA
PG-DSO-14-47 EP
BTT6020-1EKA
Data Sheet
4
Rev. 1.1, 2015-03-04
PROFET™+ 24V
Smart High-Side Power Switch
BTT6020-1EKA
1
Overview
Application
•
Suitable for resistive, inductive and capacitive loads
•
Replaces electromechanical relays, fuses and discrete circuits
•
Most suitable for loads with high inrush current, such as lamps
•
Suitable for 24V truck and transportation system
Basic Features
•
One channel device
•
Very low stand-by current
•
3.3 V and 5 V compatible logic inputs
•
Electrostatic discharge protection (ESD)
•
Optimized electromagnetic compatibility
•
Logic ground independent from load ground
•
Very low power DMOS leakage current in OFF state
•
Green product (RoHS compliant)
•
AEC qualified
Description
The BTT6020-1EKA is a 20 m
Ω single channel Smart High-Side Power Switch, embedded in a PG-DSO-14-47
EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an
N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially
designed to drive lamps up to 5 x P21W 24V or 1 x 70W 24V, as well as LEDs in the harsh automotive
environment.
Table 1
Product Summary
Parameter
Symbol
Value
Operating voltage range
V
S(OP)
5 V ... 36 V
Maximum supply voltage
V
S(LD)
65 V
Maximum ON state resistance at
T
J
= 150
°C
R
DS(ON)
40 m
Ω
Nominal load current
I
L(NOM)
7 A
Typical current sense ratio
k
ILIS
2950
Minimum current limitation
I
L5(SC)
70 A
Maximum standby current with load at
T
J
= 25 °C
I
S(OFF)
0.5 µA
BTT6020-1EKA
Overview
Data Sheet
5
Rev. 1.1, 2015-03-04
PROFET™+ 24V
Diagnostic Functions
•
Proportional load current sense
•
Open load in ON and OFF
•
Short circuit to battery and ground
•
Overtemperature
•
Stable diagnostic signal during short circuit
•
Enhanced
k
ILIS
dependency with temperature and load current
Protection Functions
•
Stable behavior during undervoltage
•
Reverse polarity protection with external components
•
Secure load turn-off during logic ground disconnect with external components
•
Overtemperature protection with latch
•
Overvoltage protection with external components
•
Voltage dependent current limitation
•
Enhanced short circuit operation
Data Sheet
6
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Block Diagram
2
Block Diagram
Figure 1
Block Diagram for the BTT6020-1EKA
Block diagram.emf
V
S
OUT
IN
T
driver
logic
gate control
&
charge pump
load current sense and
open load detection
over
temperature
clamp for
inductive load
over current
switch limit
forward voltage drop detection
voltage sensor
GND
ESD
protection
IS
DEN
internal
power
supply
BTT6020-1EKA
Pin Configuration
Data Sheet
7
Rev. 1.1, 2015-03-04
PROFET™+ 24V
3
Pin Configuration
3.1
Pin Assignment
Figure 2
Pin Configuration
3.2
Pin Definitions and Functions
Pin
Symbol
Function
Cooling Tab
V
S
Voltage Supply;
Battery voltage
1, 2, 7, 8, 9, 13, 14 NC
Not Connected;
No internal connection to the chip
3
GND
GrouND;
Ground connection
4
IN
INput channel;
Input signal for channel activation
5
DEN
Diagnostic ENable;
Digital signal to enable/disable the diagnosis of the device
6
IS
Sense;
Sense current of the selected channel
10, 11, 12
OUT
OUTput;
Protected high side power output channel
1)
1) All output pins must be connected together on the PCB. All pins of the output are internally connected together. PCB traces
have to be designed to withstand the maximum current which can flow.
Pinout single SO14.vsd
NC
NC
OUT
OUT
OUT
NC
NC
NC
NC
GND
IN
DEN
IS
NC
14
13
12
11
10
9
8
1
2
3
4
5
6
7
Data Sheet
8
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Pin Configuration
3.3
Voltage and Current Definition
Figure 3
shows all terms used in this data sheet, with associated convention for positive values.
Figure 3
Voltage and Current Definition
V
S
IN
DEN
IS
GND
OUT
I
IN
I
DEN
I
IS
V
S
V
IN
V
DEN
V
IS
I
S
I
GND
V
DS
V
OUT
I
OUT
voltage and current convention single.vsd
BTT6020-1EKA
General Product Characteristics
Data Sheet
9
Rev. 1.1, 2015-03-04
PROFET™+ 24V
4
General Product Characteristics
4.1
Absolute Maximum Ratings
Table 2
Absolute Maximum Ratings
1)
T
J
= -40 °C to +150°C; (unless otherwise specified)
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Supply Voltages
Supply voltage
V
S
-0.3
–
48
V
–
P_4.1.1
Reverse polarity voltage
-
V
S(REV)
0
–
28
V
t
< 2 min
T
A
= 25
°C
R
L
≥ 6 Ω
R
GND
= 150
Ω
P_4.1.2
Supply voltage for short
circuit protection
V
BAT(SC)
0
–
36
V
R
ECU
= 20 m
Ω
R
Cable
= 16 m
Ω/m
L
Cable
= 1
μH/m,
l
= 0 or 5 m
See
Chapter 6
and
Figure 52
P_4.1.3
Supply voltage for Load dump
protection
V
S(LD)
– –
65 V
2)
R
I
= 2
Ω
R
L
= 6
Ω
P_4.1.12
Short Circuit Capability
Permanent short circuit
IN pin toggles
n
RSC1
–
100
k
cycles
3)
V
Supply
= 28V
P_4.1.4
Input Pins
Voltage at INPUT pin
V
IN
-0.3
–
–
6
7
V
–
t
< 2 min
P_4.1.13
Current through INPUT pin
I
IN
-2
–
2
mA
–
P_4.1.14
Voltage at DEN pin
V
DEN
-0.3
–
–
6
7
V
–
t
< 2 min
P_4.1.15
Current through DEN pin
I
DEN
-2
–
2
mA
–
P_4.1.16
Sense Pin
Voltage at IS pin
V
IS
-0.3
–
V
S
V
–
P_4.1.19
Current through IS pin
I
IS
-25
–
50
mA
–
P_4.1.20
Power Stage
Load current
|
I
L
|
–
–
I
L(LIM)
A
–
P_4.1.21
Power dissipation (DC)
P
TOT
–
–
1.6
W
T
A
= 85
°C
T
J
< 150
°C
P_4.1.22
Maximum energy dissipation
Single pulse
E
AS
–
–
150
mJ
I
L(0)
= 7 A
T
J(0)
= 150
°C
V
S
= 28 V
P_4.1.23
Voltage at power transistor
V
DS
–
–
65
V
–
P_4.1.26
Data Sheet
10
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
General Product Characteristics
Notes
1. Stresses above the ones listed here may cause permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
2. Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” normal operating range. Protection functions are not
designed for continuous repetitive operation.
Currents
Current through ground pin
I
GND
-20
-200
–
20
20
mA
–
t
< 2 min
P_4.1.27
Temperatures
Junction temperature
T
J
-40
–
150
°C
–
P_4.1.28
Storage temperature
T
STG
-55
–
150
°C
–
P_4.1.30
ESD Susceptibility
ESD susceptibility (all pins)
V
ESD
-2
–
2
kV
4)
HBM
P_4.1.31
ESD susceptibility OUT Pin
vs. GND and
V
S
connected
V
ESD
-4
–
4
kV
4)
HBM
P_4.1.32
ESD susceptibility
V
ESD
-500
–
500
V
5)
CDM
P_4.1.33
ESD susceptibility pin
(corner pins)
V
ESD
-750
–
750
V
5)
CDM
P_4.1.34
1) Not subject to production test. Specified by design.
2)
V
S(LD)
is setup without the DUT connected to the generator per ISO 7637-1.
3) Threshold limit for short circuit failures : 100ppm. Please refer to the legal disclaimer for short circuit capability at the end
of this document.
4) ESD susceptibility HBM according to ANSI/ESDA/JEDEC JS-001
5) ESD susceptibility, Charge Device Model “CDM” ESDA STM5.3.1 or ANSI/ESD S.5.3.1
Table 2
Absolute Maximum Ratings
(cont’d)
1)
T
J
= -40 °C to +150°C; (unless otherwise specified)
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Automotive Power
Data Sheet
PROFET™+ 24V
Rev. 1.1, 2015-03-04
BTT6020-1EKA
Smart High-Side Power Switch
Single Channel,
20
m
Ω
PROFET™+ 24V
Data Sheet
2
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Table of Contents
1
Overview
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2
Block Diagram
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
Pin Configuration
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1
Pin Assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2
Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3
Voltage and Current Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4
General Product Characteristics
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2
Functional Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3.1
PCB set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.3.2
Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5
Power Stage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1
Output ON-state Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2
Turn ON/OFF Characteristics with Resistive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.3
Inductive Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.1
Output Clamping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.3.2
Maximum Load Inductance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.4
Inverse Current Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.5
Electrical Characteristics Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6
Protection Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.1
Loss of Ground Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2
Undervoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.3
Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.4
Reverse Polarity Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5
Overload Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.1
Current Limitation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5.2
Temperature Limitation in the Power DMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.6
Electrical Characteristics for the Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7
Diagnostic Functions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.1
IS Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2
SENSE Signal in Different Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.3
SENSE Signal in the Nominal Current Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.3.1
SENSE Signal Variation as a Function of Temperature and Load Current . . . . . . . . . . . . . . . . . . . 29
7.3.2
SENSE Signal Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.3.3
SENSE Signal in Open Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.1
Open Load in ON Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.2
Open Load in OFF Diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3.3.3
Open Load Diagnostic Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.3.4
SENSE Signal with OUT in Short Circuit to
V
S
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.5
SENSE Signal in Case of Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.3.6
SENSE Signal in Case of Inverse Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.4
Electrical Characteristics Diagnostic Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8
Input Pins
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.1
Input Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.2
DEN Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Table of Contents
BTT6020-1EKA
Table of Contents
Data Sheet
3
Rev. 1.1, 2015-03-04
PROFET™+ 24V
8.3
Input Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
8.4
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9
Characterization Results
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1
General Product Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.1
Minimum Functional Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.2
Undervoltage Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.1.3
Current Consumption Channel active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.1.4
Standby Current for Whole Device with Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2
Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2.1
Output Voltage Drop Limitation at Low Load Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2.2
Drain to Source Clamp Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
9.2.3
Slew Rate at Turn ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.4
Slew Rate at Turn OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.5
Turn ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
9.2.6
Turn OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2.7
Turn ON / OFF matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
9.2.8
Switch ON Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.2.9
Switch OFF Energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
9.3
Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3.1
Overload Condition in the Low Voltage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.3.2
Overload Condition in the High Voltage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
9.4
Diagnostic Mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.1
Current Sense at no Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.2
Open Load Detection Threshold in ON State . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
9.4.3
Sense Signal Maximum Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.4.4
Sense Signal maximum Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
9.5
Input Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.1
Input Voltage Threshold ON to OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.2
Input Voltage Threshold OFF to ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9.5.3
Input Voltage Hysteresis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9.5.4
Input Current High Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
10
Application Information
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
10.1
Further Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
11
Package Outlines
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12
Revision History
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
PG-DSO-14-47 EP
Type
Package
Marking
BTT6020-1EKA
PG-DSO-14-47 EP
BTT6020-1EKA
Data Sheet
4
Rev. 1.1, 2015-03-04
PROFET™+ 24V
Smart High-Side Power Switch
BTT6020-1EKA
1
Overview
Application
•
Suitable for resistive, inductive and capacitive loads
•
Replaces electromechanical relays, fuses and discrete circuits
•
Most suitable for loads with high inrush current, such as lamps
•
Suitable for 24V truck and transportation system
Basic Features
•
One channel device
•
Very low stand-by current
•
3.3 V and 5 V compatible logic inputs
•
Electrostatic discharge protection (ESD)
•
Optimized electromagnetic compatibility
•
Logic ground independent from load ground
•
Very low power DMOS leakage current in OFF state
•
Green product (RoHS compliant)
•
AEC qualified
Description
The BTT6020-1EKA is a 20 m
Ω single channel Smart High-Side Power Switch, embedded in a PG-DSO-14-47
EP, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an
N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. It is specially
designed to drive lamps up to 5 x P21W 24V or 1 x 70W 24V, as well as LEDs in the harsh automotive
environment.
Table 1
Product Summary
Parameter
Symbol
Value
Operating voltage range
V
S(OP)
5 V ... 36 V
Maximum supply voltage
V
S(LD)
65 V
Maximum ON state resistance at
T
J
= 150
°C
R
DS(ON)
40 m
Ω
Nominal load current
I
L(NOM)
7 A
Typical current sense ratio
k
ILIS
2950
Minimum current limitation
I
L5(SC)
70 A
Maximum standby current with load at
T
J
= 25 °C
I
S(OFF)
0.5 µA
BTT6020-1EKA
Overview
Data Sheet
5
Rev. 1.1, 2015-03-04
PROFET™+ 24V
Diagnostic Functions
•
Proportional load current sense
•
Open load in ON and OFF
•
Short circuit to battery and ground
•
Overtemperature
•
Stable diagnostic signal during short circuit
•
Enhanced
k
ILIS
dependency with temperature and load current
Protection Functions
•
Stable behavior during undervoltage
•
Reverse polarity protection with external components
•
Secure load turn-off during logic ground disconnect with external components
•
Overtemperature protection with latch
•
Overvoltage protection with external components
•
Voltage dependent current limitation
•
Enhanced short circuit operation
Data Sheet
6
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Block Diagram
2
Block Diagram
Figure 1
Block Diagram for the BTT6020-1EKA
Block diagram.emf
V
S
OUT
IN
T
driver
logic
gate control
&
charge pump
load current sense and
open load detection
over
temperature
clamp for
inductive load
over current
switch limit
forward voltage drop detection
voltage sensor
GND
ESD
protection
IS
DEN
internal
power
supply
BTT6020-1EKA
Pin Configuration
Data Sheet
7
Rev. 1.1, 2015-03-04
PROFET™+ 24V
3
Pin Configuration
3.1
Pin Assignment
Figure 2
Pin Configuration
3.2
Pin Definitions and Functions
Pin
Symbol
Function
Cooling Tab
V
S
Voltage Supply;
Battery voltage
1, 2, 7, 8, 9, 13, 14 NC
Not Connected;
No internal connection to the chip
3
GND
GrouND;
Ground connection
4
IN
INput channel;
Input signal for channel activation
5
DEN
Diagnostic ENable;
Digital signal to enable/disable the diagnosis of the device
6
IS
Sense;
Sense current of the selected channel
10, 11, 12
OUT
OUTput;
Protected high side power output channel
1)
1) All output pins must be connected together on the PCB. All pins of the output are internally connected together. PCB traces
have to be designed to withstand the maximum current which can flow.
Pinout single SO14.vsd
NC
NC
OUT
OUT
OUT
NC
NC
NC
NC
GND
IN
DEN
IS
NC
14
13
12
11
10
9
8
1
2
3
4
5
6
7
Data Sheet
8
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
Pin Configuration
3.3
Voltage and Current Definition
Figure 3
shows all terms used in this data sheet, with associated convention for positive values.
Figure 3
Voltage and Current Definition
V
S
IN
DEN
IS
GND
OUT
I
IN
I
DEN
I
IS
V
S
V
IN
V
DEN
V
IS
I
S
I
GND
V
DS
V
OUT
I
OUT
voltage and current convention single.vsd
BTT6020-1EKA
General Product Characteristics
Data Sheet
9
Rev. 1.1, 2015-03-04
PROFET™+ 24V
4
General Product Characteristics
4.1
Absolute Maximum Ratings
Table 2
Absolute Maximum Ratings
1)
T
J
= -40 °C to +150°C; (unless otherwise specified)
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
Supply Voltages
Supply voltage
V
S
-0.3
–
48
V
–
P_4.1.1
Reverse polarity voltage
-
V
S(REV)
0
–
28
V
t
< 2 min
T
A
= 25
°C
R
L
≥ 6 Ω
R
GND
= 150
Ω
P_4.1.2
Supply voltage for short
circuit protection
V
BAT(SC)
0
–
36
V
R
ECU
= 20 m
Ω
R
Cable
= 16 m
Ω/m
L
Cable
= 1
μH/m,
l
= 0 or 5 m
See
Chapter 6
and
Figure 52
P_4.1.3
Supply voltage for Load dump
protection
V
S(LD)
– –
65 V
2)
R
I
= 2
Ω
R
L
= 6
Ω
P_4.1.12
Short Circuit Capability
Permanent short circuit
IN pin toggles
n
RSC1
–
100
k
cycles
3)
V
Supply
= 28V
P_4.1.4
Input Pins
Voltage at INPUT pin
V
IN
-0.3
–
–
6
7
V
–
t
< 2 min
P_4.1.13
Current through INPUT pin
I
IN
-2
–
2
mA
–
P_4.1.14
Voltage at DEN pin
V
DEN
-0.3
–
–
6
7
V
–
t
< 2 min
P_4.1.15
Current through DEN pin
I
DEN
-2
–
2
mA
–
P_4.1.16
Sense Pin
Voltage at IS pin
V
IS
-0.3
–
V
S
V
–
P_4.1.19
Current through IS pin
I
IS
-25
–
50
mA
–
P_4.1.20
Power Stage
Load current
|
I
L
|
–
–
I
L(LIM)
A
–
P_4.1.21
Power dissipation (DC)
P
TOT
–
–
1.6
W
T
A
= 85
°C
T
J
< 150
°C
P_4.1.22
Maximum energy dissipation
Single pulse
E
AS
–
–
150
mJ
I
L(0)
= 7 A
T
J(0)
= 150
°C
V
S
= 28 V
P_4.1.23
Voltage at power transistor
V
DS
–
–
65
V
–
P_4.1.26
Data Sheet
10
Rev. 1.1, 2015-03-04
PROFET™+ 24V
BTT6020-1EKA
General Product Characteristics
Notes
1. Stresses above the ones listed here may cause permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
2. Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” normal operating range. Protection functions are not
designed for continuous repetitive operation.
Currents
Current through ground pin
I
GND
-20
-200
–
20
20
mA
–
t
< 2 min
P_4.1.27
Temperatures
Junction temperature
T
J
-40
–
150
°C
–
P_4.1.28
Storage temperature
T
STG
-55
–
150
°C
–
P_4.1.30
ESD Susceptibility
ESD susceptibility (all pins)
V
ESD
-2
–
2
kV
4)
HBM
P_4.1.31
ESD susceptibility OUT Pin
vs. GND and
V
S
connected
V
ESD
-4
–
4
kV
4)
HBM
P_4.1.32
ESD susceptibility
V
ESD
-500
–
500
V
5)
CDM
P_4.1.33
ESD susceptibility pin
(corner pins)
V
ESD
-750
–
750
V
5)
CDM
P_4.1.34
1) Not subject to production test. Specified by design.
2)
V
S(LD)
is setup without the DUT connected to the generator per ISO 7637-1.
3) Threshold limit for short circuit failures : 100ppm. Please refer to the legal disclaimer for short circuit capability at the end
of this document.
4) ESD susceptibility HBM according to ANSI/ESDA/JEDEC JS-001
5) ESD susceptibility, Charge Device Model “CDM” ESDA STM5.3.1 or ANSI/ESD S.5.3.1
Table 2
Absolute Maximum Ratings
(cont’d)
1)
T
J
= -40 °C to +150°C; (unless otherwise specified)
Parameter
Symbol
Values
Unit
Note /
Test Condition
Number
Min.
Typ.
Max.
