HITFET - BTS3405G
Smart Low-Side Power Switch
Data Sheet, Rev. 1.1, September 2011
Automotive Power
Smart Low-Side Power Switch
BTS3405G
Data Sheet
2
Rev. 1.1, 2011-09-01
1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1
Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1
Pin Assignment BTS3405G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2
Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4
General Product Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.1
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.2
Thermal Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2.1
Transient Thermal Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5
Block Description and Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1
Input and Power Stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1.1
Input Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1.2
Failure Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.1.3
Output On-State Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.1.4
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1.5
Output Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1.6
Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6
Protection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.1
Thermal Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2
Overvoltage Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.3
Short Circuit Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.4
Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7
Package Outlines BTS3405G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
PG-DSO-8-25
Type
Package
Marking
BTS3405G
PG-DSO-8-25
BTS3405G
Data Sheet
3
Rev. 1.1, 2011-09-01

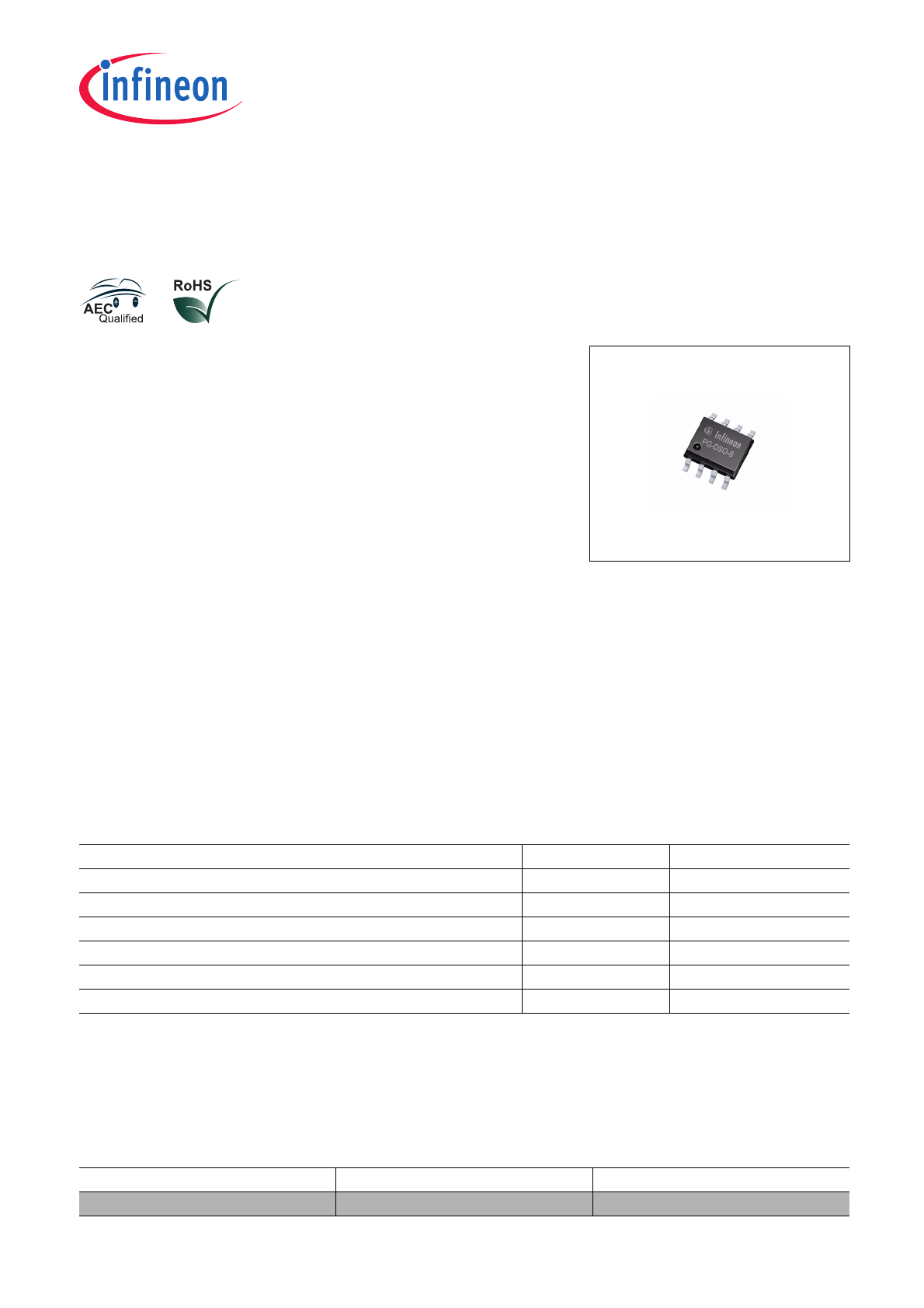

Smart Low-Side Power Switch
HITFET
BTS3405G
1
Overview
Features
•
Low input current
•
Short circuit and Overload protection
•
Current limitation
•
Input protection (ESD)
•
Thermal protection with auto restart
•
Compatible to standard Power MOSFET
•
Analog driving possible
•
Two channel concept saves PCB footprint
•
Green Product (RoHS compliant)
•
AEC Qualified
Description
The BTS3405G is a two channel low-side power switch in PG-DSO-8-25 package providing embedded protective
functions. The device consists of two separate monolithic IC. Each with one N-channel power MOSFET transistor
and additional protection circuitry.
Table 1
Product Summary
Drain Voltage
V
D
42 V
1)
1) Active clamped
Input Voltage
V
IN(max)
10 V
Typical On-State Resistance at
T
j
= 25
°C and Vin = 10V
R
DS(ON,amb typ)
0.7
Ω
Maximum On-State Resistance at
T
j
= 150
°C and Vin = 10V
R
DS(ON,hot max)
1.9
Ω
Nominal Load Current
I
Dnom(min)
350 mA
Drain Current
I
D
600 mA
2)
2) Internally limited
Single Clamping Energy
E
AS
65 mJ
Smart Low-Side Power Switch
BTS3405G
Overview
Data Sheet
4
Rev. 1.1, 2011-09-01
Protective Functions
•
Electrostatic discharge protection (ESD)
•
Active clamp over voltage protection
•
Thermal shutdown with auto restart
•
Short circuit protection
Fault Information
•
Thermal shutdown
•
Short to Battery and overload
Applications
•
Designed for driving Relays in Automotive Applications
•
All types of resistive, inductive and capacitive loads
•
Suitable for loads with peak currents
•
Replaces discrete circuits
Detailed Description
The device is able to switch all kind of resistive, inductive and capacitive loads, limited by
E
AS
and maximum
current capabilities.
The BTS3405G offers ESD protection of each IN Pin in relation to the corresponding Source Pin.
The overtemperature protection prevents the device from overheating due to overload and/or bad cooling
conditions. The temperature information is given by a temperature sensor in each of the two power MOSFET.
During thermal shutdown the device tries to sink an increased input current at the corresponding IN pin to feedback
the fault condition on this channel.
The BTS3405G has a thermal-auto-restart function, the regarding channel will turn on again after the measured
temperature has dropped down for the thermal hysteresis.
The over voltage protection is active during load-dump or inductive turn off conditions. The power MOSFET is
limiting the Drain - Source voltage to the defined clamping voltage. This function is available regardless of the input
pin state, means without voltage on the IN pins.
Data Sheet
5
Rev. 1.1, 2011-09-01
Smart Low-Side Power Switch
BTS3405G
Block DiagramTerms
2

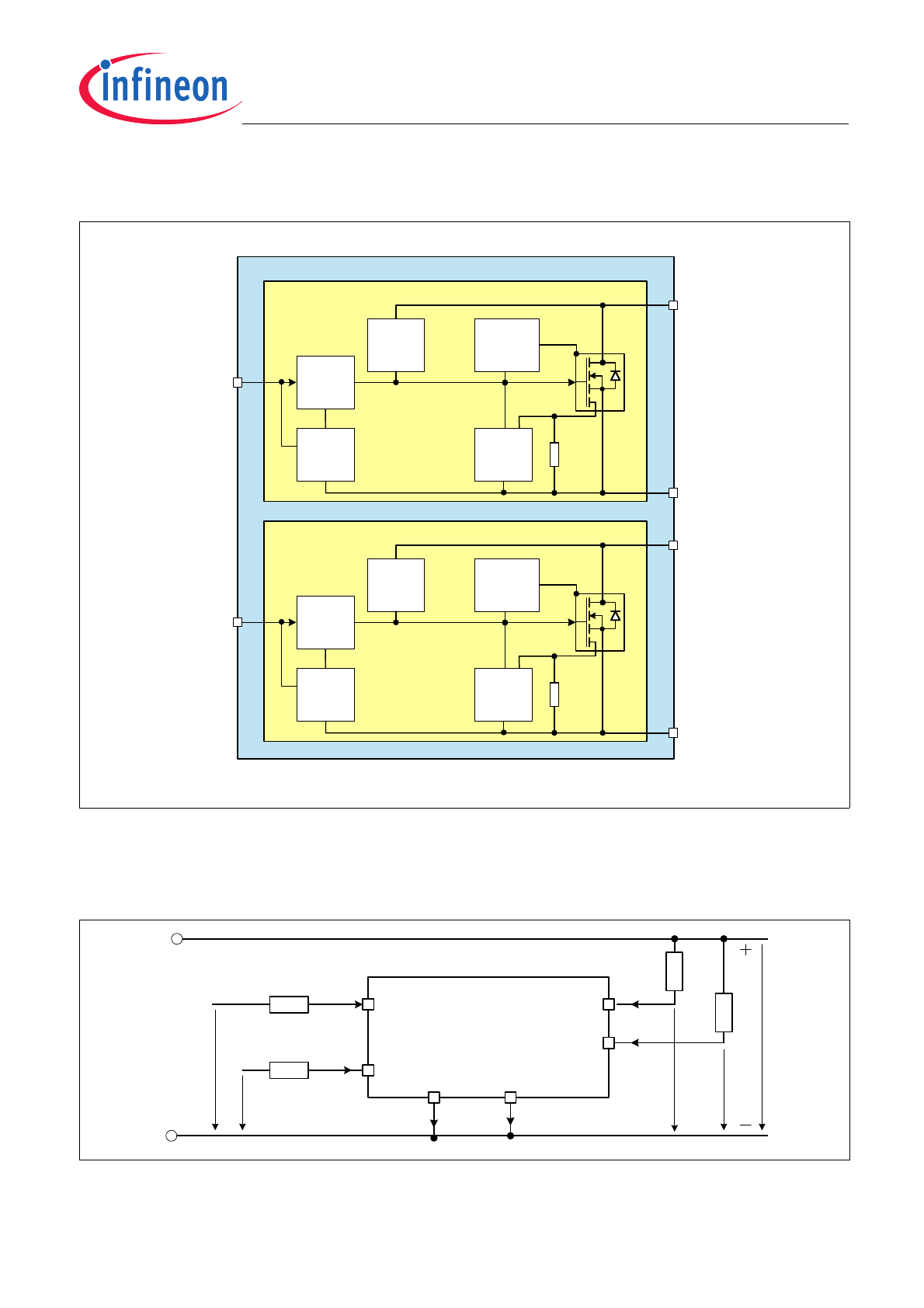

Block Diagram
Figure 1
Block Diagram
2.1
Terms
Figure 2
shows all external terms used in this data sheet.
Figure 2
Terms
Drain 1
Source 1
Drain2
Source2
IN 2
BlockDiagram_3405
Over-
voltage
Protection
IN 1
Gate
Driving
Unit
ESD
Protection
Over-
temperature
Protection
Short
circuit
detection
Over-
voltage
Protection
Gate
Driving
Unit
ESD
Protection
Over-
temperature
Protection
Short
circuit
detection
V
bb
GND
Terms.emf
IN2
V
bb
V
IN2
I
IN2
R
in2
V
IN1
I
IN1
R
in1
IN1
Source1
I
S 1
Source2
I
S 2
Drain1
I
D1
V
D1
Z
L2
I
D2
V
D2
Drain2
Z
L1
BTS3405G
Smart Low-Side Power Switch
BTS3405G
Pin ConfigurationPin Assignment BTS3405G
Data Sheet
6
Rev. 1.1, 2011-09-01
3
Pin Configuration
3.1
Pin Assignment BTS3405G

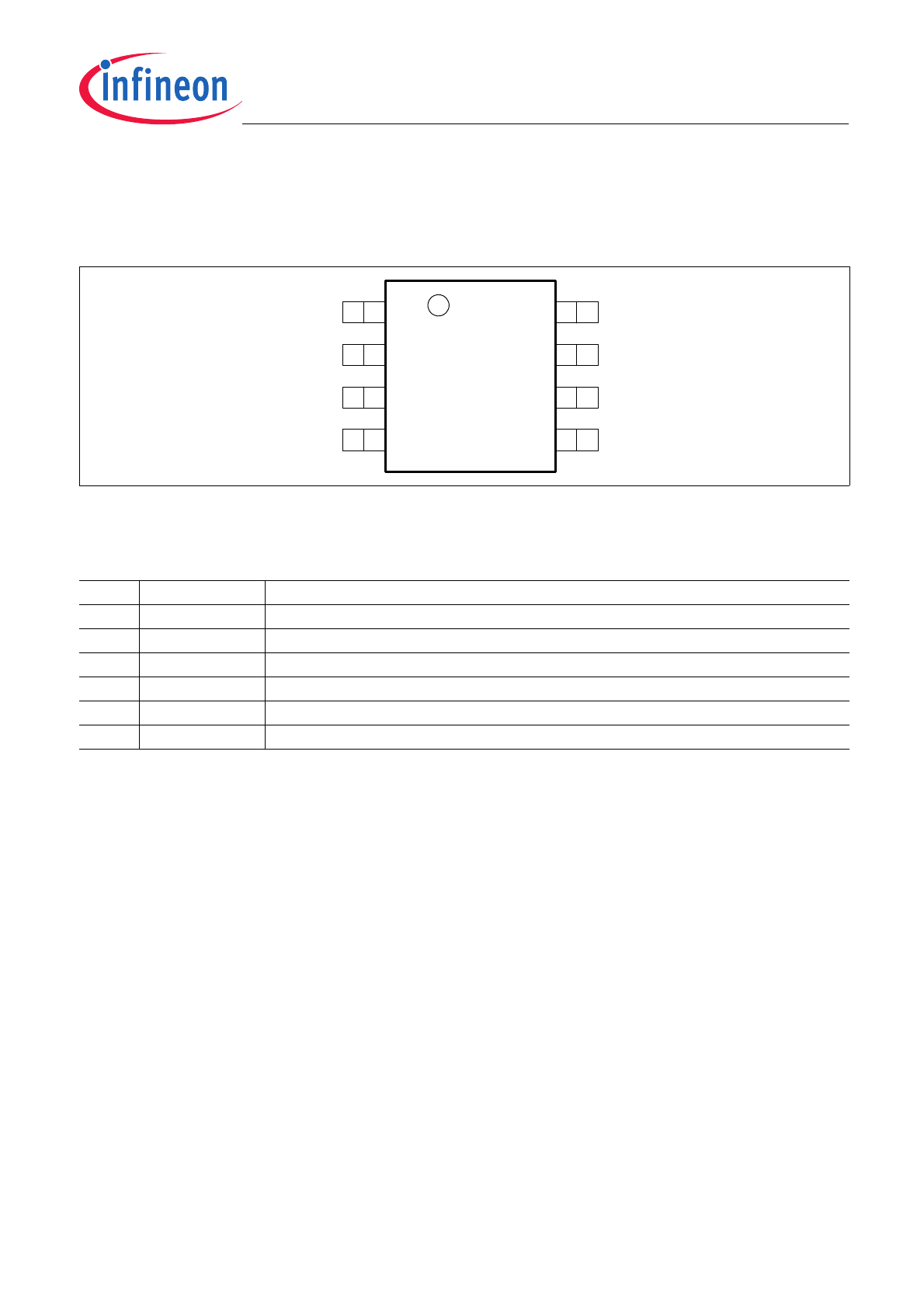

Figure 3
Pin Configuration PG-DSO-8-25
3.2
Pin Definitions and Functions
Pin
Symbol
Function
1
Source1
Ground connection for channel 1
2
IN1
Input / Fault feedback for channel 1
3
Source2
Ground connection for channel 2
4
IN2
Input / Fault feedback for channel 2
5, 6
Drain2
Load connection channel 2
7, 8
Drain1
Load connection channel 1
P-DSO-8.vsd
1
2
Source 2
8
7
Drain 2
IN1
6
5
3
4
Drain 2
Drain 1
Drain 1
Source 1
IN2
Data Sheet
7
Rev. 1.1, 2011-09-01
Smart Low-Side Power Switch
BTS3405G
General Product CharacteristicsAbsolute Maximum Ratings
4
General Product Characteristics
4.1
Absolute Maximum Ratings
All parameters apply for both channels accordingly.
Absolute Maximum Ratings
1)
T
j
= -40
⋅C to +150 ⋅C; all voltages with respect to ground, positive current flowing into pin
(unless otherwise specified), all values valid for both channels
1) Not subject to production test, specified by design.
Pos.
Parameter
Symbol Limit Values Unit
Test Conditions
Min.
Max.
Voltages
4.1.1
Drain voltage
V
D
–
42
V
2)
V
IN
= 0 V,
I
D
= 10 mA
2) Active clamped.
4.1.2
Input Voltage
V
IN
-0.2
10
V
–
4.1.3
Input Current
I
IN
self limited
mA
-0.2 V <
V
IN
< 10 V
4.1.4
-2
2
mA
V
IN
< -0.2 V
or
V
IN
> 10 V
4.1.5
Drain Current
I
D
–
600
mA
3)
T
j
= 25
°C
3) Internally limited.
Energies
4.1.6
Unclamped single pulse inductive energy
single pulse
E
AS
0
65
mJ
I
D
= 350 mA;
V
bb
= 28 V;
T
J(start)
= 85
°C
4.1.7
Unclamped single pulse inductive energy
single pulse
–
30
mJ
I
D
= 250 mA;
V
bb
= 28 V;
T
J(start)
= 150
°C
4.1.8
Unclamped repetitive pulse inductive
energy 1
×10
4
cycles
E
AR
0
18
mJ
I
D
= 200 mA;
V
bb
= 13.5 V;
T
J(start)
= 105
°C
4.1.9
Unclamped repetitive pulse inductive
energy 1
×10
6
cycles
–
13
mJ
I
D
= 170 mA;
V
bb
= 13.5 V;
T
J(start)
= 105
°C
4.1.10
Total Power Dissipation
P
tot
–
0.78
W
4)
T
a
= 85
°C
4) Device mounted on PCB according EIA/JEDEC standard JESD51-7 (4-layer FR4, 76.2 mm
× 114.3 mm with buried
planes). PCB is mounted vertical without blown air.
Temperatures
4.1.11
Operating temperature
T
J
-40
+150
°C
–
4.1.12
Storage temperature
T
stg
-55
+150
°C
–
ESD Susceptibility
4.1.13
Electrostatic discharge voltage
5)
5) ESD susceptibility HBM according to EIA/JESD 22-A 114B, section 4.
V
ESD
-2
2
kV
IN Pin
R
= 1.5 k
;
C
= 100 pF;
T
J
= 25
°C
Smart Low-Side Power Switch
BTS3405G
General Product CharacteristicsThermal Resistance
Data Sheet
8
Rev. 1.1, 2011-09-01
4.2
Thermal Resistance
Note: Stresses above the ones listed here may cause permanent damage to the device. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
Note: Integrated protection functions are designed to prevent IC destruction under fault conditions described in the
data sheet. Fault conditions are considered as “outside” normal operating range. Protection functions are
not designed for continuous repetitive operation.
4.2.1
Transient Thermal Impedance

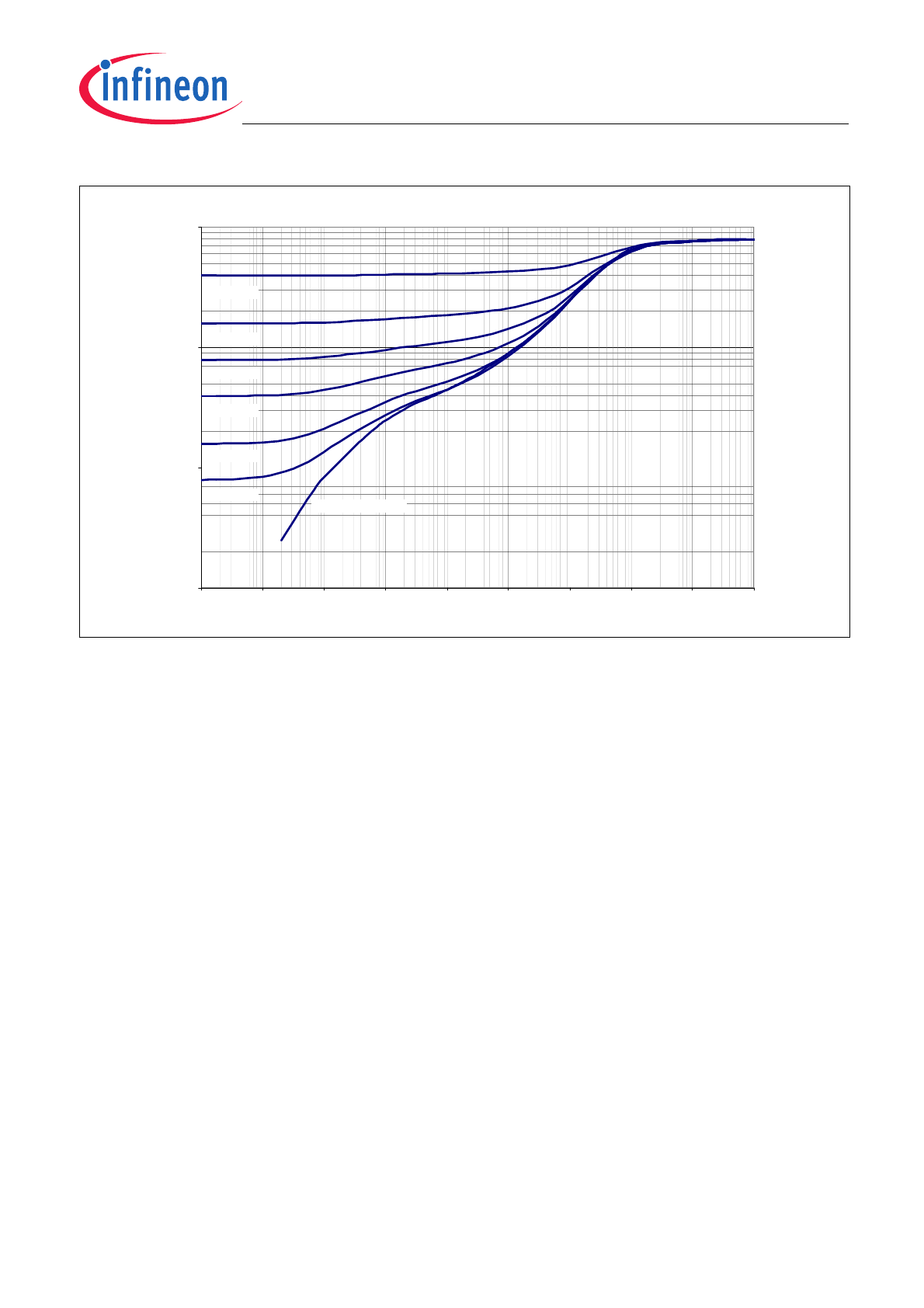

Figure 4
Typical Transient Thermal Impedance single pulse,
Z
thJA
and
Z
thJC
Pos.
Parameter
Symbol
Limit Values
Unit
Conditions
Min.
Typ.
Max.
4.2.1
Junction to Soldering Point
R
thJC
–
–
38
K/W
1)
2)
1) Not subject to production test, specified by design.
2) Device mounted on PCB according EIA/JEDEC standard JESD51-7 (4-layer FR4, 76.2 mm
× 114.3 mm with buried
planes). PCB is mounted vertical without blown air with 0.78W power dissipation generated in each channel on the DMOS.
4.2.2
Junction to Ambient
all channel ON
R
thJA
–
80
–
K/W
1)
2)
t
p
[ s ]
Zt
h
[
K
/
W
]
10
1
1
15
Zth_3405 .emf
10
-1
10
-2
10
2
10
3
10
-3
10
-4
10
-5
0
30
45
60
75
90
Z
thJC
Z
thJA
Data Sheet
9
Rev. 1.1, 2011-09-01
Smart Low-Side Power Switch
BTS3405G
General Product CharacteristicsThermal Resistance

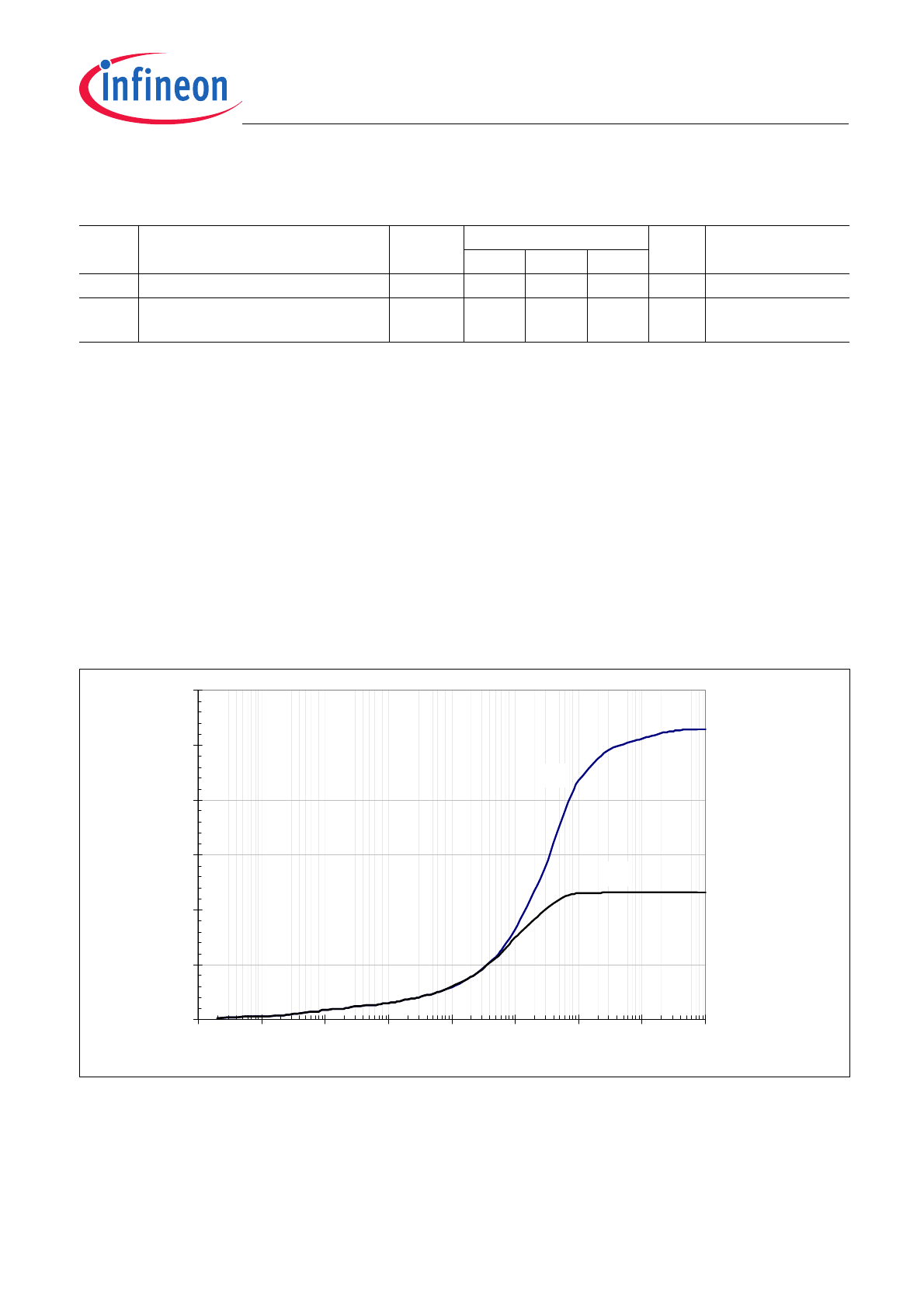

Figure 5
Typical Transient Thermal Impedance
Z
thJA
with different Duty cycles
Z
thJA
= f(t
p
) , D = tp/T, T
a
= 25 °C
Device mounted on PCB according EIA/JEDEC standard JESD51-7 (4-layer FR4, 76.2 mm
× 114.3 mm with
buried planes). PCB is mounted vertical without blown air with 0.78W power dissipation generated in each
channel for single pulse on the DMOS
Z
th
JA
[K
/W
]
10
-3
10
-2
10
-1
10
-1
10
-6
10
-5
10
-4
t
p
[s]
10
2
1
10
1
10
3
10
2
10
1
1
D = 0.5
D = 0.2
D = 0.1
D = 0.05
D = 0.02
D = 0.01
Single pulse
pulse_BTS3405_25 .emf
Smart Low-Side Power Switch
BTS3405G
Block Description and CharacteristicsInput and Power Stage
Data Sheet
10
Rev. 1.1, 2011-09-01
5
Block Description and Characteristics
5.1
Input and Power Stage
5.1.1
Input Circuit

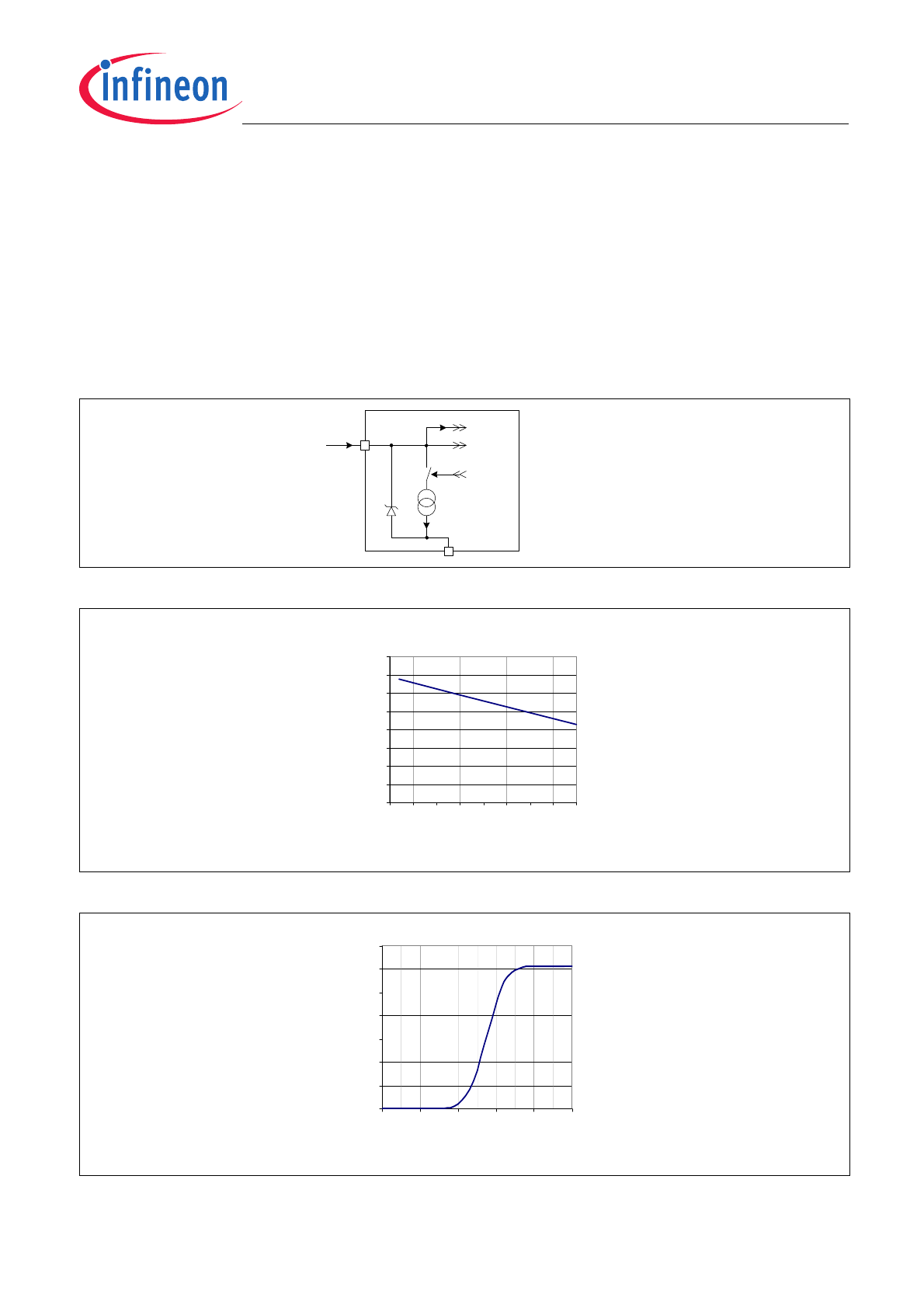

Figure 6
shows the input circuit of the BTS3405G. The zener Diode protects the input circuit against ESD pulses.
The internal circuitry is supplied by the input PIN. During normal operation the Input is connected to the Gate of
the power MOSFET. During fault condition the device tries to sink the current
I
INlim
in order to give the fault
information back to the driving circuit.
Figure 6
Input Circuit
Figure 7
Typical Input Threshold Voltage
V
inth
= f(
T
J
);
I
D
= 50
μA,
V
D
=
V
IN
Figure 8
Typical Transfer Characteristic
I
D
= f(
V
IN
);
V
D
= 12 V,
T
Jstart
= 25 °C
Input.emf
Source
Z
D
IN
I
IN
Gate
Fault
condition
I
INlim
I
INnom
Logic
0,00
0,25
0,50
0,75
1,00
1,25
1,50
1,75
2,00
-50
-25
0
25
50
75
100 125 150
V
IN
(t
h)
[
V
]
T [°C]
Vinth.emf
0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0
1
2
3
4
5
I
D
[ A
]
V
IN
[ V ]
Transferchar.emf
