AUIRF6215S

Absolute Maximum Ratings

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress
ratings only; and functional operation of the device at these or any other condition beyond those indicated in the specifications is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. The thermal resistance
and power dissipation ratings are measured under board mounted and still air conditions. Ambient temperature (TA) is 25°C, unless
otherwise specified.

Features

  Advanced Planar Technology

 Low

On-Resistance

 P-Channel

MOSFET

  Dynamic dv/dt Rating
  175°C Operating Temperature

 Fast

Switching

  Fully Avalanche Rated

  Repetitive Avalanche Allowed up to Tjmax

  Lead-Free, RoHS Compliant

  Automotive Qualified *

Description

Specifically designed for Automotive applications, this cellular design of
HEXFET® Power MOSFETs utilizes the latest processing techniques to
achieve low on-resistance per silicon area. This benefit combined with the
fast switching speed and ruggedized device design that HEXFET power
MOSFETs are well known for, provides the designer with an extremely
efficient and reliable device for use in Automotive and a wide variety of other
applications.



2015-11-13

HEXFET® is a registered trademark of Infineon.
*Qualification standards can be found at

www.infineon.com



AUTOMOTIVE GRADE

HEXFET

®

Power MOSFET

V

DSS

-150V

R

DS(on)

   max.

0.29



I

D

-13A



D

2

Pak

AUIRF6215S

G D  S

Gate Drain Source

Base part number

Package Type

Standard Pack

Orderable Part Number

Form

Quantity

AUIRF6215S

D

2

-Pak

Tube

50

AUIRF6215S

Tape and Reel Left

800

AUIRF6215STRL

Symbol Parameter

Max.

Units

I

D

 @ T

C

 = 25°C

Continuous Drain Current, V

GS

 @ -10V

-13

I

D

 @ T

C

 = 100°C

Continuous Drain Current, V

GS

 @ -10V

-9.0

I

DM

Pulsed Drain Current  -44

P

D

 @T

A

 = 25°C

Maximum Power Dissipation

3.8

P

D

 @T

C

 = 25°C

Maximum Power Dissipation

110



Linear Derating Factor

0.71

W/°C

V

GS

Gate-to-Source Voltage

 ± 20

E

AS

Single Pulse Avalanche Energy (Thermally Limited)  310

mJ

I

AR

Avalanche Current  -6.6

E

AR

Repetitive Avalanche Energy  11

mJ

dv/dt

Peak Diode Recovery  -5.0

V/ns

T

J

Operating Junction and

-55  to + 175



T

STG

Storage Temperature Range



°C



Soldering Temperature, for 10 seconds (1.6mm from case)

300



W

Thermal Resistance

Symbol Parameter

Typ.

Max.

Units

R

JC



Junction-to-Case –––

1.4

°C/W

R

JA



Junction-to-Ambient ( PCB Mount, steady state) 

40

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

Notes:

 Repetitive rating;  pulse width limited by max. junction temperature. (See fig.11)

  Limited by T

Jmax,

starting  T

J

 = 25°C, L = 14mH, R

G

 = 25

, I

AS

 = -6.6A. (See fig.12)

   I

SD



-6.6A, di/dt 620A/µs, V

DD



V

(BR)DSS

, T

J



 175°C.

 Pulse width

300µs; duty cycle  2%.

  When mounted on 1" square PCB (FR-4 or G-10 Material). For recommended footprint and soldering techniques refer to application



note #AN-994



R

 is measured at T

J

 of approximately 90°C

Static @ T

J

 = 25°C (unless otherwise specified)



Parameter Min.

Typ.

Max.

Units

Conditions

V

(BR)DSS

Drain-to-Source Breakdown Voltage

-150  –––  –––

V  V

GS

 = 0V, I

D

 = -250µA

V

(BR)DSS

/

T

J

Breakdown Voltage Temp. Coefficient

–––  -0.20  –––  V/°C  Reference to 25°C, I

D

 = -1mA

R

DS(on)



Static Drain-to-Source On-Resistance

––– ––– 0.29



V

GS

 = -10V, I

D

 = -6.6A 

––– ––– 0.58

V

GS

 = -10V, I

D

 = -6.6A,T

J

 =150°C 

V

GS(th)

Gate Threshold Voltage

-2.0  –––  -4.0

V  V

DS

 = V

GS

, I

D

 = -250µA

g

fs

Forward Trans conductance

3.6  –––  –––

S  V

DS

 = -25V, I

D

 = -6.6A

I

DSS



Drain-to-Source Leakage Current

––– –––  -25

µA

V

DS

 = -150V, V

GS

 = 0V

––– ––– -250

V

DS

 = -120V,V

GS

 = 0V,T

J

 =150°C

I

GSS



Gate-to-Source Forward Leakage

–––  –––  -100

nA

V

GS

 = -20V



Gate-to-Source Reverse Leakage

–––  –––  100

V

GS

 = 20V

Dynamic  Electrical Characteristics @ T

J

 = 25°C (unless otherwise specified)

Q

Total Gate Charge

–––  –––

66

nC

I

D

 = -6.6A

Q

gs

Gate-to-Source Charge

–––  –––

8.1

V

DS

 = -120V

Q

gd

Gate-to-Drain Charge

–––  –––

35

V

GS

 = -10V

t

d(on)

Turn-On Delay Time

–––

14

–––

ns

V

DD

 = -75V

t

Rise Time

–––

36

–––

I

D

 = -6.6A

t

d(off)

Turn-Off Delay Time

–––

53

–––

R

G

= 6.8



t

Fall Time

–––

37

–––

R

D

= 12



L

Internal Source Inductance

–––  7.5

–––

nH

Between lead,6mm (0.25in.)
from package and center
of die contact

C

iss

Input Capacitance

–––  860  –––

pF

V

GS

 = 0V

C

oss

Output Capacitance

–––  220  –––

V

DS

 = -25V

C

rss

Reverse Transfer Capacitance

–––  130  –––

ƒ = 1.0MHz, See Fig.5

Diode Characteristics



        Parameter

Min.  Typ.  Max.  Units

Conditions

I



Continuous Source Current

––– –––  -11

MOSFET symbol

(Body Diode)

showing  the

I

SM



Pulsed Source Current

––– –––  -44

integral reverse

(Body Diode)

p-n junction diode.

V

SD

Diode Forward Voltage

–––  –––  -1.6

V  T

J

 = 25°C,I

= -6.6A,V

GS

 = 0V 

t

rr

Reverse Recovery Time

–––  160  240

ns   T

J

 = 25°C ,I

F

 = -6.6A

Q

rr

Reverse Recovery Charge

–––  1.2

1.7

µC    di/dt = 100A/µs 

t

on

Forward Turn-On Time

Intrinsic turn-on time is negligible (turn-on is dominated by L

S

+L

D

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

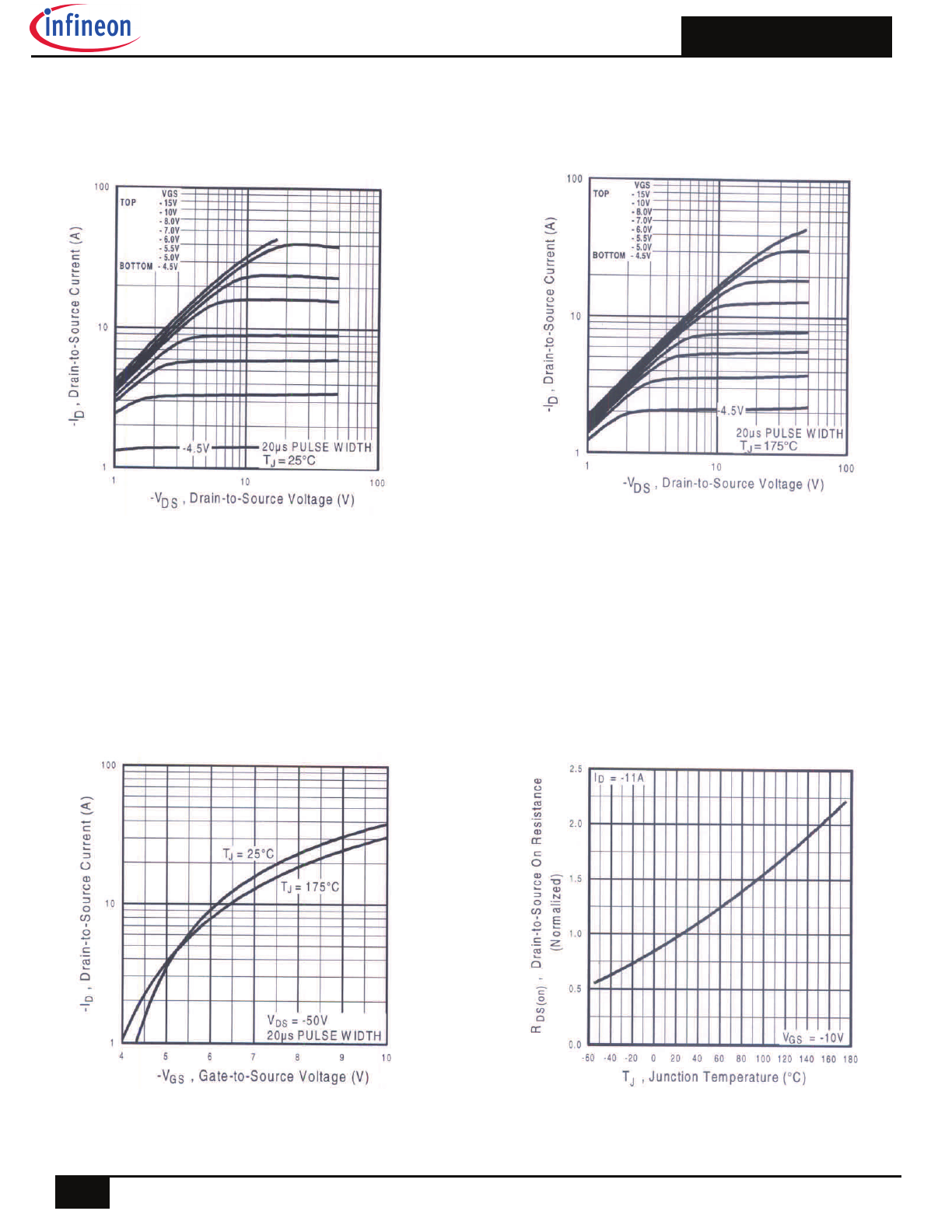

Fig. 2 Typical Output Characteristics

Fig. 3

Typical Transfer Characteristics





Fig. 1 Typical Output Characteristics

Fig. 4 Normalized On-Resistance

vs. Temperature

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

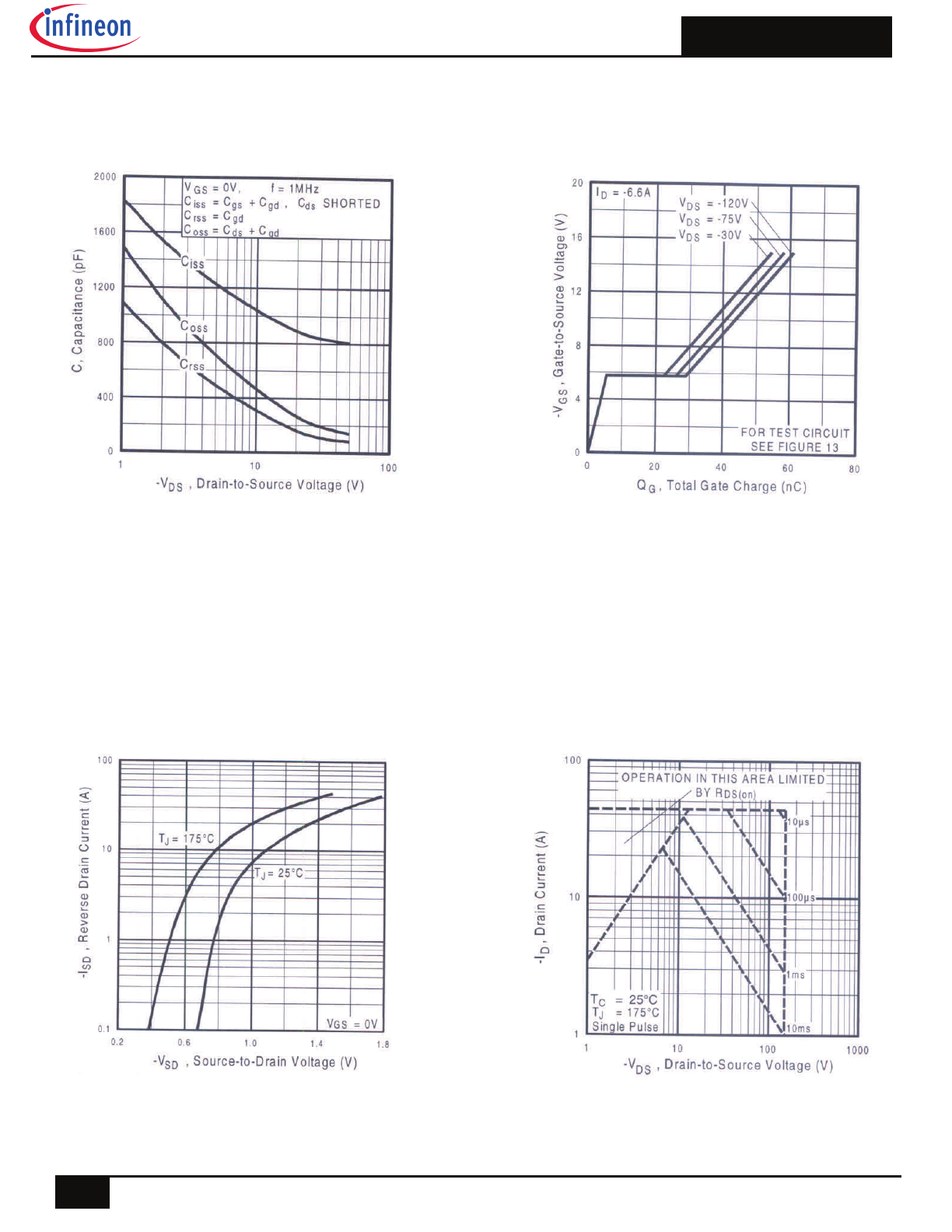

Fig 5.  Typical Capacitance vs. Drain-to-Source Voltage





Fig 8.  Maximum Safe Operating Area

Fig 6.  Typical Gate Charge vs. Gate-to-Source Voltage





Fig. 7 Typical Source-to-Drain Diode

 Forward Voltage

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

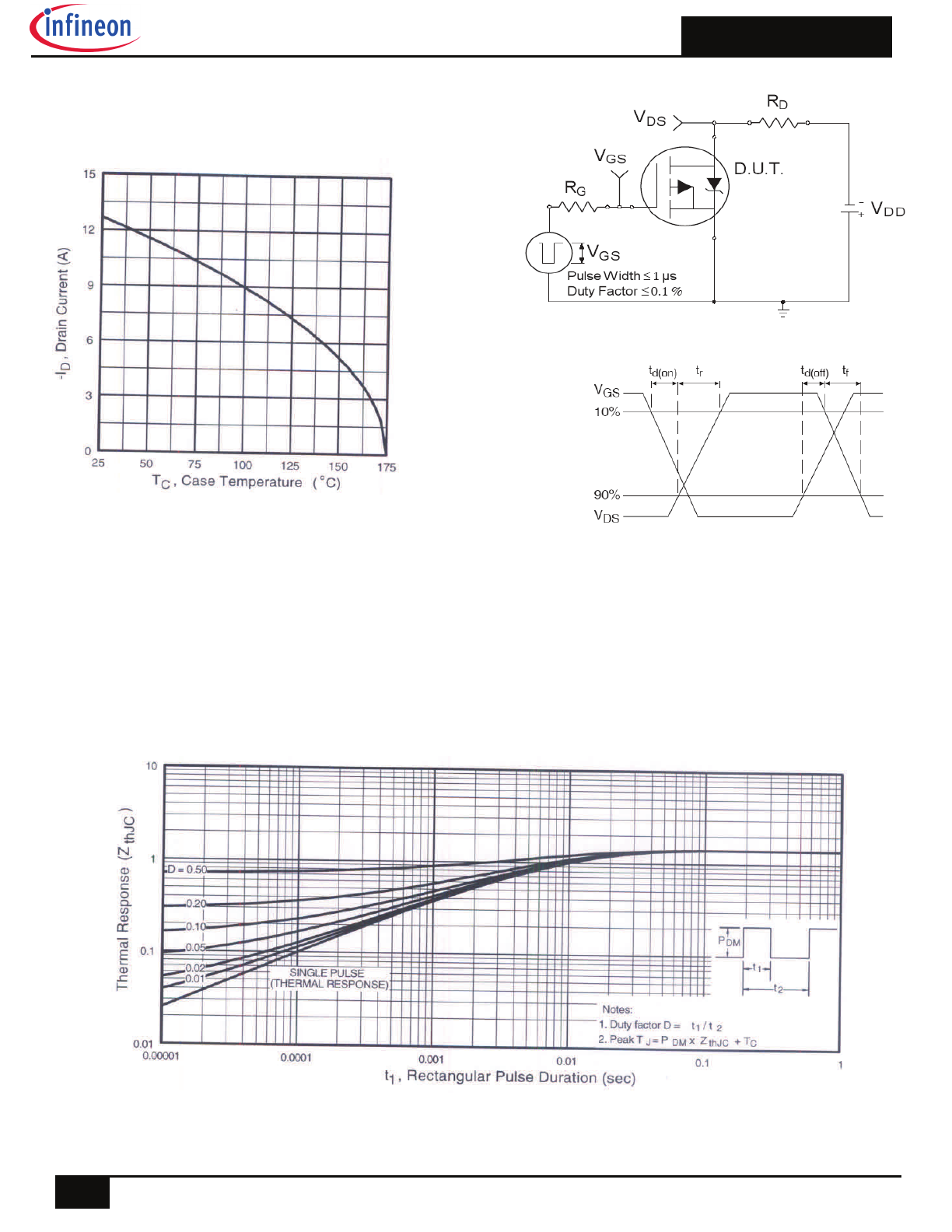

Fig 11.  Maximum Effective Transient Thermal Impedance, Junction-to-Case

Fig 9.  Maximum Drain Current vs.

 Case Temperature

Fig 10a.  Switching Time Test Circuit

Fig 10b.  Switching Time Waveforms

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

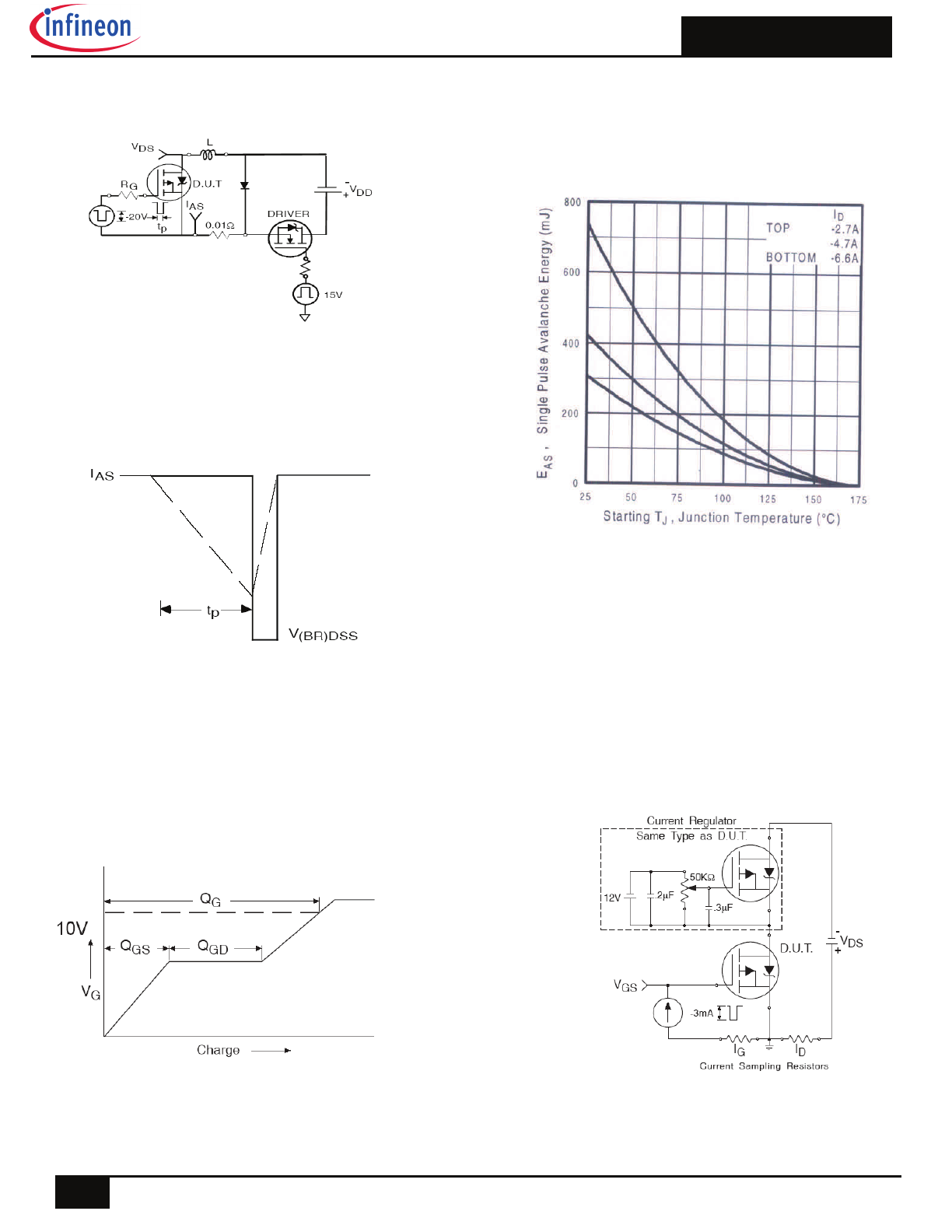

Fig 12c. Maximum Avalanche Energy vs. Drain Current

Fig 12a.  Unclamped Inductive Test Circuit

Fig 12b.  Unclamped Inductive Waveforms

Fig 13b.  Gate Charge Test Circuit

Fig 13a.   Gate Charge Waveform

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

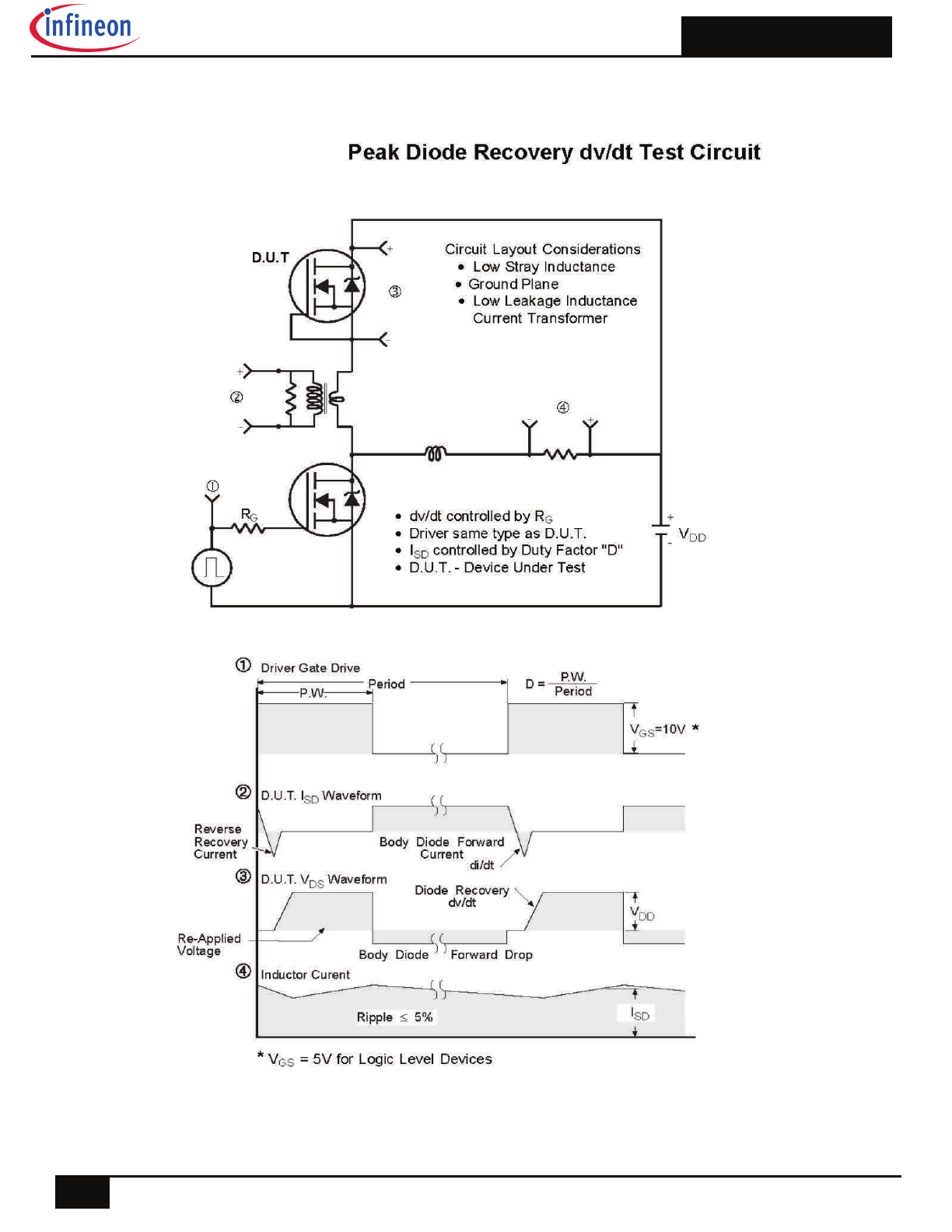

Fig 14. Peak Diode Recovery dv/dt Test Circuit for P-Channel HEXFET® Power MOSFETs

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13



Note: For the most current drawing please refer to IR website at

http://www.irf.com/package/



D

2

Pak (TO-263AB) Part Marking Information

YWWA

XX

    XX

Date Code

Y= Year

WW= Work Week

AUF6215S

Lot Code

Part Number

IR Logo

D

2

Pak (TO-263AB) Package Outline (Dimensions are shown in millimeters (inches))

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S



2015-11-13

D

2

Pak (TO-263AB) Tape & Reel Information (Dimensions are shown in millimeters (inches))

Note: For the most current drawing please refer to IR website at

http://www.irf.com/package/



3

4

4

TRR

FEED DIRECTION

1.85 (.073)
1.65 (.065)

1.60 (.063)
1.50 (.059)

4.10 (.161)
3.90 (.153)

TRL

FEED DIRECTION

10.90 (.429)
10.70 (.421)

16.10 (.634)
15.90 (.626)

1.75 (.069)
1.25 (.049)

11.60 (.457)
11.40 (.449)

15.42 (.609)
15.22 (.601)

4.72 (.136)
4.52 (.178)

24.30 (.957)
23.90 (.941)

0.368 (.0145)
0.342 (.0135)

1.60 (.063)
1.50 (.059)

13.50 (.532)
12.80 (.504)

330.00
(14.173)
  MAX.

27.40 (1.079)
23.90 (.941)

60.00 (2.362)
      MIN.

30.40 (1.197)
      MAX.

26.40 (1.039)
24.40 (.961)

NOTES :
1.   COMFORMS TO EIA-418.
2.   CONTROLLING DIMENSION: MILLIMETER.
3.   DIMENSION MEASURED @ HUB.
4.   INCLUDES FLANGE DISTORTION @ OUTER EDGE.

/var/www/html/datasheet/sites/default/files/pdfhtml_dummy/auirf6215s-html.html
background image



AUIRF6215S

10



2015-11-13



†  Highest passing voltage.

Published by
Infineon Technologies AG
81726 München, Germany

©

Infineon Technologies AG 2015

All Rights Reserved.

IMPORTANT NOTICE

The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics
(“Beschaffenheitsgarantie”). With respect to any examples, hints or any typical values stated herein and/or any
information regarding the application of the product, Infineon Technologies hereby disclaims any and all warranties and
liabilities of any kind, including without limitation warranties of non-infringement of intellectual property rights of any third
party.
In addition, any information given in this document is subject to customer’s compliance with its obligations stated in this
document and any applicable legal requirements, norms and standards concerning customer’s products and any use of
the product of Infineon Technologies in customer’s applications.
The data contained in this document is exclusively intended for technically trained staff. It is the responsibility of
customer’s technical departments to evaluate the suitability of the product for the intended application and the
completeness of the product information given in this document with respect to such application.
For further information on the product, technology, delivery terms and conditions and prices please contact your nearest
Infineon Technologies office (

www.infineon.com

).

WARNINGS
Due to technical requirements products may contain dangerous substances. For information on the types in question
please contact your nearest Infineon Technologies office.
Except as otherwise explicitly approved by Infineon Technologies in a written document signed by authorized
representatives of Infineon Technologies, Infineon Technologies’ products may not be used in any applications where a
failure of the product or any consequences of the use thereof can reasonably be expected to result in personal injury.

Qualification Information

Qualification Level

Automotive

(per AEC-Q101)

Comments: This part number(s) passed Automotive qualification. Infineon’s
Industrial and Consumer qualification level is granted by extension of the higher
Automotive level.

D

2

-Pak

MSL1

ESD

Machine Model

Class M3 (+/- 400V)





AEC-Q101-002

Human Body Model

Class H1B (+/- 1000V)





AEC-Q101-001

Charged Device Model

Class C5 (+/- 1125V)





AEC-Q101-005

RoHS Compliant

Yes

 Moisture Sensitivity Level

Revision History

Date Comments

11/13/2015



Updated datasheet with corporate template



Corrected ordering table on page 1.
