General Description
The USB2642 is a USB 2.0 compliant, hi-speed hub
and card reader combo solution. This fully-integrated,
single chip solution provides USB expansion and flash
media reader/writer integration. The Microchip
USB2642 provides an ultra fast interface between a
USB host and today’s popular flash media formats. The
controller allows read/write capability to flash media
including the following:
• Secure Digital
TM
(SD)
• SD High Capacity
TM
(SDHC)
• SD Extended Capacity
TM
(SDXC)
• MultiMediaCard
TM
(MMC)
• Embedded MultiMediaCard
TM
(eMMC)
The USB2642 offers a versatile, cost-effective and
energy-efficient hub controller with 2 downstream USB
2.0 ports and a flash media interface. The flash media
interface can support sustained transfer rates exceed-
ing 35 MB/s.
Additionally, the USB2642 provides an I
2
C
TM
over USB
bridge and an SD over USB bridge. The I
2
C bridge
allows for control of any I
2
C slave device operating at
50KHz serial clock.
Highlights
• PortMap
- Flexible port mapping and port disable
sequencing supports multiple platform
designs
• PortSwap
- Programmable USB differential-pair pin loca-
tions eases PCB design by aligning USB sig-
nal traces directly to connectors
• PHYBoost
- Programmable USB transceiver drive
strength recovers signal integrity
Features
• Single-chip USB 2.0 hub controller with 2
exposed hi-speed downstream ports
• The dedicated flash media reader is internally
attached to a 3rd downstream port of the hub as a
USB compound device
• Hub and flash media reader/writer configuration
from a single source:
- Configures internal code using an external
SPI ROM
- Supports execution of external code from SPI
Flash EEPROM
- Supports custom vendor, product, and lan-
guage ID when using an external EEPROM
• Supports full power management with individual
or ganged power control of each downstream port
• Transaction Translator (TT) in the hub supports
operation of FS and LS peripherals
• Single 24 MHz crystal support
• Control of peripheral I
2
C devices by USB host.
• Supports internally or externally regulated 1.8 V
core voltage operation
• Supports storage addressability of up to 2TB
• RoHS compliant package
- USB2642: 48-pin (7x7 mm²) QFN
• Temperature ranges:
- Commercial Range (0 ºC to +70 ºC)
- Industrial Range (-40 ºC to +85 ºC)
Target Applications
• Desktop and mobile PCs
• Monitors and televisions
• Mobile PC docking
• Consumer A/V
• Media players/viewers
• Printers
• Flash media card readers/writers
USB2642
USB 2.0 Hub and Flash Media Card Controller Combo
USB2642
DS00001578D-page 2
2014-2018 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2014-2018 Microchip Technology Inc.
DS00001578D-page 3
USB2642
Table of Contents
1.0 Overview ......................................................................................................................................................................................... 4
2.0 Block Diagram ................................................................................................................................................................................. 6
3.0 USB2642 Pin Configuration ............................................................................................................................................................ 7
4.0 Pin Table ......................................................................................................................................................................................... 8
5.0 Pin Descriptions .............................................................................................................................................................................. 9
6.0 Pin Reset States ........................................................................................................................................................................... 17
7.0 Configuration Options ................................................................................................................................................................... 19
8.0 DC Parameters ............................................................................................................................................................................. 42
9.0 AC Specifications .......................................................................................................................................................................... 46
10.0 Package Outlines ........................................................................................................................................................................ 48
11.0 Revision History .......................................................................................................................................................................... 50
Appendix A: Acronyms ........................................................................................................................................................................ 51
Appendix B: References ..................................................................................................................................................................... 52
The Microchip Web Site ...................................................................................................................................................................... 53
Customer Change Notification Service ............................................................................................................................................... 53
Customer Support ............................................................................................................................................................................... 53
Product Identification System ............................................................................................................................................................. 54
USB2642
DS00001578D-page 4
2014-2018 Microchip Technology Inc.
1.0
OVERVIEW
1.1
Introduction
The USB2642 offers a USB 2.0 compliant, versatile, cost-effective and energy-efficient hi-speed hub controller with 2
downstream USB ports and an SD/MMC flash media card interface. The dedicated flash media reader is internally
attached to a 3rd downstream port of the hub as a USB compound device. This combo solution supports today’s popular
multi-format flash media card formats. The flash media interface can support sustained transfer rates exceeding 35 MB/
s if the media and host support those rates.
The USB2642 also provides I
2
C over USB. The I
2
C bridge allows for control of any I
2
C device operating at 50kHz clock.
The USB2642 will attach to an upstream port as either a full-speed or full-/hi-speed hub. The hub supports low-speed,
full-speed, and hi-speed (if operating as a full-/hi-speed hub) downstream devices on all of the enabled downstream
ports.
All required resistors on the USB ports are integrated into the hub. This includes all series termination resistors on D+
and D- pins and all required pull-down and pull-up resistors. The over-current sense inputs for the downstream facing
ports have internal pull-up resistors.
The USB2642 includes programmable features such as:
PortMap
which provides flexible port mapping and disable sequences. The downstream ports of a USB2642 hub can
be reordered or disabled in any sequence to support multiple platform designs with minimum effort. For any port that is
disabled, the USB2642 automatically reorders the remaining ports to match
the USB host controller’s port numbering scheme.
PortSwap
which adds per-port programmability to USB differential-pair pin
locations. PortSwap allows direct alignment of USB signals (D+/D-) to con-
nectors avoiding uneven trace length or crossing of the USB differential sig-
nals on the PCB.
PHYBoost
which enables four programmable levels of USB signal drive
strength in downstream port transceivers. PHYBoost attempts to restore USB

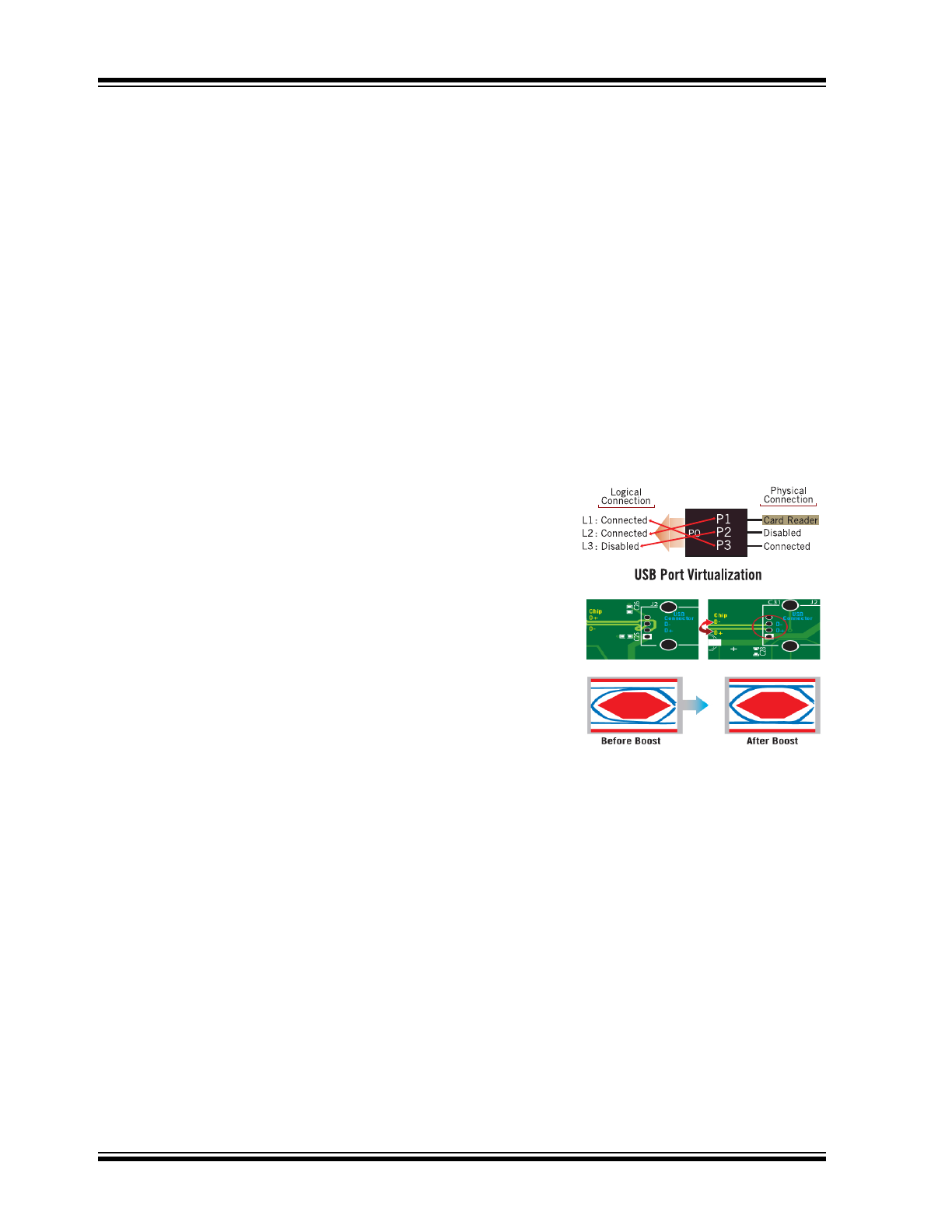

signal integrity. The diagram on the right shows an example of Hi-Speed USB
eye diagrams before (PHYBoost at 0%) and after (PHYBoost at 12%) signal
integrity restoration in a compromised system environment.
2014-2018 Microchip Technology Inc.
DS00001578D-page 5
USB2642
1.2
Device Features
1.2.1
HARDWARE FEATURES
• Single-chip hub, flash media controller, and I
2
C device control over USB
• Supports commercial (0 °C to +70 °C) and industrial (-40 °C to +85 °C) temperature ranges
• Transaction Translator (TT) in the hub supports operation of FS and LS peripherals
• Full power management with individual or ganged power control of each downstream port
• Optional support for external firmware access via SPI
• Code execution via SPI ROM which must meet the following qualifications:
- 60 MHz operation support
- Single bit or dual bit mode support
- Mode 0 or mode 3 SPI support
Compliant with the following flash media card specifications:
• Secure Digital 2.0
- SDSC, SDHC, and SDXC
- microSD and reduced form factor media
- Supports storage addressability of up to 2TB
• MultiMediaCard 4.2
- 1/4/8 bit
- Includes support for eMMC devices
• Control of I
2
C device using the I
2
C over USB bridge
• Supports internal regulator for 1.8 V core operation
• Supports external regulator for 1.8 V core operation
1.2.2
CONFIGURABLE FEATURES
Default configuration is loaded by USB2642 following a reset. The USB2642 may also be configured by an external I
2
C
EEPROM or external SPI ROM flash, where the following features are supported:
• Customizable vendor ID, product ID, and device ID
• 12-hex digits maximum for the serial number string
• 29-character manufacturer ID and product strings for flash media reader/writer
• Compound device support on a port-by-port basis a port is permanently hardwired to a downstream USB periph-
eral device
• Select over-current sensing and port power control on an individual or ganged (all ports together) basis to match
the circuit board component selection
• Port power control and over-current detection/delay features
• Configure the delay time for filtering the over-current sense inputs
• Configure the delay time for turning on downstream port power
• Bus- or self-powered selection
• Hub port disable of non-removable configurations
• Flexible port mapping and disable sequencing supports multiple platform designs
• Programmable USB differential-pair pin location selection eases PCB layout by aligning USB signal lines directly
to connectors
• Programmable USB signal drive strength improves USB signal integrity using 4 levels of signal drive strength
• Indicate the maximum current that the 2-port hub consumes from the USB upstream port
• Manage the maximum current required for the hub controller
USB2642
DS00001578D-page 6
2014-2018 Microchip Technology Inc.
