Highlights
• Integrated USB 2.0 Compatible 4-Port Hub
- 4 Transaction Translators for highest perfor-
mance
- High-Speed (480Mbits/s), Full-Speed
(12Mbits/s) and Low-Speed (1.5Mbits/s)
compatible
- Full power management with per port or
ganged, selectable power control
- Detects Bus-Power/Self-Power source and
changes mode automatically
• Complete USB Specification 2.0 Compatibility
- Includes USB 2.0 Transceivers
• VID/PID/DID, and Port Configuration for Hub via:
- Single Serial I
2
C EEPROM
- SMBus Slave Port
• Default VID/PID/DID, allows functionality when
configuration EEPROM is absent
• Hardware Strapping options allow for configura-
tion without an external EEPROM or SMBus Host
• On-Board 24MHz Crystal Driver Circuit or 24 MHz
external clock driver
• Internal PLL for 480MHz USB 2.0 Sampling
• Internal 1.8V Linear Voltage Regulator
• Integrated USB termination and Pull-up/Pull-down
resistors
• Internal Short Circuit protection of USB differential
signal pins
• 1.8 Volt Low Power Core Operation
• 3.3 Volt I/O with 5V Input Tolerance
• 64-Pin LQFP RoHS compliant package
USB2504/USB2504A
Integrated USB 2.0 Compatible 4-Port Hub
USB2504/USB2504A
DS000002250A-page 2
2007 - 2016 Microchip Technology Inc.
TO OUR VALUED CUSTOMERS
It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip
products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and
enhanced as new volumes and updates are introduced.
If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via
E-mail at
docerrors@microchip.com
. We welcome your feedback.
Most Current Data Sheet
To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:
http://www.microchip.com
You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page.
The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).
Errata
An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for cur-
rent devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the
revision of silicon and revision of document to which it applies.
To determine if an errata sheet exists for a particular device, please check with one of the following:
• Microchip’s Worldwide Web site;
http://www.microchip.com
• Your local Microchip sales office (see last page)
When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are
using.
Customer Notification System
Register on our web site at
www.microchip.com
to receive the most current information on all of our products.
2007 - 2016 Microchip Technology Inc.
DS000002250A-page 3
USB2504/USB2504A
Table of Contents
1.0 Introduction ..................................................................................................................................................................................... 4
2.0 Pin Table 4-Port .............................................................................................................................................................................. 5
3.0 Pin Configuration 4-Port Hub .......................................................................................................................................................... 6
4.0 4-Port Hub Block Diagram .............................................................................................................................................................. 7
5.0 Functional Block Description ......................................................................................................................................................... 12
6.0 Backward Compatibility to the USB20H04 .................................................................................................................................... 30
7.0 XNOR Test .................................................................................................................................................................................... 31
8.0 DC Parameters ............................................................................................................................................................................. 32
9.0 AC Specifications .......................................................................................................................................................................... 36
10.0 Package Outline .......................................................................................................................................................................... 37
Appendix A: Data Sheet Revision History ........................................................................................................................................... 38
The Microchip Web Site ...................................................................................................................................................................... 39
Customer Change Notification Service ............................................................................................................................................... 39
Customer Support ............................................................................................................................................................................... 39
Product Identification System ............................................................................................................................................................. 40
USB2504/USB2504A
DS000002250A-page 4
2007 - 2016 Microchip Technology Inc.
1.0
INTRODUCTION
The Microchip 4-Port Hub is fully compliant with the USB 2.0 Specification and will attach to a USB host as a Full-Speed
Hub or as a Full-/High-Speed Hub. The 4-Port Hub supports Low-Speed, Full-Speed, and High-Speed (if operating as
a High-Speed Hub) downstream devices on all of the enabled downstream ports.
A dedicated Transaction Translator (TT) is available for each downstream facing port. This architecture ensures maxi-
mum USB throughput for each connected device when operating with mixed-speed peripherals.
The Hub works with an external USB power distribution switch device to control V
BUS
switching to downstream ports,
and to limit current and sense over-current conditions.
All required resistors on the USB ports are integrated into the Hub. This includes all series termination resistors on D+
and D– pins and all required pull-down and pull-up resistors on D+ and D– pins. The over-current sense inputs for the
downstream facing ports have internal pull-up resistors.
Throughout this document the upstream facing port of the hub will be referred to as the upstream port, and the down-
stream facing ports will be called the downstream ports.
1.1
OEM Selectable Features
A default configuration is available in the USB2504/USB2504A following a reset. This configuration may be sufficient
for some applications. Strapping option pins make it possible to modify a limited sub-set of the configuration options.
The USB2504/USB2504A may also be configured by an external EEPROM or a microcontroller. When using the micro-
controller interface, the Hub appears as an SMBus slave device. If the Hub is pin-strapped for external EEPROM con-
figuration but no external EEPROM is present, then a value of ‘0’ will be written to all configuration data bit fields (the
hub will attach to the host with all ‘0’ values).
The 4-Port Hub supports several OEM selectable features:
• Operation as a Self-Powered USB Hub or as a Bus-Powered USB Hub.
• Operation as a Dynamic-Powered Hub (Hub operates as a Bus-Powered device if a local power source is not
available and switches to Self-Powered operation when a local power source is available).
• Multiple Transaction Translator (Multi-TT) or Single-TT support.
• Optional OEM configuration via I
2
C EEPROM or via the industry standard SMBus interface from an external
SMBus Host.
• Port power switching on an individual or ganged basis.
• Port over-current monitoring on an individual or ganged basis.
• LED indicator support.
• Compound device support (port is permanently hardwired to a downstream USB peripheral device).
• Hardware strapping options enable configuration of the following features.
- Non-Removable Ports
- Port Power Polarity (active high or active low logic)
- Port Disable
- LED support
- MTT enable
- Ganged Vs Port power switching and over-current sensing
2007 - 2016 Microchip Technology Inc.
DS000002250A-page 5
USB2504/USB2504A
2.0
PIN TABLE 4-PORT
TABLE 2-1:
4-PORT PIN TABLE FOR 64-LQFP
UPSTREAM USB 2.0 INTERFACE (3 PINS)
USBDP0
USBDN0
VBUS_DET
4-PORT USB 2.0 INTERFACE (26 PINS)
USBDP1
USBDN1
USBDP2
USBDN2
USBDP3
USBDN3
USBDP4
USBDN4
GR1/
NON_REM0
GR2/
NON_REM1
GR3/
PRT_DIS0
GR4/
PRT_DIS1
AM1/
GANG_EN
AM2/
MTT_EN
AM3
AM4/
LED_EN
PRTPWR1
PRTPWR2
PRTPWR3
PRTPWR4
OCS1_N
OCS2_N
OCS3_N
OCS4_N
PRTPWR_POL
RBIAS
SERIAL PORT INTERFACE (5 PINS)
SDA/SMBDATA
SCL/SMBCLK/
CFG_SEL2
CFG_SEL1
CFG_SEL0
MISC (8 PINS)
XTAL1/CLKIN
XTAL2
RESET_N
SELF_PWR
ATEST/
REG_EN
CLKIN_EN
TEST1
TEST0
POWER, GROUND (17 PINS) AND (5) NO CONNECT
USB2504/USB2504A
DS000002250A-page 6
2007 - 2016 Microchip Technology Inc.
3.0
PIN CONFIGURATION 4-PORT HUB

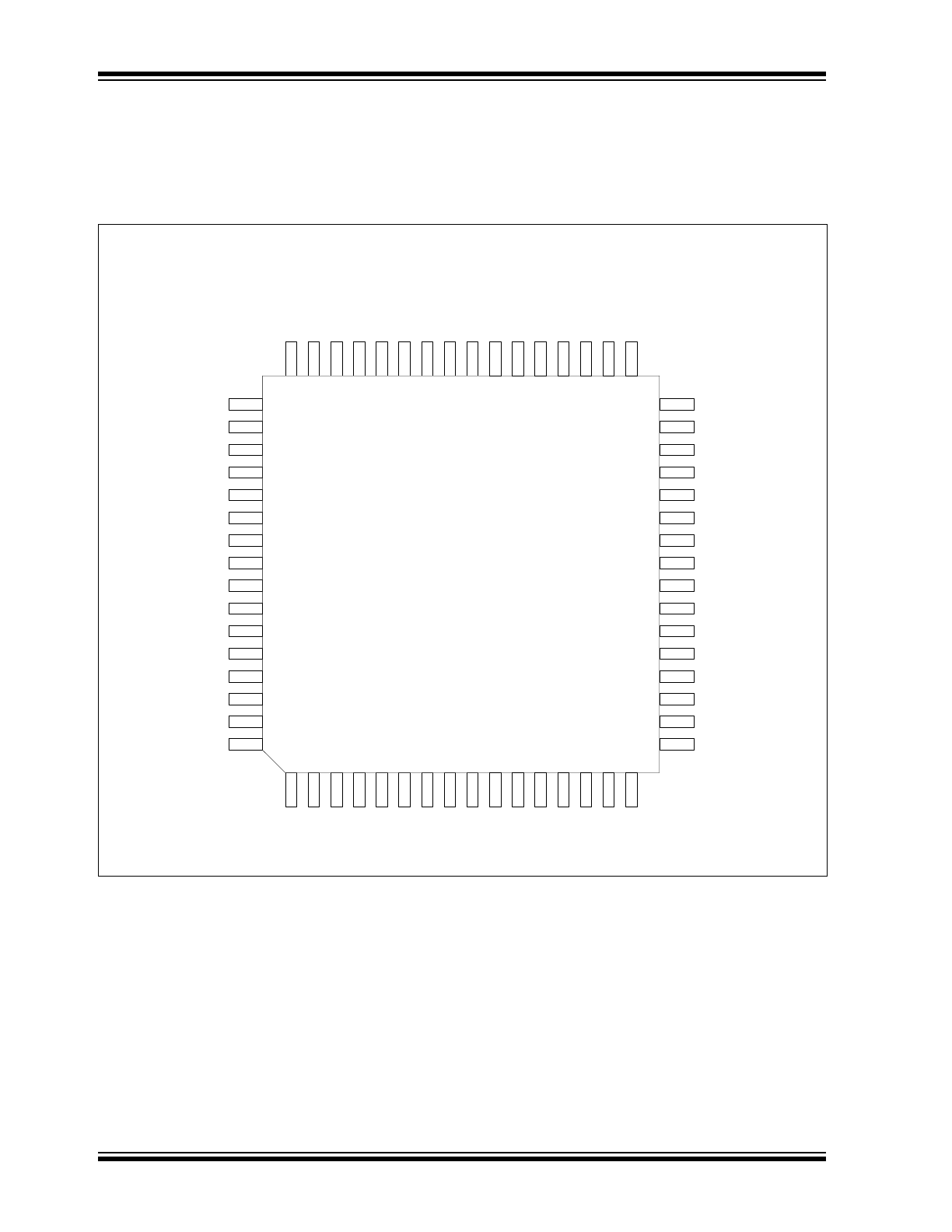

FIGURE 3-1:
4-PORT 64-PIN LQFP
CFG_SEL1
RESET_N
SELF_PWR
VBUS_DET
VSS
VDD18
VSS
NC
XTAL2
TEST0
NC
VDD18
VSS
GR1/NON_REM0
VDD33
AM1/GANG_EN
GR2/NON_REM1
AM2/MTT_EN
OCS3
_
N
PRTP
W
R
2
OCS2
_
N
VDD1
8
VSS
CL
K
IN_EN
TE
ST
1
OCS1
_
N
PRTPW
R
1
USBDP0
VDDA33
USBDN0
VSS
USBDP1
USBDN1
VDDA3
3
USBDP2
USBDN2
USB2504 &
USB2504A
49
64
32
17
16
48
33
XTAL1/CLKIN
CFG_SEL2
VDDA18PLL
VSS
USBDN3
USBDP3
PRTPWR_POL
GR3/PRT_DIS0
AM3
PRTP
W
R
4
PRTPW
R
3
OCS4
_
N
VDDA33PLL
1
ATEST/REG_EN
RBIAS
VSS
VDDA33
USBDP4
USBDN4
VSS
GR4/PRT_DIS1
AM4/LED_EN
NC
NC
CFG_
SEL
0
NC
SCL/SMBCL
K
SDA/
S
M
BDATA
