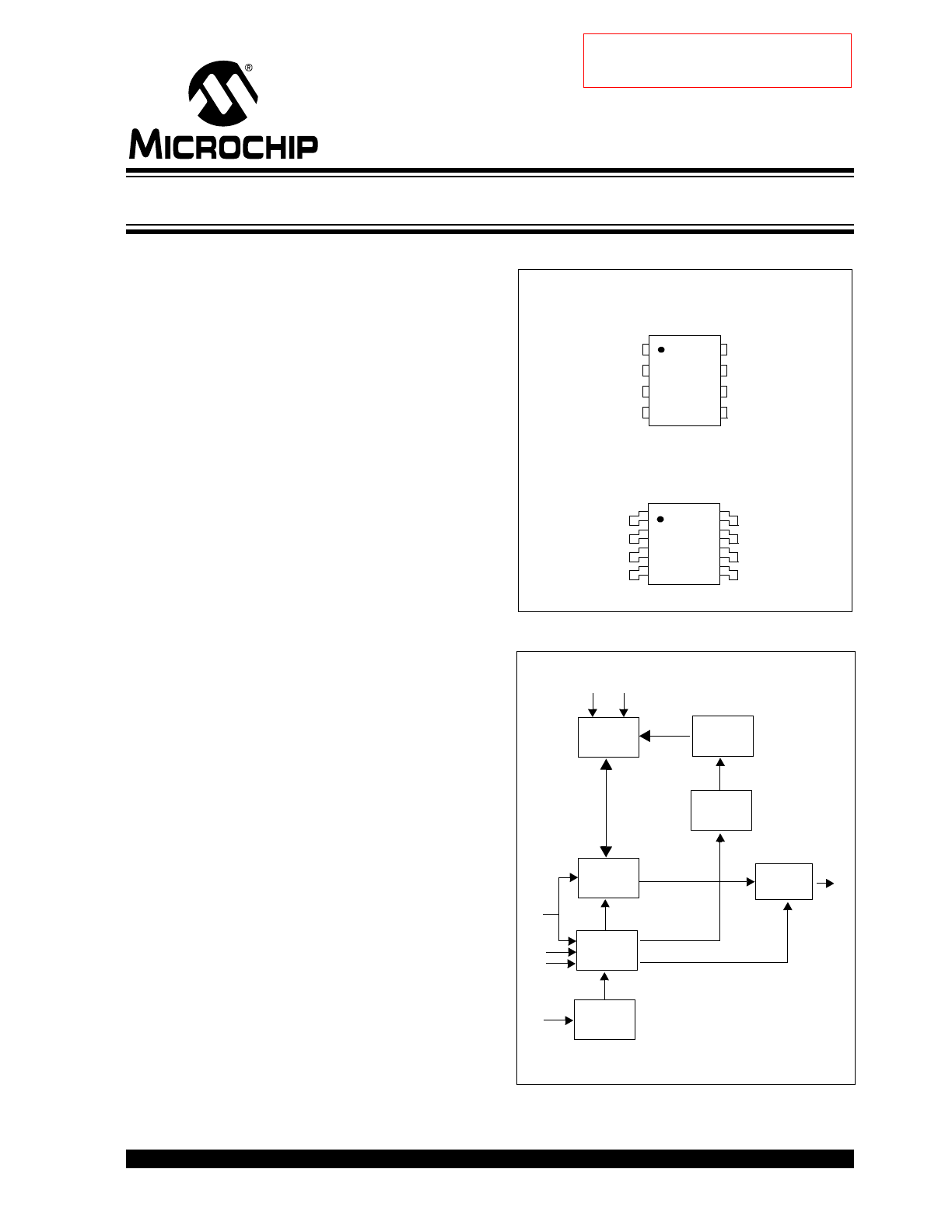

93C76/86

Features:

• Single 5.0V supply

• Low-power CMOS technology

- 1 mA active current typical

• ORG pin selectable memory configuration

1024 x 8- or 512 x 16-bit organization (93C76)
2048 x 8- or 1024 x 16-bit organization (93C86)

• Self-timed erase and write cycles

(including auto-erase)

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device status signal during erase/write cycles

• Sequential read function

• 1,000,000 erase/write cycles ensured

• Data retention > 200 years

• 8-pin PDIP/SOIC package

• Temperature ranges supported

Description:

The Microchip Technology Inc. 93C76/86 are 8K and
16K low voltage serial Electrically Erasable PROMs.
The device memory is configured as x8 or x16 bits
depending on the ORG pin setup. Advanced CMOS
technology makes these devices ideal for low power
nonvolatile memory applications. These devices also
have a Program Enable (PE) pin to allow the user to
write protect the entire contents of the memory array.
The 93C76/86 is available in standard 8-pin PDIP and
8-pin surface mount SOIC packages.

Package Types

Block Diagram

- Commercial (C):

0°C

to

+70°C

- Industrial (I):

-40°C to

+85°C

- Automotive (E)

-40°C to  +125°C

SOIC Package

PDIP Package

CS

CLK

DI

DO

V

SS

PE

V

CC

ORG

CS

CLK

DI

DO

V

CC

PE
ORG
V

SS

93
C

7

6/

8

6

93
C

7

6/8
6

1

2

3

4

8

7

6
5

1

2

3

4

8

7

6
5

DO

CS

CLK

V

CC

V

SS

Memory

Array

Address

Decoder

Data

Register

Counter

Address

Output

Buffer

Mode

Decode

Logic

Generator

Clock

DI

PE

8K/16K 5.0V Microwire Serial EEPROM

Not recommended for new designs –

Please use 93LC76C or 93LC86C.

93C76/86

DS21132F-page 2

 1996-2012 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................7.0V

All inputs and outputs w.r.t. V

SS

  ........................................................................................................ -0.6V to Vcc + 1.0V

Storage temperature ...............................................................................................................................-65°C to +150°C

Ambient temperature with power applied ................................................................................................-40°C to +125°C

Soldering temperature of leads (10 seconds) ....................................................................................................... +300°C

ESD protection on all pins .......................................................................................................................................... 4 kV

1.1

AC Test Conditions

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

AC Waveform:

V

LO

 = 2.0V

V

HI

 = Vcc - 0.2V

(Note 1)

V

HI

 = 4.0V for

(Note 2)

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1:

For V

CC

 4.0V

2:

For V

CC

 > 4.0V

 1996-2012 Microchip Technology Inc.

DS21132F-page 3

93C76/86

TABLE 1-1:

DC CHARACTERISTICS

TABLE 1-2:

AC CHARACTERISTICS

DC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

High-level input voltage

V

IH1

2.0

V

CC

 +1

V

—

Low-level input voltage

V

IL1

-0.3

0.8

V

—

Low-level output voltage

V

OL1

—

0.4

V

I

OL

 = 2.1 mA; V

CC

 = 4.5V

V

OL2

—

0.2

V

I

OL

 =100

A; V

CC

 = 4.5V

High-level output voltage

V

OH1

2.4

—

V

I

OH

 = -400

A; V

CC

 = 4.5V

V

OH2

V

CC

-0.2

—

V

I

OH

 = -100

A; V

CC

 = 4.5V.

Input leakage current

I

LI

-10

10

A

V

IN

= 0.1V to V

CC

Output leakage current

I

LO

-10

10

A

V

OUT

 = 0.1V to V

CC

Pin capacitance
(all inputs/outputs)

C

INT

—

7

pF

(Note 1)
 T

A

 = +25°C, F

CLK

 = 1 MHz

Operating current

I

CC

 write

—

3

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

I

CC

 read

—

1.5

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

Standby current

I

CCS

—

100

A

CLK  =  CS  =  0V;  V

CC

 = 5.5V

DI = PE = V

SS

ORG = V

SS

 or V

CC

Note 1:

This parameter is periodically sampled and not 100% tested.

AC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

Clock frequency

F

CLK

—

2

MHz

Vcc

 4.5V

Clock high time

T

CKH

300

—

ns

Clock low time

T

CKL

200

—

ns

Chip select setup time

T

CSS

50

—

ns

Relative to CLK

Chip select hold time

T

CSH

0

—

ns

Chip select low time

T

CSL

250

—

ns

Relative to CLK

Data input setup time

T

DIS

100

—

ns

Relative to CLK

Data input hold time

T

DIH

100

—

ns

Relative to CLK

Data output delay time

T

PD

—

400

ns

C

L

= 100 pF

Data output disable time

T

CZ

—

100

ns

(Note 1)

Status valid time

T

SV

—

500

ns

 C

L

 = 100 pF

Program cycle time

T

WC

—

10

ms

Erase/Write mode (Note 2)

T

EC

—

15

ms

ERAL mode

T

WL

—

30

ms

WRAL  mode

Endurance

—

1M

—

cycles

25°C, V

CC

 = 5.0V, Block mode

(Note 3)

Note 1:

This parameter is periodically sampled and not 100% tested.

2:

Typical program cycle is 4 ms per word.

3:

This parameter is not tested but ensured by characterization. For endurance estimates in a specific
application, please consult the Total Endurance

™

 Model which can be obtained from Microchip’s web site

at www.microchip.com.

93C76/86

DS21132F-page 4

 1996-2012 Microchip Technology Inc.

TABLE 1-3:

INSTRUCTION SET FOR 93C76: ORG=1 (X16 ORGANIZATION)

TABLE 1-4:

INSTRUCTION SET FOR 93C76: ORG=0 (X8 ORGANIZATION)

TABLE 1-5:

INSTRUCTION SET FOR 93C86: ORG=1 (X16 ORGANIZATION)

TABLE 1-6:

INSTRUCTION SET FOR 93C86: ORG=0 (X8 ORGANIZATION)

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X   X   X

—

High-Z

13

ERASE

1

11

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X   X   X

—

(RDY/BSY)

13

WRITE

1

01

X A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK

Cycles

READ

1

10

X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X  X  X

—

High-Z

13

ERASE

1

11

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X  X  X

—

(RDY/BSY)

13

WRITE

1

01

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

 1996-2012 Microchip Technology Inc.

DS21132F-page 5

93C76/86

2.0

PRINCIPLES OF OPERATION

When the ORG pin is connected to V

CC

, the x16 orga-

nization is selected. When it is connected to ground,
the x8 organization is selected. Instructions, addresses
and write data are clocked into the DI pin on the rising
edge of the clock (CLK). The DO pin is normally held in
a high-Z state except when reading data from the
device, or when checking the Ready/Busy status
during a programming operation. The Ready/Busy
status can be verified during an erase/write operation
by polling the DO pin; DO low indicates that program-
ming is still in progress, while DO high indicates the
device is ready. The DO will enter the high-impedance
state on the falling edge of the CS.

2.1

Start Condition

The Start bit is detected by the device if CS and DI are
both high with respect to the positive edge of CLK for
the first time.

Before a Start condition is detected, CS, CLK and DI
may change in any combination (except to that of a
Start condition), without resulting in any device opera-
tion (Read, Write, Erase, EWEN, EWDS, ERAL and
WRAL). As soon as CS is high, the device is no longer
in the Standby mode.

An instruction following a Start condition will only be
executed if the required amount of opcode, address
and data bits for any particular instruction are clocked
in.

After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become “don't care” bits until a new Start condition is
detected.

2.2

DI/DO

It is possible to connect the Data In and Data Out pins
together. However, with this configuration it is possible
for a “bus conflict” to occur during the “dummy zero”
that precedes the read operation, if A0 is a logic high
level. Under such a condition the voltage level seen at
Data Out is undefined and will depend upon the relative
impedances of Data Out and the signal source driving
A0. The higher the current sourcing capability of A0,
the higher the voltage at the Data Out pin.

2.3

Erase/Write Enable and Disable
(EWEN, EWDS)

The 93C76/86 powers up in the Erase/Write Disable
(EWDS) state. All programming modes must be
preceded by an Erase/Write Enable (EWEN) instruction.
Once the EWEN instruction is executed, programming
remains enabled until an EWDS instruction is executed
or V

CC

 is removed from the device. To protect against

accidental data disturb, the EWDS instruction can be
used to disable all erase/write functions and should
follow all programming operations. Execution of a READ
instruction is independent of both the EWEN and EWDS
instructions.

2.4

Data Protection

During power-up, all programming modes of operation
are inhibited until V

CC

 has reached a level greater than

1.4V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
V

CC

 has fallen below 1.4V.

The EWEN and EWDS commands give additional
protection against accidentally programming during
normal operation.

After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.

93C76/86

DS21132F-page 6

 1996-2012 Microchip Technology Inc.

3.0

DEVICE OPERATION

3.1

Read

The  READ instruction outputs the serial data of the
addressed memory location on the DO pin. A dummy
zero bit precedes the 16-bit (x16 organization) or 8-bit
(x8 organization) output string. The output data bits will
toggle on the rising edge of the CLK and are stable
after the specified time delay (T

PD

). Sequential read is

possible when CS is held high and clock transitions
continue. The memory address pointer will automati-
cally increment and output data sequentially.

3.2

Erase

The  ERASE instruction forces all data bits of the
specified address to the logical “1” state. The self-timed
programming cycle is initiated on the rising edge of
CLK as the last address bit (A0) is clocked in. At this
point, the CLK, CS and DI inputs become “don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been erased and the device is ready for
another instruction.

The erase cycle takes 3 ms per word (typical).

3.3

Write

The  WRITE instruction is followed by 16 bits (or by 8
bits) of data to be written into the specified address.
The self-timed programming cycle is initiated on the
rising edge of CLK as the last data bit (D0) is clocked
in. At this point, the CLK, CS and DI inputs become
“don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been written and the device is ready for
another instruction.

The write cycle takes 3 ms per word (typical).

3.4

Erase All (ERAL)

The ERAL instruction will erase the entire memory array
to the logical “1” state. The ERAL cycle is identical to
the erase cycle except for the different opcode. The
ERAL cycle is completely self-timed and commences
on the rising edge of the last address bit (A0). Note that
the Least Significant 8 or 9 address bits are "don’t care"
bits, depending on selection of x16 or x8 mode. Clock-
ing of the CLK pin is not necessary after the device has
entered the self clocking mode. The ERAL instruction is
ensured at Vcc = +4.5V to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
erased and is ready for another instruction.

The ERAL cycle takes 15 ms maximum (8 ms typical).

3.5

Write All (WRAL)

The WRAL instruction will write the entire memory array
with the data specified in the command. The WRAL
cycle is completely self-timed and commences on the
rising edge of the last address bit (A0). Note that the
Least Significant 8 or 9 address bits are “don’t cares”,
depending on selection of x16 or x8 mode. Clocking of
the CLK pin is not necessary after the device has
entered the self clocking mode. The WRAL command
does include an automatic ERAL cycle for the device.
Therefore, the WRAL instruction does not require an
ERAL

 instruction but the chip must be in the EWEN

status. The WRAL instruction is ensured at Vcc = +4.5V
to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
written and is ready for another instruction.

The WRAL cycle takes 30 ms maximum (16 ms
typical).

 1996-2012 Microchip Technology Inc.

DS21132F-page 7

93C76/86

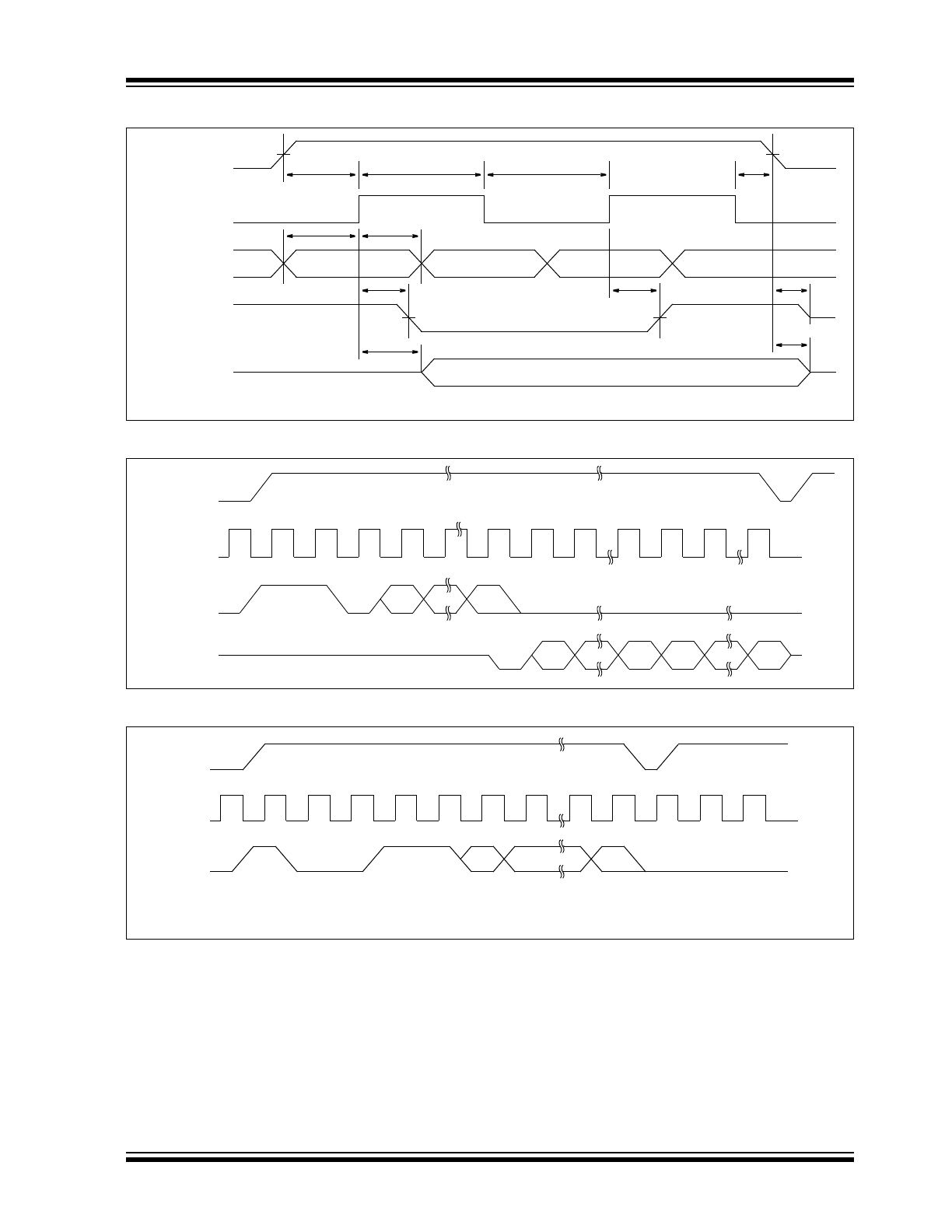

FIGURE 3-1:

SYNCHRONOUS DATA TIMING

FIGURE 3-2:

READ

FIGURE 3-3:

EWEN

The memory automatically cycles to the next register.

V

IH

V

IL

V

IH

V

IL

V

IH

V

OH

V

OL

V

OH

V

OL

V

IL

T

SV

T

DIS

T

PD

T

DIH

T

CSS

T

CKH

T

CKL

T

PD

T

CSH

T

CZ

T

CZ

CS

CLK

DI

DO

DO

(Program)

(Read)

Status Valid

1

1

0

A

N

A

0

D

N

D

N

D

0

D

0

...

...

...

High-impedance

T

CSL

CS

CLK

DI

DO

0

EWEN

CS

CLK

DI

1

1

1

0

0

T

CSL

x

x

...

ORG = V

CC

, 8 X’S

ORG = V

SS

, 9 X’S

93C76/86

DS21132F-page 8

 1996-2012 Microchip Technology Inc.

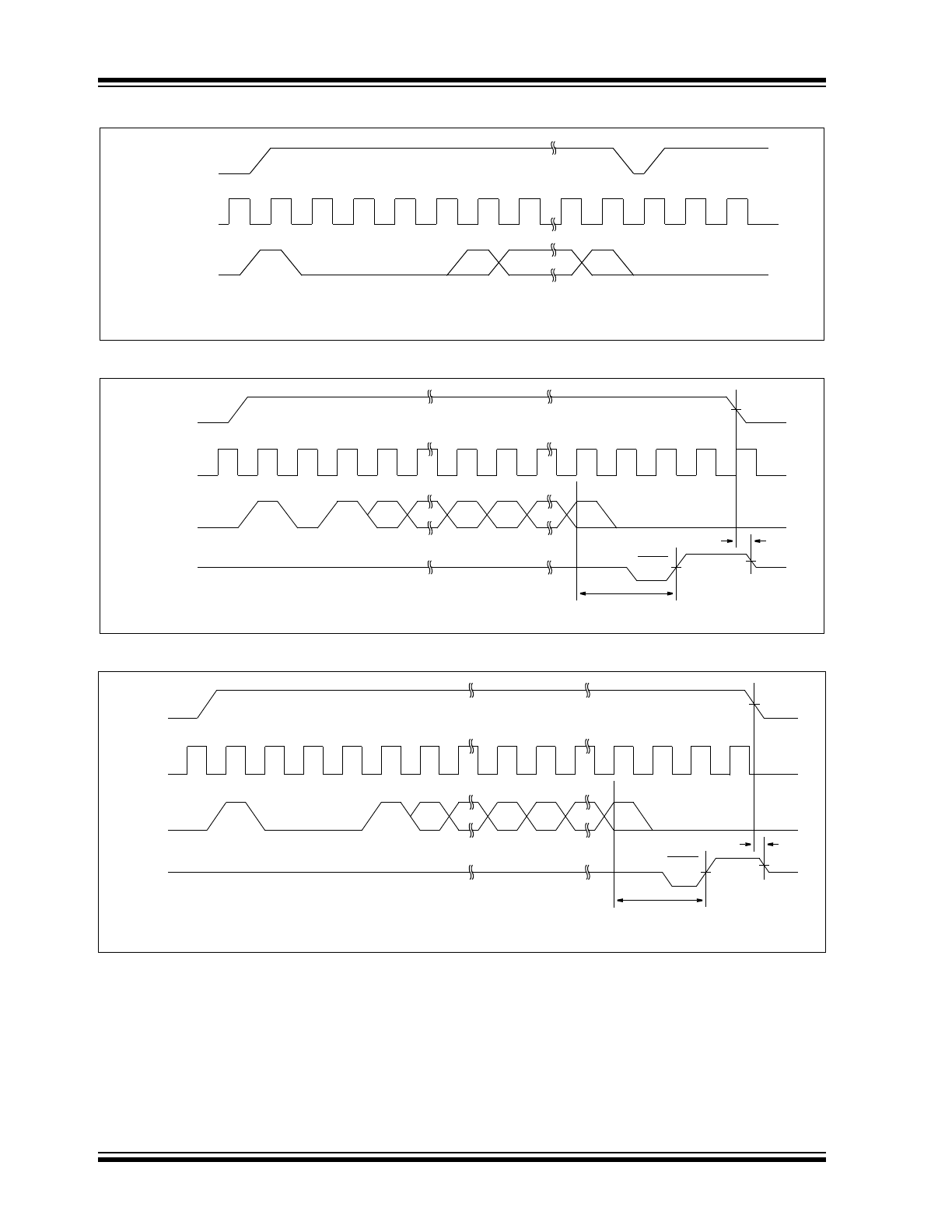

FIGURE 3-4:

EWDS

FIGURE 3-5:

WRITE

FIGURE 3-6:

WRAL

1

0

0

0

0

x

x

...

CS

CLK

DI

T

CSL

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’S

1

0

1

A

N

A

0

...

D

N

...

D

0

T

WC

Ready

Busy

High-impedance

CS

CLK

DI

DO

Standby

T

CZ

Ensure at Vcc = +4.5V to +5.5V.

1

0

0

0

1

x

...

x

D

N

...

D

0

Busy

Ready

High-impedance

Standby

CS

CLK

DI

DO

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

T

WL

T

CZ

 1996-2012 Microchip Technology Inc.

DS21132F-page 9

93C76/86

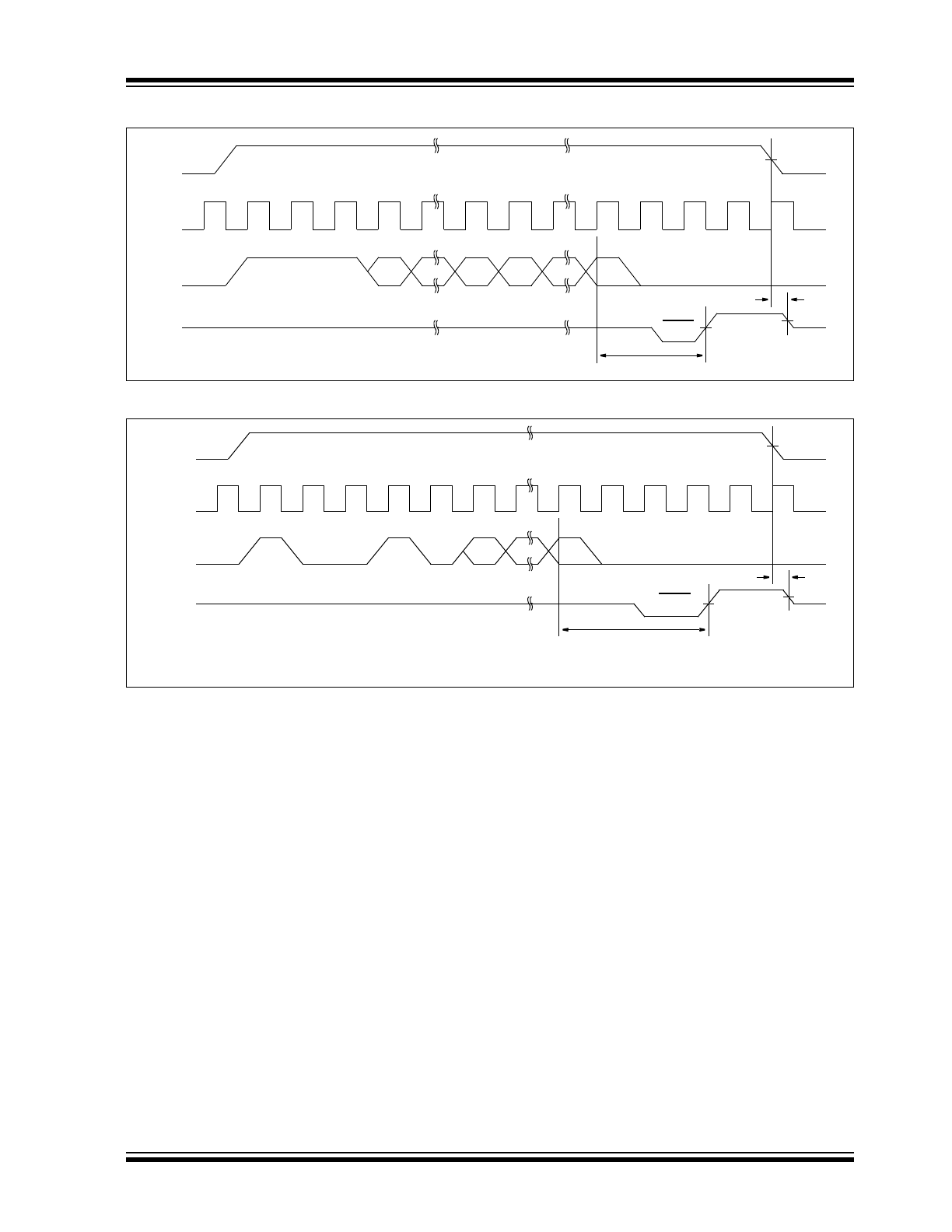

FIGURE 3-7:

ERASE

FIGURE 3-8:

ERAL

1

1

1

A

N

...

A

0

T

CZ

High-impedance

CS

CLK

DI

DO

Standby

Ready

Busy

T

WC

...

Ensure at V

CC

 = +4.5V to +5.5V.

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

1

0

0

1

0

x

x

...

CS

CLK

DI

DO

T

EC

T

CZ

High-impedance

Busy

Ready

Standby

93C76/86

DS21132F-page 10

 1996-2012 Microchip Technology Inc.

4.0

PIN DESCRIPTIONS

TABLE 4-1:

PIN FUNCTION TABLE

4.1

Chip Select (CS)

A high level selects the device. A low level deselects
the device and forces it into Standby mode. However, a
programming cycle which is already initiated will be
completed, regardless of the CS input signal. If CS is
brought low during a program cycle, the device will go
into Standby mode as soon as the programming cycle
is completed.

CS must be low for 250 ns minimum (T

CSL

) between

consecutive instructions. If CS is low, the internal
control logic is held in a RESET status.

4.2

Serial Clock (CLK)

The Serial Clock is used to synchronize the communi-
cation between a master device and the 93C76/86.
Opcode, address and data bits are clocked in on the
positive edge of CLK. Data bits are also clocked out on
the positive edge of CLK.

CLK can be stopped anywhere in the transmission
sequence (at high or low level) and can be continued
anytime with respect to clock high time (T

CKH

) and

clock low time (T

CKL

). This gives the controlling master

freedom in preparing opcode, address and data.

CLK is a “don't care” if CS is low (device deselected). If
CS is high, but Start condition has not been detected,
any number of clock cycles can be received by the
device without changing its status (i.e., waiting for Start
condition).

CLK cycles are not required during the self-timed write
(i.e., auto erase/write) cycle.

After detection of a Start condition the specified number
of clock cycles (respectively low-to-high transitions of
CLK) must be provided. These clock cycles are
required to clock in all opcode, address, and data bits
before an instruction is executed (see Table 1-3
through Table 1-6 for more details). CLK and DI then
become don't care inputs waiting for a new Start
condition to be detected.

4.3

Data In (DI)

Data In is used to clock in a Start bit, opcode, address
and data synchronously with the CLK input.

4.4

Data Out (DO)

Data Out is used in the Read mode to output data
synchronously with the CLK input (T

PD

 after the

positive edge of CLK).

This pin also provides Ready/Busy status information
during erase and write cycles. Ready/Busy status
information is available when CS is high. It will be
displayed until the next Start bit occurs as long as CS
stays high.

4.5

Organization (ORG)

When ORG is connected to V

CC

, the x16 memory

organization is selected. When ORG is tied to V

SS

, the

x8 memory organization is selected. There is an
internal pull-up resistor on the ORG pin that will select
x16 organization when left unconnected.

4.6

Program Enable (PE)

This pin allows the user to enable or disable the ability
to write data to the memory array. If the PE pin is
floated or tied to V

CC

, the device can be programmed.

If the PE pin is tied to V

SS

, programming will be

inhibited. There is an internal pull-up on this device that
enables programming if this pin is left floating.

Name

Function

CS

Chip Select

CLK

Serial Data Clock

DI

Serial Data Input

DO

Serial Data Output

V

SS

Ground

ORG

Memory Configuration

PE

Program Enable

V

CC

Power Supply

Note:

CS must go low between consecutive
instructions, except when performing a
sequential read (Refer to Section 3.1
“Read” for more detail on sequential
reads).

 1996-2012 Microchip Technology Inc.

DS21132F-page 1

93C76/86

Features:

• Single 5.0V supply

• Low-power CMOS technology

- 1 mA active current typical

• ORG pin selectable memory configuration

1024 x 8- or 512 x 16-bit organization (93C76)
2048 x 8- or 1024 x 16-bit organization (93C86)

• Self-timed erase and write cycles

(including auto-erase)

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device status signal during erase/write cycles

• Sequential read function

• 1,000,000 erase/write cycles ensured

• Data retention > 200 years

• 8-pin PDIP/SOIC package

• Temperature ranges supported

Description:

The Microchip Technology Inc. 93C76/86 are 8K and
16K low voltage serial Electrically Erasable PROMs.
The device memory is configured as x8 or x16 bits
depending on the ORG pin setup. Advanced CMOS
technology makes these devices ideal for low power
nonvolatile memory applications. These devices also
have a Program Enable (PE) pin to allow the user to
write protect the entire contents of the memory array.
The 93C76/86 is available in standard 8-pin PDIP and
8-pin surface mount SOIC packages.

Package Types

Block Diagram

- Commercial (C):

0°C

to

+70°C

- Industrial (I):

-40°C to

+85°C

- Automotive (E)

-40°C to  +125°C

SOIC Package

PDIP Package

CS

CLK

DI

DO

V

SS

PE

V

CC

ORG

CS

CLK

DI

DO

V

CC

PE
ORG
V

SS

93
C

7

6/

8

6

93
C

7

6/8
6

1

2

3

4

8

7

6
5

1

2

3

4

8

7

6
5

DO

CS

CLK

V

CC

V

SS

Memory

Array

Address

Decoder

Data

Register

Counter

Address

Output

Buffer

Mode

Decode

Logic

Generator

Clock

DI

PE

8K/16K 5.0V Microwire Serial EEPROM

Not recommended for new designs –

Please use 93LC76C or 93LC86C.

93C76/86

DS21132F-page 2

 1996-2012 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................7.0V

All inputs and outputs w.r.t. V

SS

  ........................................................................................................ -0.6V to Vcc + 1.0V

Storage temperature ...............................................................................................................................-65°C to +150°C

Ambient temperature with power applied ................................................................................................-40°C to +125°C

Soldering temperature of leads (10 seconds) ....................................................................................................... +300°C

ESD protection on all pins .......................................................................................................................................... 4 kV

1.1

AC Test Conditions

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

AC Waveform:

V

LO

 = 2.0V

V

HI

 = Vcc - 0.2V

(Note 1)

V

HI

 = 4.0V for

(Note 2)

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1:

For V

CC

 4.0V

2:

For V

CC

 > 4.0V

 1996-2012 Microchip Technology Inc.

DS21132F-page 3

93C76/86

TABLE 1-1:

DC CHARACTERISTICS

TABLE 1-2:

AC CHARACTERISTICS

DC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

High-level input voltage

V

IH1

2.0

V

CC

 +1

V

—

Low-level input voltage

V

IL1

-0.3

0.8

V

—

Low-level output voltage

V

OL1

—

0.4

V

I

OL

 = 2.1 mA; V

CC

 = 4.5V

V

OL2

—

0.2

V

I

OL

 =100

A; V

CC

 = 4.5V

High-level output voltage

V

OH1

2.4

—

V

I

OH

 = -400

A; V

CC

 = 4.5V

V

OH2

V

CC

-0.2

—

V

I

OH

 = -100

A; V

CC

 = 4.5V.

Input leakage current

I

LI

-10

10

A

V

IN

= 0.1V to V

CC

Output leakage current

I

LO

-10

10

A

V

OUT

 = 0.1V to V

CC

Pin capacitance
(all inputs/outputs)

C

INT

—

7

pF

(Note 1)
 T

A

 = +25°C, F

CLK

 = 1 MHz

Operating current

I

CC

 write

—

3

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

I

CC

 read

—

1.5

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

Standby current

I

CCS

—

100

A

CLK  =  CS  =  0V;  V

CC

 = 5.5V

DI = PE = V

SS

ORG = V

SS

 or V

CC

Note 1:

This parameter is periodically sampled and not 100% tested.

AC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

Clock frequency

F

CLK

—

2

MHz

Vcc

 4.5V

Clock high time

T

CKH

300

—

ns

Clock low time

T

CKL

200

—

ns

Chip select setup time

T

CSS

50

—

ns

Relative to CLK

Chip select hold time

T

CSH

0

—

ns

Chip select low time

T

CSL

250

—

ns

Relative to CLK

Data input setup time

T

DIS

100

—

ns

Relative to CLK

Data input hold time

T

DIH

100

—

ns

Relative to CLK

Data output delay time

T

PD

—

400

ns

C

L

= 100 pF

Data output disable time

T

CZ

—

100

ns

(Note 1)

Status valid time

T

SV

—

500

ns

 C

L

 = 100 pF

Program cycle time

T

WC

—

10

ms

Erase/Write mode (Note 2)

T

EC

—

15

ms

ERAL mode

T

WL

—

30

ms

WRAL  mode

Endurance

—

1M

—

cycles

25°C, V

CC

 = 5.0V, Block mode

(Note 3)

Note 1:

This parameter is periodically sampled and not 100% tested.

2:

Typical program cycle is 4 ms per word.

3:

This parameter is not tested but ensured by characterization. For endurance estimates in a specific
application, please consult the Total Endurance

™

 Model which can be obtained from Microchip’s web site

at www.microchip.com.

93C76/86

DS21132F-page 4

 1996-2012 Microchip Technology Inc.

TABLE 1-3:

INSTRUCTION SET FOR 93C76: ORG=1 (X16 ORGANIZATION)

TABLE 1-4:

INSTRUCTION SET FOR 93C76: ORG=0 (X8 ORGANIZATION)

TABLE 1-5:

INSTRUCTION SET FOR 93C86: ORG=1 (X16 ORGANIZATION)

TABLE 1-6:

INSTRUCTION SET FOR 93C86: ORG=0 (X8 ORGANIZATION)

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X   X   X

—

High-Z

13

ERASE

1

11

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X   X   X

—

(RDY/BSY)

13

WRITE

1

01

X A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK

Cycles

READ

1

10

X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X  X  X

—

High-Z

13

ERASE

1

11

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X  X  X

—

(RDY/BSY)

13

WRITE

1

01

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

 1996-2012 Microchip Technology Inc.

DS21132F-page 5

93C76/86

2.0

PRINCIPLES OF OPERATION

When the ORG pin is connected to V

CC

, the x16 orga-

nization is selected. When it is connected to ground,
the x8 organization is selected. Instructions, addresses
and write data are clocked into the DI pin on the rising
edge of the clock (CLK). The DO pin is normally held in
a high-Z state except when reading data from the
device, or when checking the Ready/Busy status
during a programming operation. The Ready/Busy
status can be verified during an erase/write operation
by polling the DO pin; DO low indicates that program-
ming is still in progress, while DO high indicates the
device is ready. The DO will enter the high-impedance
state on the falling edge of the CS.

2.1

Start Condition

The Start bit is detected by the device if CS and DI are
both high with respect to the positive edge of CLK for
the first time.

Before a Start condition is detected, CS, CLK and DI
may change in any combination (except to that of a
Start condition), without resulting in any device opera-
tion (Read, Write, Erase, EWEN, EWDS, ERAL and
WRAL). As soon as CS is high, the device is no longer
in the Standby mode.

An instruction following a Start condition will only be
executed if the required amount of opcode, address
and data bits for any particular instruction are clocked
in.

After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become “don't care” bits until a new Start condition is
detected.

2.2

DI/DO

It is possible to connect the Data In and Data Out pins
together. However, with this configuration it is possible
for a “bus conflict” to occur during the “dummy zero”
that precedes the read operation, if A0 is a logic high
level. Under such a condition the voltage level seen at
Data Out is undefined and will depend upon the relative
impedances of Data Out and the signal source driving
A0. The higher the current sourcing capability of A0,
the higher the voltage at the Data Out pin.

2.3

Erase/Write Enable and Disable
(EWEN, EWDS)

The 93C76/86 powers up in the Erase/Write Disable
(EWDS) state. All programming modes must be
preceded by an Erase/Write Enable (EWEN) instruction.
Once the EWEN instruction is executed, programming
remains enabled until an EWDS instruction is executed
or V

CC

 is removed from the device. To protect against

accidental data disturb, the EWDS instruction can be
used to disable all erase/write functions and should
follow all programming operations. Execution of a READ
instruction is independent of both the EWEN and EWDS
instructions.

2.4

Data Protection

During power-up, all programming modes of operation
are inhibited until V

CC

 has reached a level greater than

1.4V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
V

CC

 has fallen below 1.4V.

The EWEN and EWDS commands give additional
protection against accidentally programming during
normal operation.

After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.

93C76/86

DS21132F-page 6

 1996-2012 Microchip Technology Inc.

3.0

DEVICE OPERATION

3.1

Read

The  READ instruction outputs the serial data of the
addressed memory location on the DO pin. A dummy
zero bit precedes the 16-bit (x16 organization) or 8-bit
(x8 organization) output string. The output data bits will
toggle on the rising edge of the CLK and are stable
after the specified time delay (T

PD

). Sequential read is

possible when CS is held high and clock transitions
continue. The memory address pointer will automati-
cally increment and output data sequentially.

3.2

Erase

The  ERASE instruction forces all data bits of the
specified address to the logical “1” state. The self-timed
programming cycle is initiated on the rising edge of
CLK as the last address bit (A0) is clocked in. At this
point, the CLK, CS and DI inputs become “don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been erased and the device is ready for
another instruction.

The erase cycle takes 3 ms per word (typical).

3.3

Write

The  WRITE instruction is followed by 16 bits (or by 8
bits) of data to be written into the specified address.
The self-timed programming cycle is initiated on the
rising edge of CLK as the last data bit (D0) is clocked
in. At this point, the CLK, CS and DI inputs become
“don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been written and the device is ready for
another instruction.

The write cycle takes 3 ms per word (typical).

3.4

Erase All (ERAL)

The ERAL instruction will erase the entire memory array
to the logical “1” state. The ERAL cycle is identical to
the erase cycle except for the different opcode. The
ERAL cycle is completely self-timed and commences
on the rising edge of the last address bit (A0). Note that
the Least Significant 8 or 9 address bits are "don’t care"
bits, depending on selection of x16 or x8 mode. Clock-
ing of the CLK pin is not necessary after the device has
entered the self clocking mode. The ERAL instruction is
ensured at Vcc = +4.5V to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
erased and is ready for another instruction.

The ERAL cycle takes 15 ms maximum (8 ms typical).

3.5

Write All (WRAL)

The WRAL instruction will write the entire memory array
with the data specified in the command. The WRAL
cycle is completely self-timed and commences on the
rising edge of the last address bit (A0). Note that the
Least Significant 8 or 9 address bits are “don’t cares”,
depending on selection of x16 or x8 mode. Clocking of
the CLK pin is not necessary after the device has
entered the self clocking mode. The WRAL command
does include an automatic ERAL cycle for the device.
Therefore, the WRAL instruction does not require an
ERAL

 instruction but the chip must be in the EWEN

status. The WRAL instruction is ensured at Vcc = +4.5V
to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
written and is ready for another instruction.

The WRAL cycle takes 30 ms maximum (16 ms
typical).

 1996-2012 Microchip Technology Inc.

DS21132F-page 7

93C76/86

FIGURE 3-1:

SYNCHRONOUS DATA TIMING

FIGURE 3-2:

READ

FIGURE 3-3:

EWEN

The memory automatically cycles to the next register.

V

IH

V

IL

V

IH

V

IL

V

IH

V

OH

V

OL

V

OH

V

OL

V

IL

T

SV

T

DIS

T

PD

T

DIH

T

CSS

T

CKH

T

CKL

T

PD

T

CSH

T

CZ

T

CZ

CS

CLK

DI

DO

DO

(Program)

(Read)

Status Valid

1

1

0

A

N

A

0

D

N

D

N

D

0

D

0

...

...

...

High-impedance

T

CSL

CS

CLK

DI

DO

0

EWEN

CS

CLK

DI

1

1

1

0

0

T

CSL

x

x

...

ORG = V

CC

, 8 X’S

ORG = V

SS

, 9 X’S

93C76/86

DS21132F-page 8

 1996-2012 Microchip Technology Inc.

FIGURE 3-4:

EWDS

FIGURE 3-5:

WRITE

FIGURE 3-6:

WRAL

1

0

0

0

0

x

x

...

CS

CLK

DI

T

CSL

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’S

1

0

1

A

N

A

0

...

D

N

...

D

0

T

WC

Ready

Busy

High-impedance

CS

CLK

DI

DO

Standby

T

CZ

Ensure at Vcc = +4.5V to +5.5V.

1

0

0

0

1

x

...

x

D

N

...

D

0

Busy

Ready

High-impedance

Standby

CS

CLK

DI

DO

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

T

WL

T

CZ

 1996-2012 Microchip Technology Inc.

DS21132F-page 9

93C76/86

FIGURE 3-7:

ERASE

FIGURE 3-8:

ERAL

1

1

1

A

N

...

A

0

T

CZ

High-impedance

CS

CLK

DI

DO

Standby

Ready

Busy

T

WC

...

Ensure at V

CC

 = +4.5V to +5.5V.

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

1

0

0

1

0

x

x

...

CS

CLK

DI

DO

T

EC

T

CZ

High-impedance

Busy

Ready

Standby

93C76/86

DS21132F-page 10

 1996-2012 Microchip Technology Inc.

4.0

PIN DESCRIPTIONS

TABLE 4-1:

PIN FUNCTION TABLE

4.1

Chip Select (CS)

A high level selects the device. A low level deselects
the device and forces it into Standby mode. However, a
programming cycle which is already initiated will be
completed, regardless of the CS input signal. If CS is
brought low during a program cycle, the device will go
into Standby mode as soon as the programming cycle
is completed.

CS must be low for 250 ns minimum (T

CSL

) between

consecutive instructions. If CS is low, the internal
control logic is held in a RESET status.

4.2

Serial Clock (CLK)

The Serial Clock is used to synchronize the communi-
cation between a master device and the 93C76/86.
Opcode, address and data bits are clocked in on the
positive edge of CLK. Data bits are also clocked out on
the positive edge of CLK.

CLK can be stopped anywhere in the transmission
sequence (at high or low level) and can be continued
anytime with respect to clock high time (T

CKH

) and

clock low time (T

CKL

). This gives the controlling master

freedom in preparing opcode, address and data.

CLK is a “don't care” if CS is low (device deselected). If
CS is high, but Start condition has not been detected,
any number of clock cycles can be received by the
device without changing its status (i.e., waiting for Start
condition).

CLK cycles are not required during the self-timed write
(i.e., auto erase/write) cycle.

After detection of a Start condition the specified number
of clock cycles (respectively low-to-high transitions of
CLK) must be provided. These clock cycles are
required to clock in all opcode, address, and data bits
before an instruction is executed (see Table 1-3
through Table 1-6 for more details). CLK and DI then
become don't care inputs waiting for a new Start
condition to be detected.

4.3

Data In (DI)

Data In is used to clock in a Start bit, opcode, address
and data synchronously with the CLK input.

4.4

Data Out (DO)

Data Out is used in the Read mode to output data
synchronously with the CLK input (T

PD

 after the

positive edge of CLK).

This pin also provides Ready/Busy status information
during erase and write cycles. Ready/Busy status
information is available when CS is high. It will be
displayed until the next Start bit occurs as long as CS
stays high.

4.5

Organization (ORG)

When ORG is connected to V

CC

, the x16 memory

organization is selected. When ORG is tied to V

SS

, the

x8 memory organization is selected. There is an
internal pull-up resistor on the ORG pin that will select
x16 organization when left unconnected.

4.6

Program Enable (PE)

This pin allows the user to enable or disable the ability
to write data to the memory array. If the PE pin is
floated or tied to V

CC

, the device can be programmed.

If the PE pin is tied to V

SS

, programming will be

inhibited. There is an internal pull-up on this device that
enables programming if this pin is left floating.

Name

Function

CS

Chip Select

CLK

Serial Data Clock

DI

Serial Data Input

DO

Serial Data Output

V

SS

Ground

ORG

Memory Configuration

PE

Program Enable

V

CC

Power Supply

Note:

CS must go low between consecutive
instructions, except when performing a
sequential read (Refer to Section 3.1
“Read” for more detail on sequential
reads).

 1996-2012 Microchip Technology Inc.

DS21132F-page 1

93C76/86

Features:

• Single 5.0V supply

• Low-power CMOS technology

- 1 mA active current typical

• ORG pin selectable memory configuration

1024 x 8- or 512 x 16-bit organization (93C76)
2048 x 8- or 1024 x 16-bit organization (93C86)

• Self-timed erase and write cycles

(including auto-erase)

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device status signal during erase/write cycles

• Sequential read function

• 1,000,000 erase/write cycles ensured

• Data retention > 200 years

• 8-pin PDIP/SOIC package

• Temperature ranges supported

Description:

The Microchip Technology Inc. 93C76/86 are 8K and
16K low voltage serial Electrically Erasable PROMs.
The device memory is configured as x8 or x16 bits
depending on the ORG pin setup. Advanced CMOS
technology makes these devices ideal for low power
nonvolatile memory applications. These devices also
have a Program Enable (PE) pin to allow the user to
write protect the entire contents of the memory array.
The 93C76/86 is available in standard 8-pin PDIP and
8-pin surface mount SOIC packages.

Package Types

Block Diagram

- Commercial (C):

0°C

to

+70°C

- Industrial (I):

-40°C to

+85°C

- Automotive (E)

-40°C to  +125°C

SOIC Package

PDIP Package

CS

CLK

DI

DO

V

SS

PE

V

CC

ORG

CS

CLK

DI

DO

V

CC

PE
ORG
V

SS

93
C

7

6/

8

6

93
C

7

6/8
6

1

2

3

4

8

7

6
5

1

2

3

4

8

7

6
5

DO

CS

CLK

V

CC

V

SS

Memory

Array

Address

Decoder

Data

Register

Counter

Address

Output

Buffer

Mode

Decode

Logic

Generator

Clock

DI

PE

8K/16K 5.0V Microwire Serial EEPROM

Not recommended for new designs –

Please use 93LC76C or 93LC86C.

93C76/86

DS21132F-page 2

 1996-2012 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................7.0V

All inputs and outputs w.r.t. V

SS

  ........................................................................................................ -0.6V to Vcc + 1.0V

Storage temperature ...............................................................................................................................-65°C to +150°C

Ambient temperature with power applied ................................................................................................-40°C to +125°C

Soldering temperature of leads (10 seconds) ....................................................................................................... +300°C

ESD protection on all pins .......................................................................................................................................... 4 kV

1.1

AC Test Conditions

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

AC Waveform:

V

LO

 = 2.0V

V

HI

 = Vcc - 0.2V

(Note 1)

V

HI

 = 4.0V for

(Note 2)

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1:

For V

CC

 4.0V

2:

For V

CC

 > 4.0V

 1996-2012 Microchip Technology Inc.

DS21132F-page 3

93C76/86

TABLE 1-1:

DC CHARACTERISTICS

TABLE 1-2:

AC CHARACTERISTICS

DC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

High-level input voltage

V

IH1

2.0

V

CC

 +1

V

—

Low-level input voltage

V

IL1

-0.3

0.8

V

—

Low-level output voltage

V

OL1

—

0.4

V

I

OL

 = 2.1 mA; V

CC

 = 4.5V

V

OL2

—

0.2

V

I

OL

 =100

A; V

CC

 = 4.5V

High-level output voltage

V

OH1

2.4

—

V

I

OH

 = -400

A; V

CC

 = 4.5V

V

OH2

V

CC

-0.2

—

V

I

OH

 = -100

A; V

CC

 = 4.5V.

Input leakage current

I

LI

-10

10

A

V

IN

= 0.1V to V

CC

Output leakage current

I

LO

-10

10

A

V

OUT

 = 0.1V to V

CC

Pin capacitance
(all inputs/outputs)

C

INT

—

7

pF

(Note 1)
 T

A

 = +25°C, F

CLK

 = 1 MHz

Operating current

I

CC

 write

—

3

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

I

CC

 read

—

1.5

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

Standby current

I

CCS

—

100

A

CLK  =  CS  =  0V;  V

CC

 = 5.5V

DI = PE = V

SS

ORG = V

SS

 or V

CC

Note 1:

This parameter is periodically sampled and not 100% tested.

AC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

Clock frequency

F

CLK

—

2

MHz

Vcc

 4.5V

Clock high time

T

CKH

300

—

ns

Clock low time

T

CKL

200

—

ns

Chip select setup time

T

CSS

50

—

ns

Relative to CLK

Chip select hold time

T

CSH

0

—

ns

Chip select low time

T

CSL

250

—

ns

Relative to CLK

Data input setup time

T

DIS

100

—

ns

Relative to CLK

Data input hold time

T

DIH

100

—

ns

Relative to CLK

Data output delay time

T

PD

—

400

ns

C

L

= 100 pF

Data output disable time

T

CZ

—

100

ns

(Note 1)

Status valid time

T

SV

—

500

ns

 C

L

 = 100 pF

Program cycle time

T

WC

—

10

ms

Erase/Write mode (Note 2)

T

EC

—

15

ms

ERAL mode

T

WL

—

30

ms

WRAL  mode

Endurance

—

1M

—

cycles

25°C, V

CC

 = 5.0V, Block mode

(Note 3)

Note 1:

This parameter is periodically sampled and not 100% tested.

2:

Typical program cycle is 4 ms per word.

3:

This parameter is not tested but ensured by characterization. For endurance estimates in a specific
application, please consult the Total Endurance

™

 Model which can be obtained from Microchip’s web site

at www.microchip.com.

93C76/86

DS21132F-page 4

 1996-2012 Microchip Technology Inc.

TABLE 1-3:

INSTRUCTION SET FOR 93C76: ORG=1 (X16 ORGANIZATION)

TABLE 1-4:

INSTRUCTION SET FOR 93C76: ORG=0 (X8 ORGANIZATION)

TABLE 1-5:

INSTRUCTION SET FOR 93C86: ORG=1 (X16 ORGANIZATION)

TABLE 1-6:

INSTRUCTION SET FOR 93C86: ORG=0 (X8 ORGANIZATION)

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X   X   X

—

High-Z

13

ERASE

1

11

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X   X   X

—

(RDY/BSY)

13

WRITE

1

01

X A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK

Cycles

READ

1

10

X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X  X  X

—

High-Z

13

ERASE

1

11

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X  X  X

—

(RDY/BSY)

13

WRITE

1

01

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

 1996-2012 Microchip Technology Inc.

DS21132F-page 5

93C76/86

2.0

PRINCIPLES OF OPERATION

When the ORG pin is connected to V

CC

, the x16 orga-

nization is selected. When it is connected to ground,
the x8 organization is selected. Instructions, addresses
and write data are clocked into the DI pin on the rising
edge of the clock (CLK). The DO pin is normally held in
a high-Z state except when reading data from the
device, or when checking the Ready/Busy status
during a programming operation. The Ready/Busy
status can be verified during an erase/write operation
by polling the DO pin; DO low indicates that program-
ming is still in progress, while DO high indicates the
device is ready. The DO will enter the high-impedance
state on the falling edge of the CS.

2.1

Start Condition

The Start bit is detected by the device if CS and DI are
both high with respect to the positive edge of CLK for
the first time.

Before a Start condition is detected, CS, CLK and DI
may change in any combination (except to that of a
Start condition), without resulting in any device opera-
tion (Read, Write, Erase, EWEN, EWDS, ERAL and
WRAL). As soon as CS is high, the device is no longer
in the Standby mode.

An instruction following a Start condition will only be
executed if the required amount of opcode, address
and data bits for any particular instruction are clocked
in.

After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become “don't care” bits until a new Start condition is
detected.

2.2

DI/DO

It is possible to connect the Data In and Data Out pins
together. However, with this configuration it is possible
for a “bus conflict” to occur during the “dummy zero”
that precedes the read operation, if A0 is a logic high
level. Under such a condition the voltage level seen at
Data Out is undefined and will depend upon the relative
impedances of Data Out and the signal source driving
A0. The higher the current sourcing capability of A0,
the higher the voltage at the Data Out pin.

2.3

Erase/Write Enable and Disable
(EWEN, EWDS)

The 93C76/86 powers up in the Erase/Write Disable
(EWDS) state. All programming modes must be
preceded by an Erase/Write Enable (EWEN) instruction.
Once the EWEN instruction is executed, programming
remains enabled until an EWDS instruction is executed
or V

CC

 is removed from the device. To protect against

accidental data disturb, the EWDS instruction can be
used to disable all erase/write functions and should
follow all programming operations. Execution of a READ
instruction is independent of both the EWEN and EWDS
instructions.

2.4

Data Protection

During power-up, all programming modes of operation
are inhibited until V

CC

 has reached a level greater than

1.4V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
V

CC

 has fallen below 1.4V.

The EWEN and EWDS commands give additional
protection against accidentally programming during
normal operation.

After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.

93C76/86

DS21132F-page 6

 1996-2012 Microchip Technology Inc.

3.0

DEVICE OPERATION

3.1

Read

The  READ instruction outputs the serial data of the
addressed memory location on the DO pin. A dummy
zero bit precedes the 16-bit (x16 organization) or 8-bit
(x8 organization) output string. The output data bits will
toggle on the rising edge of the CLK and are stable
after the specified time delay (T

PD

). Sequential read is

possible when CS is held high and clock transitions
continue. The memory address pointer will automati-
cally increment and output data sequentially.

3.2

Erase

The  ERASE instruction forces all data bits of the
specified address to the logical “1” state. The self-timed
programming cycle is initiated on the rising edge of
CLK as the last address bit (A0) is clocked in. At this
point, the CLK, CS and DI inputs become “don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been erased and the device is ready for
another instruction.

The erase cycle takes 3 ms per word (typical).

3.3

Write

The  WRITE instruction is followed by 16 bits (or by 8
bits) of data to be written into the specified address.
The self-timed programming cycle is initiated on the
rising edge of CLK as the last data bit (D0) is clocked
in. At this point, the CLK, CS and DI inputs become
“don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been written and the device is ready for
another instruction.

The write cycle takes 3 ms per word (typical).

3.4

Erase All (ERAL)

The ERAL instruction will erase the entire memory array
to the logical “1” state. The ERAL cycle is identical to
the erase cycle except for the different opcode. The
ERAL cycle is completely self-timed and commences
on the rising edge of the last address bit (A0). Note that
the Least Significant 8 or 9 address bits are "don’t care"
bits, depending on selection of x16 or x8 mode. Clock-
ing of the CLK pin is not necessary after the device has
entered the self clocking mode. The ERAL instruction is
ensured at Vcc = +4.5V to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
erased and is ready for another instruction.

The ERAL cycle takes 15 ms maximum (8 ms typical).

3.5

Write All (WRAL)

The WRAL instruction will write the entire memory array
with the data specified in the command. The WRAL
cycle is completely self-timed and commences on the
rising edge of the last address bit (A0). Note that the
Least Significant 8 or 9 address bits are “don’t cares”,
depending on selection of x16 or x8 mode. Clocking of
the CLK pin is not necessary after the device has
entered the self clocking mode. The WRAL command
does include an automatic ERAL cycle for the device.
Therefore, the WRAL instruction does not require an
ERAL

 instruction but the chip must be in the EWEN

status. The WRAL instruction is ensured at Vcc = +4.5V
to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
written and is ready for another instruction.

The WRAL cycle takes 30 ms maximum (16 ms
typical).

 1996-2012 Microchip Technology Inc.

DS21132F-page 7

93C76/86

FIGURE 3-1:

SYNCHRONOUS DATA TIMING

FIGURE 3-2:

READ

FIGURE 3-3:

EWEN

The memory automatically cycles to the next register.

V

IH

V

IL

V

IH

V

IL

V

IH

V

OH

V

OL

V

OH

V

OL

V

IL

T

SV

T

DIS

T

PD

T

DIH

T

CSS

T

CKH

T

CKL

T

PD

T

CSH

T

CZ

T

CZ

CS

CLK

DI

DO

DO

(Program)

(Read)

Status Valid

1

1

0

A

N

A

0

D

N

D

N

D

0

D

0

...

...

...

High-impedance

T

CSL

CS

CLK

DI

DO

0

EWEN

CS

CLK

DI

1

1

1

0

0

T

CSL

x

x

...

ORG = V

CC

, 8 X’S

ORG = V

SS

, 9 X’S

93C76/86

DS21132F-page 8

 1996-2012 Microchip Technology Inc.

FIGURE 3-4:

EWDS

FIGURE 3-5:

WRITE

FIGURE 3-6:

WRAL

1

0

0

0

0

x

x

...

CS

CLK

DI

T

CSL

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’S

1

0

1

A

N

A

0

...

D

N

...

D

0

T

WC

Ready

Busy

High-impedance

CS

CLK

DI

DO

Standby

T

CZ

Ensure at Vcc = +4.5V to +5.5V.

1

0

0

0

1

x

...

x

D

N

...

D

0

Busy

Ready

High-impedance

Standby

CS

CLK

DI

DO

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

T

WL

T

CZ

 1996-2012 Microchip Technology Inc.

DS21132F-page 9

93C76/86

FIGURE 3-7:

ERASE

FIGURE 3-8:

ERAL

1

1

1

A

N

...

A

0

T

CZ

High-impedance

CS

CLK

DI

DO

Standby

Ready

Busy

T

WC

...

Ensure at V

CC

 = +4.5V to +5.5V.

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

1

0

0

1

0

x

x

...

CS

CLK

DI

DO

T

EC

T

CZ

High-impedance

Busy

Ready

Standby

93C76/86

DS21132F-page 10

 1996-2012 Microchip Technology Inc.

4.0

PIN DESCRIPTIONS

TABLE 4-1:

PIN FUNCTION TABLE

4.1

Chip Select (CS)

A high level selects the device. A low level deselects
the device and forces it into Standby mode. However, a
programming cycle which is already initiated will be
completed, regardless of the CS input signal. If CS is
brought low during a program cycle, the device will go
into Standby mode as soon as the programming cycle
is completed.

CS must be low for 250 ns minimum (T

CSL

) between

consecutive instructions. If CS is low, the internal
control logic is held in a RESET status.

4.2

Serial Clock (CLK)

The Serial Clock is used to synchronize the communi-
cation between a master device and the 93C76/86.
Opcode, address and data bits are clocked in on the
positive edge of CLK. Data bits are also clocked out on
the positive edge of CLK.

CLK can be stopped anywhere in the transmission
sequence (at high or low level) and can be continued
anytime with respect to clock high time (T

CKH

) and

clock low time (T

CKL

). This gives the controlling master

freedom in preparing opcode, address and data.

CLK is a “don't care” if CS is low (device deselected). If
CS is high, but Start condition has not been detected,
any number of clock cycles can be received by the
device without changing its status (i.e., waiting for Start
condition).

CLK cycles are not required during the self-timed write
(i.e., auto erase/write) cycle.

After detection of a Start condition the specified number
of clock cycles (respectively low-to-high transitions of
CLK) must be provided. These clock cycles are
required to clock in all opcode, address, and data bits
before an instruction is executed (see Table 1-3
through Table 1-6 for more details). CLK and DI then
become don't care inputs waiting for a new Start
condition to be detected.

4.3

Data In (DI)

Data In is used to clock in a Start bit, opcode, address
and data synchronously with the CLK input.

4.4

Data Out (DO)

Data Out is used in the Read mode to output data
synchronously with the CLK input (T

PD

 after the

positive edge of CLK).

This pin also provides Ready/Busy status information
during erase and write cycles. Ready/Busy status
information is available when CS is high. It will be
displayed until the next Start bit occurs as long as CS
stays high.

4.5

Organization (ORG)

When ORG is connected to V

CC

, the x16 memory

organization is selected. When ORG is tied to V

SS

, the

x8 memory organization is selected. There is an
internal pull-up resistor on the ORG pin that will select
x16 organization when left unconnected.

4.6

Program Enable (PE)

This pin allows the user to enable or disable the ability
to write data to the memory array. If the PE pin is
floated or tied to V

CC

, the device can be programmed.

If the PE pin is tied to V

SS

, programming will be

inhibited. There is an internal pull-up on this device that
enables programming if this pin is left floating.

Name

Function

CS

Chip Select

CLK

Serial Data Clock

DI

Serial Data Input

DO

Serial Data Output

V

SS

Ground

ORG

Memory Configuration

PE

Program Enable

V

CC

Power Supply

Note:

CS must go low between consecutive
instructions, except when performing a
sequential read (Refer to Section 3.1
“Read” for more detail on sequential
reads).

 1996-2012 Microchip Technology Inc.

DS21132F-page 1

93C76/86

Features:

• Single 5.0V supply

• Low-power CMOS technology

- 1 mA active current typical

• ORG pin selectable memory configuration

1024 x 8- or 512 x 16-bit organization (93C76)
2048 x 8- or 1024 x 16-bit organization (93C86)

• Self-timed erase and write cycles

(including auto-erase)

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device status signal during erase/write cycles

• Sequential read function

• 1,000,000 erase/write cycles ensured

• Data retention > 200 years

• 8-pin PDIP/SOIC package

• Temperature ranges supported

Description:

The Microchip Technology Inc. 93C76/86 are 8K and
16K low voltage serial Electrically Erasable PROMs.
The device memory is configured as x8 or x16 bits
depending on the ORG pin setup. Advanced CMOS
technology makes these devices ideal for low power
nonvolatile memory applications. These devices also
have a Program Enable (PE) pin to allow the user to
write protect the entire contents of the memory array.
The 93C76/86 is available in standard 8-pin PDIP and
8-pin surface mount SOIC packages.

Package Types

Block Diagram

- Commercial (C):

0°C

to

+70°C

- Industrial (I):

-40°C to

+85°C

- Automotive (E)

-40°C to  +125°C

SOIC Package

PDIP Package

CS

CLK

DI

DO

V

SS

PE

V

CC

ORG

CS

CLK

DI

DO

V

CC

PE
ORG
V

SS

93
C

7

6/

8

6

93
C

7

6/8
6

1

2

3

4

8

7

6
5

1

2

3

4

8

7

6
5

DO

CS

CLK

V

CC

V

SS

Memory

Array

Address

Decoder

Data

Register

Counter

Address

Output

Buffer

Mode

Decode

Logic

Generator

Clock

DI

PE

8K/16K 5.0V Microwire Serial EEPROM

Not recommended for new designs –

Please use 93LC76C or 93LC86C.

93C76/86

DS21132F-page 2

 1996-2012 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................7.0V

All inputs and outputs w.r.t. V

SS

  ........................................................................................................ -0.6V to Vcc + 1.0V

Storage temperature ...............................................................................................................................-65°C to +150°C

Ambient temperature with power applied ................................................................................................-40°C to +125°C

Soldering temperature of leads (10 seconds) ....................................................................................................... +300°C

ESD protection on all pins .......................................................................................................................................... 4 kV

1.1

AC Test Conditions

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

AC Waveform:

V

LO

 = 2.0V

V

HI

 = Vcc - 0.2V

(Note 1)

V

HI

 = 4.0V for

(Note 2)

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1:

For V

CC

 4.0V

2:

For V

CC

 > 4.0V

 1996-2012 Microchip Technology Inc.

DS21132F-page 3

93C76/86

TABLE 1-1:

DC CHARACTERISTICS

TABLE 1-2:

AC CHARACTERISTICS

DC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

High-level input voltage

V

IH1

2.0

V

CC

 +1

V

—

Low-level input voltage

V

IL1

-0.3

0.8

V

—

Low-level output voltage

V

OL1

—

0.4

V

I

OL

 = 2.1 mA; V

CC

 = 4.5V

V

OL2

—

0.2

V

I

OL

 =100

A; V

CC

 = 4.5V

High-level output voltage

V

OH1

2.4

—

V

I

OH

 = -400

A; V

CC

 = 4.5V

V

OH2

V

CC

-0.2

—

V

I

OH

 = -100

A; V

CC

 = 4.5V.

Input leakage current

I

LI

-10

10

A

V

IN

= 0.1V to V

CC

Output leakage current

I

LO

-10

10

A

V

OUT

 = 0.1V to V

CC

Pin capacitance
(all inputs/outputs)

C

INT

—

7

pF

(Note 1)
 T

A

 = +25°C, F

CLK

 = 1 MHz

Operating current

I

CC

 write

—

3

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

I

CC

 read

—

1.5

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

Standby current

I

CCS

—

100

A

CLK  =  CS  =  0V;  V

CC

 = 5.5V

DI = PE = V

SS

ORG = V

SS

 or V

CC

Note 1:

This parameter is periodically sampled and not 100% tested.

AC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

Clock frequency

F

CLK

—

2

MHz

Vcc

 4.5V

Clock high time

T

CKH

300

—

ns

Clock low time

T

CKL

200

—

ns

Chip select setup time

T

CSS

50

—

ns

Relative to CLK

Chip select hold time

T

CSH

0

—

ns

Chip select low time

T

CSL

250

—

ns

Relative to CLK

Data input setup time

T

DIS

100

—

ns

Relative to CLK

Data input hold time

T

DIH

100

—

ns

Relative to CLK

Data output delay time

T

PD

—

400

ns

C

L

= 100 pF

Data output disable time

T

CZ

—

100

ns

(Note 1)

Status valid time

T

SV

—

500

ns

 C

L

 = 100 pF

Program cycle time

T

WC

—

10

ms

Erase/Write mode (Note 2)

T

EC

—

15

ms

ERAL mode

T

WL

—

30

ms

WRAL  mode

Endurance

—

1M

—

cycles

25°C, V

CC

 = 5.0V, Block mode

(Note 3)

Note 1:

This parameter is periodically sampled and not 100% tested.

2:

Typical program cycle is 4 ms per word.

3:

This parameter is not tested but ensured by characterization. For endurance estimates in a specific
application, please consult the Total Endurance

™

 Model which can be obtained from Microchip’s web site

at www.microchip.com.

93C76/86

DS21132F-page 4

 1996-2012 Microchip Technology Inc.

TABLE 1-3:

INSTRUCTION SET FOR 93C76: ORG=1 (X16 ORGANIZATION)

TABLE 1-4:

INSTRUCTION SET FOR 93C76: ORG=0 (X8 ORGANIZATION)

TABLE 1-5:

INSTRUCTION SET FOR 93C86: ORG=1 (X16 ORGANIZATION)

TABLE 1-6:

INSTRUCTION SET FOR 93C86: ORG=0 (X8 ORGANIZATION)

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X   X   X

—

High-Z

13

ERASE

1

11

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X   X   X

—

(RDY/BSY)

13

WRITE

1

01

X A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK

Cycles

READ

1

10

X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X  X  X

—

High-Z

13

ERASE

1

11

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X  X  X

—

(RDY/BSY)

13

WRITE

1

01

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

 1996-2012 Microchip Technology Inc.

DS21132F-page 5

93C76/86

2.0

PRINCIPLES OF OPERATION

When the ORG pin is connected to V

CC

, the x16 orga-

nization is selected. When it is connected to ground,
the x8 organization is selected. Instructions, addresses
and write data are clocked into the DI pin on the rising
edge of the clock (CLK). The DO pin is normally held in
a high-Z state except when reading data from the
device, or when checking the Ready/Busy status
during a programming operation. The Ready/Busy
status can be verified during an erase/write operation
by polling the DO pin; DO low indicates that program-
ming is still in progress, while DO high indicates the
device is ready. The DO will enter the high-impedance
state on the falling edge of the CS.

2.1

Start Condition

The Start bit is detected by the device if CS and DI are
both high with respect to the positive edge of CLK for
the first time.

Before a Start condition is detected, CS, CLK and DI
may change in any combination (except to that of a
Start condition), without resulting in any device opera-
tion (Read, Write, Erase, EWEN, EWDS, ERAL and
WRAL). As soon as CS is high, the device is no longer
in the Standby mode.

An instruction following a Start condition will only be
executed if the required amount of opcode, address
and data bits for any particular instruction are clocked
in.

After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become “don't care” bits until a new Start condition is
detected.

2.2

DI/DO

It is possible to connect the Data In and Data Out pins
together. However, with this configuration it is possible
for a “bus conflict” to occur during the “dummy zero”
that precedes the read operation, if A0 is a logic high
level. Under such a condition the voltage level seen at
Data Out is undefined and will depend upon the relative
impedances of Data Out and the signal source driving
A0. The higher the current sourcing capability of A0,
the higher the voltage at the Data Out pin.

2.3

Erase/Write Enable and Disable
(EWEN, EWDS)

The 93C76/86 powers up in the Erase/Write Disable
(EWDS) state. All programming modes must be
preceded by an Erase/Write Enable (EWEN) instruction.
Once the EWEN instruction is executed, programming
remains enabled until an EWDS instruction is executed
or V

CC

 is removed from the device. To protect against

accidental data disturb, the EWDS instruction can be
used to disable all erase/write functions and should
follow all programming operations. Execution of a READ
instruction is independent of both the EWEN and EWDS
instructions.

2.4

Data Protection

During power-up, all programming modes of operation
are inhibited until V

CC

 has reached a level greater than

1.4V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
V

CC

 has fallen below 1.4V.

The EWEN and EWDS commands give additional
protection against accidentally programming during
normal operation.

After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.

93C76/86

DS21132F-page 6

 1996-2012 Microchip Technology Inc.

3.0

DEVICE OPERATION

3.1

Read

The  READ instruction outputs the serial data of the
addressed memory location on the DO pin. A dummy
zero bit precedes the 16-bit (x16 organization) or 8-bit
(x8 organization) output string. The output data bits will
toggle on the rising edge of the CLK and are stable
after the specified time delay (T

PD

). Sequential read is

possible when CS is held high and clock transitions
continue. The memory address pointer will automati-
cally increment and output data sequentially.

3.2

Erase

The  ERASE instruction forces all data bits of the
specified address to the logical “1” state. The self-timed
programming cycle is initiated on the rising edge of
CLK as the last address bit (A0) is clocked in. At this
point, the CLK, CS and DI inputs become “don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been erased and the device is ready for
another instruction.

The erase cycle takes 3 ms per word (typical).

3.3

Write

The  WRITE instruction is followed by 16 bits (or by 8
bits) of data to be written into the specified address.
The self-timed programming cycle is initiated on the
rising edge of CLK as the last data bit (D0) is clocked
in. At this point, the CLK, CS and DI inputs become
“don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been written and the device is ready for
another instruction.

The write cycle takes 3 ms per word (typical).

3.4

Erase All (ERAL)

The ERAL instruction will erase the entire memory array
to the logical “1” state. The ERAL cycle is identical to
the erase cycle except for the different opcode. The
ERAL cycle is completely self-timed and commences
on the rising edge of the last address bit (A0). Note that
the Least Significant 8 or 9 address bits are "don’t care"
bits, depending on selection of x16 or x8 mode. Clock-
ing of the CLK pin is not necessary after the device has
entered the self clocking mode. The ERAL instruction is
ensured at Vcc = +4.5V to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
erased and is ready for another instruction.

The ERAL cycle takes 15 ms maximum (8 ms typical).

3.5

Write All (WRAL)

The WRAL instruction will write the entire memory array
with the data specified in the command. The WRAL
cycle is completely self-timed and commences on the
rising edge of the last address bit (A0). Note that the
Least Significant 8 or 9 address bits are “don’t cares”,
depending on selection of x16 or x8 mode. Clocking of
the CLK pin is not necessary after the device has
entered the self clocking mode. The WRAL command
does include an automatic ERAL cycle for the device.
Therefore, the WRAL instruction does not require an
ERAL

 instruction but the chip must be in the EWEN

status. The WRAL instruction is ensured at Vcc = +4.5V
to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
written and is ready for another instruction.

The WRAL cycle takes 30 ms maximum (16 ms
typical).

 1996-2012 Microchip Technology Inc.

DS21132F-page 7

93C76/86

FIGURE 3-1:

SYNCHRONOUS DATA TIMING

FIGURE 3-2:

READ

FIGURE 3-3:

EWEN

The memory automatically cycles to the next register.

V

IH

V

IL

V

IH

V

IL

V

IH

V

OH

V

OL

V

OH

V

OL

V

IL

T

SV

T

DIS

T

PD

T

DIH

T

CSS

T

CKH

T

CKL

T

PD

T

CSH

T

CZ

T

CZ

CS

CLK

DI

DO

DO

(Program)

(Read)

Status Valid

1

1

0

A

N

A

0

D

N

D

N

D

0

D

0

...

...

...

High-impedance

T

CSL

CS

CLK

DI

DO

0

EWEN

CS

CLK

DI

1

1

1

0

0

T

CSL

x

x

...

ORG = V

CC

, 8 X’S

ORG = V

SS

, 9 X’S

93C76/86

DS21132F-page 8

 1996-2012 Microchip Technology Inc.

FIGURE 3-4:

EWDS

FIGURE 3-5:

WRITE

FIGURE 3-6:

WRAL

1

0

0

0

0

x

x

...

CS

CLK

DI

T

CSL

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’S

1

0

1

A

N

A

0

...

D

N

...

D

0

T

WC

Ready

Busy

High-impedance

CS

CLK

DI

DO

Standby

T

CZ

Ensure at Vcc = +4.5V to +5.5V.

1

0

0

0

1

x

...

x

D

N

...

D

0

Busy

Ready

High-impedance

Standby

CS

CLK

DI

DO

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

T

WL

T

CZ

 1996-2012 Microchip Technology Inc.

DS21132F-page 9

93C76/86

FIGURE 3-7:

ERASE

FIGURE 3-8:

ERAL

1

1

1

A

N

...

A

0

T

CZ

High-impedance

CS

CLK

DI

DO

Standby

Ready

Busy

T

WC

...

Ensure at V

CC

 = +4.5V to +5.5V.

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

1

0

0

1

0

x

x

...

CS

CLK

DI

DO

T

EC

T

CZ

High-impedance

Busy

Ready

Standby

93C76/86

DS21132F-page 10

 1996-2012 Microchip Technology Inc.

4.0

PIN DESCRIPTIONS

TABLE 4-1:

PIN FUNCTION TABLE

4.1

Chip Select (CS)

A high level selects the device. A low level deselects
the device and forces it into Standby mode. However, a
programming cycle which is already initiated will be
completed, regardless of the CS input signal. If CS is
brought low during a program cycle, the device will go
into Standby mode as soon as the programming cycle
is completed.

CS must be low for 250 ns minimum (T

CSL

) between

consecutive instructions. If CS is low, the internal
control logic is held in a RESET status.

4.2

Serial Clock (CLK)

The Serial Clock is used to synchronize the communi-
cation between a master device and the 93C76/86.
Opcode, address and data bits are clocked in on the
positive edge of CLK. Data bits are also clocked out on
the positive edge of CLK.

CLK can be stopped anywhere in the transmission
sequence (at high or low level) and can be continued
anytime with respect to clock high time (T

CKH

) and

clock low time (T

CKL

). This gives the controlling master

freedom in preparing opcode, address and data.

CLK is a “don't care” if CS is low (device deselected). If
CS is high, but Start condition has not been detected,
any number of clock cycles can be received by the
device without changing its status (i.e., waiting for Start
condition).

CLK cycles are not required during the self-timed write
(i.e., auto erase/write) cycle.

After detection of a Start condition the specified number
of clock cycles (respectively low-to-high transitions of
CLK) must be provided. These clock cycles are
required to clock in all opcode, address, and data bits
before an instruction is executed (see Table 1-3
through Table 1-6 for more details). CLK and DI then
become don't care inputs waiting for a new Start
condition to be detected.

4.3

Data In (DI)

Data In is used to clock in a Start bit, opcode, address
and data synchronously with the CLK input.

4.4

Data Out (DO)

Data Out is used in the Read mode to output data
synchronously with the CLK input (T

PD

 after the

positive edge of CLK).

This pin also provides Ready/Busy status information
during erase and write cycles. Ready/Busy status
information is available when CS is high. It will be
displayed until the next Start bit occurs as long as CS
stays high.

4.5

Organization (ORG)

When ORG is connected to V

CC

, the x16 memory

organization is selected. When ORG is tied to V

SS

, the

x8 memory organization is selected. There is an
internal pull-up resistor on the ORG pin that will select
x16 organization when left unconnected.

4.6

Program Enable (PE)

This pin allows the user to enable or disable the ability
to write data to the memory array. If the PE pin is
floated or tied to V

CC

, the device can be programmed.

If the PE pin is tied to V

SS

, programming will be

inhibited. There is an internal pull-up on this device that
enables programming if this pin is left floating.

Name

Function

CS

Chip Select

CLK

Serial Data Clock

DI

Serial Data Input

DO

Serial Data Output

V

SS

Ground

ORG

Memory Configuration

PE

Program Enable

V

CC

Power Supply

Note:

CS must go low between consecutive
instructions, except when performing a
sequential read (Refer to Section 3.1
“Read” for more detail on sequential
reads).

 1996-2012 Microchip Technology Inc.

DS21132F-page 1

93C76/86

Features:

• Single 5.0V supply

• Low-power CMOS technology

- 1 mA active current typical

• ORG pin selectable memory configuration

1024 x 8- or 512 x 16-bit organization (93C76)
2048 x 8- or 1024 x 16-bit organization (93C86)

• Self-timed erase and write cycles

(including auto-erase)

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device status signal during erase/write cycles

• Sequential read function

• 1,000,000 erase/write cycles ensured

• Data retention > 200 years

• 8-pin PDIP/SOIC package

• Temperature ranges supported

Description:

The Microchip Technology Inc. 93C76/86 are 8K and
16K low voltage serial Electrically Erasable PROMs.
The device memory is configured as x8 or x16 bits
depending on the ORG pin setup. Advanced CMOS
technology makes these devices ideal for low power
nonvolatile memory applications. These devices also
have a Program Enable (PE) pin to allow the user to
write protect the entire contents of the memory array.
The 93C76/86 is available in standard 8-pin PDIP and
8-pin surface mount SOIC packages.

Package Types

Block Diagram

- Commercial (C):

0°C

to

+70°C

- Industrial (I):

-40°C to

+85°C

- Automotive (E)

-40°C to  +125°C

SOIC Package

PDIP Package

CS

CLK

DI

DO

V

SS

PE

V

CC

ORG

CS

CLK

DI

DO

V

CC

PE
ORG
V

SS

93
C

7

6/

8

6

93
C

7

6/8
6

1

2

3

4

8

7

6
5

1

2

3

4

8

7

6
5

DO

CS

CLK

V

CC

V

SS

Memory

Array

Address

Decoder

Data

Register

Counter

Address

Output

Buffer

Mode

Decode

Logic

Generator

Clock

DI

PE

8K/16K 5.0V Microwire Serial EEPROM

Not recommended for new designs –

Please use 93LC76C or 93LC86C.

93C76/86

DS21132F-page 2

 1996-2012 Microchip Technology Inc.

1.0

ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings

(†)

V

CC

.............................................................................................................................................................................7.0V

All inputs and outputs w.r.t. V

SS

  ........................................................................................................ -0.6V to Vcc + 1.0V

Storage temperature ...............................................................................................................................-65°C to +150°C

Ambient temperature with power applied ................................................................................................-40°C to +125°C

Soldering temperature of leads (10 seconds) ....................................................................................................... +300°C

ESD protection on all pins .......................................................................................................................................... 4 kV

1.1

AC Test Conditions

† NOTICE: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at these or any other conditions above those
indicated in the operational listings of this specification is not implied. Exposure to Absolute Maximum Rating
conditions for extended periods may affect device reliability.

AC Waveform:

V

LO

 = 2.0V

V

HI

 = Vcc - 0.2V

(Note 1)

V

HI

 = 4.0V for

(Note 2)

Timing Measurement Reference Level

Input

0.5 V

CC

Output

0.5 V

CC

Note 1:

For V

CC

 4.0V

2:

For V

CC

 > 4.0V

 1996-2012 Microchip Technology Inc.

DS21132F-page 3

93C76/86

TABLE 1-1:

DC CHARACTERISTICS

TABLE 1-2:

AC CHARACTERISTICS

DC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

High-level input voltage

V

IH1

2.0

V

CC

 +1

V

—

Low-level input voltage

V

IL1

-0.3

0.8

V

—

Low-level output voltage

V

OL1

—

0.4

V

I

OL

 = 2.1 mA; V

CC

 = 4.5V

V

OL2

—

0.2

V

I

OL

 =100

A; V

CC

 = 4.5V

High-level output voltage

V

OH1

2.4

—

V

I

OH

 = -400

A; V

CC

 = 4.5V

V

OH2

V

CC

-0.2

—

V

I

OH

 = -100

A; V

CC

 = 4.5V.

Input leakage current

I

LI

-10

10

A

V

IN

= 0.1V to V

CC

Output leakage current

I

LO

-10

10

A

V

OUT

 = 0.1V to V

CC

Pin capacitance
(all inputs/outputs)

C

INT

—

7

pF

(Note 1)
 T

A

 = +25°C, F

CLK

 = 1 MHz

Operating current

I

CC

 write

—

3

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

I

CC

 read

—

1.5

mA

F

CLK

 = 2 MHz; V

CC

 = 5.5V

Standby current

I

CCS

—

100

A

CLK  =  CS  =  0V;  V

CC

 = 5.5V

DI = PE = V

SS

ORG = V

SS

 or V

CC

Note 1:

This parameter is periodically sampled and not 100% tested.

AC CHARACTERISTICS

Applicable over recommended operating ranges shown below unless otherwise noted:
V

CC

 = +4.5V to +5.5V

Commercial (C): T

A

 = 0°C to -40°C

Industrial (I):

T

A

 = -40°C to +85°C

Automotive (E): T

A

 = -40

C to +125C

Parameter

Symbol

Min.

Max.

Units

Conditions

Clock frequency

F

CLK

—

2

MHz

Vcc

 4.5V

Clock high time

T

CKH

300

—

ns

Clock low time

T

CKL

200

—

ns

Chip select setup time

T

CSS

50

—

ns

Relative to CLK

Chip select hold time

T

CSH

0

—

ns

Chip select low time

T

CSL

250

—

ns

Relative to CLK

Data input setup time

T

DIS

100

—

ns

Relative to CLK

Data input hold time

T

DIH

100

—

ns

Relative to CLK

Data output delay time

T

PD

—

400

ns

C

L

= 100 pF

Data output disable time

T

CZ

—

100

ns

(Note 1)

Status valid time

T

SV

—

500

ns

 C

L

 = 100 pF

Program cycle time

T

WC

—

10

ms

Erase/Write mode (Note 2)

T

EC

—

15

ms

ERAL mode

T

WL

—

30

ms

WRAL  mode

Endurance

—

1M

—

cycles

25°C, V

CC

 = 5.0V, Block mode

(Note 3)

Note 1:

This parameter is periodically sampled and not 100% tested.

2:

Typical program cycle is 4 ms per word.

3:

This parameter is not tested but ensured by characterization. For endurance estimates in a specific
application, please consult the Total Endurance

™

 Model which can be obtained from Microchip’s web site

at www.microchip.com.

93C76/86

DS21132F-page 4

 1996-2012 Microchip Technology Inc.

TABLE 1-3:

INSTRUCTION SET FOR 93C76: ORG=1 (X16 ORGANIZATION)

TABLE 1-4:

INSTRUCTION SET FOR 93C76: ORG=0 (X8 ORGANIZATION)

TABLE 1-5:

INSTRUCTION SET FOR 93C86: ORG=1 (X16 ORGANIZATION)

TABLE 1-6:

INSTRUCTION SET FOR 93C86: ORG=0 (X8 ORGANIZATION)

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X   X   X

—

High-Z

13

ERASE

1

11

X A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X   X   X

—

(RDY/BSY)

13

WRITE

1

01

X A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK

Cycles

READ

1

10

X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

 X A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D15 - D0

29

EWEN

1

00

1   1   X   X   X   X   X   X  X  X

—

High-Z

13

ERASE

1

11

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

13

ERAL

1

00

1   0   X   X   X   X   X   X  X  X

—

(RDY/BSY)

13

WRITE

1

01

A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D15 - D0

(RDY/BSY)

29

WRAL

1

00

0   1   X   X   X   X   X   X   X   X

D15 - D0

(RDY/BSY)

29

EWDS

1

00

0   0   X   X   X   X   X   X   X   X

—

High-Z

13

Instruction

SB

Opcode

Address

Data In

Data Out

Req. CLK Cycles

READ

1

10

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

D7 - D0

22

EWEN

1

00

1   1   X   X   X   X   X   X   X   X   X

—

High-Z

14

ERASE

1

11

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

—

(RDY/BSY)

14

ERAL

1

00

1   0   X   X   X   X   X   X   X   X   X

—

(RDY/BSY)

14

WRITE

1

01

A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0

D7 - D0

(RDY/BSY)

22

WRAL

1

00

0   1   X   X   X   X   X   X   X   X   X

D7 - D0

(RDY/BSY)

22

EWDS

1

00

0   0   X   X   X   X   X   X   X   X   X

—

High-Z

14

 1996-2012 Microchip Technology Inc.

DS21132F-page 5

93C76/86

2.0

PRINCIPLES OF OPERATION

When the ORG pin is connected to V

CC

, the x16 orga-

nization is selected. When it is connected to ground,
the x8 organization is selected. Instructions, addresses
and write data are clocked into the DI pin on the rising
edge of the clock (CLK). The DO pin is normally held in
a high-Z state except when reading data from the
device, or when checking the Ready/Busy status
during a programming operation. The Ready/Busy
status can be verified during an erase/write operation
by polling the DO pin; DO low indicates that program-
ming is still in progress, while DO high indicates the
device is ready. The DO will enter the high-impedance
state on the falling edge of the CS.

2.1

Start Condition

The Start bit is detected by the device if CS and DI are
both high with respect to the positive edge of CLK for
the first time.

Before a Start condition is detected, CS, CLK and DI
may change in any combination (except to that of a
Start condition), without resulting in any device opera-
tion (Read, Write, Erase, EWEN, EWDS, ERAL and
WRAL). As soon as CS is high, the device is no longer
in the Standby mode.

An instruction following a Start condition will only be
executed if the required amount of opcode, address
and data bits for any particular instruction are clocked
in.

After execution of an instruction (i.e., clock in or out of
the last required address or data bit) CLK and DI
become “don't care” bits until a new Start condition is
detected.

2.2

DI/DO

It is possible to connect the Data In and Data Out pins
together. However, with this configuration it is possible
for a “bus conflict” to occur during the “dummy zero”
that precedes the read operation, if A0 is a logic high
level. Under such a condition the voltage level seen at
Data Out is undefined and will depend upon the relative
impedances of Data Out and the signal source driving
A0. The higher the current sourcing capability of A0,
the higher the voltage at the Data Out pin.

2.3

Erase/Write Enable and Disable
(EWEN, EWDS)

The 93C76/86 powers up in the Erase/Write Disable
(EWDS) state. All programming modes must be
preceded by an Erase/Write Enable (EWEN) instruction.
Once the EWEN instruction is executed, programming
remains enabled until an EWDS instruction is executed
or V

CC

 is removed from the device. To protect against

accidental data disturb, the EWDS instruction can be
used to disable all erase/write functions and should
follow all programming operations. Execution of a READ
instruction is independent of both the EWEN and EWDS
instructions.

2.4

Data Protection

During power-up, all programming modes of operation
are inhibited until V

CC

 has reached a level greater than

1.4V. During power-down, the source data protection
circuitry acts to inhibit all programming modes when
V

CC

 has fallen below 1.4V.

The EWEN and EWDS commands give additional
protection against accidentally programming during
normal operation.

After power-up, the device is automatically in the
EWDS mode. Therefore, an EWEN instruction must be
performed before any ERASE or WRITE instruction can
be executed.

93C76/86

DS21132F-page 6

 1996-2012 Microchip Technology Inc.

3.0

DEVICE OPERATION

3.1

Read

The  READ instruction outputs the serial data of the
addressed memory location on the DO pin. A dummy
zero bit precedes the 16-bit (x16 organization) or 8-bit
(x8 organization) output string. The output data bits will
toggle on the rising edge of the CLK and are stable
after the specified time delay (T

PD

). Sequential read is

possible when CS is held high and clock transitions
continue. The memory address pointer will automati-
cally increment and output data sequentially.

3.2

Erase

The  ERASE instruction forces all data bits of the
specified address to the logical “1” state. The self-timed
programming cycle is initiated on the rising edge of
CLK as the last address bit (A0) is clocked in. At this
point, the CLK, CS and DI inputs become “don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been erased and the device is ready for
another instruction.

The erase cycle takes 3 ms per word (typical).

3.3

Write

The  WRITE instruction is followed by 16 bits (or by 8
bits) of data to be written into the specified address.
The self-timed programming cycle is initiated on the
rising edge of CLK as the last data bit (D0) is clocked
in. At this point, the CLK, CS and DI inputs become
“don’t cares”.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the register at the specified
address has been written and the device is ready for
another instruction.

The write cycle takes 3 ms per word (typical).

3.4

Erase All (ERAL)

The ERAL instruction will erase the entire memory array
to the logical “1” state. The ERAL cycle is identical to
the erase cycle except for the different opcode. The
ERAL cycle is completely self-timed and commences
on the rising edge of the last address bit (A0). Note that
the Least Significant 8 or 9 address bits are "don’t care"
bits, depending on selection of x16 or x8 mode. Clock-
ing of the CLK pin is not necessary after the device has
entered the self clocking mode. The ERAL instruction is
ensured at Vcc = +4.5V to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
erased and is ready for another instruction.

The ERAL cycle takes 15 ms maximum (8 ms typical).

3.5

Write All (WRAL)

The WRAL instruction will write the entire memory array
with the data specified in the command. The WRAL
cycle is completely self-timed and commences on the
rising edge of the last address bit (A0). Note that the
Least Significant 8 or 9 address bits are “don’t cares”,
depending on selection of x16 or x8 mode. Clocking of
the CLK pin is not necessary after the device has
entered the self clocking mode. The WRAL command
does include an automatic ERAL cycle for the device.
Therefore, the WRAL instruction does not require an
ERAL

 instruction but the chip must be in the EWEN

status. The WRAL instruction is ensured at Vcc = +4.5V
to +5.5V.

The DO pin indicates the Ready/Busy status of the
device if the CS is high. The Ready/Busy status will be
displayed on the DO pin until the next Start bit is
received as long as CS is high. Bringing the CS low will
place the device in Standby mode and cause the DO
pin to enter the high-impedance state. DO at logical “0”
indicates that programming is still in progress. DO at
logical “1” indicates that the entire device has been
written and is ready for another instruction.

The WRAL cycle takes 30 ms maximum (16 ms
typical).

 1996-2012 Microchip Technology Inc.

DS21132F-page 7

93C76/86

FIGURE 3-1:

SYNCHRONOUS DATA TIMING

FIGURE 3-2:

READ

FIGURE 3-3:

EWEN

The memory automatically cycles to the next register.

V

IH

V

IL

V

IH

V

IL

V

IH

V

OH

V

OL

V

OH

V

OL

V

IL

T

SV

T

DIS

T

PD

T

DIH

T

CSS

T

CKH

T

CKL

T

PD

T

CSH

T

CZ

T

CZ

CS

CLK

DI

DO

DO

(Program)

(Read)

Status Valid

1

1

0

A

N

A

0

D

N

D

N

D

0

D

0

...

...

...

High-impedance

T

CSL

CS

CLK

DI

DO

0

EWEN

CS

CLK

DI

1

1

1

0

0

T

CSL

x

x

...

ORG = V

CC

, 8 X’S

ORG = V

SS

, 9 X’S

93C76/86

DS21132F-page 8

 1996-2012 Microchip Technology Inc.

FIGURE 3-4:

EWDS

FIGURE 3-5:

WRITE

FIGURE 3-6:

WRAL

1

0

0

0

0

x

x

...

CS

CLK

DI

T

CSL

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’S

1

0

1

A

N

A

0

...

D

N

...

D

0

T

WC

Ready

Busy

High-impedance

CS

CLK

DI

DO

Standby

T

CZ

Ensure at Vcc = +4.5V to +5.5V.

1

0

0

0

1

x

...

x

D

N

...

D

0

Busy

Ready

High-impedance

Standby

CS

CLK

DI

DO

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

T

WL

T

CZ

 1996-2012 Microchip Technology Inc.

DS21132F-page 9

93C76/86

FIGURE 3-7:

ERASE

FIGURE 3-8:

ERAL

1

1

1

A

N

...

A

0

T

CZ

High-impedance

CS

CLK

DI

DO

Standby

Ready

Busy

T

WC

...

Ensure at V

CC

 = +4.5V to +5.5V.

ORG = V

CC

, 8 X’s

ORG = V

SS

, 9 X’s

1

0

0

1

0

x

x

...

CS

CLK

DI

DO

T

EC

T

CZ

High-impedance

Busy

Ready

Standby

93C76/86

DS21132F-page 10

 1996-2012 Microchip Technology Inc.

4.0

PIN DESCRIPTIONS

TABLE 4-1:

PIN FUNCTION TABLE

4.1

Chip Select (CS)

A high level selects the device. A low level deselects
the device and forces it into Standby mode. However, a
programming cycle which is already initiated will be
completed, regardless of the CS input signal. If CS is
brought low during a program cycle, the device will go
into Standby mode as soon as the programming cycle
is completed.

CS must be low for 250 ns minimum (T

CSL

) between

consecutive instructions. If CS is low, the internal
control logic is held in a RESET status.

4.2

Serial Clock (CLK)

The Serial Clock is used to synchronize the communi-
cation between a master device and the 93C76/86.
Opcode, address and data bits are clocked in on the
positive edge of CLK. Data bits are also clocked out on
the positive edge of CLK.

CLK can be stopped anywhere in the transmission
sequence (at high or low level) and can be continued
anytime with respect to clock high time (T

CKH

) and

clock low time (T

CKL

). This gives the controlling master

freedom in preparing opcode, address and data.

CLK is a “don't care” if CS is low (device deselected). If
CS is high, but Start condition has not been detected,
any number of clock cycles can be received by the
device without changing its status (i.e., waiting for Start
condition).

CLK cycles are not required during the self-timed write
(i.e., auto erase/write) cycle.

After detection of a Start condition the specified number
of clock cycles (respectively low-to-high transitions of
CLK) must be provided. These clock cycles are
required to clock in all opcode, address, and data bits
before an instruction is executed (see Table 1-3
through Table 1-6 for more details). CLK and DI then
become don't care inputs waiting for a new Start
condition to be detected.

4.3

Data In (DI)

Data In is used to clock in a Start bit, opcode, address
and data synchronously with the CLK input.

4.4

Data Out (DO)

Data Out is used in the Read mode to output data
synchronously with the CLK input (T

PD

 after the

positive edge of CLK).

This pin also provides Ready/Busy status information
during erase and write cycles. Ready/Busy status
information is available when CS is high. It will be
displayed until the next Start bit occurs as long as CS
stays high.

4.5

Organization (ORG)

When ORG is connected to V

CC

, the x16 memory

organization is selected. When ORG is tied to V

SS

, the

x8 memory organization is selected. There is an
internal pull-up resistor on the ORG pin that will select
x16 organization when left unconnected.

4.6

Program Enable (PE)

This pin allows the user to enable or disable the ability
to write data to the memory array. If the PE pin is
floated or tied to V

CC

, the device can be programmed.

If the PE pin is tied to V

SS

, programming will be

inhibited. There is an internal pull-up on this device that
enables programming if this pin is left floating.

Name

Function

CS

Chip Select

CLK

Serial Data Clock

DI

Serial Data Input

DO

Serial Data Output

V

SS

Ground

ORG

Memory Configuration

PE

Program Enable

V

CC

Power Supply

Note:

CS must go low between consecutive
instructions, except when performing a
sequential read (Refer to Section 3.1
“Read” for more detail on sequential
reads).
