DM74LS11 Triple 3-Input AND Gate Datasheet

/var/www/html/datasheet/sites/default/files/pdfhtml_images/dm74ls11-html.html
background image

© 2000 Fairchild Semiconductor Corporation

DS006350

www.fairchildsemi.com

August 1986

Revised March 2000

DM74LS1

1

 T

ri

p

le

 3-

In

put AN

D Gate

DM74LS11
Triple 3-Input AND Gate

General Description

This device contains three independent gates each of
which performs the logic AND function.



Ordering Code:

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Connection Diagram

Function Table

=

 ABC

=

 HIGH Logic Level

=

 LOW Logic Level

=

 Either LOW or HIGH Logic Level

Order Number

Package Number

Package Description

DM74LS11M

M14A

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow

DM74LS11N

N14A

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Inputs

Output

A

B

C

Y

X

X

L

L

X

L

X

L

L

X

X

L

H

H

H

H

/var/www/html/datasheet/sites/default/files/pdfhtml_images/dm74ls11-html.html
background image

www.fairchildsemi.com

2

D

M

74LS1

1

Absolute Maximum Ratings

(Note 1)

Note 1:  The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.

Recommended Operating Conditions

Electrical Characteristics

over recommended operating free air temperature range (unless otherwise noted)

Note 2: All typicals are at V

CC



=

 5V, T

A



=

 25

°

C.

Note 3: Not more than one output should be shorted at a time, and the duration should not exceed one second.

Switching Characteristics

at V

CC



=

 5V and T

A



=

 25

°

C

Supply Voltage

7V

Input Voltage

7V

Operating Free Air Temperature Range

0

°

C to

+

70

°

C

Storage Temperature Range

65

°

C to

+

150

°

C

Symbol

Parameter

Min

Nom

Max

Units

V

CC

Supply Voltage

4.75

5

5.25

V

V

IH

HIGH Level Input Voltage

2

V

V

IL

LOW Level Input Voltage

0.8

V

I

OH

HIGH Level Output Current

0.4

mA

I

OL

LOW Level Output Current

8

mA

T

A

Free Air Operating Temperature

0

70

°

C

Symbol

Parameter

Conditions

Min

Typ

Max

Units

(Note 2)

V

I

Input Clamp Voltage

V

CC



=

 Min, I

I



=



18 mA

1.5

V

V

OH

HIGH Level

V

CC



=

 Min, I

OH



=

 Max

2.7

3.4

V

Output Voltage

V

IH



=

 Min

V

OL

LOW

Level V

CC



=

 Min, I

OL



=

 Max

0.35

0.5

Output Voltage

V

IL



=

 Max

V

I

OL



=

 4 mA, V

CC



=

 Min

0.25

0.4

I

I

Input Current @ Max Input Voltage

V

CC



=

 Max, V

I



=

 7V

0.1

mA

I

IH

HIGH Level Input Current

V

CC



=

 Max, V

I



=

 2.7V

20

µ

A

I

IL

LOW Level Input Current

V

CC



=

 Max, V

I



=

 0.4V

0.36

mA

I

OS

Short Circuit Output Current

V

CC



=

 Max (Note 3)

20

100

mA

I

CCH

Supply Current with Outputs HIGH

V

CC



=

 Max

1.8

3.6

mA

I

CCL

Supply Current with Outputs LOW

V

CC



=

 Max

3.3

6.6

mA

R

L



=

 2 k

Symbol

Parameter

C

L



=

 15 pF

C

L



=

 50 pF

Units

Min

Max

Min

Max

t

PLH

Propagation Delay Time

4

13

6

18

ns

LOW-to-HIGH Level Output

t

PHL

Propagation Delay Time

3

11

5

18

ns

HIGH-to-LOW Level Output

/var/www/html/datasheet/sites/default/files/pdfhtml_images/dm74ls11-html.html
background image

3

www.fairchildsemi.com

DM74LS1

1

Physical Dimensions

inches (millimeters) unless otherwise noted

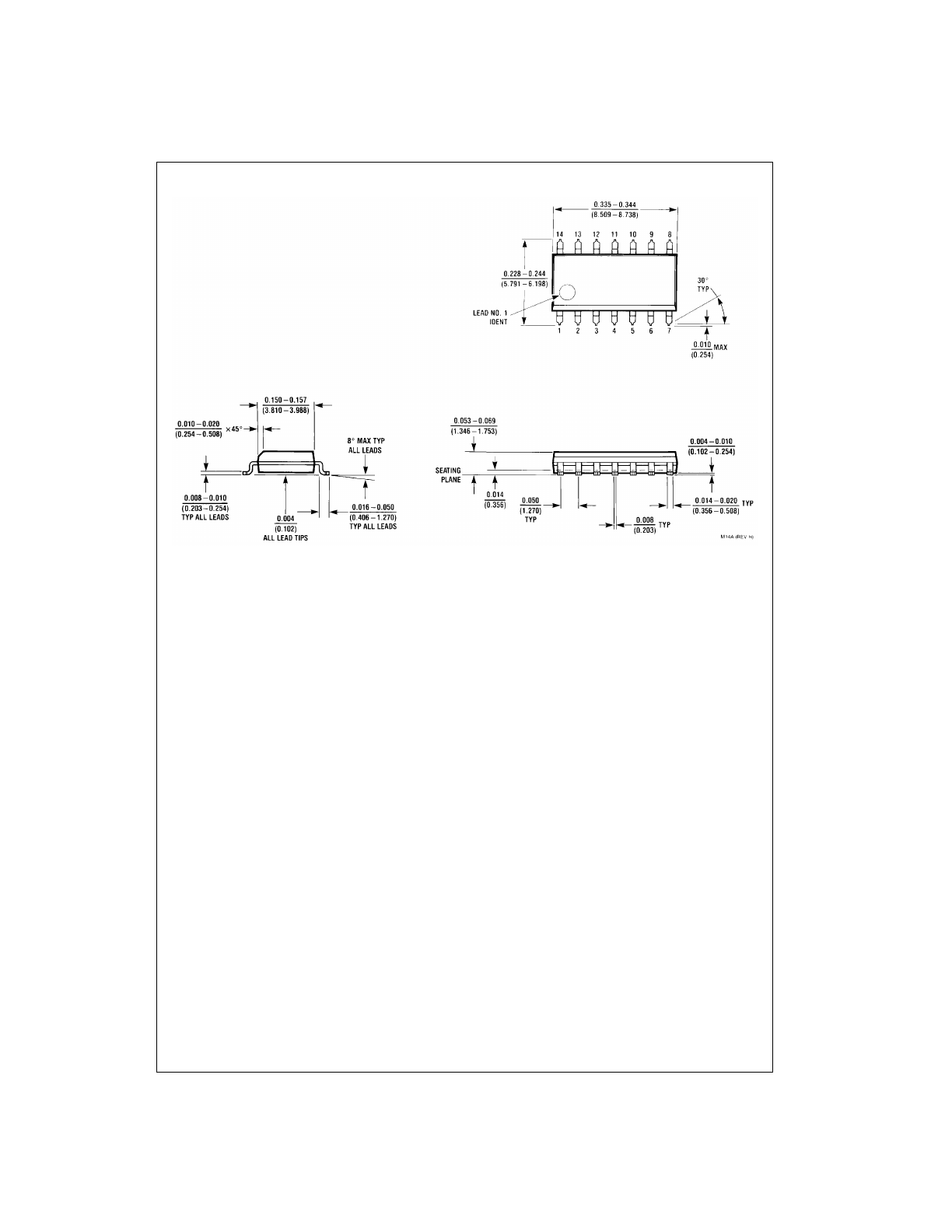

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow

Package Number M14A

/var/www/html/datasheet/sites/default/files/pdfhtml_images/dm74ls11-html.html
background image

www.fairchildsemi.com

4

DM

74LS1

1

 T

ripl

e

 3

-I

nput

AND Gate

Physical Dimensions

inches (millimeters) unless otherwise noted (Continued)

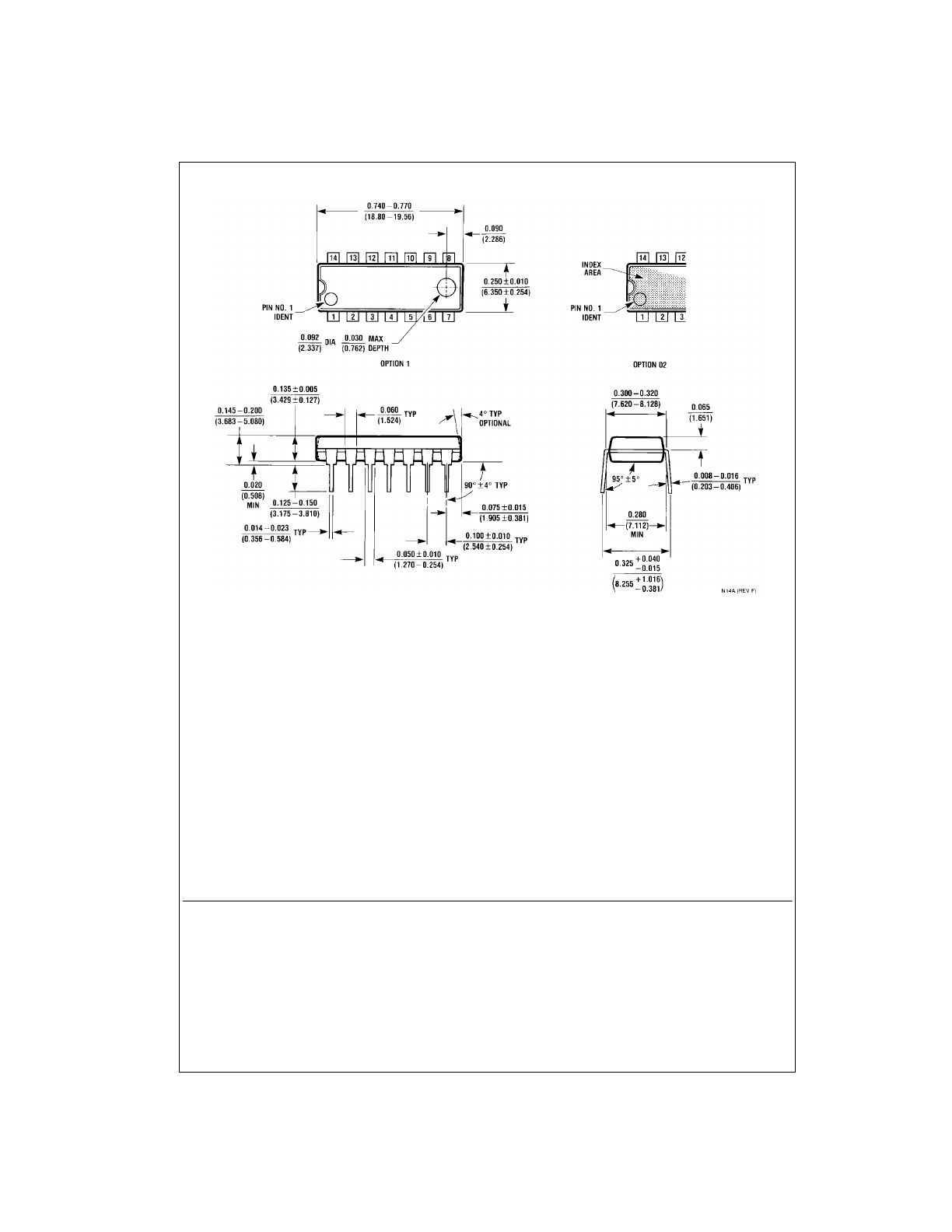

14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide

Package Number N14A

Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or systems

which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.

2. A critical component in any component of a life support

device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.

www.fairchildsemi.com

Maker
Fairchild
Datasheet PDF Download
