© 2000 Fairchild Semiconductor Corporation
DS006347
www.fairchildsemi.com
August 1986
Revised March 2000
DM74LS08 Quad 2-I
nput AND
Gat
e
s
DM74LS08
Quad 2-Input AND Gates
General Description
This device contains four independent gates each of which
performs the logic AND function.
Ordering Code:
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
AB
H
=
HIGH Logic Level
L
=
LOW Logic Level
Order Number
Package Number
Package Description
DM74LS08M
M14A
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
DM74LS08SJ
M14D
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
DM74LS08N
N14A
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Inputs
Output
A
B
Y
L
L
L
L
H
L
H
L
L
H
H
H
www.fairchildsemi.com
2
D
M
74LS08
Absolute Maximum Ratings
(Note 1)
Note 1: The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Switching Characteristics
at V
CC
=
5V and T
A
=
25
°
C
Note 2: All typicals are at V
CC
=
5V, T
A
=
25
°
C.
Note 3: Not more than one output should be shorted at a time, and the duration should not exceed one second.
Supply Voltage
7V
Input Voltage
7V
Operating Free Air Temperature Range
0
°
C to
+
70
°
C
Storage Temperature Range
−
65
°
C to
+
150
°
C
Symbol
Parameter
Min
Nom
Max
Units
V
CC
Supply Voltage
4.75
5
5.25
V
V
IH
HIGH Level Input Voltage
2
V
V
IL
LOW Level Input Voltage
0.8
V
I
OH
HIGH Level Output Current
−
0.4
mA
I
OL
LOW Level Output Current
8
mA
T
A
Free Air Operating Temperature
0
70
°
C
Symbol
Parameter
Conditions
Min
Typ
Max
Units
(Note 2)
V
I
Input Clamp Voltage
V
CC
=
Min, I
I
=
−
18 mA
−
1.5
V
V
OH
HIGH Level
V
CC
=
Min, I
OH
=
Max,
2.7
3.4
V
Output Voltage
V
IH
=
Min
V
OL
LOW
Level V
CC
=
Min, I
OL
=
Max,
0.35
0.5
Output Voltage
V
IL
=
Max
V
I
OL
=
4 mA, V
CC
=
Min
0.25
0.4
I
I
Input Current @ Max Input Voltage
V
CC
=
Max, V
I
=
7V
0.1
mA
I
IH
HIGH Level Input Current
V
CC
=
Max, V
I
=
2.7V
20
µ
A
I
IL
LOW Level Input Current
V
CC
=
Max, V
I
=
0.4V
−
0.36
mA
I
OS
Short Circuit Output Current
V
CC
=
Max (Note 3)
−
20
−
100
mA
I
CCH
Supply Current with Outputs HIGH
V
CC
=
Max
2.4
4.8
mA
I
CCL
Supply Current with Outputs LOW
V
CC
=
Max
4.4
8.8
mA
R
L
=
2 k
Ω
Symbol
Parameter
C
L
=
15 pF
C
L
=
50 pF
Units
Min
Max
Min
Max
t
PLH
Propagation Delay Time
4
13
6
18
ns
LOW-to-HIGH Level Output
t
PHL
Propagation Delay Time
3
11
5
18
ns
HIGH-to-LOW Level Output
3
www.fairchildsemi.com
DM74LS08

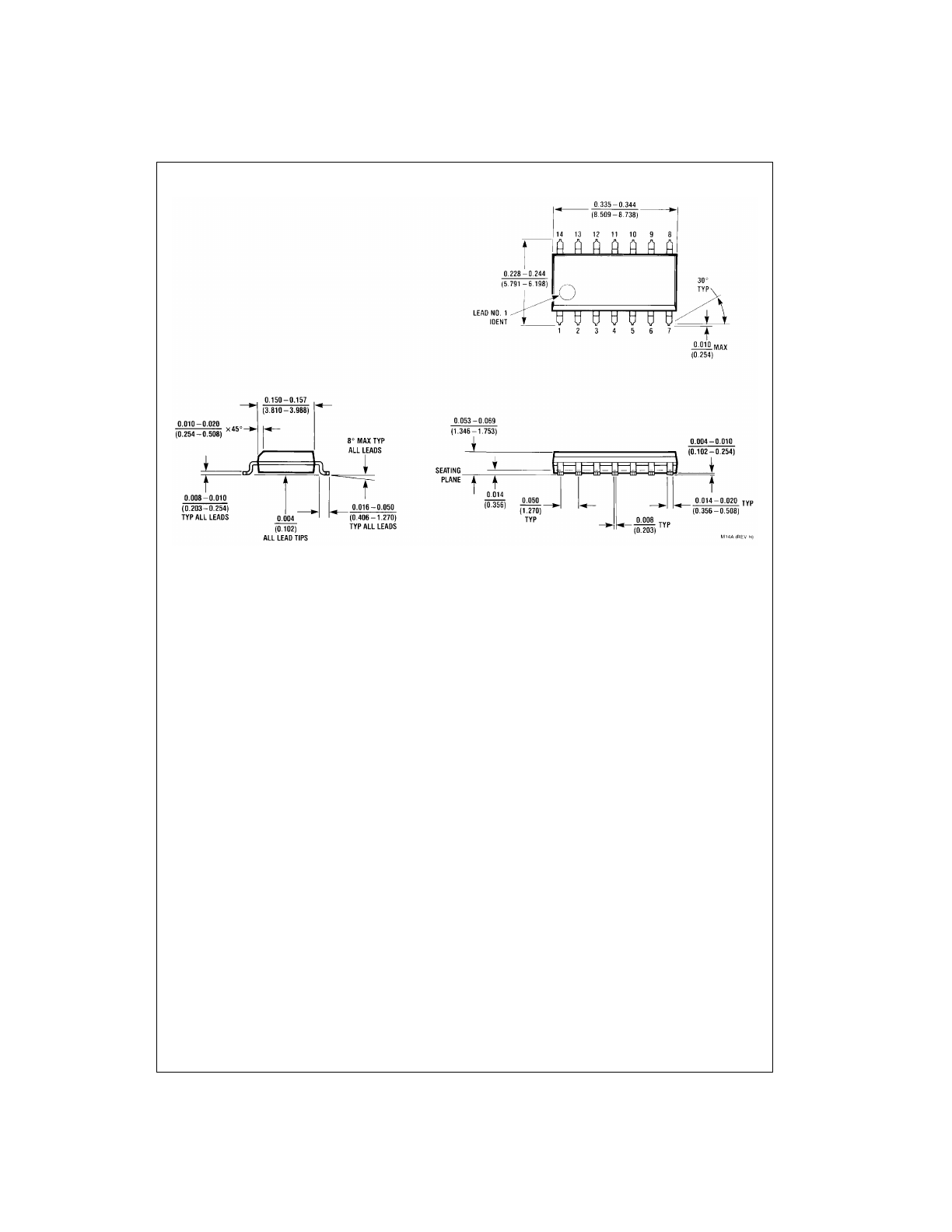

Physical Dimensions
inches (millimeters) unless otherwise noted
14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
www.fairchildsemi.com
4
D
M
74LS08

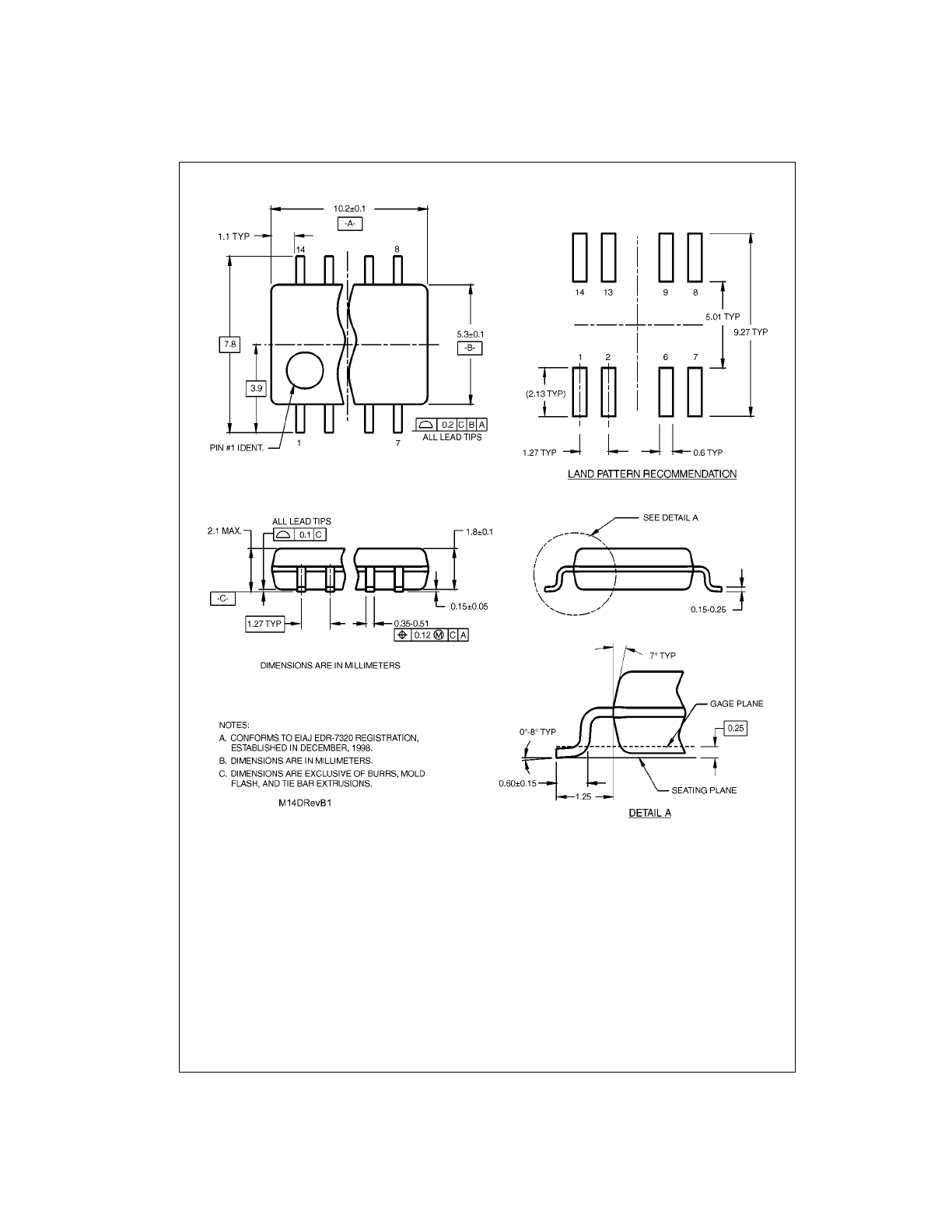

Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
Package Number M14D
5
www.fairchildsemi.com
DM74LS08 Quad 2-I
nput AND
Gat
e
s

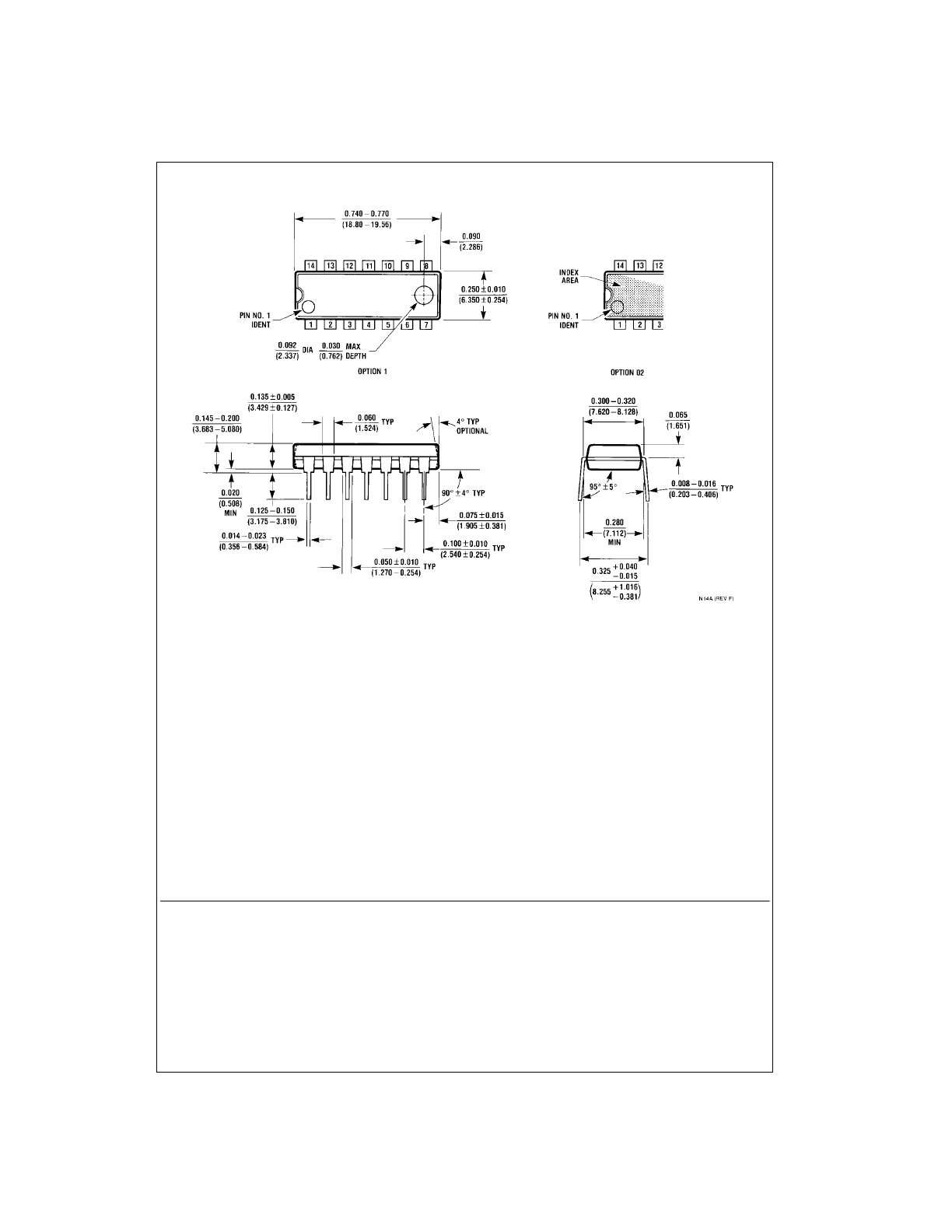

Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N14A
