2N3904/MMBT3904/PZT3904 NPN General Purpose Amplifier Datasheet

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

C

B

E

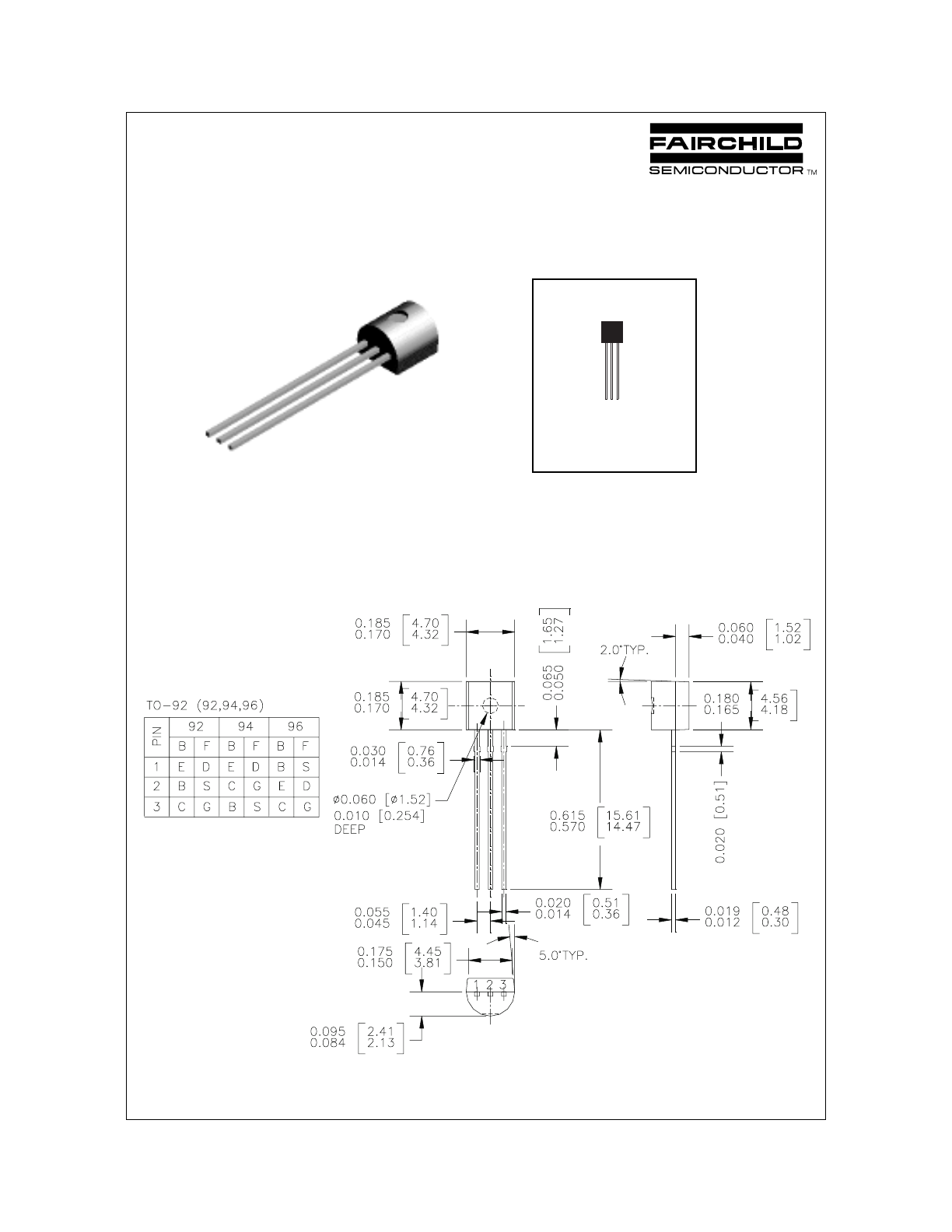

TO-92

C

B

E

B

C

C

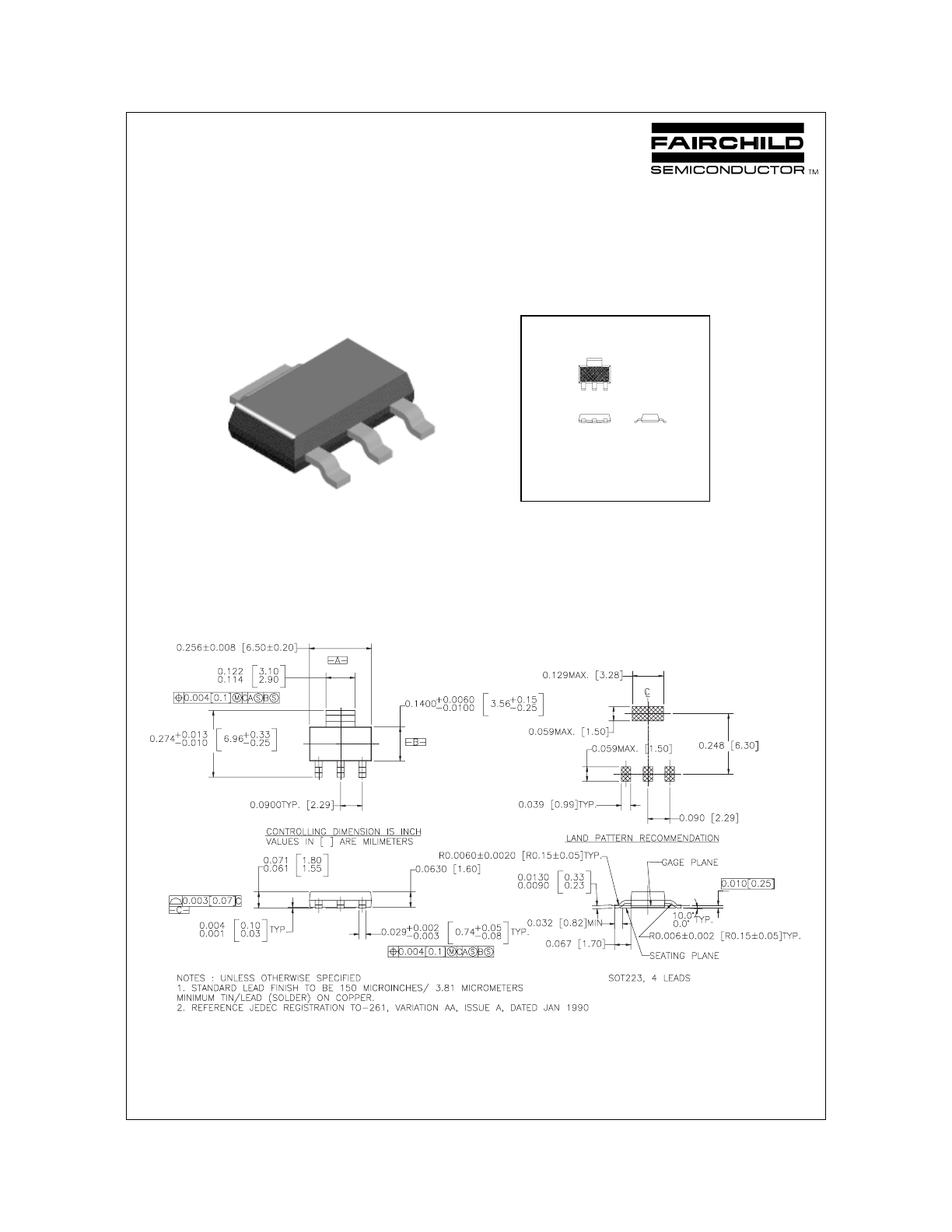

SOT-223

E

NPN General Purpose Amplifier

This device is designed as a general purpose amplifier and switch.
The useful dynamic range extends to 100 mA as a switch and to
100 MHz as an amplifier.

Absolute Maximum Ratings*

T

A

 = 25°C unless otherwise noted

*

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Symbol

Parameter

Value

Units

V

CEO

Collector-Emitter Voltage

40

V

V

CBO

Collector-Base Voltage

60

V

V

EBO

Emitter-Base Voltage

6.0

V

I

C

Collector Current - Continuous

200

mA

T

J

, T

stg

Operating and Storage Junction Temperature Range

-55 to +150

°

C



2001 Fairchild Semiconductor Corporation

Thermal Characteristics

T

A

 = 25°C unless otherwise noted

Symbol

Characteristic

Max

Units

2N3904

*MMBT3904

**PZT3904

P

D

Total Device Dissipation

Derate above 25

°

C

625

5.0

350

2.8

1,000

8.0

mW

mW/

°

C

R

θ

JC

Thermal Resistance, Junction to Case

83.3

°

C/W

R

θ

JA

Thermal Resistance, Junction to Ambient

200

357

125

°

C/W

*

Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."

**

Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm

2

.

2N3904

MMBT3904

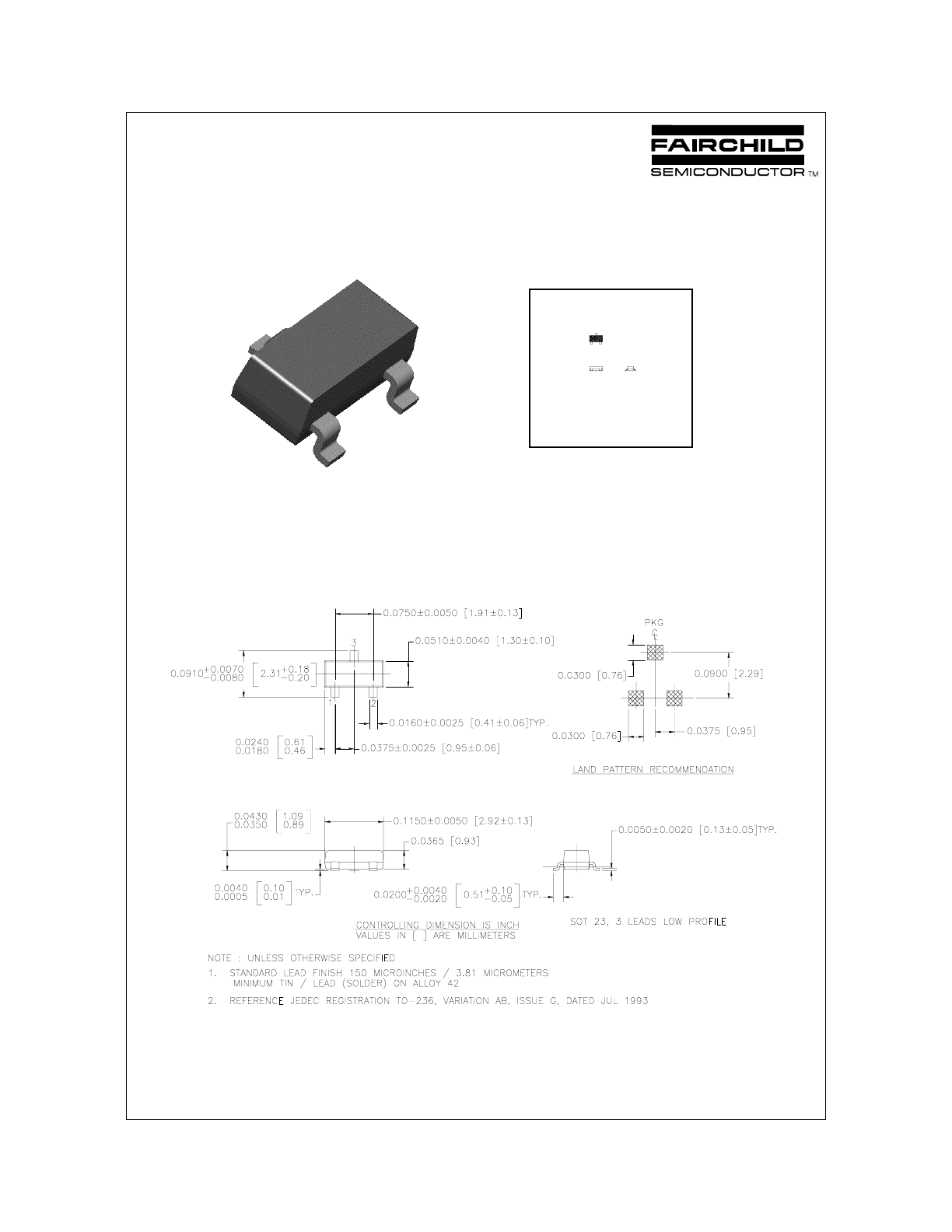

SOT-23

Mark: 1A

PZT3904

2N3904 / MMBT3904 / PZT3904

2N3904/MMBT3904/PZT3904, Rev A

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

Electrical Characteristics

T

A

 = 25°C unless otherwise noted

Symbol

Parameter

Test Conditions

Min

Max

Units

V

(BR)CEO

Collector-Emitter Breakdown
Voltage

I

C

 = 1.0 mA, I

B

 = 0

40

V

V

(BR)CBO

Collector-Base Breakdown Voltage

I

C

 = 10

µ

A, I

E

 = 0

60

V

V

(BR)EBO

Emitter-Base Breakdown Voltage

I

E

 = 10

µ

A, I

 = 0

6.0

V

I

BL

Base Cutoff Current

V

CE

 = 30 V, V

EB

= 3V

50

nA

I

CEX

Collector Cutoff Current

V

CE

 = 30 V, V

EB

 = 3V

50

nA

OFF CHARACTERISTICS

ON CHARACTERISTICS*

SMALL SIGNAL CHARACTERISTICS

SWITCHING CHARACTERISTICS

*

Pulse Test: Pulse Width

≤

300

µ

s, Duty Cycle

≤

2.0%

NPN (Is=6.734f  Xti=3  Eg=1.11  Vaf=74.03  Bf=416.4  Ne=1.259  Ise=6.734  Ikf=66.78m  Xtb=1.5  Br=.7371  Nc=2
Isc=0  Ikr=0  Rc=1 Cjc=3.638p  Mjc=.3085  Vjc=.75  Fc=.5  Cje=4.493p  Mje=.2593  Vje=.75  Tr=239.5n  Tf=301.2p
Itf=.4  Vtf=4  Xtf=2  Rb=10)

Spice Model

f

T

Current Gain - Bandwidth Product

I

C

 = 10 mA, V

CE

 = 20 V,

f = 100 MHz

300

MHz

C

obo

Output Capacitance

V

CB

 = 5.0 V, I

E

 = 0,

f = 1.0 MHz

4.0

pF

C

ibo

Input Capacitance

V

EB

 = 0.5 V, I

C

 = 0,

f = 1.0 MHz

8.0

pF

NF

Noise Figure

I

C

 = 100

µ

A, V

CE

 = 5.0 V,

R

S

 =1.0k

,f=10 Hz to 15.7kHz

5.0

dB

t

d

Delay Time

V

CC

 = 3.0 V, V

BE

 = 0.5 V,

35

ns

t

r

Rise Time

I

C

 = 10 mA, I

B1

 = 1.0 mA

35

ns

t

s

Storage Time

V

CC

 = 3.0 V, I

C

 = 10mA

200

ns

t

f

Fall Time

I

B1

 = I

B2

 = 1.0 mA

50

ns

h

FE

DC Current Gain

I

C

 = 0.1 mA, V

CE

 = 1.0 V

I

C

 = 1.0 mA, V

CE

 = 1.0 V

I

C

 = 10 mA, V

CE

 = 1.0 V

I

C

 = 50 mA, V

CE

 = 1.0 V

I

C

 = 100 mA, V

CE

 = 1.0 V

40
70

100

60
30

300

V

CE(sat)

Collector-Emitter Saturation Voltage

I

C

 = 10 mA, I

B

 = 1.0 mA

I

C

 = 50 mA, I

B

 = 5.0 mA

0.2
0.3

V
V

V

BE(sat)

Base-Emitter Saturation Voltage

I

C

 = 10 mA, I

B

 = 1.0 mA

I

C

 = 50 mA, I

B

 = 5.0 mA

0.65

0.85
0.95

V
V

2N3904 / MMBT3904 / PZT3904

NPN General Purpose Amplifier

(continued)

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

2N3904 / MMBT3904 / PZT3904

Typical Characteristics

Base-Emitter ON Voltage vs

Collector Current

0.1

1

10

100

0.2

0.4

0.6

0.8

1

I    - COLLECTOR CURRENT  (mA)

V





- B

A

SE-

EMI

TTER

 ON

 VOL

T

A

G

E (

V

)

BE

(O

N)

C

V     = 5V

CE

25 °C

125 °C

- 40 °C

NPN General Purpose Amplifier

(continued)

Base-Emitter Saturation

Voltage vs Collector Current

0.1

1

10

100

0.4

0.6

0.8

1

I    - COLLECTOR CURRENT  (mA)

V

   -

 B

A

SE-

EM

ITT

E

R VOL

T

A

G

E

 (

V

)

BESA

T

C

β

  = 10

25 °C

125 °C

- 40 °C

Collector-Emitter Saturation

Voltage vs Collector Current

0.1

1

10

100

0.05

0.1

0.15

I    - COLLECTOR CURRENT  (mA)





- CO

LL

EC

T

O

R-

E

M

ITTE

R

 VO

L

T

A

G

(V

)

CESA

T

25 °C

C

β

  = 10

125 °C

- 40 °C

Collector-Cutoff Current

vs Ambient Temperature

25

50

75

100

125

150

0.1

1

10

100

500

T   - AMBIENT TEMPERATURE ( C)





- C

O

LL

ECT

O

R C

URR

ENT

 (

n

A

)

A



  = 30V

CB

CB

O

°

Capacitance vs

Reverse Bias Voltage

0.1

1

10

100

1

2

3

4

5

10

REVERSE BIAS VOLTAGE (V)

CA

P

A

CIT

A

NCE (p

F

)

C obo

C  ibo

f = 1.0 MHz

Typical Pulsed Current Gain

vs Collector Current

0.1

1

10

100

0

100

200

300

400

500

I    - COLLECTOR CURRENT  (mA)

h



 -

 TY

P

IC

A

P

U

L

S

E

D

 C

U

R

R

E

N

G

A

IN

FE

- 40  °C

25  °C

C

V     = 5V

CE

125  °C

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

Power Dissipation vs

Ambient Temperature

0

25

50

75

100

125

150

0

0.25

0.5

0.75

1

TEMPERATURE  (  C)

P



 - PO

W

E

R DI

SSI

P

A

TIO

N

 (

W

)

D

o

SOT-223

SOT-23

TO-92

Typical Characteristics

(continued)

Noise Figure vs Frequency

0.1

1

10

100

0

2

4

6

8

10

12

f  - FREQUENCY (kHz)

N

F



- NOI

S

E FI

G

URE (

d

B)

V     = 5.0V

CE

I     = 100

µ

A, R     = 500

C

S

I     = 1.0 mA

 R     = 200

C

S

I     = 50

µ

A

 R     = 1.0 k

C

S

I     = 0.5 mA

 R     = 200

C

S

k

Noise Figure vs Source Resistance

0.1

1

10

100

0

2

4

6

8

10

12

R     - SOURCE RESISTANCE (      )

N

F

  -

 NO

IS

E

 F

IG

U

RE

 (

d

B)

I    = 100

µ

A

C

I    = 1.0 mA

C

S

I    = 50

µ

A

C

I    = 5.0 mA

C

θ

 -

 DEGR

EES

0

40

60
80

100
120

140

160

20

180

Current Gain and Phase Angle

vs Frequency

1

10

100

1000

0

5

10

15

20

25

30

35

40

45

50

f - FREQUENCY (MHz)

h

   -

 CURRE

NT GA

IN

 (

d

B)

θ

V     = 40V

CE

I    = 10 mA

C

h

fe

fe

Turn-On Time vs Collector Current

1

10

100

5

10

100

500

I      - COLLECTOR CURRENT (mA)

TI

M

E

  (

n

S)

I    = I    =

B1

C

B2

I

c

10

40V

15V

2.0V

t

@

V     = 0V

CB

d

t

@

V     = 3.0V

CC

r

Rise Time vs Collector Current

1

10

100

5

10

100

500

I      - COLLECTOR CURRENT (mA)



 -

 R

IS

E

 T

IM

E

  (

n

s

)

I    = I    =

B1

C

B2

I

c

10

T    = 125°C

T    = 25°C

J

V     = 40V

CC

r

J

2N3904 / MMBT3904 / PZT3904

NPN General Purpose Amplifier

(continued)

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

2N3904 / MMBT3904 / PZT3904

NPN General Purpose Amplifier

(continued)

Typical Characteristics

(continued)

Storage Time vs Collector Current

1

10

100

5

10

100

500

I      - COLLECTOR CURRENT (mA)



 -

S

T

O

R

A

G

E

 T

IM

E



(n

s

)

I    = I    =

B1

C

B2

I

c

10

S

T    = 125°C

T    = 25°C

J

J

Fall Time vs Collector Current

1

10

100

5

10

100

500

I      - COLLECTOR CURRENT (mA)



 -

F

A

L

L

 T

IM

E



(n

s

)

I    = I    =

B1

C

B2

I

c

10

V     = 40V

CC

f

T    = 125°C

T    = 25°C

J

J

Current Gain

0.1

1

10

10

100

500

I   - COLLECTOR CURRENT (mA)

h





- CUR

R

E

NT

 GA

IN

V      = 10 V

CE

C

fe

 f = 1.0  kHz

T    = 25 C

o

Output Admittance

0.1

1

10

1

10

100

I   - COLLECTOR CURRENT (mA)



 -

 O

U

TPU

T

 A

D

M

IT

T

A

N

C

E

 (

  m

h

os

)

V     = 10 V

CE

C

oe

 f = 1.0 kHz

T    = 25 C

o

µ

Input Impedance

0.1

1

10

0.1

1

10

100

I   - COLLECTOR  CURRENT  (mA)

h



IN

PU

T

 I

M

PED

AN

C

E

 (

k



 )

V     = 10 V

CE

C

ie

 f = 1.0 kHz

T    = 25 C

o

Voltage Feedback Ratio

0.1

1

10

1

2

3

4

5

7

10

I   - COLLECTOR CURRENT (mA)



V

O

LTA

G

E

 F

E

E

D

B

A

C

K

 R

A

T

IO

 (

x

1

0



 )

V     = 10 V

CE

C

re

 f = 1.0 kHz

T    = 25 C

o

_

4

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

Test Circuits

10 K

3.0 V

275

t

1

C

1



<<<<<

4.0 pF

Duty Cycle

=====

  2%

Duty Cycle

=====

  2%

<<<<<

1.0 ns

 - 0.5 V



300 ns

10.6 V

10

 <

 <

 <

 <

 <

t

1

<<<<<

500

µµµµµ

s

 10.9 V

 - 9.1 V

<<<<<

1.0 ns

0

0

10 K

3.0 V

275

C

1



<<<<<

4.0 pF

1N916

FIGURE 2: Storage and Fall Time Equivalent Test Circuit

FIGURE 1: Delay and Rise Time Equivalent Test Circuit

2N3904 / MMBT3904 / PZT3904

NPN General Purpose Amplifier

(continued)

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

TO-92 Tape and Reel Data

March 2001, Rev. B1

©2001 Fairchild Semiconductor Corporation

TO-92 Packaging
Configuration:
Figure 1.0

AMMO PACK OPTION

See Fig 3.0 for 2 Ammo

Pack Options

2000 units per

EO70 box for

std option

FSCINT Label

530mm x 130mm x



83mm

Intermediate box

10,000 units maximum

per



intermediate box

for std option

FSCINT Label

114mm x 102mm x 51mm

Immediate Box

Anti-static

Bubble Sheets

(TO-92) BULK  PACKING INFORMATION

EOL

CODE

DESCRIPTION

LEADCLIP

DIMENSION

QUANTITY

J18Z

TO-18 OPTION STD

NO LEAD CLIP

2.0 K / BOX

J05Z

TO-5   OPTION STD

NO LEAD CLIP

1.5 K / BOX

NO EOL

CODE

TO-92  STANDARD
STRAIGHT FOR: PKG 92,

NO LEADCLIP

2.0 K / BOX

BULK OPTION

See Bulk Packing

Information table

375mm x 267mm x 375mm

Intermediate Box

FSCINT
Label

Customized
Label

333mm x 231mm x 183mm

Intermediate Box

FSCINT
Label

Customized
Label

TO-92 TNR/AMMO PACKING INFROMATION

Packing

Style

Quantity

EOL code

Reel

A

2,000

D26Z

E

2,000

D27Z

Ammo

M

2,000

D74Z

P

2,000

D75Z

Unit weight                                      = 0.22 gm
Reel weight with components         = 1.04 kg
Ammo weight with components      = 1.02 kg
Max quantity per intermediate box  = 10,000 units

F63TNR
Label

5 Ammo boxes per

Intermediate Box

Customized
Label

327mm x 158mm x 135mm

Immediate Box

LOT:

CBVK741B019

NSID:

PN2222N

D/C1:

D9842



     SPEC REV:

B2

SPEC:

QTY:

10000

QA REV:

FAIRCHILD SEMICONDUCTOR   CORPORATION



HTB:B

(FSCINT)

F63TNR
Label

Customized
Label

5 Reels per

Intermediate Box

TAPE and REEL OPTION

See Fig 2.0 for various

Reeling Styles

LOT: CBVK741B019

FSID:  PN222N

D/C1: D9842      QTY1:

        SPEC REV:

SPEC:

QTY: 2000

D/C2:

      QTY2:

        CPN:

N/F: F      (F63TNR)3

F63TNR Label sample

FSCINT Label sample

C

5 EO70 boxes per
 intermediate Box

ustomized

Label

 94 (NON PROELECTRON

 SERIES), 96

L34Z

TO-92  STANDARD
STRAIGHT FOR: PKG 94

NO LEADCLIP

2.0 K / BOX

(PROELECTRON SERIES

BCXXX, BFXXX, BSRXXX),
97, 98

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

TO-92 Tape and Reel Data, continued

September 1999, Rev. B

TO-92 Reeling Style
Configuration:
Figure 2.0

Style “A”, D26Z, D70Z (s/h)

Machine Option “A” (H)

Style “E”, D27Z, D71Z (s/h)

Machine Option “E” (J)

FIRST WIRE OFF IS EMITTER
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON BOTTOM



ORDER STYLE

D75Z (P)

FIRST WIRE OFF IS COLLECTOR
ADHESIVE TAPE IS ON THE TOP SIDE
FLAT OF TRANSISTOR IS ON TOP



ORDER STYLE

D74Z (M)

TO-92 Radial Ammo Packaging
Configuration:
Figure 3.0

FIRST WIRE OFF IS EMITTER (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON BOTTOM

FIRST WIRE OFF IS COLLECTOR (ON PKG. 92)
ADHESIVE TAPE IS ON BOTTOM SIDE
FLAT OF TRANSISTOR IS ON TOP

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

ITEM DESCRIPTION

Base of Package to Lead Bend

Component Height

Lead Clinch Height

Component Base Height

Component Alignment ( side/side )

Component Alignment ( front/back )

Component Pitch

Feed Hole Pitch

Hole Center to First Lead

Hole Center to Component Center

Lead Spread

Lead Thickness

Cut Lead Length

Taped Lead Length

Taped Lead Thickness

Carrier Tape Thickness

Carrier Tape Width

Hold - down Tape Width

Hold - down Tape position

Feed Hole Position

Sprocket Hole Diameter

Lead Spring Out

SYMBOL

b

Ha

HO

H1

Pd

Hd

P

PO

P1

P2

F1/F2

d

L

L1

t

t1

W

WO

W1

W2

DO

S

DIMENSION

0.098 (max)

0.928 (+/- 0.025)

0.630 (+/- 0.020)

0.748 (+/- 0.020)

0.040 (max)

0.031 (max)

0.500 (+/- 0.020)

0.500 (+/- 0.008)

0.150 (+0.009, -0.010)

0.247 (+/- 0.007)

0.104 (+/- 0 .010)

0.018 (+0.002, -0.003)

0.429 (max)

0.209 (+0.051, -0.052)

0.032 (+/- 0.006)

0.021 (+/- 0.006)

0.708 (+0.020, -0.019)

0.236 (+/- 0.012)

0.035 (max)

0.360 (+/- 0.025)

0.157 (+0.008, -0.007)

0.004 (max)

Note : All dimensions are in inches.

ITEM DESCRIPTION

SYSMBOL

MINIMUM

MAXIMUM

Reel Diameter

D1

13.975

14.025

Arbor Hole Diameter (Standard)

D2

1.160

1.200

 (Small Hole)

D2

0.650

0.700

Core Diameter

D3

3.100

3.300

Hub Recess Inner Diameter

D4

2.700

3.100

Hub Recess Depth

W1

0.370

0.570

Flange to Flange Inner Width

W2

1.630

1.690

Hub to Hub Center Width

W3

2.090

Note: All dimensions are inches

TO-92 Tape and Reel Taping
Dimension Configuration:
Figure 4.0

Ha

H1 HO

PO

P2

P1 F1

DO

P

Pd

b

d

L1

L

S

WO

W2

W

t

t1

Hd

W1

TO-92 Reel
Configuration:
Figure 5.0

User Direction of Feed

SEN SI TIVE  D EVICES

ELECT ROSTATIC

D1

D3

Customized Label

W2

W1

W3

F63TNR Label

D4

D2

TO-92 Tape and Reel Data, continued

July 1999, Rev. A

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

TO-92 (FS PKG Code 92, 94, 96)

TO-92 Package Dimensions

January 2000, Rev. B

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram):  0.1977

©2000 Fairchild Semiconductor International

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

SOT-23 Packaging
Configuration:
Figure 1.0

Components

Leader Tape
500mm minimum or

125 empty pockets

Trailer Tape
300mm minimum or

75 empt y poc kets

SOT-23 Tape Leader and Trailer

Configuration:  Figure 2.0

Cover Tape

Carrier Tape

Note/Comments

Packaging Option

SOT-23 Packaging Information

Standard

(no flow code)

D87Z

Packaging type

Reel Size

TNR

7" Dia

TNR

13"

Qty per Reel/Tube/Bag

3,000

10,000

Box Dimension (mm)

187x107x183

343x343x64

Max qty per Box

24,000

30,000

Weight  per unit (gm)

0.0082

0.0082

Weight per Reel (kg)

0.1175

0.4006

H uman readable
Label

Human Readable Label

Human Readable Label sample

343mm x 342mm x 64mm

Intermediate box for L87Z Option

187mm x 107mm x 183mm

Intermediate Box for Standard Option

SOT-23 Unit Orientation



3P

3P

3P

3P

Human Readable

Label

Customized Label

Embossed

Carrier Tape

Antistatic Cover Tape

Packaging Description:

SOT-23
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
3,000 units per 7" or 177cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (anti-
static coated). Other option comes in 10,000 units per 13"
or 330cm diameter reel. This and some other options are
described in the Packaging Information table.

These full reels are individually labeled and placed inside
a standard intermediate made of recyclable corrugated
brown paper with a Fairchil d logo printing. One pizza box
contains eight reels maximum. And these intermediate
boxes are placed inside a labeled shipping box which
comes in different sizes depending on the number of parts
shipped.

parts are shipped in tape. The carrier tape is

SOT-23 Tape and Reel Data

September 1999, Rev. C

©2000 Fairchild Semiconductor International

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

Dimensions are in millimeter

Pkg type

A0

B0

W

D0

D1

E1

E2

F

P1

P0

K0

T

Wc

Tc

SOT-23

(8mm)

3.15
+/-0.10

2.77
+/-0.10

8.0
+/-0.3

1.55
+/-0.05

1.125
+/-0.125

1.75
+/-0.10

6.25
min

3.50
+/-0.05

4.0
+/-0.1

4.0
+/-0.1

1.30
+/-0.10

0.228
+/-0.013

5.2
+/-0.3

0.06
+/-0.02

Dimensions are in inches and millimeters

Tape Size

Reel

Option

Dim A

Dim B

Dim C

Dim D

Dim N

Dim W1

Dim W2

Dim W3 (LSL-USL)

8mm

7" Dia

7.00
177.8

0.059
1.5

512 +0.020/-0.008
13 +0.5/-0.2

0.795
20.2

2.165
55

0.331 +0.059/-0.000
8.4 +1.5/0

0.567
14.4

0.311 – 0.429
7.9 – 10.9

8mm

13" Dia

13.00
330

0.059
1.5

512 +0.020/-0.008
13 +0.5/-0.2

0.795
20.2

4.00
100

0.331 +0.059/-0.000
8.4 +1.5/0

0.567
14.4

0.311 – 0.429
7.9 – 10.9

See detail AA

Dim A

max

13" Diameter Option

7" Diameter Option

Dim A

Max

See detail AA

W3

W2 max Measured at Hub

W1 Measured at Hub

Dim N

Dim D

min

Dim C

B Min

DETAIL AA

Notes:  A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

rotational and lateral movement requirements (see sketches A, B, and C).

20 deg maximum component rotation

0.5mm
maximum

0.5mm
maximum

Sketch C (Top View)

Component lateral movement

Typical
component
cavity
center line

20 deg maximum

Typical
component
center line

B0

A0

Sketch B (Top View)

Component Rotation

Sketch A (Side or Front Sectional View)

Component Rotation

User Direction of Feed

SOT-23  Embossed Carrier Tape
Configuration:
Figure 3.0

SOT-23 Reel Configuration: Figure 4.0

P1

A0

D1

F

W

E1

E2

Tc

Wc

K0

T

B0

D0

P0

P2

SOT-23 Tape and Reel Data, continued

September 1999, Rev. C

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

SOT-23 (FS PKG Code 49)

SOT-23 Package Dimensions

September 1998, Rev. A1

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram):  0.0082

©2000 Fairchild Semiconductor International

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

SOT-223 Packaging
Configuration:
Figure 1.0

Components

Leader Tape
500mm minimum or
62 empty pockets

Trailer Tape
300mm minimum or
38 empty pockets

SOT-223 Tape Leader and Trailer
Configuration:
Figure 2.0

Cover Tape

Carrier Tape

Note/Comments

Packaging Option

SOT-223 Packaging Information

Standard

(no flow code)

D84Z

Packaging type

Reel Size

TNR

13" Dia

TNR

7" Dia

Qty per Reel/Tube/Bag

2,500

500

Box Dimension (mm)

343x64x343

184x187x47

Max qty per Box

5,000

1,000

Weight per unit (gm)

0.1246

0.1246

Weight per Reel (kg)

0.7250

0.1532

SOT-223 Unit Orientation

F

852

014

F

852

014

F

852

014

F

852

014

F63TNR Label

343mm x 342mm x 64mm

Intermediate box for Standard

184mm x 184mm x 47mm

Pizza Box for D84Z Option

F63TNR Label

LOT: CBVK741B019

FSID:  PN2222A

D/C1: D9842       QTY1:

        SPEC REV:

SPEC:

QTY: 3000

D/C2:

      QTY2:

        CPN:

N/F: F            (F63TNR)3

F63TNR Label sample

F63TNR Label

Antistatic Cover Tape

Customized Label

Static Dissipative

 Embossed Carrier Tape

Packaging Description:

SOT-223 parts are shipped in tape. The carrier tape is
made from a dissipative (carbon filled) polycarbonate
resin. The cover tape is a multilayer film (Heat Activated
Adhesive in nature) primarily composed of polyester film,
adhesive layer, sealant, and anti-static sprayed agent.
These reeled parts in standard option are shipped with
2,500 units per 13" or 330cm diameter reel. The reels are
dark blue in color and is made of polystyrene plastic (anti-
static coated). Other option comes in 500 units per 7" or
177cm diameter reel. This and some other options are
further described in the Packaging Information table.

These full reels are individually barcode labeled and
placed inside a standard intermediate box (illustrated in
figure 1.0) made of recyclable corrugated brown paper.
One box contains two reels maximum. And these boxes
are placed inside a barcode labeled shipping box which
comes in different sizes depending on the number of parts
shipped.

SOT-223 Tape and Reel Data

September 1999, Rev. B

©2000 Fairchild Semiconductor International

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

Dimensions are in millimeter

Pkg type

A0

B0

W

D0

D1

E1

E2

F

P1

P0

K0

T

Wc

Tc

SOT-223

(12mm)

6.83
+/-0.10

7.42
+/-0.10

12.0
+/-0.3

1.55
+/-0.05

1.50
+/-0.10

1.75
+/-0.10

10.25
min

5.50
+/-0.05

8.0
+/-0.1

4.0
+/-0.1

1.88
+/-0.10

0.292
+/-
0.0130

9.5
+/-0.025

0.06
+/-0.02

P1

A0

D1

P0

F

W

E1

D0

E2

B0

Tc

Wc

K0

T

Dimensions are in inches and millimeters

Tape Size

Reel

Option

Dim A

Dim B

Dim C

Dim D

Dim N

Dim W1

Dim W2

Dim W3 (LSL-USL)

12mm

7" Dia

7.00
177.8

0.059
1.5

512 +0.020/-0.008
13 +0.5/-0.2

0.795
20.2

5.906
150

0.488 +0.078/-0.000
12.4 +2/0

0.724
18.4

0.469 – 0.606
11.9 – 15.4

12mm

13" Dia

13.00
330

0.059
1.5

512 +0.020/-0.008
13 +0.5/-0.2

0.795
20.2

7.00
178

0.488 +0.078/-0.000
12.4 +2/0

0.724
18.4

0.469 – 0.606
11.9 – 15.4

See detail AA

Dim A

max

13" Diameter Option

7" Diameter Option

Dim A

Max

See detail AA

W3

W2 max Measured at Hub

W1 Measured at Hub

Dim N

Dim D

min

Dim C

B Min

DETAIL AA

Notes:  A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

rotational and lateral movement requirements (see sketches A, B, and C).

20 deg maximum component rotation

0.5mm
maximum

0.5mm
maximum

Sketch C (Top View)

Component lateral movement

Typical
component
cavity
center line

20 deg maximum

Typical
component
center line

B0

A0

Sketch B (Top View)

Component Rotation

Sketch A (Side or Front Sectional View)

Component Rotation

User Direction of Feed

SOT-223 Embossed Carrier Tape
Configuration:
Figure 3.0

SOT-223 Reel Configuration: Figure 4.0

SOT-223 Tape and Reel Data, continued

July 1999, Rev. B

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

SOT-223 (FS PKG Code 47)

SOT-223 Package Dimensions

1 : 1

Scale 1:1 on letter size paper

Part Weight per unit (gram):  0.1246

September 1999, Rev. C

©2000 Fairchild Semiconductor International

/var/www/html/datasheet/sites/default/files/pdfhtml_images/2n3904-html.html
background image

TRADEMARKS

The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.

2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or

effectiveness.

PRODUCT STATUS DEFINITIONS

Definition of Terms

Datasheet Identification

Product Status

Definition

Advance Information

Preliminary

No Identification Needed

Obsolete

This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.

This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.

This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.

This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.

Formative or
In Design

First Production

Full Production

Not In Production

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.

PowerTrench
QFET™
QS™
QT Optoelectronics™
Quiet Series™
SILENT SWITCHER
SMART START™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8

FASTr™
GlobalOptoisolator™
GTO™
HiSeC™
ISOPLANAR™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
PACMAN™
POP™

Rev. G

ACEx™
Bottomless™
CoolFET™
CROSSVOLT
DOME™
E

2

CMOS

TM

EnSigna

TM

FACT™
FACT Quiet Series™
FAST

SyncFET™
TinyLogic™
UHC™
VCX™

Maker
Fairchild
Datasheet PDF Download
